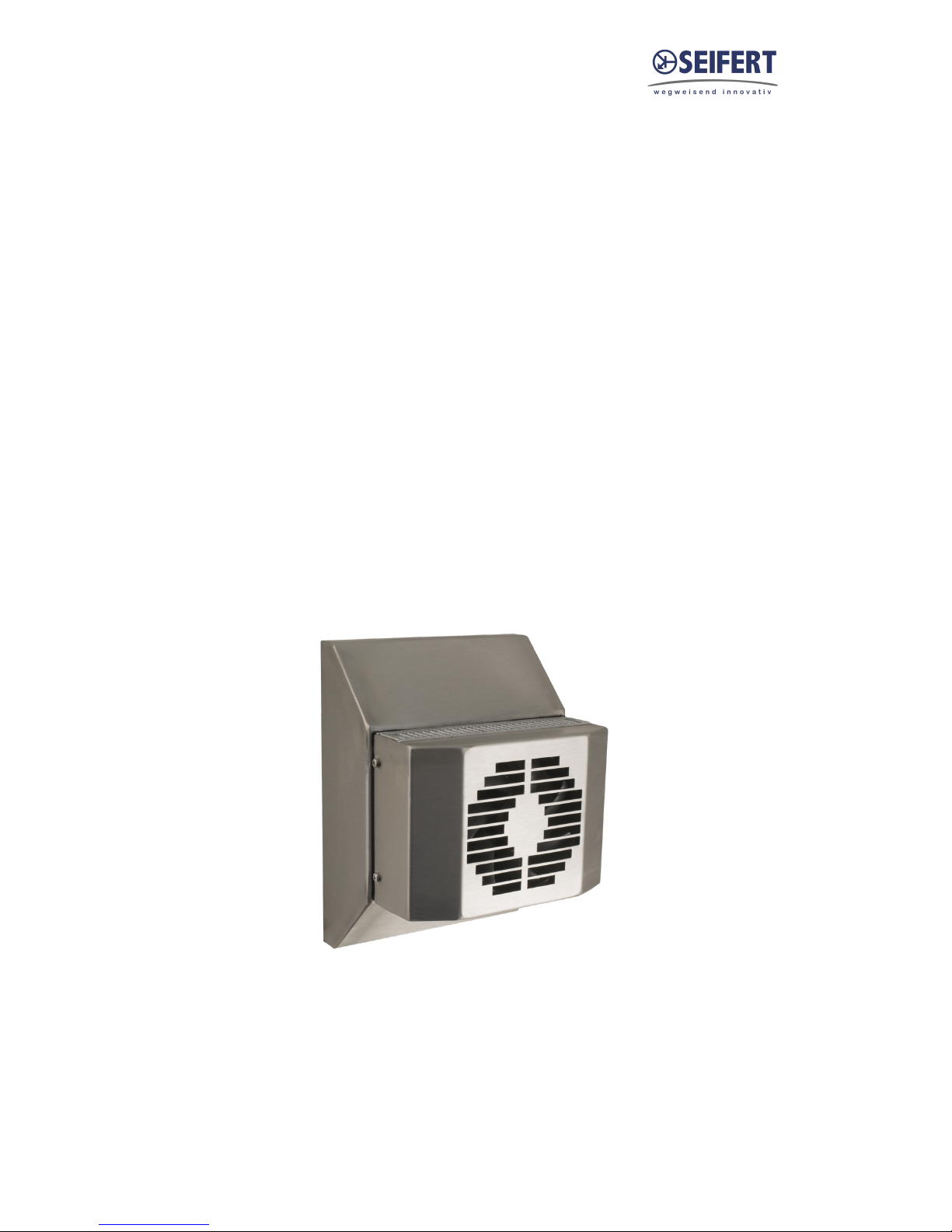

Seifert TG 3030-12V User manual

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 1 / 12
Table of Content TG 3030-12V
1. User manual 2 ...................................................................................................................
2. Legal regulations 2 ...........................................................................................................
3. Safety instructions 3 ........................................................................................................
4. Technical information 4 ...................................................................................................
5. Functional principle 4 ......................................................................................................
6. Technical data 5 ................................................................................................................
8. Mounting 6 .........................................................................................................................
9. Cut out dimensions 7 .......................................................................................................
10. Dimensions (H x W x D) 8 ..............................................................................................
11. Electrical connection 9 ...................................................................................................
12. Wiring diagram 10 ..........................................................................................................
13. Taking into operation 11 ...............................................................................................
14. Trouble shooting 11 ......................................................................................................
15. Maintenance & Cleaning 11 ..........................................................................................
16. Maintenance 12 ...............................................................................................................
17. Transport & Storage 12 .................................................................................................
18. Parts supplied 12 ............................................................................................................

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 2 / 12
1. User manual
This instruction manual contains information and instructions to enable the user to work safely,
correctly and economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
●
Reduce repair costs and stoppages.
●
Extend and improve the reliability and working life of the unit.
●
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR
YOUR UNIT.
Conditions of use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in
order to protect temperature sensitive components in an industrial environment. To meet the
conditions of use, all the information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not
covered by a specific pictogram such as one of the following.
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of
the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of
going to press. We reserve the right to make technical changes to the unit in the course of its
development. Therefore, no claims can be accepted for previously delivered units based on the
information, diagrams or descriptions contained in this manual. No liability can be accepted for
damage and production caused by:

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 3 / 12
Disregarding the instruction manual
●
Operating error
●
Inappropriate work on or with the unit
●
The use of non-specified spare parts and accessories
●
Unauthorised modifications or changes to the unit by the user or his personnel
●
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in
the main contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards therefore it can be safely taken
into operation. Only trained specialists are allowed to work on the unit. Unauthorised personnel must
be prohibited from working on the unit. Operating personnel must inform their superiors immediately if
any malfunction of the unit becomes apparent.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the
cabinet on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be
read with regards to:
Safety instructions.
●
Instructions on taking the cabinet out of operation.
●
Instructions on the prevention of unauthorised cabinet reconnection.
●
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50
V AC or above 100 V DC)
Behind the control cabinet doors.
●
On the power supply in the unit housing.
●
The unit has to be fused according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices such as ground fault
protection breakers.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and
qualified personnel, using only supplied material according to the supplied
instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The
personnel must ensure that for the duration of the maintenance and cleaning, the
unit is disconnected from the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do
not use aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and
associated material must be disposed according to the environmental laws.

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 4 / 12
4. Technical information
Peltier cooling units are intended to be used as a complementary accessory to larger industrial
equipment. Theyare used where heat needs to be dissipated from electrical control cabinets or similar
enclosures in order to protect heat sensitive components.
Peltier cooling units can dissipate heat from sealed enclosures such as control cabinets. At the same
time they can reduce the cabinet internal temperature to below the ambient air temperature. They are
available in powder-coated sheet steel or stainless steel housings. Peltier units have additional heating
function by changing the supply polarity of the thermoelectric elements. This is possible by using a
combination of thermostats or having a specific polarity controller.
Peltier air conditioners are resistant to extreme ambient conditions and can operate effectively even in
environments which are dusty and oily and where temperatures may vary from -20°C to +65°C. For
the cooling capacities and evironmental ratings please refer to the type plate data.
5. Functional principle
The thermoelectric elements create a temperature difference between the internal and ambient heat
sinks, making internal air cooler while dissipating heat into the external environment. Fans help the
transfer of convective heat from the heat sinks, which are optimized for maximum flow. Peltier units be
mounted in any position because these units don’t have a compressor and no moving
parts. Depending on the mounting situation the condensation management may need to be
considered and possibly adjusted.

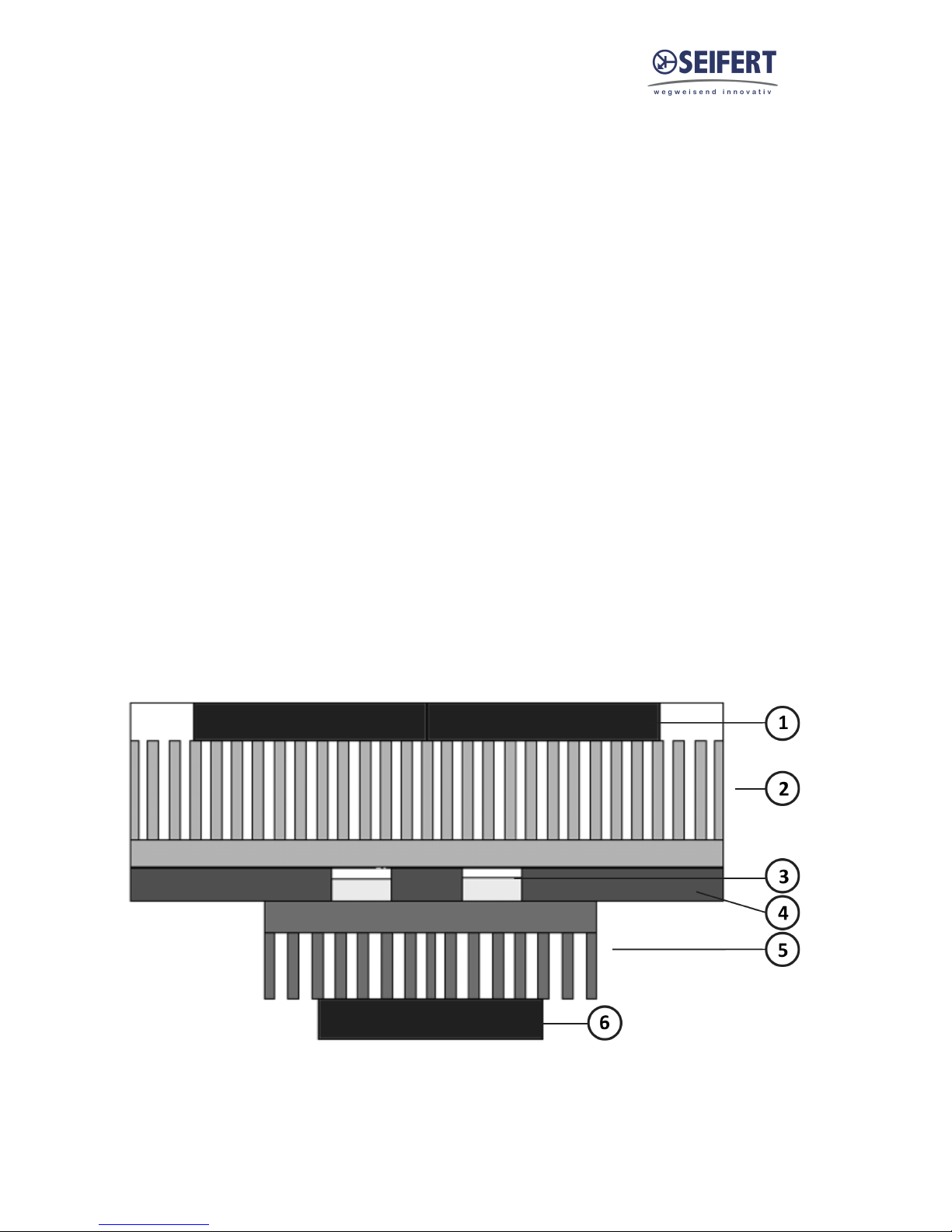

1. Ambient fans
2. Ambient heat sinks
3. Thermolelectric elements
4. Insulation
5. Internal heat sink
6. Internal fan

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 5 / 12
6. Technical data
Order Number 3030305
Cooling capacity L35L35 30 W
Temperature range -20°C - +65°C
Air volume flow Ambient air circuit: 39 m³/h
Cabinet air circuit: 20 m³/h
Mounting External (with frame)
Housing Material Stainless steel AISI 304 (V2A)
Dimension HxWxD 212 x 158 x 131 mm
Weight 2.6 kg
Cut out dimensions 180 x 128 mm
Voltage / Frequency 12 V DC
use NEC Class 2 supply
Current L35L35 2.8 A
Starting current 4.3 A
Max. current 2.9 A
Nominal power L35L35 34 W
Max. power 35 W
Fuse 5 A (T)
Connection Connection terminal block
IP class EN 60529 IP 66
Approvals CE, RoHS

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 6 / 12
8. Mounting
Always switch off power supply before starting any work on the unit.
Installation
Ensure that flows of air leaving and entering the cooling unit, internal and external, are not obstructed.
Before drilling the enclosure, ensure the fixing elements and couplings will not interfere with the
equipment inside the enclosure itself. When all mounting preparations are complete the actual
mounting operation can commence. Only use the enclosed material to mount the unit on the cabinet.
Proceed as follows to mount the unit on the cabinet:
• Set the unit up on the cabinet.
• Ensure that the electrical connection is above the internal fan.
• Unit without duct: screw the M6 locknuts & washers into the M6 set screws in the unit.
• Unit with duct: screw the M6 screws & washers into the M6 threaded rivets in the unit.
The resistance of the earth connection between cabinet and cooling unit must be <0.1Ω.

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 7 / 12

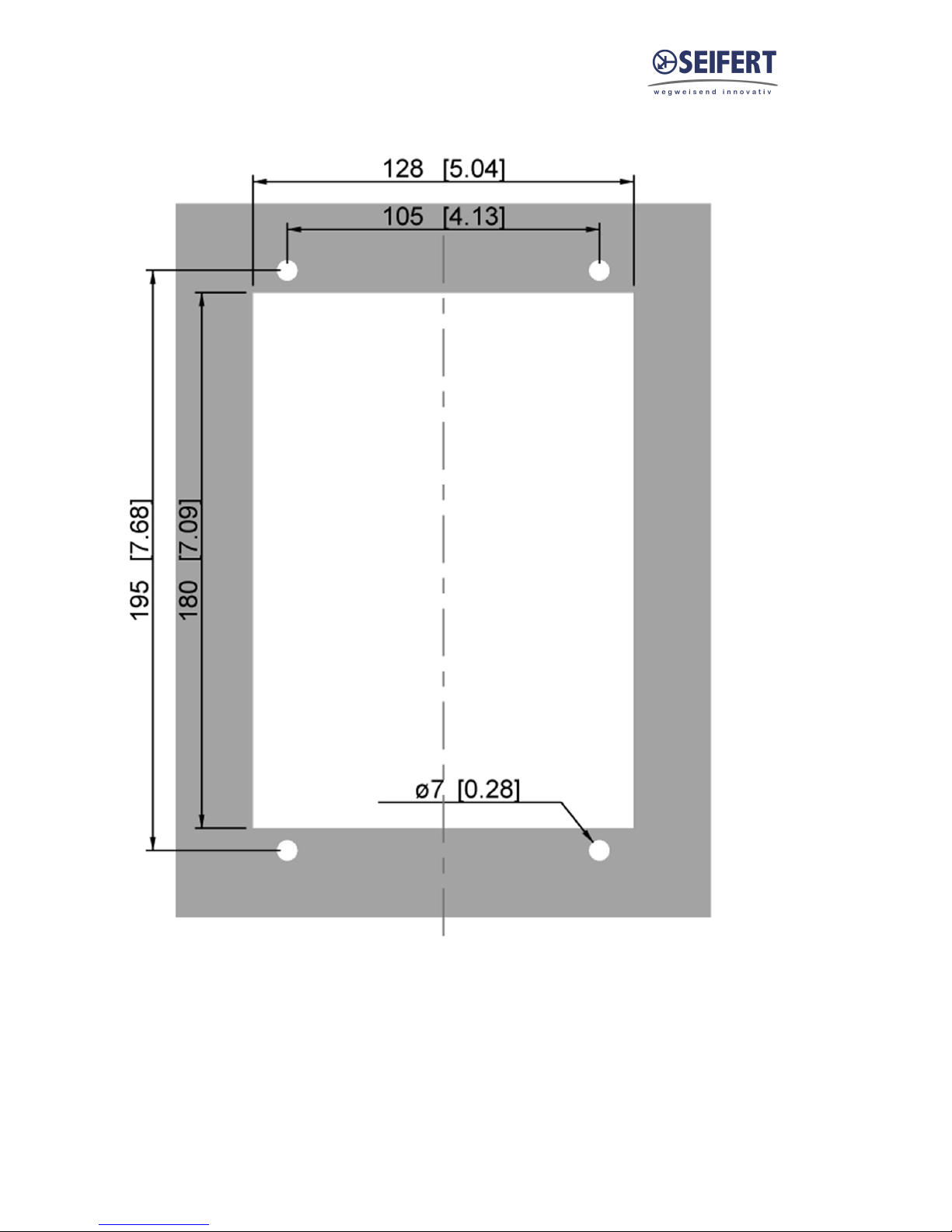

9. Cut out dimensions

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 8 / 12

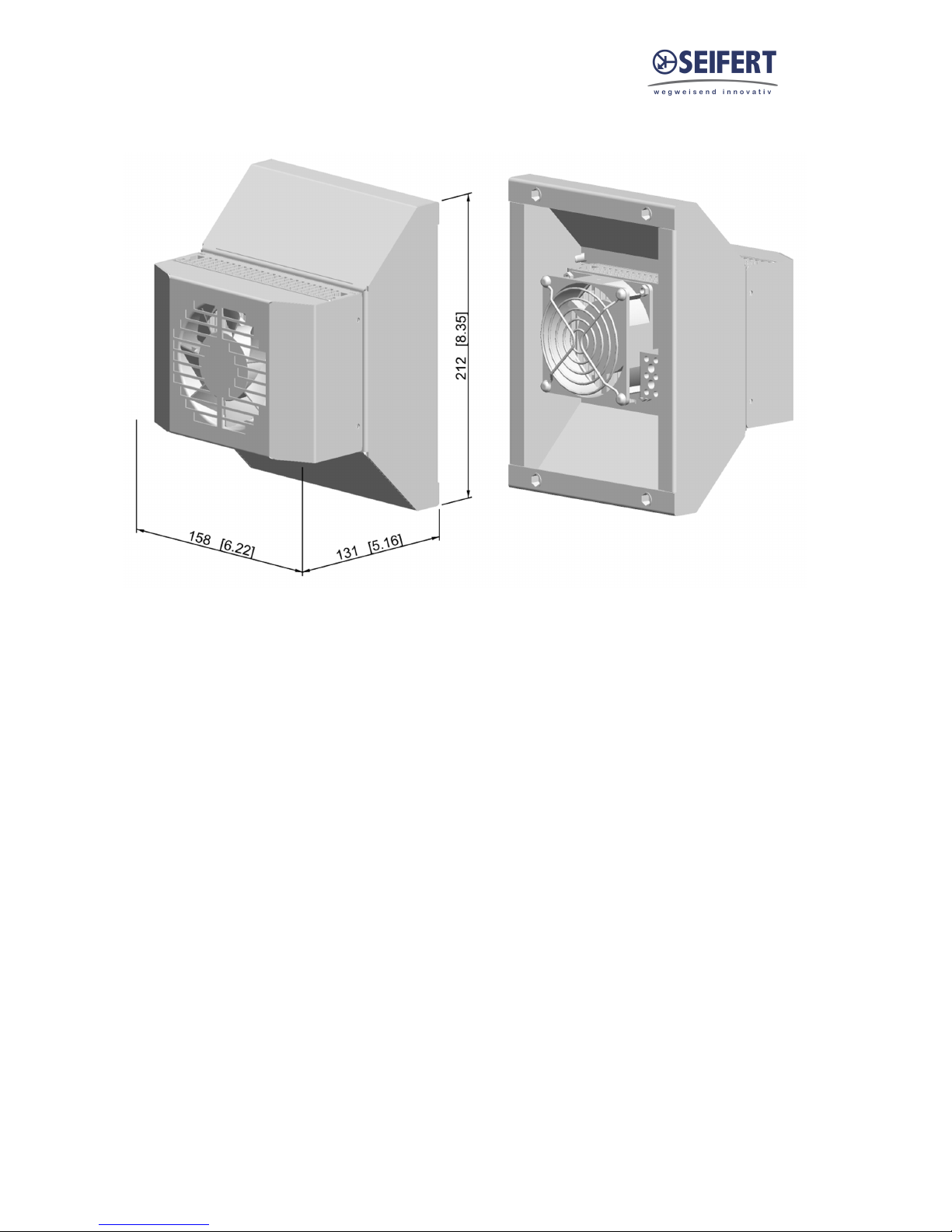

10. Dimensions (H x W x D)

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 9 / 12
11. Electrical connection
High electric voltage present. Installation, maintenance, cleaning and
any other work must be carried out by qualified personnel only. The
personnel must ensure that for the duration of this work the unit and
the cabinet are disconnected from the electrical supply and protected
against unauthorised/accidental reconnection.
Instruction: Check that the available voltage, frequency and fuse rating are the same as those stated
on the unit data label.
Connection to the main electricity supply
The mains connection is made via a cable. To connect the unit to the mains supply proceed as follows:
Disconnect the control cabinet from the mains.
●
󰾬See the connection details on the circuit diagram.
●
Note the connections on the four pole terminal block from the following table.
●
Terminal 12 V DC
1 Ambient Fan +
2 Ambient Fan -
3 Internal Fan +
Ensure that the correct polarity is maintained. The fans should have
clockwise rotation.
Connect the unit to the mains.
●
Take the control cabinet back into operation in the prescribed manner.
●
Power consumption and start-up current are stated on the data label and under technical data.

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 10 / 12

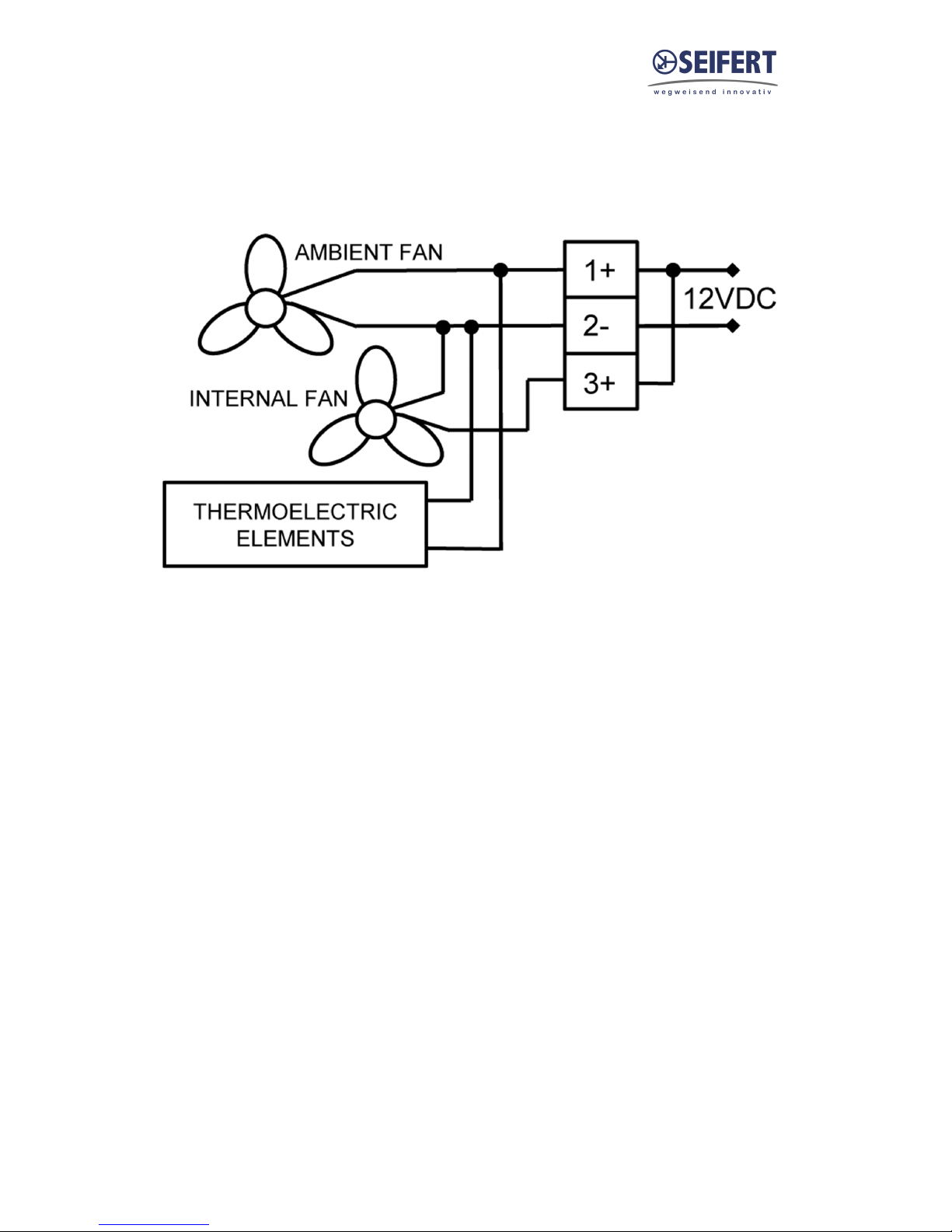

12. Wiring diagram
TE Thermoelectric Elements
IF Internal Fan
AF Ambient Fan

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 11 / 12
13. Taking into operation
The power supply rating on the rating plate must comply with mains
supply
Always disconnect the power supply before opening the unit.
Heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. While selecting a cooling unit always cater for a safety margin of at least 15% extra cooling
output.
The Peltier - elements should be controlled by a suitable thermostat. Models TG 6XXX with 230 V
supply have already a controller integrated
14. Trouble shooting
In case of a fault please contact your nearest servicing office. A list of service partners can be found on
our website www.seifertsystems.com
15. Maintenance & Cleaning
Always switch off power supply before starting any work on the
unit. Only qualified personal may conduct any maintenance work on the
cooling unit.
All Peltier units are virtually maintenance-free and no filters which need to be cleaned or replaced.
Check the ambient heat sinks from time to time. In case they are durty proceed as following:
Disconnect the enclosure from the mains.
●
Clean the heat sink profile as required by blowing it out with compressed air.
●
In cases of extreme pollution wet cleaning is required.
●
The unit must be removed from the control cabinet for wet cleaning
Should a wet cleaning be necessary proceed as following:
Disconnect the whole plant from the mains.
●
Remove the unit from the cabinet.
●
Ensure that the seals are not damaged.
●
Wash the heat sink with an environmentally safe cleaning fluid.
●
Danger to the environment through unauthorized disposal.
Disposal
Dispose of cooling unit and used parts with due regard for the environment and in accordance
with environmental laws and regulations.

Version Nr. 1-1 - 11.11.2017 Doc. Nr. 993030305 12 / 12
16. Maintenance
Note: Only use original replacement parts when repairing the unit. This ensures that the unit functions
perfectly and remains safe.
Fan replacement: The average working life of the fan is ca. 40,000 hours under normal conditions.
Should a fan replacement be necessary proceed as following:
Disconnect the unit from the mains.
●
Remove the unit cover.
●
Remove the screws from the relevant fan.
●
Mount a new fan.
●
Damage to the unit through incorrect work.
Make sure that the cabinet fan or the ambient fan are not misplaced in the unit
as they are different. Ensure that the correct polarity is maintained. The fans must
rotate clockwise!
Replace the 4 fan fixing screws.
●
Close the unit and take it back into operation.
●
17. Transport & Storage
During transport and storage the cooling unit must be kept in the position marked on the box and at a
temperature between -40˚C and 70˚C and a relative humidity of max. 95% (at 25°C). In case of
damaged packaging after transport or in-house handling, we recommend controlling the unit for any
internal damages
18. Parts supplied
1 x Peltier Cooling unit
1 x Instruction manual
1 x CE Conformity Declaration
4 x Screws M6*10
4 x Washers
Seifert Systems GmbH Seifert Systems Ltd. Seifert Systems AG Seifert Systems Inc. Seifert Systems Pty Ltd.
Haßlinghauser Str. 156 HF09/10 Wilerstrasse 16 75 Circuit Drive 105 Lewis Road
Hal-Far Industrial Estate North Kingstown Wantirna South
58285 Gevelsberg Birzebbuga, BBG 3000 4563 Gerlafingen RI 0285 3152 Victoria
Germany Malta Switzerland USA Australia
Tel. [phone] Tel. [phone] Tel. [phone] Tel. [phone] Tel. [phone]
Fax [phone] Fax [phone] Fax [phone] Fax [phone] Fax. [phone]
[email protected] [email protected] [email protected] [email protected] [email protected]
