Seifert 85409576 User manual

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 1 / 24
Table of Content 85409576
1. User manual 2 ..................................................................................................................................
2. Legal regulations 2 .........................................................................................................................
3. Safety instructions 3 ......................................................................................................................
4. Settings 4 .........................................................................................................................................
5. Functional principle 5 .....................................................................................................................
6. Technical data 6 ..............................................................................................................................
7. Performance graph 7 ......................................................................................................................
8. Mounting 8 .......................................................................................................................................
9. Mounting Principle 11 .....................................................................................................................
10. Cut out dimensions 12 ..................................................................................................................
11. Electrical connection 13 ...............................................................................................................
12. Controller 15 ..................................................................................................................................
13. Wiring diagram 19 .........................................................................................................................
14. Taking into operation 20 ..............................................................................................................
15. Trouble shooting 21 ......................................................................................................................
16. Maintenance & Cleaning 21 .........................................................................................................
17. Transport & Storage 22 ................................................................................................................
18. Parts supplied / Spare parts / Accessories 23 ..........................................................................

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 2 / 24
1. User manual
This instruction manual contains information and instructions to enable the user to work safely, correctly and
economically on the unit. Understanding and adhering to the manual can help one:
Avoid any dangers.
Reduce repair costs and stoppages.
Extend and improve the reliability and working life of the unit.
PLEASE ENSURE TO USE THE RIGHT VERSION OF THE INSTRUCTION MANUAL SUITABLE FOR YOUR
UNIT.
Intended use
󰾬The unit is to be used exclusively for the dissipation of heat from control cabinets and enclosures in order to
protect temperature sensitive components in an industrial enviorment. To meet the conditions of use, all the
information and instructions in the instruction manual must be adhered to.
General danger
Indicates compulsory safety regulations which are not covered by a specific
pictogram such as one of the following.
󰾬
High electric voltage
Indicates electric shock danger.
Important safety instruction
Indicates instructions for safe maintenance and operation of the unit.
Attention
Indicates possible burns from hot components.
Attention
Indicates possible damage to the unit.
Instruction
Indicates possible danger to the environment.
2. Legal regulations
Liability
The information, data and instructions contained in this instruction manual are current at the time of going to
press. We reserve the right to make technical changes to the unit in the course of its development. Therefore,
no claims can be accepted for previously delivered units based on the information, diagrams or descriptions
contained in this manual. No liability can be accepted for damage and production caused by:

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 3 / 24
Disregarding the instruction manual
Operating error
Inappropriate work on or with the unit
The use of non-specified spare parts and accessories
Unauthorised modifications or changes to the unit by the user or his personnel
The supplier is only liable for errors and omissions as outlined in the guarantee conditions contained in the main
contractual agreement. Claims for damages on any grounds are excluded.
3. Safety instructions
Upon delivery the unit is already meeting current technical standards and can therefore be safely taken into
operation. Only authorised personnel is allowed to work on the unit. Unauthorised personnel must be prohibited
from working on the unit. Operating personnel must inform their superiors immediately of any malfunction of
the unit.
Please note that before starting to work on or with the unit, a procedure must be carried out inside the cabinet
on which the unit is to be mounted.
Before commencing work inside the cabinet, the control cabinet manufacturer's instruction must be read with
regards to:
Safety instructions.
Instructions on taking the cabinet out of operation.
Instructions on the prevention of unauthorised cabinet reconnection.
The electric equipment meets the valid safety regulations. One can find dangerous voltages (above 50 V AC or
above 100 V DC)
Behind the control cabinet doors.
On the power supply in the unit housing.
The unit has to be operated according to the type plate and the wiring diagram, and must be protected
externally from overloading and electrical faults via suitable protective devices.
Danger through incorrect work on the unit
The unit can only be installed and maintained by technical competent and qualified personnel,
using only supplied material according to the supplied instructions.
󰾬
Danger from electrical voltage
Only specialised personnel are allowed to maintain and clean the unit. The personnel must
ensure that for the duration of the maintenance and cleaning, the unit is disconnected from
the electrical supply.
Attention
Damage to the unit through the use of inappropriate cleaning materials. Please do not use
aggressive cleaning material.
Instruction
Damage to the environment through unauthorised disposal. All spare parts and associated
material must be disposed according to the environmental laws.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 4 / 24
4. Settings
The cooling unit is intended to be used as a complementary accessory to larger industrial equipment. The unit
is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to
protect heat sensitive components. It is not intended for household use.
The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into
contact with the ambient air which may well be dirty or polluted.
Enclosure cooling units can dissipate large quantities of heat from sealed enclosures such as electrical
enclosures into the ambient air and at the same time reduce the cabinet internal temperature to below that of
the ambient air.
The unit can function without problems in extreme ambient conditions (e.g. dusty and oily air) with a standard
operating temperature ranging between +10°C (50°F) and +60°C (131°F). Units can be ordered with an
additional electrical cabinet heater. For the cooling capacities and evironmental ratings please refer to the type
plate data.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 5 / 24
5. Functional principle
The cooling unit for industrial enclosures works on the basis of a refrigeration circuit consisting of four main
components; a compressor, an evaporator, a condenser and an expansion device. The circuit is hermetically
sealed and R134a refrigerant circulates inside it (R134a is chlorine free and has an Ozone Destruction Potential
[ODP] of 0 and a Global Warming Potential [GWP] of 1430).
The compressor compresses the refrigerant (thus taking it to high pressure and high temperature), and pushes
it through the condenser, where it is cooled by ambient air thus passing from the gas to the liquid state. At the
liquid state it then passes through the capillary pipe being a much lower pressure the refrigerant arrives to the
evaporator where it absorbs the necessary heat to change from liquid to gas state. The gas is then drawn back
into the compressor completing the cycle.
1 Air intake cabinet side 6 Air intake ambient side
2 Radial fan cabinet side 7 Air intake ambient side
3 Evaporator 8 Condenser
4 Air outlet cabinet side 9 Air outlet ambient side
5 Compressor 10 Filter dryer
11 Expansion device

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 6 / 24
6. Technical data
Order Number 85409576
Cooling capacity 95F/95F 13650 BTU @ 50 Hz
14330 BTU @ 60 Hz
Cooling capacity 95F/122F 11950 BTU @ 50 Hz
13300 BTU @ 60 Hz
Compressor type Rotary piston
Refrigerant / GWP R134a / 1430
Refrigerant charge 585 g / 20.6 oz
High / low pressure 32 / 6 bar
460 / 88 psi
Operating temperature range 50°F - 140°F
UL temperature range 50°F - 140°F
Air volume flow (system / unimpeded) Ambient: 590 / 825 cfm
Enclosure: 441 / 706 cfm
Mounting Wall mounted / recessed
Housing Material Mild steel, powder coated
Dimension H x W x D 1550 x 455 x 270 mm
Weight 136 lbs.
Voltage / Frequency 380-415 V 50 Hz 3~
400-460 V 60 Hz 3~
UL Voltage / Frequency 460 V / 60Hz 3~
Current 95F95F 3.5 A @ 50 Hz
3.7 A @ 60 Hz
Starting current 15 A
Max. current 4.8 A
Nominal power 95F95F 1.73 kW @ 50 Hz
2.27 kW @ 60 Hz
Max. power 3.2 kW
Fuse 15 A (T)
Max circuit ampacity 15 A
Short-circuit current rating 5 kA
Rated current compressor 3 A
Full load current fans 1.3 A
Connection 5 pole terminal for signals
4 pole terminal for power
Ingress protection Type 3, 3R, 12, 4
Approvals CE, cURus, cULus

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 7 / 24
7. Performance graph

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 8 / 24
8. Mounting
The power supply rating on unit rating plate must comply with mains rating.
Always disconnect the power supply before opening the unit.
The heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any
condition. At cooling unit selection always cater for a safety margin of at least 15% extra cooling output in the
worst conditions.
Air inlets and outlets must be completely free from obstruction. Ensure that flows of air leaving and entering the
cooling unit, internal and external, are not obstructed. It must also be ensured in accordance with UL, that the
air outlet is not blowing air directly at an equipment operator. Should this be the case a barrier or duct shall be
provided to redirect the airflow.
Cooling unit enclosure air suction hole must be installed in the highest possible point.. When installing the unit
on a door ensure it can take the weight.
Before drilling the enclosure ensure the fixing elements and couplings will not interfere with the equipment
inside the enclosure itself. Disconnect power before starting any work inside the enclosure.

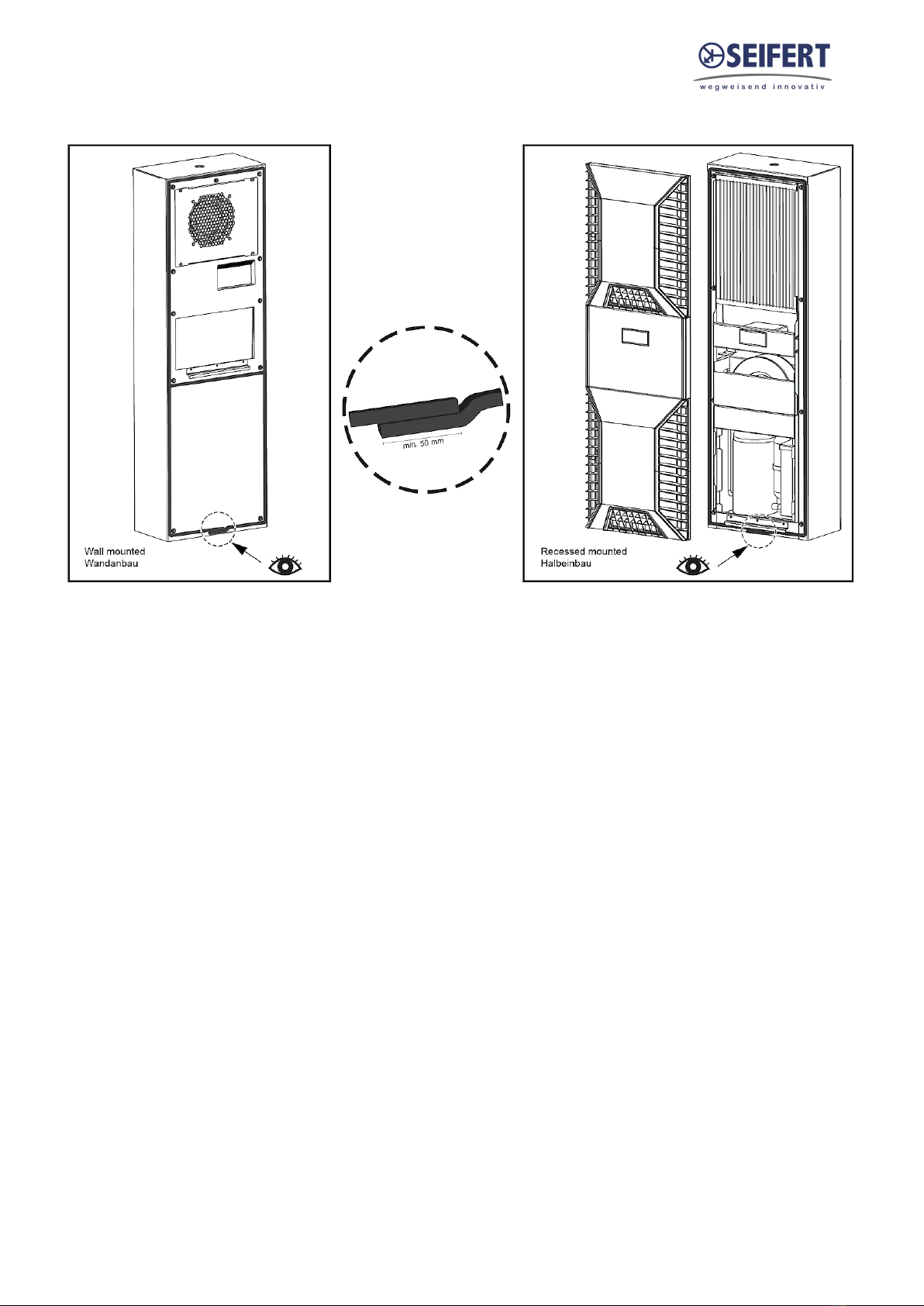

If the unit is mounted in a recessed position, the controller bracket can be pulled according to the wall thickness
of the enclosure outwards as per steps below.
.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 9 / 24
Cold air outlet duct:
When using a cold air outlet duct please follow the steps below.
Filter installation:
If you install / replace a filter please follow the steps below.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 10 / 24
Applying supplied tight tape
Condensate management:
High humidity and low temperatures inside the enclosure can lead to condensation on the evaporator.
Condensate that flows back into the enclosure can damage sensitive control electronics. The integrated
condensate evaporation of the cooling unit releases the condensate to the environment. If condensate
formation is too great, additional condensate can drip into an overflow trough, which then drains off on the
ambientt side.In order to prevent the formation of excessive condensate, you should nevertheless:
- check the seals at regular intervals
- consider installing a door contact switch (order no. 3100001). This can prevent condensation forming
when enclosure door is left open.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 11 / 24
9. Mounting Principle
NOTES:
• Do not use within the first 15 minutes after installation!
• Use only the supplied mounting hardware.
• Tighten Screws to 4.5 Nm.
• Ensure the mounting surface does not warp after assembly and reinforce it if necessary.
1 M6 screws
2 M6 toothed washers
3 M6 flat washers
4 Enclosure
5 Mounting gasket
6 Lifting sling
7 Cover
8 M4 screws
Fig. 1 Recessed
Fig. 2 External

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 12 / 24
10. Cut out dimensions

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 13 / 24
11. Electrical connection
Caution, risk of death
Unconnected and / or faulty protective conductor systems can lead to dangerous voltages and electric shocks
which can cause serious accidents.
Work on electrical connections may only be carried out by trained electrical engineers.
Door Switch
The unit can be switched ON and OFF via a door contact switch. When delivered the door contact terminals are
bridged on the female connector. To connect the door contact switch remove the bridge and connect door
contact switch. The contact must be closed when the cabinet door is closed.
It is possible to change the logic of the door switch (controller firmware rev. 1.2 or higher). This can be set by
changing the value of parameter c68. Refer to the table below and section Controller: Setting temperature units
(°C / °F), low temperature alarm, door contact logic section for more information.
c68 = 0 (default) ON if closed - Door contact terminals bridged, or NC door switch connected
(contact must be closed when cabinet door is closed)
c68 = 1 ON if open - Remove bridge, or NO door switch connected
(contact must be open when cabinet door is closed)
Alarm Contacts
Alarm contacts rated according to:
EN60730-1 8(4)A N.O., 6(4)A N.C., 2(2)A N.O./ N.C. @ 250Vac 100000 cycles
UL 873 8A resistive 2FLA 12LRA, pilot duty C300 @ 250Vac 30000 cycles
These contacts are not suitable for fluorescent loads (neon lights, etc.) that use starters (ballasts) with phase
shifting capacitors. Fluorescent lamps with electronic controllers or without phase shifting capacitors can be
used, depending on the operating limits specified for each type of relay.
SCCR
Refer to UL508A Supplement SB and Seifert Systems’ document Short Circuit Current Rating (SCCR) on methods
how to modify the available short circuit current within a circuit in the panel.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 14 / 24
Connect unit:
Connect the cooling device according to the instructions below. The cable cross-section must correspond to the
required power for the current consumption, but max. 2.5 mm² / AWG 14.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 15 / 24
12. Controller
Das Display zeigt Temperaturen im Bereich von -50°C bis +150°C (-58°F to +302°F) an. Die Temperatur wird in
Zehnerschritten von -19.9°C bis +99.9°C (-3.8°F bis +211.8°F) angezeigt. Während des
Programmierens werden sowohl die Kurzzeichen als auch die jeweiligen Werte angezeigt. Das Display zeigt
auch die jeweiligen Symbole entsprechend den Ereignissen an.
Display Symbole
Symbol Funktion Beschreibung
1 Relais Kompressor aktiv Blinkt wenn die Aktivierung durch
Eingreifen der Schutzzeiten,
oder laufende Verfahren verzögert wird.
2 Relais Alarm aktiv
3 Relais Heizung aktiv
4 Relais Umgebungslüfter aktiv
Alarm Blinkt wenn Alarm aktiv ist
Heizmodus Zeigt an, daß das Gerät im Heizmodus ist
Kühlmodus Zeigt an, daß das Gerät im Kühlmodus ist
TEST Testmodus läuft Kann nur manuell gestartet werden
Programmierung
Die Betriebsparameter können mittels des Keypads eingestellt bzw. verändert werden. Der Zugang hängt vom
Typ des Parameters ab. Der Zugang den Konfigurationsparametern ist mit einem Password geschützt damit
diese nicht aus Versehen oder von nicht authorisierten Personen geändert werden können.
Einstellen der gewünschten Schaltschranktemperatur St1:
1. Die “SET” Taste gedrückt halten bis St1 und dann der voreingestellte Wert (+35°C / +95°F) erscheinen.
2. Die Tasten ▲ oder ▼ betätigen um den gewünschten Wert auszuwählen.
3. Die SET Taste drücken um den ausgewählten Wert St1 zu speichern.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 16 / 24
Einstellen der gewünschten Heizungstemperatur St2:(nur für Geräte mit interner Heizung):
1. Die “SET” Taste zweimal langsam drücken bis St2 und dann der voreingestellte Wert ( +5°C / +41°F)
erscheinen.
2. Die Tasten ▲ oder ▼ betätigen um den gewünschten Wert auszuwählen.
3. Die SET Taste drücken um den ausgewählten Wert St2 zu speichern.
󰾬Einstellen der Temperaturanzeige (°C / °F), Niedrigtemperaturalarm und Hochtemperaturalarm:
1. Die Taste “PRG” für 5 Sekunden gedrückt halten bis die Liste der einstellbaren Parameter erscheint.
2. Die Tasten ▲ oder ▼ betätigen um den gewünschten Parameter auszuwählen.
C18 für metrisch oder imperial
°C = 0
°F = 1
P25 für Niedrigtemperaturalarm Grenzwert (voreingestellt -10°C / +14°F)
P26 für Hochtemperaturalarm Grenzwert (voreingestellt +55°C / +131°F)
c68 für Türkontakt NO/NC Logik Änderung (0=ON wenn geschlossen, 1=ON wenn offen)
Steuerung Firmware Rev. 1.2 oder höher.
3. Die SET Taste auf dem gewünschten Parameter drücken um den aktuellen Wert anzuzeigen.
4. Die Tasten ▲ oder ▼ betätigen um den gewünschten Wert auszuwählen.
5. Durch drücken der “SET” Taste wird der neue Wert vorübergehend gespeichert und die Parameterliste wieder
angezeigt.
6. Folgen Sie den Schritten 2-5 um die anderen Parameter einzustellen.
7. Die Taste “PRG” für 5 Sekunden gedrückt halten um die neuen Werte permanent zu speichern.
Testfunktion
Verschiedene Testfunktionen können abhängig von den jeweiligen Tastenkombinationen ausgewählt werden.
Die Testläufe dauern ca. 4 Minuten.
“SET+▲” testet Kompressor und Umgebungslüfter Relais
“SET+▼” testet Alarm und Heizung Relais

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 17 / 24
Alarm Relais Funktion
Es sind sowohl normal geschlossen (NC) als auch normal offen (NO) Alarmkontakte vorhanden. Unter
Normalbedingungen ist der NC Kontakt geschlossen und der NO Kontakt offen. Wenn eine Alarmsituation
auftritt, öffnet der NC Kontakt und der NO Kontakt schliesst.
Zustand Alarmrelais Display
1 System ausgeschaltet
2 System eingeschaltet
- KEIN ALARM
- Türkontakt geschlossen
3 System eingeschaltet
- Türkontakt offen
4 System eingeschaltet
- ALARM STATUS
Fehlertabelle:
Das Display zeigt entweder "OFF" oder "EXX" mit einem blinkendem Warndreieck abwechselnd mit der
Standardanzeige an.Bestehen mehrere Fehler, werden diese nacheinander angezeigt
Fehlercode Beschreibung Lösung
OFF
Tür offen Schaltschranktüre schließen, ggfs. Türkontaktschalter
überprüfen. Wenn kein Türkontaktschalter vorhanden und
c68=0, Türkontaktklemme überbrücken.
Falsche Phasenbelegung
(3~ Geräte) Wird beim Einschalten angezeigt. Phasenreihenfolge prüfen.
E01 Fehler interner
Temperatursensor Anschlüsse überprüfen
E02 Fehler Umgebungs-
temperatursensor Anschlüsse überprüfen
E04 Übertemperatur Alarm
Die gemessene Temperatur hat die Schwelle P26
überschritten. Leistung des Kühlgerätes überprüfen, Filter
und Kondensator reinigen; Überprüfen Sie den korrekten
Betrieb der Lüfter und des Kompressors. Kontaktieren Sie
Ihren Servicepartner.
E05 Niedrigtemperatur Alarm Die gemessene Temperatur hat die Schwelle P25
unterschritten.
E07 / E08 Fehler Steuerung Kontaktieren Sie Ihren Servicepartner.
Wichtige Hinweise:

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 18 / 24
Wird während des Programmiervorganges keine Taste innerhalb von 10 Sekunden betätigt, fängt das Display an
zublinken und kehrt nach 1 Minute zum Hauptmenü zurück ohne Änderungen zu speichern.
Um die Scrollgeschwindigkeit zu ändern drücken und halten Sie die ▲ oder ▼ Tasten für mindestens 5
Sekunden.
Wenn die Taste “PRG” für 3 Sekunden gedrückt wird, erscheint der Firmware Versionscode für 2
Sekunden.
Für die Reinigung des Displays bitte nicht Äthylalkohol, Kohlenwasserstoffe (Benzin), Ammoniak oder
Derivate verwenden. Es empfehlen sich Neutralreiniger und Wasser.
Um die Komponenten des Gerätes zu schützen werden minimale Ein- und Ausschaltzeiten (3 oder 7
Minuten) bzw. minimale Zeit (7 oder 11 Minuten) zwischen der Aktivierung desselben Relaisausgangs
angewendet.
Bei nicht konfigurierten digitalen Eingängen, nicht installierten oder konfigurierten Sonden oder bei nicht
aktiviertem St2 in der Steuerung, wird auf dem Display "nO" angezeigt.

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 19 / 24
13. Wiring diagram
Anschlußstecker
1 L1
2 /
3 N
4 PE
Signalstecker
1 Alarm (NO)
2 Alarm (COM)
3 Alarm (NC)
4 Türkontakt
5 Türkontakt

Version Nr. 1-11 - 05.10.2022 Doc. No. 9985409576 20 / 24
14. Taking into operation
Attention!
The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately lubricated the oil,
which has been displaced during transport, must be allowed to flow back into it. The unit must therefore be
allowed to stand for at least 30 min. before being connected to the mains and taken into operation.
The unit / system must be protected with a MCB Type D or K. Upon connection the internal fan will start
working. If the temperature inside the enclosure is higher than the set value of the controller both the
compressor and external air fan start working. The cooling cycle will either stop once the air inside the
enclosure reaches the set temperature minus hysteresis or once the minimum On-time is reached.
The hysteresis is 3K, the minimum ON-time is 4 minutes, the minimum OFF-time is 3 minutes, for units with a
cooling capacity of more than 1 kW is it usually 7 minutes.
The setpoint for the internal enclosure temperature is pre-set at 95°F.
