Seiwa LZAB-V2 User manual

Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
1) Prior to installing the fitting, check if the product is as per your order.
2) Check for a loose or damaged part due to an accident in transit, etc.

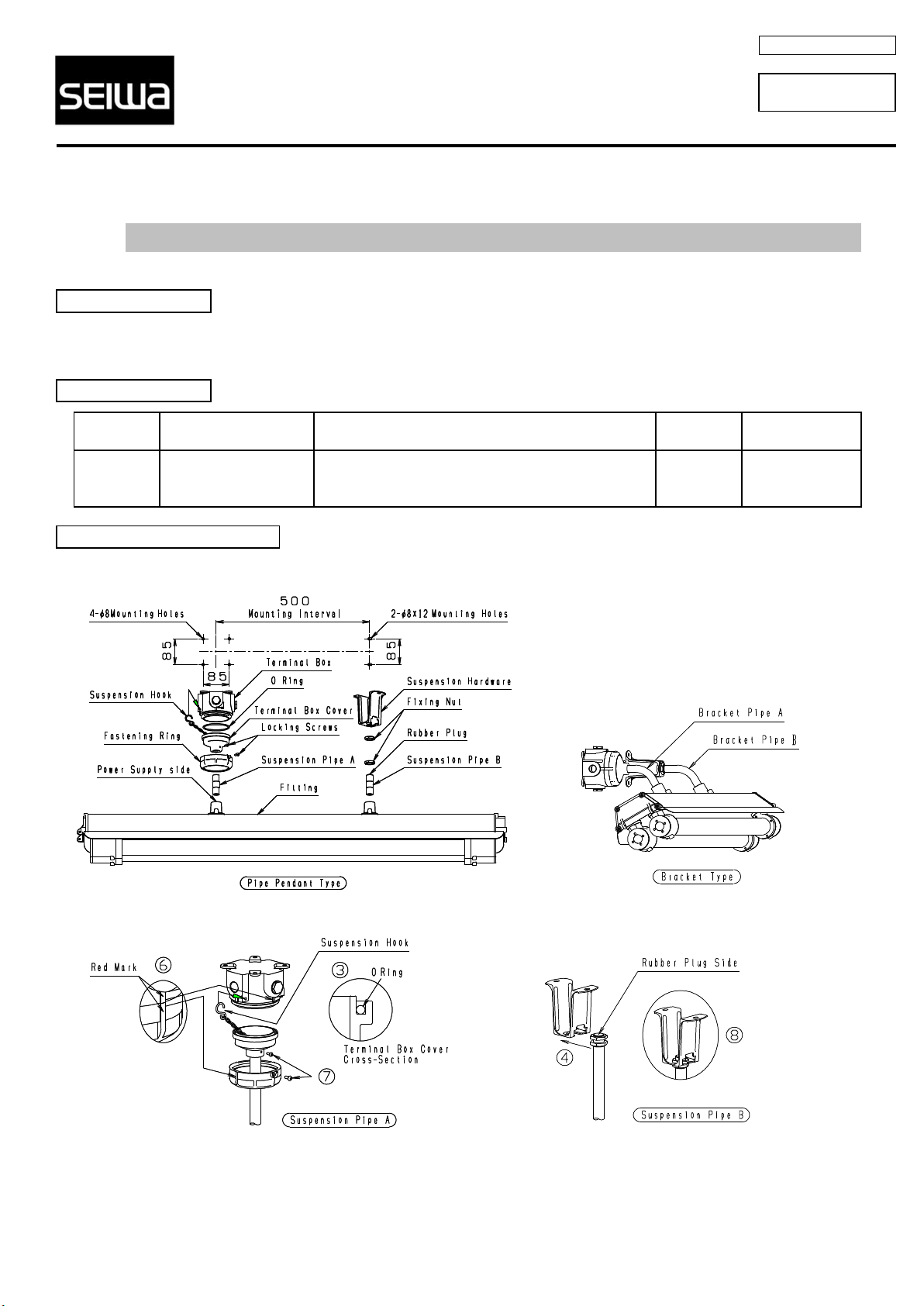

■Pipe Pendant Type, Bracket Type
1) Fix the terminal box and suspension hardware on the mounting surface firmly.
2) Screw the suspension pipes A and B into the fitting.
3) Put the fastening ring around the suspension pipe A and screw in the terminal box cover.
Confirm that the O ring is in the groove of the terminal box cover.
4) Raise the fitting and fit it to the suspension hardware. Hook the suspension hook onto the terminal box.
Explosion proof type LED Lighting Fittings LZAB-V2
Performance
IP
rating
Hazardous Area
Usable in Zone 1 or Zone 2 hazardous areas where
there are hydrogen gases.
Type of Protection
ExdeⅡB+H2T6X
After installing the product, be sure to hand this manual over to the user of the product.
To be conserved
Rated Input Voltage
(Frequency)
IP 65 100-242 V AC
(50/60 Hz)
Prior to use
Inspection
Organization
TIIS
11E0000850G11
Instruction Manual
How to Install the Fitting
- 1 -

5)
6)
7) Tighten the locking screw and confirm that the suspension pipe A and fastening ring don't turn.
8) Tighten the fixing nuts on the suspension hardware.

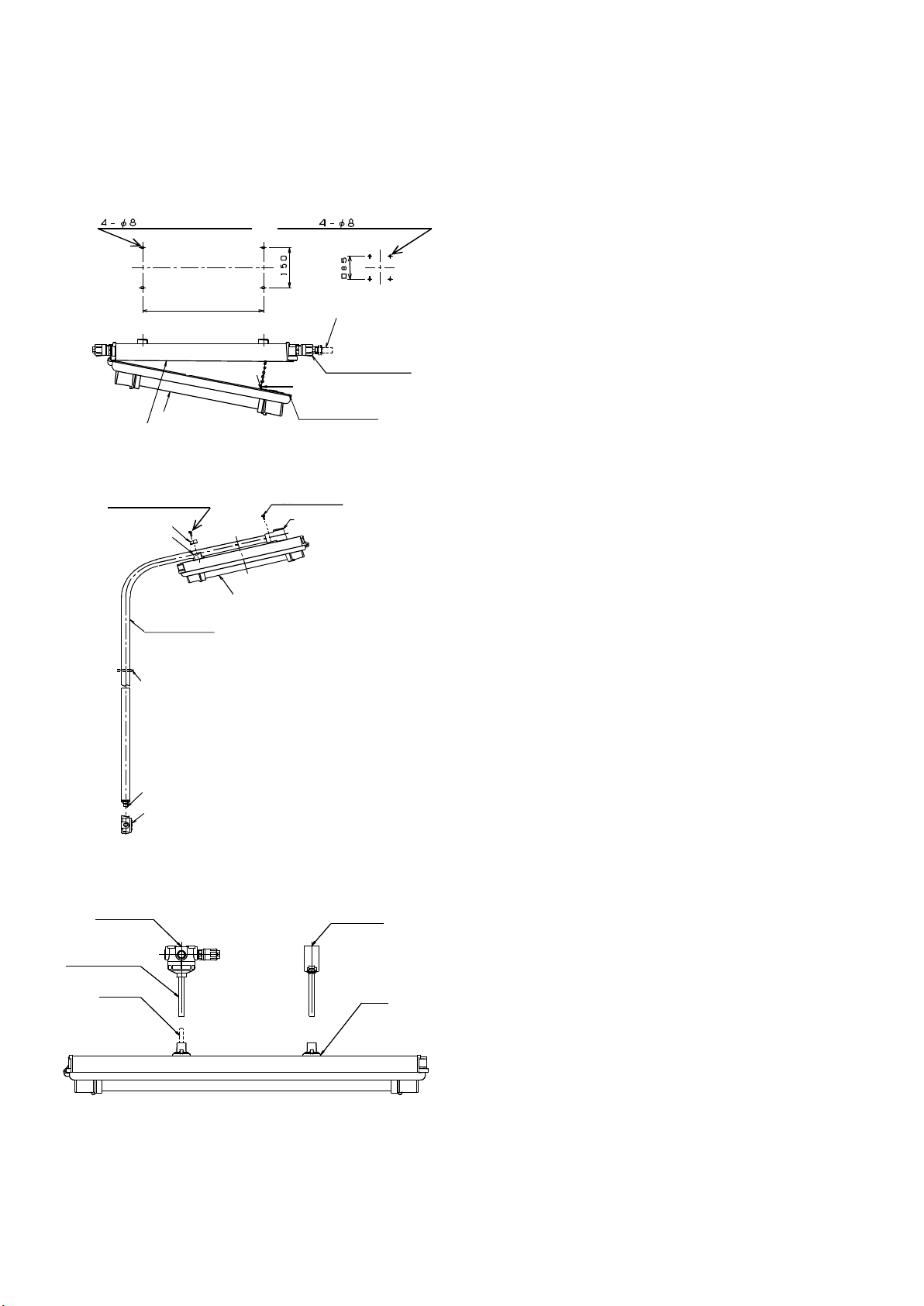

■Special Direct Mount Type
1) Fix the fitting on the mounting surface firmly.
2)
3)
4) Raise the lamp house gently and tighten the reflector fixing screw.
5)
■
Stanchion Type
1)
2) Fix the clamp with the clamp fixing screw.
3)
4)
5)
■
Replacement demand type
1)
2)
Connect the power wires inside the existing junction box.
3)
NB:
■
Precautions in leading the cable into the terminal box
1) The cable gland must be a product specified by SEIWA.
2) For the use of a metal conduit, be sure to provide a sealing fitting near the terminal box.
Fix the stand pole completely with the pole fixing hardware and box
mounting screw.
If the lighting fitting is provided with a flexible terminal box, skip the
above steps 2）to 4）. In that case, connect the cable (use the black
wire for grounding) inside the terminal box.
After connection of the power cable(white and brown:power wire,green:grounding wire), unhook the suspension hook and place it in the
terminal box cover.
Fit the terminal box cover onto the terminal box and turn the fastening ring 90 degrees until the protrusions (red marks) align with each
other.
Loosen the reflector fixing screw and open the lamp house gently
until it is supported by the chain. The lamp house can be opened
down to 90 degrees by removing the chain snap from the chain
retainer.
Lead the applicable cable into the fitting through the cable gland and
connect the power cable.
The white and red wires are power wires and the black wire is a
grounding wire.
Pass the lead wire through the stand pole and insert the pole into
the terminal box in the arrow direction.
Tighten the locking screw on the terminal box. Confirm that the box
does not turn.
Attach the joint box and short nipple to the bottom of the stand
pole.
Pass the cable from the lighting fitting through the existing
suspension pipe and junction box and attach the pipe and box to the
fitting.
If the lighting fitting is used in a place where water may splash on it,
waterproof the joint between the fitting and the existing suspension
pipe.
Holes
Mounting Interval: 500
Holes
×
12Oblong Holes
(only for the flexible terminal box)
Cable and Protective Tube
(not supplied)
Lamp House
(cable supplied with the
flexible terminal box)
Fitting Body
Chain Snap
Reflector Fixing Screw
Cable Gland
Chain Retainer
ジャンクション
Clamp Fixing Screw
Support (not supplied)
Clamp Holder
Terminal Box
Stand Pole
Fitting
Clamp
Joint Box
(not supplied)
Locking Screw
Short Nipple G3／4
Existing junction box
Existing suspension
Existing suspension
Cable
Fitting
- 2 -

■

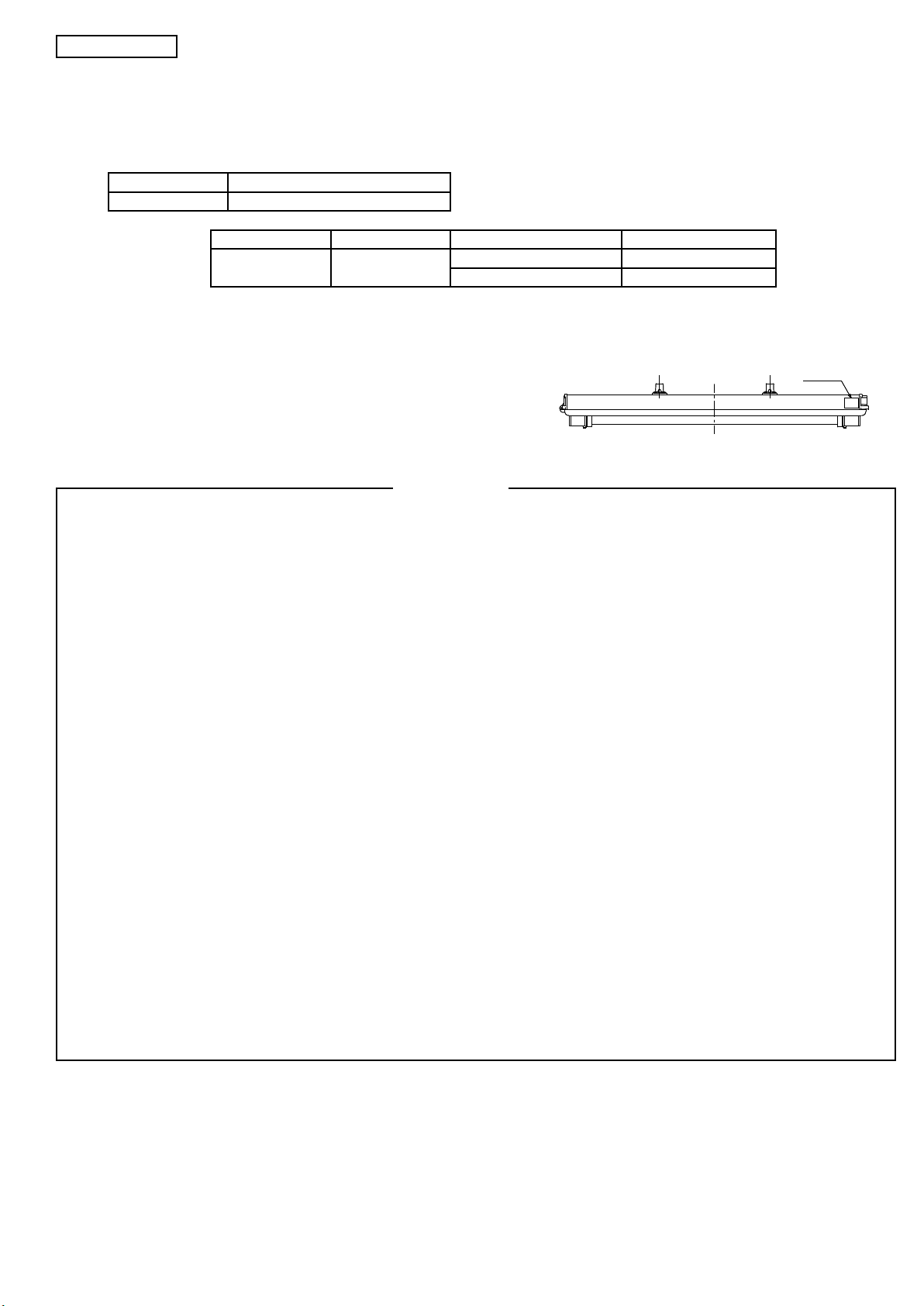

Precaution in lamp replacement
●
*If lamp replacement is required, please contact us.
NB: For lamp replacement, the required distance between the fitting end face and the wall surface is as follows:
■
Applicable lamp
Note: The use of a lamp other than the above lamp might result in a fire, electric shock, or explosion.
■
Reordering
When reordering, please let us know:
・Drawing or drawing No. for the delivered product
・Manufacturing lot number on the nameplate
1.
2. Prior to maintenance or inspection, be sure to turn off the power.
3. Confirm that the screws and bolts are fastened properly and tightly.
4. In the case of the stanchion type, be sure to provide a support at least 1500 mm above the bottom of the pole.
5.
6.
7. The supply voltage should be within the range of rating, and the supply voltage variation should be within ±6%.
8.
9. Close unused entries of the terminal box with plugs (metal).
10.
11.
12. Prior to maintenance or inspection, be sure to turn off the power.
13. To prevent shortening of the service life, avoid turning on the fitting in direct sunlight.
14. To avoid noise or malfunctioning, don't use a radio, television or wireless infrared remote control near the fitting.
15.
16.
17. The cable gland must be a product specified by SEIWA.
18.
19.
If the above information is unavailable, give us any material showing the
appearance of the product or details of the product specification
(dimensions, mounting interval, lamp type, etc.).
Distance between fitting and wall
1.2m
Model Wattage Lamp
Model
LLPA1WG13K3003□3,000K
LZAB-V2 26W
For use in an unfavorable location (a very hot, cold or humid place or a place in which there is strong wind or vibration, a salt damage
environment or a dusty or corrosive gas atmosphere), a special countermeasure should be taken.
The product must be mounted on a sturdy wall surface or structure which is vibration-free and less susceptible to damage. Otherwise, it
might fall or be damaged.
The fastening bolts on the control unit chamber housing the control unit have a tensile strength level of A20-70. Don ’ t remove the
fastening bolts. Removal of the bolts might cause a fire, electric shock or explosion.
The product should be installed at an angle within the range from 0° (oriented downward) to 90° (oriented horizontally).
Don’t install the product with its longitudinal side oriented vertically. Doing so might cause an insulation failure or electric shock.
Maintenance
Any lamp other than the applicable lamp specified below may not be used with this product. The specified lamp is not sold for any
purpose other than maintenance of the product.
The specified lamp is not sold for any purpose other than maintenance of the product. If lamp replacement is required, please contact us.
The use of a lamp other than the specified lamp might result in a fire, electric shock, or explosion. Don’t open the lamp house for five
minutes after turning off the power. If you don’t allow five minutes before opening it, an explosion might occur.
LZAB-V2
The ambient temperature should be within the range of -20°Cto +40°C. The use of the product out of this range may shorten the service
life.
In grounding work, be sure to follow the technical standards for electrical equipment and explosion-protected equipment of your country.
Inadequate grounding might cause an explosion, fire or electric shock.
Color Temperature
For outdoor use, waterproof the screwed portion of the conduit, the cable entry fittings and the joint with the stand pole to prevent
rainwater infiltration.
When installing the fitting, be sure to connect external wires inside a specified part of the fitting. Don't open any other part of the fitting
unless necessary.
The product must be used in a location where it can be used safely according to its explosion protection type (indicated on the body).
LLPA1WG13K5003□5,000K
CAUTIONS
Nameplate
- 3 -

- Prior to use, please read the safety precautions and instruction manual thoroughly to use the product properly.
-
- Please keep the manual in a handy place for later reference.
●The various marks have the following meanings:
Improper handling may lead to a bodily injury or property damage.
WARNING
Do’t oert the produt.
Conversion might cause the product to fall or result in a fire or electric shock.
Prohibited.
Be careful of
ignition.
After installing the product, be sure to hand the safety precautions and instruction manual over to the user of the product.
Caution
WARNING:
CAUTION:
Improper handling may lead to a human death or serious bodily injury.
If you use a product in a hazardous location where there is a gaseous, steamy or dusty atmosphere, it should be of the
flameproof type suitable for the location. Use of an unsuitable type apparatus might cause an explosion or fire.
The ambient temperature should be within the operating temperature range specified in the instruction manual. If the
product should be used at a temperature higher than specified, an early lighting failure or malfunction might occur or an
explosion or fire might result.
If a product must be oriented in a specific manner for use, install it properly according to the marking on its body or the
instruction manual. Otherwise, an explosion, fire or electric shock might result.
Don’t touch.
Disassembly &
conversion
prohibited.
Don’t use near
a water source.
Be sure to
follow the
instructions.
Be sure to
ground.
For electrical connections, use crimp-type terminals, etc. to secure the connections and conduct insulation treatment. An
inadequate connection or inadequate insulation might cause an imperfect contact, leading to an explosion, fire or electric
shock.
Be sure to turn
off the power.
In grounding work, be sure to follow the technical standards for electrical equipment and explosion-protected equipment of
your country. Inadequate grounding might cause an explosion, fire or electric shock.
When leading the power cable into the product, be sure to follow the technical standards for electrical equipment and
explosion-protected equipment of your country. Inadequate cable connection or waterproofing might cause an explosion,
fire or electric shock.
Do’t ed, tist or pull the poer ale y fore.
Inadequate handling of the cable might damage it and result in a fire or electric shock.
When replacing the lamp, make sure that the lamp is of the type specified in the instruction manual or the instruction on
the body. An unsuitable lamp might cause an explosion, fire or electric shock.
Do’t oer the produt ith a iflaale aterial suh as loth or paper or put aythig i the produt.
Such a material or thing might cause an explosion or fire.
Before replacing the lamp or cleaning, be sure to turn off the power.
Otherwise, a fire or electric shock might result.
直L󲹵G13󲹶照󱆠6
11E0001123B11
Safety Precautions
To be conserved
The parts once removed for lamp replacement or cleaning should be replaced in their original places properly according to
the instruction manual. An improperly placed part might fall, leading to an explosion or injury or property damage.
- 1/2 -

CONTACT DETAILS
To ensure brightness and safety, carry out periodical cleaning and inspection.
If you find a problem, discontinue the use of the product and have it repaired by a specialist.
Tokyo Branch
Never touch the lamp and its surroundings while the power is on or just after the power is turned off. The lamp and its
surroundings are very hot, so an accidental touch might cause a burn.
Fax
SEIWA ELECTRIC MFG.CO., LTD.
Phone
Phone
36 Shinike, Terada, Joyo, Kyoto Pref. 610-0192 Japan
[phone]
For further information on the product, contact any of our offices listed below (if you like to make an inquiry, let us know the model name
indicated on the product nameplate).
A lighting fitting has a service life. A product which has been used for eight to ten years may have degraded internal parts
even if it looks normal. For safety and energy saving, we recommend you check and replace it. The LED module design life is
60,000 hours (different from the lighting fitting life) when used at an ambient temperature of 30°C, 10 hours per day, 3,000
hours per year. If used at a higher temperature or more hours per year, the life would be shortened. Have a specialist
inspect the product every three years. If used for an extended period without inspection, a smoke, fire, or electric shock
might result.
If you continue to use the product in an abnormal condition (smoke, odor, etc.), an explosion, a fire or electric shock might
result. If you detect an abnormality, immediately turn off the power switch. Confirm that the abnormal condition has been
eliminated and make a repair call.
Please note that the above addresses and phone numbers may be changed.
CAUTION
2-19-6 Yanagibashi, Taito-ku, Tokyo 111-0052 Japan
[phone]
For a product marked with a frequency, don’t use the product at a frequency other than 50 or 60 Hz (local power supply
frequency). Use at a wrong frequency might cause a fire.
Fax
Do’t use the produt at a oltage other tha the rated oltage idiated o the aeplate.
Otherwise, breakage, fire or electric shock might result.
Any product not marked as a product for outdoor use should not be used outdoors or in a humid place or near a water
source. Its use in such a place might cause a fire or electric shock.
Installation of the product should be carried out by a qualified person.
Installation by an unqualified person is legally prohibited.
The product should be mounted on a surface robust enough to support its weight, properly according to the instruction
manual. Improper installation might cause the product to fall or result in an electric shock or injury.
[phone]
[phone]
Head Office
When leading the power cable into the product through a conduit or the like, waterproof the connection and joint
adequately to prevent water infiltration. Inadequate waterproofing might cause a fire or electric shock.
Don’t use the product in a strong corrosive gas atmosphere which contains hydrochloric acid or chlorine gases or the like.
Use in a corrosive gas atmosphere might cause the product to corrode and fall, resulting in an injury.
