Seiwa LYWA2601101 User manual

Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
1) Prior to installing the fitting, check if the product is as per your order.
2) Check for a loose or damaged part due to an accident in transit, etc.
1) Confirm dimensions A, B, and C in the table below and install the fitting securely according to the dimensions.
NB: If the fitting is to be installed vertically, mount it with its cable side down.
2)
NB: Connect the power and grounding wires securely and waterproof the wires.
The waterproof treatment should be adequate to prevent water penetration into the cable.
The LED lamp is turned on by applying the rated voltage to the power cable of the product.
■
Inspection 1)
2) Prior to maintenance, be sure to turn off the power.
3) Carry out maintenance properly in accordance with the related law and regulations.
4) If a repair is needed, consult us.
How to Use
Maintenance
Input Voltage
(Frequency)
100-242V AC
(50/60Hz)
Power
Consumption
29W
59.5-57.0W
Model
In cleaning the fitting, gently wipe with water or mild detergent. Don ’tuse thinner, benzene or alkaline detergent. Such
chemicals might cause discoloration or deterioration in quality and strength, resulting in a damage.
Vapor proof and Weather proof type LED Lighting Fittings
IP
rating
LYWA2602101
1087mm
Source of light
IP55
6 holes in total
Dimension A
Dimension C
40mm
White LED
(26W)
0.30-0.13A
0.67-0.25A
714mm
Prior to use
LYWA
After installing the product, be sure to hand this manual over to the user of the product.
Performance
11E0001038A11
To be conserved
Instruction Manual
Input
Current
LYWA2601101
LYWA2602101
Installation
Use the power cable from the fitting for electric connection. The black and white wires are power wires and the green wire is a grounding wire.
LYWA2601101
12×8(4 long holes)
20×12(2 long holes)
Dimension B
684mm
Model
Mounting Holes
Fitting installed
1057mm
4-12×8Long hole for mounting
2-20×12 Long hole for
- 󲹾 -

1) Don't remove the filter (vent filter) and cable connector.
2) In the period when the product is in use, never disassemble it.
3) For disposal of the product, follow the regulations and rules of your local government.
When reordering, please let us know:
・Drawing or drawing No. for the delivered product
・Manufacturing lot number on the nameplate
1.
2. The supply voltage variation should be within ±6% of the rating.
3. Mount the product on a solid structure.
4. Mount the product on a flat surface. Don’t use the product with stress on it.
5.
6.
7. If the product is to be installed vertically, mount it with its cable side down.
8.
Confirm that the fitting is adequately grounded.
9.
10. The color of the cover may turn yellow due to direct sunlight (ultraviolet rays).
11. To avoid noise or malfunctioning, don't use a radio, television or wireless infrared remote control near the fitting.
12.
13. The LED lamp and the power supply unit cannot be replaced.
14.
15.
The ambient temperature should be within the range of -20°Cto +40°C. The use of the product out of this range may shorten the service
life.
Connect the power and grounding wires securely and waterproof them. The waterproof treatment should be adequate to prevent water
penetration into the cable.
The product may be installed indoors or under the eaves. Don’tuse the product in a place exposed to direct sunlight. The use in such a
place might cause an electric shock, deterioration of the product, damage to the product, or shortened service life.
Reordering
For white LED lamps, the luminescent color and brightness may vary with individual LEDs because of their nature. Also note that the rate
of attenuation with time varies with individual LED lamps.
For use in an unfavorable location (a place in which there is strong wind or vibration, a salt damage environment or a dusty or corrosive
gas atmosphere), a special countermeasure should be taken.
The product should not be used in an environment in which the temperature and humidity are always high, such as a bathroom for
business or sauna.
If the above information is unavailable, give us any material showing
the appearance of the product or details of the product specification
(dimensions, mounting interval, lamp type, etc.).
Disassembly and Disposal
Be careful not to stain the cover with an organic solvent, oil or the like. Don’tuse the product in an alkaline atmosphere to avoid cracking
or discoloration. The cover may be damaged by the following substances: alkaline substances, benzene, toluene, gasoline, acetone,
organic solvents such as aromatic and chlorinated hydrocarbons.
CAUTIONS

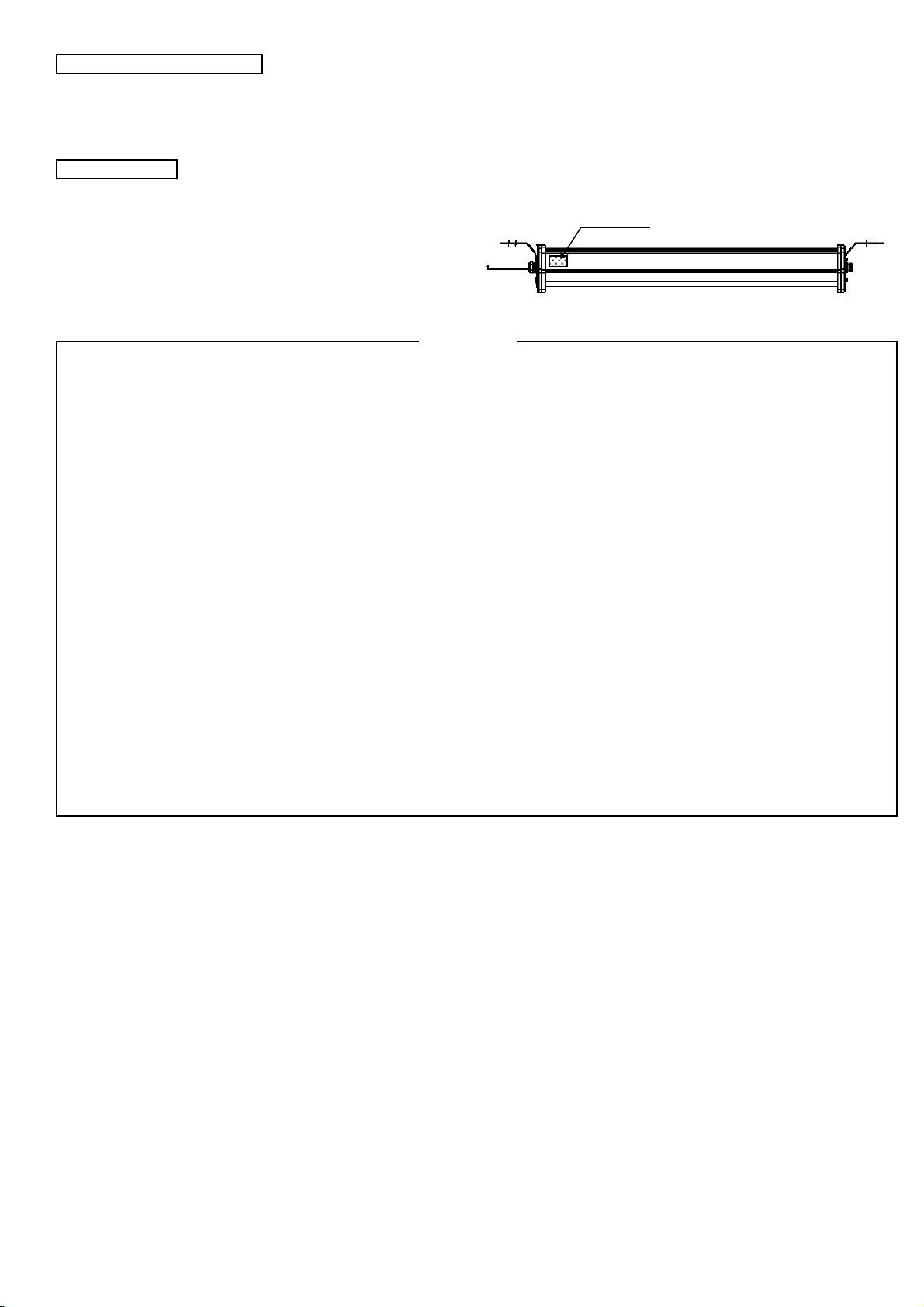

Nameplate
- 󲹿 -

- Prior to use, please read the safety precautions and instruction manual thoroughly to use the product properly.
-
- Please keep the manual in a handy place for later reference.
●The various marks have the following meanings:
Do’t oer the produt ith a iflaale aterial suh as loth or paper or put aythig i the produt.
Such a material or thing might cause a fire.
The parts once removed for cleaning should be replaced properly according to the instruction manual.
An improperly placed part might cause the product to fall, resultng in an injury or property damage.
Be sure to turn
off the power.
Don’t use the product in a hazardous location where a flammable or explosive atmosphere such as a gaseous, steamy or
dusty atmosphere may exist. Use in such a location might cause an explosion or fire.
The ambient temperature should be within the operating temperature range specified in the instruction manual. If the
product should be used at a temperature higher than specified, an early lighting failure or malfunction might occur or a fire
might result.
If a product must be oriented in a specific manner for use, install it properly according to the marking on its body or the
instruction manual. Otherwise, a fire or electric shock might result.
Don’t touch.
In grounding work, be sure to follow the technical standards for electrical equipmentof your country. Inadequate grounding
might cause a fire or electric shock.
Be sure to
follow the
instructions.
Be sure to
ground.
For electrical connections, use crimp-type terminals, etc. to secure the connections and conduct insulation treatment. An
inadequate connection or inadequate insulation might cause an imperfect contact, leading to a fire or electric shock.
When leading the power cable into the product through a conduit or the like, waterproof the connection and joint
adequately to prevent water infiltration. Inadequate waterproofing might cause a fire or electric shock.
Do’t ope LED lap protetie oers suh as the frot glass ad glass gloe.
Do’t touh a LED lap, otherise a alfutio or lightig failure ight our.
Do’t ed, tist or pull the poer ale y fore.
Inadequate handling of the cable might damage it and result in a fire or electric shock.
Before cleaning, be sure to turn off the power.
Otherwise, a fire or electric shock might result.
Be careful of
ignition.
After installing the product, be sure to hand the safety precautions and instruction manual over to the user of the product.
Caution
WARNING:
CAUTION:
Improper handling may lead to a human death or serious bodily injury.
Improper handling may lead to a bodily injury or property damage.
Disassembly &
conversion
prohibited.
Don’t use near
a water source.
Prohibited.
11E0000742E11
Safety Precautions
To be conserved
WARNING
Do’t oert the produt.
Conversion might cause the product to fall or result in a fire or electric shock.
L照般6
- 1 /2 -

Please note that the above addresses and phone numbers may be changed.
Installation of the product should be carried out by a qualified person.
Installation by an unqualified person is legally prohibited.
Do’t use the produt i a strog orrosie gas atosphere hih otais hydrohlori aid or hlorie gases or the like.
Use in a corrosive gas atmosphere might cause the product to corrode and fall, resulting in an injury.
The product should be mounted on a surface robust enough to support its weight, properly according to the instruction
manual. Improper installation might cause the product to fall or result in an electric shock or injury.
WARNING
Fax
To ensure brightness and safety, carry out periodical cleaning and inspection.
If used in an extended period without maintenance or inspection, a smoke, fire or electric shock might result.
For a product marked with a frequency, don’t use the product at a frequency other than 50 or 60 Hz (local power supply
frequency). Use at a wrong frequency might cause a fire.
If you continue to use the product in an abnormal condition (smoke, odor, etc.), a fire or electric shock might result. If you
detect an abnormality, immediately turn off the power switch. Confirm that the abnormal condition has been eliminated
and make a repair call.
Fax
2-19-6 Yanagibashi, Taito-ku, Tokyo 111-0052 Japan
[phone]
[phone]
[phone]
Head Office
[phone]
Phone
36 Shinike, Terada, Joyo, Kyoto Pref. 610-0192 Japan
Tokyo Branch
SEIWA ELECTRIC MFG.CO., LTD.
Phone
CAUTION
A lighting fitting has a service life. A product which has been used for eight to ten years may have degraded internal parts
even if it looks normal. For safety and energy saving, we recommend you check and replace it. The LED module design life is
60,000 hours (different from the lighting fitting life) when used at an ambient temperature of 30°C, 10 hours per day, 3,000
hours per year. If used at a higher temperature or more hours per year, the life would be shortened. Have a specialist
inspect the product every three years. If used for an extended period without inspection, a smoke, fire, or electric shock
might result.
Never touch LED light sources and their surroundings.
The light sources and their surroundings are very hot, so an accidental touch might cause a burn.
Do’t use the produt at a oltage other tha the rated oltage idiated o the aeplate.
Otherwise, breakage, fire or electric shock might result.
Any product not marked as a product for outdoor use should not be used outdoors or in a humid place or near a water
source. Its use in such a place might cause a fire or electric shock.
Ni-Cd
Ni-MH
L照般6
Resycling
Please bring used Secondary batteries to the recycling station for effective use of precious
resources and global environment conservation.
JBRC 󳞥Japan Portable Rechargeable Battery Recycling Center󳞦
Phone [phone]
For further information on the product, contact any of our offices listed below (if you like to make an inquiry, let us know the model name
indicated on the product nameplate).
CONTACT DETAILS
- 2 /2 -
