ASSEMBLY & INSTALLATION INSTRUCTIONS
EDGE DIVING SYSTEM
BK-EDGE INSTALL |0919
S.R.Smith, LLC
800.824.4387
srsmith.com
Copyright ® 2019 S.R.Smith, LLC All rights reserved.
ATTENTION! THESE INSTRUCTIONS MUST
REMAIN WITH PLATFORM OWNER
**PROFESSIONAL INSTALLATION RECOMMENDED**

WARNING:
IMPORTANT INSTALLATION
INFORMATION
The installation of this product should be done only by a licensed and professional installer.
Installation should be done strictly in conformance with all local building codes, electrical
codes and other building and safety laws and regulations. Among other things, that your
installer should carefully analyze the need to bond the product to prevent an electrical
hazard. Failure to properly install this product could result in a dangerous condition, including but
not limited to electrical and or structural hazards. S.R.Smith. disclaims all liability arising from
the installation and the user assumes all risk associated with the installation.
For Technical Support or Assistance, Contact Customer Service at:
Canby, Oregon | 800.824.4387
srsmith.com
For warranty information:
srsmith.com/warranty
To obtain complete copies of the ANSI/APSP/ICC-5 2011 Standard for Residential
In-ground Pools or to obtain copies of the “Plan Your Dive, Steer Up” or “The Sensible
Way to Enjoy Your In-ground Swimming Pool” contact:
The Association of Pool & Spa Professionals (APSP)
2111 Eisenhower Ave.
Alexandria, VA 22314
[phone]
www.theapsp.org
WARNING
srsmith.com
INSTALLATION MANUAL EDGE DIVING SYSTEM

INSTALLATION MANUAL EDGE DIVING SYSTEM
1srsmith.com
TABLE OF CONTENTS:
Safety First ............................................................................................................................................2-3
Important Notices to the Installer...............................................................................................4
Minimum Diving Water Envelope Information ...................................................................5
Edge Fiberglass Base Placement....................................................................................................6
Edge Diving Board Dimensions ....................................................................................................7
Edge Jig Information.............................................................................................................................7
Installation Instructions ..................................................................................................................7-8
Edge Fiberglass Base Exploded View & Parts List..............................................................9
Article 5 Extracted from ANSI/APSP/ICC-5 2011................................................. 10-15

INSTALLATION MANUAL EDGE DIVING SYSTEM
2srsmith.com
This S.R.Smith diving board and stand shall be installed only by a professional swimming pool contractor or with the direct
supervision of a licensed professional, engineer or architect. Diving boards may be installed only on residential
in-ground swimming pools properly designed for their use.
Diving boards that are improperly installed can be very dangerous to the user resulting in possible serious head and/
or spinal column injury, including the paralysis or death of the user.
It is very important that this diving board and/or stand be installed only on a pool that is built in strict accordance
with the American National Standard for Residential In-ground Swimming Pools (ANSI/APSP/ICC-5 2011) and
in strict accordance with the included S.R.SMITH RESIDENTIAL POOL SPECIFICATIONS TABLE 2. Under no
circumstances can this diving board and/or stand be installed on any above ground or on-ground swimming pool.
In addition to the above standard and referenced table, these installation instructions provided by S.R.Smith must
be diligently followed.
It is also important that any and all warnings provided with the diving board be strictly adhered to and posted in a
conspicuous location. If not provided or they are misplaced, please purchase warning signs from your pool contractor
or professional pool supply store and post them in a location that the users of the diving board can clearly see.
DIVING TIPS: Even the safest equipment must be used properly. S.R.Smith promotes safe diving by offering these tips on the
proper use of your diving board: always dive into water that meets depth requirements, with arms extended; be aware of the
bottom and the walls of the pool; avoid collisions with pool toys and floats; and instruct your pool users to always “steer up”.
When you begin your dive you must get ready to steer up. As you enter the water, your arms must be extended over your
head, hands flat aiming up. Hold your head and arch your back.
FOR RESIDENTIAL IN-GROUND SWIMMING POOL USE ONLY
NO COMMERCIAL, PUBLIC OR SEMI-PUBLIC USE IS ALLOWED
ONLY ONE PERSON ON THE DIVING BOARD AT ONE TIME
MAXIMUM WEIGHT = 300 LBS
PLAN YOUR DIVE
BACK ARCHED
ARMS EXTENDED
HEAD AND HANDS UP
HOLD DIVING FORM
STEER UP FOR A SAFE DIVE.
PLAN YOUR DIVE, STEER UP
SAFETY FIRST!
WARNING

INSTALLATION MANUAL EDGE DIVING SYSTEM
3srsmith.com
THE EDGE DIVING SYSTEM IS A JUMP BOARD
“A pool is the safest place to swim and a diving board installed in compliance with manufacturers instructions and
the ANSI/APSP/ICC-5 2011 Standard for In-ground Residential Pools is the safest place to dive from. To ensure
that you and your family and guests are able to safely enjoy your diving board for many years, it is critical that you
follow the following instructions.”
DO
1. Know the shape and depth of the pool before you dive.
2. Make sure that all family members and guests are
familiar with these instructions before they use your
pool and diving board.
3. Make sure that the diving board has been installed in
compliance with the Assembly and Installation Instructions
and with the ANSI/APSP/ ICC-5 2011 Standard for
In-ground Residential Pools. This includes the shape and
depth of the pool as well as the height of the diving
board.
4. Enter feet first the first time.
5. Plan your path to be sure you avoid any other
swimmers, or objects in or under the water, such as
floats, tires, toys etc.
6. Keep your head up, arms up and fully extended and
steer up with your hands.
7. Practice carefully before you dive headfirst.
8. Become familiar with the diving board and its spring
before diving headfirst
9. Dive straight ahead, not to the side of the board or
pool.
10. Dive from the diving board only.
11. Make sure that children and non-swimmers are
supervised at all times.
12. Always remember that when you dive you must steer
up.
13. Inspect your diving board, base and stand on a regular
basis (at least twice a year) and keep them in proper
repair.
14. Contact your dealer, installer or S.R.Smith (800-737-
5386) with any questions or concerns about the safe use
of your diving board.
DON’T
1. Don’t drink and dive.
2. Don’t install this or any diving board on an above
ground pool or dive into an above ground pool from
any surface.
3. Never install any S.R.Smith diving board on a variable
fulcrum dive stand.
4. Don’t dive into a pool from anyplace not specifically
designated for diving. Never dive into the shallow
portion of any pool.
5. Don’t dive across the width of the pool or to the sides
of the pool.
6. Don’t Run and dive.
7. Don’t engage in horseplay in or around the diving board or
pool.
8. Don’t use your diving board as a trampoline.
9. Don’t do a back dive. Backyard pools are not built for
that type of activity.
10. Don’t try fancy dives. Keep the dives simple.
11. Don’t dive into or through objects or toys such as inner
tubes.
12. Don’t swim or dive alone.
13. Don’t use a diving board or stand or base that is rusted
or worn out or in poor repair.
INTENDED USE
INSTRUCTIONS
WARNING

INSTALLATION MANUAL EDGE DIVING SYSTEM
4srsmith.com
The specifications found on page 5 of this manual represent the minimum water envelope required by S.R.Smith and
by the ANSI/APSP/ICC-5 2011 Standard for residential Inground Swimming Pools. Each of these dimensions must be
met or exceeded. Installation of a diving board of any type on a pool that does not meet or exceed each of the min-
imum specifications as provided on page 5 including but not limited to the slope requirement, is in direct violation of this
manufacturer’s instructions and the 2011 Standard, and can result in serious injury or death.
Installation of this Edge Fiberglass Stand and Edge Diving Board is limited to Residential Inground Pools ONLY.
CHECK YOUR LOCAL ELECTRICAL CODE FOR BONDING REQUIREMENTS.
There is only one Edge Fiberglass Stand and only one Edge Composite Spring Set. You can install either a 6’ or 8’
Edge diving board on this assembly in accordance with Table 1- Minimum Water Envelope ANSI/APSP/ICC-5 2011
and Table 2- S.R.Smith Residential Pool Minimum Specifications on page 5. Installing any diving board greater than 8’
on any Edge Stand is strictly prohibited.
USE ANTI-SEIZE ON ALL HARDWARE.
S.R.Smith Edge Diving Boards are designed for use only with the Edge Diving Stand and Edge Composite Spring Set.
Edge components are only compatible with other Edge components.
Comply with local government regulations for Residential Inground Swimming Pools if they exceed the ANSI/APSP/
ICC-5 2011 Standard for Residential Inground Swimming Pools.
DO NOT USE ANY EDGE DIVING COMPONENTS WITH NON-EDGE COMPONENTS!
Read carefully pages 12–15 of this installation manual which contain portions of the ANSI/APSP/ICC-5 2011 Standard
for Residential Inground Swimming Pools, ensure that you understand the minimum required diving water envelope in

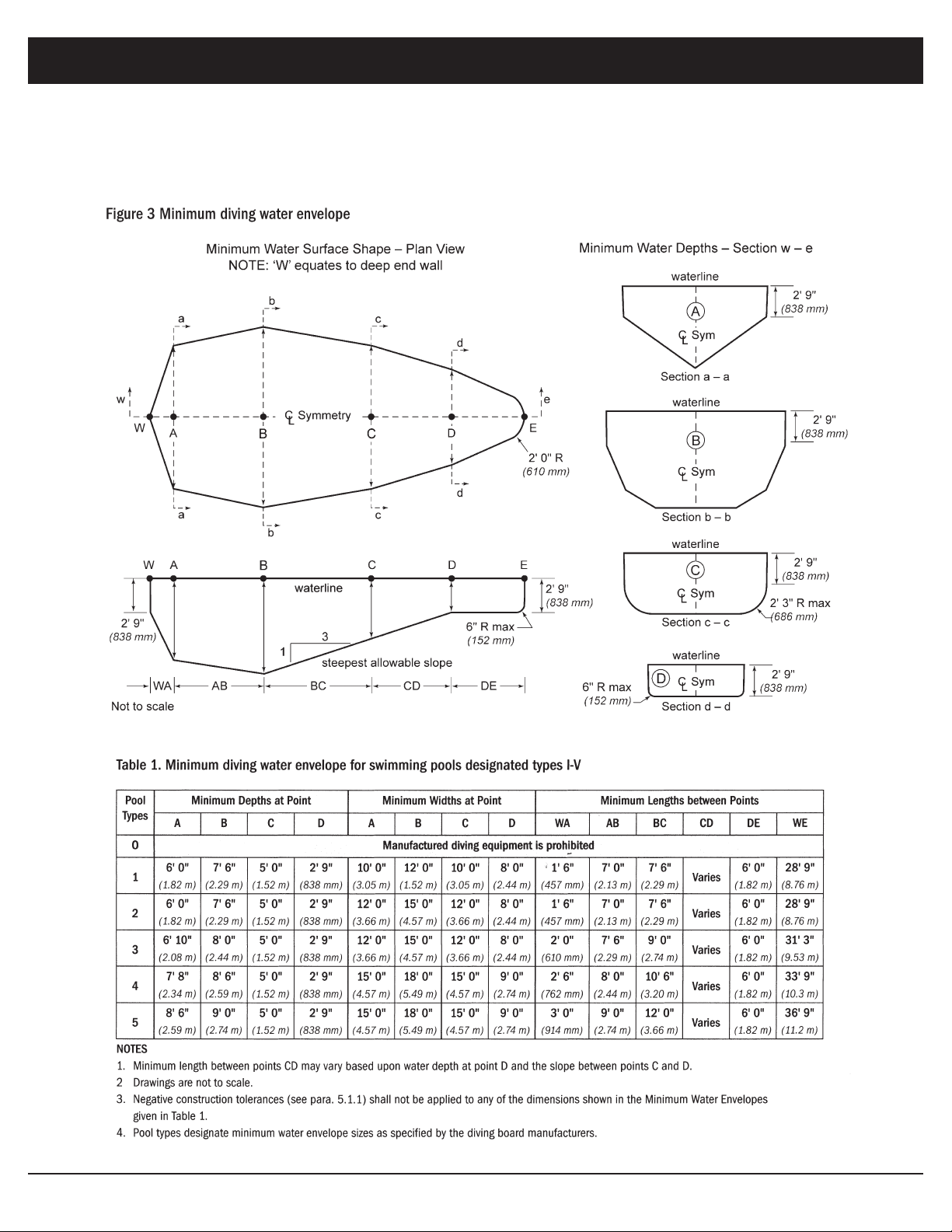

Figure 3 and Table 1 provided in the ANSI/APSP/ICC-5 2011 Standard.
NOTE: The installation of this Edge Diving Stand/Edge Diving Board is not complete until you, the installer have measured
the pool as well as the diving board’s overhang, height above water and the fulcrum distance to ensure they meet the
S.R.Smith’s Residential Pool Minimum Specifications and the ANSI/APSP/ICC-5 2011 Standard for Residential Inground
Swimming Pools. In addition; the installation of this diving board is not complete until you the installer have delivered to your
customer and reviewed with your customer the “Owners Manual” as well as the “Plan Your Dive Steer-Up” brochure.
THE EDGE DIVING SYSTEM IS A JUMP BOARD
ONLY ONE PERSON AT A TIME ON THE DIVING BOARD,
WITH A MAXIMUM WEIGHT LIMIT OF 300 LBS.
IMPORTANT NOTICES
TO THE INSTALLER

INSTALLATION MANUAL EDGE DIVING SYSTEM
5srsmith.com

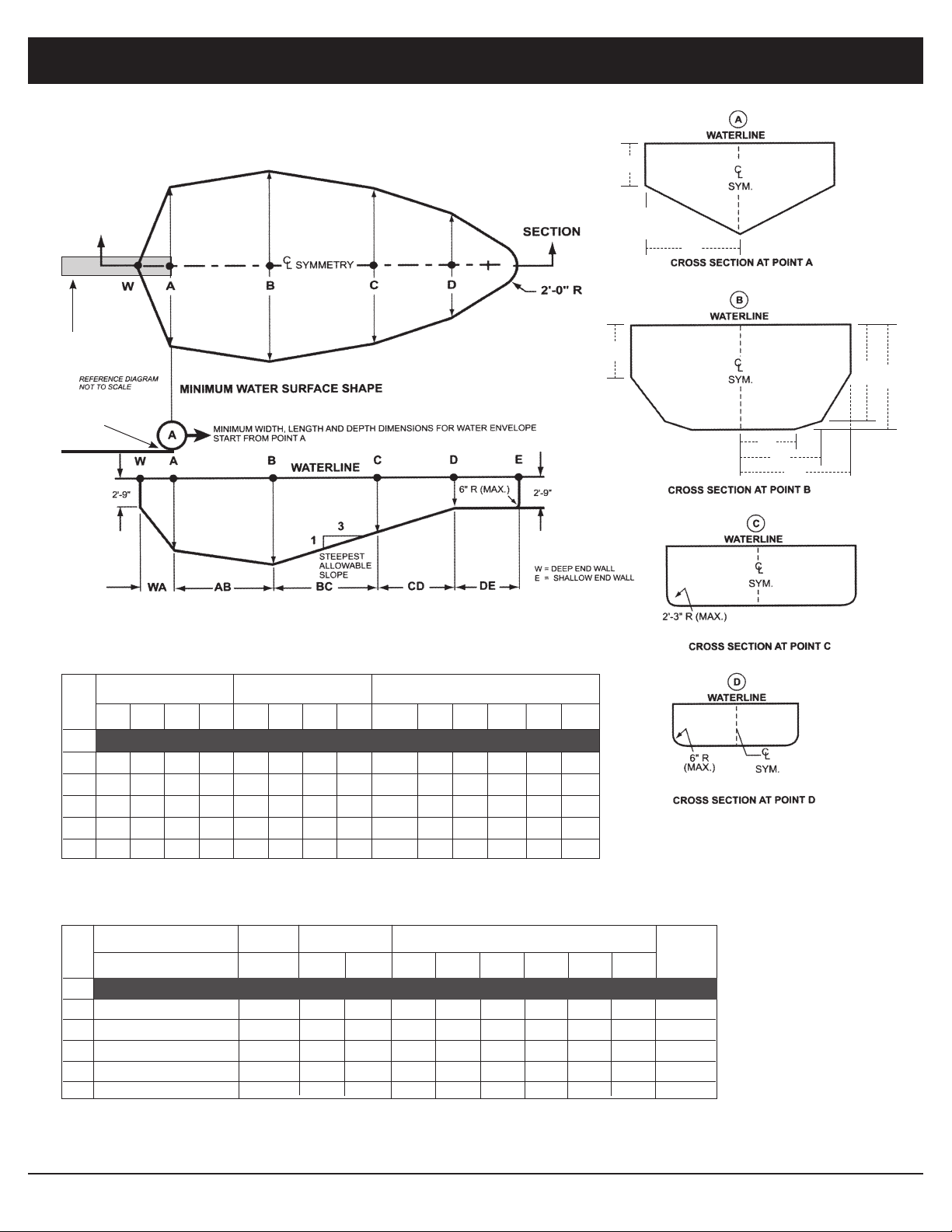

MINIMUM DIVING WATER ENVELOPE:
NOTE: DRAWINGS ARE NOT TO SCALE.
A B C D A B C D WA AB BC CD* DE WE
0
I 6’-0” 7’-6” 5’-0” 2’-9” 10’-0” 12’-0” 10’-0” 8’-0” 1’-6” 7’-0” 7’-6” VARIES 6’-0” 28’-9”
II 6’-0” 7’-6” 5’-0” 2’-9” 12’-0” 15’-0” 12’-0” 8’-0” 1’-6” 7’-0” 7’-6” VARIES 6’-0” 28’-9”
III 6’-10” 8’-0” 5’-0” 2’-9” 12’-0” 15’-0” 12’-0” 8’-0” 2’-0” 7’-6” 9’-0” VARIES 6’-0” 31’-3”
IV 7’-8” 8’-6” 5’-0” 2’-9” 15’-0” 18’-0” 15’-0” 9’-0” 2’-6” 8’-0” 10’-6” VARIES 6’-0” 33’-9”
V 8’-6” 9’-0” 5’-0” 2’-9” 15’-0” 18’-0” 15’-0” 9’-0” 3’-0” 9’-0” 12’-0” VARIES 6’-0” 36’-9”
POOL
TYPE
MINIMUM DEPTHS
AT POINT MINIMUM WIDTHS AT POINT MINIMUM LENGTHS BETWEEN POINTS
TABLE 1 - MINIMUM WATER ENVELOPE (ANSI/APSP/ICC-5 2011)
DIVING BOARD LENGTH HOW** F G H J K L M N
0
I 6’ DB / 6’ JB / 7’ T7 20” 2’-9” 5’-0” 4’-0” 7’-2.5” 7’-6” 6’-0” 3’-9” 2’-1.5” 12’
II 8’ DB / 6’ JB / 7’ T7 20” 2’-9” 3’-10” 4’-2” 7’-2.5” 7’-6” 6’-8” 3’-9” 2’-1.5” 12’
III 10’ DB / 8’ JB / 7’ T7 26” 2’-9” 4’-4.75” 4’-4.5” 7’-5.5” 8’-0” 6’-7” 3’-11.5” 1’-7.5” 13’
IV 10’ DB / 8’ JB / 7’ T7 30” 2’-9” 5’-10.5” 3’-10” 7’-8” 8’-6” 8’-3” 5’-7” 2’-7” 13’
V 12’ DB / 8’ JB / 7’ T7 40” 2’-9” 6’-2” 3’-11.5” 7’-9.5” 9’-0” 8’-2.5” 5’-9” 2’-7” 14’
POOL
TYPE
MAX. DIVING BOARD LENGTH
MAX. HEIGHT
OVER WATER
AT POINT A
CROSS SECTIONAL
DIMENSIONS AT
POINT A
CROSS SECTIONAL DIMENSIONS AT POINT B
TABLE 2 - S.R.SMITH RESIDENTIAL POOL MINIMUM SPECIFICATIONS
MIN. HEAD
ROOM ABOVE
DIVING
SURFACES
*Min. length between points CD may vary based upon water depth at point D and the slope between points C & D
ABBREVIATIONS: DB=Diving Board; JB=Jump Board; **HOW=Height Over Water
F
G
H
JK
N
M
L
DIVING EQUIPMENT
TIP OF BOARD
ABOVE POINT A
DIVING EQUIPMENT
DIVINGEQUIPMENT PROHIBITED
DIVINGEQUIPMENT PROHIBITED

INSTALLATION MANUAL EDGE DIVING SYSTEM
6srsmith.com
TABLE 3 – PLACEMENT CHART
ADDITIONALLY REFER TO: ANSI/APSP/ICC-5 2011 American National Standard for Residential Inground Swimming Pools and
to page 5 for S.R.Smith Residential Inground Pool Minimum Specifications.
NOTE: WHEN COPING IS USED, DO NOT SET FRONT JIG BOLTS CLOSER THAN 3” FROM THE BACK EDGE OF THE COPING.
* IMPORTANT: The distance for setting the front jig bolt (S) from the water’s edge is valid only if the minimum water depth is maintained at the tip of the board noted
as point “A” in ANSI/APSP/ICC-5 2011 American National Standard for Residential Inground Swimming Pools. If minimum water depth is not maintained the distance
(S) must be adjusted accordingly.
** “WA” dimension is valid only in conjunction with the minimum depth at point “A” for type pool in accordance with ANSI/APSP/ICC-5 2011 American National
Standard for Residential Inground Swimming Pools.
IMPORTANT:
THESE DIMENSIONS ARE
ACCURATE ONLY FOR
VERTICAL POOL WALLS,
TYPICALLY GUNITE
CONSTRUCTION, WITH
LESS THAN A 3’ RADIUS
TO THE POOL FLOOR.
DUE TO THE VARYING
SIZES OF OTHER POOLS,
TYPICALLY VINYL LINER
CONSTRUCTION, PLEASE
CONTACT CUSTOMER
SERVICE FOR PROPER JIG
PLACEMENT.
1-800-737-5386
EDGE
DIVING
SYSTEM
PART #
NOMINAL
BOARD
LENGTH
ANSI/
NSPI-5
POOL
TYPE
DISTANCE FROM
WATER’S EDGE TO
FORWARD JIG BOLT
(S)
DISTANCE FROM
END OF BOARD TO
FORWARD JIG BOLT
MAX HEIGHT
OF BOARD
ABOVE
WATER
(HOW)
EDGE-BASE 6’ I 31.5” 49.5” 18” 20”
EDGE-BASE 6’ II 31.5” 49.5” 18” 20”
EDGE-BASE 6’ III 25.5” 49.5” 24” 26”
EDGE-BASE 6’ IV 19.5” 49.5” 30” 30”
EDGE-BASE 6’ V 13.5” 49.5” 36” 40”
EDGE-BASE 8’ I
EDGE-BASE 8’ II
EDGE-BASE 8’ III 44.25” 68.25” 24” 26”
EDGE-BASE 8’ IV 38.25” 68.25” 30” 30”
EDGE-BASE 8’ V 32.25” 68.25” 36” 40”
MIN.
OVERHANG
(WA)
NOT ALLOWED
NOT ALLOWED
FIG. A – EDGE FIBERGLASS BASE PLACEMENT SPECIFICATIONS:
S.R.SMITH CANNOT GUARANTEE CUSTOMER’S CONCRETE OR THICKNESS
NOTE: READ THESE INSTRUCTIONS IN THEIR ENTIRETY BEFORE ATTEMPTING THE INSTALLATION.
INSTALLATION INSTRUCTIONS

INSTALLATION MANUAL EDGE DIVING SYSTEM
7srsmith.com
FIG. B – EDGE DIVING BOARD
TABLE 4 – BOARD DIMENSIONS AND FULCRUM SETTINGS
Model # Nominal Length A B C D F DIA.
EDGE 6 6’ 70.25” 17.25” 6.31” 4.00” 42.50” .625”
EDGE 8 8’ 94.00” 17.25” 6.31” 9.00” 42.50” .625”
Jig Type A B C BOLT
Edge Fiberglass 12” 12” 6” 1/2” X 6”
FIG. C – EDGE JIG
INSTALLATION INSTRUCTIONS: Edge Diving System WITHOUT Board Fall Unit
Be sure the concrete deck surrounding the anchor jig complies with the minimum dimensions as shown in Figure A on
pages 6.
CHECK YOUR LOCAL ELECTRICAL CODE FOR BONDING REQUIREMENTS.
Read and understand the ANSI/APSP/ICC-5 2011 American National Standard for Residential Inground swimming Pools
and Table 1 and Table 2 on page 5 before you install Edge Fiberglass Stand and/or Edge Diving Board.
The Edge four-bolt jig should be set in accordance with Table 3 on page 6. The diving board must be placed on the deep
end of the pool on centerline.
The tip of the diving board must be positioned directly over Pt. A as shown on page 5 and according to the ANSI/APSP/
ICC-5 2011 Standard and S.R.Smith’s Residential Pool Minimum Specifications.
Make sure the jig anchor bolts project out of the concrete deck 1-1/2” for the Edge Stand with ample concrete depth
below the jig in accordance with Figure A on page 6. Do not install the Edge Diving System if the deck does not meet
the minimum requirements.
TABLE 5 – JIG DIMENSIONS

INSTALLATION MANUAL EDGE DIVING SYSTEM
8srsmith.com
When finishing the deck surface, maintain a level deck where the jig bolts project out so the dive stand makes uniform
contact with the deck surface. Allow the cement to fully cure before bolting the dive stand to the jig bolts.
Before bolting the dive stand to the jig bolts, chisel away any excess concrete that may have built up around the jig bolts
then remove the protective yellow rubber bolt caps.
The top surface of the diving board from the deck end to the
tip end shall be level or have an upward slope of 5/8” per foot
maximum. Elevation difference shall not exceed 3-3/4” for a 6’
board or 5” for a 8’ board. There shall be no downward slope
towards the water. The slope shall be measured using a level as
shown in the graphic to the left.
ONLY ONE PERSON ON THE JUMP BOARD AT A TIME, WITH A MAXIMUM WEIGHT OF 300 LBS.
FIG. D
Edge Springs
FIG. E
Edge Fiberglass Base
STEP ONE:
Lay the Edge board upside down on the box it was shipped in. Attach the Edge Springs to the board with hardware kit
EDGE-M. The long leg of the spring faces towards the pool as shown in Figure D. Use exploded view on page 9 for
reference. Hand tighten only at this point.
STEP TWO:
Lay the base upside down on the springs and align the 3 holes in each spring center to the base. Orient Edge Base to pool as
shown in Figure E. Use hardware kit EDGE-SP and bolt springs to base. Use exploded view on page 9 for reference. Tighten
the 6 bolts from base to springs at this time to 25-30 FT-LBS.
STEP THREE:
Turn the assembly over and tighten the board to spring hardware that was only hand tightened in step one. Tighten to 20-25
FT-LBS.
STEP FOUR:
Place the Edge stand over the four jig bolts and secure with hardware kit TS-BK. Tighten the Stand Anchor Hex Nuts to
40-45 FT- LBS. Do not over tighten.
The Diving Board must be installed according the below board leveling instructions:
HARDWARE NOTE: Use a small dab of anti seize lubricant (included) on all bolt threads.
POOL WATER POOL WATER

INSTALLATION MANUAL EDGE DIVING SYSTEM
9srsmith.com
You MUST refer to the Edge Diving System installation manual for proper jig placement locations, minimum diving
envelope requirements and installation information.
Refer to these instructions only when using a 6 or 8 foot Edge aquaBoard together with a Board Fall water feature.
1. WATER STUB-UP DETAILS:
If installing a BOARD FALL, ensure that a 1/2” (minimum) water stub-up conduit is located within the area designated. (Fig. 1) Provide
a minimum of 10 gallons per minute water flow for the BOARD FALL water feature. NOTE: Maximum water supply is 1-1/2” PVC.
To ensure plumbing conduit will not hit the inside of the base, the stub-up must not exceed 4” in height.
2. BOARD FALL DETAILS:
The BOARD FALL water feature will work with a 6 or 8 foot Edge aquaBoard™. NOTE: Minimum 10 GPM water supply recom-
mended. Please see detailed installation instructions for dive stand installation information and requirements.
BOARD FALL CONFIGURATION:
BOARD FALL: kit includes Board Fall, Mounting Hardware (4 screws), 8’ & 4” of 1/2” Flex PVC Pipe, 1-Union
Fig. 1
toward pool --->
INSTALLATION INSTRUCTIONS: Edge Diving System WITH Board Fall Unit

INSTALLATION MANUAL EDGE DIVING SYSTEM
10 srsmith.com

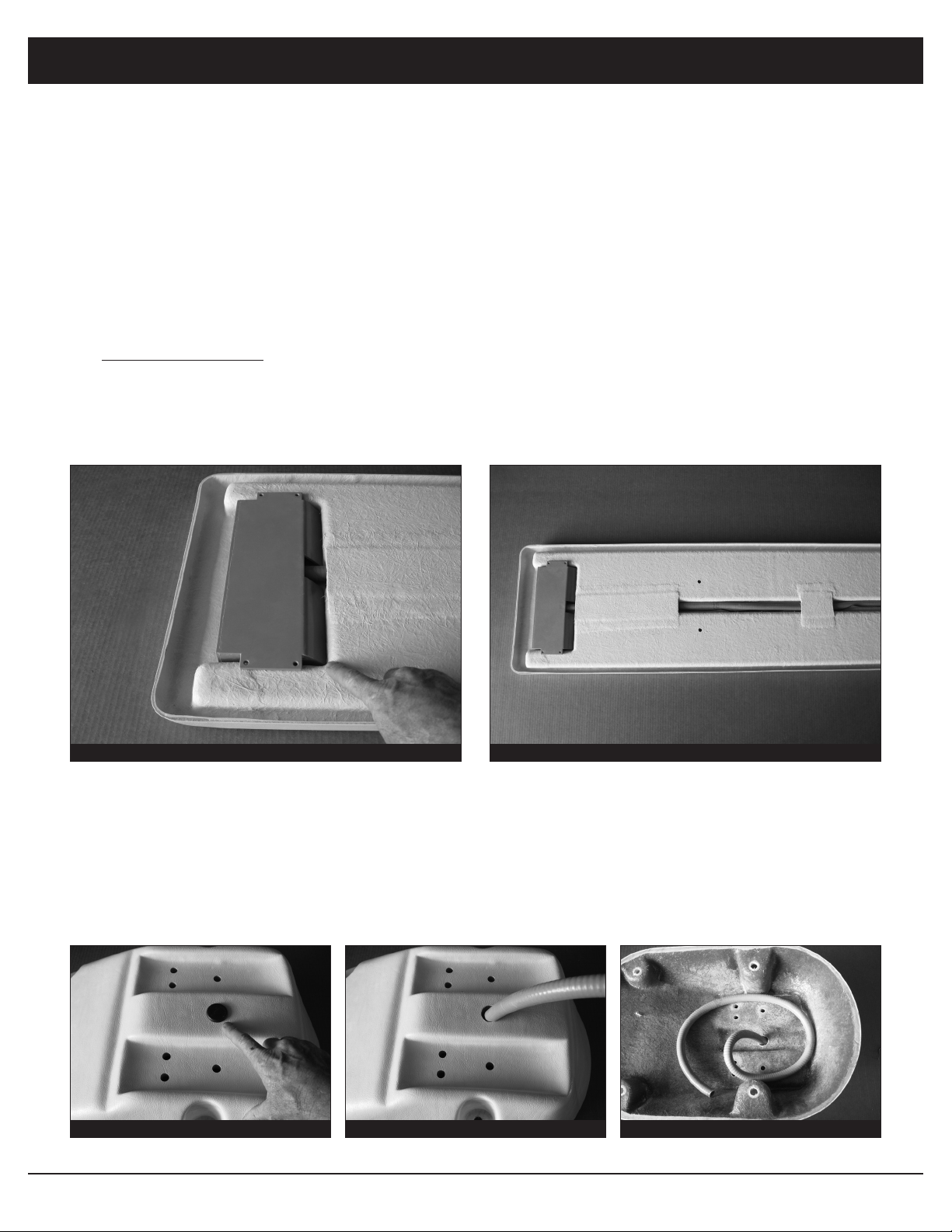

Fig. 2 Fig. 3
Edge aquaBoard™ Edge aquaBoard™
D) Attach the waterfall unit to the Diving Board by inserting the 4 provided screws thru the holes in the waterfall assembly; hand
tighten only (DO NOT USE SCREW GUN), over tightening the screws will cause them to strip inside the board or break the
waterfall housing, and voids the warranty.
3. BASE PLUMBING DETAILS:
Remove the black cap on the top of the base. (Fig. 4) Pass the hose through the base. (Fig. 5) Coil up any excess hose under the
base. (Fig. 6)
Fig. 4 Fig. 5
Edge aquaBoard™ Edge aquaBoard™
Fig. 6
Edge aquaBoard™
STEP ONE: INSTALL BOARD FALL WATER FEATURE ON EDGE aquaBoard™:
If purchased, attach the optional waterfall assembly to the underside of the Edge aquaBoard™ as follows:
IMPORTANT: To keep the BOARD FALL from clogging when installing on a Sand Filter System, an in-line cartridge filter is recommended
on the BOARD FALL water supply line.
A) The BOARD FALL comes from the factory with an 8’ length of 1/2” flex PVC pipe attached. The 8’ length goes thru the board
and attaches with PVC glue to one side of the 1/2” union. The 4” length of flex PVC pipe attaches with PVC glue to the stub-up
and then to the other side of the 1/2” union.
B) Once the water tubing is threaded all the way through the diving board, from the base side, gently pull the end of the tubing until
the waterfall assembly is pulled gently into the BOARD FALL receiver on the top of the diving board.
C) Mark the hole locations for attaching the BOARD FALL unit to the board.
For an Edge aquaBoard™: Locate the BOARD FALL unit all the way to the back of the BOARD FALL receiver. (Fig. 2) Make
sure the hose is threaded through the channel as shown. (Fig. 3) Using a 1/8” drill bit, drill the 4 holes 1/2” deep. Use tape to
mark the drill bit depth. IMPORTANT: Do not drill the holes deeper than 1/2” as there is a risk of drilling all the way through
the board.

INSTALLATION MANUAL EDGE DIVING SYSTEM
11 srsmith.com
EDGE DIVING SYSTEM (EDGE6WW, EDGE-BASE, EDGE-SPRING):
DRAWING REPRESENTS THE
FOLLOWING PART NUMBERS:
EDGE-BASE (shown)
EDGE-SPRING (shown)
EDGE6WW (shown)
NOTE: EDGE6WW diving board shown in exploded view for illustration purposes. Must be purchased separately.
ITEM # COMPONENT DESCRIPTION
TS-BK EDGE-SP
EDGE-M
EDGE
KITS – QTY. COUNTS
1 EDGE-BASE Edge Diving Base 1
2 EDGE-SPRING Edge Spring 2
3 EDGE-BOARD Edge Diving Board 1
4 TS-EDGE-J Edge Jig 1
5 Spring Pad (factory installed) Edge Spring Pad 2
6 H-WHT WAS/CAP IFI White Washer Cap 2
7 H-SS 1/2X13X4C 1/2” X 13 X 4” Carriage Bolt S.S. 2
8 H-SS 1/2 F WASH 1/2” Flat Washer S.S. 4 4
9 H-SS 1/2 LOC WA 1/2” Lock Washer S.S. 4 2
10 H-SS 1/2 H NUT 1/2” Hex Nut S.S. 4 2
11 H-1-1/2 WHT CAP .750 x 1-1/2” White UV Nut Cap 4 2
12 H-1/2 NYLON WAS 1/2” Flat Nylon Washer 4
13 H-SS 3/8-16X2-1/2 3/8” x 2 1/2” Hex Head Bolt S.S. 6
14 H-SS 3/8 FLT WA 3/8” Flat Washer S.S. 12 2
15 H-SS 3/8 LOC WA 3/8” Lock Washer S.S. 6 2
16 H-SS 3/8X3-1/2C 3/8” x 3 1/2” Carriage Bolt S.S. 2
17 H-SS 3/8 F NUT 3/8” Finish Hex Nut S.S. 2
18 H-.531 X 1.00 CAP .531 x 1.00 White Protective Cap 2
19 H-1/2 BLK WASH 1/2” x 2” dia. Black Rubber Washer 2
20 H-SS 3/8 NYLON 3/8” Nylon Insert Locknut 6
21* H-ANTI-SEIZE Packet of Anti Seize Lubricant (not shown) 1
* not pictured
TS-BK:
Base to Jig Mounting Hardware
EDGE-SP:
Spring to Base Mounting
Hardware
EDGE-M:
Board to Springs Mounting
Hardware
CHECK YOUR LOCAL
ELECTRICAL CODE
FOR BONDING
REQUIREMENTS.

INSTALLATION MANUAL EDGE DIVING SYSTEM
12 srsmith.com
SUPPORT INFORMATION: ARTICLE 5 – POOL DIMENSIONS AND TOLERANCES
Extracted from ANSI/APSP/ICC-5 2011, American National Standard for Residential Inground Swimming Pools

INSTALLATION MANUAL EDGE DIVING SYSTEM
13 srsmith.com
SUPPORT INFORMATION: ARTICLE 5 – POOL DIMENSIONS AND TOLERANCES
Extracted from ANSI/APSP/ICC-5 2011, American National Standard for Residential Inground Swimming Pools

INSTALLATION MANUAL EDGE DIVING SYSTEM
14 srsmith.com
SUPPORT INFORMATION: ARTICLE 5 – POOL DIMENSIONS AND TOLERANCES
Extracted from ANSI/APSP/ICC-5 2011, American National Standard for Residential Inground Swimming Pools

INSTALLATION MANUAL EDGE DIVING SYSTEM
15 srsmith.com
SUPPORT INFORMATION: ARTICLE 5 – POOL DIMENSIONS AND TOLERANCES
Extracted from ANSI/APSP/ICC-5 2011, American National Standard for Residential Inground Swimming Pools

INSTALLATION MANUAL EDGE DIVING SYSTEM
16 srsmith.com

INSTALLATION MANUAL EDGE DIVING SYSTEM
17 srsmith.com

INSTALLATION MANUAL EDGE DIVING SYSTEM
Copyright ® 2019 S.R.Smith, LLC All rights reserved. | srsmith.com
