Seiwa LKAB07034 User manual

Thank you very much for purchasing our LED lighting fittings.
Please read this instruction manual to use the product properly.
1) Prior to installing the fitting, check if the product is as per your order.
2) Check for a loose or damaged part due to an accident in transit, etc.
1)
<1>
<2>
<6>
<1,1H>
<1>
<4>
<1>
<2>
<6>
<1,1H>
<1>
<4>
2) Usable in hazardous areas where there may be deflagrative or flammable dust.
- Installation work should be done properly by a qualified electrician in accordance with the related laws and the instruction manual.
- For safety, Installation work should be done by at least two workers.
■

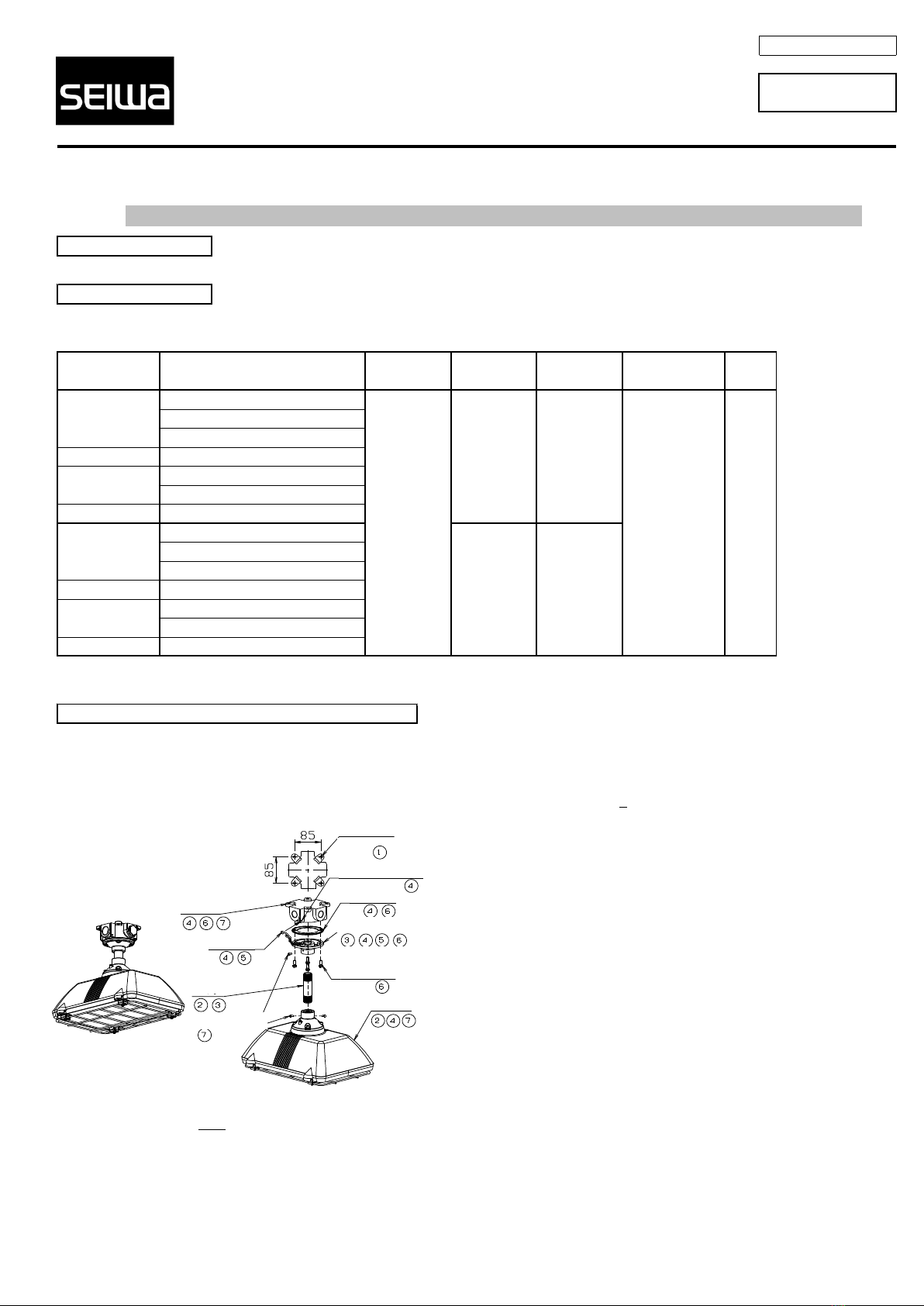

Direct Mount Type, Pipe Pendant Type, Bracket Type (Fig. 1: Example LKAB070341)
󳏀
NB: For the bracket type, fix it on a vertical mounting surface securely.
󳏁Screw the pipe into the lamp house.
󳏂Screw the terminal box cover into the pipe.
󳏃
󳏄
󳏅
󳏆
NB1:
NB2: Caulk the threaded connections.
NB3:
LKAB
After installing the product, be sure to hand this manual over to the user of the product.
Performance
11E0200002A11
To be conserved
Instruction Manual
Prior to use
Dust Ignition proof type LED Lighting Fittings
LKAB07034
LKAB07035
LKAB07031
LKAB07032
IP
rating
IP65
Type of
protection
SDP-13
LKAB07024
LKAB07025
LKAB07021
LKAB07022
Installation Type
Model
Direct mount
Pipe pendant
Bracket
Stanchion
Pipe pendant
Bracket
Input Voltage
(Frequency)
Input
Current
Power
Consumption
100-242V AC
(50/60Hz)
0.26-0.12A
0.19-0.08A
25.5-26W
18-18.5W
Stanchion
Special direct mount
Horizontal pole mount
Lamp house replacemen
The electrical characteristic data is given below (the figure in angle brackets < > in the Installation Type column is asign placed at the end of
each model code to represent the type of installation.)
Names of the Components and Installation Method
Special direct mount
Horizontal pole mount
Lamp house replacemen
Direct mount
Fix the terminal box on a horizontal mounting surface securely with M6
bolts or equivalent bolts.
Lift the lamp house and hook the suspension hook onto the suspension
hook hole of the terminal box.
After connection of the electric wires (white and black: power wires,
green: grounding wire), remove the suspension hook and put it in the
terminal box cover.
Fasten the terminal box and its cover with four cross recessed hexagon
bolts.
After adjusting the positions of the lamp house and terminal box,
tighten the three locking screws.
The pipe, locking screws and cross recessed hexagon blots should be
tightened securely. Otherwise, the lamp house might fall.
For the direct mount and Pipe pendant type, The lamp house may
be installed within an angle range of 0° (down).
For the bracket type, the lamp house may be installed within an
angle range of 0° (down) to 45° (oblique). For the direct mount and
Pipe pendant type, The lamp house may be installed within an angle
range of 0° (down).
Terminal box
Suspension hook
Pipe
3-Locking screws
Lamp house
4-φholesfor M6 olts
Suspension hook hole
Cover gasket
Terminal box cover
4-Cross recessed
hexagon bolts
Fig. 1
- 󲹾 -

■
Stanchion Type (Fig. 2: Example LKAB070351) 󳏀
󳏁
󳏂
NB:
󳏃
󳏄
󳏅
NB:
■
Special Direct Mount Type (Fig. 3: Example LKAB070311) 󳏀
󳏁
󳏂
󳏃Connect the electric wires in the terminal box.
󳏄
NB:
■
Horizontal Pole Mount Type (Figs. 4 and 5: Example LKAB070314)
󳏀
󳏁
󳏂
󳏃
󳏄
󳏅Connect the electric wires in the terminal box.
󳏆Adjust the angle of the lamp house using the mounting bracket.
NB:
Fit the top flange attached to the lamp house into the stand
pole (in the arrow direction).
Tighten the retaining screw and two locking screws supplied
with the top flange and confirm that the lamp house does not
turn.
Pass the electric wires (white and black: power wires, green:
grounding wire) through the flexible fitting and attach the
flexible fitting to the retainer (lamp house).
Pass the electric wires (white and black: power wires, green:
grounding wire) through the stand pole.
Don't remove the waterproof rubber pieces from the
retaining screw and locking screws.
Attach the short nipple and terminal box, referring to the
short nipple installation manual. For installation of the
terminal box, see Fig. 1.
Completely fix the stand pole with the support (not supplied)
and prescribed terminal box mounting screws.
Bring the electric wires to the terminal box and connect the
wires in the terminal box.
The lamp house should be installed within an angle range
from 0° (down) to 15°.
Fix the mounting bracket on a horizontal mounting surface
securely with M6 bolts or equivalent bolts.
Pass the electric wires through the terminal box and attach
the terminal box to the flexible fitting.
Adjust the angle of the lamp house using the mounting
bracket.
The product is mounted on a ceiling. The lamp house is
installed within an angle range from 0 to 70 degrees in the
left and right directions. For angle adjustment, loosen the
two hexagon socket head bolts on the retainer. After
adjustment, be sure to tighten the hexagon socket head
bolts.
As shown in Fig. 5, put the mounting band onto the support
and insert the horizontal pole (handrail).
Lift the lamp house and fix the lamp house mounting bracket
to the support securely with the two hexagon bolts and two
hexagon nuts on the mounting bracket.
Pass the electric wires (white and black: power wires, green:
grounding wire) through the flexible fitting and attach the
flexible fitting to the retainer (lamp house).
Pass the electric wires through the terminal box and attach
the terminal box to the flexible fitting.
The lamp house is installed within an angle range from 0 to
70 degrees in the left and right directions. For angle
adjustment, loosen the two hexagon socket head bolts on
the retainer. After adjustment, be sure to tighten the
hexagon socket head bolts.
Keeping the support horizontal, fix the mounting band and the
support securely with the pole between them using the two
hexagon bolts and two hexagon nuts on the mounting band.
Stand pole
Support
(not supplied)
Adapter
(thread G3/4)
Short nipple
(w/ 2 O rings)
2-Locking screws
(w/ rubber piece)
Top flange
Retaining screw
(w/ rubber piece)
Lamp house
Terminal box
800 mm or more
Fig. 2
Fig.3
2-φholes
(for M8 bolts)
Mounting bracket
Retainer
Lamp
house
Terminal box
Flexible fitting
Mounting angle
(up to 70°left/right)
2-Hexagon socket head
bolts
Pole (handrail)
Mounting band
(not supplied)
Support
Retainer
Lamp
house
Flexible fitting
Terminal box
2-Hexagon bolts
2-Hexagon bolts
2-Hexagon nuts
Mounting bracket
2-Hexagon nuts
Fig.4
Fig.5
Pole (handrail)
(not supplied)
Support
Mounting band
- 󲹿 -

■

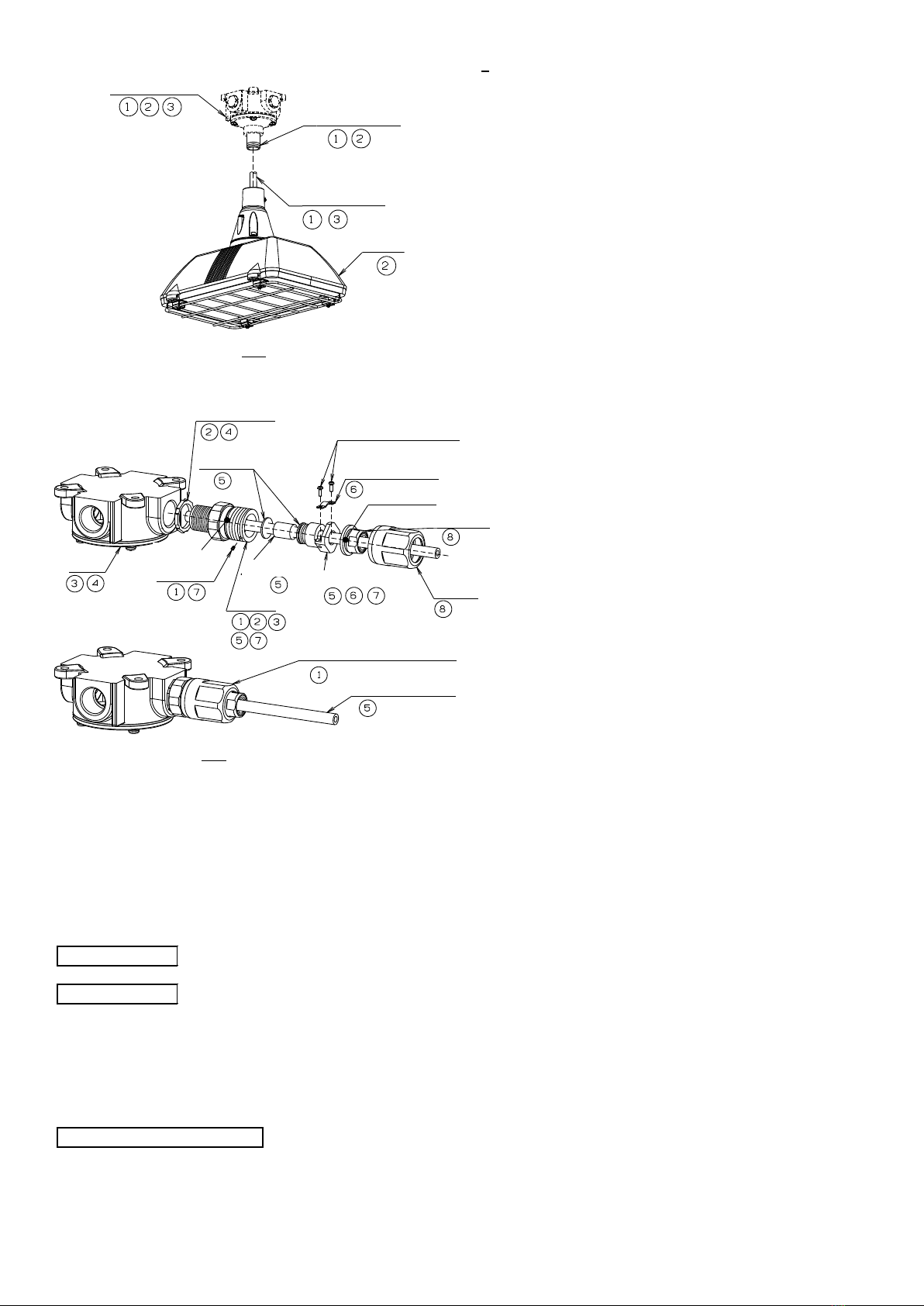

Lamp House Replacement Type (Fig. 6: Example LKAB037032)
󳏀
󳏁Attach the lamp house to the existing pipe.
󳏂Connect the electric wires in the existing junction box.
NB1:
NB2:
■
Attachment of Cable Gland (Fig. 7: Example ZCGS-22B)
󳏀
NB1:
NB2:
󳏁
Screw in the lock nut on the body until it touches the body flange.
󳏂
󳏃
NB: Waterproof the threaded connection.
󳏄
󳏅
Fasten the cable retaining plate on the cable fixing member.
NB:
Confirm that the cable does not move.
󳏆
󳏇
NB1:
NB2: The cable gland should be a product as specified by SEIWA.
The LED lamp is turned on by applying the rated voltage to the power cable of the product.
■
Inspection 1)
2) Prior to maintenance, be sure to turn off the power.
3) Carry out maintenance properly in accordance with the related law and regulations.
4) If a repair is needed, consult us.
1) In the period when the product is in use, never disassemble it.
2) For disposal of the product, follow the regulations and rules of your local government.
Before attaching the lamp house, check the existing piping (including
the pipe and junction box) for corrosion.
Pass the electric wires (white and red: power wires, black: grounding
wire) through the pipe (existing or supplied pipe) and the existing
junction box.
Tighten the locking screw on the body to prevent the cable
fixing member from loosening.
If the product is used in a place subject to water splashes,
waterproof the connection between the lamp house and the
existing pipe.
Attach the protective tube to the connecting member, then
screw the cover into the body securely.
Confirm that the cover is invisible from the O ring. If visible,
the waterproofness is not ensured.
How to Use
Maintenance
Disassembly and Disposal
Separate the cable gland into parts as shown in Fig. 7 and pass
the cable through the cable gland in the following order:
cover, connecting member, cable fixing member, washer,
rubber sleeve, washer, body, and lock nut.
The cable should be a round cable applicable to the rubber
sleeve. For information on cables applicable to the cable
gland, see the catalog.
Be sure to remove the locking screw on the cable gland
body before separating the cable gland into parts.
Tighten the lock nut toward the terminal box (or the device to
which the gland is to be attached).
In cleaning the fitting, gently wipe with water or mild detergent. Don’tuse thinner, benzene or alkaline detergent. Such
chemicals might cause discoloration or deterioration in quality and strength, resulting in a damage.
Fasten the gland onto the entry of the terminal box (or the
device to which the gland is to be attached) until the body
stops.
Push the washer, rubber sleeve, and washer into the body and
pull out the cable to a sufficient length for cable connection.
Screw the cable fixing member into the body.
Existing junction box
Existing pipe
Power cable
Lamp house
Fig.6
Fig.7
Lock nut
2-Washers
O ring
Terminal box
Locking screw
Body
Rubber sleeve
Cable fixing member
2-Cable fixing screws
Cable retaining plate
O ring
Connecting member
Cable gland (ZCGS)
Cover
Cable (round)
- 󲺀 -

When reordering, please let us know:
・Drawing or drawing No. for the delivered product
・Manufacturing lot number on the nameplate
1.
2. Prior to maintenance or inspection, be sure to turn off the power.
3. Confirm that the screws and bolts are fastened properly and tightly.
4. In the case of the stanchion type, be sure to provide a support at least 800 mm above the bottom of the pole.
5.
6.
7.
8. The supply voltage variation should be within ±6% of the rating.
9. Close unused entries of the terminal box with plugs.
10.
11.
12.
Prior to maintenance or inspection, be sure to turn off the power.
13. To prevent shortening of the service life, avoid turning on the fitting in direct sunlight.
14. To avoid noise or malfunctioning, don't use a radio, television or wireless infrared remote control near the fitting.
15.
16.
17.
18.
Do’t ope the produt. Otherwise, a eplosio, fire, or eletri shok ight result.
19. The cable gland must be a product specified by SEIWA.
20. The LED lamp and the power supply unit cannot be replaced.
21. Do’t look straight at the LED lap. It a daage our ees.
Reordering
If the above information is unavailable, give us any material showing the appearance of the
product or details of the product specification (dimensions, mounting interval, lamp type, etc.).
The product must be installed so that the angle of the lamp house is within a prescribed range from its downward oriented position (0°).
If the angle is out of the range, an insulation failure or electric shock might result.
For use in an unfavorable location (a very hot, cold or humid place or a place in which there is strong wind or vibration, a salt damage
environment or a dusty or corrosive gas atmosphere), a special countermeasure should be taken.
The ambient temperature should be within the range of -20°Cto +40°C. The use of the product out of this range may shorten the service
life.
In grounding work, be sure to follow the technical standards for electrical equipment and explosion-protected equipment of your country.
Inadequate grounding might cause an explosion, fire or electric shock.
For white LED lamps, the luminescent color and brightness may vary with individual LEDs because of their nature. Also note that the rate
of attenuation with time varies with individual LED lamps.
The product must be mounted on a sturdy wall surface or structure which is vibration-free and less susceptible to damage. Otherwise, it
might fall or be damaged.
For outdoor use, waterproof the screwed portion of the conduit, the cable entry fittings and the joint with the stand pole to prevent
rainwater infiltration.
When installing the fitting, be sure to connect external wires inside a specified part of the fitting. Don't open any other part of the fitting
unless necessary.
The product must be used in a location where it can be used safely according to its explosion protection type (indicated on the body).
Fig.8
Nameplate
CAUTIONS
- 󲺁 -

- Prior to use, please read the safety precautions and instruction manual thoroughly to use the product properly.
-
- Please keep the manual in a handy place for later reference.
●The various marks have the following meanings:
11E0000712D11
Safety Precautions
To be conserved
L照󱆠6
Be sure to turn
off the power.
In grounding work, be sure to follow the technical standards for electrical equipment and explosion-protected equipment of
your country. Inadequate grounding might cause an explosion, fire or electric shock.
The parts once removed for cleaning should be replaced properly according to the instruction manual.
An improperly placed part might cause the product to explode or fall, resultng in an injury or property damage.
Do’t ope LED lap protetie oers suh as the frot glass ad glass gloe.
Do’t touh a LED lap, otherise a alfutio or lightig failure ight our.
Do’t ed, tist or pull the poer ale y fore.
Inadequate handling of the cable might damage it and result in a fire or electric shock.
Do’t oert the produt.
Conversion might cause the product to fall or result in a fire or electric shock.
When leading the power cable into the product through a conduit or the like, waterproof the connection and joint
adequately to prevent water infiltration. Inadequate waterproofing might cause a fire or electric shock.
WARNING
If you use a product in a hazardous location where there is a gaseous, steamy or dusty atmosphere, it should be of the
flameproof type suitable for the location. Use of an unsuitable type apparatus might cause an explosion or fire.
The ambient temperature should be within the operating temperature range specified in the instruction manual. If the
product should be used at a temperature higher than specified, an early lighting failure or malfunction might occur or an
explosion or fire might result.
If a product must be oriented in a specific manner for use, install it properly according to the marking on its body or the
instruction manual. Otherwise, an explosion, fire or electric shock might result.
Don’t touch.
Be sure to
ground.
Prohibited.
Be careful of
ignition.
After installing the product, be sure to hand the safety precautions and instruction manual over to the user of the product.
Caution
WARNING:
CAUTION:
Improper handling may lead to a human death or serious bodily injury.
Improper handling may lead to a bodily injury or property damage.
Disassembly &
conversion
prohibited.
Don’t use near
a water source.
Be sure to
follow the
instructions.
When leading the power cable into the product, be sure to follow the technical standards for electrical equipment and
explosion-protected equipment of your country. Inadequate cable connection or waterproofing might cause an explosion,
fire or electric shock.
For electrical connections, use crimp-type terminals, etc. to secure the connections and conduct insulation treatment. An
inadequate connection or inadequate insulation might cause an imperfect contact, leading to an explosion, fire or electric
shock.
Do’t oer the produt ith a iflaale aterial suh as loth or paper or put aythig i the produt.
Such a material or thing might cause an explosion or fire.
- 1/2 -

Ni-Cd
Ni-MH
L照󱆠6
Please note that the above addresses and phone numbers may be changed.
Installation of the product should be carried out by a qualified person.
Installation by an unqualified person is legally prohibited.
Don’t use the product in a strong corrosive gas atmosphere which contains hydrochloric acid or chlorine gases or the like.
Use in a corrosive gas atmosphere might cause the product to corrode and fall, resulting in an injury.
Do’t use the produt at a oltage other tha the rated oltage idiated o the aeplate.
Otherwise, breakage, fire or electric shock might result.
Before cleaning, be sure to turn off the power.
Otherwise, a fire or electric shock might result.
CAUTION
Any product not marked as a product for outdoor use should not be used outdoors or in a humid place or near a water
source. Its use in such a place might cause a fire or electric shock.
The product should be mounted on a surface robust enough to support its weight, properly according to the instruction
manual. Improper installation might cause the product to fall or result in an electric shock or injury.
CONTACT DETAILS
Never touch LED light sources and their surroundings.
The light sources and their surroundings are very hot, so an accidental touch might cause a burn.
A lighting fitting has a service life. A product which has been used for eight to ten years may have degraded internal parts
even if it looks normal. For safety and energy saving, we recommend you check and replace it. The LED module design life is
6,0000 hours (different from the lighting fitting life) when used at an ambient temperature of 30°C, 10 hours per day, 3,000
hours per year. If used at a higher temperature or more hours per year, the life would be shortened. Have a specialist
inspect the product every three years. If used for an extended period without inspection, a smoke, fire, or electric shock
might result.
Fax
2-19-6 Yanagibashi, Taito-ku, Tokyo 111-0052 Japan
[phone]
[phone]
[phone]
Tokyo Branch
Fax
SEIWA ELECTRIC MFG.CO., LTD.
Phone
Phone
36 Shinike, Terada, Joyo, Kyoto Pref. 610-0192 Japan
Head Office
[phone]
For further information on the product, contact any of our offices listed below (if you like to make an inquiry, let us know the model name
indicated on the product nameplate).
To ensure brightness and safety, carry out periodical cleaning and inspection.
If you find a problem, discontinue the use of the product and have it repaired by a specialist.
For a product marked with a frequency, don’t use the product at a frequency other than 50 or 60 Hz (local power supply
frequency). Use at a wrong frequency might cause a fire.
JBRC 󳞥Japan Portable Rechargeable Battery Recycling Center󳞦
Phone [phone]
Resycling
Please bring used Secondary batteries to the recycling station for effective use of precious
resources and global environment conservation.
If you continue to use the product in an abnormal condition (smoke, odor, etc.), an explosion, a fire or electric shock might
result. If you detect an abnormality, immediately turn off the power switch. Confirm that the abnormal condition has been
eliminated and make a repair call.
WARNING
- 2/2 -
