Senis 3MTS Installation manual

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180125_V.3.0.DOCX 1
3MTS Operation Manual
3-axis USB Handheld Teslameter
3MTS_OPMANUAL_EN_20180125_V.3.0.DOCX

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 2
General Information
The operational safety and functioning of the device can only be guaranteed if both the general
safety and accident prevention regulations given by legislator, as well as the safety instructions
provided in this Operation Manual are fully considered. We assume no liability for damages caused
by the improper use or incorrect device operation.
Make sure that persons responsible for the device and its operation have
read and understood this Operation Manual.
After you have read this manual, keep it in a safe place where it can be accessed at any time if
necessary.
Contact:
Matesy GmbH
Magnetische Technologien & Systeme
Otto-Schott-Str. 13
07745 Jena
Phone : [phone]
e-mail: [e-mail]
www.matesy.de
SENIS AG
Neuhofstrasse 5a
6340 Baar
Phone : [phone]
e-mail: [e-mail]
www.senis.ch

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 3
Table of Contents
1
Safety Precautions ...........................................................................................................................
4
1.1
Awareness of Operation Manual ............................................................................................
4
1.2
Informal Security Measures ....................................................................................................
4
1.3
Operator Training ....................................................................................................................
4
1.4
Constructional modifications to the device ............................................................................
4
1.5
Warnings..................................................................................................................... .............
5
2
Application Notes ............................................................................................................................
6
2.1.1
Installation Site ....................................................................................................................
6
2.1.2
Device Transportation .........................................................................................................
6
2.1.3 Store and protect during the interruption of normal use ...................................................
6
3
Product Description .........................................................................................................................
7
3.1
Introduction ................................................................................................................ .............
7
3.1.1 3MTS-1.................................................................................................................................
8
3.1.2 3MTS-2.................................................................................................................................
9
3.2
Magnetic and Electrical Specification ....................................................................................
10
4
Application Program ......................................................................................................... .............
11
4.1
Software Installation ....................................................................................................... ......
11
4.2
Start the Application Program MHM.....................................................................................
15
4.3
Main Application ...................................................................................................................
16
4.3.1
Menu bar ...........................................................................................................................
16
4.3.2
Measurement Display .......................................................................................................
17
4.3.3 Values / Plots / Graphics ...................................................................................................
18
4.3.4
Measurement Configuration - Values ...............................................................................
19
4.3.5
Status bar .................................................................................................................. .........
20
4.4
Setup ......................................................................................................................................
21
4.5
Change the Language ............................................................................................................
22
4.6
Save/Record Measurement ...................................................................................................
23
4.7
Save Plot ................................................................................................................... .............
25
4.8
„Information“ Window ........................................................................................................ ..
26
4.9
Close Application ........................................................................................................... ........
26

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 4
1 Safety Precautions
1.1 Awareness of Operation Manual
Any commissioning and handling on the device requires the exact awareness of and compliance to
these operating instructions. The device is intended for use according to the described application
notes only. In this manual, particularly important comments are highlighted as follows:
WARNING !
This is a warning that points to risks and dangers. Disregarding this warning can
lead to life-threatening situations. These warnings must be considered and
respected.
Information !
This is an information which points to certain necessary, characteristics.
1.2 Informal Security Measures
The Operation Manual must always be kept at the place where the device is used. In addition to the
operating instructions, the general regulations as well as the local regulations for accident prevention
and environmental protection must be provided and respected. All safety precautions for the device
must be kept in readable condition.
1.3 Operator Training
The device may only be operated by trained personnel. Apprentices should work on the device under
the supervision of an experienced person.
1.4 Constructional modifications to the device
Modifications or alterations to the device which influence the functioning of the device, without the
manufacturer's permission, are prohibited. All device modifications require a written confirmation by
the manufacturer. The device or its parts must be replaced by the manufacturer with original spare
parts.

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 5
1.5 Warnings
Risk of injury from electric strike!
Before cleaning, the device must be disconnected from the supply voltage by
removing the USB cable from the USB port of the personal computer or tablet.
Do not modify, bend, mechanically stress, pull, heat, or expose the USB cable to
heat or cold sources. Do not squeeze the cable or damage it by sharp edges. The
cable guide on the device must not be loaded by pulling. There must always be a
sufficient cable length from the probe to the personal computer.
If damage is observed, the device must be taken out of operation immediately.
Contact the manufacturer in this case.
Danger by liquids!
To reduce the risk of fire or electric shock, do not expose the unit to rain or
moisture. No liquid must penetrate the housing, nor may the electrical
components come into contact with a liquid. The device must be completely dry
before turning it on again
Danger due to magnetic fields!
The device measures magnetic fields, such as the magnetic field of permanent
magnets. Never stick unsecured magnets together. There is a risk of crushing
and cutting. Do not allow any iron parts (e.g. tools) to lie around.
Do not put the credit cards near the magnets. These could be deleted or
damaged.
Heart pacemakers can be interfered by the magnetic field, so inform your
employees on dangers that might be caused by strong magnets!

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 6
2 Application Notes
The 3MTS can be commissioned by the customer according to the operating instructions. In case of
problems the manufacturer has to be immediately contacted.
2.1.1 Installation Site
Proper installation site.
The device is to be kept and used for measurement in a dry (humidity <60%, no
direct or indirect water effect), dust-free and low-vibration environments.
All components and connectors must be freely accessible and must not be
blocked by obstructions.
The manufacturer accepts no liability for infringements.
2.1.2 Device Transportation
Transportation after the measurement.
The customer is free to change the location of the measuring system. Switch the
device off by disconnecting the USB cable and protect the device using the
original packaging.
2.1.3 Store and protect during the interruption of normal use
Store and protect.
Switch off the device by disconnecting the USB cable and protect the device
using the original packaging.
Store the device in the original packaging in a safe and protected place to
protect it from environmental influences and from damage. Before re-using the
device, check for external damages. If damage is detected, do not switch on the
device and inform the manufacturer accordingly.

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 7
3 Product Description
3.1 Introduction
The 3MTS is a handheld Teslameter / Gaussmeter with integrated USB interface. It was developed in
cooperation between the two companies SENIS and Matesy.
The 3MTS has a fully integrated three-axis Hall probe (see Figure 1).
Figure 1: Dimension of the field-sensitive volume of the fully integrated 3-axis Hall sensor chip
The Hall probe is connected to a compact and light electronic module that provides the measured
signal acquisition and signal-conditioning; Integrated 12-bit AD conversion; the device calibration;
and an USB connection to the host computer. The temperature sensor integrated in the Hall probe
chip allows a temperature-compensated output signal for all three magnetic field components (Bx, By
and Bz). The easy-to-use Teslameter software running on a MS Windows computer, tablet or
smartphone is used for the data acquisition, Teslameter power supply and control and for measured
data visualization. The measured data are visualized in numerical and graphical colored displays,
allowing an easy readability and intuitive setup of alarm triggers, hold function and measured data
storage. The total value of the magnetic field, as well as all three components of the magnetic field
and the probe temperature are displayed. In addition, the min/max values of the magnetic field
components can be presented.
The 3MTS Teslameter has two versions:
Version 1 (3MTS-1): Carbon-fiber probe holder for extreme robustness and flexibility;

Version 2 (3MTS-2-Xm): Probe connected by a thin cable (cable lengths: 1 m, 2 m, 5 m).









3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 8
3.1.1 3MTS-1
The 3MTS-1 utilises a fully integrated three-axis Hall probe, which is integrated into a specially
developed carbon fiber holder to ensure the mechanical protection of the probe (see Figure 2 and
Figure 3).
The probe holder is 5 mm wide and only 1 mm thick to allow a measurement of the magnetic field in
narrow air gaps. In the region of the tip of the probe holder, the three-axis magnetic field sensitive
Hall sensor chip is integrated (see A in Figure 3).
Dimensions
X [mm]
Y [mm]
Z [mm]
Magnetic Field
0.14
0.01
0.14
Sensitive
Volume (MFSV)
Position of the
-2.5 ± 0.1
0.65 ± 0.05
-1 ± 0.1
center of MFSV
Figure 2: Standard Dimensions 3MTS-1 Handheld Teslameter (side view). All measures are given in millimeters.
Figure 3: 3MTS-1 Handheld Teslameter (carbon fiber probe holder)

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20181202_V.3.1.DOCX 9
3.1.2 3MTS-2-X m
The 3MTS-2-X m utilises a fully integrated three-axis Hall probe, which is connected to the electronic
module through a thin cable (see Figure 4). The thin CaH cable can be provided in three different
lengths: 1 m, 2 m and 5 m. The probe can be fixed on a customer-made probe holder.
.
Figure 4: Dimensions of the C-type Hall probe, electronic module and Cable CaH (available lengths: 1 m, 2 m, 5 m). All measures are given
in millimeters
Dimensions
X [mm]
Y [mm]
Z [mm]
Magnetic Field
0.14
0.01
0.14
Sensitive
Volume (MFSV)
Position of the
-2.0 ± 0.1
0.55 ± 0.05
-0.5 ± 0.1
center of MFSV
Total probe external
dimensions
4.0 ± 0.1
0.90 ± 0.05
8.0 ± 0.1
Cable CaH
Available lengths: 1 m, 2 m, 5 m
Flexible shielded cable
(L=50 mm, OD<0.7
mm)
Hall
probe
(ext. diam. 1.7±0.1) mm

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 10
3.2 Magnetic and Electrical Specification
Unless otherwise noted, the specifications summarized in the table below apply for all three
measurement channels Bx, By, and Bz at the room temperature (23°C) and after a 15 minutes device
warm-up time.
Parameter
Value
Standard measurement ranges
± 100 mT
± 500 mT
± 3 T
± 20 T
Linear/Calibrated range of magnetic
± 100 mT
± 500 mT
± 2 T
± 2 T
flux density (± BLR)
Total Accuracy
< 1 % of B
range
(@ B < ± BLR)
Planar Hall Voltage impact
< 0.01 % of Bperpendicular
(@ B < ± BLR)
Long-term instability
< 1 % over 10 years
Magnetic Resolution
< 400 µT
< 1.8 mT
< 11 mT
-
(no averaging)
Magnetic Resolution
< 20 µT
< 70 µT
< 320 µT
-
(with averaging; integration time 1s)
AD Conversion
12 bits
Sampling frequency [fs]
1 kHz per measurement channel
Frequency bandwidth [fc]
fc >> fs
Operating temperature range
-20 °C to +85 °C

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 11
4 Application Program
4.1 Software Installation
If you purchased a PC together with the Teslameter, the software is already installed and the system
can be used immediately. Otherwise, the supplied CD-ROM contains system drivers and the
application program, as a set-up file. For a successful software installation follow the steps below:
Depending on the security settings of the PC, the administrator rights may be
necessary for the installation. If problems occur, please contact your network
administrator.

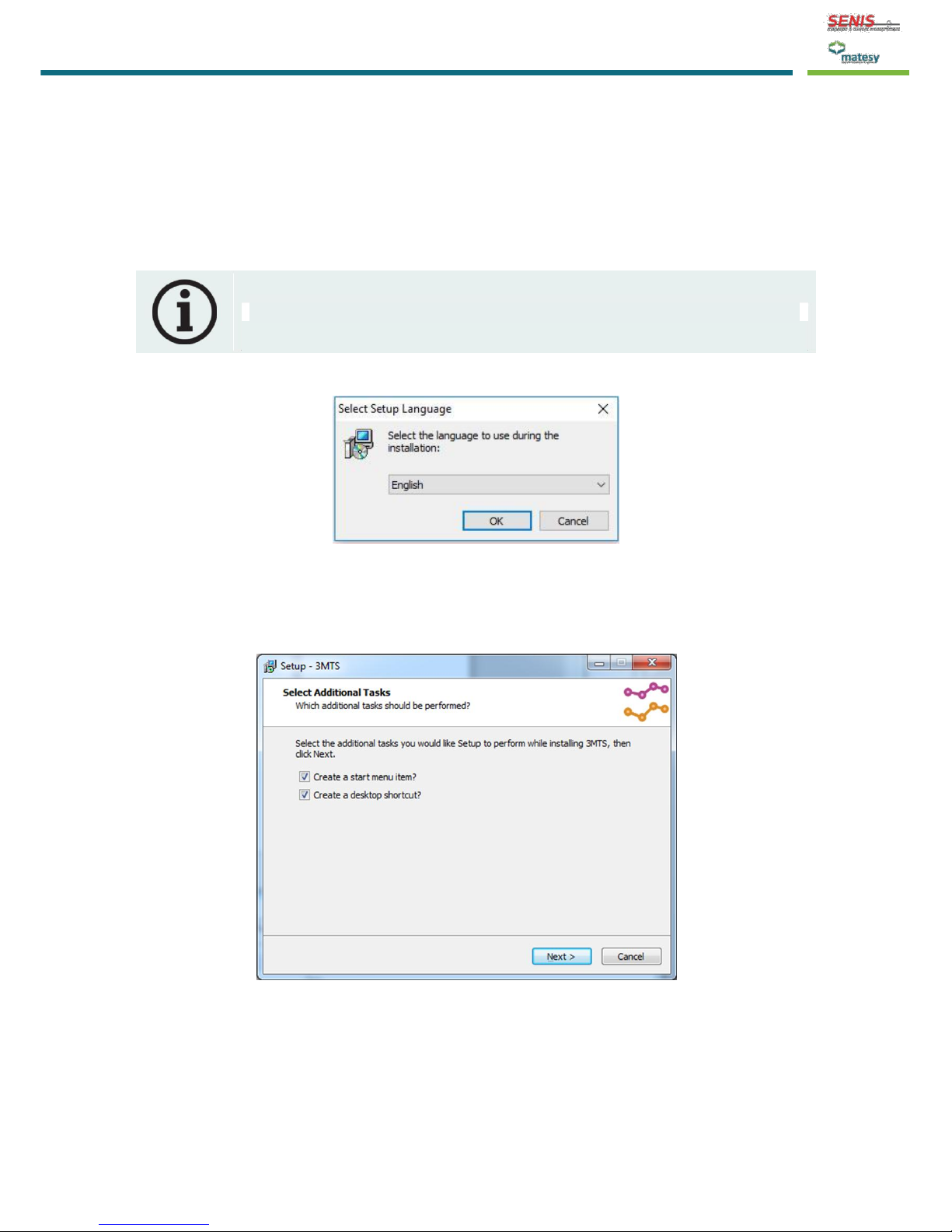

Figure 5: Setup-Language selection
1. Open the setup file of the 3MTS software and select the desired language.
Figure 6: Select additional tasks
2. Now you can select whether you want to create a start menu entry or a desktop shortcut,
then confirm it with "Next“

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 12
Figure 7: Ready to install
3. Now confirm the installation process by pressing the "Install" button.
Figure 8: Installation progress
4. Here you can see the installation progress.

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 13
Figure 9: Create start menu and desktop link
5. Check “Install Driver?” to automatically install necessary drivers. Uncheck “Start application?”
if you do not want to start the software at this time. Click “Finish” to complete installation.
Figure 10: Confirm installation
6. Check “Always trust software from “Verein INNOVENT e.V” if you want to always trust
software from this publisher. Click “Install” to proceed with driver installation.

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 14

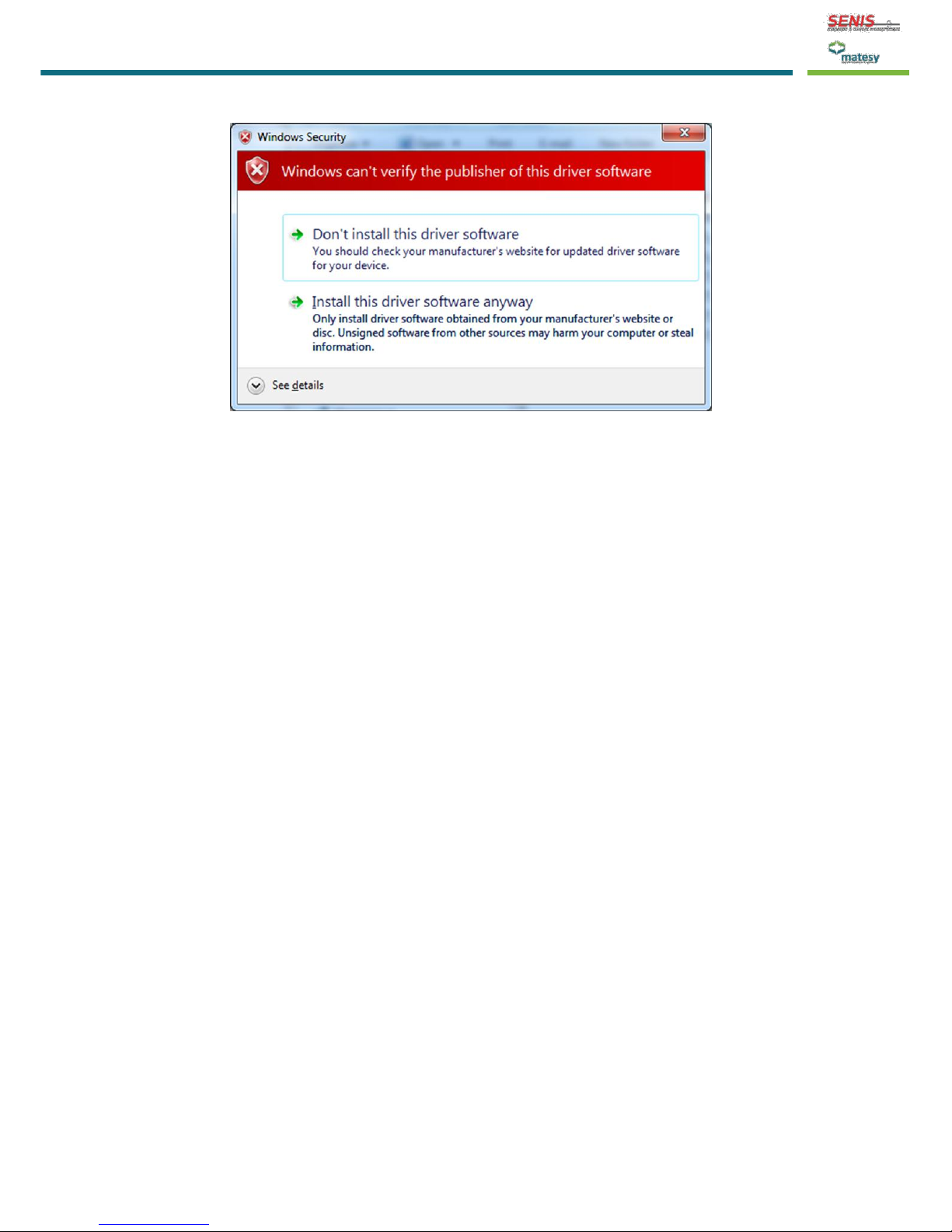

Figure 11: Windows security
7. If the following window pops up, click “Install this driver software anyway” to confirm driver
installation.

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 15
4.2 Start the Application Program 3MTS
Open the installation folder and start the application 3MTS.exe (Figure 12).
Figure 12: Start of the Application Program 3MTS

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 16
4.3 Main Application
After the software was started, the main application window opens.
1. Menu bar
2. Measured values display
3. Measured values
configuration
4. Values / Plots / Graphics
5. Status bar
Figure 13: 3MTS main application window - Values
4.3.1 Menu bar
Button
Description
Detailed description
Initialization
The probe can be initialized and de-
initialized using the button.
Measurement
-
Pause a measurement
-
Measurement stop, clears the
offset values
-
Offset, sets the current measured
values to zero value.
A performed offset can be
undone.
Save
After pressing the "Save" button you
can select "Save plot" or "Save
measurement".
Setup
Use the Settings button to access the
global settings

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 17
Language
Use the World button to change the
language of the software.
Window size
Use the "Window Size" button to
adjust the size of the display
elements.
Information
Use the "Info" button to access the
information page
Close
Exits the software
4.3.2 Measurement Display
Display for each measured component (3):
-BTotal (total magnetic field value)
-
Bx
(X-axis measured by Hall probe)
-
By
(Y-axis measured by Hall probe)
-
Bz
(Z-axis measured by Hall probe)
-T Temperature of the probe
The instantaneous measured value (2) with its corresponding Offset value (1) is shown. The offset
value is displayed only after an offset has been performed. This is done via the "Offset" button in the
menu bar. In this case, the current measured value (2) becomes the offset value (4) and the
measured value is set to zero (5)
123456
Figure 14: 3MTS Software –Values

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 18
4.3.3 Values / Plots / Graphics
With the "Values / Plots" buttons, the measured values can be displayed as numeric "Values" (see
Figure 14) and graphically (“Plots”) as shown in Figure 15. The individual sensor channels can be
switched on and off on the left side of the "Plots" window (1). The plot color can be assigned to each
individual sensor channel by the right click on the corresponding button in the "Plots" window (Figure
16).The offset values and the current measured values are also displayed. On the right (2), the X and
Y axes can be selected for manual scaling and can be set with the mouse wheel. The default setting is
the "autoscale", after which the diagram area (3) automatically adapts to the measured values.
Furthermore, the screen can be moved with the arrow keys. The averaging over a defined number of
measured samples can also be set under (2). With the "Graphics" button, magnetic field orientation
can be shown (Figure 17).
1
2
3

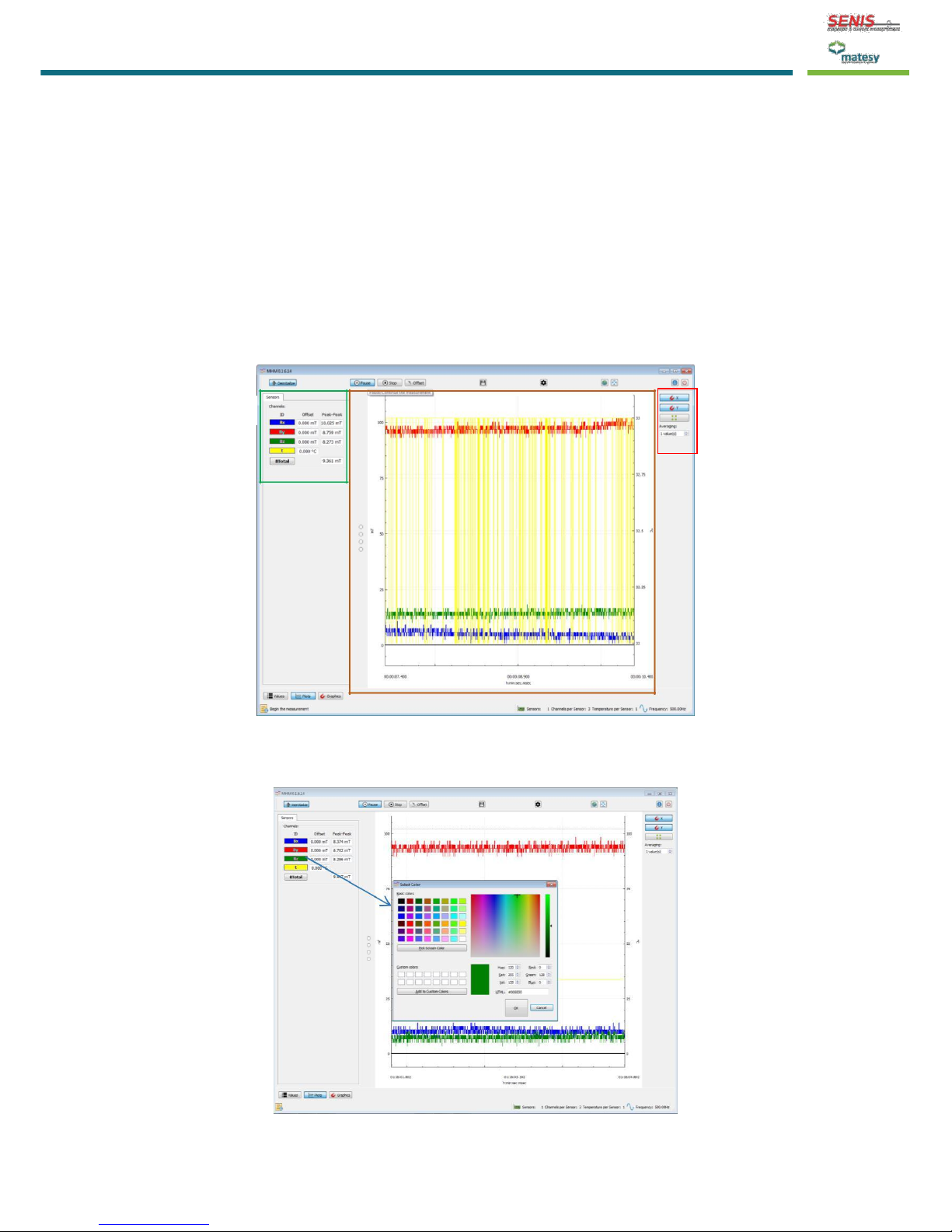

Figure 15: Main application window of the 3MTS software –Plots
Figure 16: Plots window –Assigning a color to the plot

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 19
Figure 17: Main application window of the 3MTS software –Graphics
4.3.4 Measurement Configuration - Values
Display
Description
Detailed Description
Average
The calculation method of the mean
value can be selected and the
number of samples can be set.
Hold Max / Min
If the Hold Min / Hold Max key is
activated, the current maximum or
minimum value is stored and
displayed.
Alarm
Minimum and maximum limits can
be set in this input field. If the limit
values are reached or exceeded, a
signal tone is issued, if this setting is
activated under "Settings"

3MTS: Operation Manual
3MTS_OPMANUAL_EN_20180212_V.3.1.DOCX 20
4.3.5 Status bar
Display
Description
Detailed Description
Status
Status messages
Number of
Provides the number of probes
probes
connected
Number of probe
Number of magnetic field probe
channels (axes)
channels/axis. The three probe
channels correspond to Bx, By and Bz
in three directions X, Y and Z.
Temperature
Number of temperature sensors per
sensors per
probe
Probe
Frequency
Displays the set measuring frequency
of the Teslameter
