RS PRO ISA-730 User manual

Instruction Manual
ISA-730
Spectrum Analyzer
EN FR DE IT SP

Table of Contents
21/11/2016 Version No. 002 1
Table of Contents
SAFETY INSTRUCTIONS............................................................................3
GETTING STARTED....................................................................................8
ISA-730 Introduction....................................................10
Appearance.................................................................12
First Time Use Instructions ..........................................19
BASIC OPERATION...................................................................................29
Frequency Settings......................................................32
Span Settings..............................................................35
Amplitude Settings ......................................................38
Autoset .......................................................................40
Marker ........................................................................43
Measurement ..............................................................55
Limit Line Testing ........................................................62
Bandwidth...................................................................67
Trace ..........................................................................68
Display .......................................................................73
Save/Recall Files ........................................................77
System Settings ..........................................................83
REMOTE CONTROL..................................................................................85
Interface Configuration ................................................86
Command Syntax ........................................................89
Command List .............................................................92
FAQ..........................................................................................................117
APPENDIX............................................................................................... 119
ISA-730 Default Settings............................................ 119

ISA-730 Instruction Manual/English
2 21/11/2016 Version No. 002
ISA-730 Specifications ...............................................121
ISA-730 Dimensions ..................................................124
Declaration of Conformity...........................................125
INDEX.......................................................................126

SAFETY INSTRUCTIONS
21/11/2016 Version No. 002 3
SAFETY INSTRUCTIONS
This chapter contains important safety instructions that you must
follow during operation and storage. Read the following before
any operation to insure your safety and to keep the instrument in
the best possible condition.

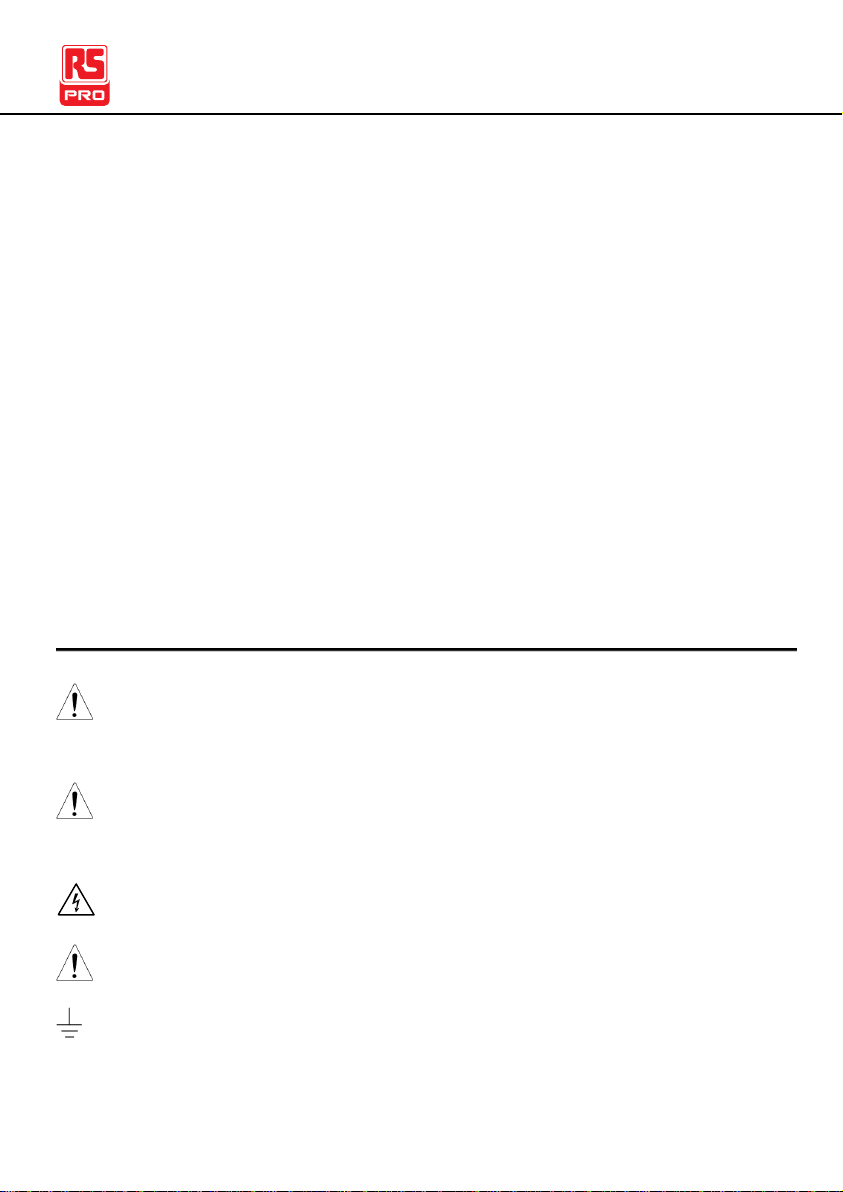

Safety Symbols
These safety symbols may appear in this manual or on the instrument.
WARNING
Warning: Identifies conditions or practices that could result in
injury or loss of life.
CAUTION
Caution: Identifies conditions or practices that could result in
damage to the instrument or to other properties.
DANGER High Voltage
Attention Refer to the Manual
Earth (ground) Terminal

ISA-730 Instruction Manual/English
4 21/11/2016 Version No. 002
Frame or Chassis Terminal
Do not dispose electronic equipment as unsorted municipal
waste. Please use a separate collection facility or contact the
supplier from which this instrument was purchased.
Safety Guidelines
General Guideline
CAUTION
Do not place any heavy object on the instrument.
Avoid severe impact or rough handling that leads to
damaging the instrument.
Do not discharge static electricity to the instrument.
Use only mating connectors, not bare wires, for the
terminals.
Ensure signals to the RF input do not exceed +30dBm/
±25V DC.
Do not block the cooling fan opening.
Do not disassemble the instrument unless you are
qualified.
(Measurement categories) EN 61010-1:2010 specifies the
measurement categories and their requirements as follows.
The instrument falls under category II.
Measurement category IV is for measurement performed at
the source of low-voltage installation.

SAFETY INSTRUCTIONS
21/11/2016 Version No. 002 5
Measurement category III is for measurement performed in
the building installation.
Measurement category II is for measurement performed on
the circuits directly connected to the low voltage
installation.
Measurement category I is for measurements performed
on circuits not directly connected to Mains.
Power Supply
WARNING
AC Input voltage range: 100V~240V
Frequency: 50/60Hz
To avoid electrical shock connect the protective grounding
conductor of the AC power cord to an earth ground.
Cleaning
Disconnect the power cord before cleaning.
Use a soft cloth dampened in a solution of mild detergent
and water. Do not spray any liquid.
Do not use chemicals containing harsh material such as
benzene, toluene, xylene, and acetone.
Operation
Environment
Location: Indoor, no direct sunlight, dust free, almost non-
conductive pollution (Note below)
Temperature: 5°C to 45°C
Humidity: 90% @ 45°C
(Pollution Degree) EN 61010-1:2010 specifies the pollution
degrees and their requirements as follows. The instrument

ISA-730 Instruction Manual/English
6 21/11/2016 Version No. 002
falls under degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of
dielectric strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity
caused by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry,
non-conductive pollution occurs which becomes conductive
due to condensation which is expected. In such conditions,
equipment is normally protected against exposure to direct
sunlight, precipitation, and full wind pressure, but neither
temperature nor humidity is controlled.
Storage
environment
Location: Indoor
Temperature: -20°C to 60°C; <60°C/70% RH
Disposal
Do not dispose this instrument as unsorted municipal waste.
Please use a separate collection facility or contact the
supplier from which this instrument was purchased. Please
make sure discarded electrical waste is properly recycled to
reduce environmental impact.
Power cord for the United Kingdom

SAFETY INSTRUCTIONS
21/11/2016 Version No. 002 7
When using the unit in the United Kingdom, make sure the power cord meets the
following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the following code:
Green/ Yellow:
Earth
Blue:
Neutral
Brown:
Live (Phase)
As the colours of the wires in main leads may not correspond with the coloured marking
identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal
marked with either the letter E, the earth symbol or coloured Green/Green & Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked with
the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with the
letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the supplier.
This cable/appliance should be protected by a suitably rated and approved HBC mains
fuse: refer to the rating information on the equipment and/or user instructions for details.
As a guide, a cable of 0.75mm2 should be protected by a 3A or 5A fuse. Larger
conductors would normally require 13A types, depending on the connection method
used.
Any exposed wiring from a cable, plug or connection that is engaged in a live socket is
extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains power
and remove the cable, any fuses and fuse assemblies. All hazardous wiring must be
immediately destroyed and replaced in accordance to the above standard.

ISA-730 Instruction Manual/English
8 21/11/2016 Version No. 002
GETTING STARTED
This chapter provides a brief overview of the ISA-730, the
package contents, instructions for first time use and an
introduction to the front panel, rear panel and GUI.
ISA-730 Introduction ....................................................10
Main Features ........................................................................... 10
Package Contents..................................................................... 11
Appearance.................................................................12
ISA-730 Front Panel.................................................................. 12

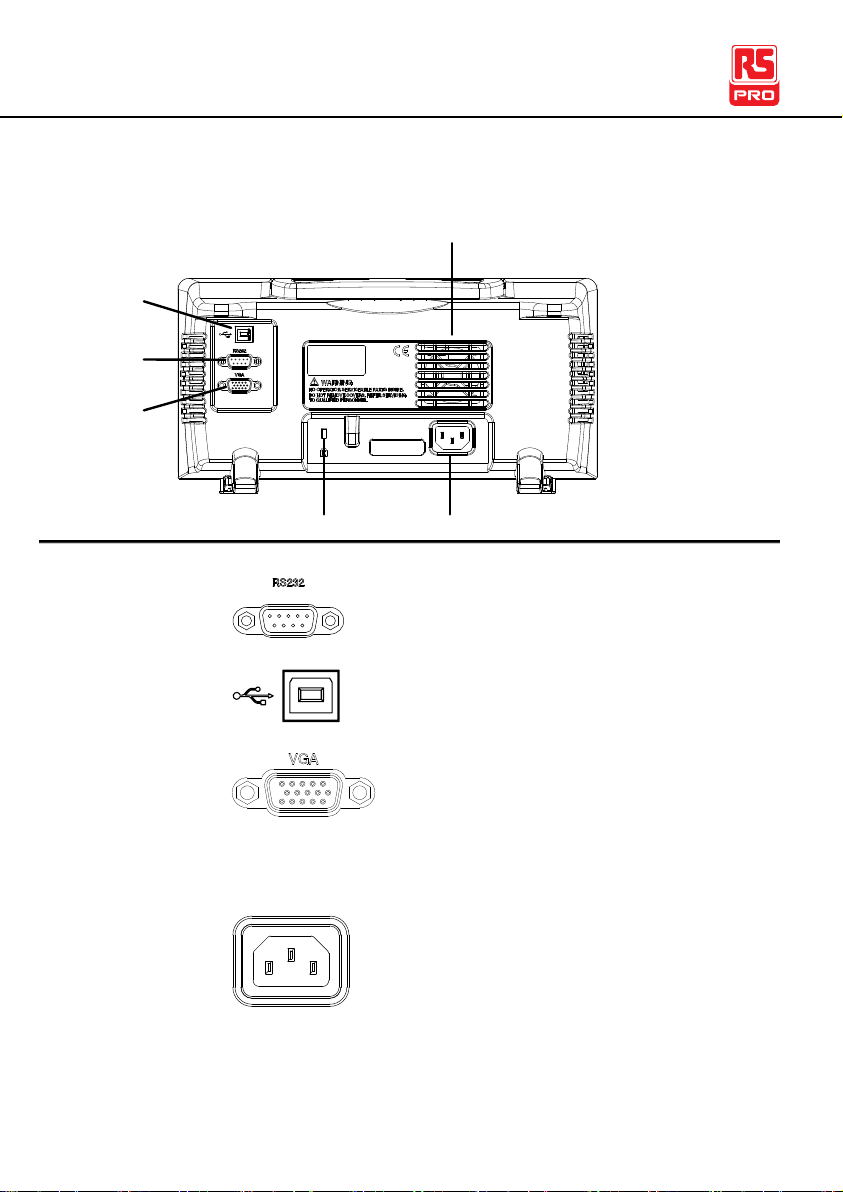

Rear Panel ................................................................................ 16
Display....................................................................................... 17
First Time Use Instructions...........................................19
Tilting the Stand ........................................................................ 19
Power UP and Down................................................................. 20
Software Update........................................................................ 20

GETTING STARTED
21/11/2016 Version No. 002 9
USB Driver Installation.............................................................. 22
Restoring Default Settings ........................................................ 24
Conventions .............................................................................. 24

ISA-730 Instruction Manual/English
10 21/11/2016 Version No. 002

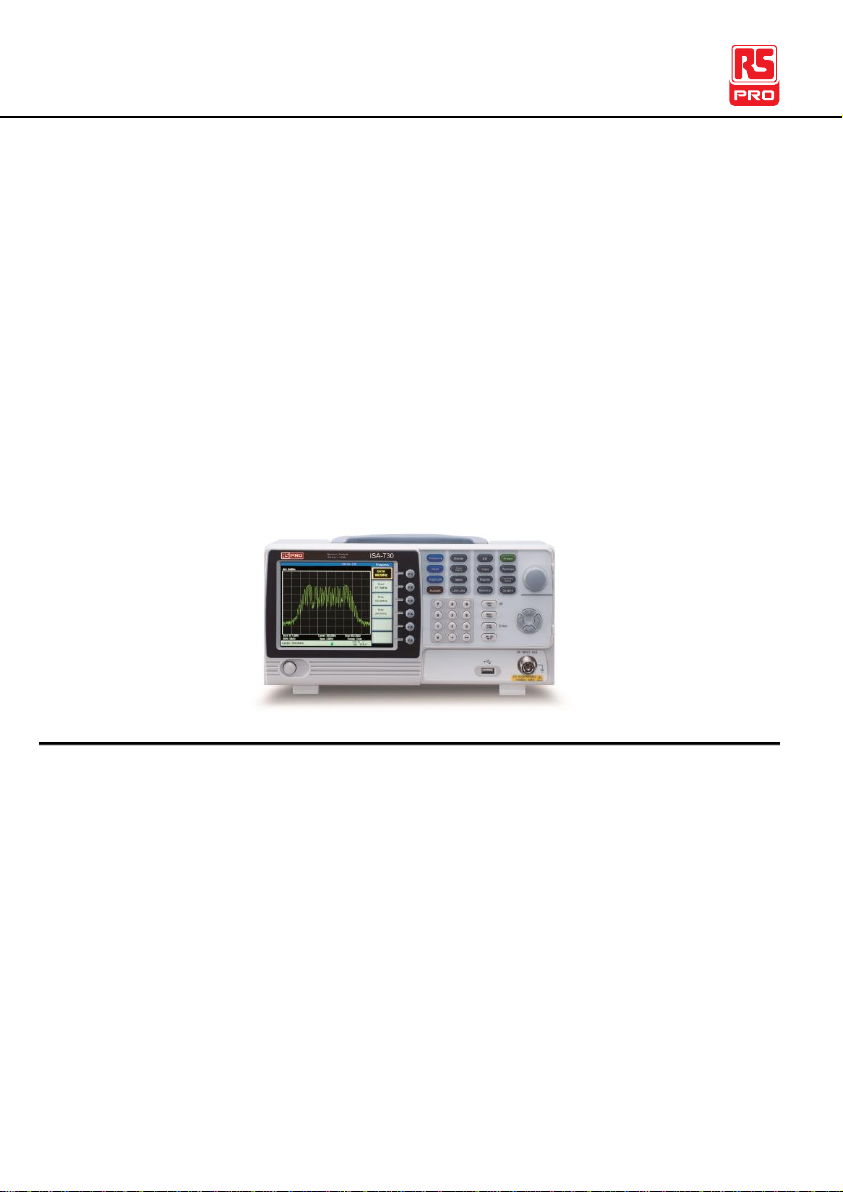

ISA-730 Introduction
The ISA-730 is a low-cost, basic spectrum analyzer. The ISA-730 has all the basic
features of our more advanced models, but in a smaller package, designed
especially for education.
Main Features
Performance
150kHz~3GHz bandwidth
100kHz resolution
Features
Autoset with automatic floor level and span.
Marker table function
Limit line testing
Split window display
ACPR measurement
OCBW measurement
Automatic resolution bandwidth mode.
Interface
480640 color LCD display
On-screen menu icons
VGA video output
RS-232C
USB 2.0 Host port for data storage

GETTING STARTED
21/11/2016 Version No. 002 11
USB 2.0 Device port for the virtual com port communication
Package Contents
Check the contents before using the ISA-730.
Opening the box
Contents (single
unit)
Main unit
Quick Start Guide
User Manual CD
Power cord x1 (region
dependent)
Calibration certificate

ISA-730 Instruction Manual/English
12 21/11/2016 Version No. 002
Appearance

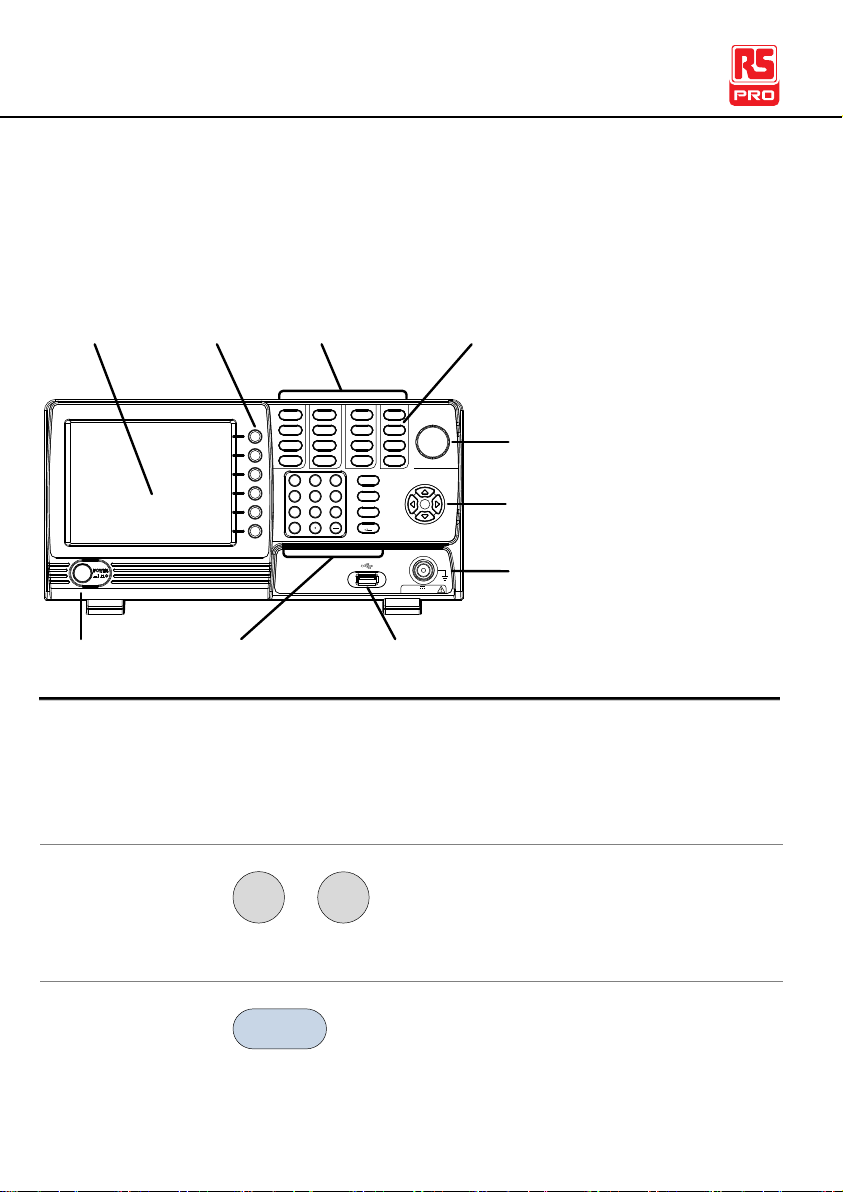

ISA-730 Front Panel
dB
Enter
F 1
F 2
F 3
F 4
F 5
F 6 0BK SP
kHz /
Sec
µ
mSec
MHz /
GHz /
Sec
1
4
7
2
5
8
3
6
9
Frequency
Span
Amplitude
Autoset
Marker
Peak
Limit Line
Meas
Search
BW
Trace
Display
Memory
Preset
Hardcopy
System
Hardcopy
Setup
RF INPUT 50
+30dBm MAX.
MAX.DC ±25V
Ω
LCD Display Function
Keys Menu keys Hardcopy key
Arrow keys
RF Input
terminal
Keypad and unit
keys USB A portPower button
Scroll wheel
LCD display
640 X 480 color LCD display. The display shows the soft keys
for the current function, frequency, amplitude and marker
information.
Function keys
F 1
~
F6
The F1 to F6 function keys directly
correspond to the soft keys on the right-hand
side of display.
Frequency
Frequency
Sets the center frequency, start frequency,
stop frequency and step frequency.

GETTING STARTED
21/11/2016 Version No. 002 13
Span
Span
Sets the span, with options for full span, zero
span and last span.
Amplitude
Amplitude
Sets the amplitude reference level, scale and
amplitude units.
Autoset
Autoset
Automatically searches the peak signal with
maximum amplitude and displays it with
appropriate horizontal and vertical scales.
Marker
Marker
The Marker key is used to configure the
markers, trace markers as well as other
related functionality.
Peak Search
Peak
Search
Finds each maximum and minimum peak.
Used with the Marker functions.
Meas
Meas
Configures ACPR and OCBW
measurements.
Limit Line
Limit Line
Sets and tests Pass/Fail limit lines.
BW
BW
Sets the resolution bandwidth.
Trace
Trace
Sets traces and trace related functions.

ISA-730 Instruction Manual/English
14 21/11/2016 Version No. 002
Display
Display
The Display key configures the split-screen
windowing mode and the basic display
properties.
Memory
Memory
The memory key is used to save or recall
setup, trace and limit line data.
Preset
Preset
The Preset key will restore the spectrum
analyzer to the factory settings.
Hardcopy
Hardcopy
The hardcopy key is a quick save key that
will save a screen-shot of the display.
Hardcopy setup
Hardcopy
Setup
Configures the hardcopy options.
System
System
The System key is used to configure the
RS232 interface, language, update the
firmware as well as other system options.
Power key
Turns the instrument on/off.
Scroll wheel
Edit values, select listed items.

GETTING STARTED
21/11/2016 Version No. 002 15
Arrow keys
Increment/decrement values (in steps),
select listed items.
RF input terminal
RF INPUT 50
+30dBm MAX.
MAX.DC ±25V
Ω
RF input port. Accepts RF inputs.
Maximum input: +30dBm (+20dBm
measurable)
Input impedance: 50Ω
Maximum DC voltage: ±25V
N-type: female
Numeric keypad
0
1
4
7
2
5
8
3
6
9
MHz /
mSec
dB
Enter
GHz /
Sec
kHz /
µSec
BK SP
The numeric keypad is used
to enter vales and
parameters. It is often used in
conjunction with the arrow
keys and scroll wheel.
USB A, Micro SD
USB A port for saving/recalling settings/files
to external memory. Only supports
FAT/FAT32 formatting.

ISA-730 Instruction Manual/English
16 21/11/2016 Version No. 002
Rear Panel
Fan
RS232 port
VGA port
Power socket
USB B port
Security slot
RS232
RS232 9 pin DSUB port.
USB B
USB B Device port. USB 1.1/2.0
VGA
VGA video-out port. Supports SVGA
(480X640)
Fan
Power Socket
Power Socket:
100~240V, 50/60Hz.
15W Max

GETTING STARTED
21/11/2016 Version No. 002 17
Security Slot
Kensington-type security slot.
Display
Reference
level
Function
menu
Marker
information
Entry / Message area Trace icons
Traces and
waveforms Soft menu
keys
Frequency/
Bandwidth
settings
Reference level
Displays the reference level. For details, see page 38.
Marker information
Displays marker information. For details see page 43.
Function menu
Displays the current function menu.
Soft menu keys
The Soft menu keys are associated with the F1 to F6 function
keys to the right of the display.

ISA-730 Instruction Manual/English
18 21/11/2016 Version No. 002
Trace Icons
Displays the color of each active trace and the trace mode of
each active trace. See page 68 for more information about
traces.
Entry/Message area
This area is used to show system messages, errors and input
values/parameters.
Frequency/
Bandwidth settings
Displays the Start, Center and Stop frequencies, RBW, Span
and Sweep settings.
Trace and
waveforms
Main display showing the traces (page 68), limit lines (62) and
marker positions (43).
