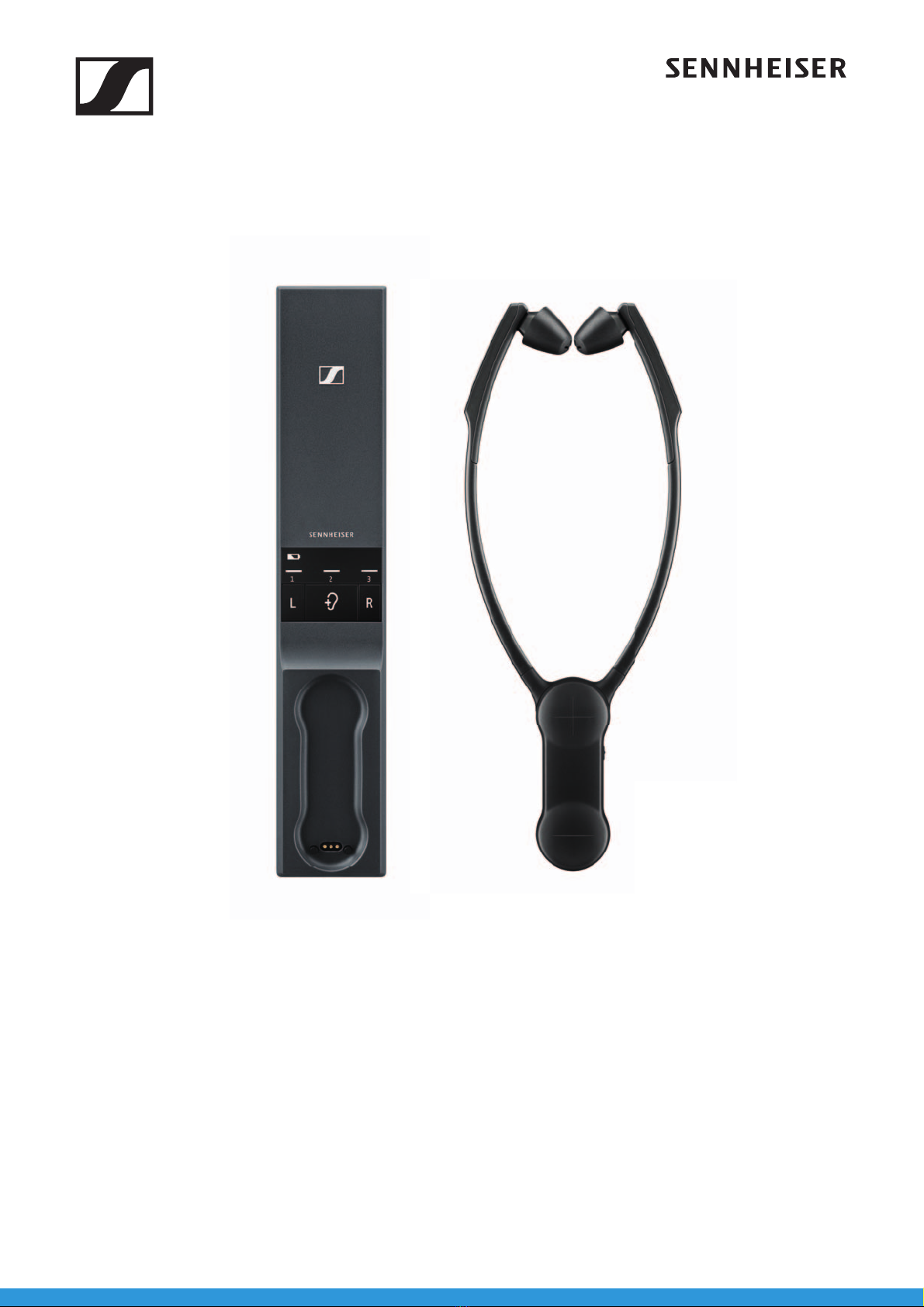

Sennheiser Set 860 User manual

Set 860
Set 860
Instruction manual
Digital TV Listening System

2| Set 860
Contents
Contents
Important safety instructions ...................................................................... 3
Package contents ........................................................................................... 6
Product overview ........................................................................................... 7
Putting the Set 860 into operation ........................................................... 10
Setting up the transmitter ......................................................................... 10
Connecting the transmitter to an audio source .................................... 11
Connecting the transmitter to the power supply system ................... 15
Charging the stethoset receiver’s rechargeable battery ..................... 16
Displaying the remaining operating time of the rechargeable 
battery ........................................................................................................... 17
Using the charging reminder function .................................................... 17
Selecting and replacing the ear pads ....................................................... 18
Using the Set 860 ........................................................................................ 19
Switching the wireless headphone system on ...................................... 19
Switching the wireless headphone system off ...................................... 20
Wearing the stethoset receiver ................................................................ 21
Adjusting the volume ................................................................................. 22
Adjusting the balance ................................................................................. 23
Selecting a hearing profile for sound enhancement ............................. 24
Activating/deactivating the speech intelligibility function ................ 26
Cleaning and maintaining the Set 860 ..................................................... 27
Replacing the stethoset receiver’s rechargeable battery .................... 28
Using additional functions ......................................................................... 29
Pairing one or several stethoset receivers with the transmitter ....... 29
Switching between stereo and mono operation ................................... 30
Advanced settings ....................................................................................... 31
Restoring the factory default settings .................................................... 34
Charging the rechargeable battery using the MCA 800 charging 
adapter .......................................................................................................... 35
If a problem occurs ... .................................................................................. 36
Leaving the range of the transmitter ...................................................... 38
Specifications ............................................................................................... 39
Manufacturer Declarations ......................................................................... 41

Important safety instructions
Set 860 | 3
Important safety instructions
왘Read this instruction manual carefully and completely before
using the product.
왘Always include this instruction manual when passing the prod-
uct on to third parties.
왘Do not use an obviously defective product.
왘Only use the product in environments where wireless 2.4 GHz
transmission is permitted.
Preventing damage to health and accidents
왘These headphones allow you to set higher volumes than conven-
tional headphones. Protect your hearing from high volume lev-
els.
Permanent hearing damage may occur when headphones are
used at high volume levels for long periods of time. Sennheiser
headphones sound exceptionally good and provide clear speech
intelligibility at low and medium volume levels.
왘To prevent hearing damage, set the volume to a low level before
passing the product on to third parties.
왘Do not use the product in an environment that requires your spe-
cial attention (e.g. in traffic or when performing skilled jobs).
왘Always keep the headphones/MCA 800 charging adapter at
least 3.94" (10 cm) from cardiac pacemakers or implanted
defibrillators. The headphones/MCA 800 charging adapter con-
tain/s magnets that generate a magnetic field which could cause
interference with cardiac pacemakers and implanted defibrilla-
tors.
왘Do not use the product near water. To reduce the risk of fire or
electric shock, do not expose the product to rain or moisture.
왘Keep the product, accessories and packaging parts out of reach
of children and pets to prevent accidents and choking hazards.
왘Only use the power supply units supplied by Sennheiser.
Preventing damage to the product and malfunctions
왘Always keep the product dry and do not expose it to extreme
temperatures to avoid corrosion or deformation. The normal
operating temperature is from 5 to 40 °C/41 to 104 °F.
왘Use the product with care and store it in a clean, dust-free envi-
ronment.
왘Switch off the product after use to conserve battery power.
왘Unplug the power supply unit from the wall socket
– to completely disconnect the product from the power source,
– during lightning storms or
– when not using the product for long periods of time.

Important safety instructions
4 | Set 860
왘Always ensure that the power supply unit is
– in a safe operating condition and easily accessible,
– properly plugged into the wall socket,
– only operated within the permissible temperature range,
– not exposed to direct sunlight for longer periods of time in
order to prevent heat accumulation.
왘Varnish or furniture polish may degrade the feet of the transmit-
ter, which could stain your furniture. You should therefore place
the transmitter on a non-slip pad to avoid potential staining of
furniture.
왘Do not operate the product near heat sources.
왘Clean the product only with a soft, dry cloth.
왘Use only attachments/accessories/spare parts supplied or rec-
ommended by Sennheiser.
Safety instructions for lithium polymer
rechargeable batteries
WARNING
If abused or misused, the standard/rechargeable batteries may
leak. In extreme cases, they may even present a risk of
•explosion,
• fire development,
•heatgeneration,
• smoke or gas development.
Switch rechargeable battery-powered products off after
use.
Do not charge a product with a built-in rechargeable
battery if the product is obviously defective.
Only use rechargeable batteries and chargers
recommended by Sennheiser.
Only charge rechargeable batteries at ambient
temperatures between 5 to 40 °C/41 to 104 °F.
When not using rechargeable batteries for extended
periods of time, charge them regularly (about every three
months).
Do not heat above 70 °C/158 °F, e.g. do not expose to
sunlight or throw into a fire.
Dispose of batteries/rechargeable batteries at special
collection points or return them to your specialist dealer.

Important safety instructions
Set 860 | 5
Intended use/Liability
This wireless TV headphone system is suitable for use with TV sets,
hi-fi systems, and home cinema systems and can be connected to
analog and digital audio sources.
This product is intended for private domestic use only. It is not suit-
able for commercial use. This product is also not intended to be used
with portable audio devices.
It is considered improper use when the product is used for any appli-
cation not named in the corresponding product documentation.
Sennheiser does not accept liability for damage arising from abuse
or misuse of this product and its attachments/accessories.
Before putting into operation, please observe the respective coun-
try-specific regulations.

Package contents
6 | Set 860
Package contents
A list of accessories can be found on the Set 860 product page
at www.sennheiser.com. For information on suppliers, contact
your Sennheiser partner. To find a Sennheiser partner in your
country, search at www.sennheiser.com.

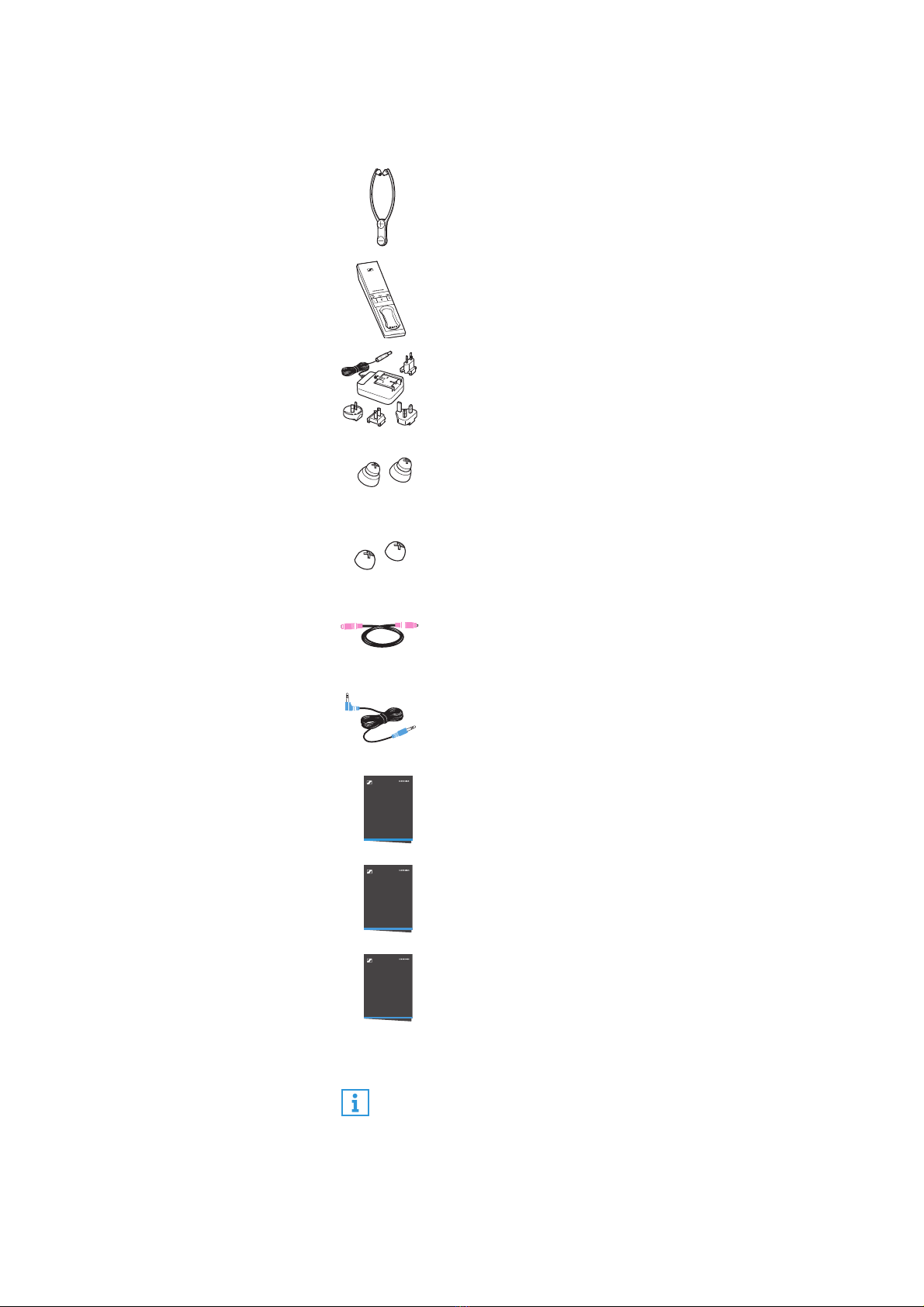

RR 800 stethoset receiver with 
built-in rechargeable battery
TR 860 transmitter with charging station
NT 5-10AW power supply unit with 
multi-country adapters (EU, UK, US, AU)
1 pair of ear pads for small ears
1 pair of ear pads for pressure-sensitive ears
Optical digital cable, 1.5 m
Stereo audio cable with 3.5 mm jack plugs, 1.5 m
Safety guide
Quick guide
Instruction manual in English, German, French, and
Spanish
The instruction manual in other languages can be
downloaded as a PDF file at 
www.sennheiser.com/download.
Safety Guide
Quick Guide
Instruction
Manual

Product overview
Set 860 | 7
Product overview
Overview of the RR 800 stethoset receiver
2
1
3
6
7
5
4
On
Off
1Ear pads, replaceable
2Ear bows with 
on/off function
3Volume buttons +and –
4 Speech intelligibility button
5Rmarking for the right ear
and Lmarking for the left ear
6Built-in rechargeable battery
7Charging contacts

Product overview
8 | Set 860
Overview of the TR 860 transmitter
5
6
7
0
9
4
8
1
2
3
2
1A
1 Battery LED ,
indicating the charging process/
remaining operating time of the
receiver (see page 16 and 17)
2Balance buttons 
for right ear Rand left ear L
3 Hearing profile button ,
for selecting the hearing profiles
(see page 24)
4 Hearing profile LED, 
indicating the activated hearing
profile (see page 24)
5Charging compartment for 
stethoset receiver
6Charging contacts for stethoset
receiver with holding magnets
7 Transmitter status LED 
(see page 9)
8Digital Optical In audio input
(marked pink) for connecting a 
digital audio source (optical)
95V DC 1A socket (marked yellow) for
connecting the power supply unit
0Analog 3.5 mm In audio input
(marked blue) for connecting an
analog audio source (3.5 mm jack
socket)

Product overview
Set 860 | 9

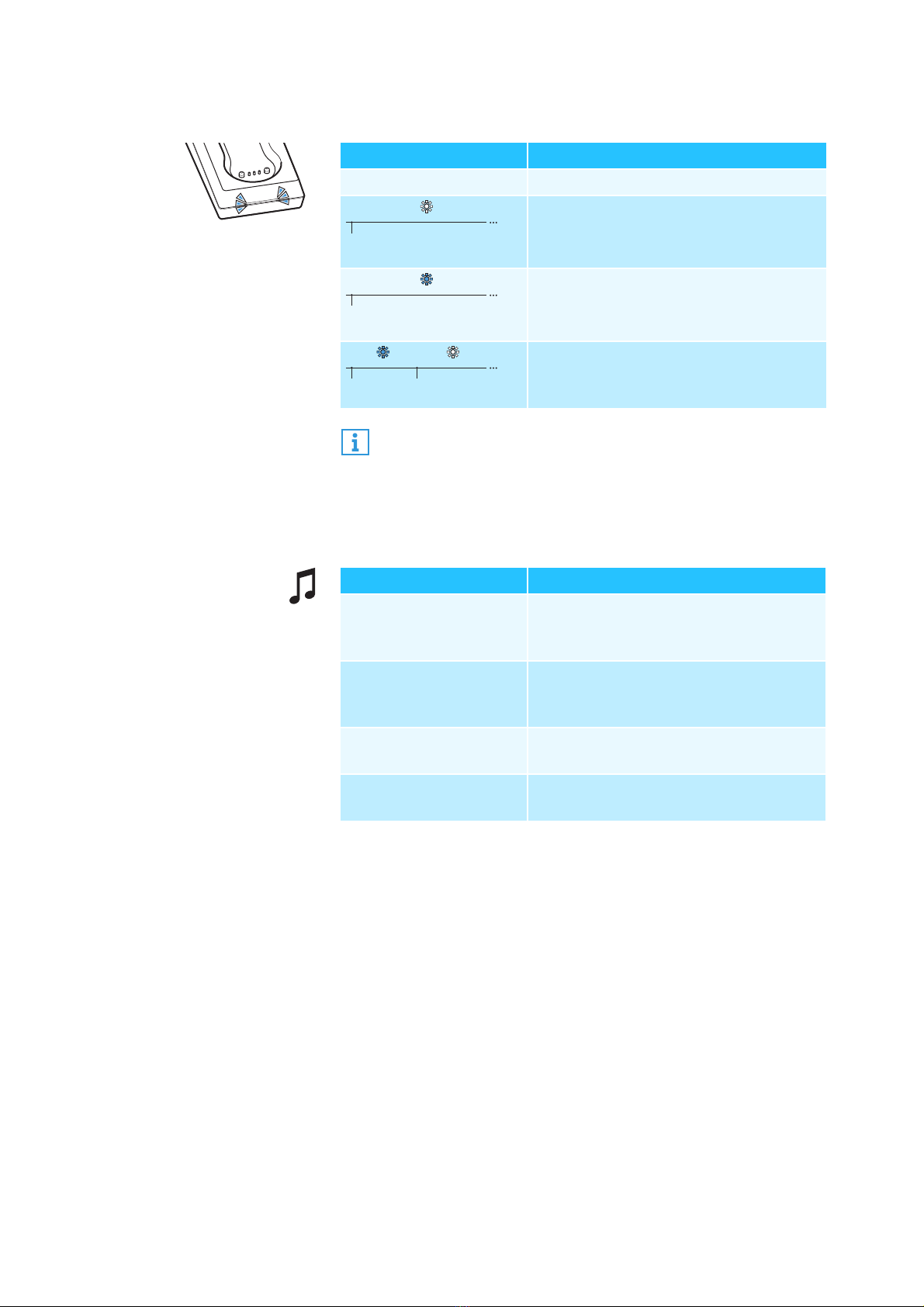

Overview of the Transmitter status LED
Overview of the acoustic signals/beeps
Transmitter status LED The transmitter...
–... is in standby mode.
lights up white
... and the stethoset receiver are
connected. The speech intelligibility
function is deactivated (see page 26).
lights up blue
... and the stethoset receiver are
connected. The speech intelligibility
function is activated (see page 26).
flashes blue and white
... has detected an incompatible digital
audio signal (see page 12).
The LEDs on the transmitter indicate the current operating
state. If you are not pressing any button on the stethoset
receiver or the transmitter, the LEDs automatically dim after
approx. 30 seconds to not disturb you.
Beeps... Meaning
during operation, 
2 beeps
The rechargeable battery is almost
empty, recharge the rechargeable
battery (see page 16).
during operation, no
audio transmission, 
5 beeps
The receiver is outside the transmission
range (see page 38).
when changing the
volume
The maximum or minimum volume is
reached (see page 22).
when changing the
balance setting
The maximum or minimum balance
setting is reached (see page 23).

Putting the Set 860 into operation
10 | Set 860
Putting the Set 860 into operation
Setting up the transmitter

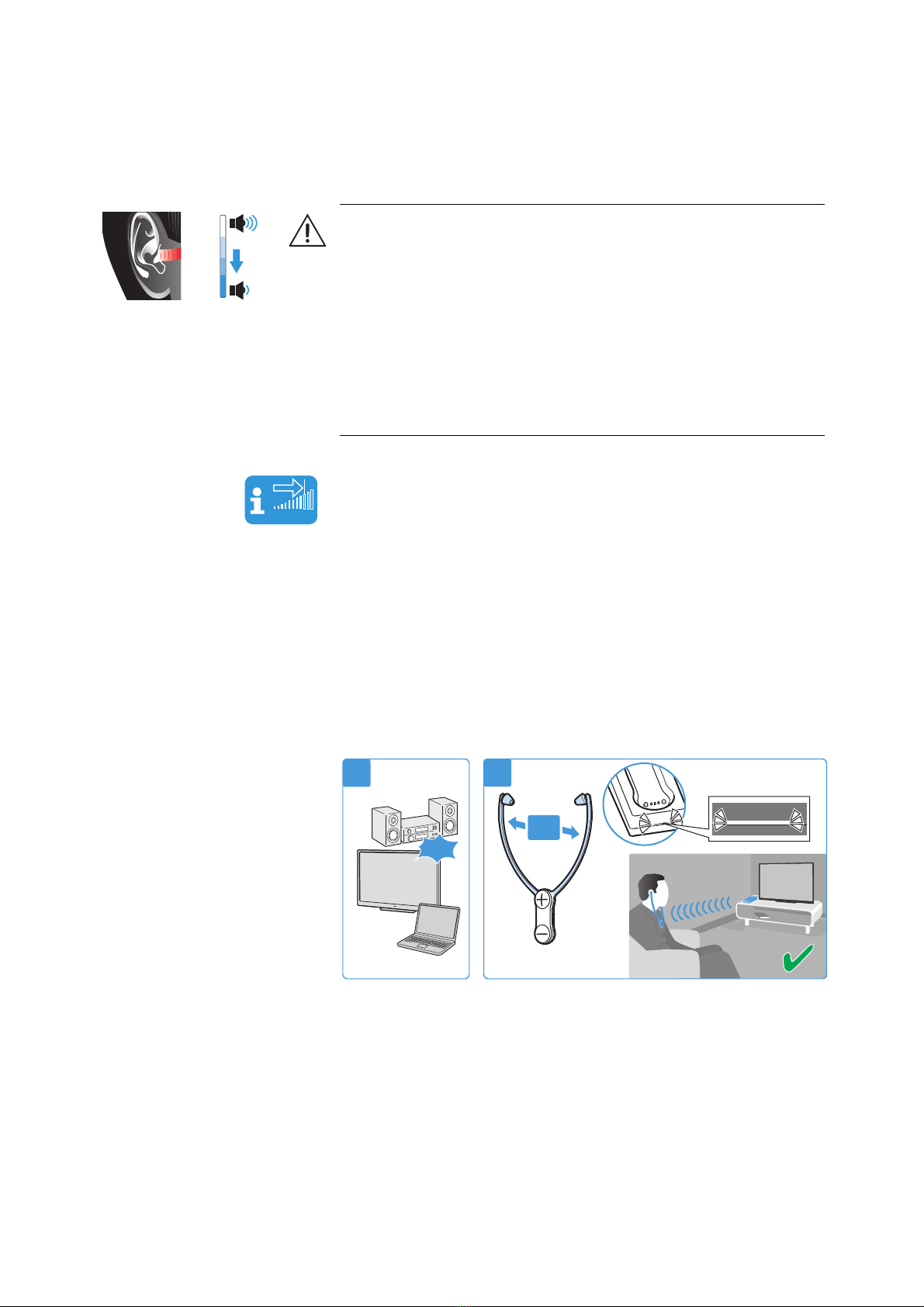

왘Choose a suitable place near your sound source.
왘Separate the transmitter from other wireless devices in the room
by at least 50 cm/20" to avoid interference.
왘Do not place the transmitter close to metal objects such as shelf
bars, reinforced concrete walls, etc. as this can decrease the
transmitter’s range.

Putting the Set 860 into operation
Set 860 | 11

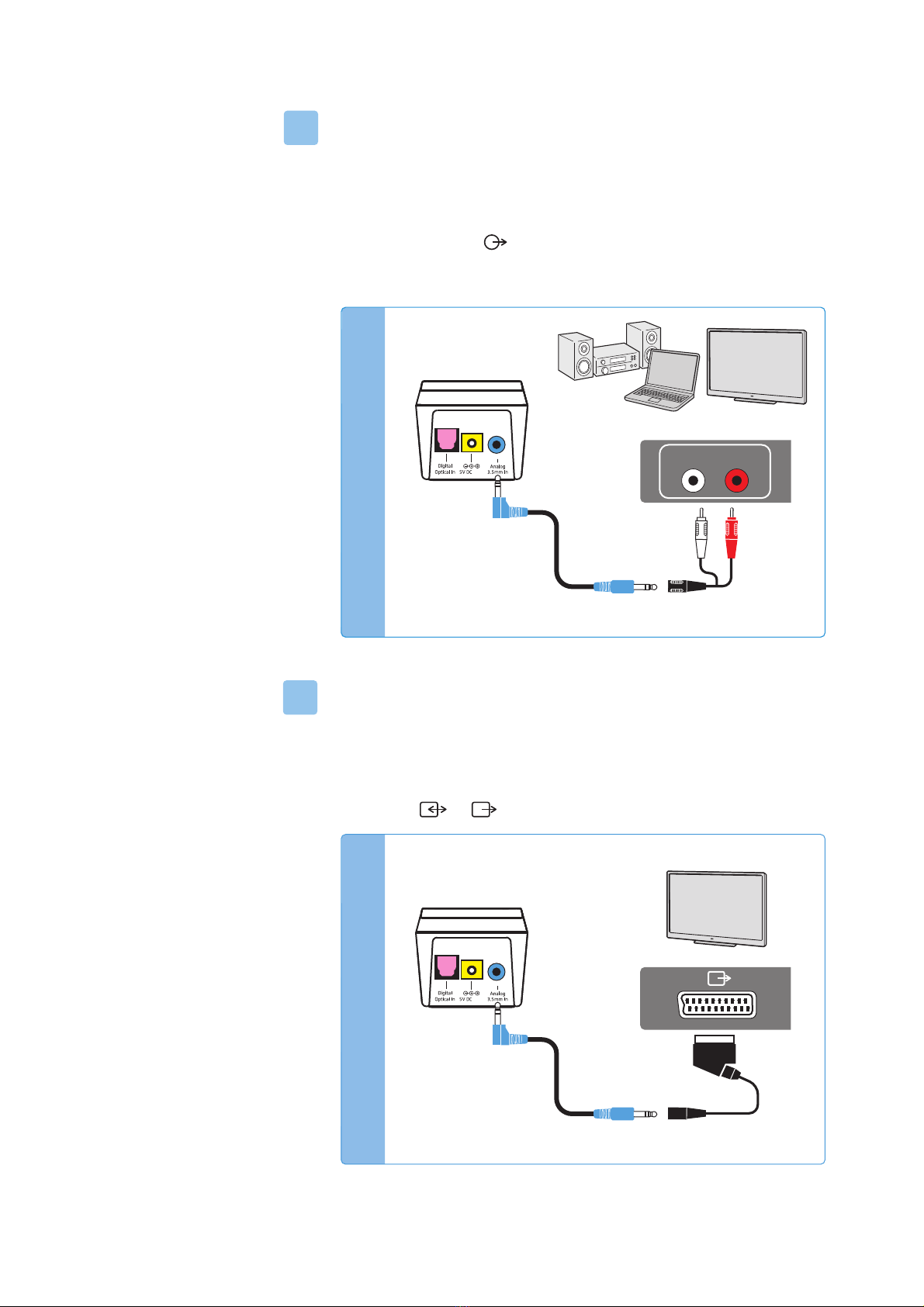

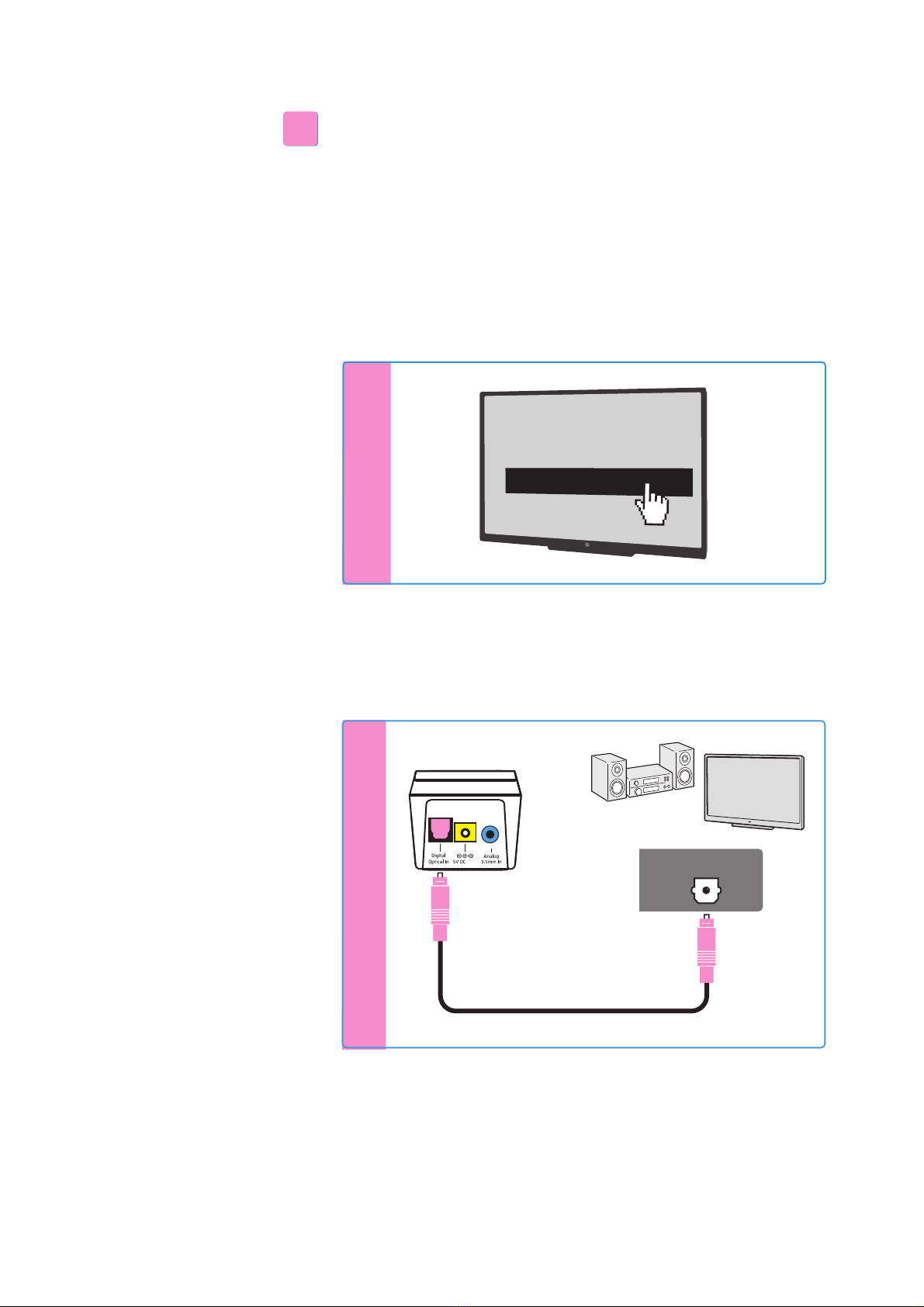

Connecting the transmitter to an audio source
You can connect the transmitter either to a digital or an analog
audio source (e.g. a TV and a stereo hi-fi system).
If you connect an audio source to both inputs (digital and analog),
only the analog audio source will be reproduced.
왘Switch your audio source off before connecting the transmitter.
왘Check the connection possibilities of your audio source (audio
output, usually marked “OUT”).
왘Select the corresponding connection cable and, if necessary, a
suitable adapter
왘To connect the transmitter to your audio source, refer to the con-
nection diagram suitable for your audio source (see the follow-
ing chapters). Follow the color codings on the transmitter and on
the cables.
You can also refer to the beginner’s video guides on how to
connect your digital wireless headphone system to a TV:
www.sennheiser.com/how-to-videos.
Connection possibilities of the 
audio source
Color coding
on the
transmitter
Connection cable 
Page
Optical (digital) Optical digital cable 12
3.5 mm jack socket
(analog) Stereo audio cable 13
RCA (analog)
Stereo audio cable with RCA adapter
(3.5 mm jack socket to 2 RCA plugs;
optional accessory)
14
SCART (analog)
Stereo audio cable with SCART
adapter (3.5 mm jack socket to
SCART connector; optional acces-
sory)
14
A
B
C
D
Accessories and adapters are available from your local Senn-
heiser partner.

Putting the Set 860 into operation
12 | Set 860
Connection possibility A: optical (digital)
To achieve the best possible listening experience, connect the trans-
mitter to your TV or hi-fi system using the supplied optical digital
cable.
Note that your wireless headphone system only supports digital
signals coded in the PCM format. Information on how to set the
audio format of the connected audio source to PCM can be found in
the Sound menu or in the instruction manual of your device.
If an incompatible digital audio signal is being received, the Trans-
mitter status LED flashes white and blue. Audio cannot be repro-
duced.
* The appearance of the Sound menu can vary depending on the
device you are using.
왘Connect the optical digital cable to the pink Digital Optical In
audio input of the transmitter and to the optical output of your
audio source.
A
A
S
o
und
m
e
n
u
*
D
igital sound output
Bi
tstream
P
CM
Digital Audio
Digital Audio
1A OPTICAL OUT

Putting the Set 860 into operation
Set 860 | 13
Connection possibility B: 3.5 mm jack socket (analog)
왘Connect the stereo audio cable to the blue Analog 3.5 mm In
audio input (3.5 mm jack socket) of the transmitter and to the
3.5 mm headphone socket of your audio source.
If the headphones socket on your audio source is a 6.3 mm/¼" jack
socket, you require an adapter (3.5 mm jack plug to 6.3 mm/¼" jack
plug, optional accessory) for the supplied 3.5 mm stereo audio
cable.
Some TV models mute the loudspeakers when you connect the
transmitter to the 3.5 mm headphone socket. Other TV models have
their own menu for adjusting the volume of the headphone socket.
Check the menu of your TV for information on how to deactivate the
muting function or adjust the volume. Alternatively, connect the TV
and the transmitter using a different connection possibility (A, C or
D).
B
Adjust the volume of the headphone socket on your TV/audio
source to at least a medium level.
This improves the quality of wireless audio transmission. For
detailed information, please refer to the instruction manual of
your TV/audio source.
PHONES
TV VOLUME
Analog Audio
1A

Putting the Set 860 into operation
14 | Set 860
Connection possibility C: RCA sockets (analog)
왘Plug the RCA adapter* onto the stereo audio cable.
왘Connect the stereo audio cable to the blue 3.5 mm jack socket of
the transmitter.
왘Connect the RCA connectors to the RCA sockets (mostly labeled
“AUDIO OUT” or ) of your audio source. Connect the red con-
nector to the red RCA socket and the white connector to the
white or black RCA socket.
* optional accessory
Connection possibility D: SCART socket (analog)
왘Plug the SCART adapter* onto the stereo audio cable.
왘Connect the stereo audio cable to the blue 3.5 mm jack socket of
the transmitter.
왘Connect the SCART connector to the SCART socket (mostly
labeled or ) of your audio source.
* optional accessory
C
Analog Audio
AUDIO OUT
LR
*
1A
D
Analog Audio
*
1A

Putting the Set 860 into operation
Set 860 | 15
Connecting the transmitter to the power supply
system
1Connect the connector of the power supply unit to the yellow
socket of the transmitter.
2Select a suitable country adapter and slide it onto the power
supply unit until it clicks audibly into place.
3Plug the power supply unit into the wall socket.
All LEDs on the transmitter light up for 5 seconds. The transmit-
ter is in standby mode.
US
EU
UK
AU
2
1
3
Power
1A
1A

Putting the Set 860 into operation
16 | Set 860
Charging the stethoset receiver’s rechargeable
battery
A complete charging cycle takes about 3 hours . Before using the
receiver for the first time, charge its rechargeable battery for a com-
plete charging cycle without interruption.
When the rechargeable battery is almost empty, you hear 2 beeps
in the stethoset receiver. The
Battery LED on the transmitter
lights up white. The stethoset receiver switches off after a few min-
utes.
왘Place the stethoset receiver into the transmitter’s charging com-
partment so that the volume buttons face upwards. The ste-
thoset receiver is magnetically oriented to the correct position.
The stethoset receiver automatically switches off and the
Bat-
tery
LED on the transmitter lights up white. The LED seg-
ments display the charge status of the rechargeable battery.
When the rechargeable battery is fully charged, all LED segments
light up white.
3 h
100 %
Battery LED Meaning
–The transmitter is not charging.
1st LED segment flashes
The rechargeable battery is being
charged. Less than 1/3 of the charge
capacity is reached.
1st LED segment lit, 
2nd LED segment flashes
The rechargeable battery is being
charged. Up to 1/3 of the charge
capacity is reached.
1st + 2nd LED segments lit, 
3rd LED segment flashes
The rechargeable battery is being
charged. Up to 2/3 of the charge
capacity is reached.
All LED segments lit The rechargeable battery is fully
charged.
Battery LED flashes 
rapidly
A charging error/battery error has
occurred (see page 28).

Putting the Set 860 into operation
Set 860 | 17
Displaying the remaining operating time of the
rechargeable battery
When you switch the stethoset receiver on, the Battery LED dis-
plays the remaining operating time/charge status.
To indicate that the operating time is decreasing, each LED segment
slowly dims before it goes off completely.
If the actual operating time differs widely from the specified values,
the rechargeable battery is probably exhausted and should be
replaced. Information on the rechargeable battery can be found on
page 28.
Using the charging reminder function
When the stethoset receiver is switched off and the transmitter
automatically switches off (standby mode), the
Battery LED will
flash back and forth for 10 minutes to remind you to charge the ste-
thoset receiver.
왘Charge the stethoset receiver by placing it into the transmitter’s
charging compartment (see page 16).
The LED stops flashing and the charging process starts.
Always store the stethoset receiver in the transmitter’s
charging compartment to ensure that it is fully charged when
needed. The intelligent battery charging technology prevents
overcharging.
The display during charging can be set so that it automatically
switches off after 30 seconds (see page 32).
Battery LED Meaning
Battery LED
flashes slowly
Rechargeable battery is
empty; 
recharge the recharge-
able battery
1st LED seg-
ment lit
approx. 6 hours of
operating time
1st + 2nd LED
segments lit
approx. 12 hours of
operating time
All LED seg-
ments lit
approx. 18 hours of
operating time
The display of the remaining operating time can be set so that
it automatically switches off after 30 seconds (see page 32).
If more than one stethoset receiver is connected to the trans-
mitter, the remaining operating time/charge status cannot be
displayed.
You can also switch off the charging reminder function (see
page 32).

Putting the Set 860 into operation
18 | Set 860
Selecting and replacing the ear pads
You can choose between:
To replace the ear pads:
1Carefully remove the ear pads from the stethoset receiver.
2Put the other ear pads on the stethoset receiver.
• ear pads for larger ears (pre-mounted on deli-
very)
• ear pads for smaller ears
• ear pads for pressure-sensitive ears
Spare ear pads in different materials and forms are available
from your Sennheiser partner.
21

Using the Set 860
Set 860 | 19
Using the Set 860
Switching the wireless headphone system on
1Switch your audio source on.
If the transmitter is connected to the headphone socket (see
page13) of your TV/audio source, adjust the volume of the
headphone socket on your TV/audio source to at least a medium
level.
2Take the stethoset receiver out of the transmitter’s charging
compartment and pull the ear bows apart so that you can put the
receiver on.
The stethoset receiver automatically switches on when you pull
the ear bows apart. The transmitter automatically switches on
and the
Transmitter status LED lights up white or blue. The audio
transmission starts.
The remaining operating time of the stethoset receiver is dis-
played on the transmitter (see page 17).
WARNING
Danger of hearing damage due to high volumes!
This receiver allows you to set higher volumes than conventional
devices. Constant high-volume use can cause hearing damage.
왘Before putting the stethoset receiver on, set the volume on the
receiver to a low level.
왘Do not expose yourself to high volume levels for extended peri-
ods of time.
왘Use a hearing profile (see page 24) that improves especially
speech intelligibility without the need for a high volume.
Vol +
Vol -
VOLUME
ON
ON
2
1

Using the Set 860
20 | Set 860
Switching the wireless headphone system off
왘Take the stethoset receiver off so that the ear bows fold inwards.
The stethoset receiver automatically switches off after 20 sec-
onds. The transmitter automatically switches off (standby)
when there is no stethoset receiver connected. The
Transmitter
status
LED goes off.
왘Always store the stethoset receiver in the transmitter’s charging
compartment to ensure that it is fully charged when needed.
The charging process starts (see page 16).
* LED goes off
To disconnect the transmitter from the power supply system (e.g.
when you are on holiday):
왘Unplug the power supply unit from the wall socket.
If the stethoset receiver is outside the transmission range for
more than 5 minutes or if the transmitter receives no audio
signal for more than 30 minutes, the wireless headphone
system switches off automatically (standby).
OFF
