S D Z 2 1 0 0 W S N S m o k e
I n s t r u c t i o n M a n u a l
【Preface】SDZ2100 is a WSN Wireless intelligent home system
link to check the smoke caused by burning, but not sense gas, heat or flame.
When fire smoke alert concentration, alerts that signal to reach the fire alarm
function, and provide sufficient time to warn personnel evacuation actions in
the House, to ensure people's safety. Smoke only in accordance with our
instructions for use manual of recommendations, installation and
maintenance methods to determine the function of(Smoke alarms/ Silent
mode/ Weak warning/ test function). Wanted to buy gas and carbon
monoxide alarms, please contact us.
Precautions：The Smoke is not for non-residential buildings, such as
warehouses, factories, malls and so on, these establishments must install
special fire detection and warning system。
一、Installation Smoke：
(1) Installation of Smoke under the United States National Fire Protection
Association standard 74th on the fly. For complete detection of effects,
each room in the House, living room, storage rooms, basements and
mezzanines, are required to install Smoke, at least on each floor are the
installation requirements installation of a Smoke and each bedroom a
Smoke device, here are some points for your reference:
(2) In the aisle between two different bedroom required the installation of a
Smoke.

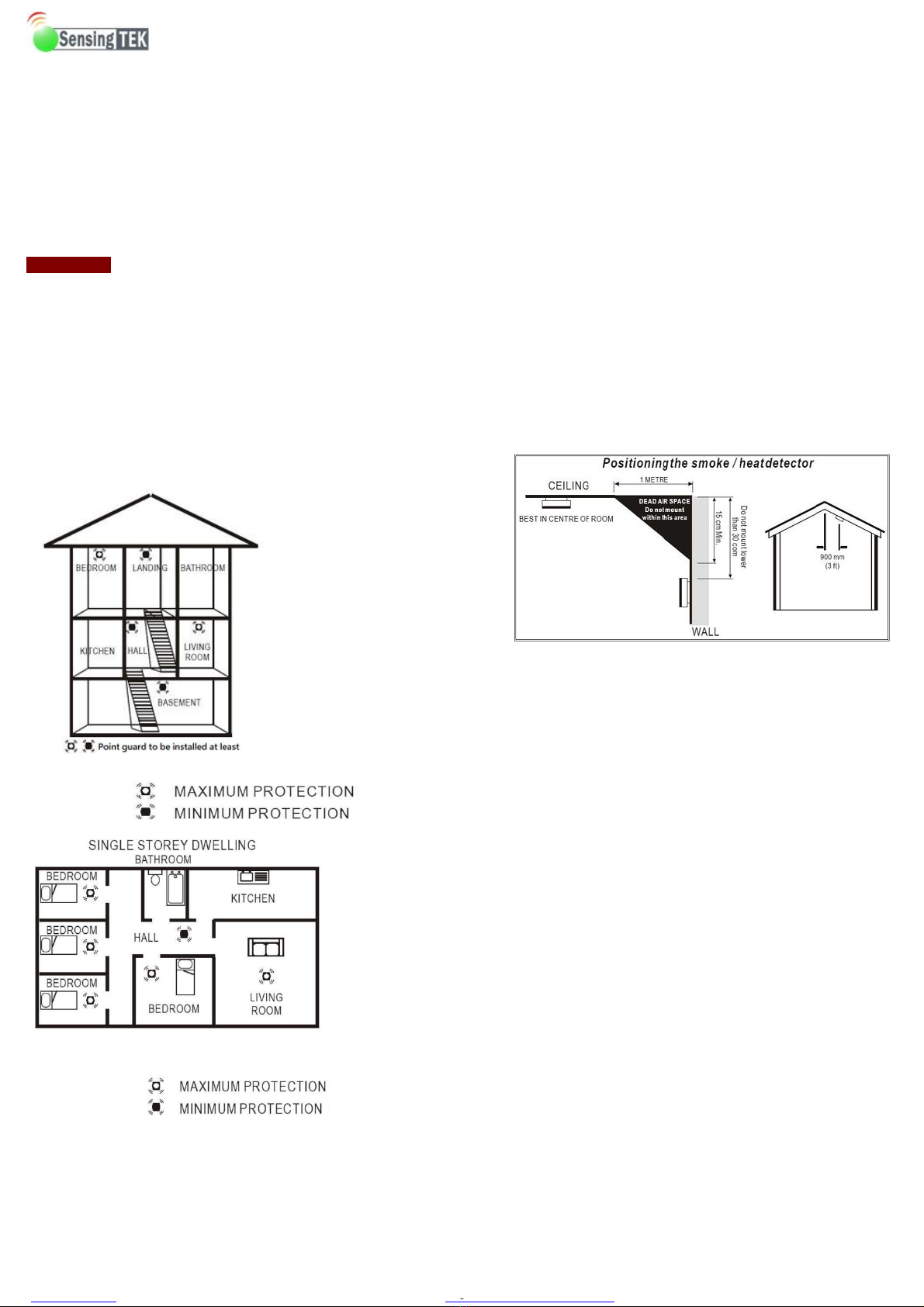

(3) Two-floor buildings, refer to (Figure 1 & 2) install the Smoke.
(4) Each family should be installed at least two Smoke.
(5) Within each room are required to install a Smoke.
2、Wireless Smoke and wireless systems
New device enters pairing mode at transmission, this match must be
applied in order to maintain a good smooth signals next to the Gateway is
paired.When you install the Smoke, technicians on the detector will be
paired with WSN Gateway setting, then the detector is automatically with
the corresponding Gateway online. When the smoke and the Smoke
started their alert at the same time, WSN launched wireless intelligent
home systems also receive alerts WSN home alarms(SRZ2100).
3、Improper installation of Smoke
(1) Because burning smoke particles that can cause Smoke alert action,
so don't install the Smoke in poorly ventilated kitchens, garages,
fireplaces, water heaters and furnaces.
(2) Install the Smoke should be avoided more than 6 metres from the
above location. If we do not meet these requirements, you should try to
choose the installation location of little contact with the burned
micro-particles, and maintaining good ventilation.
(4) Do not install the Smoke in the operating temperature range (-10 ℃ ~
50℃) outside the environment.
(6) Do not install Smoke dust-intensive sites, otherwise it will affect the
sensitivity of the Smoke and cause a false report, and may plug the
stainless steel strainer.
(7) Do not install in ventilation clear environment, such as air conditioners,
fans, ventilation near the road, or take smoke into the Smoke of fires
caused by the airflow is not easy.
(8) Pitched roofs, and ceilings on the top floor, and wall junction, often air
stagnation, is not easy to measure the smoke. See Figure 3 indicates
the correct installation location.
4、Smoke Function
Model: approximately every 32 seconds, the red LED flashes 1
time.
Smoke alarms: Smoke will still beep 3 sound and the red LED will
Flash sequentially. WSN wireless intelligent home
system will also start.
Silent mode: when the Smoke the fire alarm, press the test button you
will enter the mute State for about 10 minutes, and the red
LED will Flash sequentially, automatically mute after 10
minutes. When mute after the termination if Smoke is still
detected fire alarms, the Smoke will once again issued an
alert.
Weak warning: when the Smoke is about every 32 seconds a short beep
sound, and the yellow LED flashes once, says low battery,
Smoke can still be normal operation for about 30 days, but
must immediately replace the battery, replace with new
batteries may only be lifted after weak warning. Wireless
intelligent home systems appears weak in WSN reminder.
Age warning: when the Smoke after a certain number of years of
use, Smoke will start aging, Smoke about every 32
seconds a short beep sound, and the yellow LED blinks 2
times per minute for at least, at this point is Smoke aging,
please replace Smoke.
This test function: this feature is hardware detection Smoke features and
smoke detection function is normal, just press the test
button for about 4 seconds, let go, will be entering the
smoke alarm test, that is, continuous beep sound 3, and
the red LED will Flash sequentially, this time also will detect
the hardware function is abnormal.
Abnormal warning: If the Smoke about every minute short beep
sound 1, and the yellow LED blinks 3 times, which indicate a problem
with Smoke, and needed immediate repair maintenance at once.
5、One year warranty description
The wireless alarms are available on a year, and the customer under
normal conditions of use, sensor component provides one-year
maintenance guarantee and other material or manufacturing defects,
repair or replacement of parts of the service. Customer misuse, damage,
Print to PDF without this message by purchasing novaPDF (http://www.novapdf.com/)

2
replaceable materials shall not be liable for, and customers using the
products, their other tangible or intangible loss arising, nor take any
responsibility.
6、Installation steps (recommended by a professional
technician)
(1) Draw a 15 cm long at the ready to install the horizontal line
(2) Unscrew counterclockwise Smoke fixed base
(3) Fixed two large holes align horizontal line marks the position of the
screws
(4) Using an electric drill (5mm bits) to drill a hole and buried in two
plastic nails (Gecko)
(5) Lock the screws to fix the base
(6) Align the Smoke installation well fixed base, yield to clockwise,
combined with the Smoke as a whole. Try to Smoke in order to make
sure it is installed properly.
7、Smoke Specification
Induction type: photoelectric detection of smoke
Smoke detection sensitivity: UL217 (factory default）
Power supply: 1.5V two AA alkaline batteries (normal standby mode, uses about 18
months)
Built-in alarm sound mode: UL
Working temperature:-40 ° c ~85 ° c
Operating humidity: 0~95%
Interface: IEEE802.15.4
Frequency Range: 2.4-2.483GHz
Transmission Speed: 250Kbps
Transmission Power: 18dBm (Default)
Transmission Range: 150M（Line of Sight）
Sensitivity: -95dBm
Size:114mm*114mm*63mm
8、Zigbee reset connecting Gateway：
Pairing has to be replaced, you will need to open the body back
panel base, locate the battery place the top button, and continue to
press the button for three seconds, the product will enter the pairing
search and automatic pairing mode, this pairing is a Gateway
connecting the power for two minutes before they can match。
This device is Fixed installation, so the minimum distance from
body is 20cm
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Any Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and
receiver.
-Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV
technician for help.
