x-sense SC03 User manual

>< SENSE
Combination Smoke and Carbon Monoxide Alarm
Alarma Combinada de Humo y Monoxido de Carbono
10-Year Sealed Battery Operated
Operada por una bateria sellada de 10 anos
User Manual
Manual de usuario
Model: SC03/SC04/SC06
OOAMS
Conforms with UL 217 & UL 2034 standards
Email: [email protected]
F.1.05.SC0304 O01
X-Sense Innovations Co., Ltd.

This user manual contains important information about your combination smoke
& carbon monoxide alarm’s operation. To ensure proper use and trouble-free
operation, please read this manual carefully and store it in a safe place for future
reference.
Package Contents
1 x Alarm Unit
1 x Mounting Bracket
3 x Screws
3 x Anchor Plugs
1 x User Manual
1 x Warranty Card
2 x Carbon Monoxide Safety Stickers
Introduction
All X-Sense combination smoke & carbon monoxide alarms conform with
regulatory requirements, including UL 217 & UL 2034 standards and are designed to
detect both smoke and carbon monoxide.
This unit adopts photoelectric technology to detect smoke which is generally
more sensitive than ionization technology. It is effective at detecting large
particles, which tend to be produced in greater amounts by smoldering fires and
may smolder for hours before bursting into flame. Sources of these fires may
include cigarettes burning in couches or bedding.
Carbon monoxide (CO) is odorless, tasteless and invisible - it's a silent killer. Using
electrochemical sensing technology, this unit can detect increased levels of
carbon monoxide early, protecting your family from the dangers of carbon
monoxide.
Note: For maximum protection, use smoke & CO alarms on each level and in
every bedroom of your home.
eQ2e
THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE
NATIONAL FIRE PROTECTION ASSOCIATION’S STANDARD 72
(National Fire Protection Association, Batterymarch Park, Quincy, MA02269).
NEVER IGNORE THE SOUND OF THE ALARM!
Determining what type of alarm has sounded is easy with your X-Sense
combination smoke & carbon monoxide alarms. The alarm sounder will inform you
of the type of situation occurring.
When the Smoke Alarm Sounds:
Smoke alarms are designed to minimize false alarms. Cigarette smoke will not
normally set off the alarm, unless the smoke is blown directly into the alarm.
This unit contains nuisance alarm protection, which will reduce the impact of
cooking particles. However, large quantities of combustible particles from spills
or broiling could still cause the unit to alarm. Careful location of the unit away
from the kitchen area will give the maximum nuisance alarm protection.
Combustion particles from cooking may set off the alarm if located too close to
the cooking area. Large quantities of combustible particles are generated from
spills or when broiling. Using the fan on a range hood which vents to the
outside (non-recirculating type) will also help remove these combustible
products from the kitchen. If the alarm sounds, check for fires first. If a fire is
discovered, follow these steps. Become thoroughly familiar with these items,
and review with all family members!
*Alert small children in the home. Children sleep very sound and may not be
awakened by the sound of the smoke alarms.
*Leave immediately using one of your planned escape routes. Every second
counts, so don't stop to get dressed or pick up valuables.
© Q3°¢

This user manual contains important information about your combination smoke
& carbon monoxide alarm’s operation. To ensure proper use and trouble-free
operation, please read this manual carefully and store it in a safe place for future
reference.
Package Contents
1 x Alarm Unit
1 x Mounting Bracket
3 x Screws
3 x Anchor Plugs
1 x User Manual
1 x Warranty Card
2 x Carbon Monoxide Safety Stickers
Introduction
All X-Sense combination smoke & carbon monoxide alarms conform with
regulatory requirements, including UL 217 & UL 2034 standards and are designed to
detect both smoke and carbon monoxide.
This unit adopts photoelectric technology to detect smoke which is generally
more sensitive than ionization technology. It is effective at detecting large
particles, which tend to be produced in greater amounts by smoldering fires and
may smolder for hours before bursting into flame. Sources of these fires may
include cigarettes burning in couches or bedding.
Carbon monoxide (CO) is odorless, tasteless and invisible - it's a silent killer. Using
electrochemical sensing technology, this unit can detect increased levels of
carbon monoxide early, protecting your family from the dangers of carbon
monoxide.
Note: For maximum protection, use smoke & CO alarms on each level and in
every bedroom of your home.
eQ2e
THIS EQUIPMENT SHOULD BE INSTALLED IN ACCORDANCE WITH THE
NATIONAL FIRE PROTECTION ASSOCIATION’S STANDARD 72
(National Fire Protection Association, Batterymarch Park, Quincy, MA02269).
NEVER IGNORE THE SOUND OF THE ALARM!
Determining what type of alarm has sounded is easy with your X-Sense
combination smoke & carbon monoxide alarms. The alarm sounder will inform you
of the type of situation occurring.
When the Smoke Alarm Sounds:
Smoke alarms are designed to minimize false alarms. Cigarette smoke will not
normally set off the alarm, unless the smoke is blown directly into the alarm.
This unit contains nuisance alarm protection, which will reduce the impact of
cooking particles. However, large quantities of combustible particles from spills
or broiling could still cause the unit to alarm. Careful location of the unit away
from the kitchen area will give the maximum nuisance alarm protection.
Combustion particles from cooking may set off the alarm if located too close to
the cooking area. Large quantities of combustible particles are generated from
spills or when broiling. Using the fan on a range hood which vents to the
outside (non-recirculating type) will also help remove these combustible
products from the kitchen. If the alarm sounds, check for fires first. If a fire is
discovered, follow these steps. Become thoroughly familiar with these items,
and review with all family members!
*Alert small children in the home. Children sleep very sound and may not be
awakened by the sound of the smoke alarms.
*Leave immediately using one of your planned escape routes. Every second
counts, so don't stop to get dressed or pick up valuables.
© Q3°¢

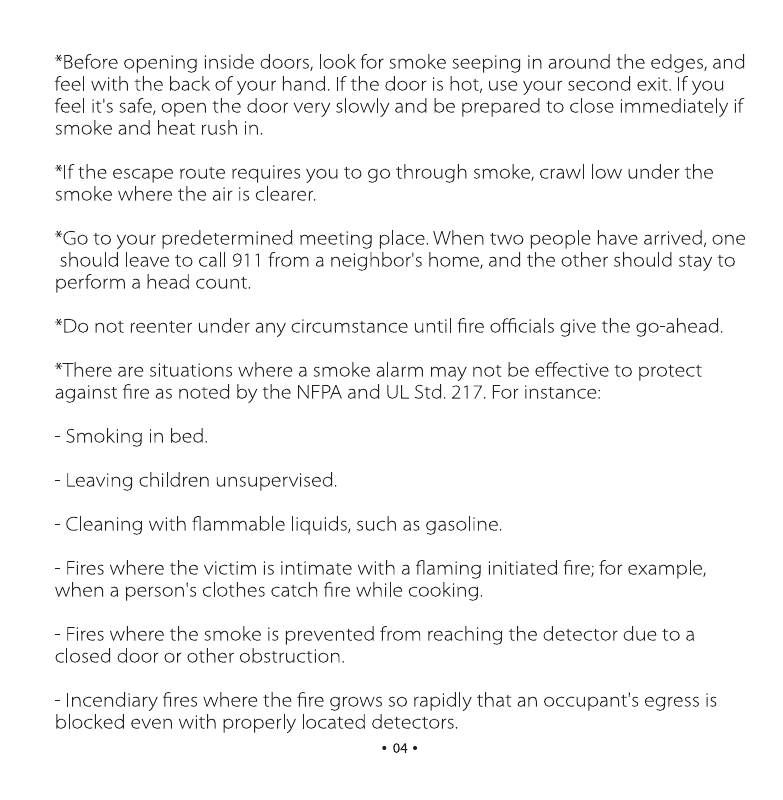

*Before opening inside doors, look for smoke seeping in around the edges, and
feel with the back of your hand. If the door is hot, use your second exit. If you
feel it's safe, open the door very slowly and be prepared to close immediately if
smoke and heat rush in.
*lf the escape route requires you to go through smoke, crawl low under the
smoke where the air is clearer.
*Go to your predetermined meeting place. When two people have arrived, one
should leave to call 911 from a neighbor's home, and the other should stay to
perform a head count.
*Do not reenter under any circumstance until fire officials give the go-ahead.
*There are situations where a smoke alarm may not be effective to protect
against fire as noted by the NFPA and UL Std. 217. For instance:
- Smoking in bed.
- Leaving children unsupervised.
- Cleaning with flammable liquids, such as gasoline.
- Fires where the victim is intimate with a flaming initiated fire; for example,
when a person's clothes catch fire while cooking.
- Fires where the smoke is prevented from reaching the detector due to a
closed door or other obstruction.
- Incendiary fires where the fire grows so rapidly that an occupant's egress is
blocked even with properly located detectors.
°04e

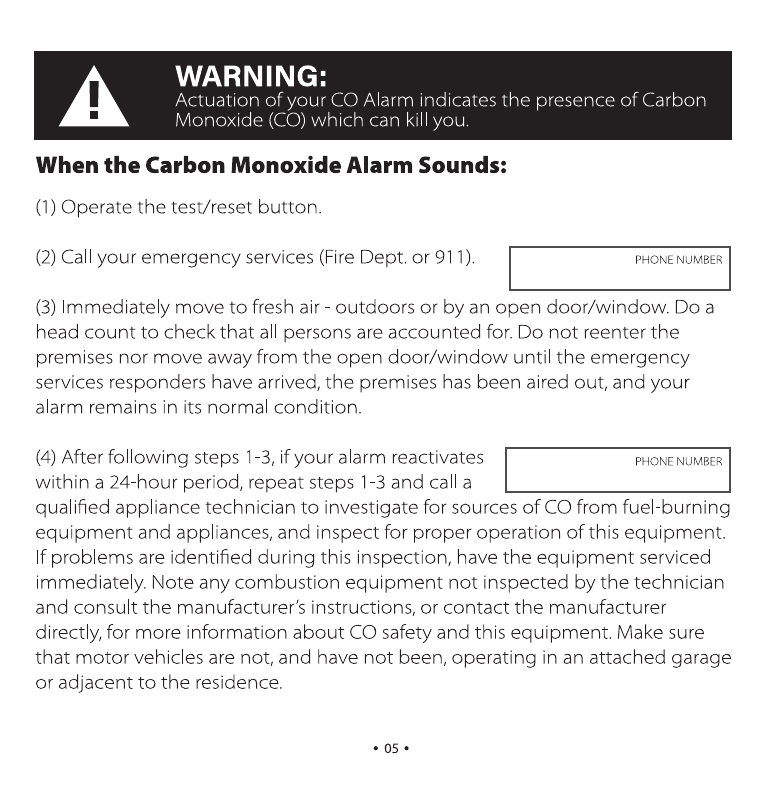

WARNING:
Actuation of your CO Alarm indicates the presence of Carbon
Monoxide (CO) which can kill you.
When the Carbon Monoxide Alarm Sounds:
(1) Operate the test/reset button.
(2) Call your emergency services (Fire Dept. or 911). PHONE NUMBER
(3) Immediately move to fresh air - outdoors or by an open door/window. Do a
head count to check that all persons are accounted for. Do not reenter the
premises nor move away from the open door/window until the emergency
services responders have arrived, the premises has been aired out, and your
alarm remains in its normal condition.
(4) After following steps 1-3, if your alarm reactivates
within a 24-hour period, repeat steps 1-3 and calla
qualified appliance technician to investigate for sources of CO from fuel-burning
equipment and appliances, and inspect for proper operation of this equipment.
If problems are identified during this inspection, have the equipment serviced
immediately. Note any combustion equipment not inspected by the technician
and consult the manufacturer's instructions, or contact the manufacturer
directly, for more information about CO safety and this equipment. Make sure
that motor vehicles are not, and have not been, operating in an attached garage
or adjacent to the residence.
PHONE NUMBER
© 05°¢

*Before opening inside doors, look for smoke seeping in around the edges, and
feel with the back of your hand. If the door is hot, use your second exit. If you
feel it's safe, open the door very slowly and be prepared to close immediately if
smoke and heat rush in.
*lf the escape route requires you to go through smoke, crawl low under the
smoke where the air is clearer.
*Go to your predetermined meeting place. When two people have arrived, one
should leave to call 911 from a neighbor's home, and the other should stay to
perform a head count.
*Do not reenter under any circumstance until fire officials give the go-ahead.
*There are situations where a smoke alarm may not be effective to protect
against fire as noted by the NFPA and UL Std. 217. For instance:
- Smoking in bed.
- Leaving children unsupervised.
- Cleaning with flammable liquids, such as gasoline.
- Fires where the victim is intimate with a flaming initiated fire; for example,
when a person's clothes catch fire while cooking.
- Fires where the smoke is prevented from reaching the detector due to a
closed door or other obstruction.
- Incendiary fires where the fire grows so rapidly that an occupant's egress is
blocked even with properly located detectors.
°04e
WARNING:
Actuation of your CO Alarm indicates the presence of Carbon
Monoxide (CO) which can kill you.
When the Carbon Monoxide Alarm Sounds:
(1) Operate the test/reset button.
(2) Call your emergency services (Fire Dept. or 911). PHONE NUMBER
(3) Immediately move to fresh air - outdoors or by an open door/window. Do a
head count to check that all persons are accounted for. Do not reenter the
premises nor move away from the open door/window until the emergency
services responders have arrived, the premises has been aired out, and your
alarm remains in its normal condition.
(4) After following steps 1-3, if your alarm reactivates
within a 24-hour period, repeat steps 1-3 and calla
qualified appliance technician to investigate for sources of CO from fuel-burning
equipment and appliances, and inspect for proper operation of this equipment.
If problems are identified during this inspection, have the equipment serviced
immediately. Note any combustion equipment not inspected by the technician
and consult the manufacturer's instructions, or contact the manufacturer
directly, for more information about CO safety and this equipment. Make sure
that motor vehicles are not, and have not been, operating in an attached garage
or adjacent to the residence.
PHONE NUMBER
© 05°¢

Technical Specifications
Product Overview
J CAUTION!
Power supply
10-year sealed lithium battery
Sensor type
Smoke: Photoelectric
CO: Electrochemical
Product life About 10 years
Safety standards
Conforms with UL 217 & UL 2034 standards
Smoke sensitivity
0.97-1.79%/ft OBS
CO sensitivity
70 ppm: 60-240 minutes
150 ppm: 10-50 minutes
400 ppm: 4-15 minutes
Standby current < 6 UA (avg.)
Alarm current < 60 mA (avg.)
Best Operating ambient temperature 40-100 °F (4.4-37.8 °C)
Operating relative humidity < 85% RH (non-condensing)
Alarm loudness > 85 cB at 9.84 ft (3 m) @ 3.2 + 0.3 kHz pulsing alarm
Silence duration
Smoke: < 9 minutes;
CO: < 6 minutes
°06e
THIS SMOKE AND CO ALARM IS DESIGNED FOR INDOOR USE ONLY. DO NOT EXPOSE TO
RAIN OR MOISTURE. DO NOT KNOCK OR DROP THE ALARM. DO NOT OPEN OR TAMPER
WITH THE ALARM AS THIS COULD CAUSE MALFUNCTION.
Test & Silence Button
The Test & Silence button is used to test the unit's electronics and to silence the
unit during an alarm. When testing the alarm weekly, press the test button until
you hear a short beep, indicating that the alarm has entered the test mode.
Note: After a test has begun, the alarm will sound and the red LED will flash. This
does not indicate that smoke/CO is present.
If you press the test button during an alarm state, the unit will enter the silence
mode.
CO silence mode: press the test button during an alarm state, the unit will enter
the silence mode. If the CO density still exceeds the alarm threshold within 6
minutes, the unit will enter another alarm state. Otherwise, the unit will exit
from silence mode after 9 minutes.
Note: If the smoke or CO concentration has reached an alarm level, silence mode
cannot be enabled. This unit will continue to alarm until the smoke or CO
concentration has decreased to a low level.
°O07e

Technical Specifications
Product Overview
J CAUTION!
Power supply
10-year sealed lithium battery
Sensor type
Smoke: Photoelectric
CO: Electrochemical
Product life About 10 years
Safety standards
Conforms with UL 217 & UL 2034 standards
Smoke sensitivity
0.97-1.79%/ft OBS
CO sensitivity
70 ppm: 60-240 minutes
150 ppm: 10-50 minutes
400 ppm: 4-15 minutes
Standby current < 6 UA (avg.)
Alarm current < 60 mA (avg.)
Best Operating ambient temperature 40-100 °F (4.4-37.8 °C)
Operating relative humidity < 85% RH (non-condensing)
Alarm loudness > 85 cB at 9.84 ft (3 m) @ 3.2 + 0.3 kHz pulsing alarm
Silence duration
Smoke: < 9 minutes;
CO: < 6 minutes
°06e
THIS SMOKE AND CO ALARM IS DESIGNED FOR INDOOR USE ONLY. DO NOT EXPOSE TO
RAIN OR MOISTURE. DO NOT KNOCK OR DROP THE ALARM. DO NOT OPEN OR TAMPER
WITH THE ALARM AS THIS COULD CAUSE MALFUNCTION.
Test & Silence Button
The Test & Silence button is used to test the unit's electronics and to silence the
unit during an alarm. When testing the alarm weekly, press the test button until
you hear a short beep, indicating that the alarm has entered the test mode.
Note: After a test has begun, the alarm will sound and the red LED will flash. This
does not indicate that smoke/CO is present.
If you press the test button during an alarm state, the unit will enter the silence
mode.
CO silence mode: press the test button during an alarm state, the unit will enter
the silence mode. If the CO density still exceeds the alarm threshold within 6
minutes, the unit will enter another alarm state. Otherwise, the unit will exit
from silence mode after 9 minutes.
Note: If the smoke or CO concentration has reached an alarm level, silence mode
cannot be enabled. This unit will continue to alarm until the smoke or CO
concentration has decreased to a low level.
°O07e

Alarm Sounder
The alarm will sound when there is smoke or CO present, when testing the
alarm, and when there is a fault.
LED Indicator
The LED indicator will flash in conjunction with the alarm sounder. Therefore, it
will flash during the following states: when powering on, in standby mode,
during smoke or CO alarm states, when exiting an alarm state, during test
mode, when there is low battery, in silence mode, when there is a fault and
when the unit is at the end of its life.
Low Battery
The LED indicator will flash yellow together with one beep every 60 seconds.
THE UNIT MUST BE DEACTIVATED (see "Deactivation of the Alarm" section) AND
REPLACED AS SOON AS POSSIBLE.
(If you press the test button when there is low battery, the low battery signal will
temporarily cease for 10 hours; if you press the test button again, the unit will enter
the test mode and then the standby mode.)
End of Life
Once the maximum lifetime (10 years) is reached, the alarm delivers 2 beeps and
the LED indicator will flash yellow twice every 30 seconds. This end-of-life signal
can be temporarily silenced for 3 days by pressing the test button.
The end-of-life silence feature can only be used for a total of 30 days. After 30
days, the end-of-life signal cannot be silenced.
° 08 e
Different working modes and states are shown in the below table:
Mode LED Indicator Audible Alarm Remarks
Powering on | Blinks 8 cycles None.
(red/green/yellow)
in sequence.
Standby Flashes green once | None.
mode every 60 seconds.
Alarm mode
Flashes red 3 times
every 1.5 seconds.
3 long beeps every
1.5 seconds.
Smoke alarm.
First 4 minutes:
flashes red 4 times
every 5.8 seconds.
After 4 minutes:
flashes red 4 times
every 60 seconds.
First 4 minutes: 4
quick beeps every
5.8 seconds.
After 4 minutes: 4
quick beeps every
60 seconds.
CO alarm.
Flashes green
once every second
for 5 seconds.
None. Exiting an alarm:
When the smoke or
CO concentration
drops below the
alarm threshold, the
alarm signal stops.
2 sets of 3 red
2 sets of 3 long
Test mode _ | flashes followed by 2} beeps followed by 2
sets of 4 red flashes. | sets of 4 quick beeps.
Flashes red once None. After 9 minutes, the
Silence every 5 seconds. unit will exit silence
mode mode.
Flashes green 3 None. Exiting silence
times. mode.
°09°e

Alarm Sounder
The alarm will sound when there is smoke or CO present, when testing the
alarm, and when there is a fault.
LED Indicator
The LED indicator will flash in conjunction with the alarm sounder. Therefore, it
will flash during the following states: when powering on, in standby mode,
during smoke or CO alarm states, when exiting an alarm state, during test
mode, when there is low battery, in silence mode, when there is a fault and
when the unit is at the end of its life.
Low Battery
The LED indicator will flash yellow together with one beep every 60 seconds.
THE UNIT MUST BE DEACTIVATED (see "Deactivation of the Alarm" section) AND
REPLACED AS SOON AS POSSIBLE.
(If you press the test button when there is low battery, the low battery signal will
temporarily cease for 10 hours; if you press the test button again, the unit will enter
the test mode and then the standby mode.)
End of Life
Once the maximum lifetime (10 years) is reached, the alarm delivers 2 beeps and
the LED indicator will flash yellow twice every 30 seconds. This end-of-life signal
can be temporarily silenced for 3 days by pressing the test button.
The end-of-life silence feature can only be used for a total of 30 days. After 30
days, the end-of-life signal cannot be silenced.
° 08 e
Different working modes and states are shown in the below table:
Mode LED Indicator Audible Alarm Remarks
Powering on | Blinks 8 cycles None.
(red/green/yellow)
in sequence.
Standby Flashes green once | None.
mode every 60 seconds.
Alarm mode
Flashes red 3 times
every 1.5 seconds.
3 long beeps every
1.5 seconds.
Smoke alarm.
First 4 minutes:
flashes red 4 times
every 5.8 seconds.
After 4 minutes:
flashes red 4 times
every 60 seconds.
First 4 minutes: 4
quick beeps every
5.8 seconds.
After 4 minutes: 4
quick beeps every
60 seconds.
CO alarm.
Flashes green
once every second
for 5 seconds.
None. Exiting an alarm:
When the smoke or
CO concentration
drops below the
alarm threshold, the
alarm signal stops.
2 sets of 3 red
2 sets of 3 long
Test mode _ | flashes followed by 2} beeps followed by 2
sets of 4 red flashes. | sets of 4 quick beeps.
Flashes red once None. After 9 minutes, the
Silence every 5 seconds. unit will exit silence
mode mode.
Flashes green 3 None. Exiting silence
times. mode.
°09°e

Flashes yellow once One beep every 60
Low battery every 60 seconds. seconds.
Fault Flashes yellow 1 or 2 Smoke
times every 40 seconds.} 2 beeps every 40 | malfunction mode.
Flashes yellow 3or4 ‘| seconds. CO malfunction
times every 40 seconds. mode.
; Flashes yellow 2 times |2 beeps every 30
End of life every 30 seconds. seconds.
Fire Safety Tips
Follow these safety rules to prevent hazardous situations:
1, Use smoking materials properly. Never smoke in bed.
2. Keep matches or lighters away from children.
3. Store flammable materials in proper containers.
4. Keep electrical appliances in good condition and don't overload electrical circuits.
5. Keep stoves, barbecue grills, fireplaces and chimneys grease-free and debris-free.
6. Never leave anything cooking on the stove unattended.
°10°¢
7. Keep portable heaters and open flames, like candles, away from flammable materials.
8. Don't let rubbish accumulate.
9. Keep alarms clean, and test them weekly.
10. Replace alarms immediately if they are not working properly. Smoke alarm that
do not work cannot alert you to a fire.
11. Keep at least one working fire extinguisher on every floor, and an additional
one in the kitchen.
12. Have fire escape ladders or other reliable means of escape from an upper floor in
case stairs are blocked.
elle

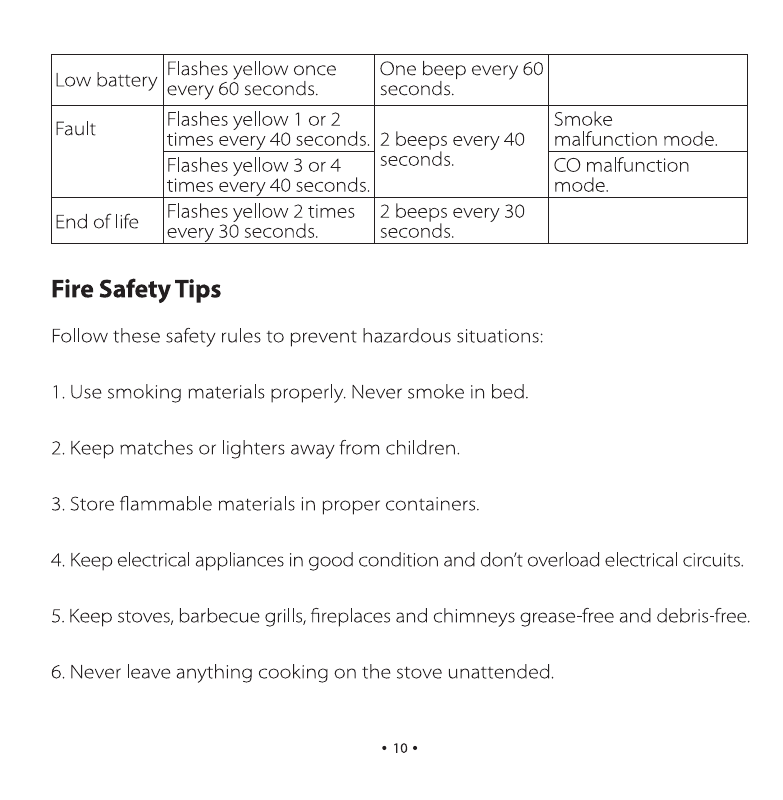

Flashes yellow once One beep every 60
Low battery every 60 seconds. seconds.
Fault Flashes yellow 1 or 2 Smoke
times every 40 seconds.} 2 beeps every 40 | malfunction mode.
Flashes yellow 3or4 ‘| seconds. CO malfunction
times every 40 seconds. mode.
; Flashes yellow 2 times |2 beeps every 30
End of life every 30 seconds. seconds.
Fire Safety Tips
Follow these safety rules to prevent hazardous situations:
1, Use smoking materials properly. Never smoke in bed.
2. Keep matches or lighters away from children.
3. Store flammable materials in proper containers.
4. Keep electrical appliances in good condition and don't overload electrical circuits.
5. Keep stoves, barbecue grills, fireplaces and chimneys grease-free and debris-free.
6. Never leave anything cooking on the stove unattended.
°10°¢
7. Keep portable heaters and open flames, like candles, away from flammable materials.
8. Don't let rubbish accumulate.
9. Keep alarms clean, and test them weekly.
10. Replace alarms immediately if they are not working properly. Smoke alarm that
do not work cannot alert you to a fire.
11. Keep at least one working fire extinguisher on every floor, and an additional
one in the kitchen.
12. Have fire escape ladders or other reliable means of escape from an upper floor in
case stairs are blocked.
elle

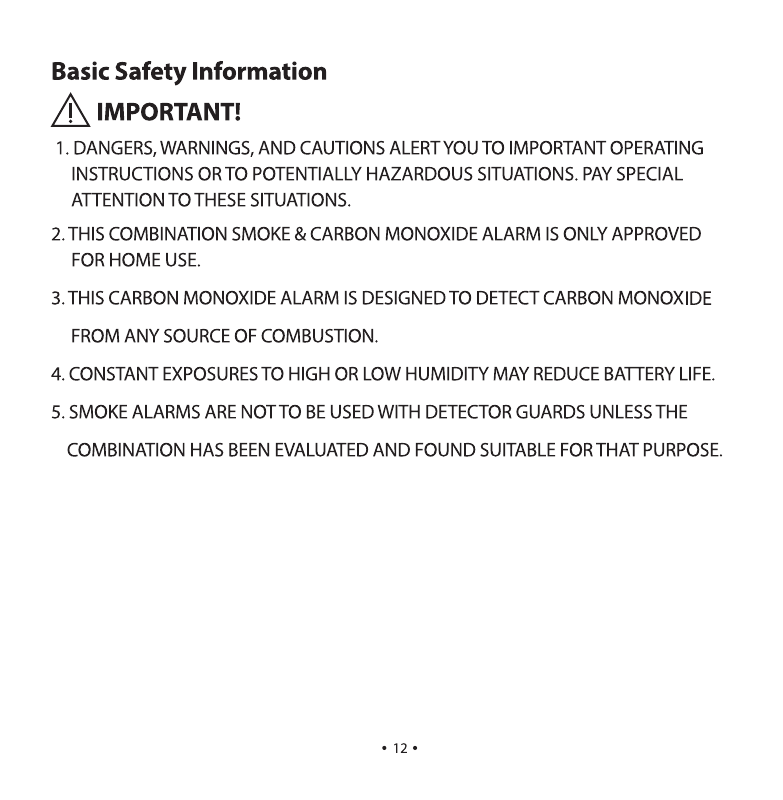

Basic Safety Information
/\\ IMPORTANT!
1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT OPERATING
INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS. PAY SPECIAL
ATTENTION TO THESE SITUATIONS.
2. THIS COMBINATION SMOKE & CARBON MONOXIDE ALARM IS ONLY APPROVED
FOR HOME USE.
3. THIS CARBON MONOXIDE ALARM IS DESIGNED TO DETECT CARBON MONOXIDE
FROM ANY SOURCE OF COMBUSTION.
4. CONSTANT EXPOSURES TO HIGH OR LOW HUMIDITY MAY REDUCE BATTERY LIFE.
5. SMOKE ALARMS ARE NOT TO BE USED WITH DETECTOR GUARDS UNLESS THE
COMBINATION HAS BEEN EVALUATED AND FOUND SUITABLE FOR THAT PURPOSE.
e12e
/\, CAUTION!
THIS SMOKE & CARBON MONOXIDE ALARM HAS TWO SEPARATE ALARMS WHICH
WORK INDEPENDENTLY. THE CARBON MONOXIDE ALARM IS NOT DESIGNED TO
DETECT FIRE OR ANY OTHER GAS. IT WILL ONLY INDICATE THE PRESENCE OF
CARBON MONOXIDE GAS AT THE SENSOR. CARBON MONOXIDE GAS MAY BE
PRESENT IN OTHER AREAS. THE SMOKE ALARM WILL ONLY INDICATE THE PRESENCE
OF SMOKE THAT REACHES THE SENSOR. THE SMOKE ALARM IS NOT DESIGNED TO
DETECT GAS, HEAT OR FLAMES.
/\ WARNING!
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL PROBLEM
AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY OR DEATH.
3. TEST THIS SMOKE/CO ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST
CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY,
IT WILL NOT ALERT YOU TO A PROBLEM.
4. THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR LOCATIONS OF
FAMILY LIVING UNITS. IT IS NOT DESIGNED TO MEASURE CO LEVELS IN COMPLIANCE
WITH OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA)
COMMERCIAL OR INDUSTRIAL STANDARDS. INDIVIDUALS WITH MEDICAL
CONDITIONS THAT MAY MAKE THEM MORE SENSITIVE TO CARBON MONOXIDE
MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND
VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM.
FOR ADDITIONAL INFORMATION ON CARBON MONOXIDE AND YOUR MEDICAL
CONDITION CONTACT YOUR PHYSICIAN.
e13¢

Basic Safety Information
/\\ IMPORTANT!
1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT OPERATING
INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS. PAY SPECIAL
ATTENTION TO THESE SITUATIONS.
2. THIS COMBINATION SMOKE & CARBON MONOXIDE ALARM IS ONLY APPROVED
FOR HOME USE.
3. THIS CARBON MONOXIDE ALARM IS DESIGNED TO DETECT CARBON MONOXIDE
FROM ANY SOURCE OF COMBUSTION.
4. CONSTANT EXPOSURES TO HIGH OR LOW HUMIDITY MAY REDUCE BATTERY LIFE.
5. SMOKE ALARMS ARE NOT TO BE USED WITH DETECTOR GUARDS UNLESS THE
COMBINATION HAS BEEN EVALUATED AND FOUND SUITABLE FOR THAT PURPOSE.
e12e
/\, CAUTION!
THIS SMOKE & CARBON MONOXIDE ALARM HAS TWO SEPARATE ALARMS WHICH
WORK INDEPENDENTLY. THE CARBON MONOXIDE ALARM IS NOT DESIGNED TO
DETECT FIRE OR ANY OTHER GAS. IT WILL ONLY INDICATE THE PRESENCE OF
CARBON MONOXIDE GAS AT THE SENSOR. CARBON MONOXIDE GAS MAY BE
PRESENT IN OTHER AREAS. THE SMOKE ALARM WILL ONLY INDICATE THE PRESENCE
OF SMOKE THAT REACHES THE SENSOR. THE SMOKE ALARM IS NOT DESIGNED TO
DETECT GAS, HEAT OR FLAMES.
/\ WARNING!
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL PROBLEM
AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY OR DEATH.
3. TEST THIS SMOKE/CO ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST
CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY,
IT WILL NOT ALERT YOU TO A PROBLEM.
4. THIS PRODUCT IS INTENDED FOR USE IN ORDINARY INDOOR LOCATIONS OF
FAMILY LIVING UNITS. IT IS NOT DESIGNED TO MEASURE CO LEVELS IN COMPLIANCE
WITH OCCUPATIONAL SAFETY AND HEALTH ADMINISTRATION (OSHA)
COMMERCIAL OR INDUSTRIAL STANDARDS. INDIVIDUALS WITH MEDICAL
CONDITIONS THAT MAY MAKE THEM MORE SENSITIVE TO CARBON MONOXIDE
MAY CONSIDER USING WARNING DEVICES WHICH PROVIDE AUDIBLE AND
VISUAL SIGNALS FOR CARBON MONOXIDE CONCENTRATIONS UNDER 30 PPM.
FOR ADDITIONAL INFORMATION ON CARBON MONOXIDE AND YOUR MEDICAL
CONDITION CONTACT YOUR PHYSICIAN.
e13¢

5. THE REPLACEMENT DATE THAT APPEARS ON THE DEVICE IS THE DATE BEYOND WHICH 20"
THE DEVICE MAY NO LONGER DETECT CARBON MONOXIDE ACCURATELY AND SHOULD <$—_— wegen) —
BE IMMEDIATELY REPLACED. qe
6. THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM THE ACUTE EFFECTS OF b J NEVER HERE PACE af ;
CARBON MONOXIDE EXPOSURE. IT MAY NOT FULLY SAFEGUARD INDIVIDUALS WITH ae MINIMUM
SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. oe
TO 12”
Installation Instructions ACCEPTABLE, MAXIMUM
HERE
1. Prioritize the installation of an alarm in the bedroom and walkways, and |
make sure you can hear the alarm from all sleeping areas. In a home with
several bedrooms, install an alarm in every bedroom. If youinstallonlyone nnn.
smoke alarm in your home, install the alarm near to all bedrooms where
possible, and not in a basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to
the ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure the alarm is within working distance of all corners of the room.
4. If an alarm cannot be installed in the middle of a ceiling, install at a distance L TNR AREA THIS AREA.
of 20 inches (50 cm) away from the corners of the room. a” 1 a, SL Nate area \ Tt
5. lf an alarm is installed on a wall, it should be atadistanceof4-12inches Cs IOC Ve, Ane TT
(10-30 cm) below the ceiling. : V CZ \ EE

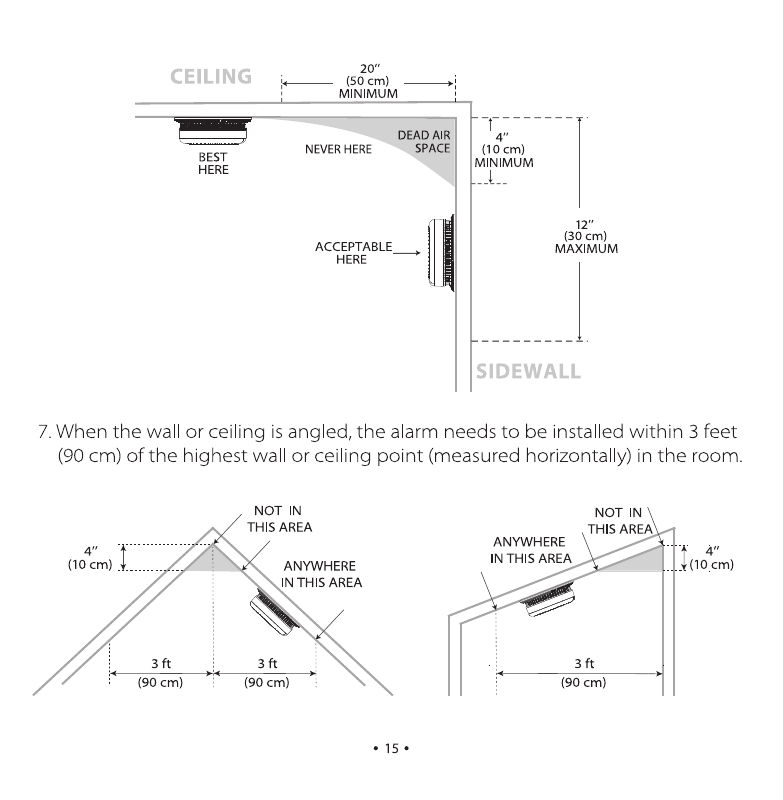

7.When the wall or ceiling is angled, the alarm needs to be installed within 3 feet
(90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
6. If the length of a room or hall is beyond 30 feet (900 cm), you will need to
install several alarms in the same space.
3 ft 3 3 ft
(90cm) | ~~ (90cm) (90 cm)
°146 *15¢

5. THE REPLACEMENT DATE THAT APPEARS ON THE DEVICE IS THE DATE BEYOND WHICH 20"
THE DEVICE MAY NO LONGER DETECT CARBON MONOXIDE ACCURATELY AND SHOULD <$—_— wegen) —
BE IMMEDIATELY REPLACED. qe
6. THIS DEVICE IS DESIGNED TO PROTECT INDIVIDUALS FROM THE ACUTE EFFECTS OF b J NEVER HERE PACE af ;
CARBON MONOXIDE EXPOSURE. IT MAY NOT FULLY SAFEGUARD INDIVIDUALS WITH ae MINIMUM
SPECIFIC MEDICAL CONDITIONS. IF IN DOUBT, CONSULT A MEDICAL PRACTITIONER. oe
TO 12”
Installation Instructions ACCEPTABLE, MAXIMUM
HERE
1. Prioritize the installation of an alarm in the bedroom and walkways, and |
make sure you can hear the alarm from all sleeping areas. In a home with
several bedrooms, install an alarm in every bedroom. If youinstallonlyone nnn.
smoke alarm in your home, install the alarm near to all bedrooms where
possible, and not in a basement or furnace room.
2. Install an alarm above the stairway and on every floor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to
the ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure the alarm is within working distance of all corners of the room.
4. If an alarm cannot be installed in the middle of a ceiling, install at a distance L TNR AREA THIS AREA.
of 20 inches (50 cm) away from the corners of the room. a” 1 a, SL Nate area \ Tt
5. lf an alarm is installed on a wall, it should be atadistanceof4-12inches Cs IOC Ve, Ane TT
(10-30 cm) below the ceiling. : V CZ \ EE
7.When the wall or ceiling is angled, the alarm needs to be installed within 3 feet
(90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
6. If the length of a room or hall is beyond 30 feet (900 cm), you will need to
install several alarms in the same space.
3 ft 3 3 ft
(90cm) | ~~ (90cm) (90 cm)
°146 *15¢

Recommended Placement
/\ WARNING!
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. INSTALLATION OF THE ALARM SHOULD NOT BE USED AS A SUBSTITUTE FOR
PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES
INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.
BEDROOM MASTER BEDROOM
/ a ( FIRE EXTINGUISHERS
Seq |) YZ ® (i) SMOKE ALARMS
GARAGE KITCHEN VY; FAMILY ROOM CARBON MONOXIDE
Y
fl fa L fl ALARMS
®)
BASEMENT WORKSHOP SMOKE & co ALARMS
(7
if fl
Note: Kitchens should be installed with smoke alarms which have the silence
mode.
°16¢
How to Install This Alarm
/\\ IMPORTANT!
THIS COMBINATION SMOKE/CO ALARM IS DESIGNED TO BE MOUNTED ON THE CEILING
OR WALL.
/\ WARNING!
FAILURE TO PROPERLY INSTALL AND ACTIVATE THIS ALARM WILL PREVENT PROPER
OPERATION OF THE ALARM AND WILL PREVENT ITS RESPONSE TO FIRE HAZARDS OR
CO.
Locations to Avoid
WARNING - This product is intended for use in ordinary indoor locations of
farnily living units. It is not designed to measure compliance with the
Occupational Safety and Health Administration (OSHA) commercial or industrial
standards.
1. Do not install in garages, kitchens, furnace rooms or bathrooms! Do not install
within 5 ft or 1.5 m of cooking appliances.
2. Do not install within 3 ft (0.9 m) of the following: The door to a kitchen, ora
bathroom that contains a tub or shower, forced air supply ducts used for
heating or cooling, ceiling or whole house ventilating fans, or other high air
flow areas. Avoid excessively dusty, dirty or greasy areas. Dust, grease or
household chemicals can contaminate the alarm’s sensors, causing the alarm
to not operate properly.
e17e

Recommended Placement
/\ WARNING!
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. INSTALLATION OF THE ALARM SHOULD NOT BE USED AS A SUBSTITUTE FOR
PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES
INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.
BEDROOM MASTER BEDROOM
/ a ( FIRE EXTINGUISHERS
Seq |) YZ ® (i) SMOKE ALARMS
GARAGE KITCHEN VY; FAMILY ROOM CARBON MONOXIDE
Y
fl fa L fl ALARMS
®)
BASEMENT WORKSHOP SMOKE & co ALARMS
(7
if fl
Note: Kitchens should be installed with smoke alarms which have the silence
mode.
°16¢
How to Install This Alarm
/\\ IMPORTANT!
THIS COMBINATION SMOKE/CO ALARM IS DESIGNED TO BE MOUNTED ON THE CEILING
OR WALL.
/\ WARNING!
FAILURE TO PROPERLY INSTALL AND ACTIVATE THIS ALARM WILL PREVENT PROPER
OPERATION OF THE ALARM AND WILL PREVENT ITS RESPONSE TO FIRE HAZARDS OR
CO.
Locations to Avoid
WARNING - This product is intended for use in ordinary indoor locations of
farnily living units. It is not designed to measure compliance with the
Occupational Safety and Health Administration (OSHA) commercial or industrial
standards.
1. Do not install in garages, kitchens, furnace rooms or bathrooms! Do not install
within 5 ft or 1.5 m of cooking appliances.
2. Do not install within 3 ft (0.9 m) of the following: The door to a kitchen, ora
bathroom that contains a tub or shower, forced air supply ducts used for
heating or cooling, ceiling or whole house ventilating fans, or other high air
flow areas. Avoid excessively dusty, dirty or greasy areas. Dust, grease or
household chemicals can contaminate the alarm’s sensors, causing the alarm
to not operate properly.
e17e

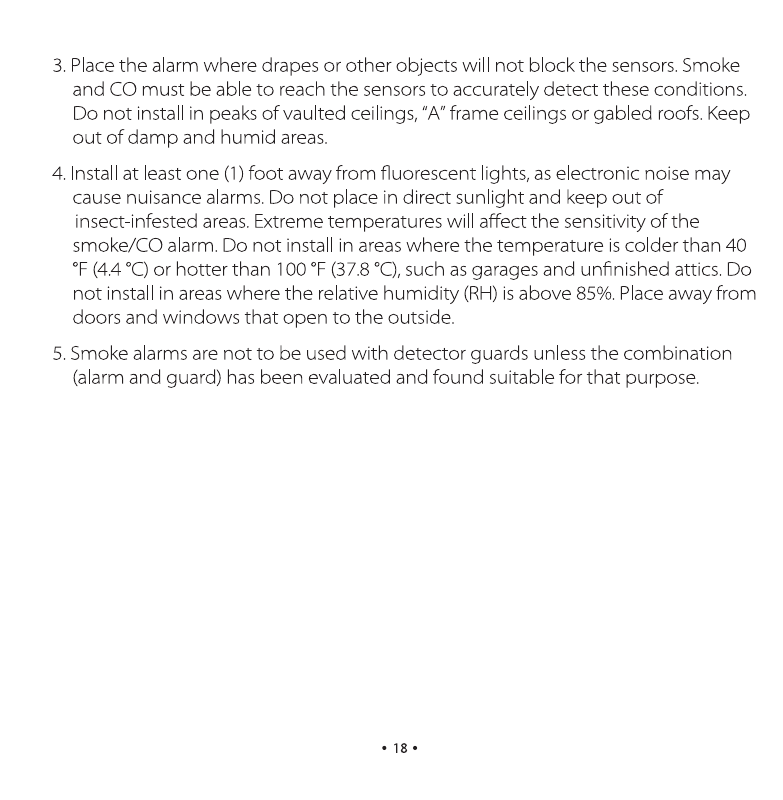

3. Place the alarm where drapes or other objects will not block the sensors. Smoke
and CO must be able to reach the sensors to accurately detect these conditions.
Do not install in peaks of vaulted ceilings, “A” frame ceilings or gabled roofs. Keep
out of damp and humid areas.
_ Install at least one (1) foot away from fluorescent lights, as electronic noise may
cause nuisance alarms. Do not place in direct sunlight and keep out of
insect-infested areas. Extreme temperatures will affect the sensitivity of the
smoke/CO alarm. Do not install in areas where the temperature is colder than 40
°F (4.4 °C) or hotter than 100 °F (37.8 °C), such as garages and unfinished attics. Do
not install in areas where the relative humidity (RH) is above 85%. Place away from
doors and windows that open to the outside.
5. Smoke alarms are not to be used with detector guards unless the combination
(alarm and guard) has been evaluated and found suitable for that purpose.
°18e
Mounting Steps
1. Drill three @ 6.0 mm holes in the wall or ceiling, then insert three plastic anchor
plugs into the holes with a hammer.
2. Attach the mounting bracket to the surface of the wall or ceiling with three
screws and mount the alarm into the bracket by pushing them together and
twisting the unit clockwise.
3. Test the unit by using the Test/Silence button. Ensure the unit sounds in an
alarm pattern.
Note: This model is equipped with a feature that automatically activates the
alarm when the alarm is attached to the mounting bracket for the first time.
°©19e

3. Place the alarm where drapes or other objects will not block the sensors. Smoke
and CO must be able to reach the sensors to accurately detect these conditions.
Do not install in peaks of vaulted ceilings, “A” frame ceilings or gabled roofs. Keep
out of damp and humid areas.
_ Install at least one (1) foot away from fluorescent lights, as electronic noise may
cause nuisance alarms. Do not place in direct sunlight and keep out of
insect-infested areas. Extreme temperatures will affect the sensitivity of the
smoke/CO alarm. Do not install in areas where the temperature is colder than 40
°F (4.4 °C) or hotter than 100 °F (37.8 °C), such as garages and unfinished attics. Do
not install in areas where the relative humidity (RH) is above 85%. Place away from
doors and windows that open to the outside.
5. Smoke alarms are not to be used with detector guards unless the combination
(alarm and guard) has been evaluated and found suitable for that purpose.
°18e
Mounting Steps
1. Drill three @ 6.0 mm holes in the wall or ceiling, then insert three plastic anchor
plugs into the holes with a hammer.
2. Attach the mounting bracket to the surface of the wall or ceiling with three
screws and mount the alarm into the bracket by pushing them together and
twisting the unit clockwise.
3. Test the unit by using the Test/Silence button. Ensure the unit sounds in an
alarm pattern.
Note: This model is equipped with a feature that automatically activates the
alarm when the alarm is attached to the mounting bracket for the first time.
°©19e

Deactivation of the Alarm
WARNING!
1. DO NOT DEACTIVATE THE ALARM UNIT UNTIL THE END-OF-LIFE SIGNAL HAS BEEN
HEARD.
2. ONCE THE MAXIMUM LIFETIME (10 YEARS) IS REACHED, THE ALARM DELIVERS 2
BEEPS EVERY 30 SECONDS.
3. ONCE THE ALARM IS DEACTIVATED, IT WILL NO LONGER FUNCTION. IT CANNOT
BE REACTIVATED AND MUST BE REPLACED.
To Deactivate the Alarm
Pressing the Test/Silence button can silence the end-of-life signal for up to 3 days.
1. Peel back the shaded label obstructing the "DIS" setting, and break the thin
plastic guard, as below.
2. Twist the plastic pin upwards to the “DIS" position or insert a screwdriver into the
slot and turn the dial clockwise to the “DIS” position.
3. Dispose of the alarm.
4, Replace the alarm.
°20°¢
Weekly Test
/\ WARNING!
1. NEVER USE AN OPEN FLAME OF ANY KIND TO TEST THIS UNIT. YOU MIGHT
ACCIDENTALLY DAMAGE OR SET FIRE TO THE UNIT OR TO YOUR HOME.
2. NEVER USE A VEHICLE EXHAUST TO TEST THIS UNIT. EXHAUST FUMES MAY
CAUSE PERMANENT DAMAGE AND VOID YOUR WARRANTY.
3. DO NOT STAND CLOSE TO THE ALARM WHEN THE ALARM IS SOUNDING.
EXPOSURE AT CLOSE RANGE MAY BE HARMFUL TO YOUR HEARING. WHEN
TESTING, STEP AWAY WHEN THE ALARM BEGINS TO SOUND.
Maintenance
To keep your smoke/CO alarm in good working order, follow these simple steps:
1. Verify the unit's alarm sound and indicators are working properly by testing the
unit once a week.
2. Remove the unit from the ceiling/wall and clean the alarm cover and vents with a
soft brush attachment once a month to remove dust and dirt.
3. Never use detergents or other solvents to clean the unit.
4. Avoid spraying air fresheners, hair spray or other aerosols near the alarm.
5. Do not paint the unit. Paint will seal the vents and interfere with the sensor's
ability to detect smoke or CO. Never attempt to disassemble the unit or clean
inside. Doing so will void your warranty.
6.When removed, place the smoke/CO alarm back in its proper location as soon as
possible, to assure continuous protection from fire or carbon monoxide poisoning.
7.When household cleaning supplies or similar contaminants are used, the area
should be ventilated.
If the Smoke Alarm Sounds
1. Don't panic; stay calm. Follow your family's escape plan.
2. Get out of the house as quickly as possible. Don't stop to get dressed or collect
anything. x
