x-sense XSO1-WX User manual

X-SENSE
XS01-WX Wi-Fi Smoke Alarm
CE RgHs A a
(}
a
y
ee
;
Model:
XSO1-WX
X-Sense Innovations Co,, Ltd.
Email: [email protected]
F.1,05.XS0162

Contents
English
Deutsch
Frangais

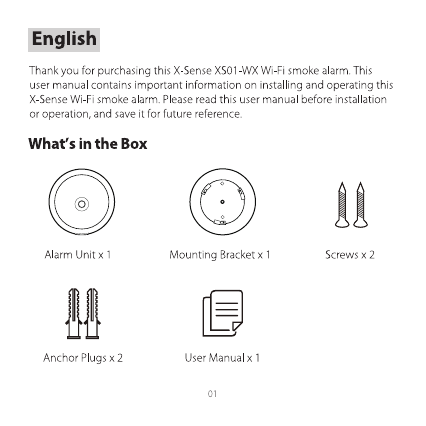

English
Thank you for purchasing this X-Sense XSO1-WX Wi-Fi smoke alarm. This
user manual contains important information on installing and operating this
X-Sense Wi-Fi smoke alarm. Please read this user manual before installation
or operation, and save it for future reference.
What’s in the Box
01-21
22-46 ©
47-68 =
Alarm Unit x 1 Mounting Bracket x 1 Screws x 2
Anchor Plugs x 2 User Manual x 1

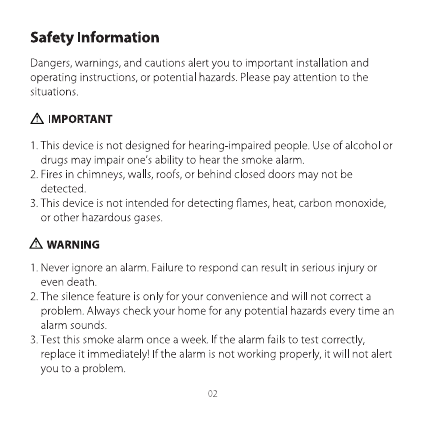

Safety Information
Dangers, warnings, and cautions alert you to important installation and
operating instructions, or potential hazards. Please pay attention to the
situations.
Z\ IMPORTANT
1. This device is not designed for hearing-impaired people. Use of alcohol or
drugs may impair one's ability to hear the smoke alarm.
2. Fires in chimneys, walls, roofs, or behind closed doors may not be
detected.
3. This device is not intended for detecting flames, heat, carbon monoxide,
or other hazardous gases.
Z\ WARNING
1. Never ignore an alarm. Failure to respond can result in serious injury or
even death.
2. The silence feature is only for your convenience and will not correct a
problem. Always check your home for any potential hazards every time an
alarm sounds.
3. Test this smoke alarm once a week. If the alarm fails to test correctly,
replace it immediately! If the alarm is not working properly, it will not alert
you to a problem.
Device Setup within the App
Sign Up
To download the app, search for X-Sense Home Security in the Apple App
Store or Google Play Store, or simply scan the QR code below. Create an
account using a valid email address. If you already have an account, make
sure the app is updated to the latest version.
Ea,
pple App Store Google Play Store
>
03

Safety Information
Dangers, warnings, and cautions alert you to important installation and
operating instructions, or potential hazards. Please pay attention to the
situations.
Z\ IMPORTANT
1. This device is not designed for hearing-impaired people. Use of alcohol or
drugs may impair one's ability to hear the smoke alarm.
2. Fires in chimneys, walls, roofs, or behind closed doors may not be
detected.
3. This device is not intended for detecting flames, heat, carbon monoxide,
or other hazardous gases.
Z\ WARNING
1. Never ignore an alarm. Failure to respond can result in serious injury or
even death.
2. The silence feature is only for your convenience and will not correct a
problem. Always check your home for any potential hazards every time an
alarm sounds.
3. Test this smoke alarm once a week. If the alarm fails to test correctly,
replace it immediately! If the alarm is not working properly, it will not alert
you to a problem.
Device Setup within the App
Sign Up
To download the app, search for X-Sense Home Security in the Apple App
Store or Google Play Store, or simply scan the QR code below. Create an
account using a valid email address. If you already have an account, make
sure the app is updated to the latest version.
Ea,
pple App Store Google Play Store
>
03

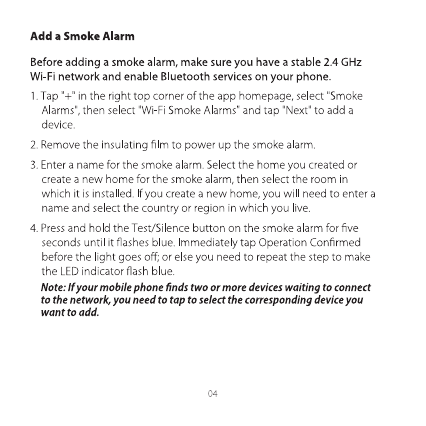

Add a Smoke Alarm
Before adding a smoke alarm, make sure you have a stable 2.4 GHz
Wi-Fi network and enable Bluetooth services on your phone.
1. Tap "+" in the right top corner of the app homepage, select "Smoke
Alarms", then select "Wi-Fi Smoke Alarms" and tap "Next" to add a
device.
2. Remove the insulating film to power up the smoke alarm.
3. Enter a name for the smoke alarm. Select the home you created or
create anew home for the smoke alarm, then select the room in
which it is installed. If you create a new home, you will need to enter a
name and select the country or region in which you live.
4. Press and hold the Test/Silence button on the smoke alarm for five
seconds until it flashes blue. Immediately tap Operation Confirmed
before the light goes off; or else you need to repeat the step to make
the LED indicator flash blue.
Note: If your mobile phone finds two or more devices waiting to connect
to the network, you need to tap to select the corresponding device you
want to add.
5. Connect to a 2.4 GHz Wi-Fi network and make sure you enter the correct
password. Then, the smoke alarm will enter the pairing process. Make sure
the Test/Silence button (the LED indicator) is still flashing blue; or else you
need to press it to make it flash blue again.
6. When finished, you will see the smoke alarm on the app’s device list.
Note:
* If your router supports a dual band network with both 2.4 GHz and 5 GHz,
please create separate SSIDs for the 2.4 GHz and 5 GHz channels.
This device is only compatible with a 2.4 GHz Wi-Fi network.
* To promote successful Wi-Fi connection, make sure you place the
alarm within the router range, and that you enter the correct password.

Add a Smoke Alarm
Before adding a smoke alarm, make sure you have a stable 2.4 GHz
Wi-Fi network and enable Bluetooth services on your phone.
1. Tap "+" in the right top corner of the app homepage, select "Smoke
Alarms", then select "Wi-Fi Smoke Alarms" and tap "Next" to add a
device.
2. Remove the insulating film to power up the smoke alarm.
3. Enter a name for the smoke alarm. Select the home you created or
create anew home for the smoke alarm, then select the room in
which it is installed. If you create a new home, you will need to enter a
name and select the country or region in which you live.
4. Press and hold the Test/Silence button on the smoke alarm for five
seconds until it flashes blue. Immediately tap Operation Confirmed
before the light goes off; or else you need to repeat the step to make
the LED indicator flash blue.
Note: If your mobile phone finds two or more devices waiting to connect
to the network, you need to tap to select the corresponding device you
want to add.
5. Connect to a 2.4 GHz Wi-Fi network and make sure you enter the correct
password. Then, the smoke alarm will enter the pairing process. Make sure
the Test/Silence button (the LED indicator) is still flashing blue; or else you
need to press it to make it flash blue again.
6. When finished, you will see the smoke alarm on the app’s device list.
Note:
* If your router supports a dual band network with both 2.4 GHz and 5 GHz,
please create separate SSIDs for the 2.4 GHz and 5 GHz channels.
This device is only compatible with a 2.4 GHz Wi-Fi network.
* To promote successful Wi-Fi connection, make sure you place the
alarm within the router range, and that you enter the correct password.

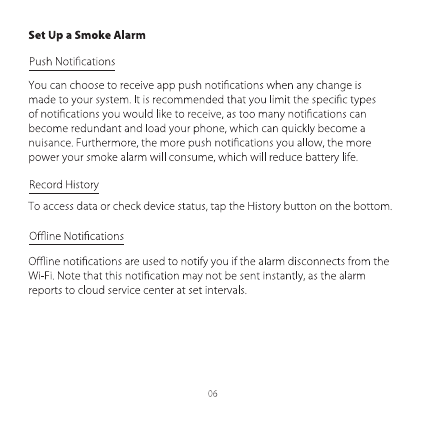

Set Up a Smoke Alarm
Push Notifications
You can choose to receive app push notifications when any change is
made to your system. It is recommended that you limit the specific types
of notifications you would like to receive, as too many notifications can
become redundant and load your phone, which can quickly become a
nuisance. Furthermore, the more push notifications you allow, the more
power your smoke alarm will consume, which will reduce battery life.
Record History
To access data or check device status, tap the History button on the bottom.
Offline Notifications
Offline notifications are used to notify you if the alarm disconnects from the
Wi-Fi. Note that this notification may not be sent instantly, as the alarm
reports to cloud service center at set intervals.
06
Location and Installation
Installation Positioning
GS)
Study
Bedroom Bedroom
Garage Living Room
@)
Kitchen ss)
@
Basement
Gs) Smoke Alarms Smoke & Carbon Monoxide Alarms
Carbon Monoxide Alarms @) Fire Extinguishers
07

Set Up a Smoke Alarm
Push Notifications
You can choose to receive app push notifications when any change is
made to your system. It is recommended that you limit the specific types
of notifications you would like to receive, as too many notifications can
become redundant and load your phone, which can quickly become a
nuisance. Furthermore, the more push notifications you allow, the more
power your smoke alarm will consume, which will reduce battery life.
Record History
To access data or check device status, tap the History button on the bottom.
Offline Notifications
Offline notifications are used to notify you if the alarm disconnects from the
Wi-Fi. Note that this notification may not be sent instantly, as the alarm
reports to cloud service center at set intervals.
06
Location and Installation
Installation Positioning
GS)
Study
Bedroom Bedroom
Garage Living Room
@)
Kitchen ss)
@
Basement
Gs) Smoke Alarms Smoke & Carbon Monoxide Alarms
Carbon Monoxide Alarms @) Fire Extinguishers
07

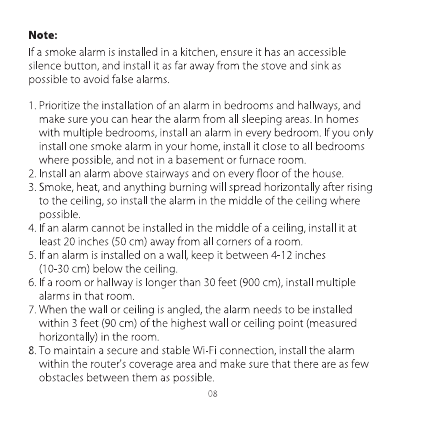

Note:
If a smoke alarm is installed in a kitchen, ensure it has an accessible
silence button, and install it as far away from the stove and sink as
possible to avoid false alarms.
1. Prioritize the installation of an alarm in bedrooms and hallways, and
make sure you can hear the alarm from all sleeping areas. In homes
with multiple bedrooms, install an alarm in every bedroom. If you only
install one smoke alarm in your home, install it close to all bedrooms
where possible, and not in a basement or furnace room.
. Install an alarm above stairways and on every floor of the house.
3. Smoke, heat, and anything burning will spread horizontally after rising
to the ceiling, so install the alarm in the middle of the ceiling where
possible.
4. If an alarm cannot be installed in the middle of a ceiling, install it at
least 20 inches (50 cm) away from all corners of a room.
5. Ifan alarm is installed on a wall, keep it between 4-12 inches
(10-30 cm) below the ceiling.
6. If a room or hallway is longer than 30 feet (900 cm), install multiple
alarms in that room.
7.When the wall or ceiling is angled, the alarm needs to be installed
within 3 feet (90 cm) of the highest wall or ceiling point (measured
horizontally) in the room.
8. To maintain a secure and stable Wi-Fi connection, install the alarm
within the router's coverage area and make sure that there are as few
obstacles between them as possible.
08
N

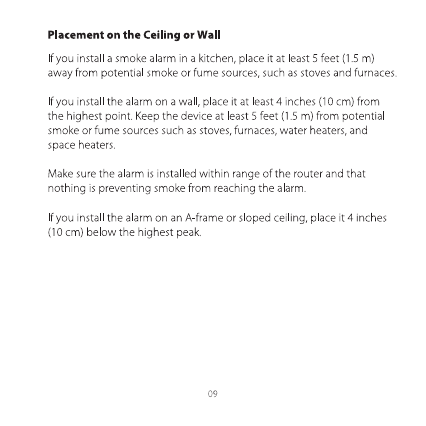

Placement on the Ceiling or Wall
If you install a smoke alarm in a kitchen, place it at least 5 feet (1.5 m)
away from potential smoke or fume sources, such as stoves and furnaces.
If you install the alarm on a wall, place it at least 4 inches (10 cm) from
the highest point. Keep the device at least 5 feet (1.5 m) from potential
smoke or fume sources such as stoves, furnaces, water heaters, and
space heaters.
Make sure the alarm is installed within range of the router and that
nothing is preventing smoke from reaching the alarm.
If you install the alarm on an A-frame or sloped ceiling, place it 4 inches
(10 cm) below the highest peak.

Note:
If a smoke alarm is installed in a kitchen, ensure it has an accessible
silence button, and install it as far away from the stove and sink as
possible to avoid false alarms.
1. Prioritize the installation of an alarm in bedrooms and hallways, and
make sure you can hear the alarm from all sleeping areas. In homes
with multiple bedrooms, install an alarm in every bedroom. If you only
install one smoke alarm in your home, install it close to all bedrooms
where possible, and not in a basement or furnace room.
. Install an alarm above stairways and on every floor of the house.
3. Smoke, heat, and anything burning will spread horizontally after rising
to the ceiling, so install the alarm in the middle of the ceiling where
possible.
4. If an alarm cannot be installed in the middle of a ceiling, install it at
least 20 inches (50 cm) away from all corners of a room.
5. Ifan alarm is installed on a wall, keep it between 4-12 inches
(10-30 cm) below the ceiling.
6. If a room or hallway is longer than 30 feet (900 cm), install multiple
alarms in that room.
7.When the wall or ceiling is angled, the alarm needs to be installed
within 3 feet (90 cm) of the highest wall or ceiling point (measured
horizontally) in the room.
8. To maintain a secure and stable Wi-Fi connection, install the alarm
within the router's coverage area and make sure that there are as few
obstacles between them as possible.
08
N
Placement on the Ceiling or Wall
If you install a smoke alarm in a kitchen, place it at least 5 feet (1.5 m)
away from potential smoke or fume sources, such as stoves and furnaces.
If you install the alarm on a wall, place it at least 4 inches (10 cm) from
the highest point. Keep the device at least 5 feet (1.5 m) from potential
smoke or fume sources such as stoves, furnaces, water heaters, and
space heaters.
Make sure the alarm is installed within range of the router and that
nothing is preventing smoke from reaching the alarm.
If you install the alarm on an A-frame or sloped ceiling, place it 4 inches
(10 cm) below the highest peak.

CEILING = ____ dry _
Cord
SPACE
NEVER HERE
ACCEPTABLE
HERE
a
(10 cm)
MINIMUM
12
(30cm)
MAXIMUM
SIDEWALL
NOTIN
THIS AREA.
ANYWHERE
SS THIS AREA
ft
(90 cm)
yan
(oem)

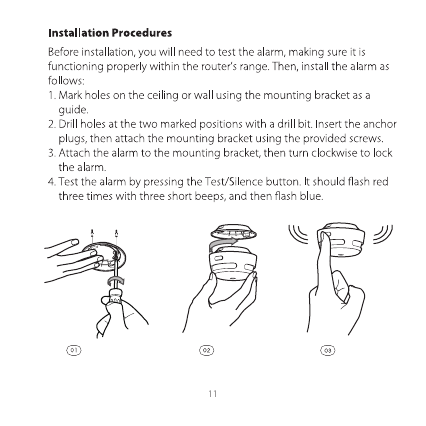

Installation Procedures
Before installation, you will need to test the alarm, making sure it is
functioning properly within the router's range. Then, install the alarm as
follows:
1. Mark holes on the ceiling or wall using the mounting bracket as a
guide.
2. Drill holes at the two marked positions with a drill bit. Insert the anchor
plugs, then attach the mounting bracket using the provided screws.
3. Attach the alarm to the mounting bracket, then turn clockwise to lock
the alarm.
4. Test the alarm by pressing the Test/Silence button. It should flash red
three times with three short beeps, and then flash blue.

CEILING = ____ dry _
Cord
SPACE
NEVER HERE
ACCEPTABLE
HERE
a
(10 cm)
MINIMUM
12
(30cm)
MAXIMUM
SIDEWALL
NOTIN
THIS AREA.
ANYWHERE
SS THIS AREA
ft
(90 cm)
yan
(oem)
Installation Procedures
Before installation, you will need to test the alarm, making sure it is
functioning properly within the router's range. Then, install the alarm as
follows:
1. Mark holes on the ceiling or wall using the mounting bracket as a
guide.
2. Drill holes at the two marked positions with a drill bit. Insert the anchor
plugs, then attach the mounting bracket using the provided screws.
3. Attach the alarm to the mounting bracket, then turn clockwise to lock
the alarm.
4. Test the alarm by pressing the Test/Silence button. It should flash red
three times with three short beeps, and then flash blue.

Operating Instructions
This alarm will inform you via a colored LED indicator and a beeping buzzer
if there are any unusual conditions. Informing yourself of these conditions
and indicators will allow you to take immediate action in the event of an
emergency.
What to Do When an Alarm Sounds
If a smoke alarm is triggered, you will hear and see:
Wi-Fi Smoke Alarm
Buzzer Constant short beeps
LED Indicator Flashes red once every second
App Instant app push notification
How to respond to a smoke alarm:
1. Do not panic. Stay calm and follow your family’s escape plan.
2. Get out of the house as quickly as possible. Don’t stop to get dressed or
collect anything.
3. Feel doors with the back of your hand before opening them.
12

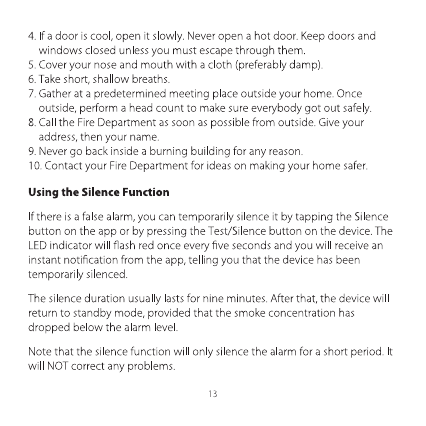

4. If a door is cool, open it slowly. Never open a hot door. Keep doors and
windows closed unless you must escape through them.
5. Cover your nose and mouth with a cloth (preferably damp).
6. Take short, shallow breaths.
7. Gather at a predetermined meeting place outside your home. Once
outside, perform a head count to make sure everybody got out safely.
8. Call the Fire Department as soon as possible from outside. Give your
address, then your name.
9. Never go back inside a burning building for any reason.
10. Contact your Fire Department for ideas on making your home safer.
Using the Silence Function
If there is a false alarm, you can temporarily silence it by tapping the Silence
button on the app or by pressing the Test/Silence button on the device. The
LED indicator will flash red once every five seconds and you will receive an
instant notification from the app, telling you that the device has been
temporarily silenced.
The silence duration usually lasts for nine minutes. After that, the device will
return to standby mode, provided that the smoke concentration has
dropped below the alarm level.
Note that the silence function will only silence the alarm for a short period. It
will NOT correct any problems.

Operating Instructions
This alarm will inform you via a colored LED indicator and a beeping buzzer
if there are any unusual conditions. Informing yourself of these conditions
and indicators will allow you to take immediate action in the event of an
emergency.
What to Do When an Alarm Sounds
If a smoke alarm is triggered, you will hear and see:
Wi-Fi Smoke Alarm
Buzzer Constant short beeps
LED Indicator Flashes red once every second
App Instant app push notification
How to respond to a smoke alarm:
1. Do not panic. Stay calm and follow your family’s escape plan.
2. Get out of the house as quickly as possible. Don’t stop to get dressed or
collect anything.
3. Feel doors with the back of your hand before opening them.
12
4. If a door is cool, open it slowly. Never open a hot door. Keep doors and
windows closed unless you must escape through them.
5. Cover your nose and mouth with a cloth (preferably damp).
6. Take short, shallow breaths.
7. Gather at a predetermined meeting place outside your home. Once
outside, perform a head count to make sure everybody got out safely.
8. Call the Fire Department as soon as possible from outside. Give your
address, then your name.
9. Never go back inside a burning building for any reason.
10. Contact your Fire Department for ideas on making your home safer.
Using the Silence Function
If there is a false alarm, you can temporarily silence it by tapping the Silence
button on the app or by pressing the Test/Silence button on the device. The
LED indicator will flash red once every five seconds and you will receive an
instant notification from the app, telling you that the device has been
temporarily silenced.
The silence duration usually lasts for nine minutes. After that, the device will
return to standby mode, provided that the smoke concentration has
dropped below the alarm level.
Note that the silence function will only silence the alarm for a short period. It
will NOT correct any problems.

Device Status Checklist
every second
short beeps
Device Status | LED Indicator Buzzer Note
Standby Mode | Flashesredonce |/ /
every 60 seconds
Wi-Fi Flashes blue / /
Connection
Device Test Flashes red three |Three short | /
times, then blue beeps
Smoke Alarm Flashes red once |Constant You will receive a
smoke alarm
notification from
the app.
Silence Function] Flashes red once |/ You will receive a
every five seconds silence
notification from
the app
Low Battery Flashes red once One beep You will receive a
Warning every 60 seconds every 60 low battery
seconds notification from
the app.
Malfunction Flashes red twice Two beeps | You will receive a
every 40 seconds every 40 malfunction
seconds notification from
the app.
Technical Specifications
Power Supply Replaceable 3 V CR123A lithium battery
Operating Life 10 years
Battery Life | year
Sensor Type Photoelectric
Coverage Area
215-430 sq. ft (20-40 m’)
Operating Temperature
40-100°F (4.4-37.8°C)
Operating Relative Humidity < 85% (non-condensing)
Alarm Volume > 85 dB at 10 ft (3 m) @ 3.2 + 0.3 kHz pulsing alarm
Silence Duration About 9 minutes
App
X-Sense Home Security (both Android and
iOS supported)

Device Status Checklist
every second
short beeps
Device Status | LED Indicator Buzzer Note
Standby Mode | Flashesredonce |/ /
every 60 seconds
Wi-Fi Flashes blue / /
Connection
Device Test Flashes red three |Three short | /
times, then blue beeps
Smoke Alarm Flashes red once |Constant You will receive a
smoke alarm
notification from
the app.
Silence Function] Flashes red once |/ You will receive a
every five seconds silence
notification from
the app
Low Battery Flashes red once One beep You will receive a
Warning every 60 seconds every 60 low battery
seconds notification from
the app.
Malfunction Flashes red twice Two beeps | You will receive a
every 40 seconds every 40 malfunction
seconds notification from
the app.
Technical Specifications
Power Supply Replaceable 3 V CR123A lithium battery
Operating Life 10 years
Battery Life | year
Sensor Type Photoelectric
Coverage Area
215-430 sq. ft (20-40 m’)
Operating Temperature
40-100°F (4.4-37.8°C)
Operating Relative Humidity < 85% (non-condensing)
Alarm Volume > 85 dB at 10 ft (3 m) @ 3.2 + 0.3 kHz pulsing alarm
Silence Duration About 9 minutes
App
X-Sense Home Security (both Android and
iOS supported)

Wireless Frequency 2.4 GHz (Incompatible with 5 GHz Wi-Fi network)
IEEE 802.11b/g/n
Transmission Power 17 dBm
Wireless Protocol
Note:
¢ Battery life is calculated on current ratings in the weekly test mode and
standby mode. If the operation mode changes to an alarming condition,
the battery life will be decreased accordingly.
¢ This smoke alarm functions between 40 and 100°F (4.4 and 37.8°C).
Prolonged exposure to lower or higher temperatures can reduce battery
life and affect device performance. We do not recommend operating the
device outside of this temperature range.
Maintenance
General Maintenance
Follow the steps listed below for optimum long-term performance:
¢ Test the device once a week by pressing the Test/Silence button,
ensuring the device functions properly. Note that this only tests the
electronics in your alarm rather than smoke.
16

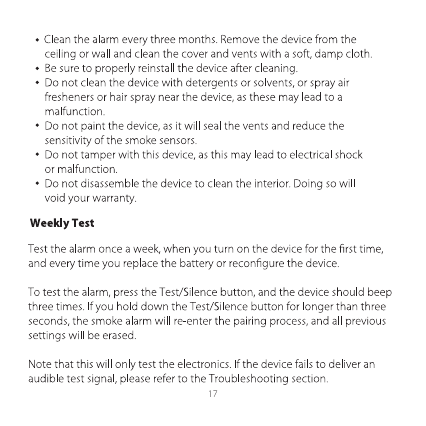

* Clean the alarm every three months. Remove the device from the
ceiling or wall and clean the cover and vents with a soft, damp cloth.
* Be sure to properly reinstall the device after cleaning.
* Do not clean the device with detergents or solvents, or spray air
fresheners or hair spray near the device, as these may lead to a
malfunction.
* Do not paint the device, as it will seal the vents and reduce the
sensitivity of the smoke sensors.
* Do not tamper with this device, as this may lead to electrical shock
or malfunction.
* Do not disassemble the device to clean the interior. Doing so will
void your warranty.
Weekly Test
Test the alarm once a week, when you turn on the device for the first time,
and every time you replace the battery or reconfigure the device.
To test the alarm, press the Test/Silence button, and the device should beep
three times. If you hold down the Test/Silence button for longer than three
seconds, the smoke alarm will re-enter the pairing process, and all previous
settings will be erased.
Note that this will only test the electronics. If the device fails to deliver an
audible test signal, please refer to the Troubleshooting section.
17

Wireless Frequency 2.4 GHz (Incompatible with 5 GHz Wi-Fi network)
IEEE 802.11b/g/n
Transmission Power 17 dBm
Wireless Protocol
Note:
¢ Battery life is calculated on current ratings in the weekly test mode and
standby mode. If the operation mode changes to an alarming condition,
the battery life will be decreased accordingly.
¢ This smoke alarm functions between 40 and 100°F (4.4 and 37.8°C).
Prolonged exposure to lower or higher temperatures can reduce battery
life and affect device performance. We do not recommend operating the
device outside of this temperature range.
Maintenance
General Maintenance
Follow the steps listed below for optimum long-term performance:
¢ Test the device once a week by pressing the Test/Silence button,
ensuring the device functions properly. Note that this only tests the
electronics in your alarm rather than smoke.
16
* Clean the alarm every three months. Remove the device from the
ceiling or wall and clean the cover and vents with a soft, damp cloth.
* Be sure to properly reinstall the device after cleaning.
* Do not clean the device with detergents or solvents, or spray air
fresheners or hair spray near the device, as these may lead to a
malfunction.
* Do not paint the device, as it will seal the vents and reduce the
sensitivity of the smoke sensors.
* Do not tamper with this device, as this may lead to electrical shock
or malfunction.
* Do not disassemble the device to clean the interior. Doing so will
void your warranty.
Weekly Test
Test the alarm once a week, when you turn on the device for the first time,
and every time you replace the battery or reconfigure the device.
To test the alarm, press the Test/Silence button, and the device should beep
three times. If you hold down the Test/Silence button for longer than three
seconds, the smoke alarm will re-enter the pairing process, and all previous
settings will be erased.
Note that this will only test the electronics. If the device fails to deliver an
audible test signal, please refer to the Troubleshooting section.
17

Battery Replacement
1. Remove the smoke alarm from the mounting bracket by twisting
counterclockwise.
2. Take out the old battery and install a new one, making sure to match the
battery’s polarities.
3. Test the alarm by pressing the Test/Silence button on the device.
4. Attach the alarm onto the mounting bracket by twisting clockwise until it
is firmly secured.
Note:
When you replace the battery, the LED indicator on the alarm will flash red
once and blue for a few seconds, indicating the alarm is back online. If the
LED indicator flashes blue for longer than two minutes, you will need to
re-add the alarm to the system by repeating the steps above.
18
Troubleshooting
Description Problem Solution
The device does Dead batteries + Check the battery.
taking a shower.
maintenance
not alarm during | or improper + Firmly press the
a test. operation Test/Silence button.
False alarms are Improper + Avoid placing alarms near
triggered when installation cooking appliances, dusty
cooking or location or areas, showers, or any
areas where the
temperature drops below
40°F (4.4°C) or rises above
100°F (37.8°C). See the
Location and Installation
section.
+ Clean the alarm every
three months to avoid
unwanted alarms caused
by dust and dirt. See the
Maintenance section.

Battery Replacement
1. Remove the smoke alarm from the mounting bracket by twisting
counterclockwise.
2. Take out the old battery and install a new one, making sure to match the
battery’s polarities.
3. Test the alarm by pressing the Test/Silence button on the device.
4. Attach the alarm onto the mounting bracket by twisting clockwise until it
is firmly secured.
Note:
When you replace the battery, the LED indicator on the alarm will flash red
once and blue for a few seconds, indicating the alarm is back online. If the
LED indicator flashes blue for longer than two minutes, you will need to
re-add the alarm to the system by repeating the steps above.
18
Troubleshooting
Description Problem Solution
The device does Dead batteries + Check the battery.
taking a shower.
maintenance
not alarm during | or improper + Firmly press the
a test. operation Test/Silence button.
False alarms are Improper + Avoid placing alarms near
triggered when installation cooking appliances, dusty
cooking or location or areas, showers, or any
areas where the
temperature drops below
40°F (4.4°C) or rises above
100°F (37.8°C). See the
Location and Installation
section.
+ Clean the alarm every
three months to avoid
unwanted alarms caused
by dust and dirt. See the
Maintenance section.
