SEPTENTRIO AsteRx-U User manual

AsteRx-U
User Manual

User Manual Version 1.6
Applicable to version 4.2.2 of the AsteRx-U Firmware
July 27, 2017
Thank you for choosing the AsteRx-U! This user manual provides detailed instructions
on how to use AsteRx-U and we recommend that you read it carefully before you start using
the device.
Please note that this manual provides descriptions of all functionalities of the AsteRx-U
product family however, the particular AsteRx-U you purchased may not support functions
specific to certain variants.
While we try to keep the manual as complete and up-to-date as possible, it may be
that future features, functionality or other product specifications change without prior
notice or obligation. The information contained in this manual is subject to change without
notice.
© Copyright 2000-2017 Septentrio NV/SA. All rights reserved.
Septentrio
Greenhill Campus, Interleuvenlaan 15i
B-3001 Leuven, Belgium
http://www.septentrio.com
support septentrio.com
Phone: [phone]
Fax: [phone]
Septentrio
2

CONTENTS
Contents
1Introduction 5
1.1 USER NOTICES ............................................................................... 5
1.1.1 CE Notice ........................................................................... 5
1.1.2 ROHS/WEEE Notice................................................................ 5
1.1.3 Safety information ................................................................ 5
1.1.4 Support ............................................................................. 6
2 AsteRx-U overview 7
2.1 ASTERX-U KEY FEATURES ................................................................... 7
2.1.1 GNSS ................................................................................ 7
2.1.2 Physical and Environmental ..................................................... 9
2.2 ASTERX-U VARIANTS ........................................................................ 9
2.3 ASTERX-U DESIGN .......................................................................... 10
2.3.1 Front panel......................................................................... 10
2.3.2 LED description.................................................................... 11
2.3.3 Rear panel.......................................................................... 12
2.3.4 SIM card slot ....................................................................... 12
2.3.5 Mounting brackets ................................................................ 13
2.3.6 Internal memory .................................................................. 13
2.4 SHIPPING CASE CONTENTS ................................................................. 14
2.4.1 Supplied as standard ............................................................. 14
2.4.2 Optional items ..................................................................... 15
3 Quick start 16
3.1 POWERING THE ASTERX-U ................................................................. 16
3.2 CONNECTING AN ANTENNA ................................................................ 17
3.3 CONNECTING TO THE ASTERX-U VIA THE WEB INTERFACE .............................. 17
3.3.1 Using the USB cable .............................................................. 17
3.3.2 Using the Ethernet cable ......................................................... 19
3.3.3 Over WiFi ........................................................................... 20
3.4 HOW TO CONFIGURE SBF AND NMEA OUTPUT .......................................... 21
3.4.1 Output over a serial COM connection . ... .... .. .. . .. .. .. .. ... .. .. .. .. ... .. .. .. . 21
3.4.2 Output over Ethernet............................................................. 25
3.4.3 Output over bluetooth ........................................................... 28
4 Rover operation 32
4.1 HOW TO CONFIGURE THE ASTERX-U FOR RTK ........................................... 32
4.1.1 How to configure the AsteRx-U in RTK rover mode using the UHF radio . . 32
4.1.2 How to configure the AsteRx-U in RTK rover mode using the cellular
modem and NTRIP................................................................ 35
4.1.3 How to configure the AsteRx-U in RTK rover mode using TCP/IP in a
closed network .................................................................... 39
3

CONTENTS
4.2 USING L-BAND PPP CORRECTION DATA WITH THE ASTERX-U........................... 42
4.3 HOW TO CONFIGURE THE ASTERX-U FOR
ATTITUDE ................................................................................... 48
4.4 HOW TO OUTPUT A PPS SIGNAL ........................................................... 51
4.4.1 Time synchronisation using the PPS signal . .. .. .. ... .. .. .. .. ... .. .. .. .. . .. .. .. 52
5 Base station operation 53
5.1 HOW TO CONFIGURE THE ASTERX-U AS AN RTK BASE STATION USING THE UHF
RADIO........................................................................................ 53
5.2 CONFIGURING THE ASTERX-U NTRIP CASTER ........................................... 57
6 Receiver Monitoring 60
6.1 BASIC OPERATIONAL MONITORING ........................................................ 60
6.2 AIM+: USING THE SPECTRUM ANALYSER TO
DETECT AND MITIGATE INTERFERENCE .................................................... 62
6.2.1 Narrowband interference mitigation .. ... .. .. .. .. . .. .. .. .. .. . .. .. .. .. ... .. .. .. . 63
6.2.2 Wideband interference mitigation.............................................. 64
6.3 HOW TO LOG DATA FOR PROBLEM DIAGNOSIS............................................ 66
6.4 ACTIVITY LOGGING .......................................................................... 68
7 Receiver Administration Operations 69
7.1 HOW TO CHANGE IPSETTINGS OF THE ASTERX-U ....................................... 69
7.2 HOW TO CONFIGURE DYNAMICDNS ...................................................... 70
7.3 HOW TO CONTROL ACCESS USING THE ASTERX-U FIREWALL ............................ 71
7.4 HOW TO UPGRADE THE FIRMWARE OR UPLOAD A NEW PERMISSION FILE .............. 72
7.5 HOW TO SET THE ASTERX-U TO ITS DEFAULT CONFIGURATION ......................... 74
7.6 HOW TO RESET THE ASTERX-U ............................................................. 74
7.7 HOW TO COPY THE CONFIGURATION FROM ONE RECEIVER TO ANOTHER .............. 75
8 Security 77
8.1 DEFAULT ACCESS TO THE ASTERX-U ....................................................... 77
8.2 DEFINING USER ACCESS TO THE ASTERX-U ............................................... 77
8.3 USER ACCESS:AN EXAMPLE ................................................................ 78
8.3.1 Using SSH key authentication ................................................... 79
9 Appendix 80

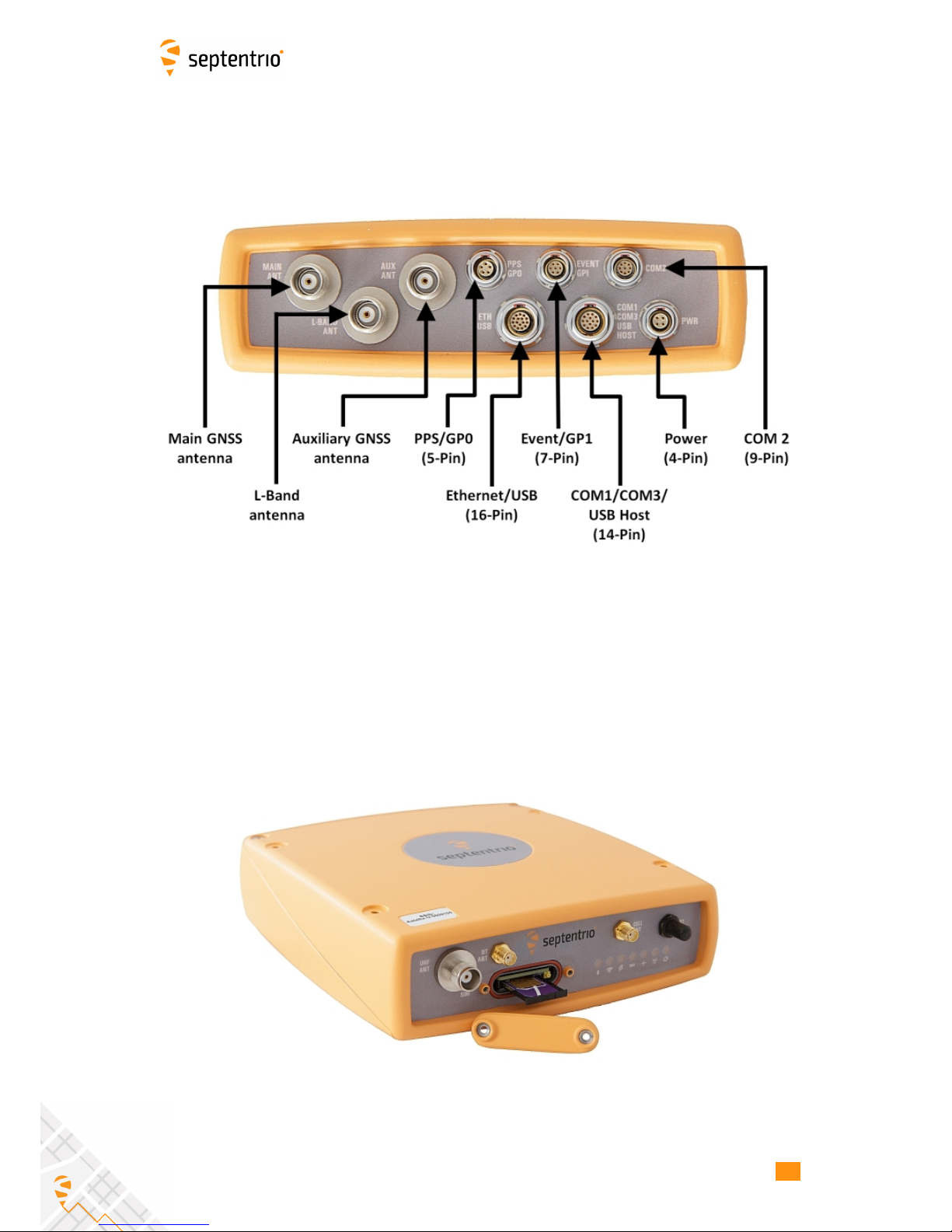

9.1 REAR-PANEL PORT DESCRIPTIONS ......................................................... 80
9.1.1 PWR ................................................................................. 80
9.1.2 PPS/GPO............................................................................ 80
9.1.3 Event/GP1 .......................................................................... 81
9.1.4 COM2 ............................................................................... 81
9.1.5 COM1/COM3/Host USB........................................................... 82
9.1.6 Ethernet/USB ...................................................................... 83
9.2 UHF RADIO BAUD RATES ................................................................... 84
4

1Introduction
1.1 User Notices
1.1.1 CE Notice
AsteRx-U receivers carry the CE mark and are as such compliant with the
2004/108/EC - EMC Directive and amendments, 2006/95/EC - Low Voltage
Directive, both amended by the CE-marking directive 93/68/EC.
With regards to EMC, these devices are declared as class B, suitable for
residential or business environment.
1.1.2 ROHS/WEEE Notice
AsteRx-U receivers comply with European Union (EU) Directive 2002/95/EC
on the restriction of the use of certain hazardous substances in electrical
and electronic equipment (RoHS Directive).
AsteRx-U receivers comply with the European Union (EU) Directive
2002/96/EC on waste electrical and electronic equipment (WEEE). The
purpose of this Directive is the prevention of waste electrical and electronic
equipment (WEEE), and in addition, the reuse, recycling and other forms of
recovery of such wastes so as to reduce the disposal of waste. If purchased
in the European Union, please return the receiver at the end of its life to
the supplier from which it was purchased.
1.1.3 Safety information
Statement 1: The power supply provided by Septentrio (if any) should not
be replaced by another. If you are using the receiver with your own power
supply, it must have a double isolated construction and must match the
specifications of the provided power supply.
Statement 2: Ultimate disposal of this product should be handled
according to all national laws and regulations.
Statement 3: The equipment and all the accessories included with this
product may only be used according to the specifications in the delivered
release note, manual or other documents delivered with the receiver.
5

1.1. USER NOTICES
1.1.4 Support
For first-line support please contact your AsteRx-U dealer. Further information can be found
on our website or by contacting Septentrio Technical Support.
http://www.septentrio.com
support septentrio.com
Europe
Septentrio NV Phone: [phone]
Greenhill Campus Fax: [phone]
Interleuvenlaan 15i, sales septentrio.com
3001 Leuven,
Belgium
North and South America
Septentrio Inc. Phone: [phone]
23848 Hawthorne Blvd. sales septentrio.com
Suite 200,
Torrance, CA 90505
USA
Asia-Pacific
Septentrio Phone: [phone]
Unit 1901, Hua Fu Commercial Building sales septentrio.com
111 Queen’s Road West,
Sheung Wan,
Hong Kong
6

2 AsteRx-U overview
The AsteRx-U provides multi-frequency, multi-constellation GNSS positioning capability
together with GNSS Heading, L-Band positioning and wireless communications within a
rugged IP67 housing for the broadest range of applications. Use any smartphone, tablet or
computer to operate the AsteRx-U without any special configuration software via the built-in
webserver accessible via WiFi, Ethernet or USB connection.
2.1 AsteRx-U key features
•544 channels for tracking all known and future signals from GPS, GLONASS, GALILEO,
BEIDOU, IRNSS, QZSS and SBAS on both antennas
•Precise and robust heading calculation
•cm-level (RTK) and sub dm-level (PPP) position accuracy
•Dual L-Band channel robust against INMARSAT uplink interference
•Septentrio GNSS+algorithms for robust industrial performance
•Integrated cellular modem, Bluetooth, WiFi and optional UHF radio
2.1.1 GNSS
•544 hardware channels for simultaneous tracking of all visible satellite signals
•Supported signals: GPS (L1, L2, L5), GLONASS (L1, L2, L3), GALILEO (E5ab, AltBoc,
E6), BEIDOU (B1, B2, B3), IRNSS (L5), QZSS (L1, L2, L5) (Galileo, Beidou and IRNSS are
optional features)
•All-in-view SBAS (EGNOS, WAAS, GAGAN, MSAS, SDCM) (incl. L5 tracking)
•100 Hz Raw data output (code, carrier, navigation data) (optional feature)
•50 Hz SBAS, DGNSS, PPP and RTK positioning
•A Posteriori Multipath Estimator Technique (APME+), including code and phase
multipath mitigation
•AIM+ interference unit mitigates against wide and narrow-band interference
•IONO+ Advanced scintillation mitigation
•RAIM
•Differential GNSS (base station and rover)
•Real Time Kinematic (base and rover) (base is an optional feature)
•TerraStar and VERIPOS services (optional feature, activation required)
•Moving base positioning (optional feature)
•8 GB Internal Memory
7

2.1. ASTERX-U KEY FEATURES
GNSS positioning accuracy
Horizontal Vertical
Standalone 1.2 m 1.9 m
SBAS 0.6 m 0.8 m
DGPS 0.3 m 0.7 m
TerraStar-D 6 cm 9 cm
TerraStar-C 4 cm 6 cm
APEX 6 cm 9 cm
ULTRA 6 cm 9 cm
RTK performance
Horizontal accuracy 0.6 cm +0.5 ppm
Vertical accuracy 1 cm +1 ppm
Average time to fix 7 s
Velocity accuracy
0.03 m/s
Attitude accuracy
antenna separation Heading Pitch\Roll
1 m 0.15◦0.25◦
10 m 0.03◦0.05◦
Connectivity
•3 hi-speed serial ports (RS232)
•Ethernet port (TCP/IP and UDP)
•Full speed USB (host and device)
•2 Event markers
•xPPS output (max. 100 Hz)
•Integrated Bluetooth (2.1 + EDR/4.0)
•Integrated Quadband Cellular Modem (EDGE, 2G, 3G, 3.5G)
•Integrated WiFi (802.11 b/g/n)
•Integrated UHF (406-470 MHz) (AsteRx-U UHF and MARINE variants only)
•Connector for separate L-Band antenna (AsteRx-U MARINE variant only)
8

2.2. ASTERX-U VARIANTS
2.1.2 Physical and Environmental
Size: 164 x 157 x 54 mm
Weight: 1.5 kg
Input voltage: 9-36 V DC
Power consumption: 7 W typical
Temperature Range: -30 to +65 ◦C (operational)
-40 to +75 ◦C (storage)
Ingress Protection: IP67
Humidity MIL-STD810G, Method 507.5, Procedure I
Dust MIL-STD-810G, Method 510.5, Procedure I
Shock MIL-STD-810G, Method 516.6, Procedure I/II
Vibration MIL-STD-810G, Method 514.6, Procedure I
2.2 AsteRx-U variants
The AsteRx-U is available in three variants:
Variant Main features
(Part number)
AsteRx-U
(410121)
•Integrated cellular modem
•Integrated WiFi modem
•Integrated Bluetooth modem
AsteRx-U UHF
(410119)
•Integrated cellular modem
•Integrated WiFi modem
•Integrated Bluetooth modem
•Integrated UHF radio with front-panel connector
AsteRx-U MARINE
(410120)
•Integrated cellular modem
•Integrated WiFi modem
•Integrated Bluetooth modem
•Integrated UHF radio with front-panel connector
•Rear-panel connector for dedicated L-Band antenna
•Dedicated L-Band antenna connector robust against
Inmarsat and Iridium uplink interference
9

2.3. ASTERX-U DESIGN
2.3 AsteRx-U design
2.3.1 Front panel
The front-panel layout of the AsteRx-U with attached Bluetooth/WiFi and Cellular antennas
is shown in Figure 2-1.
Figure 2-1: AsteRx-U front-panel layout
10

2.3. ASTERX-U DESIGN
2.3.2 LED description
LED Icon Behaviour
blue
Off: Bluetooth disabled
On: Bluetooth connected
Blinking slowly: Not connected but discoverable
green
Off: WiFi disabled
On: Access-point mode or client mode
Blinking slowly: Establishing a connection in client mode
Blinking quickly: Error, not connected
green
Off: Not logging
On: Logging active, disk is mounted
Blinking slowly: Logging active, disk-space is low
Blinking quickly: Disk is full or not mounted
green
Off: No reception of correction data
Blinking: Blinks on reception of correction data
green
Off: No PVT available
On: PVT available
green
Off: UHF radio modem disabled
On: UHF radio modem in search mode
Blinking slowly: Data package sent/received
Blinking quickly: UHF radio modem in set-up mode
green
Off: Receiver is powered off
On: Receiver is powered on
11

2.3. ASTERX-U DESIGN
2.3.3 Rear panel
Figure 2-2 shows the layout of the rear-panel connectors on the AsteRx-U. The PIN
assigments for each socket can be found in the Appendix.
Figure 2-2: AsteRx-U rear-panel layout
2.3.4 SIM card slot
The SIM card can be inserted into the slot in the front panel of the AsteRx-U as shown in
Figure 2-3.
Important: Only insert or remove the SIM card while the unit is powered down.
Figure 2-3: SIM card slot on AsteRx-U
12

2.3. ASTERX-U DESIGN
2.3.5 Mounting brackets
The AsteRx-U is supplied with mounting brackets which can be fitted to the unit as shown in
Figure 2-4.
Figure 2-4: Mounting brackets fitted to AsteRx-U
2.3.6 Internal memory
The AsteRx-U has an 8 GB Memory for internal data logging. Data can be logged in SBF or
NMEA format and may be retrieved via the logging tab of the web interface.
13

2.4. SHIPPING CASE CONTENTS
2.4 Shipping case contents
2.4.1 Supplied as standard
The following items with their part numbers are supplied as standard with the AsteRx-U.
14

2.4. SHIPPING CASE CONTENTS
2.4.2 Optional items
The following items with their part numbers can be optionally purchased for use with the
AsteRx-U.
15

3 Quick start
This section details how to power-up, connect to and communicate with the AsteRx-U. The
AsteRx-U has an on-board web interface which the user can connect to in three ways:
Ethernet, USB or WiFi. The AsteRx-U is fully configurable using the web interface. Please
note that older versions of certain browsers may not display properly on the web interface.
3.1 Powering the AsteRx-U
Using the supplied open-ended power cable, the receiver can be powered by applying 6
to 36 V via the power-in wire. The receiver can also be powered using the power adapter
(optionally available). The power socket is indicated in Figure 3-1.
Figure 3-1: Rear panel power socket
There is a power button on the front panel as shown in Figure 3-2 which you may also have
to press. If the AsteRx-U loses power while the power button is on, then it will automatically
boot up when power is restored.
Figure 3-2: Front panel power button
When the unit is powered initially, the front-panel LEDs will will follow a boot sequence
pattern.
16

3.2. CONNECTING AN ANTENNA
3.2 Connecting an antenna
The rear panel of the AsteRx-U has two TNC connectors for GNSS antennas: one for the main
antenna and one for an auxiliary antenna for heading applications. The AsteRx-U MARINE
has an additional TNC connector for a dedicated L-Band antenna. To get started, connect an
antenna via an antenna cable to the main antenna connector of the AsteRx-U indicated in
Figure 3-3.
Figure 3-3: Rear-panel main antenna connector
3.3 Connecting to the AsteRx-U via the Web
Interface
You can connect to the receiver on any device that supports a web browser using the
receiver’s on board Web Interface. The connection can be made using either USB, Ethernet
or WiFi. The following sections describe each of the connection methods.
3.3.1 Using the USB cable
Connect the combined USB/Ethernet cable to the connector labelled ’ETH USB’on the rear
panel of the AsteRx-U and indicated in Figure 3-4.
Figure 3-4: Rear panel USB and Ethernet socket
The first time that the USB cable is connected to a device, you may be prompted to allow
installation of drivers which can take several minutes. When the drivers have been installed,
it is recommended to unplug then re-plug in the USB cable on your device to fully activate
the drivers.
When the drivers have been correctly installed, the USB connection will appear as a
removable storage device as shown in Figure 3-5.
17

3.3. CONNECTING TO THE ASTERX-U VIA THE WEB INTERFACE
Figure 3-5: Screenshot showing USB connection after driver installation
The USB connection on the AsteRx-U functions as network adapter and the DHCP server
running on the receiver will always assign the AsteRx-U the IP address 192.168.3.1.
To connect to the AsteRx-U, you can then simply open a web browser using the IP address
192.168.3.1 as shown in Figure 3-6.
Figure 3-6: Connect to the Web Interface of the AsteRx-U over USB using the IP
address 192.168.3.1 on any web browser
18

3.3. CONNECTING TO THE ASTERX-U VIA THE WEB INTERFACE
3.3.2 Using the Ethernet cable
Step 1: Connect the combined USB/Ethernet cable
Connect the combined USB/Ethernet cable shown in Section 2.4.1 between a LAN network
and the connector labelled ‘ETH USB‘on the rear panel of the AsteRx-U indicated in
Figure 3-7.
Figure 3-7: Rear panel USB and Ethernet socket
Step 2: Open a web browser and connect to the AsteRx-U
By default, the AsteRx-U has a DHCP address ‘http://Asterx-U-xxxxxxx’, where xxxxxxx are
the 7 digits of the AsteRx-U serial number. The serial number can be found on a sticker on
the corner of the outer casing of the receiver. Figure 3-8 shows a screenshot of an Ethernet
connection to a receiver with serial number 3011881 using ‘http://asterx-u-3011881’.
Figure 3-8: Connecting to the Web Interface via Ethernet
19

3.3. CONNECTING TO THE ASTERX-U VIA THE WEB INTERFACE
3.3.3 Over WiFi
The Web Interface can also be accessed over a WiFi connection. On your PC or tablet,
search for visible WiFi signals: the AsteRx-U identifies itself as a wireless access point named
’AsteRx-U-serial number’. The serial number of the AsteRx-U can be found on an identification
sticker on the receiver housing. Select and connect to the AsteRx-U as shown in Figure 3-9.
Figure 3-9: Select the AsteRx-U from the list of detected wireless signals and
connect
When your PC is connected to the AsteRx-U WiFi signal, you can open a web browser using
the IP address: 192.168.20.1 as shown in Figure 3-10.
Figure 3-10: Connect to the Web Interface of the AsteRx-U over WiFi using the IP
address 192.168.20.1 on any web browser
20
