1 General
This is OEM installation manual for APG2-PCIA-B module.
If you have any problems with installation, please contact the SES-imagotag Support Team
([e-mail]).
If there are questions regarding AP in which this module is installed, please contact AP
manufacturer directly.

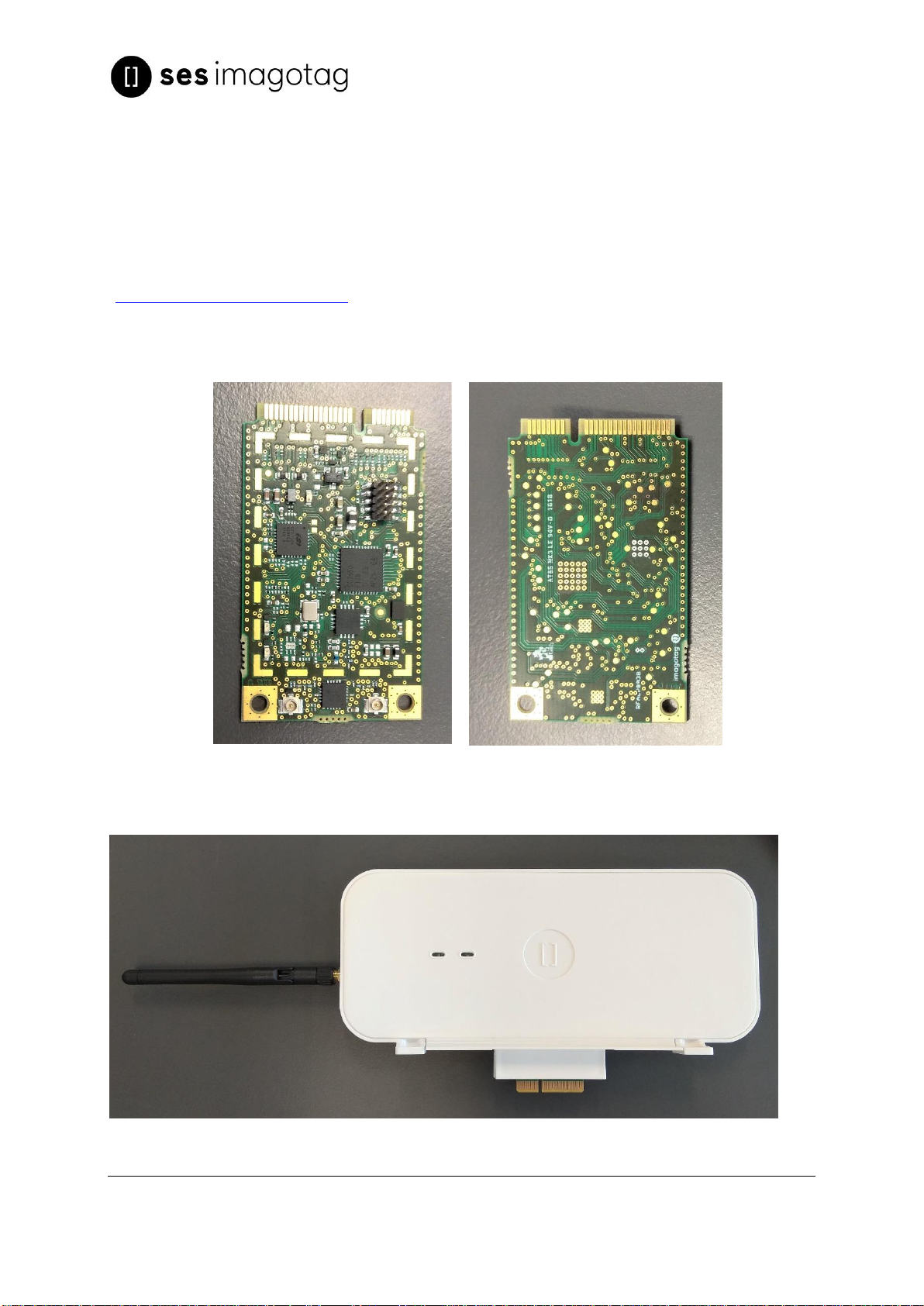

Figure 1 –APG2-PCIA-B module photo
Figure 2 –Retail IoT Connector Cisco Aironet 3800

SES-imagotag GmbH I St. Peter Gürtel 10b I A-8042 Graz - AUSTRIA
FB: FN350927w I HG : Graz I UID : ATU65936017 I WEEE : DE 65879240
T. [phone] I F. [phone] I E. [e-mail] I www.ses-imagotag.com
4
Figure 3 –Retail IoT Connector Cisco Aironet 3800 disassembled (APG2-PCIA-B module + Retail IoT
Connector Cisco Aironet 3800 base board)

SES-imagotag GmbH I St. Peter Gürtel 10b I A-8042 Graz - AUSTRIA
FB: FN350927w I HG : Graz I UID : ATU65936017 I WEEE : DE 65879240
T. [phone] I F. [phone] I E. [e-mail] I www.ses-imagotag.com
5
2 Description
APG2-PCIA-B module is responsible for transmitting and receiving messages from SES-
Imagotag electronic shelf label (ESL) network.
It cannot work standalone and must be plugged into another device (host device), usually
Access-point (AP), which supports the module. Configuration and startup of the module is
done over the host device. This manual is not covering this because it is device dependent.
Separate instruction manual is provided with each supporting host device.
NOTE: This module is not standard mPCIe device!
Module just has same form factor as mPCIe.
It is compatible only with dedicated devices.

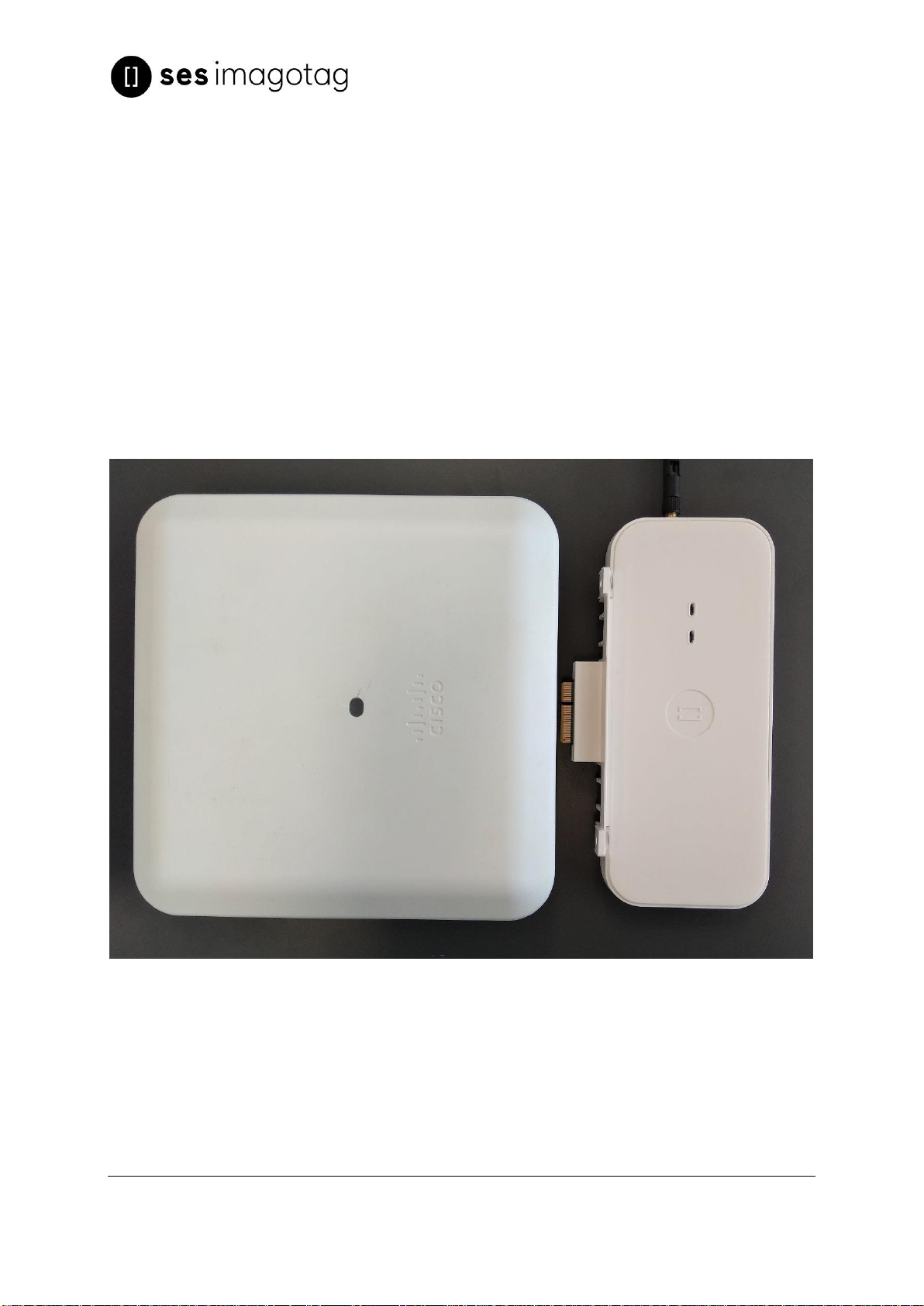

Figure 4 –host device (Cisco AP) and Retail IoT Connector Cisco Aironet 3800

SES-imagotag GmbH I St. Peter Gürtel 10b I A-8042 Graz - AUSTRIA
FB: FN350927w I HG : Graz I UID : ATU65936017 I WEEE : DE 65879240
T. [phone] I F. [phone] I E. [e-mail] I www.ses-imagotag.com
6
3 Specification
•Chipset: Texas instruments CC2650
•Radio frequency: 2404-2480 MHz
•Output power: Max. 10 dBm
•Protocol: proprietary
•Modulation: MSK
•Data Rate: 250 kbps
•Supply voltage: 3.3V
•Supply power: Max. 0.5W
•Operating temperature: 0-60 °C

SES-imagotag GmbH I St. Peter Gürtel 10b I A-8042 Graz - AUSTRIA
FB: FN350927w I HG : Graz I UID : ATU65936017 I WEEE : DE 65879240
T. [phone] I F. [phone] I E. [e-mail] I www.ses-imagotag.com
7
4 Installation
This module must be installed by trained professionals only. It is not allowed for end user to
install, remove or modify any of device connections.
This module is ESD sensitive device. Make sure to discharge properly before touching it.
Base board must be powered off.
Grasp the module by its edges and align the notch in the connector on the base board.
Insert the module into connector at around 30-degree angle.
Lower the other end of the module and make sure it is aligned with screw holes.
Insert and tighten two M2 screws or lock the card with fastener.
Attach the antenna cable or antenna pigtail cable. Use only antenna provided with the
module.
Power on the host device and make sure green LED is lit on the module.

SES-imagotag GmbH I St. Peter Gürtel 10b I A-8042 Graz - AUSTRIA
FB: FN350927w I HG : Graz I UID : ATU65936017 I WEEE : DE 65879240
T. [phone] I F. [phone] I E. [e-mail] I www.ses-imagotag.com
8
5 Labeling
Figure 5 –Retail IoT Connector Cisco Aironet 3800 Label
PCIA-APG2-B Module itself does not have a label. It is not sold by itself and it is used
only in our equipment. Our equipment´s label contains FCC ID and IC ID of the
APG2-PCIA-B Module as on the example above (Figure 5).

SES-imagotag GmbH I St. Peter Gürtel 10b I A-8042 Graz - AUSTRIA
FB: FN350927w I HG : Graz I UID : ATU65936017 I WEEE : DE 65879240
T. [phone] I F. [phone] I E. [e-mail] I www.ses-imagotag.com
9
6 Declaration
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the authority to operate the equipment.
IC
This device contains licence-exempt transmitter(s)/receiver(s) that comply withInnovation,
Science and Economic Development Canada’s licence-exempt RSS(s).Operation is subject
to the following two conditions: (1) This device may not cause interference. (2) This device
must accept any interference, including interference that maycause undesired operation of
the device.
L’metteur/rcepteur exempt de licence contenu dans le prsent appareil estconforme aux
CNR d’Innovation, Sciences et Dveloppement conomique Canadaapplicables aux
appareils radio exempts de licence. L’exploitation est autoriseaux deux conditions
suivantes: 1) L’appareil ne doit pas produire de brouillage; 2) L’appareil doit accepter tout
brouillage radiolectrique subi, mme si lebrouillage est susceptible d’en compromettre le
fonctionnement.
