SH Scientific SH-AC-60M User manual

AUTOCLAVE
SH-AC-60M/80M/100M/128M
Version : 2016 Rev.0

TABLE OF CONTENTS
Keep this manual on-hand so it can be used by all operators of the unit.
Use the unit only in the way described in this manual.
Failure to follow the instruction in this manual may cause wrong operation.
1. General Description 3
2. Graphic Simbols 4
4. The Outward 6
3. Key Features 5
5. Installation 7
6. Setting and Operation 10
7. Specication 13
8. Troubleshooting 15

1. GENERAL DESCRIPTION
GENERAL DESCRIPTION
3
Thank you for purchasing our product. We know that in today's competitive
marketplace, customers have many choices when purchasing laboratory
equipments.
We appreciate your choosing our quality product. Our stands behind our
products and wants to let you know we are here if you need us.
Before you use the unit, read this entire manual carefully to understand how
to install, operate and maintain the unit in a safe manner.
Your satisfaction with the unit will be maximized as you read this manual
thoroughly.
Our capable products will satisfy you by the best performance of with easy
operation.

2. GRAPHIC SIMBOLS
GRAPHIC SIMBOLS
4
BE SURE THAT YOU UNDERSTAND ALL OF THESE SYMBOLS
BEFORE OPERATING THE UNIT.
This symbol indicates items and procedures that are STRICTY
PROHIBITED with regards to the unit.
Important operating and / or maintenance instruction.
Read the accompanying text carefully.
Potential electrical hazards.
Explosive.
No disassemble.
Flammable.
Hot surface or steam.

3. KEY FEATURE
• Digital display of temp and time
• Multi key-in (100Ω(DIN Pt100Ω),
KPt100Ω(JPt100Ω), K(CA))
• Precise temperature control
• Alarm when timer ends
• Perfect sterilization• Auto back up
AT
ON OUT
MODE
TEMP & TIME CONTROL SYSTEM
AC
DOOR
PA
• Over-temperature protection function
• Over-current protection function
• Optimized pressure guage for
autoclave.
• Automatic over-pressure
protection function.
PRESSURE GAUGE
0.2
0.25
0.3
0.1
0.15
0.05
0MPa
CL.1.5 K
KEY FEATURE
5

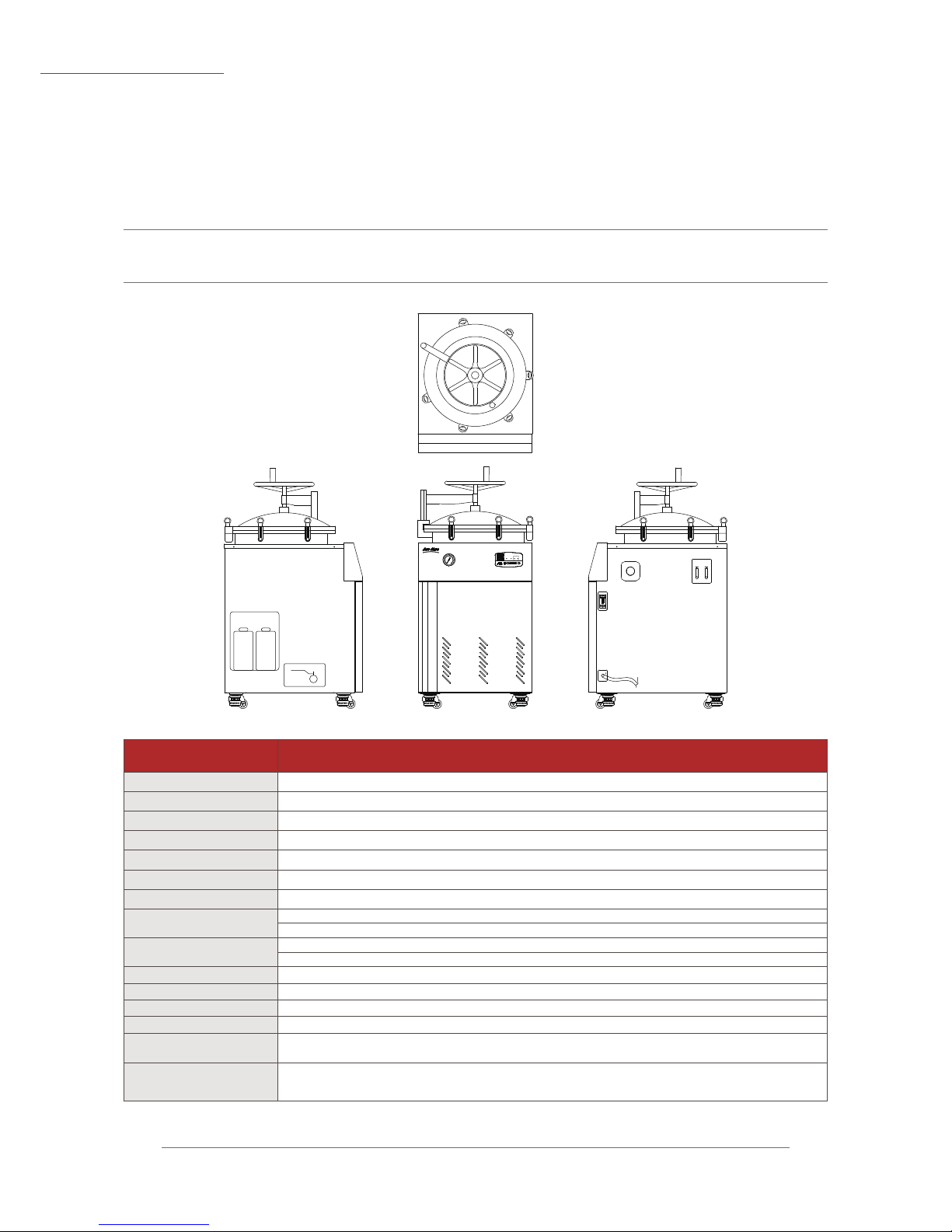

4. THE OUTWARD
<AC-60M/80M/100M>
<AC-128M>
Locker handle
Temp controller
ELB breaker
Electronic
power cable
Pressure gauge
Drain valve
Steam bottle
Over pressure relief hole
Pressure
normalizing
valve
Locker
nut
PRESSURE GAUGE
0.2
0.25
0.3
0.1
0.15
0.05
0MPa
CL.1.5 K
AT
ON OUT
MODE
TEMP & TIME CONTROL SYSTEM
AC
DOOR
PA
THE OUTWARD
6

5. INSTALLATION
①Once the product is
delivered, place the
package on a at location.
③Lift the box as shown in
the picture.
②Unscrew the bottom of
the box.
④Unwrap the bag.
or
⑤Place the equipment on
your desired location.
DOOR
⑥Lift the remaining plastic
up.
DOOR
INSTALLATION
7

Turn the levelling castor clockwise or counter clockwise to be at.
Make sure if the manual normalizing valve is on 'close' position before use.
It will cause pressure failure if the valve is not closed.
Serial label shows the electric power specication of the unit.
Connect power and turn on the main switch (E.L.B)
⬅Levelling castor
INSTALLATION
8
⤵
⤵
Lock
Unlock
Pressure
normalizing
valve

OVER TEMP dial is placed inside the control panel.
OVER TEMP should be set at least 30℃ higher than the target set temp.
If the TEMP CONTROLLER set value is 120℃, OVER TEMP Dial must set over 150℃.
(Default value is 200 ℃)
<Position of OVER TEMP Dial Inside Control Panel>
AT
ON OUT
MODE
TEMP & TIME CONTROL SYSTEM
AC
DOOR
PA
1cm
And put water around 1cm in the tank.
Always check the level of the water before use.
Fill the water inside the steam bottle around 2cm.
2cm
<AC-60M/80M/100M> <AC-128M>
INSTALLATION
9
<AC-60M/80M/100M> <AC-60M/80M/100M>
⤵
⤵
Lock
Unlock
⤵
⤵
Lock
Unlock
*

(1) TEMP mode
(3) BEEP mode
(2) TIME mode
If you want a minute-second or day-hour time combination instead,
feel free to contact your supplier.
※The rst 2 digits=hours
The last 2 digits=minutes
※Be aware that 00.00 means innite value.
The unit will continue to run until the user manually turns it o.
The span of time set under beep mode is the duration of the beeping once the set
operating time has been nished.
1 buzzer sound/sec.
The BEEP timer will only operate once TIME mode is set.
6. SETTING AND OPERATION
SETTING AND OPERATION
10
Value
shift/edit
Time Controller
Display
Time setting
99HR 59MIN(max)
00.00 set as
continuous run
Step1. From TEMP MODE,
press the MODE button for
1 sec to move to TIME MODE.
Step2. Set your desired time.
Step3. Press MODE button for 3 sec
to get out of mode-setting or
press MODE button for 1sec
to move to BEEP mode.
BEEP Controller
Display
Beep span
Value
shift/edit
Step1. From TIME MODE,
press the MODE button once to
go to BEEP MODE.
Step2. Enter your desired span of
Beeping Time.
Step3. Press MODE button for 3 sec
to get out of mode-setting
Value
shift/edit
Temp Controller
Display
Temperature
setting
Step1. To set the TEMP MODE,
press and hold the MODE
button for 3 sec.
Step2. Set your target temperature.
Step3. Press MODE button for 3 sec
to get out of mode-setting or
press MODE button for 1sec
to move to TIME mode.
Step3. Press MODE button for
3 sec to get out of mode-
setting or press MODE
button for 1 sec to move to
TEMP mode.

(4) Start the unit
(5) Stop the unit
(6) Auto Turning(AT)
When TIME mode ends or operator stops it manually by pressing the unit will stop
running and in tank pressure will be normalized.
If the press is not normalized, please open pressure normalizing valve.
Make sure that you should press always to run the unit.
Lamp A and P's status is nothing to do with this product so you do not
need to pay attention for A/P Lamp status in this product.
Be careful about the hot steam.
Press for 3 sec and the unit will start running with lamp ON.
SETTING AND OPERATION
11
AT is recommended under 2 cases.
case1. When the change of current temp is uctuating more than ±0.1℃.
case2. When the unit can not reach at the set temp.
You can enter / quit AT mode by pressing AT button for 5 sec.
AT will be nished automatically when it is done.
AT Operation
Display
② AUTO TUNING(AT) S/W
-Press and hold for 5 sec to
operate/quit
① Press
⤵
⤵

➡You can check the output of heater by clicking "AT" button for 1 sec.
➡ You can check the remaining operating time by clicking "AT" button one more time.
➡You can return to the original display by clicking "AT" button one more time.
* 0.100=100%
0.60=60%
0.30=30%
Output of heater
Output of heater
Output of heater
SETTING AND OPERATION
12
(7) Checking the remaining operation time and the output of heater
Click!
Remaining Time shown
on Display
Click!
⤵
⤵
Click!
The output of heater

7. SPECIFICATIONS
AUTOCLAVE - 60M/80M/100M
Model SH-AC-60M SH-AC-80M SH-AC-100M
Temp Range Max 130℃ (266℉)
Using Press 0.1177 to 0.1274 MPa (1.2 to 1.3 kg/cm2)
Temp Controller Microprocessor Digital PID Controller
Sterling Time 00.00 to 99HR 59MIN (MIN SEC) selectable
Pressure Gauge Mechanical type 0 to 0.3 MPa
Sensor PT-100
Capa 60 L 80 L 100 L
Dimension Internal
350Φx630H(mm) 400Φx650H(mm) 450Φx650H(mm)
13.78Φx24.80H(inch) 15.75Φx25.59H(inch) 17.72Φx25.59H(inch)
Dimension External
(W×D×H )
550x680x1060(mm) 600x730x1060(mm) 650x780x1080(mm)
21.65x26.77x41.93(inch) 23.62x28.74x41.73(inch) 25.59x30.71x42.52(inch)
Net weight 74 Kg 100 Kg 120 Kg
Material Internal Stainless Steel
Material External Steel Plate with Powder Heating Coated
Heater 3 KW 5 KW
Electrical Requirements
120V ,50/60Hz, 1Φ 25.0 A 41.7 A
Electrical Requirements
230V ,50/60Hz, 1Φ 13.0 A 22.7 A
SPECIFICATIONS
13

SPECIFICATIONS
14
Model SH-AC-128M
Temp Range Max 130℃ (266℉)
Using Press 0.1177 to 0.1274 MPa (1.2 to 1.3 kg/cm2)
Time Controller Microprocessor Digital PID Controller
Sterling Time 00.00 to 99HR 59MIN (MIN SEC) selectable
Pressure Gauge Mechanical type 0 to 0.3 MPa
Sensor PT-100
Capa 128 L
Dimension Internal
(W×D×H )
500Φx650H(mm)
19.69Φx25.59H(inch)
Dimension External
(W×D×H )
700x830x1350(mm)
27.56x32.68x53.15(inch)
Net weight 132.9 Kg
Material Internal Stainless Steel
Material External Steel Plate with Powder Heating Coated
Heater 5 KW
Electrical Requirements
120V ,50/60Hz, 1Φ 41.7 A
Electrical Requirements
230V ,50/60Hz, 1Φ 22.7 A
AT
ON OUT
MODE
TEMP & TIME CONTROL SYSTEM
AC
DOOR
PA
AUTOCLAVE - 128M

TROUBLESHOOTING
15
8. TROUBLESHOOTING
Symptom Passible Causes of Problem
Unit does not work Check power is connected well.
Temperature does not rise
Press for 3 sec.
Press AT button for 5 sec.
Check OVER TEMP set value.
Pressure does not rise
Press for 3 sec.
Press AT button for 5 sec.
Check OVER TEMP set value.
Check Pressure Normalizing Valve is closed well.
Check the lid of units is closed well.
Operating Temp.uctuates Press AT button for 5 sec.
