Shark Pressure Washers DE-201007D User manual

MODEL ORDER #
DE-201007D 1.106-061.0
DE-201507D 1.106-062.0
DE-301007D 1.106-063.0
DE-352007A 1.106-064.0
8.919-015.0
OPERATOR’S MANUAL
To locate your local Shark Commercial Pressure Washer Dealer nearest you,
visit www.shark-pw.com

CONTENTS
2
Model Number ______________________________
Serial Number ______________________________
Date of Purchase ____________________________
The model and serial numbers will be found on a decal attached
to the pressure washer.You should record both serial number and
date of purchase and keep in a safe place for future reference.
9.800-085.0 • 8.919-015.0 • Rev. 01/11
Important Safety Information ................................................................3-4
Component Identification.........................................................................5
Assembly Instructions..............................................................................6
Operating Instructions..............................................................................7
Applying Detergents & General Cleaning Techniques.............................8
Shut Down and Clean-Up........................................................................9
Storage....................................................................................................9
Troubleshooting .....................................................................................10
Preventative Maintenance .....................................................................11
Oil Change Record................................................................................11
Exploded View.......................................................................................12
Exploded View Parts List..................................................................13-14
Hose and Spray Gun Assembly.............................................................15
Unloader Exploded View and Parts List.................................................16
Pump Exploded View and Parts List.................................................17-18
Specifications.........................................................................................19
Warranty ................................................................................................20

9.800-085.0 • 8.919-015.0 • Rev. 01/11 3
PRESSUREWASHER
OPERATOR’S MANUAL
INTRODUCTION & IMPORTANT SAFETY INFORMATION
Thank you for purchasing this Pressure Washer.
We reserve the right to make changes at any time
without incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
themanufacturer’soperatinginstructions and warnings
before using this pressure washer.Warninginformation
should be emphasized and understood.If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with
the operator in the operator’s native language by the
purchaser/owner, making sure that the operator com-
prehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement
parts.
This machine is to be used only by trained op-
erators.
IMPORTANT SAFETY
INFORMATION
READ OPERATOR’S
MANUALTHOROUGHLY
PRIORTO USE.
WARNING:To reduce the risk of
injury, read operating instruc-
tions carefully before using.
1. Read the owner's manual
thoroughly. Failure to follow
instructions could cause mal-
function of the machine and
result in death, serious bodily
injuryand/orpropertydamage.
2. Know how to stop the
machineandbleedpressure quickly.Be thoroughly
familiar with the controls.
3. Stay alert — watch what you are doing.
4. Allinstallations must comply with local codes.Con-
tactyourelectrician, plumber, utility companyor the
sellingdistributorfor specificdetails.Ifyourmachine
is rated 250 volts or less, single phase will be pro-
vided with a ground fault circuit interrupter (GFCI).
If rated more than 250 volts, or more than single
phase this product should only be connected to a
power supply receptacle protected by a GFCI.
DANGER: Improper connection of the equip-
ment-grounding conductor can result in a risk
of electrocution.Check with a qualified electri-
cian or service personnel if you are in doubt as
to whether the outlet is properly grounded. Do
not modify the plug provided with the product
- if it will not fit the outlet, have a proper outlet
installed by a qualified electrician. Do not use
any type of adaptor with this product
WARNING
KEEPWATER
SPRAY AWAY FROM
ELECTRICALWIRING.
WARNING:Keep wand,hose,and
water spray away from electric
wiring or fatalelectric shockmay
result.
5. To protect the operator from
electrical shock,the machine
mustbe electricallygrounded.
It is the responsibility of the
ownertoconnectthis machine
to a UL grounded receptacle of proper voltage and
amperage ratings. Do not spray water on or near
electrical components.Do not touch machine with
wet hands or while standing in water. Always dis-
connect power before servicing.
RISK OF EXPLOSION:
DO NOT SPRAY
FLAMMABLE
LIQUIDS.
WARNING
WARNING: Flammable liquids
can create fumes which can ig-
nite, causing property damage
or severe injury.
WARNING: Risk of explosion —
Do not spray flammable liquids.
6. Do not allow acids,
caustic or abrasive fluids to pass through the
pump.
7. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
8. Keep operating area clear of all persons.
WARNING
USE PROTECTIVE
EYEWEAR
AND CLOTHING
WHEN OPERATING
THIS EQUIPMENT.
WARNING: High pressure spray
can cause paint chips or other
particles to become airborne
and fly at high speeds.To avoid
personal injury, eye, hand and
foot safety devices must be
worn.
9. Eye, hand, and foot pro-
tection must be worn when
using this equipment.

9.800-085.0 • 8.919-015.0 • Rev. 01/11
OPERATOR’S MANUAL PRESSURE WASHER
4
IMPORTANT SAFETY INFORMATION
TRIGGER GUN KICKS
BACK - HOLDWITH
BOTH HANDS
WARNING
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
RISK OF INJECTION
OR SEVERE INJURY
TO PERSONS. KEEP
CLEAR OF NOZZLE.
WARNING
WARNING:High pressure devel-
oped by these machines will
cause personal injury or equip-
ment damage. Keep clear of
nozzle. Use caution when oper-
ating. Do not direct discharge
stream at people, or severe in-
jury or death will result.
10. To reduce the risk of injury, close supervision is
necessary when a machine is used near children.
Do not allow children to operate the pressure
washer. This machine must be attended during
operation.
11. Never make adjustments on machine while in op-
eration.
12. Be certain all quick coupler fittings are secured
before using pressure washer.
WARNING
PROTECT FROM
FREEZING
WARNING:Protectmachine from
freezing.
13. To keep machine in best
operating conditions, it is
important youprotectmachine
fromfreezing.Failuretoprotect
machine from freezing could
cause malfunction of the
machine and result in death,
serious bodily injury, and/or property damage.Fol-
low storage instructions specified in this manual.
14. Inlet water must be clean fresh water and no hotter
then 90°F.
15. Manufacturer will not be liable for any changes
madeto our standardmachinesoranycomponents
not purchased from us.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING
RISK OF INJURY
FROM FALLS WHEN
USING LADDER.
WARNING:Be extremely careful
when using a ladder, scaffolding
or any other relatively unstable
location. The cleaning area
should have adequate slopes
and drainage to reduce the pos-
sibility of a fall due to slippery
surfaces.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Donot operatethismachine when fatiguedorunder
the influence of alcohol, prescription medications,
or drugs.
Follow the maintenance instructions
specified in the manual.

9.800-085.0 • 8.919-015.0 • Rev. 01/11 5
PRESSUREWASHER
OPERATOR’S MANUAL
COMPONENT IDENTIFICATION
Pump — Develops high pressure.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Detergent Injector — Allows you to siphon and mix
detergents when used with a soap nozzle.
Wand — Must be connected to the spray gun.
Unloader —Safety devicethatrelievespressure when
spray gun trigger is closed.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray
gun.
Pump Protector — Cycles fresh cool water through
pump when recirculating water reaches 140°F.
GFCI — Ground fault circuit interrupter trips when
voltage leaks to ground.
Note:If trigger on spray gun is released for more
than2 minutes,water will leakfromvalve.Warmwa-
ter will discharge from pump protector onto floor.
This system prevents internal pump damage.
Spray Gun
andWand
High Pressure
Hose
Pump
Pressure
Nozzle
Garden Hose
(not included)
Unloader
Detergent
Bucket (not
included)
Water Supply
(not included)
Wand
Hanger
Quick
Coupler On/Off
Switch
GFCI
Pump
Protector
Soap
Nozzle
Safety
Latch
Detergent
Injector

9.800-085.0 • 8.919-015.0 • Rev. 01/11
OPERATOR’S MANUAL PRESSURE WASHER
6
STEP1: Attach handletothe frame
of the pressure washer. Note: It
may be necessary to move the
handle supports from side to side
inordertoalignthe handle so it will
slide over the frame supports.
STEP 2: Insert the carriage bolt
through the holes from the outside
of the unit and attach a nut from
the inside of the machine. Tighten
nuts.
STEP 3: Attachthespray gun/hose
storage handle, and bracket to
handle.Tighten nuts.
STEP 4: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads.
STEP 7: Releasethecouplercollar
and push the nozzle until the collar
clicks.Pull the nozzle to make sure
it is seated properly.
STEP 8: Connect the high pres-
sure hose to the pump discharge
nipple. Push coupler collar forward
until secure.
STEP 5: Attach nozzle extension
to spray gun/wand. Tighten both
by hand.
STEP 6: Pull the spring-loaded
collar of the wand coupler back
to insert your choice of pressure
nozzle.
STEP 9: Connect garden hose to
the cold water source.
ASSEMBLY INSTRUCTIONS
STEP 10:Connect thegardenhose
to pump water inlet. Inspect inlets.
CAUTION: Do not run the pump
without water or pump damage
will result.
Alignment
Holes
Handle
Frame
Assy.
Carriage
Bolt
Nut
Studs
Nut
Hose/Gun
Storage
Bracket
Safety
Latch
Spray
Gun
High
Pressure Hose
Nozzle Extension
Spray
Gun/Wand Wand
Coupler
Pressure
Nozzle
Pressure
Nozzle Wand Coupler
Wand
Collar
Pump
Discharge
Nipple
High
Pressure
Hose
Cold
Water
Source
Garden
Hose
Pump
Water Inlet
Garden Hose
Coupler Collar
Bolts

9.800-085.0 • 8.919-015.0 • Rev. 01/11 7
PRESSUREWASHER
OPERATOR’S MANUAL
OPERATING INSTRUCTIONS
STEP 1: Connect garden hose
to the cold water source and turn
water on completely.Never use hot
water.
STEP 2: Trigger the spray gun to
eliminate trapped air then wait for
a steady flow of water to emerge
from the spray nozzle.
Cold
Water
Source
Garden
Hose
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
Safety
Latch
STEP 3: Connect to appropriate
power supply. Push reset button
on GFCI.
STEP4:Turnmachine onbyturning
switch at top of motor.
On/Off
Switch
The five color-coded quick connect nozzles provide a wide array of
spray widths from 0° to 40° and are easily accessible when placed in the
convenient rubber nozzle holder, which is provided on the front of the
machine.
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle.
To scour the surface, select the yellow 15° or red 0° nozzle.To apply de-
tergent select the black nozzle.
NOZZLES

9.800-085.0 • 8.919-015.0 • Rev. 01/11
OPERATOR’S MANUAL PRESSURE WASHER
8
THERMAL PUMP PROTECTION
If you run the motor on your pressure washer for 3-5
minutes without pressing the trigger on the spray gun,
circulating water in the pump can reach high tempera-
tures. When the water reaches this temperature, the
pump protector engages and cools the pump by dis-
chargingthewarmwateronto the ground.This thermal
device prevents internal damage to the pump.
CLEANINGTIPS
Pre-rinse cleaning surface with fresh water. Place deter-
gentsuctiontubedirectlyintocleaningsolutionandapply
tosurfaceatlowpressure(forbestresults,limityourwork
area to sections approximately 6' square and always
apply detergent from bottom to top). Allow detergent to
remain on surface 1-3 minutes. Do not allow detergent
to dry on surface. If surface appears to be drying, simply
wet down surface with fresh water. If needed, use brush
to remove stubborn dirt. Rinse at high pressure from top
to bottomin aneven sweepingmotion keepingthe spray
nozzleapproximately1'fromcleaningsurface.Useover-
lapping strokes as you clean and rinse any surface. For
best surface cleaning action spray at a slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may remove
the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure wash-
ing.
CAUTION - Never use:
• Bleach,chlorine productsorothercorrosivechemi-
cals
• Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products
• Acid-based products
These chemicals will harm the machine and will dam-
age the surface being cleaned.
RINSING
It will take a few seconds for the detergent to clear.
Apply safety latch to spray gun. Remove black soap
nozzle from the quick coupler. Select and install the
desiredhighpressure nozzle.NOTE:You can also stop
detergent from flowing by simply removing detergent
siphon tube from bottle.
WARNING: Some detergents
may be harmful if inhaled or
ingested, causing severe nau-
sea, fainting or poisoning. The
harmful elements may cause
property damage or severe
injury.
STEP1:Connectdetergentinjectorto dischargenipple
on machine. Connect high pressure hose to injector
withquickcoupler.(Checktomakesure lockingcoupler
sleeves are in proper position before applying water
pressure).
STEP 2: Use detergent designed
specifically for pressure washers.
Household detergents could dam-
age the pump. Prepare detergent
solution as required by the manu-
facturer. Fill a container with pres-
sure washer detergent. Place the
filter end of detergent suction tube
into the detergent container.
STEP 3: With safety latch on spray
gun engaged, secure black de-
tergent nozzle into quick coupler.
NOTE: Detergentcannotbe applied
using a pressure nozzle.
STEP 4:With the motor running, pull triggerto operate
machine. Liquid detergent is drawn into the machine
and mixed with water. Apply detergent to work area.
Do not allow detergent to dry on surface.
IMPORTANT:You must flush the detergent injection
system after each use by placing the suction tube
into a bucket of clean water, then run the pressure
washer in low pressure for 1-2 minutes.
WARNING
DETERGENTS & GENERAL CLEANINGTECHNIQUES
Detergent
Injector
Filter
Discharge
Nipple Quick
Coupler

9.800-085.0 • 8.919-015.0 • Rev. 01/11 9
PRESSUREWASHER
OPERATOR’S MANUAL
SHUTTING DOWN AND CLEAN-UP
STEP 1: Remove deter-
gent suction tube from
container and insert into
one gallon of fresh water.
Slide nozzle forward for
low pressure or use black
detergent nozzle. Pull
trigger on spray gun and
siphon fresh clean water
for one minute.
STEP 2:Turnoff machine
byturningswitch to“OFF”
switch.
STEP 5: Disconnect the
gardenhosefromthe wa-
ter inlet on the machine.
STEP 6: Disconnect the
high pressure hose from
pump discharge nipple.
STEP 7: Engage the
spray gun safety lock.
STEP 4: Press trigger to
release water pressure.
PumpWater
Inlet Pump Discharge Nipple
Safety
Latch
STORAGE
CAUTION
Pump Storage
CAUTION: Always store your pres-
sure washer in a location where the
temperature will not fall below 32°F
(0°C).The pump in this machine is
susceptible topermanent damage if
frozen.
FREEZE DAMAGE IS NOT COVERED BY WAR-
RANTY.
If you must store your pressure washer in a location
wherethetemperature is below32°F,youcan minimize
thechanceof damage toyourmachinebydrainingyour
machine as follows:
1. Stopthepressure washeranddetachsupplyhose
and high pressure hose.Squeeze trigger of spray
gun to drain all water from the wand and hose.
2. Restartpressurewasherandletit runbriefly(about
5 seconds) until water no longer discharges from
the high pressure outlet.
STEP 3: Turn off water
supply.
On/Off
Switch

9.800-085.0 • 8.919-015.0 • Rev. 01/11
PRESSUREWASHER Troubleshooting Guide
10
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE SOLUTION
PUMP RUNNING
NORMALLY BUT
PRESSURE LOW ON
INSTALLATION
Pump sucking air Check water supply and possibility of air.
Check valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
Nozzle incorrectly sized Check and replace if necessary.
Worn piston packing Check and replace if necessary.
FLUCTUATING PRES-
SURE Valves worn Check and replace if necessary.
Blockage in valve Check and replace if necessary.
Pump sucking air Check water supply connections.
Worn piston packing Check and replace if necessary.
Insufficient water Check filter and hose for breakage.
PRESSURE LOW
AFTER PERIOD OF
NORMAL USE
Nozzle worn Check and replace if necessary.
Suction or delivery valves worn Check and replace if necessary.
Suction or delivery lines blocked Check and clean if necessary.
Unloader valve seat worn Check and replace if necessary.
Worn piston packing Check and replace if necessary.
Water temperature excessive Reduce to below 160° F.
PUMP NOISY Air in suction line Check water supply and connections on suc-
tion line.
Brokenorweak suctionor delivery valve
spring Check and replace if necessary.
Foreign matter in valves Check and clean if necessary.
Worn bearings Check and replace if necessary.
Excessive temperature of water Reduce to below 160° F.
PRESENCE OF
WATER IN
PUMP OIL
Oil seal worn Check and replace if necessary.
High humidity in air Check and replace if necessary.
Piston packing worn Check and replace if necessary.
WATER DRIPPING
FROM UNDER PUMP Piston packing worn Check and replace if necessary.
O-ring plunger retainer worn Check and replace if necessary.
WATER DRIPPING
FROM PUMP
PROTECTOR
Water supply pressure too high (over
90 PSI) Lower water supply pressure using a regula- tor.
Spray gun is in the off position for over
5 minutes Turn machine off if not in use for over 5 min- utes.
OIL DRIPPING Oil seal worn Check and replace if necessary.
EXCESSIVE
VIBRATION IN HIGH
PRESSURE HOSE
Irregular functioning of the pump
valves Check and replace if necessary.
MOTOR DOES
NOT STARTWHEN
SWITCHED ON
Plugnot wellconnectedor lackof power
supply Check plug, cable and switch.
WHEN SWITCHING
ONTHE MACHINE,
MOTOR HUMS BUT
DOES NOT RUN
Main voltage is insufficient lower than
the minimum required Check to make sure main power supply is adequate.
The pump is stuck or frozen Check by turning the motor manually.
MOTOR STOPS Tripped thermal overload due to over-
heating Check that main voltage corresponds to the specifications.Wait a few minutes before turn-
ingon the machineagain byresetting the GFCI
cord.

9.800-085.0 • 8.919-015.0 • Rev. 01/11 11
PRESSUREWASHER Troubleshooting Guide
PREVENTATIVE MAINTENANCE
This pressure washer was produced with the best available materials and quality craftsmanship. However, you
as the owner have certain responsibilities for the correct care of the equipment.Attention to regular preventative
maintenance procedures will assist in preserving the performance of your equipment. Contact your dealer for
maintenance.Regular preventativemaintenancewilladdmanyhours to thelife of yourpressure washer.Perform
maintenance more often under severe conditions.
OIL CHANGE RECORD
Check pump oil and engine oil level before first use of your new pressure washer.
PREVENTATIVE MAINTENANCE
MAINTENANCE SCHEDULE
Pump Oil Inspect Daily inspect the oil level
Change After first 50 hours, then every 500 hours or annually
Replace High Pressure Nozzle Every 6 months
Replace Quick Connects Annually
Clean Water Screen/Filter Weekly
Replace HP Hose Annually if there is any sign of wear
Grease Motor Every 10,000 hours
Date Oil Changed
Month/Day/Year Estimated Operating Hours Since Last
Oil Change
Date Oil Changed
Month/Day/Year Estimated Operating Hours Since Last
Oil Change

9.800-085.0 • 8.919-015.0 • Rev. 01/11
OPERATOR’S MANUAL PRESSURE WASHER
12
MOTOROVERLOAD
PUSHTORESET
DEPOSITIVODEREPOSICION
OFF
ON
MOTOROVERLOAD
PUSHTORESET
DEPOSITIVODEREPOSICION
OFF
ON
INTENDEDFOR INDOOR USE

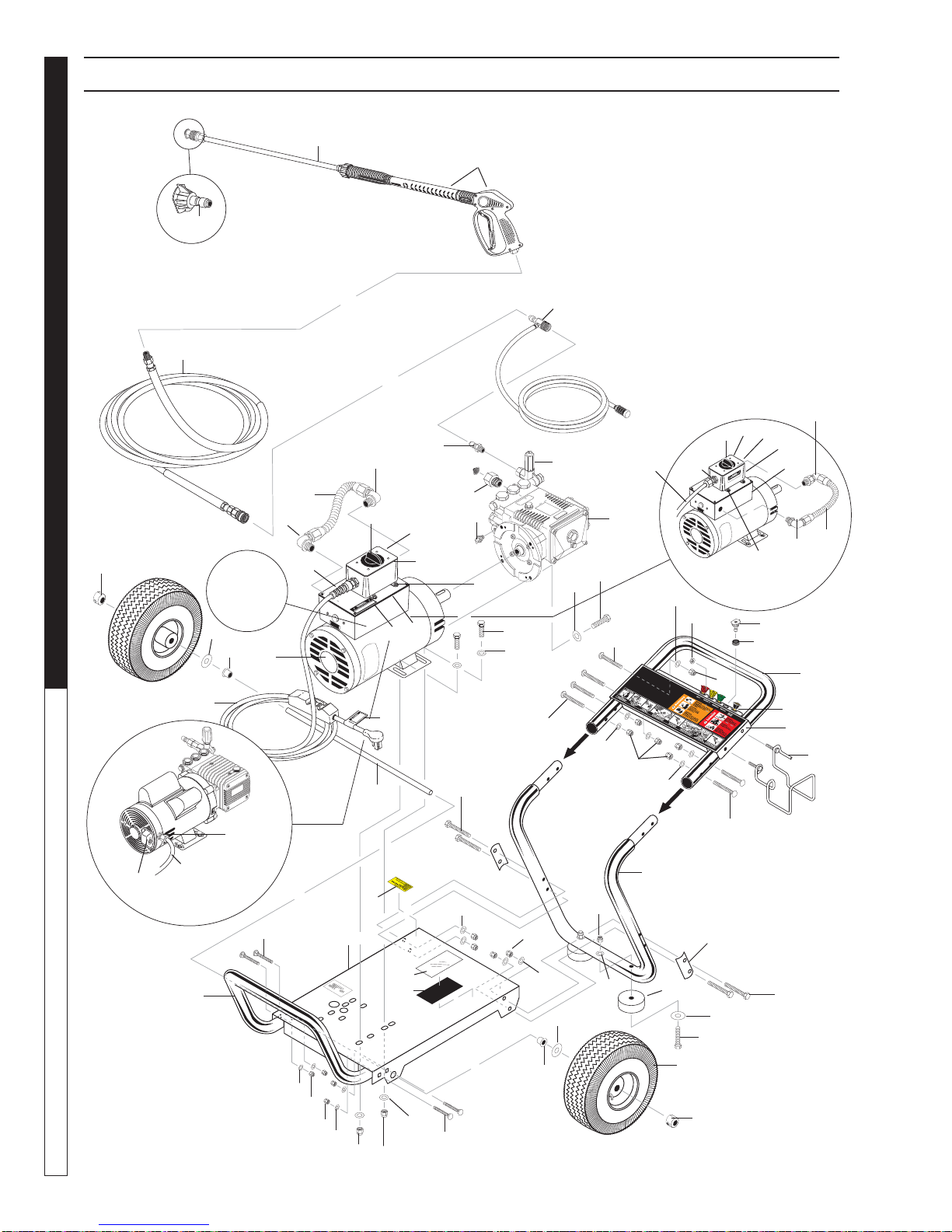

EXPLODEDVIEW
1
3
2
25
24
23 26
27
9
39
38
37
35
36
8
8
39
39 33
42
44
49
53
50
51
52
48
49
48 47
45
46
44
43
59
58
53
56
57
54
31
13
50
52
62
22
21
32
20 61
60
29
5
6, 7
5
15 16
17
22
21
Models 253.0,
064.0
4
18, 19
10
10
11
15 16 17
14, 28
34 1
14, 28
48
55
41
55
41
40
40
13
40
64
31
48 63
65
12
20
66
20
Models
251.0, 252.0,
062.0, 063.0
Models 250.0,
061.0

9.800-085.0 • 8.919-015.0 • Rev. 01/11 13
PRESSUREWASHER
OPERATOR’S MANUAL
ITEM PART NO. DESCRIPTION QTY
16 9.802-478.0 Lid, Plastic, Carlon E9801 Box 1
(251.0, 252.0, 253.0, 062.0,
063.0, 064.0 )
17 9.802-477.0 Box, Plastic, Carlon E9801, 1
w/o Lid (251.0, 252.0, 253.0,
062.0, 063.0, 064.0)
18 9.802-436.0 Cord, Service, 10/3 21"
(253.0, 064.0)
19 9.803-832.0 Conduit, Water Tite, Flex 3/4" 8"
(253.0, 064.0)
20 9.802-430.0 GFCI, 240V1Ph30A, 36' 1
10-3 Cord (253.0, 064.0)
9.802-431.0 GFCI, 120V 20A, w/36' 1
12-3 Cord (251.0, 252.0,
062.0, 063.0)
9.802-432.0 GFCI, 120V 15A, w/36' 1
12-3 Cord (250.0, 061.0)
21 9.800-016.0 Label, Disconnect Power 1
Supply
22 9.803-833.0 Cover, Motor (251.0, 252.0, 1
253.0, 062.0, 063.0, 064.0)
23 9.802-171.0 Nipple 3/8" x 3/8" NPT Male 1
24 9.802-146.0 Swivel, 1/2" MP x 3/4" GHF, w/ 1
Strainer
25 8.707-256.0 Protector, Pump 1/2" 140° 1
26 Unloader, See Specifications Page
27 Pump, See Specifications Page
28 9.802-695.0 Nut, 10/32" Keps 4
(251.0, 252.0, 253.0,
062.0, 063.0, 064.0)
29 9.802-514.0 Strain Relief (250.0, 061.0) 1
9.802-525.0 ▲ Locknut, 1/2" (250.0, 061.0) 1
30 9.802-695.0 ▲Nut, 10/32" Keps 3
(251.0, 252.0, 253.0,
062.0, 063.0, 064.0)
9.802-699.0 ▲ Screw, 10/32" x 3/4" 1
Slot Pan, MS, SS
(251.0, 252.0, 253.0,
062.0, 063.0, 064.0)
9.800-040.0 ▲Label, Ground 2
(251.0, 252.0, 253.0,
062.0, 063.0, 064.0)
(250.0, 061.0) 1
31 8.718-980.0 Washer, 5/16" Flat 8
32 Motor, See Specifications Page
33 9.802-064.0 Grommet, Rubber, Nozzle 5
Holder
34 9.802-778.0 Nut, 5/16" Flange, Whiz Loc 2
35 9.803-122.0 Handle, Grab, Chrome 1
36 9.800-062.0 Label (HD) 1
8.900-912.0 Label (DE) 1
37 9.803-126.0 Plate, Warning/Instr. Black 1
38 9.803-098.0 Hanger, Hose/Wand 1
ITEM PART NO. DESCRIPTION QTY
1 9.104-016.0 NOZZLE KIT 3.25 (23326) 1
9.804-624.0 Nozzle, 1504,Yellow
(250.0, 061.0) 1
9.804-625.0 Nozzle, 2504, Green
(250.0, 061.0) 1
9.804-626.0 Nozzle, 4004, White
(250.0, 061.0) 1
9.804-627.0 Nozzle, 0004, Red
(250.0, 061.0) 1
8.712-354.0 Nozzle, 1505,Yellow
(253.0, 064.0) 1
8.712-365.0 Nozzle, 2505, Green
(253.0, 064.0) 1
8.712-366.0 Nozzle, 4005, White
(253.0, 064.0) 1
8.712-363.0 Nozzle, 0005, Red
(253.0, 064.0) 1
8.712-358.0 Nozzle, 1555,Yellow
(252.0, 063.0) 1
8.712-359.0 Nozzle, 2555, Green (252.0,
063.0) 1
8.712-360.0 Nozzle, 4055, White
(252.0, 063.0) 1
8.712-357.0 Nozzle, 0055, Red
(252.0, 063.0) 1
8.712-398.0 Nozzle, Compl.QCME 6540, 1
Brass, All
2 9.802-220.0 Wand, 18" M22 x 1/4" QC 1
3 9.802-223.0 Spray Gun, SK@, 3/8" Inlet 1
4 Hose, See Specifications Page
5 9.802-517.0 Connector, 1/2" L/T, 90°, Black 2
(251.0, 252.0, 062.0, 063.0)
6 9.802-427.0 Cord, Service, SOWA 12/3, 21"
Coleman
(251.0, 252.0, 062.0, 063.0)
7 9.802-448.0 Conduit, Watertight, Flex, 1/2" 8"
(251.0, 252.0, 062.0, 063.0)
8 9.802-773.0 Nut, 1/4" ESNA, NC 6
9 9.802-225.0 Injector, Detergent, Assy, 1
3-5 GPM
10 9.803-831.0 Connector, 3/4" L/T, 90°, Black 2
(253.0, 064.0)
11 9.802-518.0 Strain Relief, 3/4" (253.0, 064.0)1
9.802-523.0 ▲Locknut, 3/4" (253.0, 064.0) 1
12 9.802-810.0 Washer, 5/8" Flat 2
13 9.802-776.0 Nut, 5/16" ESNA 4
14 9.802-759.0 Screw, 10/32" x 1/2" BHSOC, 4
Black (251.0, 252.0, 253.0,
062.0, 063.0, 064.0)
15 9.802-450.0 Switch, 2 Pos.120V-600V, 1
1-3 PH Bremas (251.0, 252.0,
253.0, 062.0, 063.0, 064.0)
EXPLODEDVIEW PARTS LIST

9.800-085.0 • 8.919-015.0 • Rev. 01/11
OPERATOR’S MANUAL PRESSURE WASHER
14
EXPLODEDVIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
39 9.802-706.0 Bolt, Carriage, 1/4"-20 x 1-3/4" 6
40 9.802-802.0 Washer, 1/4" Flat 6
41 9.802-776.0 Nut, 5/16" ESNA, NC 4
42 9.803-119.0 Handle, Lower Grab, Chrome 1
43 9.803-114.0 Retainer Bracket, Handle, 2
Black
44 9.802-728.0 Bolt, 3/8" x 2" 4
45 9.802-730.0 Bolt, 3/8" x 2-1/2" 2
46 9.802-817.0 Washer, 3/8" x 1" 2
47 9.802-066.0 Pad, Soft Rubber, 50 Duro 2
48 9.802-807.0 Washer, 3/8" SAE, Flat 10
49 9.802-779.0 Nut, 3/8" ESNA, NC 6
50 9.802-782.0 Axle Hub Black 2
51 9.802-270.0 Wheel & Tire Assy., 4" Steel 2
Rim w/Tube
52 9.802-103.0 Bushing, Snap, 5/8" 2
53 9.802-712.0 Bolt, Carriage 5/16" x 1-3/4" 4
54 9.803-097.0 Axle, 5/8" x 19.625" Long 1
55 9.802-807.0 Washer, 5/16" Flat, SAE 4
56 9.803-123.0 Handle, Bumper, Chrome 1
57 9.803-125.0 Base, CW Direct, Black 1
58 9.800-013.0 Label, Intended For Indoor Use 1
59 9.800-034.0 Label, Clear Lexan,
2-1/4” x 4-1/2" 1
60 9.802-454.0 Switch Assembly (250.0, 061.0) 1
61 8.932-969.0 Label, Warning, Service Cord 1
62 9.802-516.0 Strain Relief, Flex 90°, Plastic 1
(251.0, 252.0, 062.0, 063.0)
9.803-834.0 ▲Washer, 3/4" x 1/2" Reducing 1
(251.0, 252.0, 062.0, 063.0)
63 9.802-720.0 Bolt, 3/8" x 1" NC HH 4
64 8.718-618.0 Bolt, 5/16" x 3/4" NC, Grade 5 4
65 9.800-049.0 Label, Manufacturer's 1
Cleaning Solution
▲ Not Shown

9.800-085.0 • 8.919-015.0 • Rev. 01/11 15
PRESSUREWASHER
OPERATOR’S MANUAL
HOSE AND SPRAY GUN ASSEMBLY
HOSE AND SPRAY GUN ASSEMBLY PARTS LIST
6
2
3
7
5
1
4
10
8
9
11
9
ITEM PART NO. DESCRIPTION QTY
1 9.802-166.0 Coupler, 3/8" Female 1
9.802-100.0 Quick Coupler O-Ring 1
2 8.739-125.0 Hose, 3/8" x 50', 1 Wire,Tuff-Flex 1
3 9.802-223.0 Spray Gun, Shut-Off 1
4 9.802-220.0 Wand, Straight 1
5 9.802-164.0 Coupler, 1/4" Female 1
9.802-096.0 Quick Coupler O-Ring 1
6 Nozzle, See Page 13 For Size
7 8.712-398.0 Nozzle, Brass Soap 1
8 9.802-216.0 Injector, Chemical, Non-Adjust, 3-5GPM, .083 1
9 6.390-126.0 Clamp, Hose, .46 - .54 ST 2
10 9.802-251.0 Tube, 1/2" x 1/2" Clear Vinyl 6 ft.
11 8.707-057.0 Strainer, 1/4" Hose Barb, Plastic 1
▲Not Shown

9.800-085.0 • 8.919-015.0 • Rev. 01/11
PRESSUREWASHER Specifications
16
UU1 UNLOADER EXPLODED VIEW
UU1 UNLOADER EXPLODED VIEW PARTS LIST
ITEM PART # DESCRIPTION KIT QTY
1 8.749-792.0 Piston housing 1
2 Piston C 1
3 Piston O-ring back up A 1
4 8.749-796.0 Main block 1
5 9.152-372.0 Piston ring 1
6 Ball seat C 1
7 O-ring 10.5 ID X 1.5 CS A,C 1
8 Plunger B 1
9 9.152-016.0 Plunger housing 1
10 Bypass spring C 1
11 9.149-001.0 Low pressure port 1
12 9.152-017.0 Sliding connector, 30mm 1
8.762-005.0 Sliding connector, 40mm, long 1
13 9.149-002.0 Sliding connector H 1/2" 1
9.149-005.0 Sliding connector H 3/8" 1
14 9.196-011.0 Plug 5/8 -18 UNF 1
15 O-ring 12 ID x 2 CS A 2
16 O-ring 6 ID X 2 CS A 1
ITEM PART # DESCRIPTION KIT QTY
17 9.149-006.0 Sliding connector guide 1
18 O-ring backup A 1
6X 1.45X 1.68
19 Conical seal C 1
20 O-ring 6.75 X 1.78 BN80 A 1
21 Spring seat C 1
22 Plunger spring B 1
23 8.917-699.0 Banjo bolt 1/2" short 1
8.917-700.0 Banjo bolt 1/2"-1/4"NPT short 1
8.917-698.0 Banjo bolt 3/8" short 1
24 8.917-698.0 Banjo bolt 3/8" short 1
25 9.802-893.0 Seal washer 3/8" 2
26 9.803-921.0 Seal washer 1/2" 2
9.802-893.0 Seal washer 3/8" 2
27 O-RING 15 ID x 2CS A,B 3
28 8.706-865.0 Plug, 1/4" countersunk 1
Kit A 9.104-038.0 O-ring Repair Kit
Kit B 9.104-039.0 Outlet Kit
Kit C 9.104-040.0 Stem Repair Kit
1
2
3
4
5
19
7
8
9
10
11
12
26
14
15
27
18
17
16
6
20
21
22
26
24
25
25
23
13
27
15
27
9.175-018.0
UU1 3500PSI, UNIVERSAL UNLOADER (SPARE)
23
28

9.800-085.0 • 8.919-015.0 • Rev. 01/11 17
PRESSUREWASHER
OPERATOR’S MANUAL
KE.1 SERIES PUMP EXPLODEDVIEW
KE.1 SERIES PUMP EXPLODEDVIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
16 9.803-951.0 Brass Plug G1/4 1
17 9.803-952.0 Manifold Stud Bolt 8
18 9.802-884.0 Washer 8
19 9.803-198.0 Copper Washer 3/8 1
20 9.802-925.0 Brass Plug G3/8 2
25 9.802-939.0 Screw 12
26 9.803-953.0 Bearing Cover 2
27 9.803-954.0 Bearing Seal 1
28 9.802-914.0 Snap Ring 1
29 9.803-955.0 Ball Bearing 2
30 9.804-576.0 Crankshaft (2020F) 1
9.804-577.0 Crankshaft (2020S) 1
9.804-578.0 Crankshaft (2825F) 1
9.804-579.0 Crankshaft (2825S) 1
9.804-580.0 Crankshaft (3525F) 1
31 9.803-957.0 Oil Dipstick 1
32 9.804-581.0 O-Ring Ø3.53 x 55.56 1
33 9.804-582.0 Needle Bearing 1
34 9.804-583.0 Motor Flange 56C 1
35 9.803-210.0 Washer 4
ITEM PART NO. DESCRIPTION QTY
1 9.803-938.0 Crankcase 1
2* 9.804-586.0 Plunger Oil Seal 3
3* See Kit Below O-Ring Ø 1.78 x 28.30 3
4* See Kit Below Pressure Ring 15mm 3
See Kit Below Pressure Ring 18mm 3
5* See Kit Below U-Seal, dia 15mm 6
See Kit Below U-Seal, dia 18mm 6
6* See Kit Below Intermediate Ring 15mm 6
See Kit Below Intermediate Ring 18mm 6
7* See Kit Below U-Seal, 15mm 3
See Kit Below U-Seal, 18mm 3
8 9.802-926.0 Brass Plug G1/2 1
9 9.803-199.0 Copper Washer 1/2" 1
10 9.803-946.0 Manifold Housing 1
11 9.803-947.0 O-Ring Ø1.78 x 15.54 6
12* See Kit Below Valve Assembly 6
13* 9.803-948.0 O-Ring Ø2.62 x 18.77 6
14 9.803-949.0 Valve Plug 6
15 9.803-950.0 Copper Washer 1/4 1
TORQUE
SPECS
Item # Ft.-lbs
14 65
17 18
25 7.6
36 8
38 7
48 13
9.803-814.0 KE 2020F
9.803-815.0 KE 2020S
9.803-816.0 KE 2825F
9.803-817.0 KE 2825S
9.803-818.0 KE 3525F

9.800-085.0 • 8.919-015.0 • Rev. 01/11
OPERATOR’S MANUAL PRESSURE WASHER
18
KE.1 SERIES PUMP EXPLODEDVIEW PARTS LIST
ITEM PART NO. DESCRIPTION QTY
36 9.804-584.0 Flange Screw 4
37 9.804-585.0 Crankshaft Seal 1
38* See Kit Below Plunger Nut 3
39* See Kit Below Copper Spacer 3
40* See Kit Below Plunger 15mm (2020F,
2825F, 3525F) 3
See Kit Below Plunger 18mm
(2020S, 2825S) 3
41*
See Kit Below Copper Spacer 3
42* See Kit Below O-Ring Ø1.78 x 5.28 3
43* See Kit Below Teflon Ring 3
44 9.803-964.0 Plunger Rod 3
45 9.803-965.0 Connecting Rod Pin 3
46 9.803-966.0 Connecting Rod 3
47 9.803-218.0 Spring Washer 6
48 8.933-020.0 Connecting Rod Screw 6
49 9.803-969.0 O-Ring Ø2.62 x 107.62 1
50 9.803-968.0 Crankcase Cover 1
51 9.803-197.0 Gasket 1
52 9.803-202.0 Sight Glass 1
REPAIR KIT
NUMBER 8.725-354.0 8.725-350.0 8.725-355.0 8.725-357.0 9.803-934.0 9.803-935.0 9.803-936.0 9.803-937.0
KIT DE-
SCRIPTION
Plunger
Seal
15mm
2020F.1
2825F.1
3525F.1
Plunger
Seal 18mm
2020S.1
2825S.1
Complete
Seal Pack-
ing 15mm
2020F.1
2825F.1
3525F.1
Complete
Seal Packing
18 mm
2020S.1
2825S.1
Plunger
15mm
2020F.1
2825F.1
3525F.1
Plunger
18mm
2020S.1
2825S.1 Complete Valve Plunger Oil Seals
ITEM
NUMBERS
INCLUDED 3, 5, 7 3, 5, 7 3, 4, 5,
6, 7 3, 4, 5, 6, 7 38, 39, 40, 41, 42, 43 38, 39, 40, 41, 42, 43 11, 12, 13 2
NO. OF
CYLINDERS
KIT WILL
SERVICE
331 1 1 1 6 3

9.800-085.0 • 8.919-015.0 • Rev. 01/11 19
PRESSUREWASHER
OPERATOR’S MANUAL
Machine Pessure Nozzle Pump Pump Unloader Motor Motor
Model GPM (PSI) Size Hose p/n Part # Model Part # Hp Part #
1.575-250.0 2.0 1000 3.75 9.802-233.0 9.803-814.0 KE2020F 9.175-018.0 1-1/2 9.802-338.0
1.575-251.0 1.9 1500 3.0 9.802-233.0 9.803-814.0 KE2020F 9.175-018.0 2 9.802-339.0
1.575-252.0 2.8 1000 5.5 9.802-233.0 9.803-816.0 KE-2825-F 9.175-018.0 2 9.802-339.0
1.575-253.0 3.5 2000 5.0 9.802-233.0 9.803-818.0 KE-3525-F 9.175-018.0 5 9.802-341.0
Machine Pessure Nozzle Pump Pump Unloader Motor Motor
Model GPM (PSI) Size Hose p/n Part # Model Part # Hp Part #
1.106-061.0 2.0 1000 3.75 9.802-233.0 9.803-814.0 KE2020F 9.175-018.0 1-1/2 9.802-338.0
1.106-062.0 1.9 1500 3.0 9.802-233.0 9.803-814.0 KE2020F 9.175-018.0 2 9.802-339.0
1.106-063.0 2.8 1000 5.5 9.802-233.0 9.803-816.0 KE-2825-F 9.175-018.0 2 9.802-339.0
1.106-064.0 3.5 2000 5.0 9.802-233.0 9.803-818.0 KE-3525-F 9.175-018.0 5 9.802-341.0
SPECIFICATIONS
HD Models
DE Models

8.919-015.0 • Rev. 01/11
PRESSUREWASHER Warranty
WHAT THIS WARRANTY COVERS
All Shark pressure washers are warranted by Shark to the original purchaser to be free from defects in materials and workmanship
under normal use, for the periods specified below.This Limited Warranty, subject to the exclusions shown below, is calculated from
the date of the original purchase, and applies to the original components only. Any parts replaced under this warranty will assume
the remainder of the pressure washer’s warranty period.
FIVEYEAR PARTS AND ONE YEAR LABOR WARRANTY
Components manufactured by Shark, such as frames, handles, float tanks, fuel tanks, belt guards, and heating coils. Pro-Duty rated units
(DD Series) have a three-year limited warranty against defects and workmanship.Internal components on the oil-end of Kärcher axial pumps
have a 5 year warranty. Kärcher crankshaft pumps have a 7 year warranty on non-wear parts.Heating coils are pro-rated at 25% after 2 years.
Kärcher and non-Kärcher swash and wobble plate pumps have a one year warranty; other pumps carry their manufacturer’s warranty.
ONE YEAR PARTS AND ONE YEAR LABOR WARRANTY
Allother components, excluding normalwear items asdescribedbelow, willbe warrantedforone yearon parts andlabor. Parts andla-
bor warranty on these parts will be for one year regardless of the duration of the original component manufacturer’s part warranty.
WARRANTY PROVIDED BY OTHER MANUFACTURERS
Motors, generators, and engines, which are warranted by their respective manufacturers, are serviced through these manufacturers’
local authorized service centers.Shark is not authorized and has no responsibility to provide warranty service for such components.
Motors manufactured outside of the United States will be warranted by Shark.
WHAT THIS WARRANTY DOES NOT COVER
This warranty does not cover the following items:
1. Normal wear items, such as nozzles, spray guns, discharge hoses, wands, quick couplers, seals, filters, gaskets, O-rings,
packings, pistons, pump valve assemblies, strainers, belts, brushes, rupture disks, fuses, pump protectors.
2. Any components or other devices incorporated into a Shark product that are not manufactured by Shark, including, but
not limited to gasoline engines, pumps, etc.
3. Defects caused by improper or negligent operation or installation, accident, abuse, misuse, neglect, unauthorized modi-
fications, repair or maintenance of the product by persons other than authorized representatives of Shark, including, but
not limited to, the failure of the Customer to comply with recommended product maintenance schedules.
4. Shark products that have been returned by the original Customer and are ultimately re-sold by an Authorized Servicing
Dealer or other sales or service outlet to another purchaser.
5.
Shark products that are sold by any distributor or retailer that is not an official authorized dealer or retailer of Shark products.
6. Defects caused by acts of nature and disaster including, but not limited to, floods, fires, wind, freezing, earthquakes, tor-
nadoes, hurricanes and lightning strikes.
7. Defects caused by water sediments, rust corrosion, thermal expansion, scale deposits or a contaminated water supply
(such as water in the unit with chloride content higher than that of 80 mg/liter or use of chemicals not approved or recom-
mended by Shark).
8. Defects caused by improper voltage, voltage spikes or power transients in the electrical supply.
9. Devices or accessories not distributed or approved by Shark.
10. Any cost of labor arising from the removal and reinstallation of the alleged defective part by Customer.
11. Transportation of the product to an Authorized Servicing Dealer, field labor, replacement rental and any freight charges.
Any components, accessories or other devices provided with the product but not manufactured by Shark (such as engines, pumps,
etc.) are subject to warranties and service through their respective manufacturers authorized service centers and according to the
applicable terms and conditions of such manufacturers warranties.Such components or other devices not manufactured by Shark
should be referred by the Customer to an authorized service center or their respective manufacturers for repair or replacement.
THEFOREGOINGWARRANTY IS INLIEU OF ALLOTHERWARRANTIES OFANY KIND,WHETHER ARISING BYLAW, CUSTOM
OR CONDUCT. SHARK MAKES NO ADDITIONAL WARRANTIES, EITHER EXPRESSED OR IMPLIED, INCLUDING,WITHOUT
LIMITATION, ANY EXPRESSED OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS OF EQUIPMENT FOR A
PARTICULAR PURPOSE AND ANY SUCH WARRANTIES ARE EXPRESSLY DISCLAIMED. SHARK FURTHER DISCLAIMS
ANY WARRANTY THAT THE PRODUCT PURCHASED BY CUSTOMER WILL MEET ANY PARTICULAR REQUIREMENT OF
CUSTOMER EVEN IF SHARK HAS BEEN ADVISED OF SUCH REQUIREMENT.
THE RIGHTS AND REMEDIES PROVIDED UNDERTHISWARRANTY ARE EXCLUSIVE AND IN LIEU OF ANY OTHER RIGHTS
OR REMEDIES OF CUSTOMER. SHARK SHALL NOT UNDER ANY CIRCUMSTANCES BE LIABLE TO ANY PERSON OR
ENTITY INCLUDING, BUT NOT LIMITED TO, THE CUSTOMER OR ANY END USER OF THE PRODUCT FOR ANY SPECIAL,
INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ECONOMIC LOSS, LOSS OF PROFITS OR LOSS OF USE OF
THE PRODUCT, ARISING IN CONNECTION WITH THE SALE, DELIVERY, INSTALLATION, TRAINING OR USE OF PRODUCT.
SHARK’S LIABILITY, WHETHER IN CONTRACT OR INTORT, ARISING OUT OF ANY WARRANTIES OR REPRESENTATIONS,
INSTRUCTIONS OR DEFECTS FROM ANY CAUSE, SHALL BE LIMITED EXCLUSIVELY TO THE COST OF REPAIR OR RE-
PLACEMENT PARTS UNDER AFORESAID CONDITIONS.
The purpose of the foregoing limitations on liability and Customer remedies is to protect Shark from unknown or undeterminable risks.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may
not apply to the Customer.
Shark sales and service representatives are not authorized to waive or alter the terms of this warranty, or to increase the obligations
of Shark under the warranty.
Shark reserves the right to make design changes in any of its products without prior notification to the Customer.
LIMITED NEW PRODUCT
WARRANTY—COMMERCIAL
PRESSUREWASHERS
Phone: [phone]
Fax: [phone]
www.shark-pw.com
20
