Sharp AH-AP18DR User manual

AY-AP18DR
AY-AP24DR
AH-AP18DR
AH-AP24DR
AY-AP18DR
AY-AP24DR
AH-AP18DR
AH-AP24DR
AE-A18DR
AE-A24DR
AU-A18DR
AU-A24DR
R
INDOOR UNIT
ZIMMERGERÄT
UNIT INTERIEURE
UNIDAD INTERIOR
UNITA' INTERNA
UNIDADE INTERIOR
ΕΣΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
BINNEN-UNIT
SPLITTYPE
ROOM AIR CONDITIONER
ZWEITEILIGES
KLIMAGERÄT
CLIMATISEUR INDIVIDUEL
EN DEUX PARTIES
ACONDICIONADOR DE AIRE
DE DOBLE SERVICIO
CONDIZIONATORE D'ARIA
DA CAMERA TIPO SPLIT
AR CONDICIONADO
DE DUAS UNIDADES
ΑΙΡΚΟΝΤΙΣΙΟΝ ∆ΩΜΑΤΙΟΥ
ΤΥΠΟΥ SPLIT
SPLIT-AIRCONDITIONER
OPERATIONMANUAL
BEDIENUNGSANLEITUNG
NOTICED'UTILISATION
MANUAL DE INSTRUCCIONES
MANUALE DI ISTRUZIONE
MANUAL DE INSTRUÇÕES
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
GEBRUIKSAANWIJZING
OUTDOOR UNIT
AUSSENGERÄT
UNIT EXTERIEURE
UNIDAD EXTERIOR
UNITA' ESTERNA
UNIDADE EXTERIOR
ΕΞΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
BUITEN-UNIT
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
ΕΛΛΗΝΙΚΑ
NEDERLANDS
•Uses ozone layer friendly refridgerant R410A.
•Verwendet das die Ozonschicht schonende
Kühlmittel R410A.
•Utilise un réfrigérant qui n’attaque pas la couche
d’ozone, le R410A.
•Utiliza refrigerante R410A que no daña la capa de
ozono.
•Utilizza il refrigerante R410A che non danneggia
il buco nell’ozono.
•Usa refrigerante R410A amigo da camada de
ozono.
•Χρησιµοποιεί ψυκτικ R410A αβλαβές για το
στρώµα του ζοντος.
•Gebruikt de ozon-vriendelijke koelvloeistof
R410A.

ENGLISH
E-1
ENGLISH
Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.
• PRECAUTIONS ...........................................E-1
•ADDITIONAL NOTES ON OPERATION .....E-3
•TIPS ON SAVING ENERGY........................E-3
•PART NAMES..............................................E-4
•USING THE REMOTE CONTROL ..............E-6
• TIPS ABOUT PLASMACLUSTER OPERATION. E-7
•BASIC OPERATION ....................................E-8

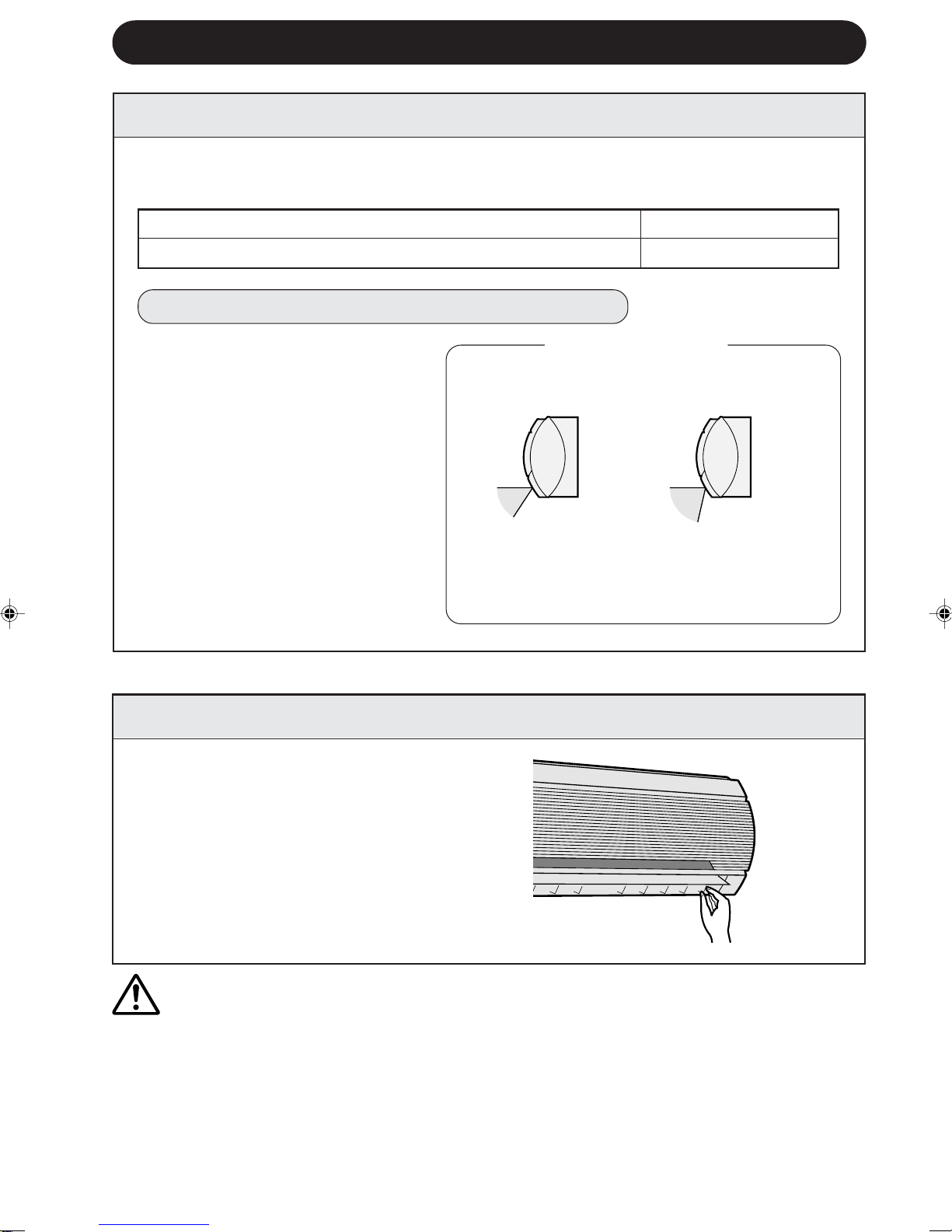

•ADJUSTING THE AIR FLOW DIRECTION .E-10
CONTENTS

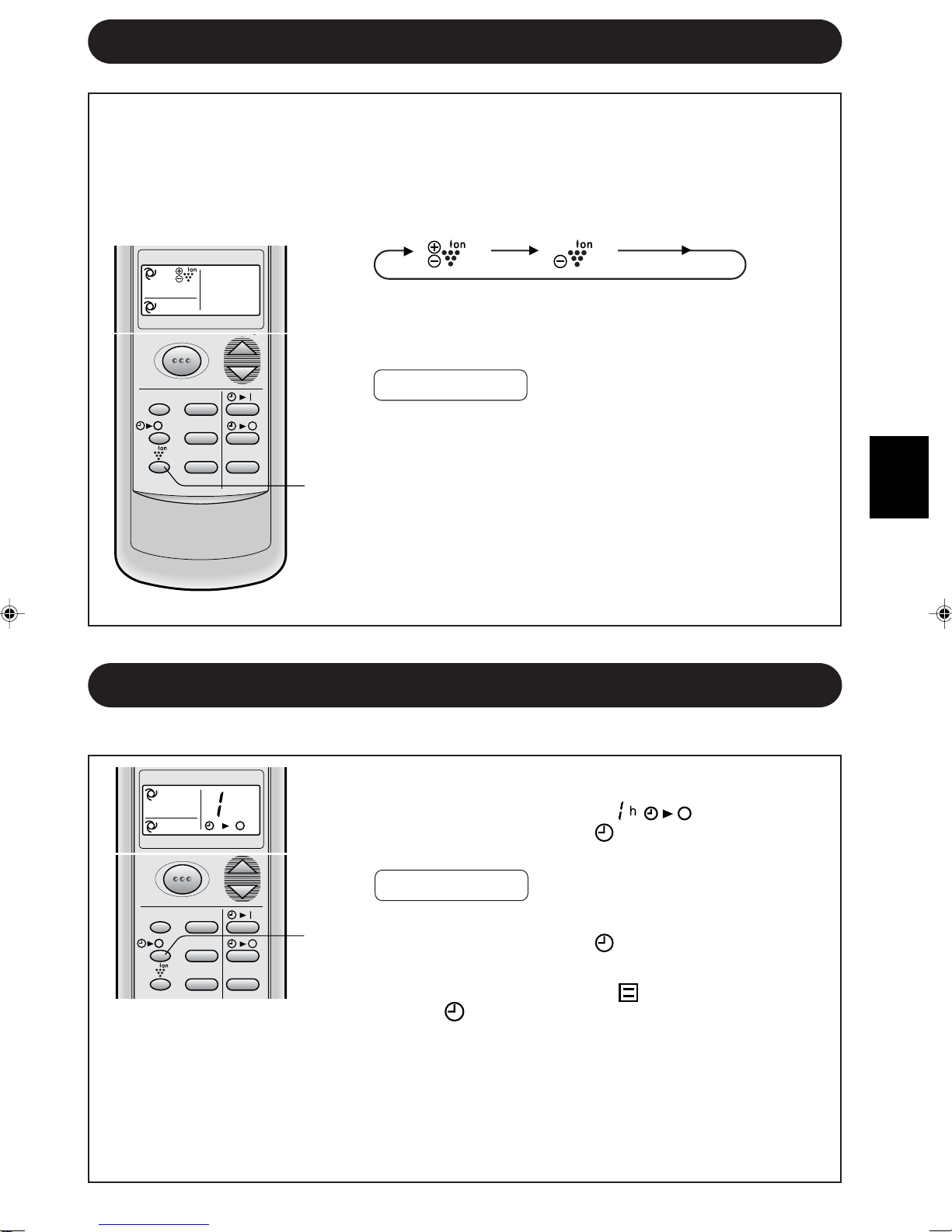

•PLASMACLUSTER OPERATION ...... E-11
•ONE-HOUR OFF TIMER .................... E-11

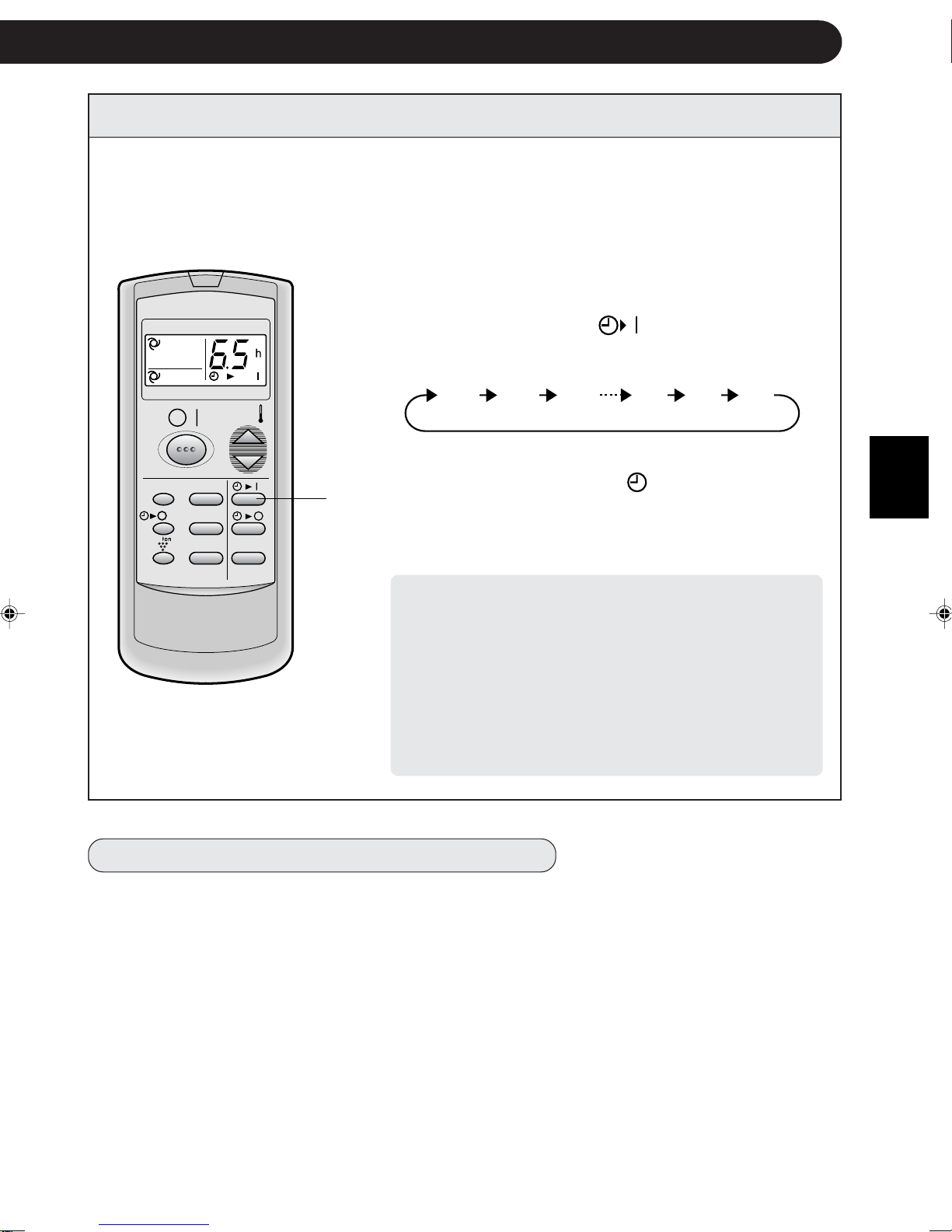

•TIMER OPERATION........................... E-12
•AUXILIARY MODE ............................. E-14

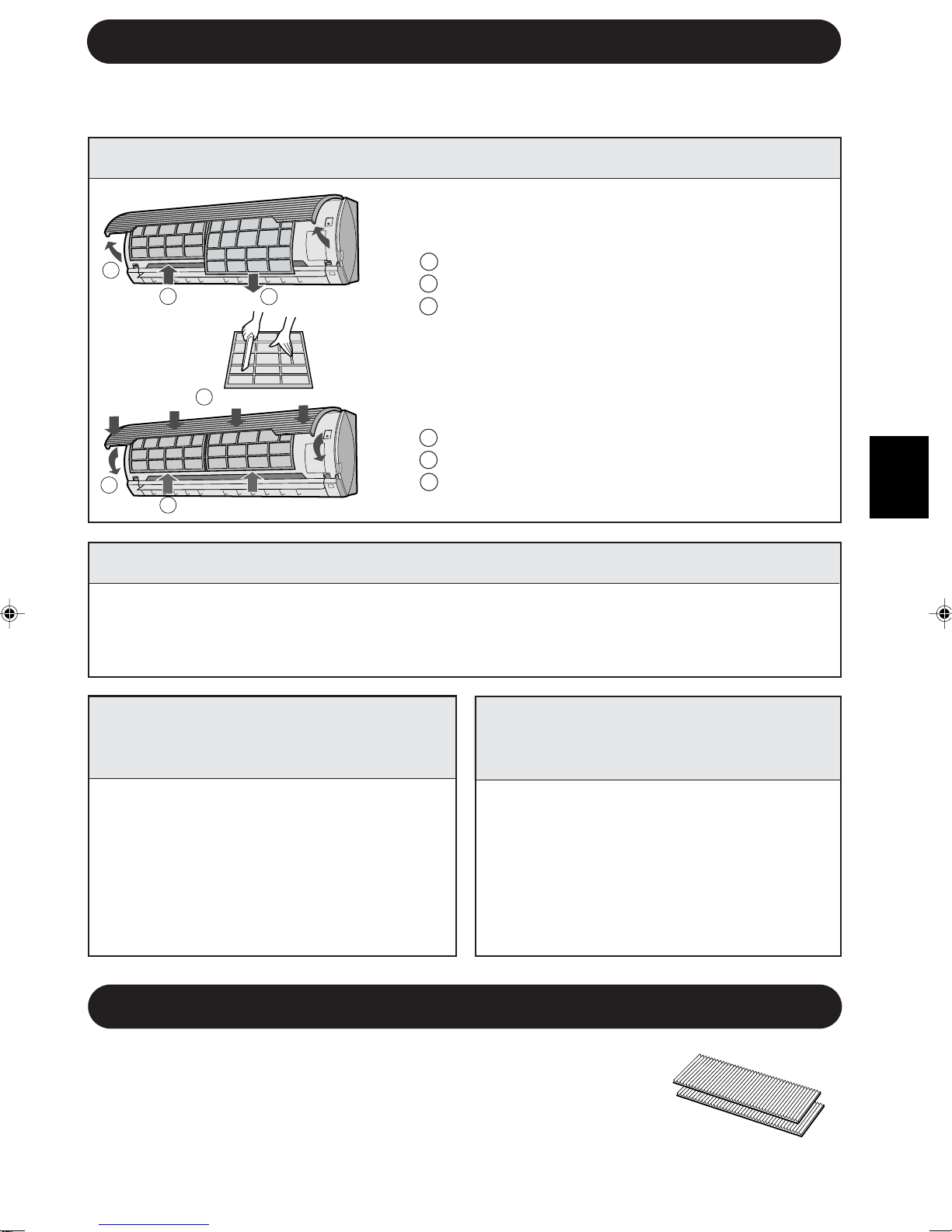

• MAINTENANCE .................................. E-14
•OPTION KIT........................................ E-15
•BEFORE CALLING FOR SERVICE ... E-16
PRECAUTIONS
WARNINGS FOR USE
1Donotpullordeformthepowersupplycord.Pullingandmisuseofthepowersupplycord
can result in damage to the unit and cause electrical shock.
2Be careful not to expose your body directly to the outlet air for a long time. It may affect
your physical conditions.
3Whenusingtheairconditionerforinfants,children,elderly,bedridden,ordisabledpeople
make sure the room temperature is suitable for those in the room.
4Never insert objects into the unit. Inserting objects can result in injury due to the high
speed rotation of internal fans.
5Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,
waterpipe,lightning rodortelephonegroundingwire. Incomplete groundingmaycause
electric shock.
6If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation
immediately and turn the circuit breaker OFF.
7Follow local rules and regulations for power supply cord cabling. Improper cable
connection can cause the power supply cord, plug and the electrical outlet to overheat
and cause fire.
8Useonlythemanufacture-specifiedpowercordforreplacement.Replacementshouldbe
performed by a qualified technician or a service person.
WARNINGS FOR INSTALLATION / REMOVAL / REPAIR
•Donotattempttoinstall/remove/repair theunitbyyourself.Incorrectworkwill causeelectric
shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the
installation/removal/repair of the unit.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.

PRECAUTIONS
CAUTIONS FOR USE
1Open a window or door periodically to ventilate the room, especially when using gas
appliances. Insufficient ventilation may cause oxygen shortage.
2Do not operate the buttons with wet hand. It may cause electric shock.
3For safety, turn the circuit breaker off when not using the unit for an extended period of
time.
4Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly
in place.
5Do not put anything on the outdoor unit nor step on it. The object or the person may fall
down or drop, causing injury.
6This unit is designed for residential use. Do not use for other applications such as in a
kennel or greenhouse to raise animals or grow plants.
7Do not place a vessel with water on the unit. If water penetrates into the unit, electrical
insulations may deteriorate and cause electric shock.
8Do not block the air inlets nor outlets of the unit. It may cause insufficient performance
or troubles.
9Be sure to stop the operation and turn the circuit breaker off before performing any
maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10
Do not splash or pour water directly on the unit. Water can cause electrical shock or
equipment damage.
11
This appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
CAUTIONS FOR LOCATION / INSTALLATION
•Make sure to connect the air conditioner to power supply of the rated voltage and
frequency.
Use of a power supply with improper voltage and frequency can result in equipment
damage and possible fire.
•Do not install the unit in a place where inflammable gas may leak. It may cause fire.
Install the unit in a place with minimal dust, fumes and moisture in the air.
•Arrangethedrainhosetoensuresmoothdrainage. Insufficientdrainagemaycausewetting
of the room, furniture etc.
•Make sure a leak breaker or a circuit breaker is installed, depending on the installation
location, to avoid electrical shock.
E-2

ENGLISH
INDOOR TEMP. OUTDOOR TEMP.
COOLING upper limit 32˚C D.B. 43˚C D.B.
23˚C W.B. -
lower limit 21˚C D.B. 21˚C D.B.
15˚C W.B. -
HEATING upper limit 27˚C D.B. 24˚C D.B.
- 18˚C W.B.
lower limit 20˚C D.B. -8.5˚C D.B.
- -9.5˚C W.B.
ADDITIONAL NOTES ON OPERATION
OPERATING TEMPERATURE RANGE •The built-in protective
device may prevent the
unit from operating when
used out of this range.
•Condensation may form
on the air outlet if the
unit operates continu-
ously in the COOL or
DRY mode when humid-
ity is over 80 percent.
D.B. = Dry-bulb W.B. = Wet-bulb
NOTES FOR MODELS AY-AP18DR/AY-AP24DR
PREHEATING FUNCTION
In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent
cold air from blowing out of the unit.
DE-ICING FUNCTION
•When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer
provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop
operating.
•After de-icing is completed, the unit automatically resumes operation in the HEAT mode.
HEATING EFFICIENCY
•The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside
air temperature therefore greatly affects the heating efficiency.
•If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
•It takes time to warm up and heat the entire room because of the forced air circulation system.
TIPS ON SAVING ENERGY
Below are some simple ways to save energy when you use your air conditioner.
SET THE CORRECT TEMPERATURE
•Setting the thermostat 1°C higher than the desired temperature in the COOL mode (and 2°C lower in the
HEAT mode with models AY-AP18DR/AY-AP24DR) will save approximately 10 percent in power consump-
tion.
•Setting the temperature lower than necessary during cooling operation will result in increased power
consumption.
BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS
•Blocking direct sunlight during cooling operation will reduce power consumption.
•Close the windows and doors during cooling operation (and heating operation with models AY-AP18DR/AY-
AP24DR).
SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR
CIRCULATION
KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION
MAKE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN
EXTENDED PERIOD OF TIME
•The indoor unit still consumes a small amount of power when it is not operating.
WHEN POWER FAILURE OCCURS
This air conditioner has a memory function to store settings when a power failure occurs.
After power recovery, the unit will automatically re-start in the same settings which were active before the power
failure, except for timer settings.
If the timers were set before a power failure, they will need to be re-set after power recovery.
(AY-AP18DR/AY-
AP24DR only)
E-3

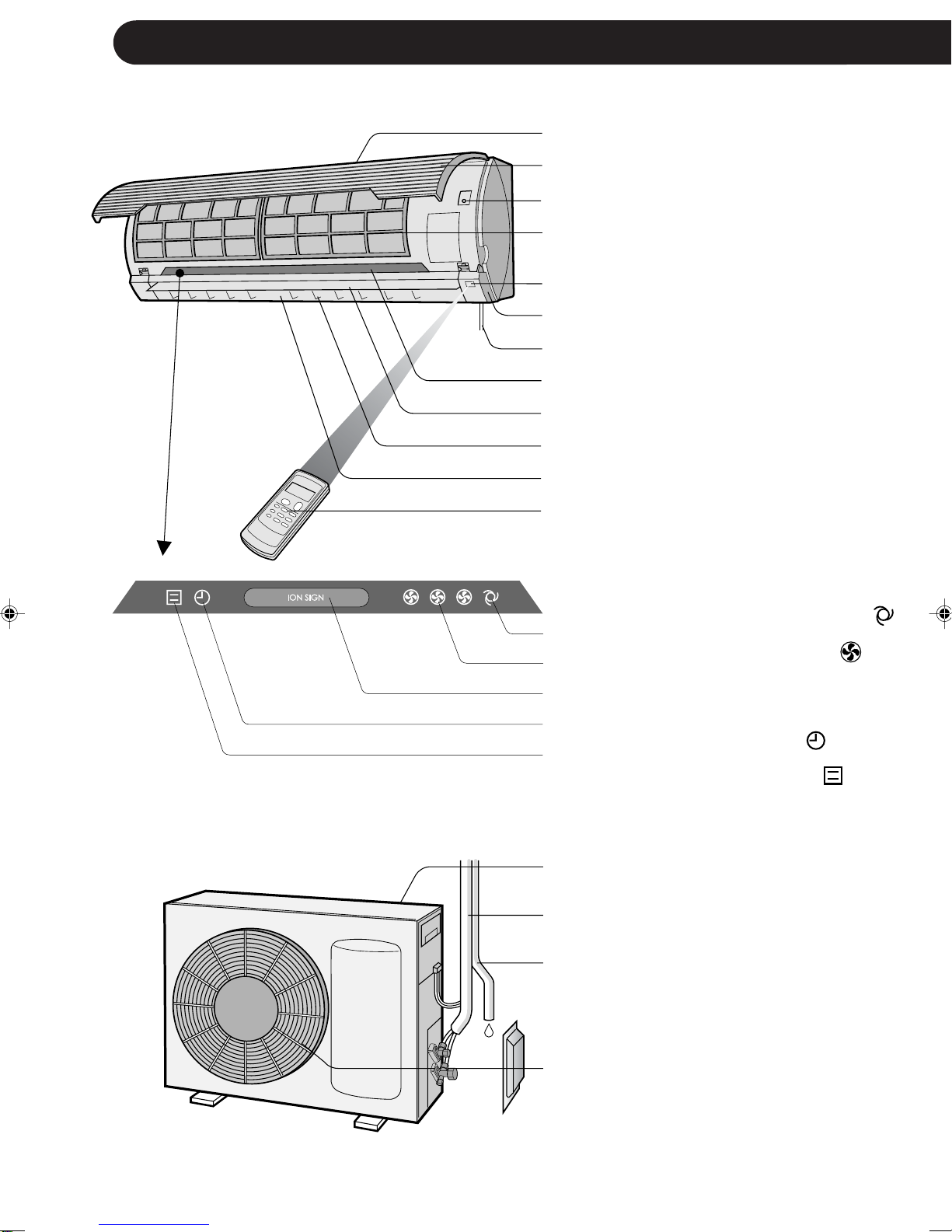

PART NAMES
1Inlet (Air)
2Open Panel
3AUX. Button
4Air Filters
5Receiver Window
6Louvre Unit
Open to clean the inside of the air
conditioner.
7Power Supply Cord
(AY-AP18DR/AH-AP18DR only)
8Indicator Panel
9Vertical Adjustment Louvres
0Horizontal Adjustment Louvres
qOutlet (Air)
wRemote Control
e AUTO FAN SPEED Lamp (green )
rFAN SPEED Lamp (green )
tPLASMACLUSTER Lamp
(blue, green)
yTIMER Lamp (orange )
uOPERATION Lamp (red )
OUTDOOR UNIT
NOTE: Actual units might vary slightly from those shown above.
INDOOR UNIT
1
2
3
4
5
6
7
8
9
0
q
w
iInlet (Air)
oRefrigerant Tube and
Interconnecting Cord
pDrainage Hose
aOutlet (Air)
E-4
e
r
t
y
u
i
o
p
a

ENGLISH
REMOTE CONTROL
1TRANSMITTER
2DISPLAY (Liquid Crystal Display)
3ON/OFF Button
4THERMO. (Thermostat) Button
5DISPLAY Button
6MODE Button
7TIMER ON Button (for setting the timer)
8ONE-HOUR OFF TIMER Button
9TIMER OFF Button (for setting the timer)
0FAN Button
qTIMER CANCEL Button
wSWING Button
ePLASMACLUSTER Button
(The heat mode symbol is provided
only on models AY-AP18DR/AY-AP24DR)
E-5
rMODE SYMBOLS
: AUTO : HEAT
(only for AY-AP18DR/AY-AP24DR)
: COOL : DRY : FAN ONLY
tFAN SPEED SYMBOLS
: AUTO : Manual setting
yPLASMACLUSTER SYMBOL
uTEMPERATURE AND TIMER COUNT DOWN
INDICATOR
iTRANSMITTING SYMBOL
oTIMER ON/TIMER OFF INDICATOR
Indicates when timer on or timer off is set.
L.C.D. REMOTE CONTROL DISPLAY
(The heat mode symbol is provided only on
models AY-AP18DR/AY-AP24DR)
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER

CAUTION
•Do not allow the signal receiver window to receive strong direct sunlight, since it can
adversely affect its operation. If the signal receiver window is exposed to direct sunlight,
close a curtain to block the light.
•Using a fluorescent lamp with a quick starter in the same room may interfere with
transmission of the signal.
•The unit can be affected by signals transmitted from the remote control of a television,
VCR or other equipment used in the same room.
•Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit
and remote control from moisture and shock which can discolour or damage them.
1Remove the battery cover at the back of
the remote control.
2Insert batteries in the compartment, mak-
ing sure the ±and —polarities are
correctly aligned.
•Lines will be indicated on the display
when batteries are properly installed.
3Reinstall the battery cover.
USING THE REMOTE CONTROL
E-6
NOTES:
•The battery life is approximately one year in normal use.
•When you replace the batteries, always change both batteries, and make sure
they are the same type.
•If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.
•If you will not be using the unit for a long time, remove the batteries from the
remote control.
Point the remote control towards the
unit’s signal receiver window and
press the desired button. The unit
generates a beep when it receives the
signal.
•Make sure there is no curtain or other
object between the remote control and
the unit.
•The remote control can send signals from
up to 7 metres away.
LOADING BATTERIES Use two size-AAA (R03) batteries.
HOW TO USE THE REMOTE CONTROL
Battery cover

ENGLISH
E-7
TIPS ABOUT PLASMACLUSTER OPERATION
AIR CLEAN OPERATION
Cluster ions released into the air will reduce airborne mold fungus.
ION BALANCE OPERATION
It is said that plenty of negative ions exist in places such as waterfalls or waterside in
natural environment. In this operation mode, negative ions will be released in an
increased rate, in order to bring the room air close to this condition.
Please refer to page 11 for operation.
The ionizer inside the air conditioner will release cluster ions, which are collective
mass of positive and negative ions, into the room.
The cluster ions reduce airborne mold fungus.
Ionizer
Cluster ions
Mold fungus

Press the THERMO. button to set the
desired temperature.
AUTO/DRY MODE
The temperature can
be changed in 1°C in-
crements within the
range of 2°C higher to
2°C lower from the tem-
perature automatically
determined by the air
conditioner.
COOL(HEAT for AY-AP18DR/AY-AP24DR)MODE
The temperature can
be set within the range
of 18 to 32°C.
FAN ONLY MODE
The temperature set-
ting cannot be made.
1
E-8
BASIC OPERATION
2Press the ON/OFF button to start op-
eration.
•The red OPERATION lamp ( ) on the
unit will light.
3
4
1
4
5
2
3
(HEAT is only for AY-AP18DR/AY-AP24DR)
Press the MODE button to select the
operation mode.
AUTO HEAT COOL DRY FAN ONLY
5
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER
Please the FAN button to set the de-
sired fan speed.
AUTO SOFT LOW HIGH
•In the DRY mode, the fan speed is pre-
set to AUTO and cannot be changed.
•In the FAN ONLY mode, the fan speed
cannot be set to AUTO.
To turn off the unit, press the ON/OFF
button again.
•The red OPERATION lamp ( ) on the
unit will turn off.

ENGLISH
E-9
Automatic Operation
Mode Thermostat Setting
Below 21°C HEAT 23°C
21°C-24°C DRY Room Temp. at start-up
24°C-26°C COOL 24°C
26°C-28°C COOL 25°C
Above 28°C COOL 26°C
Automatic Operation
Mode Thermostat Setting
Below 24°C DRY Room Temp. at start-up
24°C-26°C COOL 24°C
26°C-28°C COOL 25°C
Above 28°C COOL 26°C
TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature setting and mode are automatically
selected according to the room temperature when the unit is turned on.
Modes and Temperature Settings for Models AH-AP18DR/AH-AP24DR
Modes and Temperature Settings for Models AY-AP18DR/AY-AP24DR
Room temp. at opera-
tion start-up
Room temp. at opera-
tion start-up
TIPS ABOUT FAN SPEED LAMP
During operation, the FAN SPEED Lamp will light up in 3 levels (2 levels
for DRY mode) on the indicator panel of the unit to indicate the fan
speed.
When fan speed is set to AUTO When fan speed is set to manual
Soft speed
Low speed
High speed
The AUTO FAN SPEED Lamp
will light up.
To turn off the FAN SPEED Lamp, press
the DISPLAY button.
The PLASMACLUSTER Lamp will also go off.
DISPLAY MODE
FAN1h
SWING
CANCEL

COOL and DRY mode Horizontal air flow
FAN ONLY mode (and HEAT for AY-AP18DR/AY-AP24DR) Diagonal air flow
E-10
ADJUSTING THE AIR FLOW DIRECTION
VERTICAL AIR FLOW DIRECTION
The air flow direction is automatically preset in each mode as follows for optimum
comfort:
HOW TO ADJUST THE AIR FLOW DIRECTION
COOL and DRY mode FAN ONLY (and HEAT for
AY-AP18DR/AY-AP24DR)
mode
The adjustment range
is narrower the SWING
range in order to pre-
vent condensation from
dripping.
The range is wide so the
air flow can be directed
toward the floor.
Hold the horizontal adjustment
louvre as shown in the diagram
and adjust the air flow direction.
Press the SWING button on the
remote control once.
•The vertical adjustment louvre
will change its angle continu-
ously.
Press the SWING button again
when the vertical adjustment lou-
vre is at the desired position.
•The louvre will stop moving within
the range shown in the diagram.
•The adjusted position will be
memorized and will be automati-
cally set to the same position
when operated the next time.
Adjustment range
HORIZONTAL AIR FLOW DIRECTION
CAUTION
Never attempt to adjust the vertical adjustment louvres manually.
•Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction
when the remote control is used for the adjustment.
•When the vertical adjustment louvre is positioned at the lowest position in the COOL or
DRY mode for an extended period of time, condensation may result.
Do not adjust the horizontal adjustment louvre extremely to the right or left when operating
the air conditioner with fan speed "SOFT" for an extended period of time.
Condensation may form on the louvres.

ENGLISH
E-11
1Press the ONE-HOUR OFF TIMER button.
•The remote control displays “ ”.
•The orange TIMER lamp ( ) on the unit will light up.
•The unit will stop operating after one hour.
TO CANCEL
Press the CANCEL button.
•The orange TIMER lamp ( ) on the unit will turn off.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ) and the orange TIMER
lamp ( ) on the unit will turn off.
1
When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.
ONE-HOUR OFF TIMER
NOTES:
•The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF
operations.
•When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will
operate for an hour with the formerly set condition.
•If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER
activiates, press the ONE-HOUR OFF TIMER button again during operation.
PLASMACLUSTER OPERATION
1During operation, press the PLASMACLUSTER
button to select the mode.
AIR CLEAN ION BALANCE CANCEL
•In the AIR CLEAN operation, the blue
PLASMACLUSTER lamp on the unit will light up.
•In the ION BALANCE operation, the green
PLASMACLUSTER lamp on the unit will light up.
TO CANCEL
Press the PLASMACLUSTER button until
PLASMACLUSTER symbol on the remote control
display goes off.
•The PLASMACLUSTER lamp on the unit will turn off.
NOTE:
•Setting of the PLASMACLUSTER operation will be
memorized and will operate in the same mode, the
next time you turn on the air conditioner.
•To turn off the PLASMACLUSTER Lamp, press the
DISPLAY button.
1
MODE TEMP.
FAN TIMER
DISPLAY MODE
FAN1h
SWING
CANCEL
AIR CLEAN OPERATION : Cluster ions released into air will reduce airborne mold
fungus.
ION BALANCE OPERATION : Negative ions will be released in an increased rate.
MODE TEMP.
FAN TIMER
h
DISPLAY MODE
FAN1h
SWING
CANCEL

E-12
The unit will turn off automatically according to your setting.
Timer duration can be set from minimum 0.5 hours (30 minutes) to maximum 12
hours.
Up to 9.5 hours, you can set by 0.5 hours (30 minutes) increments and from 10 to 12
hours, by 1 hour increment.
TIMER OPERATION
TIMER OFF
WhentheTIMEROFFisset,thetemperature
setting is automatically adjusted to prevent
the room from becoming excessively hot or
toocoldwhileyousleep.(AutoSleepfunction)
1
COOL/DRY MODE:
•Onehourafterthetimeroperationbegins,the
temperature setting rises 1°C higher than the
original thermostat setting.
HEAT MODE:
(only for models AY-AP18DR/AY-AP24DR)
•Onehourafter the timeroperationbegins, the
temperature setting drops 3°C lower than the
original thermostat setting.
TIPS ABOUT TIMER OFF OPERATION
Point the remote control at the signal receiver win-
dow on the unit.
1Press the TIMER OFF ( ) button and set
time as desired.
•The time setting will change as you to press the
button as follows.
Hold the button pressed down for fast setting.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it receives the
signal.
•The time setting will count down to show remain-
ing time.
0.5h 1.0h 1.5h 10h 11h 12h
NOTE:
•TheAutoSleepfunctionwillnotactivateduring
the FAN ONLY mode.
TO CANCEL TIMER
Press the CANCEL button.
•The orange
TIMER lamp
( ) on the
unit will turn
off.
TO CHANGE TIMER SETTING
Press the TIMER button which you wish to
change, (TIMER OFF or TIMER ON) and
change the time setting.
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER
DISPLAY MODE
FAN1h
SWING
CANCEL
Example : When you wish to stop the operation
2.5 hours later.

ENGLISH
E-13
1
TIMER ON
NOTES FOR TIMER SETTING AND OPERATION
•The latest time setting will be memorized and will appear on the remote control display the next
time you set the TIMER OFF or TIMER ON.
•TIMER OFF and TIMER ON can not be set together.
The latest set TIMER will be active.
•When ONE-HOUR OFF TIMER is set, TIMER OFF and TIMER ON will not be available.
•When ONE-HOUR OFF TIMER is set during TIMER OFF or TIMER ON duration, the TIMER ON
or TIMER OFF will be cancelled.
Example : When you wish the
room temperature
to be as desired
6.5 hours later.
MODE
DISPLAY MODE
FAN1h
SWING
CANCEL
TEMP.
TEMP.
FAN TIMER
The unit will turn on automatically according to your setting.
Timer duration can be set from minimum 0.5 hours (30 minutes) to maximum 12
hours.
Up to 9.5 hours, you can set by 0.5 hours (30 minutes) increments and from 10 to 12
hours, by 1 hour increment.
Point the remote control at the signal receiver win-
dow on the unit.
1Press the TIMER ON ( ) button.
•The time setting will change as you press the button
as follows.
Hold the button pressed down for fast setting.
•The orange TIMER lamp ( ) on the unit will light.
•The unit will generate a beep when it receives the
signal.
•The time setting will count down to show remaining
time.
Select the mode, temperature, fan speed setting
and PLASMACLUSTER operation as desired.
•When the temperature is set with the TIMER ON,
the temperature will show in the display for 5 sec-
onds and then return to the time display.
•If you do not change the setting, the unit will oper-
ate with the latest setting.
•The unit will turn on prior to the set time to allow
the room to reach the desired temperature by the
programmed time. (Awaking function)
0.5h 1.0h 1.5h 10h 11h 12h

MAINTENANCE
AUXILIARY MODE
Use this mode when the remote control is not available.
TO TURN ON
Lift the front panel of the indoor unit and press the AUX.
button on the operation panel.
•The red OPERATION lamp ( ) on the unit will light and
the unit will start operating in the AUTO mode.
•The fan speed and temperature setting are set to AUTO.
TO TURN OFF
Press the AUX. button on the operation panel again.
•The red OPERATION lamp ( ) on the unit will turn off.
NOTE:
If the AUX. button is pressed during normal operation, the unit will turn off.
E-14
CLEANING THE INTERIOR OF AIR CONDITIONER UNIT
1Be sure to disconnect the power cord from the
wall outlet or turn off the circuit breaker.
2OPEN THE LOUVRE UNIT
1Lift the open panel.
2Push down both hooks at the left and right, and
release the lock.
3Pull out the louvre unit forward.
4Let it open downward gently.
3CLEAN THE INTERIOR OF THE AIR CONDI-
TIONER UNIT
Make sure the fan inside is not rotating.
Remove the dust using a vacuum cleaner or
wipe with dry cloth.
4CLOSE THE LOUVRE UNIT
1Lift up the louvre unit and slide it back into its
position.
2Make sure both hooks at the left and right are
locked in place and the three supports are firmly fit.
3Close the open panel.
4
1
2
3
5Connect the power cord to the wall outlet or turn on the circuit breaker.
6Make sure the all lamps on the indicator panel are not blinking.
If the louvre unit is not reinstalled properly, the safety equipment will work and the
lamps will blink, preventing the unit from operating. In such case, reinstall the
louvre unit properly. Push the ON/OFF button of the remote control and check if
the unit operates properly.
Supports

ENGLISH
E-15
CLEANING THE UNIT AND THE REMOTE CONTROL
•Wipe them with a soft cloth.
•Do not directly splash or pour water on them. We can cause electrical shock or equipment
damage.
•Do not use hot water, thinner, abrasive powders or strong solvents.
CLEANING THE FILTERS
MAINTENANCE AFTER
AIR CONDITIONER
SEASON
1Operate the unit in the FAN ONLY
mode for about half a day to allow the
mechanism to thoroughly dry.
2Stop the operation and unplug the
unit. Turn off the circuit breaker, if you
have one exclusively for the air condi-
tioner.
3Clean the filters, then reinstall them.
1Make sure that the air filters are
not dirty.
2Make sure that nothing obstructs
the air inlet or outlet.
3Check the outdoor mounting rack
periodically for wear and to make
sure it is firmly in place.
MAINTENANCE
OPTION KIT
Air Purifying Filter
Duringoperationoftheairconditioner,theairpurifyingfilterremovesdustand
tobacco smoke from the air and discharges clean air.
The apatite antibacterial material used in the air purifying filter suppresses
activities of adsorbed viruses and other germs.
Thereplacementperiodforthedisposabletypeisapproximately3~6months.
Contact your dealer for the purchase of this option. Type AZ-F1800C
1
23
2
3
1
The air filters should be cleaned every two weeks.
1TURN OFF THE UNIT
2REMOVE THE FILTERS
1Lift the open panel.
2Push the air filters up slightly to unlock them.
3Pull the air filters down to remove them.
3CLEAN THE FILTERS
Use a vacuum cleaner to remove dust. If the filters
are dirty, wash them with warm water and a mild
detergent. Dry filters in the shade before reinstalling.
4REINSTALL THE FILTERS
1Reinstall the filters in the original positions.
2Close the open panel.
3Push the arrow-marked of the panel firmly to lock
it in place.
MAINTENANCE BEFORE
AIR CONDITIONER
SEASON
Be sure to disconnect the power cord from the wall outlet or turn off the circuit
breaker before performing any maintenance.

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote
control batteries have be-
come old and weak.
Try to send the signal again
with the remote control
pointed properly towards the
unit’s signal receiver window.
Check whether the remote
control batteries are in-
stalled with the polarities
properly aligned.
E-16
BEFORE CALLING FOR SERVICE
The following conditions do not denote equipment malfunctions
UNIT DOES NOT OPERATE
The unit will not operate if it is turned on
immediately after it is turned off. The unit will not
operate immediately after the mode is changed.
This is to protect the internal mechanisms. Wait 3
minutes before operating the unit.
UNIT DOES NOT SEND OUT WARM AIR
(Models AY-AP18DR/AY-AP24DR)
The unit is preheating or de-icing.
CRACKING NOISE
Theunitmayproduceacrackingnoise.Thissound
is generated by the friction of the front panel and
other components expanding or connecting due to
a temperature change.
If the unit appears to be malfunctioning, check the following points before calling
for service.
IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty,
clean them. Check the outdoor unit to
make sure nothing is blocking
the air inlet or outlet.
Check the thermostat is
proper setting.
Make sure windows and
doors are closed tightly. A large number of people in
the room can prevent the unit
from achieving the desired
temperature.
Check whether any heat-
generating appliances are
operating in the room.
ODORS
Carpet and furniture odors that entered into the
unit and the air conditioner's inner component
odors at the early stage of installation may be
sent out from the unit.
SWISHING NOISE
The soft, swishing noise is the sound of
the refrigerant flowing inside the unit.
WATER VAPOUR
•In the COOL and DRY operation, wa-
ter vapour can sometimes be seen at
the air outlet due to the difference
between the room air temperature and
the air discharged by the unit.
•In the HEAT operation, water vapour
may flow out of the outdoor unit dur-
ing de-icing. (Only in models AY-
AP18DR/AY-AP24DR)
Please call for service when OPERATION Lamp and TIMER Lamp on the indicator panel blink.
ODOR EMITTED FROM THE
PLASMACLASTER AIR OUTLET
This is the smell of ozone generated
from the ionizer. Density of the ozone is
very little, having no adverse effect over
your health. The ozone released into
the air will decompose soon, and its den-
sity in the room will not increase.
IF THE UNIT FAILS TO OPERATE
•Check to see if the circuit breaker has tripped or the fuse has blown.
•Check if the louvre unit is properly installed. All lamps on the indicator panel will blink when
the louvre unit is not properly installed.
A LOW BUZZ NOISE EMITTED
This is a sound emitted when the unit is generating
ion clusters.

DEUTSCH
•VORSICHTSMASSNAHMEN ......................D-1
•ZUSÄTZLICHE ANMERKUNGEN
ZUM BETRIEB.............................................D-3
• ENERGIESPARTIPPS.................................D-3
•TEILEBEZEICHNUNG.................................D-4
•VERWENDUNG DER FERNBEDIENUNG..D-6
•TIPPS ZUM PLASMACLUSTER-
BETRIEB......................................................D-7
•GRUNDLAGEN DES BETRIEBS ................D-8
•EINSTELLUNG DER RICHTUNG DES
LUFTSTROMS.............................................D-10
D-1
DEUTSCH
Vielen Dank für den Kauf dieses SHARP-Erzeugnisses. Bitte lesen Sie sich diese
Bedienungsanleitung sorgfältig durch, bevor Sie das Klimagerät betreiben.
INHALT
•PLASMACLUSTER-BETRIEB ............ D-11
• EIN-STUNDEN-AUSSCHALT-
ZEITSCHALTER ................................. D-11
•BETRIEB MIT DEM ZEITSCHALTER ... D-12
• HILFSBETRIEB .................................. D-14
•WARTUNG ......................................... D-14
• WAHLAUSSTATTUNG ....................... D-15
•BEVOR SIE DEN
KUNDENDIENST RUFEN .................. D-16
VORSICHTSMASSNAHMEN
WARNHINWEISE
1Ziehen Sie nicht am Netzkabel und deformieren Sie es nicht. Das Ziehen am Netzkabel
sowie dessen Missbrauch kann zu einer Beschädigung des Gerätes führen und einen
elektrischen Schlag verursachen.
2Zur Vermeidung von Gesundheitsschäden sollten Sie Ihren Körper nicht über einen
längeren Zeitraum hinweg dem kalten Luftstrom aussetzen.
3Bei der Benutzung des Klimageräts für Säuglinge, Kinder, ältere, bettlägerige oder
behinderte Personen ist unbedingt sicherzustellen, dass die Raumtemperatur für die
sich im Raum befindlichen Personen angemessen ist.
4Stecken Sie keinerlei Gegenstände in das Gerät hinein. Dies könnte aufgrund der
Hochgeschwindigkeitslüfter Verletzungen verursachen.
5Das Klimagerät muss auf jeden Fall geerdet werden. Schließen Sie den Erdungsdraht
nichtanGas-oderWasserleitungen,anBlitzableiternoderTelefonerdkabelnan,dadies
einen elektrischen Schlag verursachen könnte.
6WennmitdemKlimagerätirgendwelcheUnregelmäßigkeitenauftreten(z.B.Brandgeruch),
muss der Betrieb sofort beendet und der Leistungsschalter auf AUS gestellt werden.
7Halten Sie sich bei der Verlegung des Netzkabels an die örtlichen Vorschriften und
Bestimmungen. Ein falscher Kabelanschluss kann eine Überhitzung des Netzkabels,
des Netzsteckers oder der Steckdose und damit einen Brand verursachen.
8Tauschen Sie das Netzkabel ausschließlich gegen den vom Hersteller angegebenen
Netzkabeltyp aus. Der Austausch sollte ausschließlich einem qualifizierten Techniker
oder dem Kundendienst vorbehalten bleiben.
SICHERHEITSHINWEISE ZUR INSTALLATION /
ZUM AUSBAU / ZUR REPARATUR
•VersuchenSie nicht,das Gerätselbst zuinstallieren/auszubauen/zu reparieren.Fehlerhaft
durchgeführte Arbeiten können einen elektrischen Schlag, eine Wasserleckage, einen
Brand usw. verursachen. Konsultieren Sie für die Installation/den Ausbau/die Reparatur
dieses Gerätes Ihren Fachhändler oder einen anderen qualifizierten Kundendienst.
DiesesGeräterfülltdieVorschriftender EG-Richtlinien89/336/EECund73/23/EECin
der geänderten Fassung 93/68/EEC.

VORSICHTSMASSNAHMEN
SICHERHEITSHINWEISE ZUM BETRIEB
1Öffnen Sie regelmäßig ein Fenster oder eine Tür, um den Raum zu lüften, besonders
dann, wenn Sie mit Gas betriebene Geräte benutzen. Eine unzureichende Belüftung
kann einen Sauerstoffmangel verursachen.
2Die Tasten nicht mit nassen Händen bedienen. Dies könnte einen elektrischen Schlag
verursachen.
3Aus Sicherheitsgründen sollte der Leistungsschalter ausgeschaltet sein, wenn das
Gerät für einen längeren Zeitraum nicht benutzt wird.
4Überprüfen Sie den Montagerahmen regelmäßig auf Verschleiß und richtigen, festen
Sitz.
5Legen Sie keinerlei Gegenstände auf das Außengerät, und betreten Sie es nicht. Der
Gegenstand oder die Person könnten in das Gerät hinein- bzw. hinunterfallen; dadurch
könnten Beschädigungen bzw. Verletzungen verursacht werden.
6Dieses Gerät wurde ausschließlich für den Hausgebrauch hergestellt und darf nicht für
EinrichtungenwiezumBeispieleineHundehütte odereinGewächshaus, umTiereoder
Pflanzen aufzuziehen, verwendet werden.
7Stellen Sie keinen mit Wasser gefüllten Behälter auf das Gerät. Beim Eintreten von
Wasserin dasGerät könntendieelektrischenIsolierungenSchaden nehmenund einen
elektrischen Schlag verursachen.
8Blockieren Sie weder die Lufteinlass- noch Luftauslassöffnungen des Gerätes. Dies
könnte einen erheblichen Leistungsabfall des Gerätes sowie Störungen zur Folge
haben.
9Vor der Durchführung von Wartungs- oder Reinigungsarbeiten muss in jedem Fall der
Betrieb gestoppt und der Leistungsschalter ausgeschaltet werden. Da im Inneren des
Gerätes ein Lüfter läuft, könnten Sie sich ansonsten Verletzungen zuziehen.
10
Verspritzen bzw. verschütten Sie kein Wasser direkt über dem Gerät. Wasser kann
sowohleinenelektrischenSchlagalsaucheineBeschädigungdesGerätesverursachen.
11
DiesesGerätistnichtfürdieunbeaufsichtigteBenutzungdurchKleinkinderoderhilflose
Personenausgelegt.
Kleinkinder sollten beaufsichtigt werden, um auszuschließen, dass sie dieses Gerät als
Spielzeug benutzen.
VORSICHTSMASSNAHMEN ZUR AUFSTELLUNG /
INSTALLATION
•Schließen Sie die Klimaanlage unbedingt an ein Netz mit der angegebenen Spannung
und Frequenz an.
Der Anschluss an ein Netz mit der falschen Voltzahl und Frequenz kann zu einer
Beschädigung des Gerätes führen und möglicherweise sogar einen Brand verursachen.
•Installieren Sie das Gerät nicht an einem Ort, an dem möglicherweise Gas ausströmt.
Dies könnte einen Brand verursachen.
Installieren Sie das Gerät an einem Ort, an dem in der Luft nur geringe Mengen an Staub,
Rauch und Feuchtigkeit vorhanden sind.
•Verlegen Sie den Ablaufschlauch gerade, um einen sanften Ablauf sicherzustellen. Ein
unzureichenderAblaufkann denRaum,dieMöbeletc.feuchtwerdenlassen.
•Stellen Sie abhängig vom Aufstellungsort sicher, dass ein Kriechstromschutz oder
Leistungsschalter installiert ist, um einen elektrischen Schlag zu vermeiden.
D-2
