Sharp AH-X08CR User manual

AY-X08CR
AY-X10CR
AY-X13CR
AH-X08CR
AH-X10CR
AH-X13CR
AY-X08CR
AY-X10CR
AY-X13CR
AH-X08CR
AH-X10CR
AH-X13CR
AE-X08CR
AE-X10CR
AE-X13CR
AU-X08CR
AU-X10CR
AU-X13CR
R
INDOOR UNIT
ZIMMERGERÄT
UNIT INTERIEURE
UNIDAD INTERIOR
UNITA' INTERNA
UNIDADE INTERIOR
ΕΣΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
BINNEN-UNIT
SPLIT TYPE
ROOM AIR CONDITIONER
ZWEITEILIGES
KLIMAGERÄT
CLIMATISEUR INDIVIDUEL
EN DEUX PARTIES
ACONDICIONADOR DE AIRE
DE DOBLE SERVICIO
CONDIZIONATORE D'ARIA
DA CAMERA TIPO SPLIT
AR CONDICIONADO
DE DUAS UNIDADES
ΑΙΡΚΟΝΤΙΣΙΟΝ ∆ΩΜΑΤΙΟΥ
ΤΥΠΟΥ SPLIT
SPLIT-AIRCONDITIONER
OPERATION MANUAL
BEDIENUNGSANLEITUNG
NOTICE D'UTILISATION
MANUAL DE INSTRUCCIONES
MANUALE DI ISTRUZIONE
MANUAL DE INSTRUÇÕES
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
GEBRUIKSAANWIJZING
OUTDOOR UNIT
AUSSENGERÄT
UNIT EXTERIEURE
UNIDAD EXTERIOR
UNITA' ESTERNA
UNIDADE EXTERIOR
ΕΞΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
BUITEN-UNIT
ENGLISH
DEUTSCH
FRANÇAIS
ESPAÑOL
ITALIANO
PORTUGUÊS
ΕΛΛΗΝΙΚΑ
NEDERLANDS
Air Conditioner
• Uses ozone layer friendly refrigerant R-410A.
•Verwendet das die Ozonschicht schonende
Kühlmittel R-410A.
•Utilise un réfrigérant qui n’attaque pas la couche
d’ozone, le R-410A.
•Utiliza refrigerante R-410A que no daña la capa de
ozono.
•Utilizza il refrigerante R –410A che non danneggia
il buco nell’ozono.
•Usa refrigerante R-410A amigo da camada de
ozono.
•Χρησιµοποιεί ψυκτικ R 410A αβλαβές για το
στρώµα του ζοντος.
•Gebruikt de ozon-vriendelijke koelvloeistof R-410A.

ENGLISH
E-1
ENGLISH
Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.
• PRECAUTIONS ...........................................E-1
• ADDITIONAL NOTES ON OPERATION .....E-3
• TIPS ON SAVING ENERGY........................E-3
• PART NAMES..............................................E-4
• USING THE REMOTE CONTROL ..............E-6
• BASIC OPERATION ....................................E-8
• ADJUSTING THE AIR FLOW DIRECTION .E-10
• FULL POWER OPERATION .......................E-11
CONTENTS
• ONE-HOUR OFF TIMER .................... E-11
• TIMER OPERATION........................... E-12
• AUXILIARY MODE ............................. E-14
• POWER SELECTOR .......................... E-14
• OPTION KIT........................................ E-14
• MAINTENANCE .................................. E-15
• BEFORE CALLING FOR SERVICE ... E-16
PRECAUTIONS
WARNINGS FOR USE
1Donotpullordeformthepowersupplycord.Pullingandmisuseofthepowersupplycord
can result in damage to the unit and cause electrical shock.
2Be careful not to expose your body directly to the outlet air for a long time. It may affect
your physical conditions.
3Whenusingtheairconditionerforinfants,children,elderly,bedridden,ordisabledpeople
make sure the room temperature is suitable for those in the room.
4Never insert objects into the unit. Inserting objects can result in injury due to the high
speed rotation of internal fans.
5Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,
waterpipe,lightningrodortelephonegroundingwire. Incompletegroundingmaycause
electric shock.
6If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation
immediately and turn the circuit breaker OFF.
7Follow local rules and regulations for power supply cord cabling. Improper cable
connection can cause the power supply cord, plug and the electrical outlet to overheat
and cause fire.
8Useonlythemanufacture-specifiedpowercordforreplacement.Replacementshouldbe
performed by a qualified technician or a service person.
WARNINGS FOR INSTALLATION / REMOVAL / REPAIR
• Donotattempttoinstall/remove/repairtheunitbyyourself.Incorrectworkwillcauseelectric
shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the
installation/removal/repair of the unit.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.

PRECAUTIONS
CAUTIONS FOR USE
1Open a window or door periodically to ventilate the room, especially when using gas
appliances. Insufficient ventilation may cause oxygen shortage.
2Do not operate the buttons with wet hand. It may cause electric shock.
3For safety, turn the circuit breaker off when not using the unit for an extended period of
time.
4Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly
in place.
5Do not put anything on the outdoor unit nor step on it. The object or the person may fall
down or drop, causing injury.
6This unit is designed for residential use. Do not use for other applications such as in a
kennel or greenhouse to raise animals or grow plants.
7Do not place a vessel with water on the unit. If water penetrates into the unit, electrical
insulations may deteriorate and cause electric shock.
8Do not block the air inlets nor outlets of the unit. It may cause insufficient performance
or troubles.
9Be sure to stop the operation and turn the circuit breaker off before performing any
maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
10
Do not splash or pour water directly on the unit. Water can cause electrical shock or
equipment damage.
11
This appliance is not intended for use by young children or infirm persons without
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
CAUTIONS FOR LOCATION / INSTALLATION
• Make sure to connect the air conditioner to power supply of the rated voltage and
frequency.
Use of a power supply with improper voltage and frequency can result in equipment
damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire.
Install the unit in a place with minimal dust, fumes and moisture in the air.
• Arrangethedrainhosetoensuresmoothdrainage. Insufficientdrainagemaycausewetting
of the room, furniture etc.
• Make sure a leak breaker or a circuit breaker is installed, depending on the installation
location, to avoid electrical shock.
E-2

ENGLISH
INDOOR TEMP. OUTDOOR TEMP.
COOLING upper limit 32˚C D.B. 43˚C D.B.
23˚C W.B. -
lower limit 21˚C D.B. 21˚C D.B.
15˚C W.B. -
HEATING upper limit 27˚C D.B. 24˚C D.B.
- 18˚C W.B.
lower limit 20˚C D.B. -8.5˚C D.B.
- -9.5˚C W.B.
ADDITIONAL NOTES ON OPERATION
OPERATING TEMPERATURE RANGE
• The built-in protective de-
vice may prevent the unit
from operating when used
out of this range.
• Condensation may form on
the air outlet if the unit op-
erates continuously in the
COOL or DRY mode when
humidity is over 80 percent.
D.B. = Dry-bulb W.B. = Wet-bulb
NOTES FOR MODELS AY-X08CR/AY-X10CR/AY-X13CR
PREHEATING FUNCTION
In the HEAT operation, the indoor fan may not start for two to five minutes after the unit is turned on to prevent
cold air from blowing out of the unit.
DE-ICING FUNCTION
• When ice forms on the heat exchanger in the outdoor unit during the HEAT operation, an automatic de-icer
provides heat for about 5 to 10 minutes to remove the ice. During de-icing, the inside and outside fans stop
operating.
• After de-icing is completed, the unit automatically resumes operation in the HEAT mode.
HEATING EFFICIENCY
• The unit employs a heat pump that draws heat from the outside air and releases it into the room. The outside
air temperature therefore greatly affects the heating efficiency.
• If the heating efficiency is reduced due to low outside temperatures, use an additional heater.
• It takes time to warm up and heat the entire room because of the forced air circulation system.
TIPS ON SAVING ENERGY

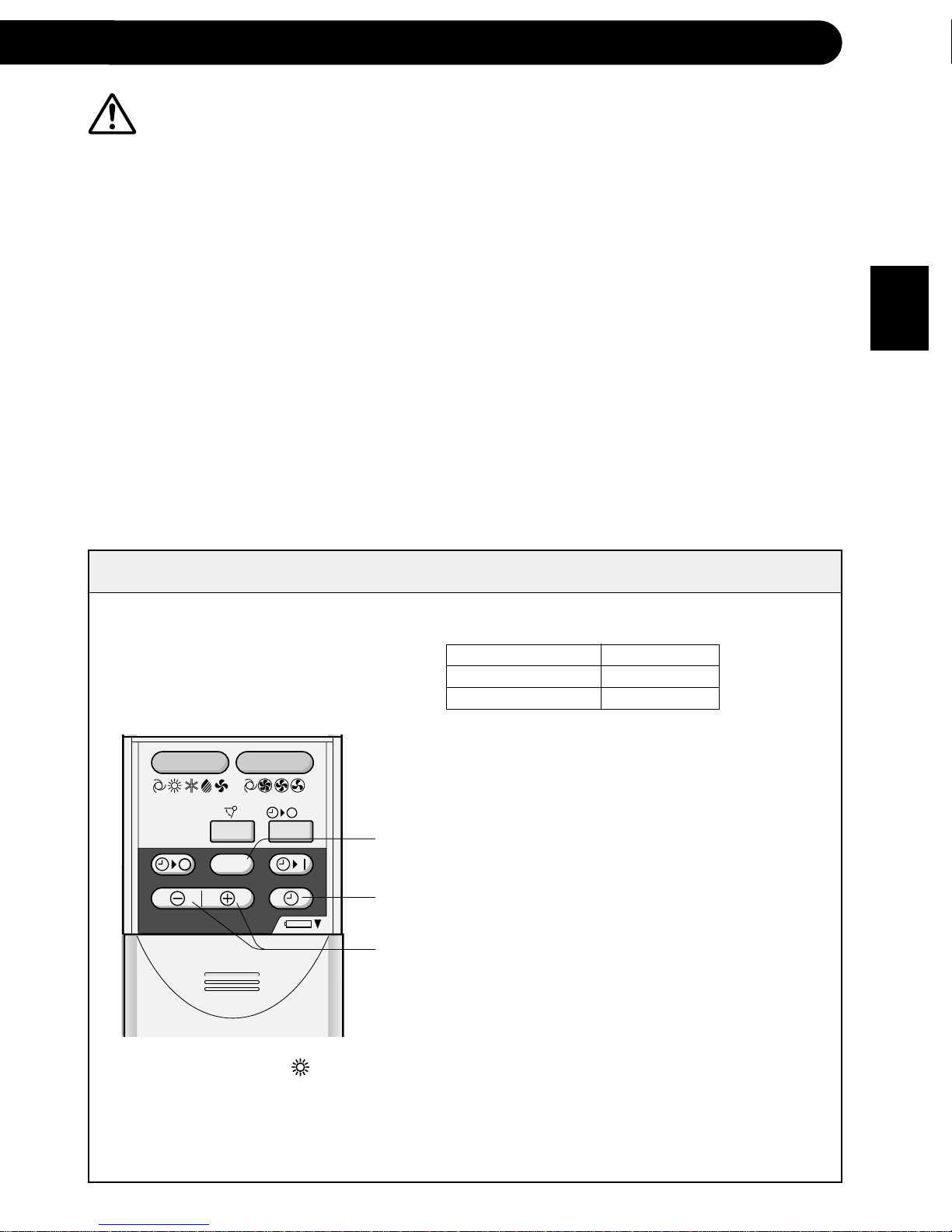

Below are some simple ways to save energy when you use your air conditioner.
SET THE CORRECT TEMPERATURE
• Setting the thermostat 1°C higher than the desired temperature in the COOL mode (and 2°C lower in the
HEAT mode with models AY-X08CR/AY-X10CR/AY-X13CR) will save approximately 10 percent in power
consumption.
• Setting the temperature lower than necessary during cooling operation will result in increased power
consumption.
BLOCK DIRECT SUNLIGHT AND PREVENT DRAFTS
• Blocking direct sunlight during cooling operation will reduce power consumption.
• Close the windows and doors during cooling opeation (and heating operation with models AY-X08CR/AY-
X10CR/AY-X13CR).
SET PROPER AIR FLOW DIRECTION TO OBTAIN THE BEST AIR
CIRCULATION
KEEP FILTER CLEAN TO ENSURE THE MOST EFFICIENT OPERATION
MAKE MOST OF THE TIMER OFF FUNCTION
DISCONNECT THE POWER CORD WHEN THE UNIT IS NOT USED FOR AN
EXTENDED PERIOD OF TIME
• The indoor unit still consumes a small amount of power when it is not operating.
WHEN POWER FAILURE OCCURS
This air conditioner has a memory function to store settings when a power failure occurs.
After power recovery, the unit will automatically re-start in the same settings which were active before the power
failure, except for timer settings.
If the timers were set before a power failure, they will need to be re-set after power recovery.
(AY-X08CR/AY-X10CR/
AY-X13CR only)
E-3

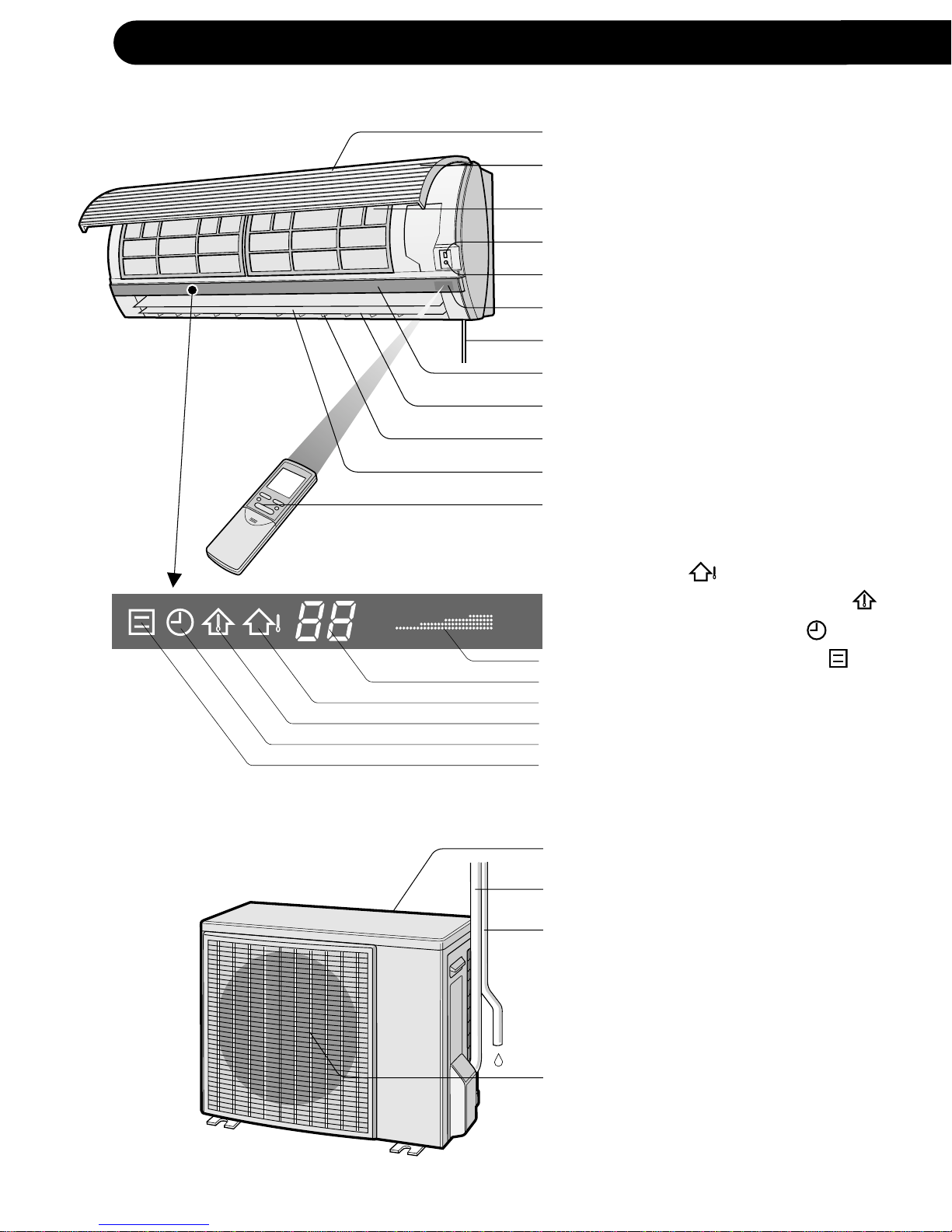

PART NAMES
1Inlet (Air)
2Open Panel
3Air Filters
4POWER SELECTOR SWITCH
(only for AY-X13CR/AH-X13CR)
5AUX. Button
6RECEIVER Window
7Power Supply Cord
8Indicator Panel
9Vertical Adjustment Louvres
0Horizontal Adjustment Louvres
qOutlet (Air)
wRemote Control
ePOWER MONITOR
rTEMPERATURE INDICATOR
tOUTDOOR Temp. Lamp
(green )
yROOM Temp. Lamp (green )
uTIMER Lamp (orange )
iOPERATION Lamp (red )
OUTDOOR UNIT
NOTE: Actual units might vary slightly from those shown above.
INDOOR UNIT
1
2
3
4
5
6
7
8
9
0
q
w
oInlet(Air)
pRefrigerant Tube and
Interconnecting Cord
aDrainage Hose
sOutlet(Air)
E-4
e
r
t
y
u
i
o
p
a
s
ECO POWER

ENGLISH
REMOTE CONTROL
1TRANSMITTER
2DISPLAY (Liquid Crystal Display)
3THERMO. (Thermostat) Button
4FULL POWER OPERATION Button
5DISPLAY Button
6ON/OFF Button
7MODE Button
8FAN Button
9TIMER OFF Button (for setting the timer)
0SWING Button
qONE-HOUR OFF TIMER Button
wTIMER SET/CANCEL Button
eTIMER ON Button (for setting the timer)
rTIME ADVANCE Button
tCLOCK Button
yIndicates BATTERY COMPARTMENT is
below this mark
uTIME REVERSE Button
gTIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or
current time.
hTIMER OFF INDICATOR
Indicates the preset time for off timer or
one-hour off timer.
C
AM
PM
AM
PM
(The heat mode symbol
is provided only on models
AY-X08CR/AY-X10CR/AY-
X13CR)
E-5
iTHERMOSTAT SETTING FOR AUTO AND DRY
MODES
oTEMPERATURE SYMBOL
pTRANSMITTING SYMBOL
aMODE SYMBOLS
: AUTO : DRY
: HEAT : FAN ONLY
(only for AY-X08CR/
AY-X10CR/AY-X13CR)
: COOL
sTEMPERATURE INDICATOR
dFULL POWER OPERATION MODE SYMBOL
fFAN SPEED SYMBOLS
: AUTO : LOW
: HIGH : SOFT
L.C.D. REMOTE CONTROL DISPLAY
(The heat mode symbol is provided only on
models AY-X08CR/AY-X10CR/AY-X13CR)
1
2
3
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
a
s
d
f
g
h
|
|
{
{
+-
MODE
SWING
FAN
C
AM
PM
AM
PM
DISPLAY
1h
FULL
POWER
SET/C

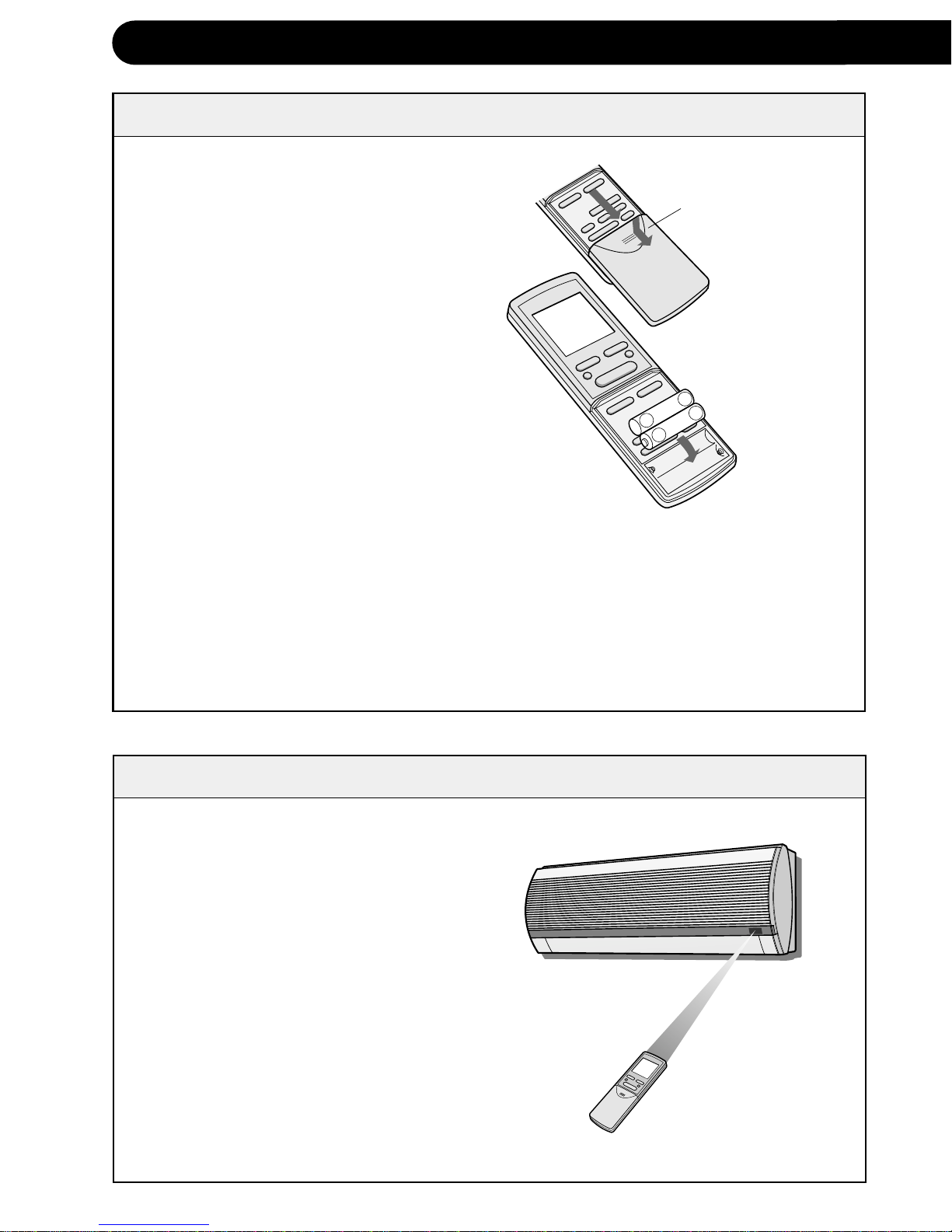

1Remove the remote control
cover.
2Insert batteries in the compart-
ment, making sure the ±and
—polarities are correctly
aligned.
•The display indicates "AM
6:00" when batteries are prop-
erly installed.
3Reinstall the cover.
USING THE REMOTE CONTROL
E-6
NOTES:
•The battery life is approximately one year in normal use.
•When you replace the batteries, always change both batteries, and make sure
they are the same type.
•If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.
•If you will not be using the unit for a long time, remove the batteries from the
remote control.
Point the remote control towards
the unit’s signal receiver window
and press the desired button. The
unit generates a beep when it re-
ceives the signal.
•Make sure there is no curtain or other
object between the remote control and
the unit.
•The remote control can send signals
from up to 7 metres away.
LOADING BATTERIES Use two size-AAA (R03) batteries.
HOW TO USE THE REMOTE CONTROL
Remote control
cover
+
-
+
-

ENGLISH
E-7
CAUTION
•Do not allow the signal receiver window to receive strong direct sunlight, since it can
adversely affect its operation. If the signal receiver window is exposed to direct sunlight,
close a curtain to block the light.
•Using a fluorescent lamp with a quick starter in the same room may interfere with
transmission of the signal.
•The unit can be affected by signals transmitted from the remote control of a television,
VCR or other equipment used in the same room.
•Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit
and remote control from moisture and shock which can discolour or damage them.
SET CURRENT CLOCK TIME
There are two clock modes:
12-hour mode and 24-hour
mode.
1To set to the 12-hour mode, press the
CLOCK button once in the first step.
To set to the 24-hour mode, press the
CLOCK button twice in the first step.
2Press the TIME ADVANCE or REVERSE
button to set the current time.
•Keep the button pressed to advance
or reverse the time display quickly.
3Press the SET/C button.
•The colon (:) blinks to indicate that the
clock is functioning.
NOTE:
•The current time cannot be set when the
timer is operating.
1
2
3
(The heat mode symbol is
provided only on models AY-
X08CR/AY-X10CR/AY-X13CR)
|
|
{
{
+-
MODE
SWING
FAN
1h
SET/C
Example: 5 o'clock in the afternoon
Clock Display
12-hour mode PM 5:00
24-hour mode 17:00

Press the THERMO. button to set the de-
sired temperature.
•In the AUTO and DRY
mode, the indicator
bars represent
changes in tempera-
ture.
•In the COOL (and HEAT for AY-X08CR/AY-
X10CR/AY-X13CR) mode, the temperature
can be set within the range of 18 to 32 °C
•In the FAN ONLY mode, the temperature
setting cannot be made.
1
E-8

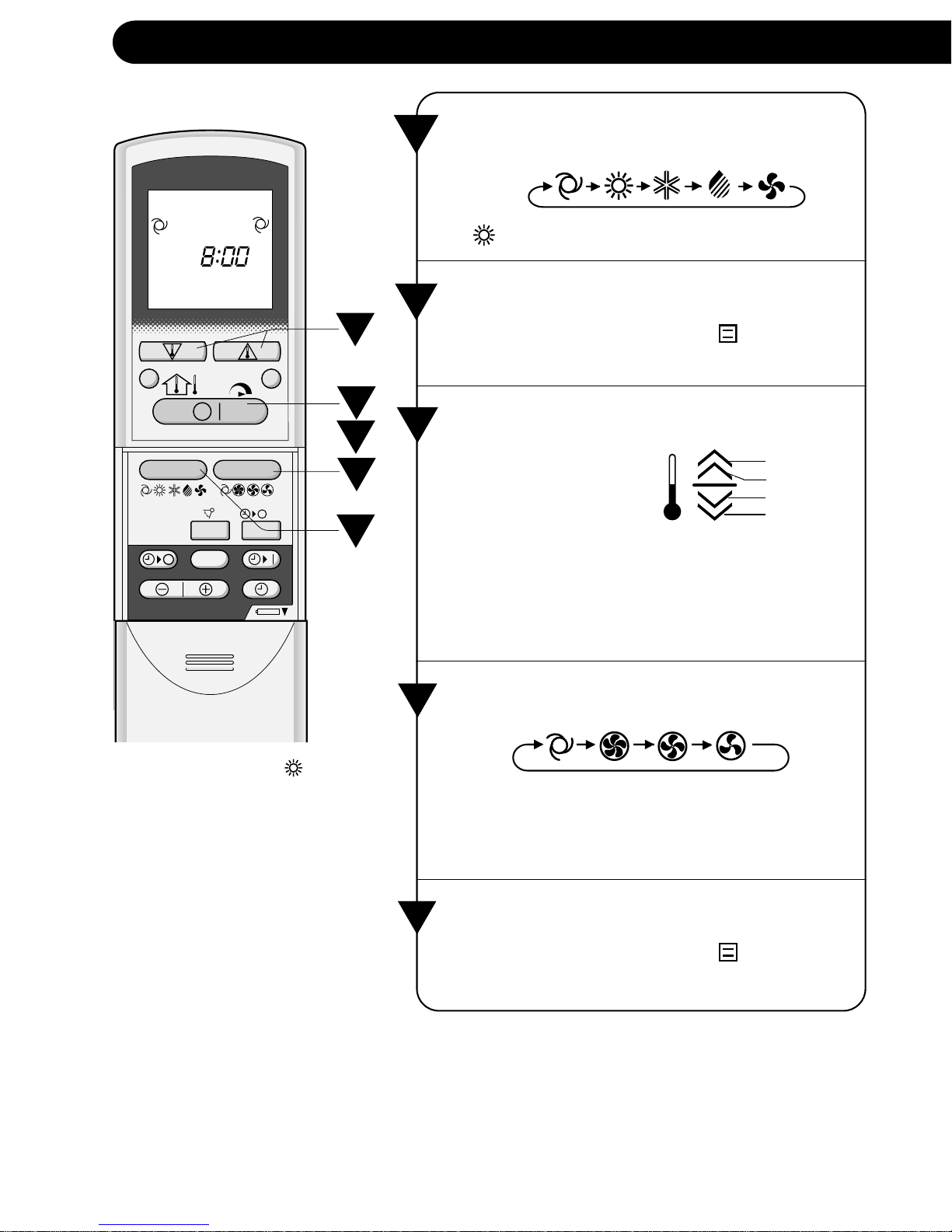

BASIC OPERATION
2Press the ON/OFF button to start opera-
tion.
•The red OPERATION lamp ( ) on the unit
will light.
3
4
1
4
5
2
3
(HEAT is only for AY-X08CR/AY-X10CR/AY-X13CR)
Press the MODE button to select the op-
eration mode.
AUTO HEAT COOL DRY FAN ONLY
5
2°C higher
1°C higher
1°C lower
2°C lower
•In the DRY mode, the fan speed is preset to
AUTO and cannot be changed.
•In the FAN ONLY mode, the fan speed can-
not be set to AUTO.
To turn off the unit, press the ON/OFF but-
ton again.
•The red OPERATION lamp ( ) on the unit
will turn off.
(The heat mode symbol is
provided only on models AY-
X08CR/AY-X10CR/AY-X13CR)
Press the FAN button to set the desired fan
speed. AUTO HIGH LOW SOFT
|
|
{
{
+-
MODE
SWING
FAN
AM
DISPLAY
1h
FULL
POWER
SET/C

ENGLISH
E-9
During operation, if the outdoor temperature changes, the temperature settings will automati-
cally slide as shown in the chart.
MODE CHANGEOVER (only for models AY-X08CR/AY-X10CR/AY-X13CR)
During seasons when you need COOLING at daytime and HEATING at night, or if the room
temperature should become extremely higher than the temperature setting, due to supplemen-
tary heating equipment, the mode will automatically switch between HEAT and COOL mode to
keep the comfortable room temperature.

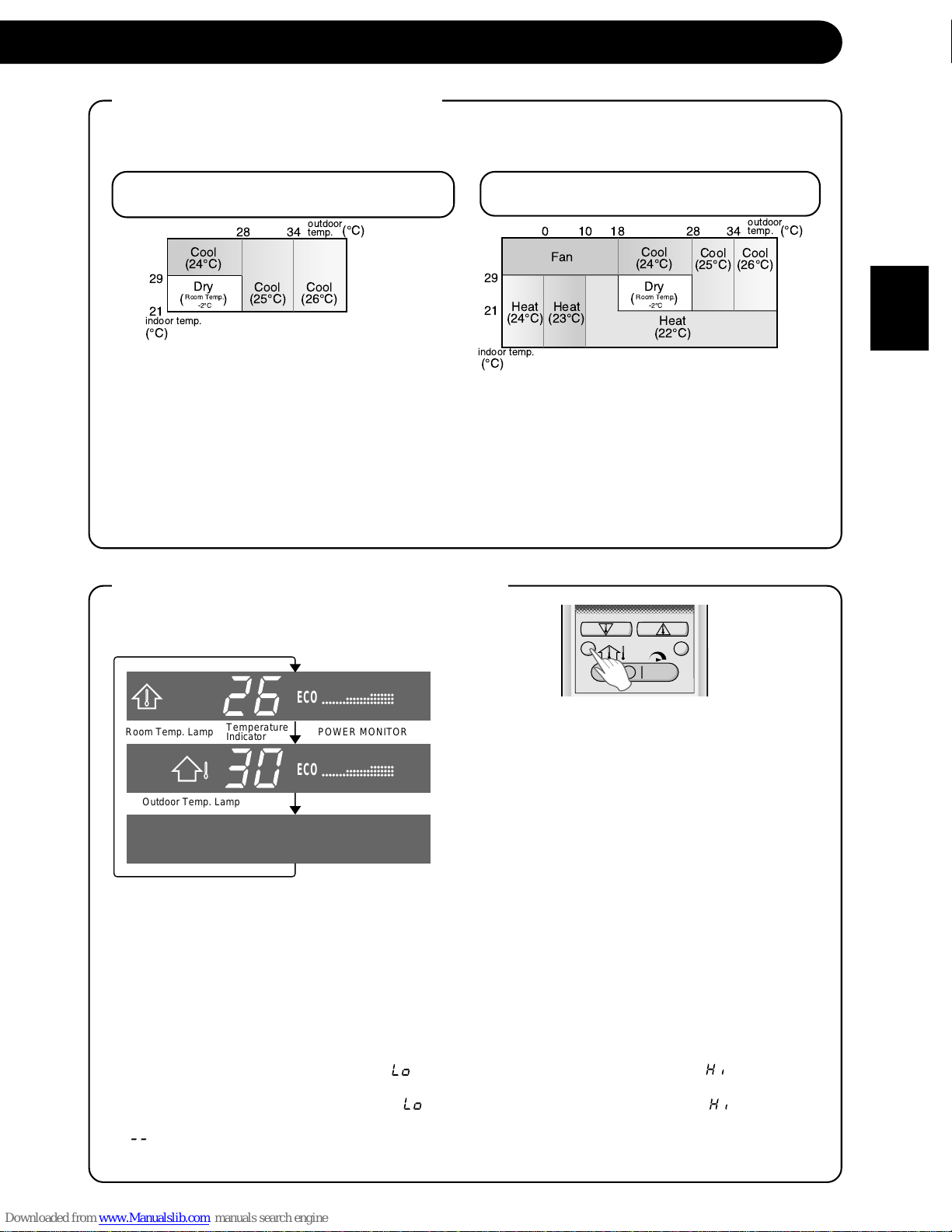

TIPS ABOUT AUTO MODE
In the AUTO mode, the temperature setting and mode are automatically selected according to
the room temperature and outdoor temperature when the unit is turned on.
Modes and Temperature Settings for Models
AH-X08CR/AH-X10CR/AH-X13CR Modes and Temperature Settings for Models AY-X08CR/AY-X10CR/AY-X13CR
the figures in ( ) are temperature settings
the figures in ( ) are temperature
settings
TIPS ABOUT INDICATOR PANEL
The indicator panel will change each time you press
the DISPLAY button in the following manner.
The room temperature and
POWER MONITOR are displayed.
The outdoor temperature and
POWER MONITOR are displayed.
No display.
POWER MONITOR
When the room temperature or the outdoor temperature is displayed, the POWER MONITOR
will light up in 4 levels (3 levels for DRY mode), to indicate the operation power.
When the air conditioner is operating at maximum power in the COOL (and HEAT for AY-
X08CR/AY-X10CR/AY-X13CR)mode,"Power" will light and "Eco" will turn off on the indicator
panel.
NOTES:
•The displayed temperatures are rough estimates and may vary from the actual temperatures.
•Temperature display ranges
Room temperature: 0°C ~ 40°C ( is displayed when less than 0°C and when higher
than 40°C)
Outdoor temperature: -9°C ~ 45°C ( is displayed when less than -9°C and when higher
than 45°C)
•is displayed during the first minute of operation while the temperatures are being detected.
•Only the room temperature can be displayed when the unit is not in operation.
|
|
{
{
DISPLAY FULL
POWER
29
21
28 34
outdoor
temp.
indoor temp.
Cool
(24¡C)
Cool
(25¡C)
(¡C)
(¡C)
Cool
(26¡C)
Dry
()
Room Temp.
-2¡C
29
21
281810034
(¡C)
(¡C)
Cool
(24¡C)
Fan Cool
(25¡C)
Heat
(22¡C)
Dry
()
Heat
(23¡C)
Heat
(24¡C)
Cool
(26¡C)
outdoor
temp.
indoor temp.
Room Temp.
-2¡C
Room Temp. Lamp Temperature
Indicator POWER MONITOR
Outdoor Temp. Lamp
ECO
ECO

COOL and DRY mode Horizontal air flow
FAN ONLY (and HEAT for AY-X08CR/AY-X10CR/AY-X13CR) mode Diagonal air flow
E-10

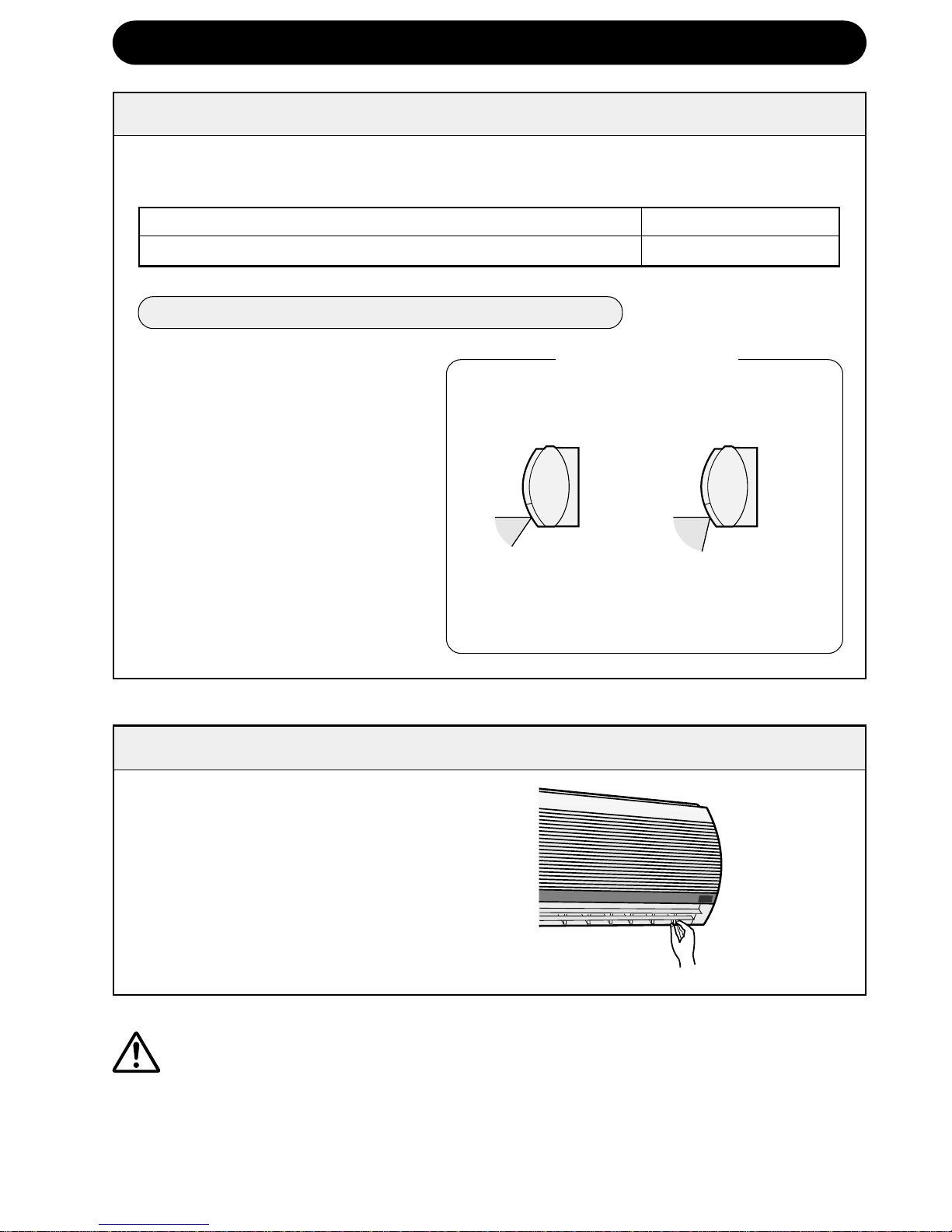

ADJUSTING THE AIR FLOW DIRECTION
VERTICAL AIR FLOW DIRECTION
The air flow direction is automatically preset in each mode as follows for optimum
comfort:
HOW TO ADJUST THE AIR FLOW DIRECTION
COOL and DRY mode FAN ONLY (and HEAT for
AY-X08CR/AY-X10CR/AY-
X13CR) mode
The adjustment range
is narrower the SWING
range in order to pre-
vent condensation from
dripping.
The range is wide so the
air flow can be directed
toward the floor.
Hold the horizontal adjustment
louvre as shown in the diagram
and adjust the air flow direction.
Press the SWING button on the
remote control once.
•The vertical adjustment louvre
will change its angle continu-
ously.
Press the SWING button again
when the vertical adjustment
louvre is at the desired position.
•The louvre will stop moving within
the range shown in the diagram.
•The adjusted position will be
memorized and will be automati-
cally set to the same position
when operated the next time.
Adjustment range
CAUTION
Never attempt to adjust the vertical adjustment louvres manually.
•Manual adjustment of the vertical adjustment louvre can cause the unit to malfunction
when the remote control is used for the adjustment.
•When the vertical adjustment louvre is positioned at the lowest position in the COOL or
DRY mode for an extended period of time, condensation may result.
HORIZONTAL AIR FLOW DIRECTION

ENGLISH
E-11
FULL POWER OPERATION
In this operation, the air conditioner works at maximum power to makes the room
cool (or warm with models AY-X08CR/AY-X10CR/AY-X13CR) so rapidly that you can
use it just after you come home.
1Press the ONE-HOUR OFF TIMER button.
•The remote control displays “1 h”.
•The orange TIMER lamp ( ) on the unit will light up.
•The unit will stop operating after one hour.
TO CANCEL
Press the TIMER CANCEL (SET/C) button.
•The orange TIMER lamp ( ) on the unit will turn off.
Or, turn the unit off by pressing the ON/OFF button.
•The red OPERATION lamp ( ) and the orange TIMER
lamp ( ) on the unit will turn off.
1
When the ONE-HOUR OFF TIMER is set, the unit will stop operating after one hour.
ONE-HOUR OFF TIMER
1To activate the FULL POWER operation, press
the FULL POWER button during operation.
•The remote control will display .
•the temperature display will go off.
TO CANCEL
Press the FULL POWER button again.
•FULL POWER operation will also be cancelled when
the operation mode is changed, or when the unit is
turned off.
NOTES:
•You cannot use the FULL POWER operation during the
FAN ONLY mode.
•You cannot set the temperature during the FULL POWER
operation.
|
|
{
{
|
|
{
{
MODE
SWING
FAN
1h
NOTES:
•The ONE-HOUR OFF TIMER operation has priority over TIMER ON and TIMER OFF
operations.
•When the ONE-HOUR OFF TIMER is set while the unit is not operating, the unit will
operate for an hour with the formerly set condition.
•If you wish to operate the unit for another hour before the ONE-HOUR OFF TIMER
activiates, press the ONE-HOUR OFF TIMER button again during operation.
•If TIMER ON and/or TIMER OFF are set, TIMER CANCEL button cancels every setting.
1
|
|
{
{
PM
DISPLAY FULL
POWER
(The heat mode symbol is provided only on
models AY-X08CR/AY-X10CR/AY-X13CR)

1Press the TIMER OFF ( ) button.
2The TIMER OFF indicator will blink; press the
TIME ADVANCE or REVERSE buttons to set
the desired time. (The time can be set in 10-
minute increments.)
3Point the remote control at the signal receiver
window on the unit and press the TIMER SET
(SET/C) button.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it re-
ceives the signal.
NOTE:
Before setting the timer, make sure the clock is properly set with the current time.
TIMER OPERATION
TIMER OFF
Cancel the TIMER seting first, then set it
again.
TO CHANGE TIME SETTING
(The heat mode symbol
is provided only on models
AY-X08CR/AY-X10CR/AY-
X13CR)
TO CANCEL TIMER MODE
Press the TIMER CANCEL (SET/C) button.
•The orange TIMER lamp ( ) on the unit
will turn off.
•The current clock time will be displayed on
the remote control.
TIPS ABOUT TIMER OFF OPERATION
When the TIMER OFF mode is set, the
temperature setting is automatically
adjusted to prevent the room from
becoming excessively hot or too cold
while you sleep. (Auto Sleep function)
COOL/DRY MODE:
•Onehourafterthetimeoperationbegins,
thetemperaturesettingrises1°Chigher
than the original thermostat setting.
HEAT MODE: (only for models AY-X08CR/
AY-X10CR/AY-X13CR)
•One hour after the timer operation
begins, the temperature setting drops
3°C lower than the original thermostat
setting.
NOTE:
•The Auto Sleep function will not acti-
vate during the FAN ONLY mode.
2
3
1
NOTE:
•If any TIMER ON, TIMER OFF and ONE-
HOUR OFF TIMER are set, the TIMER
CANCEL button cancels all settings.
(The heat mode symbol is provided only on models
AY-X08CR/AY-X10CR/AY-X13CR)
E-12
|
|
{
{
+-
MODE
SWING
FAN
AM
DISPLAY
1h
FULL
POWER
SET/C
|
|
{
{
+-
MODE
SWING
FAN
1h
SET/C

ENGLISH

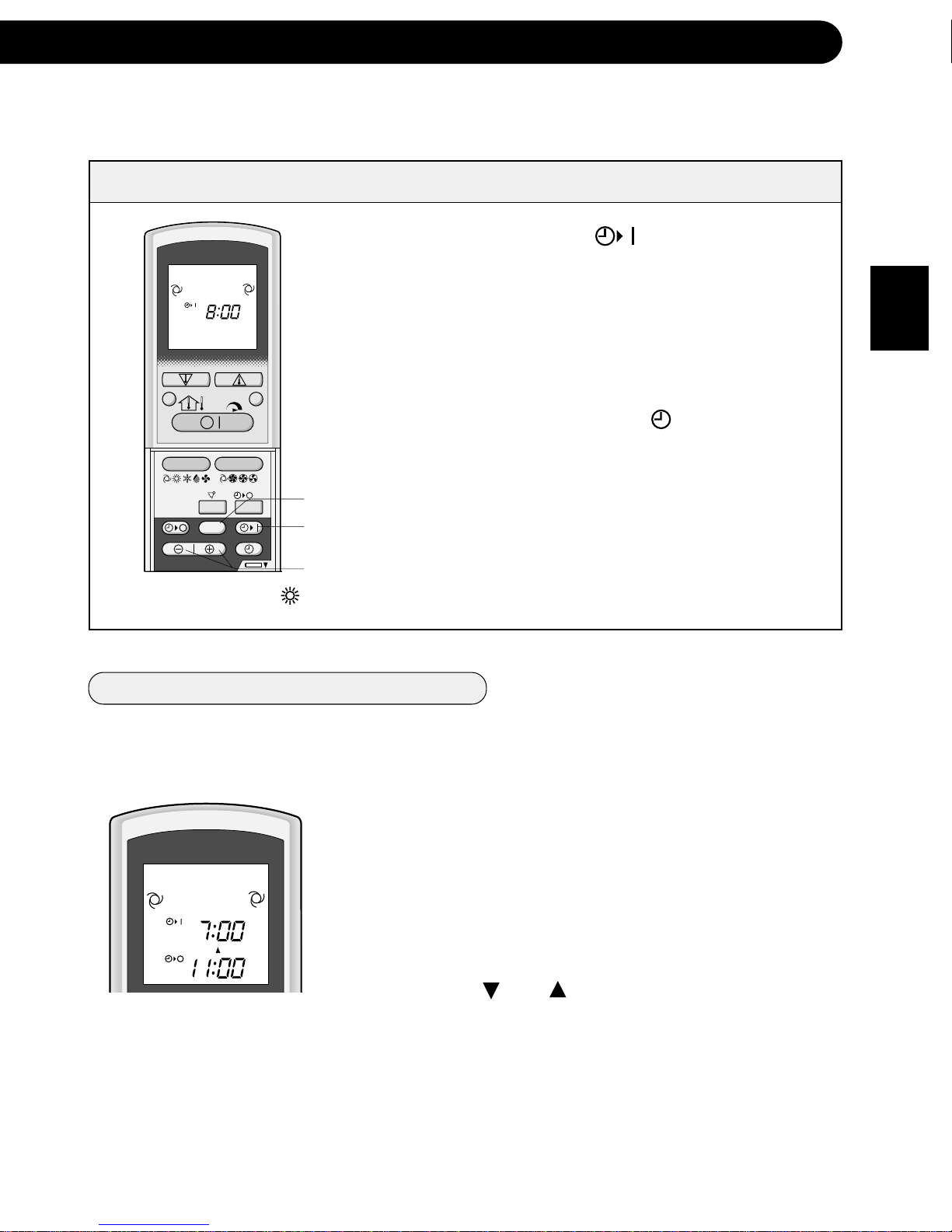

1Press the TIMER ON ( ) button.
2The TIMER ON indicator will blink; press the TIME
ADVANCE or REVERSE buttons to set the de-
sired time. (The time can be set in 10-minute
increments.)
3Point the remote control at the signal receiver
window on the unit and press the TIMER SET
(SET/C) button.
•The orange TIMER lamp ( ) on the unit will
light.
•The unit will generate a beep when it receives
the signal.
4Select the operation condition.
•The unit will turn on prior to the set time to allow
the room to reach the desired temperature by
the programmed time. (Awaking function)
Example:
To stop operation at 11:00 p.m. and resume operation
(With the same mode and temperature settings) to
bring the room temperature to the desired level by
7:00 a.m.
1Set the TIMER OFF to 11:00 p.m. during opera-
tion.
2Set the TIMER ON to 7:00 a.m.
The arrow ( or ) between the TIMER ON
indicator and the TIMER OFF indicator shows which
timer will activate first.
E-13
NOTES:
•You cannot programme the ON-TIMER and OFF-TIMER to operate the unit at
different temperatures or other settings.
•Either timer can be programmed to activate prior the other.
You can use the ON and OFF timers in combination.
COMBINED USE OF ON AND OFF TIMERS
2
1
3
TIMER ON
(The heat mode symbol is provided only on
models AY-X08CR/AY-X10CR/AY-X13CR)
|
|
{
{
+-
MODE
SWING
FAN
AM
DISPLAY
1h
FULL
POWER
SET/C
|
|
{
{
PM
AM

E-14
AUXILIARY MODE
Use this mode when the remote control is not available.
TO TURN ON
Lift the front panel of the indoor unit and press the AUX.
button on the operation panel.
•The red OPERATION lamp ( ) on the unit will light and
the unit will start operating in the AUTO mode.
•The fan speed and temperature setting are set to AUTO.
TO TURN OFF
Press the AUX. button on the operation panel again.
•The red OPERATION lamp ( ) on the unit will turn off.
NOTE:
If the AUX. button is pressed during normal operation, the
unit will turn off.
POWER SELECTOR (only for models AY-X13CR/AH-X13CR)
When installing the air-conditioner to a residence with small
electrical current capacity, switch the POWER SELECTOR to
"L". The air conditioner will operate with reduced power, and
the circuit breaker tripping or fuse blowing caused by excess
power consumption can be avoided.
•COOLING or HEATING (for model AY-X13CR) capacity
will be reduced when operating at "L" setting.
•Consult your dealer or qualified technician if continuous
breaker tripping or fuse blowing is experienced even by
switching to "L" setting.
AH-X13CR AY-X13CR
Maximum ampere 9A 12A
at "H" setting
Maximum ampere 7A 8A
at "L" setting
OPTION KIT
Air Purifying Filter
During operation of the air conditioner, the air purifying filter
removes dust and tobacco smoke from the air and discharges
clean air.
The apatite antibacterial material used in the air purifying filter
suppresses activities of adsorbed viruses and other germs.
Thereplacementperiodforthedisposabletypeisapproximately
3~6 months.
Contact your dealer for the purchase of this option. Type AZ-F900B
AUX.
AUX.
L
H

ENGLISH
MAINTENANCE
E-15
CLEANING THE UNIT AND THE REMOTE CONTROL
CAUTION
•Wipe them with a soft cloth.
•Do not directly splash or pour water on them. We can cause electrical shock or
equipment damage.
•Do not use hot water, thinner, abrasive powders or strong solvents.
CAUTION
Be sure to disconnect the power cord from the wall outlet or turn off the circuit
breaker before performing any maintenance.
CLEANING THE FILTERS The air filters should be cleaned every two weeks.
1TURN OFF THE UNIT
2REMOVE THE FILTERS
1Lift the open panel.
2Push the air filters up slightly to unlock them.
3Pull the air filters down to remove them.
3CLEAN THE FILTERS
Use a vacuum cleaner to remove dust. If the
filters are dirty, wash them with warm water
and a mild detergent. Dry filters in the shade
before reinstalling.
4REINSTALL THE FILTERS
1Reinstall the filters in the original positions.
2Close the front panel.
3Push the center part of the panel firmly to
lock it in place.
MAINTENANCE AFTER AIR
CONDITIONER SEASON
1Operate the unit in the FAN ONLY
mode for about half a day to allow
the mechanism to thoroughly dry.
2Stop the operation and unplug the
unit. Turn off the circuit breaker, if
you have one exclusively for the
air conditioner.
3Clean the filters, then reinstall
them.
MAINTENANCE BEFORE
AIR CONDITIONER SEASON
1Make sure that the air filters are
not dirty.
2Make sure that nothing obstructs
the air inlet or outlet.
CAUTION
3Check the outdoor mounting rack
periodically for wear and to make
sure it is firmly in place.
1
23
3
1
2

IF THE UNIT FAILS TO RECEIVE THE REMOTE CONTROL SIGNAL
Check whether the remote
control batteries have be-
come old and weak.
Try to send the signal again
with the remote control
pointed properly towards the
unit’s signal receiver window.
Check whether the remote
control batteries are in-
stalled with the polarities
properly aligned.
E-16
BEFORE CALLING FOR SERVICE
The following conditions do not denote equipment malfunctions
UNIT DOES NOT OPERATE
The unit will not operate if it is turned on
immediately after it is turned off. The unit will not
operate immediately after the mode is changed.
This is to protect the internal mechanisms. Wait 3
minutes before operating the unit.
UNIT DOES NOT SEND OUT WARM AIR
(Models AY-X08CR/AY-X10CR/AY-X13CR)
The unit is preheating or de-icing.
CRACKING NOISE
Theunitmayproduceacrackingnoise.Thissound
is generated by the friction of the front panel and
other components expanding or connecting due to
a temperature change.
If the unit appears to be malfunctioning, check the following points before calling for
service.
IF THE UNIT FAILS TO OPERATE
Check to see if the circuit breaker has tripped or the fuse has blown.
IF THE UNIT FAILS TO COOL (OR HEAT) THE ROOM EFFECTIVELY
Check the filters. If dirty,
clean them. Check the outdoor unit to
make sure nothing is blocking
the air inlet or outlet.
Check the thermostat is
proper setting.
Make sure windows and
doors are closed tightly. A large number of people in
the room can prevent the unit
from achieving the desired
temperature.
Check whether any heat-
generating appliances are
operating in the room.
ODORS
Carpet and furniture odors that entered into the
unit and the air conditioner's inner component
odors at the early stage of installation may be
sent out from the unit.
SWISHING NOISE
The soft, swishing noise is the sound of
the refrigerant flowing inside the unit.
WATER VAPOUR
•In the COOL and DRY operation, wa-
ter vapour can sometimes be seen at
the air outlet due to the difference
between the room air temperature and
the air discharged by the unit.
•In the HEAT operation, water vapour
may flow out of the outdoor unit dur-
ing de-icing. (Only in models AY-
X08CR/AY-X10CR/AY-X13CR)
THE OUT DOOR UNIT DOES NOT
STOP
After stopping the operation, the out-
door unit will rotate its' fan for about a
minute to cool down the unit.
Please call for service when OPERATION Lamp, TIMER Lamp and TEMPERATURE INDICATOR
on the indicator panel blink.

ENGLISH

SHARP CORPORATION
OSAKA, JAPAN TINSEA296JBRZ TL 01LO 1
Printed in Thailand
