The network scanner expansion Kit enables the machine to be used as a network scanner.
* Memory can be added by installing a commercially available 128 MB or 256 MB memory module (144-pin SDRAM
SODIMM). For more information, consult your dealer.
●This manual only explains features that can be used when the Network Scanner Expansion Kit is installed. For
information on loading paper, replacing toner cartridges, clearing paper misfeeds, handling peripheral devices,
and other copier-related information, please refer to your operation manual for copier.
●The explanations in this manual assume that the person who will install the product and the users of the product
have a working knowledge of Microsoft Windows.
●In this manual, American spellings are used.
●For information on the operating system, please refer to your operating system manual or the online Help function.
●The explanations of screens and procedures in this manual are for Windows XP. The screens may vary
depending on your Windows version and settings.
●This manual refers to the Reversing single pass feeder as the "RSPF".
• To enable the network scanner function of this machine, a product key (password) must be entered using a key
operator program. This is only required once. Use the "PRODUCT KEY" program to enter the product key. If you
do not know your product key, please ask your dealer. (For information on using key operator programs, refer to
key operator's guide.)
• The printer expansion kit (AR-P27) and at least 128 MB of memory* are required to use the network scanner
function.
• For the procedures for using the software programs, see the user's guides on the CD-ROM.
!ar_m256_316series_sec_networkscanner.book 1 ページ ２００７年３月５日 月曜日 午前１１時５分

2
CONTENTS
INTRODUCTION ............................................... 1
1
BEFORE USING THE NETWORK SCANNER FUNCTION
ABOUT THE NETWORK SCANNER FUNCTION .... 3
SETTINGS AND PROGRAMMING REQUIRED
FOR THE NETWORK SCANNER FEATURE........ 4
●SETTINGS REQUIRED FOR THE NETWORK
SCANNER FUNCTION....................................4
●ACCESSING WEB PAGES .............................4
●ABOUT THE WEB PAGE ................................5
●
BASIC SETTINGS FOR NETWORK SCANNING ...6
●
SMTP SERVER AND DNS SERVER SETTINGS .....7
●CONFIGURING LDAP SERVER SETTINGS
(WHEN USING AN LDAP SERVER) ...............8
●PROGRAMMING CUSTOM INDEX NAMES...9
●
SETTING UP DESTINATION INFORMATION .....10
●STORING THE SENDER INFORMATION
(Scan to E-mail) .............................................15
●PROTECTING INFORMATION
PROGRAMMED IN THE WEB PAGE
("Passwords") ................................................16
●RESTRICTING USE OF THE NETWORK
SCANNER FUNCTION (USER
AUTHENTICATION) ......................................17
INITIAL SCREEN OF SCANNER MODE ....... 18
2
HOW TO USE THE NETWORK SCANNER FUNCTION
SENDING AN IMAGE ..................................... 20
●BASIC TRANSMISSION METHOD ...............20
●
TRANSMISSION METHODS FOR SCAN TO E-MAIL .......22
●SCANNING AND TRANSMITTING A
TWO-SIDED ORIGINAL (when an RSPF is
installed).........................................................24
●SCANNING A LARGE NUMBER OF
ORIGINALS (when an RSPF is installed) ......25
SCANNING SETTINGS (ORIGINAL SIZE,
QUALITY, RESOLUTION, FILE FORMAT, AND
SEND SETTING)............................................. 26
● MANUALLY SETTING THE SCANNING SIZE .......26
●SELECTING THE QUALITY ..........................27
●SELECTING THE RESOLUTION ..................28
●SELECTING THE FILE FORMAT..................29
●CHANGING THE SEND SETTINGS .............30
CANCELING AN E-MAIL/FTP TRANSMISSION ....... 31
3TROUBLESHOOTING
TROUBLESHOOTING.....................................32
●DISPLAY MESSAGES.................................. 33
●IF YOUR E-MAIL IS RETURNED ................. 34
●IMPORTANT POINTS WHEN USING SCAN TO
E-MAIL .......................................................... 35
CHECKING THE IP ADDRESS .......................36
4
METADATA DELIVERY
METADATA DELIVERY (DATA ENTRY)........37
PREPARATIONS FOR METADATA
TRANSMISSION..............................................38
● SETTINGS REQUIRED IN THE WEB PAGES ...............38
● METADATA TRANSMISSION FOR SCAN TO
DESKTOP
................................................................38
TRANSMITTING METADATA .........................39
● METADATA FIELDS ....................................... 41
5SPECIFICATIONS
!ar_m256_316series_sec_networkscanner.book 2 ページ ２００７年３月５日 月曜日 午前１１時５分

3
1Chapter 1
BEFORE USING THE NETWORK SCANNER FUNCTION
ABOUT THE NETWORK SCANNER
FUNCTION
When the network scanner function is added to the machine, a document or photo can be scanned into an image file
and sent over a network or the Internet to a file server, e-mail destination, or your own computer. The scanned
image can be sent to the following types of destinations:
1. The scanned image can be sent to a memory
storage device on a network (a designated
directory on an FTP server). (This is called
"Scan to FTP" in this manual.)
When sending scanned image to an FTP
server, an e-mail message can also be sent to a
preset e-mail address to inform the recipient of
the location of the scanned image data. (This is
called "Scan to FTP (Hyperlink)" in this
manual.)
2. A scanned image can be sent to a computer
connected to the same network as the
machine. (This is called "Scan to Desktop" in
this manual.)
* Before Scan to Desktop can be performed, the
"Network Scanner Tool" software in the
CD-ROM that accompanied the Network
Scanner Expansion Kit (MX-NSX1) must be
installed. For information on Scan to Desktop
system requirements, installing the Network
Scanner Tool, and storing the destination, see
the Users Guide for the Network Scanner Tool
on the CD-ROM that accompanies the network
scanner expansion kit.
3. The scanned image can be sent to an e-mail
recipient. (This is called "Scan to E-mail" in
this manual.)
* A limit is set in the Web page for the size of
image files that can be sent using Scan to
E-mail (p.6).
!ar_m256_316series_sec_networkscanner.book 3 ページ ２００７年３月５日 月曜日 午前１１時５分

4
SETTINGS AND PROGRAMMING
REQUIRED FOR THE NETWORK
SCANNER FEATURE
To use the Network Scanner feature, settings for the SMTP server, DNS server, and destination addresses must be
established.
To establish the settings, use a computer that is connected to the same network as the machine to access the
machine's Web page. The Web page can be displayed with your Web browser (Internet Explorer 6.0 or later,
Netscape Navigator 7.0 or later, or Safari 1.2 or later).
SETTINGS REQUIRED FOR THE NETWORK SCANNER FUNCTION
To use transmit images using the network scanner function, configure the settings in the Web pages as follows:
The following settings can also be configured to enable convenient use of the network scanner function:
• Programming custom index names. (p.9)
• Setting passwords. (p.16)
ACCESSING WEB PAGES
Use the following procedure to access the Web pages.
1Open the Web browser on your
computer.
Supported browsers: Internet Explorer 6.0 or later
(Windows)
Netscape Navigator 7.0 or
later
Safari 1.2 or later
(Macintosh)
2In the "Address" field of your Web
browser, enter the IP address of the
machine as a URL.
Enter the IP address that
has been programmed in
the machine.
If you do not know the IP
address, see page 36.
When the connection is completed, the Web
page will appear in your Web browser. (p.5)
Scan to FTP
Scan to FTP (Hyperlink) Scan to E-mail Scan to Desktop
Access the Web pages (see below)
Configure basic settings for network scanning (p.6)
Configure your SMTP and DNS server settings (p.7)
Configure LDAP server settings
(when using an LDAP server) (p.8)
Store destination information (p.10 to 13)
Store your sender information (p.15)
!ar_m256_316series_sec_networkscanner.book 4 ページ ２００７年３月５日 月曜日 午前１１時５分

5
BEFORE USING THE NETWORK SCANNER FUNCTION
1
ABOUT THE WEB PAGE
When you access the Web page in the machine, the following page will appear in your browser.
A menu frame appears on the left side of the page. When you click an item in the menu, a screen appears in the
right frame that allows you to establish settings for that item.
For detailed explanations of the procedures for establishing settings, click "Help" in the menu frame.
Menu frame
Click the menu items displayed here to configure the corresponding settings.
Destination (p.10)
Set up destinations for Scan to FTP, Scan to FTP (Hyperlink), Scan to Desktop, and Scan to E-mail. You can also
edit or delete previously set destination information.
Sender (p.15)
Enter the sender's information that appears in the recipient's e-mail program (sender name and e-mail address)
when you send an image using Scan to E-mail.
If user authentication is being used, enter the login name.
Network Scanning (p.6)
This lets you select transmission methods for the network scanner function, configure settings for Scan to
E-mail, and program group indexes.
Services (p.7)
This lets you establish SMTP server settings, DNS server settings, and WINS server settings for Scan to E-mail
and Scan to FTP (Hyperlink), and for entering a host name instead of an IP address when storing a transmission
destination. Configure LDAP server settings if an LDAP server is used.
1
2
3
4
5
1
2
3
4
5
!ar_m256_316series_sec_networkscanner.book 5 ページ ２００７年３月５日 月曜日 午前１１時５分

6
BEFORE USING THE NETWORK SCANNER FUNCTION
BASIC SETTINGS FOR NETWORK SCANNING
Click "Network Scanning" in the menu frame, and then establish the required settings. These settings should only be
established by the network administrator.
For detailed explanations of the procedures for establishing settings, click "Help" in the menu frame.
1Click "Network Scanning" in the menu
frame.
The Network Scanning
Setup page appears.
2Select the transmission methods that
you wish to use.
Select the scanner delivery methods that you
want to use. In the "Enable Scanner Delivery to:"
field, click the checkbox next to each method that
you want to use so that a checkmark appears in
the checkbox.
All transmission methods are initially selected
(factory default settings).
3
Configure the Advanced Setup settings.
Select advanced functions that can be used for
Scan to E-mail.
Select the checkboxes of the functions that you
wish to use.
• The "Enable User Authentication" checkbox
can be selected to restrict use of the network
scanner function to authorized users. (p.17)
• To allow a sender to be selected when sending
an image by Scan to E-mail, make sure that
"Disable selection of sender from Sender List"
is not selected. (p.30)
• If you wish to Bcc a copy of a Scan to E-mail
transmission to an e-mail address, select the
"Bcc:" checkbox and enter the e-mail address.
4Set a limit for the size of image files.
A limit can be set for the size of image files sent
by Scan to E-mail to prevent excessively large
files from being sent.
If the image file created from the scanned image
is larger than the set limit, the image file is
discarded. The limit can be set from 1 MB to 10
MB in increments of 1 MB.
The factory default setting is "Unlimited". If you wish to
set a limit, remove the checkmark from the "Unlimited"
checkbox and enter the desired limit in "Upper Limit".
5Select the method for assigning a file
name to a scanned image.
Select the method for assigning a file name to a
scanned image. In "File Naming", click the items
that you wish to use in the file name. "Destination
Name" and "Date & Time" are initially selected.
6Selecting an e-mail subject (only used
for Scan to E-mail).
The setting is used to enter the subject that
appears in the recipient's e-mail program when
you perform Scan to E-mail. (This setting is not
necessary if you will not be using Scan to E-mail.)
The subject can be up to 80 characters long. Only
one subject can be entered. If nothing is entered,
"Scanned image from <Device Name>" will appear.
* The name that appears in <Device Name> is
the name stored in "Name" in the screen that
appears when you click "System Information" in
the menu frame. If a name has not been stored,
the product name will appear.
7Click "Submit".
After entering the
settings, be sure to click
"Submit" to store them.
• If you are going to send images to the same
recipient more than once, we recommend that
you also select "Session Page Counter" or
"Unique Identifier" to prevent sending multiple
files with the same name, which would result in
each successive file overwriting the previous file.
• If a file name is entered at the time of
transmission, the file name entered here
will be disregarded.
If a subject is entered at the time of transmission,
the subject entered here will be disregarded.
Note
Note
!ar_m256_316series_sec_networkscanner.book 6 ページ ２００７年３月５日 月曜日 午前１１時５分

7
BEFORE USING THE NETWORK SCANNER FUNCTION
1
SMTP SERVER AND DNS SERVER SETTINGS
SMTP is used to transmit e-mail that is sent using Scan to E-mail or Scan to FTP (Hyperlink). To use these
transmission methods, your SMTP server settings must be configured.
Configuring SMTP server settings
1Click "Services" in the menu frame.
2Click "SMTP".
3Enter the required information in
"SMTP Setup".
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu
frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Configuring DNS server settings
If you entered a host name in "Primary SMTP Server" or "Secondary SMTP Server" of "SMTP Setup", you must also
configure your DNS server settings.
You will also need to configure your DNS server settings if host names will be entered in "Hostname or IP Address"
when storing destinations for Scan to FTP (Scan to FTP (Hyperlink)) or Scan to Desktop.
1Click "Services" in the menu frame.
2Click "DNS".
3Enter the required information in
"DNS Setup".
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu
frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
!ar_m256_316series_sec_networkscanner.book 7 ページ ２００７年３月５日 月曜日 午前１１時５分

8
BEFORE USING THE NETWORK SCANNER FUNCTION

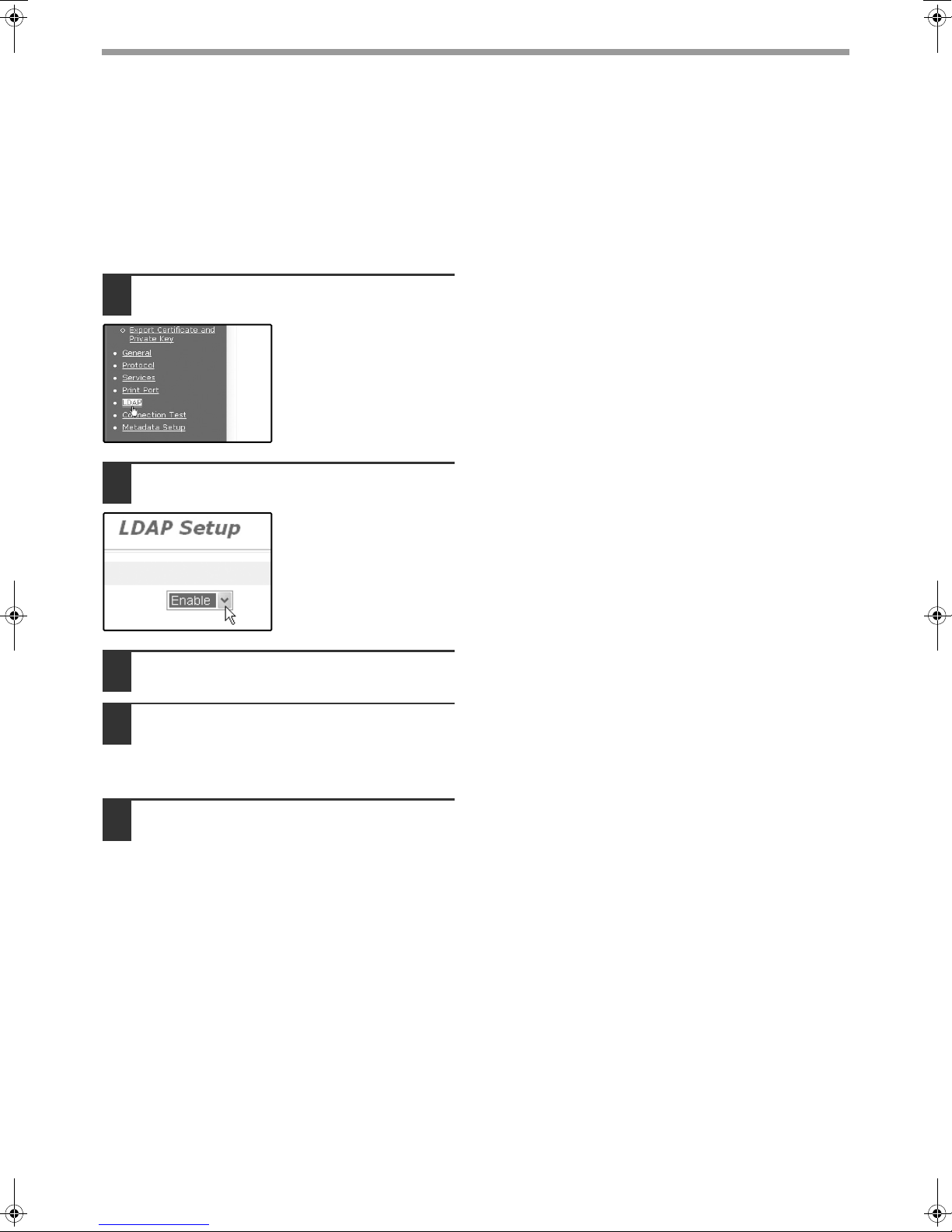

CONFIGURING LDAP SERVER SETTINGS (WHEN
USING AN LDAP SERVER)
If mail addresses are managed on your network by an LDAP server, the e-mail addresses stored in the LDAP server
can be used for Scan to E-mail.
In addition, user authentication can be enabled to restrict use of the network scanner function by means of user
passwords stored in the LDAP server. (p.17)
To allow the machine to use the e-mail addresses in the LDAP server, the LDAP server settings must be configured in the Web page.
1Click "LDAP" in the menu frame.
2
Select "Enable" in the "LDAP Setup" menu.
3Click "Submit".
4Configure the settings in "Global
Address Books List".
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu frame.
5When you have completed all of the
entries, click "Submit".
The entries will be stored.
!ar_m256_316series_sec_networkscanner.book 8 ページ ２００７年３月５日 月曜日 午前１１時５分

9
BEFORE USING THE NETWORK SCANNER FUNCTION
1
PROGRAMMING CUSTOM INDEX NAMES
Stored destinations appear as one-touch keys in the Address book screen of the touch panel (p.19). Each stored
destination appears in the ABC (alphabetical) index, and can also be included in one of the six custom indexes (note
that these are called "group indexes" in the touch panel). To program names for the custom indexes, follow the steps
below.
1Click "Network Scanning" in the menu
frame.
2Click "Custom Index".
3Enter names for groups 1 to 6.
Six group indexes are available, and a name up
to six characters long can be assigned to each.
The names "USER 1" to "USER 6" are initially
entered. Change the names as needed.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
• To change a previously programmed custom index name, simply overwrite the old name.
• To switch between the ABC index and the custom indexes in the Address book screen, see page 19.
Note
!ar_m256_316series_sec_networkscanner.book 9 ページ ２００７年３月５日 月曜日 午前１１時５分

10
BEFORE USING THE NETWORK SCANNER FUNCTION
SETTING UP DESTINATION INFORMATION
To store the name and address of a destination in a one-touch key, click "Destination" in the Web page menu frame.
"Destination" can also be used to edit or clear stored destinations. (p.14)
A total of 200 destinations can be stored, including E-mail, FTP, Desktop, and Group destinations.
Stored destinations can be selected in the machine's touch panel when transmission is performed.
* Multiple e-mail addresses (up to 100) can be stored as a group. Note that this may reduce the maximum number
of destinations (normally 200) that can be stored.
E-mail: See below
FTP: Refer to page 11.
Desktop: Refer to page 12.
Group: Refer to page 13.
Storing destinations for Scan to E-mail
1Click "Destination" in the menu frame.
2Click "E-mail".
3Enter the destination information.
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu
frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Make sure that the address book screen (p.19) does not appear in the machine's touch panel when you store,
edit, or delete destinations. Destinations cannot be edited or deleted when the address book screen appears.
Click here.
Note
If user authentication is enabled and you wish
to allow login using the above stored
information, select the "It adds also to the
Sender List." checkbox and enter the "Login
Name" (maximum of 32 characters). The login
name must be the same as the login name
stored in the LDAP server.
Note
To perform Scan to E-mail, the SMTP server settings must first be established. Click "Application" in the Web
page, click "SMTP" in the screen that appears, and then enter the settings under "SMTP Setup" (p.7).
Note
!ar_m256_316series_sec_networkscanner.book 10 ページ ２００７年３月５日 月曜日 午前１１時５分

11
BEFORE USING THE NETWORK SCANNER FUNCTION
1
Storing destinations for Scan to FTP
1Click "Destination" in the menu frame.
2Click "FTP".
3Enter the destination information.
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu
frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
If you select the "Enable Hyperlink to FTP
server to be e-mailed" checkbox and select
a previously stored recipient (p.10) from
"E-mail Destination", an e-mail will be sent
to the recipient informing them of the file
format and location of the scanned image
data. A hyperlink to the file server to which
the scanned image data was sent appears
in the e-mail, and the recipient can click the
hyperlink to go directly to the location where
the image data is stored.
Note
If you entered a host name in "Hostname or IP Address", you will need to enter the DNS server or WINS server
settings. Click "Application" in the menu frame and then click "DNS" or "WINS" in the page that appears to
configure the corresponding settings.
To perform Scan to FTP (Hyperlink), you must also click "SMTP" and then enter the settings under "SMTP
Setup" for the SMTP server (p.7).
Note
!ar_m256_316series_sec_networkscanner.book 11 ページ ２００７年３月５日 月曜日 午前１１時５分

12
BEFORE USING THE NETWORK SCANNER FUNCTION
Storing destinations for Scan to Desktop
The destination for Scan to Desktop is stored by the Sharp Network Scanner Tool Setup Wizard when "Network
Scanner Tool" is installed in your computer. For this reason, there is no need to store the Scan to Desktop
destination in the Web page. (The Network Scanner Tool is on the CD-ROM that accompanied the Network Scanner
Expansion Kit .)
For information on Scan to Desktop system requirements, installing the Network Scanner Tool, and storing the
destination, see the Users Guide for the Network Scanner Tool on the CD-ROM that accompanies the network
scanner expansion kit.
Normally your computer is stored as the destination by the method indicated above.
The following page for storing Scan to Desktop destination information appears when "Destination" is selected in the
menu frame, followed by "Desktop". This page is used by mainly by the system administrator in the following
circumstance.
• When another machine with the network scanner function has been added to the same network, and you wish to
perform Scan to Desktop from the added machine to a destination programmed in the previously existing machine.
Refer to "Editing and deleting programmed transmission destinations" (p.14), and select the Scan to Desktop
destination information that you wish to transfer to the new machine. Enter the displayed information in the same
setting screen of the new machine. (When all information has been entered, click "Submit".)
If there are additional destinations that you want to transfer to the new machine, repeat this procedure for each
destination.
Note that if there are any discrepancies between the newly programmed information and the information in the host
computer, transmission and reception may not be possible.
• For detailed explanations of the procedures for establishing settings, click "Help" in the menu frame.
• If you entered a host name in "Hostname or IP Address", you will need to enter the DNS server or WINS server
settings. Click "Application" in the menu frame and then click "DNS" or "WINS" in the page that appears to
configure the corresponding settings.
Note
!ar_m256_316series_sec_networkscanner.book 12 ページ ２００７年３月５日 月曜日 午前１１時５分

13
BEFORE USING THE NETWORK SCANNER FUNCTION
1
Storing Groups (Scan to E-mail)
If you are using Scan to E-mail, a scanned image can be sent to multiple destinations in a single operation.
1Click "Destination" in the menu frame.
2Click "Group".
3Enter the destination information.
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu
frame.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Up to 100 destinations can be stored in one group.
Note
!ar_m256_316series_sec_networkscanner.book 13 ページ ２００７年３月５日 月曜日 午前１１時５分

14
BEFORE USING THE NETWORK SCANNER FUNCTION
Editing and deleting programmed transmission destinations
To edit or delete programmed destinations, click "Destination" in the menu frame of the Web page.
1Click "Destination" in the menu frame
of the Web page.
2In the Destinations List, click the
checkbox of the destination that you
want to edit or delete.
3To edit the selected destination, click
"Edit" under the Destinations List.
The programming screen
of the destination
selected in step 2
appears. Edit the
information in the same
way as you initially stored
it.
When finished, be sure to click "Submit" to save
your changes.
4To delete the selected destination,
click "Delete" under the Destinations
List.
A message appears
asking you to confirm the
deletion. Click "Yes" to
delete.
If you attempt to edit or delete a programmed destination in the following situations, a warning message will
appear and editing/deletion will not be possible.
• The destination that you wish to edit or delete is currently being used for transmission.
• The destination is included in a group.
If the destination is being used for a current transmission, cancel the transmission or wait until it is completed and
then edit or delete the destination. If the destination is included in a group, delete the destination from the group
and then edit or delete the destination.
Note
!ar_m256_316series_sec_networkscanner.book 14 ページ ２００７年３月５日 月曜日 午前１１時５分

15
BEFORE USING THE NETWORK SCANNER FUNCTION
1
STORING THE SENDER INFORMATION (Scan to E-mail)
Use this procedure to store the sender information (sender name and e-mail address) that appears when you send
an image by Scan to E-mail. Up to 200 senders can be stored (only one sender can be selected for a transmission).
The sender name appears in the recipient's e-mail program.
1Click "Sender" in the menu frame.
2Click "Add".
The sender programming
screen appears.
3Enter the sender information.
For detailed explanations of the procedures for
establishing settings, click "Help" in the menu
frame.
If user authentication is enabled and you wish to
allow login using the above stored information,
enter the login name for that information in "Login
Name" (maximum of 32 characters). The login
name must be the same as the login name stored
in the LDAP server.
4When you have completed all of the
entries, click "Submit".
The entries will be stored.
Editing and deleting programmed sender's information
1Click "Sender" in the menu frame. 2Click "Edit" or "Delete".
If you clicked "Edit", edit
the information in the
same way that you
initially programmed it
and then click "Add" to
save your changes. If
you clicked "Delete", a
message will appear
asking you to confirm the
deletion. Click "Yes" to
delete.
!ar_m256_316series_sec_networkscanner.book 15 ページ ２００７年３月５日 月曜日 午前１１時５分

16
BEFORE USING THE NETWORK SCANNER FUNCTION
PROTECTING INFORMATION PROGRAMMED IN THE
WEB PAGE ("Passwords")
Passwords can be established to protect the settings and information stored in the Web page. Note that it is not
necessary to set passwords; the network scanner functionality can also be used without passwords.
A password can be set for the administrator and a password can be set for users. When the Web page is accessed
with the user password, the "Device Setup" and "Network Setup" settings cannot be configured.
1Click "Passwords" in the menu frame.
2Select the "Enable Password
Protection of this Web Site"
checkbox.
3Enter the current password in "Admin
Password".
When establishing a password for the first time,
enter "Sharp" in "Admin Password".
4Enter passwords in "User Password"
and "Admin Password".
A maximum of 7 characters and/or numbers can
be entered for each password (passwords are
case sensitive).
Be sure to enter the same password in "New
Password" as you did in "Confirm Password".
5When you have completed all of the
entries, click "Submit".
The entered password is stored.
After setting the password, turn the machine
power off and then back on.
Be sure to enter "S" in upper case and
"harp" in lower case (passwords are case
sensitive).
Caution
When a password is set, you will be prompted for the
password when you attempt to access a Web page
with protected settings. For the "User name", enter
"user" if you are accessing the page as a user, or
"admin" if you are accessing the page as an
administrator. For detailed information on setting
passwords, refer to "Help".
!ar_m256_316series_sec_networkscanner.book 16 ページ ２００７年３月５日 月曜日 午前１１時５分

17
BEFORE USING THE NETWORK SCANNER FUNCTION
1
RESTRICTING USE OF THE NETWORK SCANNER
FUNCTION (USER AUTHENTICATION)
Use of the network scanner function can be restricted by means of user passwords stored in an LDAP server.
Settings required for user authentication
To implement user authentication, the following settings are required:
• Enable user authentication (step 3 on page 6)
• Configure LDAP server settings (p.8)
• Store login names (p.15)
Logging in when user authentication is enabled
To use the network scanner function when user authentication is enabled, you must first log in. Follow these steps:
1Press the [SCAN] key on the operation panel.
The login screen will appear in the touch panel.
If you will use the [SELECT FROM SENDER LIST] key, go to step 3.
2Touch the [LOGIN NAME] key,
[E-MAIL ADDRESS] key.
A text entry screen will
appear when each key is
touched. Enter the
LOGIN NAME, SENDER
NAME, and E-MAIL
ADDRESS. (Go to step
4.)
3Touch the [SELECT FROM SENDER
LIST] key.
The sender list screen
appears. When you
select your login name,
sender name and e-mail
address are entered.
4Enter the password.
For the password, enter the user password that is stored in the server.
5Touch the [OK] key.
If the login name and password are valid, the initial screen (p.18) of scanner mode appears.
PRINT
SCAN
FAX
ON LI
DATA
DATA
DATA
LINE
USER AUTHENTICATION
SENDER NAME :
E-MAIL ADDRESS
LOGIN NAME
PASSWORD
OK
SELECT FROM
SENDER LIST
• To logout, press the [*] key. If audit mode is enabled, you will also log out of your account.
• To switch to a mode other than network scanner mode, you must log out.
SPACE 12#$%
abc
ABC
AB/ab
CANCEL OK
PASSWORD
Note
!ar_m256_316series_sec_networkscanner.book 17 ページ ２００７年３月５日 月曜日 午前１１時５分

18
INITIAL SCREEN OF SCANNER MODE
The condition setting screen of scanner mode is displayed by pressing the [SCAN] key (refer to the operation
manual for copier) while the copy mode, print mode, fax mode, or job status screen appears in the touch panel.
If user authentication is enabled, the initial screen will appear after authentication. (p.17)
In the explanations that follow, it is assumed that the initial screen that appears after pressing the [SCAN] key is the
condition setting screen (shown below). If you have set the display to show the address book screen (following
page) when the [SCAN] key is pressed, touch the [CONDITION SETTINGS] key in the address book screen to
display the condition setting screen.
Condition settings screen
The display is initially set (factory setting) to show the following condition setting screen as the initial screen.
Message display
Messages appear here to indicate the current
status of the machine.
[ADDRESS BOOK] key (p.19)
This displays the address book screen (next page).
Touch this key when you wish to use a one-touch key
that has a destination (or group) programmed in it.
[ADDRESS REVIEW] key (p.22)
When performing Scan to E-mail broadcast
transmission, touch this key to check your selected
destinations. A list of the destinations will appear,
and you can delete any incorrect destinations.
[ADDRESS ENTRY] key (p.22)
When performing Scan to E-mail, touch this key if
you wish to enter the e-mail address of the recipient
manually instead of using a one-touch key.
[SEND SETTINGS] key (p.30)
Touch this key to change the subject*, file name, or
sender* when sending a scanned image.
* When using Scan to E-mail.
Two-sided original and job build icon display
(p.24, 25)
Either icon appears when two-sided scanning or
job build scanning (when an RSPF is installed) is
selected after pressing the [ORIGINAL] key. The
icon can be touched to open a function selection
screen.
[ORIGINAL] key (p.24, 25, 26)
Touch this key to set the original size manually,
select two-sided scanning, or select job build
(when an RSPF is installed).
[FILE FORMAT] key (p.29)
Touch this key to change the format of the image
file to be sent, or change the number of pages per
file. The selected format is highlighted at the top of
the key.
[RESOLUTION] key (p.28)
Touch this key to change the resolution setting for
the original to be scanned. The selected resolution
setting will be highlighted above the key.
[QUALITY] key (p.27)
Touch this key to change the image quality and
density settings for scanning. The selected image
quality and density are highlighted at the top of the
key.
• The key operator program "DEFAULT DISPLAY SETTINGS" can be used to set the display to show either the
condition setting screen (shown below) or the address book screen (following page) when the [SCAN] key is
pressed (refer to the key operator's guide).
• For information on the parts of the machine and the operation panel that are used for network scanning, refer
to the operation manual for copier.
Note
ADDRESS
BOOK
READY TO SEND.
300dpi
AUTO
QUALITY
RESOLUTION
TIFF-G4
FILE FORMAT
AUTO
ORIGINAL
ADDRESS ENTRY
ADDRESS REVIEW
SEND SETTINGS
1
10
9
8
7
6
2
3
4
5
1
2
3
4
5
6
7
8
9
10
!ar_m256_316series_sec_networkscanner.book 18 ページ ２００７年３月５日 月曜日 午前１１時５分
