Sharp MD-SR60E User manual

PORTABLE MINIDISC RECORDER
OPERATION MANUAL
Thank you for purchasing this SHARP product.
For the best performance, read this manual carefully.
It will guide you in operating your SHARP product.
Telephone number for Customer support
0990 274277
Do not hesitate to call us
MODEL
MD-SR60E
**00-TOP/BOTTOM 02.07.2000, 10:01 AM3

2
Important Introduction
Contents
1
Important Introduction
Special Notes.......................................................... 2-3
Precautions.................................................................4
Names of Controls and
Indicators .............................................................. 5-6
Accessories ................................................................7
Preparation
Inserting a MiniDisc .........................................8
Connections................................................ 9-10
Basic operation
Recording...................................................11-12
Playback.................................................... 13-14
Useful Features
Advanced Recording ......................................... 15-19
Recording from a Microphone .......................... 20-22
Advanced playback............................................ 23-24
Checking displays.............................................. 25-26
Battery Power ..................................................... 27-28
Hold Function ...........................................................29
Using with other equipment....................................30
Advanced Features
Titling a MiniDisc................................................ 31-34
Editing a recorded MiniDisc.............................. 35-37
Changing default settings .......................................38
References
Other Features and Caution....................................39
MiniDisc System Limitations ..................................40
Error Messages .................................................. 41-42
Troubleshooting ................................................. 43-44
Maintenance .............................................................44
Specifications...........................................................45
Index..........................................................................46
TERMS OF GUARANTEE......................... Back cover
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM2

3
DEUTSCH
FRANÇAIS
ESPAÑOL
SVENSKA
ITALIANO
NEDERLANDS
ENGLISH
Important Introduction
2
Special Notes
NOTE FOR USERS IN THE U.K.
SERVICE INFORMATION
In the unlikely event of your equipment requiring re-
pair, please contact the dealer or supplier from whom
it was purchased. Where this is not possible, please
contact the telephone number listed below. You will
then be given details of how to obtain service.
– 0345-125387 –
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be
obtained from our main parts distributor.
WILLOW VALE ELECTRONICS LTD.
MANCHESTER 0161-682-1415
READING 01189-876444
In the unlikely event of this equipment requiring re-
pair during the guarantee period, you will need to
provide proof of the date of purchase to the repairing
company. Please keep your invoice or receipt, which
is supplied at the time of purchase.
Warnings
●The supplied AC adaptor contains no user ser-
viceable parts.
Never remove covers unless qualified to do so. It
contains dangerous voltages, always remove
mainsplugfromthemainoutletsocketbeforeany
service operation or when not in use for a long
period.
●TheAC adaptor suppliedwith the MD-SR60Emust
not be used with other equipment.
●To prevent fire or shock hazard, do not expose
this appliance to dripping or splashing liquids.
No objects filled with liquids, such as vases, shall
be placed on the apparatus.
●Neveruse anACadaptor other than theone speci-
fied.
Otherwise, problems or serious hazards may be
created.
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM3

4
Cautions
●At full volume, prolonged listening to a personal stereo
may damage the user’s hearing.
This model complies with the law if used with the correct
headphones (model number RPHOH0005AWZZ).
If the headphones are damaged in any way, please or-
der using the model number given above.
●Use the Portable Minidisc Recorder only in accordance
with the instructions given in this manual and do not at-
tempt to interfere with the interlock switch or make any
other adjustment as this may result in exposure to haz-
ardous radiation. Notes
●Recording and playback of any material may require
consent, which SHARP is unable to give. Please refer
particularly to the provisions of the Copyright Act 1956,
the Dramatic and Musical Performers Protection Act
1958,thePerformers ProtectionActs1963and1972 and
to any subsequent statutory enactments and orders.
●This equipment complies with the requirements of
Directives 89/336/EEC and 73/23/EEC as amended by
93/68/EEC.
●US and foreign patents licensed from Dolby Laborato-
ries Licensing Corporation.
●The letters in brackets contained in the model number
indicate the colour of the product only. Operation and
specifications are unaffected.
Special Notes
Important Introduction
3
●It is not recommendable to put the MiniDisc into a rear
pocket, as this may damage the product when sitting.
Special Notes : continued
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM4

5
DEUTSCH
FRANÇAIS
ESPAÑOL
SVENSKA
ITALIANO
NEDERLANDS
ENGLISH
Precautions
Important
●Do not wear your headphones when you are crossing
streets or near traffic.
●Do not use your headphones
whilst driving a motor vehicle, it
may create a traffic hazard and
may be illegal.
Remembertoobeyallofthesafety
rules in your area.
●Do not play the unit at a high vol-
ume. Hearing experts advise
against extended listening at high volume levels.
●If you experience ringing in your ears, reduce the vol-
ume or discontinue use.
●Nonakedflame sources, such aslighted candles, should
be placed on the apparatus.
●Attention should be drawn to the environmental aspects
of battery disposal.
●The apparatus is designed for use in moderate climate.
To avoid accidental electric shock or other possible
problems, observe the precautions listed below.
●Do not disassemble or modify the unit.
●Do not drop or subject the unit to shock.
●Do not use the unit near open flames.
●Do not spill liquid on the unit.
●Do not use an external power supply, other than the 5V
DC supplied with this unit, as it may damage it.
● SHARPisnotresponsiblefordamageduetoimproperuse.
Refer all servicing to a SHARP authorised service centre.
Important Introduction
4
Storing the unit
Avoid using or leaving the unit in the following places.
●Places exposed to direct sunlight
for many hours (especially in cars
with the doors and windows
closed) or near heaters.
(The cabinet may deform, change
colouror the unit may malfunction.)
●Places exposed to water.
●Places exposed to excessive dust.
●Places where temperatures are ex-
cessively high or low.
●Places(bathrooms) where the humid-
ity is extremely high.
●Places with strong magnetic
fields such as TVs or loud-
speakers.
●Places exposed to vibration.
●Places where sand can easily enter
theinside of the unit (beaches etc.).
●If the unit is used near radio tuners or TVs, noise and/or
picture interference may result. If you experience these
problems, move the unit away from such devices.
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM5

6
Names of Controls and Indicators
Main unit
1. Volume Up/Cursor Button (13, 32)
2. Volume Down/Cursor Button (13, 32)
3. Edit/Auto Mark/Time Mark Button
(18, 22, 31-37)
4. Display/Character Select Button (25, 26, 31)
5. Remote Control/Headphones/Line Output
Socket (13)
6. Optical/Line Input Socket (9, 10)
7. Microphone Input Socket (20)
8. Record/Track Mark Button (11)
9. Stop/Power Off/Charge Button (12, 14, 27)
10. Play/Pause Button (11, 13)
11. Enter/Fast Play/Synchro Button (15,24,31-37)
12. Fast Forward/Recording Level Up/Name
Select Button (11, 23, 31, 38)
13. Fast Reverse/Recording Level Down/
Name Select Button (11, 23, 31, 38)
14. Bass/Delete Button (13)
15. Mode Button (16, 24, 38)
16. Open Lever (8)
17. 5V DC Input Socket (9, 27)
18. Battery Cover (27, 28)
19. Hold Switch (29)
4
5
6
7
13
12
14
15
16
17
8
10
9
11
2
1
3
18
1
9
Important Introduction
5
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM6

7
DEUTSCH
FRANÇAIS
ESPAÑOL
SVENSKA
ITALIANO
NEDERLANDS
ENGLISH
6
Display panel
20. Level Meter
21. Monaural Long-Play Mode Indicator
22. Record Indicator
23. Synchro Recording Indicator
24. Disc Mode Indicator
25. Disc Name Indicator
26. Track Name Indicator
27. Remaining Recording Time Indicator
28. Total Track Number Indicator
29. Fast Play Indicator
30. Repeat Indicator
31. TOC Indicator
32. Battery Indicator
33. Random Indicator
34. Track Number Indicator
35. Character/Time Information Indicator
Remote control unit
1. Headphones Socket (13)
2. Bass/Delete/Track Mark Button (11, 13)
3. Volume Down/Cursor Button (13, 32)
4. Volume Up/Cursor Button (13, 32)
5. Hold Switch (29)
6. Play/Pause Button (11, 13)
7. Fast Reverse/Recording Level Down/Name
Select Button (11, 23, 31, 38)
8. Fast Forward/Recording Level Up/Name
Select Button (11, 23, 31, 38)
9. Stop/Power Off Button (12, 14)
Names of Controls and Indicators : continued
31
32
33
34
35
29
30
20
21
22
23
24
25
26 27 28
12345
6
7
89
Important Introduction
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM7

8
Important Introduction
Accessories
Notes:
●Partsand equipment mentioned inthis operation manual
other than those detailed above are not included.
●The AC adaptor may be different from the one in the
drawing.
AC Adaptor Rechargeable
Remote Control x 1 Headphones x 1 (RADPA8046AWZZ or Nickel-Metal Hydride Battery
RADPA8039AWZZ) x 1 (AD-N70BT) x 1
Battery Carrying Case x 1 Connection Cable Connection Cable Carrying Bag x 1
(for analogue record i ng) x 1 (for d i g i tal record i ng) x 1
7
**01-INPORTANT INTRODUCTION 02.07.2000, 10:02 AM8

98
Preparation
Inserting a MiniDisc
1Slide the OPEN lever to release the com-
partment door.
2Lift it up the compartment.
3Insert a MiniDisc by pressing the middle
of the edge of the disc.
4Close the compartment door.
2
1
3
4
Notes:
●Do not place the MiniDisc under the holder.
●Ifany resistance is felt, do not force the MiniDisc into the
unit, as it may cause damage to the unit. If resistance is
felt, remove the MiniDisc and reload it.
● To prevent recordings being lost the MiniDisc can not be
removed until the TOC has been written (“TOC” or “TOC
EDIT! ” is displayed ).Press the • ■/:OFF button to update
theTOCandpower off, the MiniDisccan now be removed.
Refer to the instructions on page 12.
Check that the erase-protection
tab is in the recordable position.
**02-PREPARATION 02.07.2000, 10:05 AM9

10
AUDIO OUT
RIGHT LEFT
Preparation
Connections
9
Tothe wall
socket
To the DC IN
5V socket
Red : To Right
White : To Left To the OPTICAL/
LINE IN socket
To a stereo system with “AUDIO OUT” or “LINE OUT”
sockets. (See left. Analogue connection)
AC 230-240V
50/60Hz
Note:
If the audio system has only one pair of socket then they are
usually input only and recording via this connection is not
possible.
To connect to a stereo system with “AUDIO OUT” or “LINE OUT” sockets
**02-PREPARATION 02.07.2000, 10:05 AM10

11
DIGITAL OUT
Preparation
Connections : continued
To connect to a stereo system with “DIGITAL OUT” or “OPTICAL OUT” sockets
10
To a stereo system with a "DIGITAL OUT" socket.
(See left. Digital connection)
Compared to analogue connection recording, it allows
high-quality recording.
Some audio systems do not have a DIGITAL OUT socket.
Check before connecting.
To the OPTICAL/
LINE IN socket
AC 230-240V
50/60Hz
Tothe wall
socket
To the DC IN
5V socket
**02-PREPARATION 02.07.2000, 10:05 AM11

12
Recording
Basic operation
15
3
Notes:
●Changing the volume level whilst recording does not af-
fect the recording.
●You cannot adjust the bass level whilst recording.
Caution:
●Whilst “TOC” or “TOC EDIT!” is displayed, do not do
any of the following.
–Do not jerk or bump the unit.
–Do not unplug theAC adaptor.
– Donot remove therechargeable batteryoranalkaline battery.
–Do not subject the unit to shock.
Otherwise, tracks may not be recorded properly.
11
2Playback
4Pause
6Playback
Check that the HOLD switch
on the back is released.
Before recording
**03-BASIC OPERATION 02.07.2000, 10:03 AM12

13

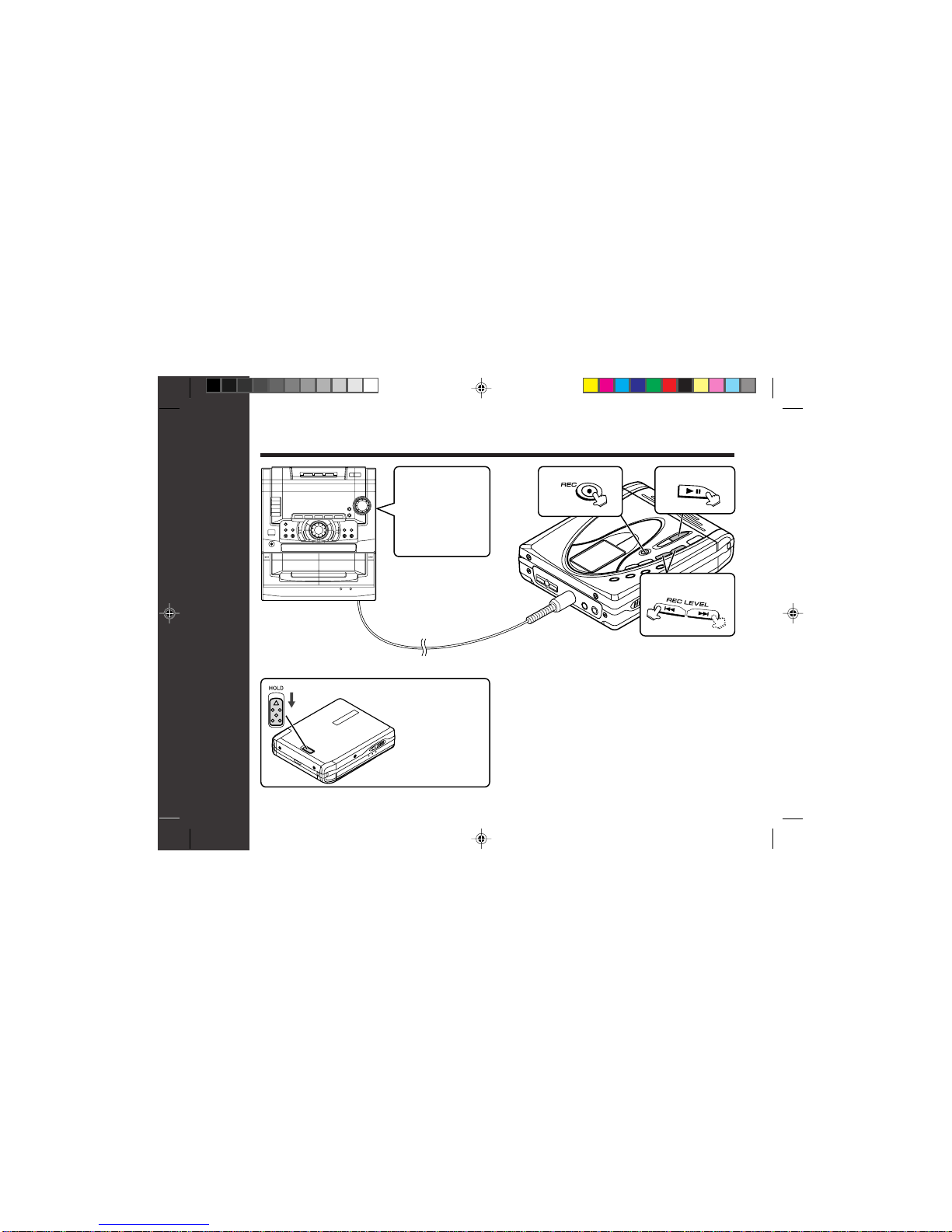

Basic operation
12
Recording : continued
1Press the REC button.
2Begin playback on the stereo system con-
nected to this unit.
3Press the REC LEVEL (55
55
5or 44
44
4) button
to adjust the recording level (only ana-
logue connection).
●Adjust the recording level so that the maximum
sound volume from the source makes the read-
ing swing somewhere between –4 dB and 0 dB.
0dB
4dB
●For digital connection, it is not necessary to ad-
just the recording level.
4Press the PAUSE button on the stereo sys-
tem to enter the playback pause mode.
● Here you can search for the track to record.
5Press the 0606
0606
06 button.
6Begin playback on the stereo system to
start recording.
To interrupt recording
Press the 06 button.
●The track number will be increased by one each time
the recording is interrupted.
To stop recording
Press the • ■/:OFF button.
●When recording stops, “TOC” appears. Whilst “TOC”
appears, recorded contents haven’t been written on
the MiniDisc.
To write recorded contents on the MiniDisc
Press the • ■/:OFF button whilst in the stop mode.
●The power turns off after recorded contents have been
written on the MiniDisc.
Level meter indicator TOC display
**03-BASIC OPERATION 02.07.2000, 10:03 AM13

14
Basic operation
Playback
To the
socket
4
2
1
13
Check that the HOLD switch
on the back is released.
Before Playback
Left
channel
Right
channel
**03-BASIC OPERATION 02.07.2000, 10:03 AM14

15
Basic operation
Notes:
● If power failure occurs whilst playing a disc using the AC
adaptor,disconnectitfromthewallsocket.Otherwise,play-
back may start automatically when electricity resumes.
●If you connect the AC adaptor without installing the re-
chargeablebattery, playback may start automatically. Be
sure to turn off the power.
●Reduce the volume before starting to play. MiniDiscs,
compared to ordinary cassette tapes, have very little
noise. If the volume is adjusted according to your usual
expectations of noise, high volume may damage your
hearing.
●The sound escaping from your headphones may annoy
people around you.
In particularly crowded places (such as on trains or
buses), reduce the volume. 14

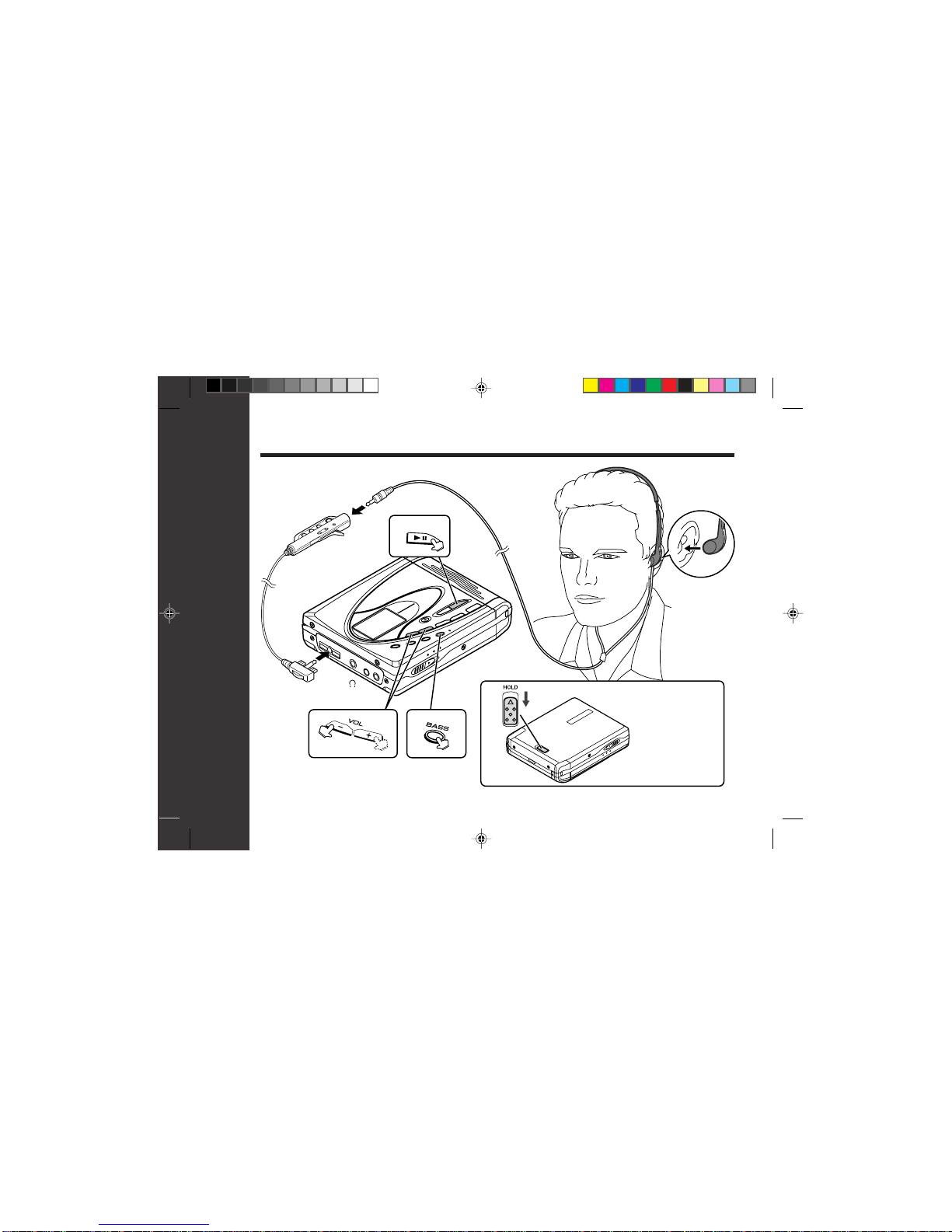

1Insert the headphones into the head-
phones remote control unit.
2Plug the remote control into the socket
on the unit.
3Insert a MiniDisc (page 8).
4Press the 0606
0606
06 button.
●Playbackstartsautomaticallywitha playback only
MiniDiscor a MiniDiscwhich is protectedagainst
accidental erasure (Auto-play function).
Volume control
Press the VOL+ button to increase the volume and
the VOL– button to decrease the volume.
To interrupt playback
Press the 06 button.
●To resume playback, press the 06 button again.
To stop playback
Press the • ■/:OFF button.
●If the unit is not operated for at least 2 minutes whilst
inthe stopmode, thepower willshut offautomatically.
To turn off the power
Press the • ■/:OFF button whilst in the stop mode.
Playback : continued
Bass control
Each time the BASS button is pressed, the tone will
be switched as follows.
BASS1 Emphasised slightly
BASS2 Emphasised more
BASS3 Emphasised fully
BASS OFF Cancelled
Volume (0 - 30)
**03-BASIC OPERATION 02.07.2000, 10:03 AM15

1615
Useful Features
Advanced Recording
1
3
5
1Press the REC button.
2Begin playback on the stereo system con-
nected to this unit.
3Press the REC LEVEL ( 55
55
5 or 44
44
4 ) but-
ton to adjust the recording level
(only analogue connection).
4Press the PAUSE button on the stereo sys-
tem to enter the playback pause mode.
●Here you can search for the track to record.
5Press the ENTER/SYNC button.
6Begin playback on the stereo system.
Recording will begin automatically.
Playback sound-actuated recording
(Synchronized recording)
Recording automatically starts or pauses by detect-
ing sound from the stereo system (Synchronized
recording).
To interrupt recording:
●When the stereo system is stopped, the unit will enter
the synchro recording pause mode. When playback is
resumed, the recording will be resumed.
●If a silence lasts for 3 seconds or more, the recording
will be paused (Pause function does not work for
approximately 10 seconds after a recording starts).
●Whenthe unit receives soundagain, recording automati-
cally starts.
To stop recording:
Press the • ■/:OFF button.
**04-USEFUL FEATURES 1 02.07.2000, 10:03 AM16

17
1Press the MODE button whilst the record-
ing is paused.
2Start recording.
Useful Features
Double time recording in monaural mode
1
Notes:
●Whentheunitisstoppedafter a recording has been made
inthis mode, the recording modewill return to the stereo
mode automatically.
●If input is from a stereo source, the sounds from the left
and right channels will be combined.
●Althoughthe monitor soundyou hear inthe headphones
whilst recording is in stereo, recording will be monaural.
●MiniDiscsrecorded in the monaural long-play mode may
not play on other MiniDisc players. 16
Disappears Appears
Monaural long-
play mode
Stereo
mode
Advanced Recording : continued
When recording in monaural long-play mode the
available recording time will be doubled.
Monaural long-play recordings can be replayed at
double speed, to play at double speed see page 24.
**04-USEFUL FEATURES 1 02.07.2000, 10:03 AM17

18
Useful Features
24
3
To start recording from the middle of track
You can erase a portion of a track and make a new
recording.
●All of the tracks that follow the newly recorded track will
be erased.
1During playback, press the 0606
0606
06 button at
the point where you want to begin record-
ing.
2Press the REC button.
● To cancel the operation, press the • ■/:OFF button.
3Press the ENTER/SYNC button.
●All of the tracks and track names will be erased,
following the point where the playback is paused.
4Press the 0606
0606
06 button.
●Recording will start.
17
Advanced Recording : continued
Note:
●To keep a track after the point you want to make a new
recording, move the track and then make recording af-
ter that point.
(See “Editing a recorded MiniDisc”, page 35.)
**04-USEFUL FEATURES 1 02.07.2000, 10:03 AM18

19
Useful Features
To create your own track numbers
You can create your own track numbersatany point.
Whilst recording, additional track numbers can be created
at any point by pressing the REC button.
●One track number will be added.
●If you press the BASS button on the remote control, you
can create your own track number.
Recording tracks as a single track
You can record several pieces of music as a single
track by disabling the auto marker function.
Whena recording is paused or whilst recording…
Press the EDIT button.
Note:
●When making digital recordings using a CD player or an
MiniDisc player, track numbers will be created automati-
cally regardless of the setting of the auto marker func-
tion. 18
Advanced Recording : continued
Helpful tip when attaching a label
When attaching a label to an MiniDisc cartridge, be sure to
note the following. If the label is not attached properly, the
MiniDisc may jam inside the unit and it may not be pos-
sible to remove it.
●If the label peels off or partially lifts
away, replace it with a new one.
●Do not put a new label on top of an
existing one.
●Attach the label only in the specified
location.
To prevent recorded MiniDiscs from
being erased accidentally
Slide the accidental erase prevention tab, located
on the side of the MiniDisc, in the direction indi-
cated by the arrow.
●The MiniDisc will then be protected against accidental
erasure.
●To add a recording to such a MiniDisc, slide the
accidental erase prevention tab back to its origi-
nal position.
Recordable Recording
prevented
**04-USEFUL FEATURES 1 02.09.2000, 02:37 PM19

20
Useful Features
About track numbers
1. Track numbers are created automatically during re-
cording via the analogue connection when a silence
of 1 second or more is detected (Auto marker func-
tion). A series of tracks can be recorded as one by
disabling the auto marker function see page 18.
2. When recording from a CD or a MiniDisc using the
digital connection, track numbers will be created at
the same points as on the CD or MiniDisc (Synchro
marker function).
●Track numbers may not be created in proper places,
depending on the source to be recorded from, such as
signals with noise.
●The track numbers on the playback side may not match
the track numbers recorded on the MiniDisc.
About sampling rate converter
This unit incorporates a sampling rate converter.
When this unit is connected to digital equipment such as
digital radios or DAT tape recorders that use a different
sampling frequency (32 kHz or 48 kHz), recordings can
still be made. (The sampling frequency of this unit is 44.1
kHz.)
Note for digital recording
You can not copy a MiniDisc that you recorded from digital
inputs to another MiniDisc or DAT. It is prevented by the
SCMS(SerialCopy Management System). Recordingfrom
analogue inputs is not affected.
●Whenrecording, if a programmed playback is performed
by the source or playback is performed by selecting
tracks manually, the MiniDisc track numbers may not be
the same as on the source.
●Track numbers may not be created properly, depending
on the connected stereo system.
19
Advanced Recording : continued
Silence Second
track
About 1
second
First
track
CD player,
MiniDisc
player,
etc.
Digital signals Digitally recorded
MIniDisc
Cannot record
Digital
connection Digital connection
Playback
side
Recording
side
First track Second track Third track
TrackA Track B Track C
First track Second track Third track
Track A Track B Track C
**04-USEFUL FEATURES 1 02.07.2000, 10:03 AM20
