Sharp FO-A660 User manual

MODEL
FO-A660
OPERATION MANUAL
FACSIMILE
1. Installation
2. Using the Answering Machine
3. Sending Faxes
4. Receiving Faxes
5. Making Copies
6. Special Functions
7. Printing Lists
8. Maintenance
9. Troubleshooting
FO-A660SG_ENGLISH_E4400

1
Introduction
*Based on Sharp Standard Chart at standard resolution, excluding time for protocol
signals (i.e., ITU-T phase C time only).
Automatic dialling 40 numbers
Imaging film Initial starter roll (included with machine):
50 m (approx. 150 A4 pages)
Replacement roll (not included):
FO-9CR 60 m (one roll yields
approx. 180 A4 pages)
Memory size* 448 KB (approx. 24 average pages with no
voice messages recorded, or 20 minutes of
voice messages (including OGMs) with no
documents in memory)
Modem speed 14,400 bps with automatic fallback to lower
speeds.
Transmission time* Approx. 6 seconds (only when ECM is on)
Resolution Horizontal: 8 pels/mm
Vertical:
Standard: 3.85 lines/mm
Fine /Halftone: 7.7 lines/mm
Super fine: 15.4 lines/mm
Automatic document
feeder 10 pages max. (A4, 80 g/m2paper)
Recording system Thermal transfer recording
Halftone (grayscale) 64 levels
Compression scheme MR, MH, MMR
Paper tray capacity
(60 - 80 g/m2paper) Approx. 50 A4-size sheets
(at room temperature; maximum stack height
should not be higher than the line on the tray)
Welcome,and thank you for
choosing a Sharp fax
machine! The features and
specifications of your new
Sharp fax are shown below.
!FO-A660SG_ENGLISH_E4400.book Page 1 Tuesday, November 25, 2003 10:00 AM

2
As a part of our policy of continuous improvement, SHARP reserves the right to make design
and specification changes for product improvement without prior notice. The performance
specification figures indicated are nominal values of production units. There may be some
deviations from these values in individual units.
Display 16-digit LCD display
Applicable telephone line Public switched telephone network
Compatibility ITU-T (CCITT) G3 mode
Input document size Automatic feeding:
Width: 148 to 210 mm
Length: 140 to 297 mm
Manual feeding:
Width: 148 to 210 mm
Length: 140 to 600 mm
Effective scanning width 210 mm max.
Effective printing width 204 mm max.
Contrast control Automatic/Dark selectable
Reception modes TEL/FAX, TEL, FAX, A.M.
Copy function Single / Multi (99 copies/page)
Telephone function Yes (cannot be used if power fails)
Power requirements 220-240 V AC, 50/60 Hz
Operating temperature 5 - 35°C
Humidity 25 - 85% RH
Power consumption Standby: 2.5 W
Maximum: 110 W
Dimensions (without
attachments) Width: 327 mm
Depth: 193 mm
Height: 163 mm
Weight (without
attachments) Approx. 2.8 kg
!FO-A660SG_ENGLISH_E4400.book Page 2 Tuesday, November 25, 2003 10:00 AM

3
Important safety information
Do not disassemble this machine or attempt any procedures not described in this manual.
Refer all servicing to qualified service personnel.
Do not install or use the machine near water, or when you are wet. For example, do not use the
machine near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, or near a
swimming pool. Take care not to spill any liquids on the machine.
Unplug the machine from the telephone socket and then the power outlet and consult a
qualified service representative if any of the following situations occur:
- Liquid has been spilled into the machine or the machine has been
exposed to rain or water.
- The machine produces odors, smoke, or unusual noises.
- The power cord is frayed or damaged.
- The machine has been dropped or the housing damaged.
Do not allow anything to rest on the power cord, and do not install the machine where people
may walk on the power cord.
This machine must only be connected to a 220-240 V, 50/60 Hz, earthed (3-prong) outlet.
Connecting it to any other kind of outlet will damage the machine.
Never insert objects of any kind into slots or openings on the machine. This could create a risk
of fire or electric shock. If an object falls into the machine that you cannot remove, unplug the
machine and consult a qualified service representative.
Do not place this machine on an unstable cart, stand or table. The machine could be seriously
damaged if it falls.
Never install telephone wiring during a lightning storm.
Never install telephone sockets in wet locations unless the socket is specifically designed for
wet locations.
Never touch bare telephone wires or terminals unless the telephone line has been
disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Avoid using a telephone (other than a cordless type) during an electrical storm. There may be
a remote risk of electric shock from lightning.
Do not use a telephone to report a gas leak in the vicinity of the leak.
The power outlet must be installed near the equipment and must be easily accessible.
!FO-A660SG_ENGLISH_E4400.book Page 3 Tuesday, November 25, 2003 10:00 AM

4
Table of Contents
A Look at the Operation Panel 6
1. Installation 9
Unpacking Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Loading the Imaging Film. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Loading Printing Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Entering Your Name and Fax Number. . . . . . . . . . . . . . . . . . . . . . . 18
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting the Reception Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
2. Using the Answering Machine 25
Recording an Outgoing Message. . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operating the Answering Machine . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Optional Answering Machine Settings . . . . . . . . . . . . . . . . . . . . . . . 30
Transfer Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Override Ringing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Remote Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
3. Sending Faxes 43
Transmittable Documents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Loading the Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Adjusting the Resolution and Contrast. . . . . . . . . . . . . . . . . . . . . . . 45
Sending a Fax by Normal Dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Sending a Fax by Automatic Dialling . . . . . . . . . . . . . . . . . . . . . . . . 48
Sending a Fax From Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
4. Receiving Faxes 57
Using TEL/FAX Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Using A.M. Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Using FAX Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Using TEL Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Optional Reception Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Substitute Reception to Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
!FO-A660SG_ENGLISH_E4400.book Page 4 Tuesday, November 25, 2003 10:00 AM

Table of Contents
5
5. Making Copies 66
6. Special Functions 68
Caller ID (Requires Subscription to Service) . . . . . . . . . . . . . . . . . .68
Blocking Reception of Unwanted Faxes. . . . . . . . . . . . . . . . . . . . . .73
Polling (Requesting a Fax Transmission). . . . . . . . . . . . . . . . . . . . .74
7. Printing Lists 75
8. Maintenance 79
9. Troubleshooting 82
Problems and Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Messages and Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Quick Reference Guide 91
Index 92
!FO-A660SG_ENGLISH_E4400.book Page 5 Tuesday, November 25, 2003 10:00 AM

6
Help
Press this key to print out the Help List, a quick reference guide to the
operation of the fax machine.
RESOLUTION key
Press this key to adjust the resolution for faxing or copying (page 45).
RECEPTION MODE key
Press this key to select the reception mode (an arrow in the display will point
to the currently selected reception mode; page 22).
REC/MEMO key
Press this key to record an outgoing message, phone conversation, or memo
(pages 25 and 29).
PLAY/HOLD key
Press this key to play recorded messages (page 28), or to place a call on hold
(page 62).
Display
This displays messages and prompts to help you operate the machine.

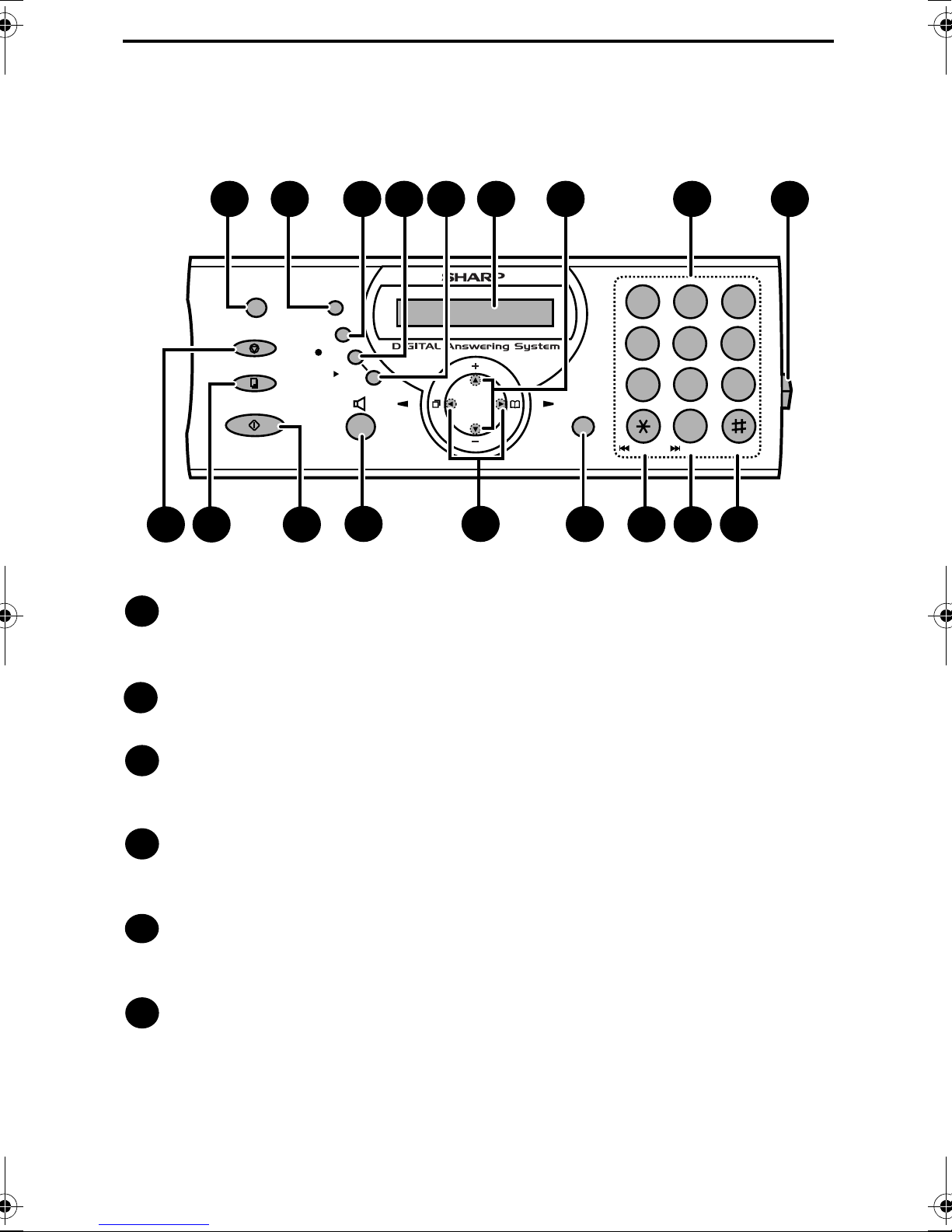

A Look at the Operation Panel
1
2
3
4
5
6
JKL
ABC
1
DEF
WXYZ
9
GHI
45
MNO
6
PQRS
7
TUV
8
0
2 3
RESOLUTION
RECEPTION
MODE
FUNCTION
STOP
COPY/POLL
START/MEMORY
ZA
TEL FAX
TEL/FAX A.M.
HELP
REDIAL
PLAY/
HOLD
DELETEREPEAT SKIP
REC/
MEMO
16 17 18
13
1210 11 15
1 2 3 4 5 86 9
14
7
!FO-A660SG_ENGLISH_E4400.book Page 6 Tuesday, November 25, 2003 10:00 AM

7
UP and DOWN arrow keys
Enlarge/reduce setting: When making a copy of a document, press these
keys to select an enlarge/reduce setting (page 66).
Volume setting: When a document is not in the feeder, press these keys to
change the speaker volume when the key has been pressed, or the
ringer volume at any other time (page 23).
FUNCTION key settings: Press these keys after pressing the FUNCTION
key to scroll through the FUNCTION MODE settings.
Number keys
Use these keys to dial numbers, and enter numbers and letters when storing
auto-dial numbers.
Panel release
Press this release to open the operation panel.
STOP key
Press this key to cancel an operation before it is completed.
COPY/POLL key
Press this key to make a copy of a document (page 66). This key is also used
after dialling to poll (request fax transmission from) another machine (page
74).
START/MEMORY key
Press this key after dialling to begin fax transmission (page 47). Press this key
before dialling to send a fax through memory (page 55).
SPEAKER key
Press this key to listen to the line and fax tones through the speaker when
faxing a document (page 47).
Left and right arrow keys
Auto-dial numbers: When sending a fax or making a phone call, press these
keys to scroll through your auto-dial numbers (page 51), the “REVIEW
CALLS” list (only available if you have Caller ID; page 69), and the last
number dialled (redial; page 53).
FUNCTION key settings: Press the right arrow key after scrolling with the up
and down arrow keys to select a FUNCTION key setting.
FUNCTION key
Press this key followed by the arrow keys to select special functions and
settings.
1
111
1
010
9
8
1
212
1
313
1
414
1
515
7
!FO-A660SG_ENGLISH_E4400.book Page 7 Tuesday, November 25, 2003 10:00 AM

8
Monitoring phone conversations
When speaking through the handset, you can press to allow a third
person to listen to the conversation through the speaker. (To turn off the
speaker, press the key again.)
To adjust the volume of the speaker when monitoring a conversation, press
or (the volume reverts to the lowest setting each time the handset is
replaced).
Note that the speaker cannot be used for speaking; it is only for listening.
To avoid feedback (a loud howling sound), be sure to turn off the speaker
(press once again) before you replace the handset.
REPEAT key
Press this key while listening to a message to play it again (page 28).
SKIP key
Press this key while listening to a message to skip to the next message (page
28).
DELETE key
Press this key to erase recorded messages (page 29).
1
818
1
717
1
616
!FO-A660SG_ENGLISH_E4400.book Page 8 Tuesday, November 25, 2003 10:00 AM

9
1. Installation
1. Installation

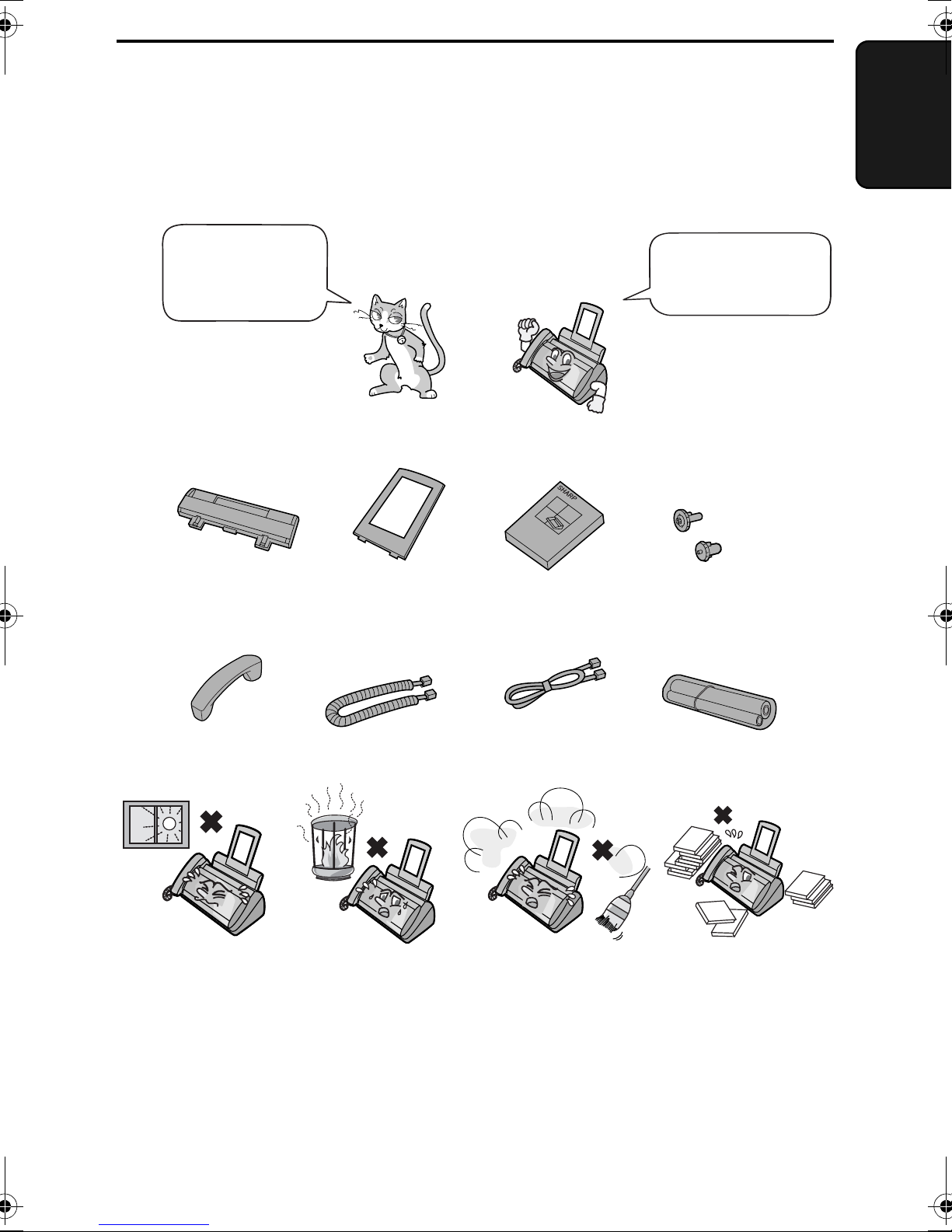

Unpacking Checklist
Points to keep in mind when setting up
Do not place the
machine in direct
sunlight.
Do not place the
machine near
heaters or air
conditioners.
Keep dust away from
the machine. Keep the area around the
machine clear.
About condensation
If the machine is moved from a cold to a warm place, it is possible that
condensation may form on the scanning glass, preventing proper scanning of
documents for transmission. To remove the condensation, turn on the power
and wait approximately two hours before using the machine.
Paper tray
extension Gears (2)
Handset Handset cord Telephone
line cord
If any are missing,
contact your
dealer or retailer.
Before setting up,
make sure you
have all of the
following items.
Paper tray Operation
manual
Imaging film
(initial starter
roll)
!FO-A660SG_ENGLISH_E4400.book Page 9 Tuesday, November 25, 2003 10:00 AM

Connections
10
Connections

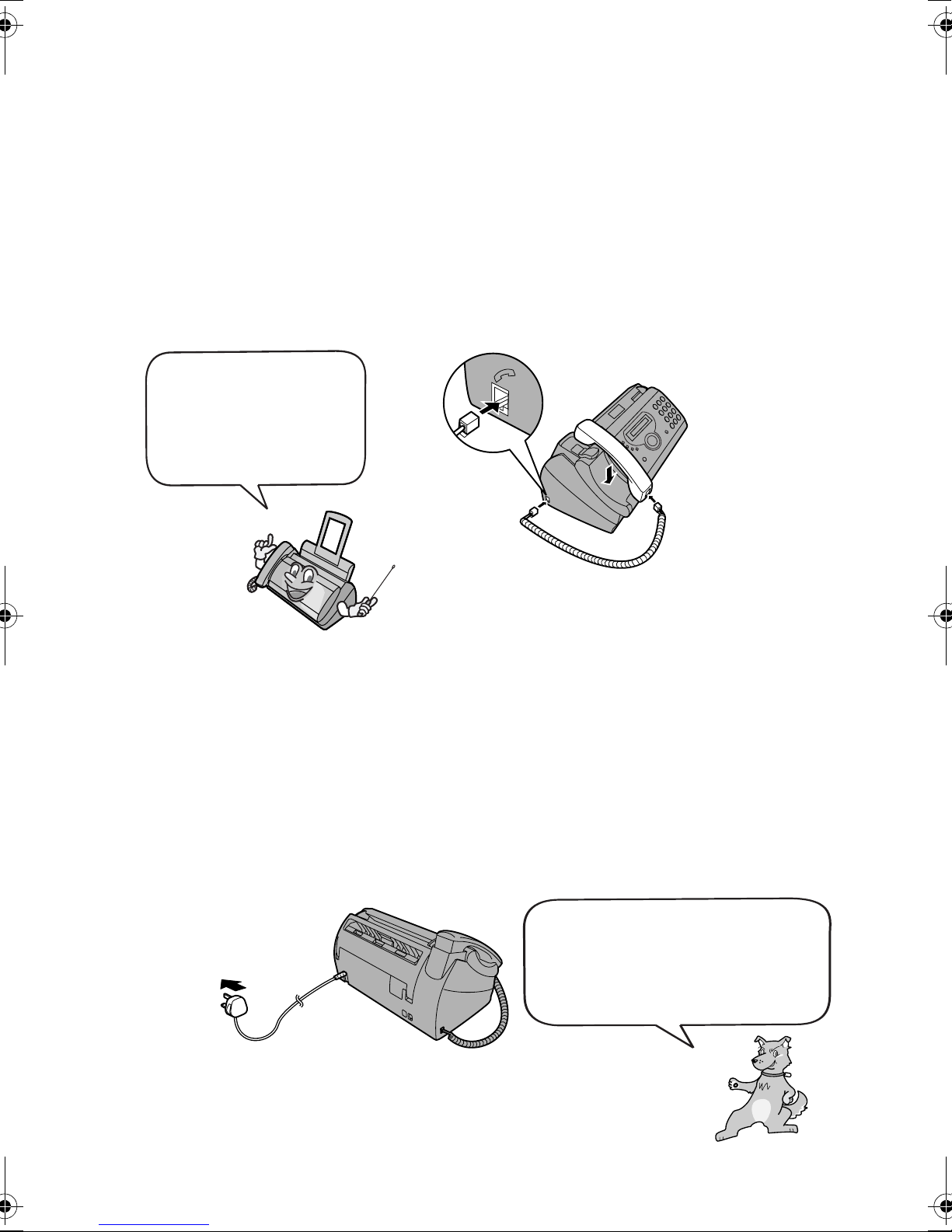

Connecting the handset
Connect the handset as shown and place it on the handset rest.
♦The ends of the handset cord are identical, so they will go into either
socket.
Make sure the handset
cord goes into the
socket marked with a
handset symbol on the
side of the machine!
Use the handset to make ordinary phone calls,
or to transmit and receive faxes manually.
Connecting the power cord
Plug the power cord into a 220-240 V, 50/60 Hz, earthed AC (3-prong) outlet.
♦When disconnecting the fax, unplug the telephone line cord before
unplugging the power cord.
♦Caution: The power outlet must be installed near the equipment and must
be easily accessible.
The machine does not have a
power on/off switch, so the
power is turned on and off by
simply plugging in or unplugging
the power cord.
!FO-A660SG_ENGLISH_E4400.book Page 10 Tuesday, November 25, 2003 10:00 AM

Connections
11
1. Installation
Connecting the telephone line cord
Insert one end of the line cord into the socket on the back of the machine
marked TEL. LINE. Insert the other end into a wall telephone socket.
Setting the dial mode:
The fax machine is set for tone dialling. If you are on a pulse dial line, you
must set the fax machine for pulse dialling. Press the keys on the operation
panel as follows:
1Press once and once.
2Press once and 3 times.
3Press once.
4Select the dial mode:
TONE: PULSE:
5Press to exit.
FUNCTION
12
STOP
TEL.SET TEL.LINE
Display:
The display briefly shows
your selection, then:
OPTION SETTING
DIAL MODE
PSEUDO RING
1=TONE, 2=PULSE
!FO-A660SG_ENGLISH_E4400.book Page 11 Tuesday, November 25, 2003 10:00 AM

Connections
12
Comments:
♦The fax machine is not designed for use on a line which has call waiting,
call forwarding, or certain other special services offered by your telephone
company. If you attempt to use the fax machine in conjunction with any of
these services, you may experience errors during transmission and
reception of facsimile messages.
♦The fax machine is not compatible with digital telephone systems.
♦If your area experiences a high incidence of lightning or power surges, we
recommend that you install surge protectors for the power and telephone
lines. Surge protectors can be purchased from your dealer or at most
telephone specialty stores.
Moving your fax and reconnecting
Should it be necessary to move your fax to a new location, first disconnect the
telephone line cord before disconnecting the power lead. When reconnecting,
it is necessary to connect the power lead before connecting the telephone line
cord.
Attach the paper tray and paper tray extension
Note: The paper tray extension has a top side and
a bottom side. If you cannot insert the tabs into the
holes, turn the support over.
Click!
Insert horizontally
and rotate up
Attach the paper tray Attach the paper tray extension
!FO-A660SG_ENGLISH_E4400.book Page 12 Tuesday, November 25, 2003 10:00 AM

Connections
13
1. Installation
Extension phone (optional)
If desired, you can connect an extension phone to the TEL. SET socket on the
fax.
1Remove the seal covering the TEL. SET
socket.
2Connect the extension phone line to
the TEL. SET socket.
TEL.SETTEL.LINE
TEL.LINE
TEL.SET
!FO-A660SG_ENGLISH_E4400.book Page 13 Tuesday, November 25, 2003 10:00 AM

Loading the Imaging Film
14
Loading the Imaging Film
Your fax uses a roll of imaging film to create printed text and images. The print
head in the fax applies heat to the imaging film to transfer ink to the paper.
Follow the steps below to load or replace the film.
1Remove the paper from the paper tray
and open the operation panel (press
➊).
2Remove the used film and
empty spool.
3Remove the two green gears from the
spools.
DO NOT DISCARD THE TWO GREEN
GEARS!
1
2
When replacing the film,
use a roll of SHARP FO-
9CR imaging film. One
roll can print about 180
A4-size pages.
The initial starter roll of
imagingfilm includedwith
your fax can print about
150 A4-size pages.
If you are loading the imaging film for
the first time, go to Step 4.
!FO-A660SG_ENGLISH_E4400.book Page 14 Tuesday, November 25, 2003 10:00 AM

Loading the Imaging Film
15
1. Installation
4Remove the new roll of imaging film
from its packaging.
•Cut the band that holds the rolls
together.
5Insert the green gears.
6Insert the film into the print
compartment.
7Rotate the front gear as shown until
the film is taut.
8Close the operation panel (press down
on both sides to make sure it clicks
into place).
Fit ends of rolls
onto hubs
Make sure the
gears fit into the
slots in the ends
of the rolls.
1 slot
2 slots
Thick roll
to rear
!FO-A660SG_ENGLISH_E4400.book Page 15 Tuesday, November 25, 2003 10:00 AM

Loading Printing Paper
16
1Fan the paper, and then tap the edge
against a flat surface to even the stack.
Make sure the stack edges are even.
2Insert the stack of paper into the tray, PRINT SIDE DOWN.
•If paper remains in the tray, take it out and combine it into a single stack
with the new paper.
•Be sure to load the paper so that printing takes place on the print side of
the paper. Printing on the reverse side may result in poor print quality.
•GENTLY LOAD PAPER INTO THE PAPER TRAY.
•DO NOT FORCE IT DOWN INTO THE FEED SLOT.
Note: Do not use paper that has already been printed on, or paper that is curled.
Loading Printing Paper
You can load up to 50 sheets of A4-size, 60 - 80 g/m2paper in the paper tray
(at room temperature; maximum stack height should not be higher than the
line on the tray).
Note: If at any time the display shows the
alternating messages at right, check the printing
paper. If the tray is empty, add paper. If there is
paper in the tray, take it out and then reinsert it.
When you are finished, press .
START/MEMOR
Y
ADD PAPER &
PRESS START KEY
The stack
should not
be higher
than this line
!FO-A660SG_ENGLISH_E4400.book Page 16 Tuesday, November 25, 2003 10:00 AM

Loading Printing Paper
17
1. Installation
Print contrast setting
Your fax has been set at the factory to print at normal contrast. If desired, you
can change the print contrast setting to LIGHT.
1Press once and once.
2Press once and twice.
3Press once.
4Select the print contrast:
NORMAL: LIGHT:
5Press to return to the date and time display.
FUNCTION
12
STOP
Display:
The display briefly shows
your selection, then:
OPTION SETTING
PRINT CONTRAST
COPY CUT-OFF
1:NORMAL
!FO-A660SG_ENGLISH_E4400.book Page 17 Tuesday, November 25, 2003 10:00 AM

Entering Your Name and Fax Number
18
Entering Your Name and Fax Number
Once you enter this
information, it will
automatically appear at
the top of each fax page
you send.
Before you can begin sending
faxes, you must enter your
name and fax (telephone)
number. You also need to set
the date and time.
FUNCTION
START/MEMOR
Y
STOP
1Press once and twice.
2Press once.
3Press once.
FUNCTION
1
9
45 6
78
0
2 3
Display:
ENTER FAX #
ENTRY MODE
OWN NUMBER SET
!FO-A660SG_ENGLISH_E4400.book Page 18 Tuesday, November 25, 2003 10:00 AM

Entering Your Name and Fax Number
19
1. Installation

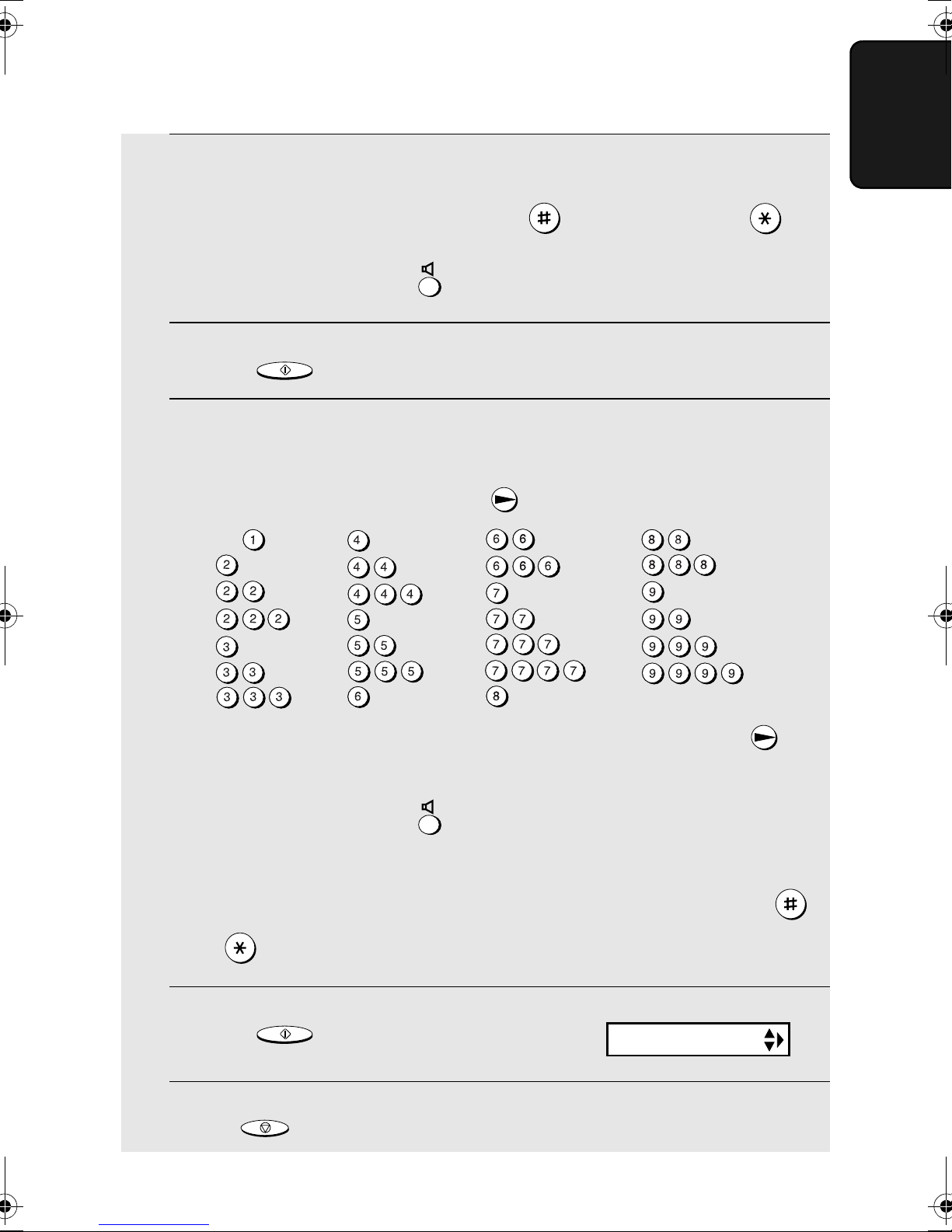

4Enter your fax number by pressing the number keys (max. 20 digits).
•To insert a space between digits, press . To enter a “+”, press .
•To clear a mistake, press .
5Press to enter the fax number in memory.
6Enter your name by pressing number keys for each letter as shown in
the chart below. Up to 24 characters can be entered.
Example: SHARP = 7777 44 2 777 7
♦To enter two letters in succession that require the same key, press
after entering the first letter.
♦To clear a mistake, press .
♦To enter a lower case letter, continue pressing the key for the letter until the
lower case letter appears. To enter one of the following symbols, press
or repeatedly: . / ! " # $ % & ’ ( ) ++ , - : ; < = > ? @ [ ¥ ] ^ _ ' { | } ) (
7Press
8Press to return to the date and time display.
START/MEMOR
Y
START/MEMOR
Y
STOP
Display:
DATE&TIME SET
A =
B =
C =
D =
E =
F =
G =
H =
I =
J =
K =
L =
M =
N =
O =
P =
Q =
R =
S =
T =
U =
V =
W =
X =
Y =
Z =
S
PACE =
!FO-A660SG_ENGLISH_E4400.book Page 19 Tuesday, November 25, 2003 10:00 AM
