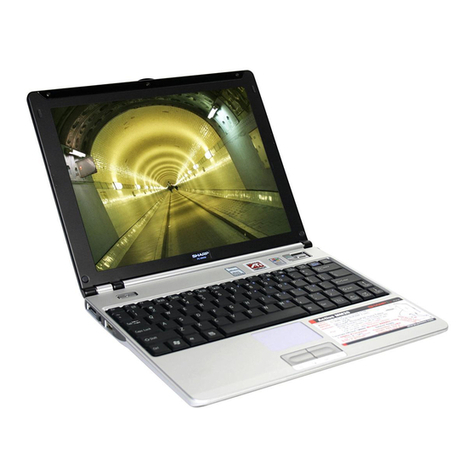

Sharp PC-MM1 series User manual

 
   
2003 SHARP CORPORATION
PRINTED IN JAPAN
TINSE3551ACZZ
DIC13th 641
C100:M60:Y0:K0
DIC 582 Bl ck
C0:M0:Y0:PK100
118P (5.3mm)
NOTEBOOK COMPUTER
 
 

66
1 1

i
Notice for Users in the USA
FCC Statement
WARNING - FCC Regulations state that any unauthorized changes or modifications
to these equipments not expressly approved by the manufacturer could void the
user’s authority to operate these equipments.
Note: These equipments have been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in
a residential installation. These equipments generate, use and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If these equipments do cause
harmful interference to radio or television reception, which can be determined by turning
the equipments off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
A shielded I/F cable is required to insure compliance with FCC regulation for Class
B computing equipment.
* As an ENERGY STAR®Partner, SHARP has determined that this product meets
the ENERGY STAR®guidelines for energy efficiency.
Declaration of Conformity
SHARP PERSONAL COMPUTER, PC-MM Series
This device complies with part 15 of the FCC rules. Operation is subject to the following
conditions:(1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Responsible Party: SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
TEL: 1-800-BE-SHARP

ii
For Wireless LAN Bundled Model
Wireless LAN Model Name: T60H42400
FCC ID: MCLT60H42400
This device complies with part 15 of the FCC rules. Operation is subject to the
following conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
Warning
This product utilizes tin-lead solder, and fluorescent lamp containing a small amount
of mercury.
Disposal of these materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local authorities or the
Electronics Industries Alliance: www.eiae.org
Copyright
It is the intent of Sharp that this product be used in full compliance with the
copyright laws of the United States and that prior permission be obtained from
copyright owners whenever necessary.
Product Information and Customer Assistance
For Product Information and Customer Assistance:
Call: 1-800-BE-SHARP (237-4277)
Sharp Systems of America
5901 Bolsa Avenue, Huntington Beach, CA 92647
Home Page: http://www.sharpsystems.com
E-mail address: [e-mail]

iii
CAUTION:
TO PREVENT ELECTRICAL SHOCK, DISCONNECT THE AC CORD AND THE
BATTERY BEFORE SERVICING.
CAUTION:
FOR A COMPLETE ELECTRICAL DISCONNECTION, PULL OUT THE MAIN
PLUG AND THE BATTERY.
VORSICHT:
UM DIE STROMZUFUHR VOLLSTÄNDIG ZU UNTERBRECHEN, DEN
NETZSTECKER HERAUSZIEHEN UND DIE BATTERIE ÈNTFERNEN.
ATTENTION:
POUR UN ARRET TOTAL DU SYSTEME, DECONNECTEZ LA PRISE DE
COURANT SECTEUR ET LA BATTERIE.
VARNING:
FÖR TOTAL ELEKTRISK URKOPPLING, KOPPLA UR KONTAKTEN OCH TA
UR BATTERIET.
PRECAUCION:
PARA UNA COMPLETA DESCONEXION ELECTRICA DESENCHUFE LA
CLAVIJA DE LA RED Y LA BATERIA.

iv
Safety Precautions
General
• Follow all cautions and instructions, which may be marked, on the computer.
• Except as described elsewhere in this manual, refer all servicing to qualified
personnel. Immediately shut off the computer and seek servicing under the
following conditions:
• when the power cord or plug is damaged or frayed
• when liquid has been spilled on the computer
• when the computer has been dropped or the cabinet has been damaged
Location
• Do not expose the computer to direct sunlight.
• Try to avoid dusty environments.
• Keep the computer away from any magnetic devices and TVs.
• Keep the computer away from excessive humidity or fluids such as rain, snow,
water spray, juice, coffee, steam, etc.
• Do not move the computer from an extremely cold place to an extremely warm
place. A temperature difference of more than 10°C (18°F) will cause condensation
inside the unit, which may cause damage.
• Do not block or cover slots or openings on the cabinet. These protect the computer
from overheating.
• Do not place the computer on unstable or uneven work surfaces.
• Do not use the computer on your lap or any part of your body for an extended
period during operation or charging to avoid injury from heat exposure.
Usage
• Never push any objects of any kind into cabinet openings. They may touch
dangerous voltage points or short parts that could result in fire or electrical shock.
• Turn off the computer before installing or removing peripheral devices (except
when connecting USB devices and PC cards, etc.).
• Check the AC power cord and power connectors periodically for damage. Replace
the power cord immediately if damage is found.
• Never subject your computer to sudden shocks or extreme vibration.

v
• Do not drop the computer nor hit it with other equipment.
• Do not scratch the surface of the LCD screen.
• Turn off the computer and disconnect the AC power cord before cleaning.
Battery Precautions
CAUTION
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED.
REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED
BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO
THE MANUFACTURER'S INSTRUCTIONS.
Handling
• Never put the battery pack in a fire, as it could explode and cause injury.
• Do not attempt to open or alter the battery pack.
• Do not place the battery where it might get hotter than 60°C (140°F).
• Do not allow metal objects such as jewelry to short across the battery terminals, as
it could heat up and explode.
• Do not allow liquids to come in contact with the battery pack.
• Avoid dropping the pack or other violent shock.
• Do not solder anything to the battery terminals.

vi
Charging
• Charge the battery pack only with the AC adapter included with your computer.
Discharging
• Do not use the battery pack for any purpose other than powering your computer.
Storage
• Store the battery pack in a cool and dry place. Never allow the temperature to
exceed 60°C (140°F) during storage.
• Recharge the stored battery pack after storage, before use.
Wireless LAN Precautions
• Disable the integrated antenna and do not communicate with wireless LAN in
specific environment where radio-susceptible equipment is nearby such as on
airplanes, in hospitals, etc.
• Do not communicate with wireless LAN in the following environment:
• where radio-frequency generating devices are nearby such as microwaves,
wireless applications, etc.
• where metallic materials are nearby such as steel cabinets, etc.

vii
Caution
Your computer is integrated with a magnet on the right side of the display.
Be sure to keep the magnetic cards or floppy disks away from the right side of your
computer. Otherwise the data on the cards or floppy disks may be erased.
This computer has a sensor on the right side of the keyboard which responses to the
magnet. If you bring the magnet near the right side of the keyboard, the backlight is
turned off, and the system may enter the standby or the hibernate mode depending on
the setting. (See Chapter 3.)
Magnet

viii
About This Manual
Notice
Information in this manual is subject to change without notice and does not represent a
commitment on the part of SHARP Corporation and its sales subsidiaries.
SHARP Corporation and its sales subsidiaries shall not be liable for technical or editorial
errors or omissions contained herein; nor for incidental or consequential damages resulting
from the furnishing, performance, or use of this material.
SHARP strongly recommends that separate permanent written records be kept of all important
data. Data may be lost or altered in virtually any electronic memory product under certain
circumstances. Therefore, SHARP assumes no responsibility for data lost or otherwise
rendered unusable whether as a result of improper use, repairs, defects, battery replacement,
use after the specified battery life has expired, or any other causes.
SHARP assumes no responsibility directly or indirectly, for financial losses or claims from
third persons resulting from the use of this product and any of its functions, such as stolen
credit card numbers, the loss of or alteration of stored data, etc.
Edition
1st Edition, March 2003.
Copyright
© 2003 SHARP Corporation
This document contains or refers to proprietary information which is protected by copyright.
All rights are reserved. Copying or other reproduction of this document is prohibited without
the prior written permission of SHARP Corporation.
Trademarks
Crusoe is a trademark of Transmeta Corporation.
IBM is a trademark of International Business Machines Corporation.
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States and other countries.
Power Quest is a registered trademark and EasyRestore is a trademark of PowerQuest
Corporation.
BAPCo is a registered trademark of the Business Applications Performance Corporation.
MobileMark is a trademark of the Business Applications Performance Corporation.
All other brand and product names are trademarks or registered trademarks of their
respective holders.

ix
Recording Important Information
For future reference, please record the following information in the spaces provided
below.
Model Number:
Serial Number:
Date of purchase:
Dealer’s Name:
Place of purchase:
Password:
The serial number is printed on a sticker located on the bottom of the computer.

x
Manual Conventions
This manual uses a set of style conventions described below.
Notes and Cautions are italicized with icons:
A note icon informs you of a special technique or information that may
help you perform a task or better understand a process.
A caution icon alerts you to something that may cause problems or
damage to hardware, software or data.
Key Labels on the Keyboard, when referred to in the instructions, are shown in
boldface:
Press Enter to continue.
When two or more keys are pressed simultaneously, the key labels are separated by a
plus (+) sign:
Run Task Manager by pressing Ctrl+Alt+Delete.
Sample Entries are shown in lower cases of different typeface.
c:\windows\system
Words/Texts on Screen, such as window titles or possible parameters, are italicized:
Double-click this icon to display the Power Options Properties dialog box.
Set the item to Enabled.
Screens reproduced in this manual may differ slightly from the screens you see on
your computer.
Section Titles in other parts of this manual are italicized:
Refer to Installing Battery Pack section of Chapter 1.

xi
Table of Contents
Notice for Users in the USA.......................................................................................i
Safety Precautions ....................................................................................................iv
About This Manual.................................................................................................viii
Recording Important Information.............................................................................ix
Manual Conventions..................................................................................................x
Table of Contents .....................................................................................................xi
Overview of Computer ...........................................................................................xiv
Quick Setup
Installing Battery Pack............................................................................................1-1
Connecting to AC Power Source............................................................................1-4
Setting Up Windows...............................................................................................1-6
Turning Off Your Computer ..................................................................................1-8
Basic Operations
Choosing Power Source .........................................................................................2-1
Resetting System ....................................................................................................2-3
Using Glide Pad......................................................................................................2-4
Using Keyboard......................................................................................................2-6
Controlling Volume................................................................................................2-7
Adjusting Display...................................................................................................2-8
Sharing Your Computer .......................................................................................2-11
Battery and Power Management
Battery Pack............................................................................................................3-1
Power Management ................................................................................................3-7

xii
Peripherals
Using Peripherals ...................................................................................................4-1
Optional External Floppy Disk Drive Unit ............................................................4-3
Optional External CD-ROM Drive Unit ................................................................4-6
Display .................................................................................................................4-11
Audio System.......................................................................................................4-14
USB Device..........................................................................................................4-16
PC Card ................................................................................................................4-17
Printer................................................................................................................... 4-21
Communication Functions
LAN Unit ...............................................................................................................5-1
Wireless LAN.........................................................................................................5-4
Network Setup Utility ............................................................................................5-8
Modem Card (may not be available in some countries) ......................................5-10
Setup Utility
Running Setup Utility ............................................................................................6-1
Main Menu ............................................................................................................. 6-3
Advanced Menu .....................................................................................................6-4
Security Menu ........................................................................................................6-4
Boot Menu..............................................................................................................6-6
Exit Menu...............................................................................................................6-6
Connection Cradle
Setting Up Connection Cradle................................................................................7-3
Overview of Connection Cradle ............................................................................7-4
Using MM Series as External Hard Disk ...............................................................7-6
Connecting to Host Computer................................................................................7-7
Stopping Connection from Host Computer..........................................................7-11
Removing from Connection Cradle .....................................................................7-12
Setting Password ..................................................................................................7-13

xiii
Appendixes
Maintenance and Care ...........................................................................................A-1
Troubleshooting
Index

xiv
Overview of Computer
Each number after an arrow indicates the page referring to the part. Actual
appearance of your computer may be slightly different depending on the model.
Front
LCD Screen
→2-8
Keyboard
→2-6
Glide Pad
→2-4
Power Button
→1-5
Status Indicators
→xv
Wireless LAN Antenna
→5-4

xv
Status Indicators
Never turn off the computer when the hard disk indicator is on. This may
damage the data on the hard disk.
Right
Left
Head
p
hone/Audio Out
p
ut Jack →4-14
PC Card Slot→4-17
AC Adapter Jack→1-4
Connection Cradle Connector
→7-5
USB Port
→4-3,7,16,21 LAN Jack →5-2
USB port→4-3,7,16, 21
Hard Disk Indicator
Antenna Indicator
Battery Indicator
Power Indicator

xvi
Rear
Bottom
RESET
Speaker
Reset Switch
→
2-
3
Battery Pack→3-1
Ventilation
Openings→iv
Dis
p
la
y
Connector →4-12

1-1
1
CHAPTER 1
Quick Setup
Your computer is designed and pre-configured for easy setup and use. This chapter
describes the steps to set up your computer and operate it as quickly as possible. Read
this chapter first.
Installing Battery Pack
Your computer is powered with either the battery pack or AC power source. See the
next chapter for more information on the power sources. Before using your computer
for the first time:
1. Place your computer upside down.
2. Slide the battery stopper on the battery pack to the unlocked position( ).
Battery Stopper

1-2
1
3. Insert the battery pack into your computer by matching the notched parts of the
battery to the projected parts on your computer.
4. Push the battery pack all the way until you hear the clicking sound.
Notched Part
Projected Part
Projected Part
Notched Part
