SAFETY AND WARNINGS
IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings, install
in accordance with the instructions.
8) Do not install near any heat source, such
as radiator, heat registers, stoves or other
apparatus (including ampliers) that produce
heat.
9) Do not defeat the safety purpose of the
polarized plug. If the provided plug does not
t into your outlet, consult a qualied service
personnel for replacement of the obsolete
outlet.
10) Protect the power cord from being
stepped on or pinched particularly at plugs,
convenience receptacles, and at the point
where they extend from the apparatus.
11) Only use attachments/accessories
specied by the manufacturer.
12) Unplug this apparatus during lightning
storms or when unused for a long period of
time.
13) Refer all servicing to qualied service
personnel. Servicing is required when the
apparatus has been damaged in any way, such
as the power supply cord or plug is damaged,
liquid has been spilled, or objects have fallen
into the apparatus, or the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
14) Main plug is used as a disconnect device,
the disconnect device shall remain readily
operable.
15) The ventilation openings should not be
covered by items, such as newspapers, table-
cloth, curtains, etc.
16) No naked ame sources, such as lighted
candles, should be placed on the apparatus.
17) Attention should be drawn to the
environmental aspects of battery disposal.
18) The use of apparatus in moderate climate.
19) The apparatus shall not be exposed to
dripping or splashing and that no objects lled
with liquids, such as vases, shall be placed on
the apparatus.

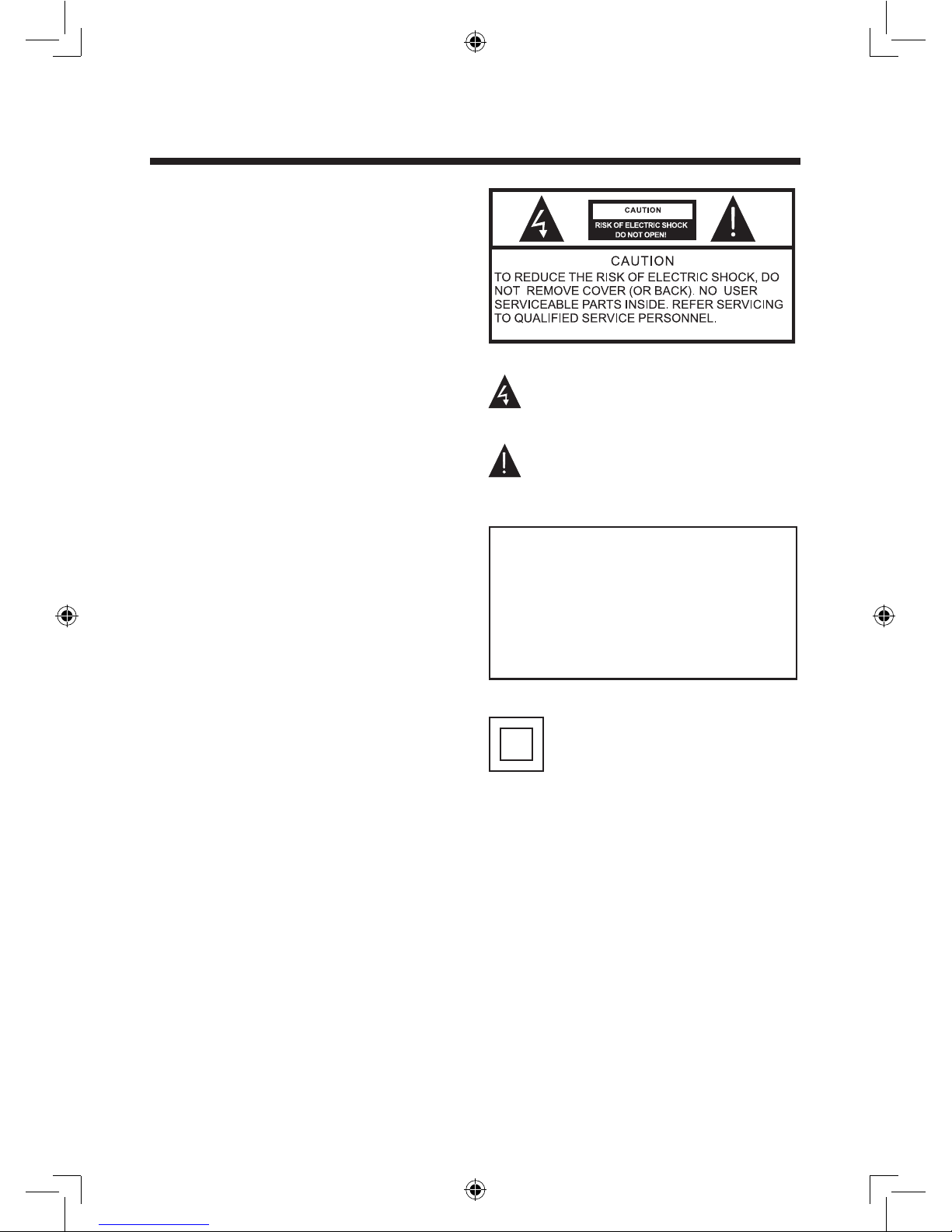

The symbol indicates that dangerous
voltages consituting a risk of electric
shock are present within this unit.
The symbol indicates that there are
important operating and maintenance
instructions in the literature
accompanying this unit
WARNING:
To prevent re or shock hazard, do not
expose this appliance to rain or moisture.
A warning that batteries (battery pack or
batteries installed) shall not be exposed to
excessive heat such as sunshine, re or the
like.
This symbol indicates that this product
incorporates double insulation between
hazardous main voltage and user accessible
parts. Only use identical replacement parts.
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 2 2013-4-3 9:43:03

-3-

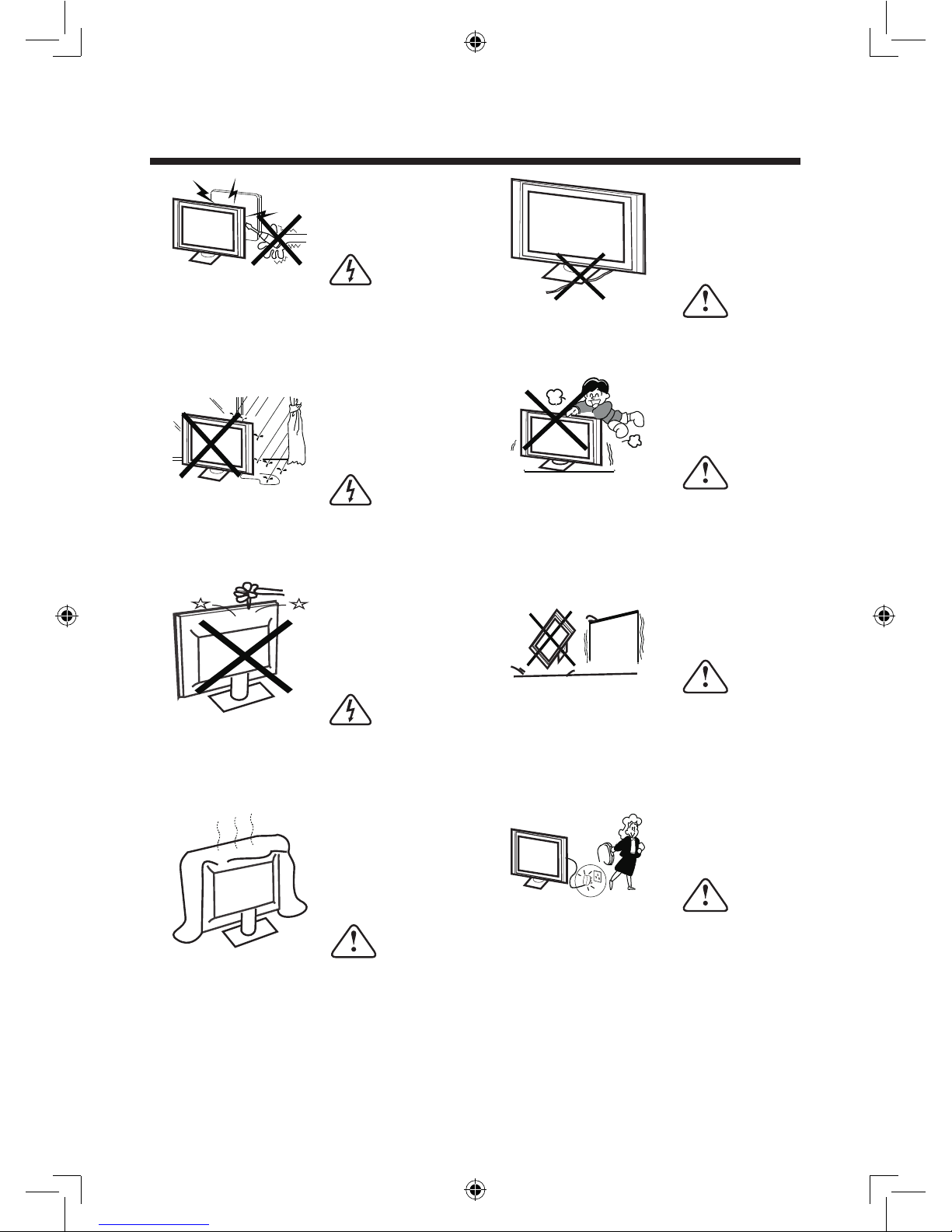

SAFETY AND WARNINGS
Warning
Caution
Warning
Warning
High voltages are used in the operation
of this television. Do not remove the back
cabinet from your set. If maintenance
is required, contact qualied service
personnel.
Caution
To prevent re or electrical shock hazard,
do not expose the television to rain or
moisture.
Do not drop or push objects into the
television cabinet, slots or openings.
Never spill any kind of liquid on the
television.
Do not block the ventilation holes at
the back cover. Adequate ventilation is
essential to prevent failure of electrical
components.
Do not trap the power supply cord under
the television.
Never stand on, lean on, or suddenly
push the television or its stand. You
should pay special attention to children.
Serious injury may result if the television
overturns.
Caution
Do not place your television on an
unstable cart, stand, shelf or table.
Serious injury to an individual or damage
to the television may result if the
television overturns.
Caution
When the television is not used for
an extended period of time, it is
recommended to disconnect the AC
power cord from the AC outlet.
Caution
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 3 2013-4-3 9:43:04

-4-
INTRODUCTION
Thank you very much for purchasing this
television. To enjoy trouble-free operation of
your product, please read this manual carefully
and keep it handy for easy reference.
CAUTION
Never tamper with any components inside the
television, or any other adjustment controls not
mentioned in this manual. All LCD-televisions
are high voltage instruments. Unplug the
AC cord from the AC outlet before cleaning
the product, then wipe the television with a
dry soft cloth. During thunder and lightning,
unplug the power cord and antenna cable to
prevent damage to your television. All repairs
to this television should only be performed by
qualied television service personnel.
INSTALLATION
*Locate the television in the room where light
does not strike the screen directly.
*Total darkness or a reection on the picture
screen can cause eyestrain. Soft and indirect
lighting is recommended for comfortable
viewing.
*Allow enough space between the television
and the wall to permit ventilation.
*Avoid excessively warm locations to prevent
possible damage to the cabinet or premature
component failure.
*Do not cover the ventilation openings when
using the television.
Trademarks
Main parameter
Model LC-40LE433H
Size 40 inch
TV System PAL-B/G, I, D/K,SECAM-B/G, D/K, NTSC-M
Video Signal System PAL/NTSC/SECAM
Input Power Voltage AC 110-240V, 50Hz
Power Consumption (Standby) 95W (0.6W)
Audio Output Power 2 x 6W
Input Terminals
USB x 2
VGA x 1, AUDIO x 1 (Ø3.5mm jack)
HDMI x 3
Video x 2
Component x 1
Audio x 2
Antenna x 1 (UHF/VHF/75Ω Din type)
Output Terminals Digital Audio Output
• Manufactured under license from Dolby Laboratories.
• Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI Logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and
other countries.
• TruSurround HD, SRS and symbol are trademarks of SRS Labs, Inc.
TruSurround HD technology is incorporated under license from SRS Labs, Inc.
• SRS TruSurround HDTM creates an immersive, feature-rich surround sound experience
from two speakers, complete with rich bass, high frequency detail and clear dialog.
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 4 2013-4-3 9:43:05

-5-
INSTALLATION

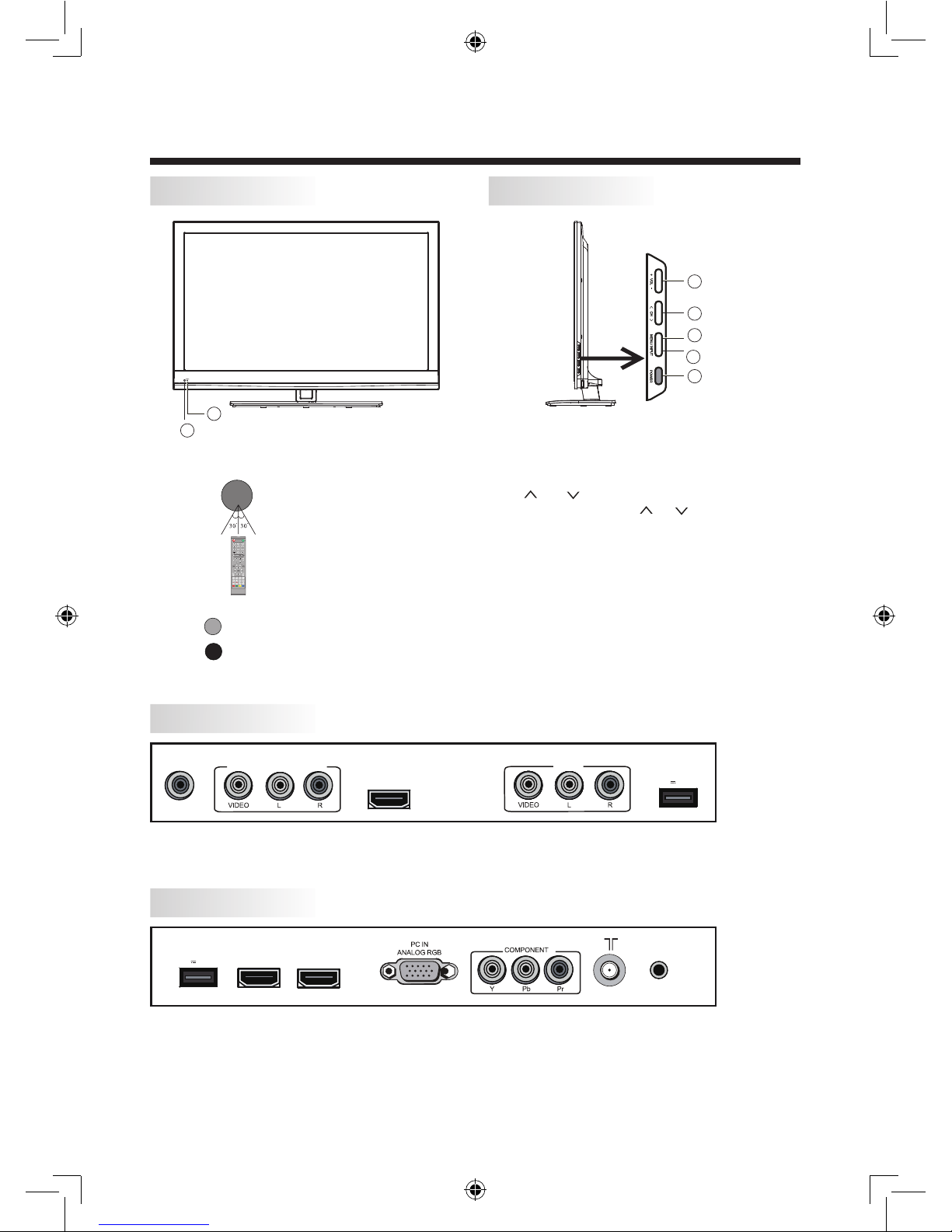

Front Side
1
2
1
2
3
4
5
1. VOL+ / VOL-
Adjust sound level.
In MENU mode, press "VOL+/VOL-" to adjust the
item that you selected.
2. CH / CH
In TV mode, press "CH /CH " to change the
channel up and down.
3. MENU
Display main menu.
4. INPUT
Display the input source menu.
5. POWER
Switch the TV between on and standby mode.
1. Remote control sensor
2. LED Indicator
BLUE POWER ON
RED STANDBY
Side Terminals
Rear Terminals
All the input terminals are (from left to right):
1: DIGITAL AUDIO OUTPUT, 2: AV1 / COMPONENT AUDIO IN, 3: HDMI 3, 4: AV2 IN 5: USB 2
All the input terminals are (from left to right):
1: USB1, 2: HDMI 1, 3: HDMI 2, 4: PC IN ANALOG RGB, 5: COMPONENT 6: ANT, 7: PC AUDIO
MPX
INPUT
WIDE
P.MODE S.MODE
MADEIN CHINA
845-051-02B13
USB 1
5V 500mA HDMI 1 HDMI 2
ANT PC AUDIO
DIGITAL
AUDIO
OUTPUT
USB 2
5V 500mA
AV1 / COMPONENT AUDIO IN AV2 IN
HDMI 3
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 5 2013-4-3 9:43:07

-6-
Stand Installation
• Attach the stand in correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in television overturns.
1. Put the television face down on a safe surface that is covered by a soft and smooth cloth. (Show in diagram 1)
2. Fix the television stand support to the television, fasten the screws by using a cross-head screwdriver (Not
supplied). (Show in diagram 2)
3. Fix the television stand base to the television, fasten the screws by using a cross-head screwdriver (Not
supplied). (Show in diagram 3)
INSTALLATION
1 2 3
(6pcs screws) (4pcs screws)
CAUTION:
Do not push too hard or apply excessive pressure to the stand neck to avoid any damages when you turn the
television for the most comfortable viewing angle.
ANTENNA
ANT 75Ω
Note:
Aerial connections: IEC(female).
Input impendance: 75Ω unbalanced.
An outdoor antenna
NOTE:
- To detach the stand, perform the steps in reverse order.
- Screwdriver is not supplied with this product.
- Angle adjustment is not available for the LC-40LE433H.
Stand support Stand
base
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 6 2013-4-3 9:43:21

-7-
Connecting a PC
STEPS:
1. Be sure both the television and computer are set to power off.
2. Connect VGA and audio cable
3. Connect the power cord.
4. Power on the television, switch to VGA mode.
5. Power on the PC.
This sequence is very important.
*Rear Terminals
Resolution V.Freq.(Hz) H.Freq.(Hz)
1 640 x 480 60 31.47
2 800 x 600 60 37.88
3 1024 x 768 60 48.36
4 1280 x 1024 60 63.98
5 1360 x 768 60 47.70
6 1920 x 1080 60 66.64
HDMI Compatible Signal Format
480i, 480p, 576i, 576p, 720p/50Hz, 720p/60Hz, 1080i/50Hz, 1080i/60Hz,1080p/24Hz,1080p/50Hz,1080p/60Hz.
INSTALLATION
PC Compatibility Chart
USB 1
5V 500mA HDMI 1 HDMI 2
ANT PC AUDIO
Stand
base
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 7 2013-4-3 9:43:22

-8-
INSTALLATION
Connecting External Devices
This television provides two groups of AV, one group of component terminals for convenient connection
to VCR, DVD or other video equipments. Please refer to the owner's manual of the equipments to be
connected as well.
You can use the input terminals on the rear panel as follows.
It can be connected to the following equipments: VCR, multi disc player, DVD player, camcorder, video
game console or stereo system, etc.
Component terminals can support these video formats: 480i, 480p, 576i, 576p, 720p/50Hz, 720p/60Hz,
1080i/50Hz, 1080i/60Hz, 1080p/24Hz, 1080p/50Hz, 1080p/60Hz.
Note: AV1 and component terminals share the same audio input terminal.
Y Pb Pr L R
Y Pb Pr
L R
L R
Video Audio
L
R
Video
HDMI
VIDEO EQUIPMENT
To video output terminal
To audio output terminal
Audio L/R
Video equipment with
component output terminal
USB 1
5V 500mA HDMI 1 HDMI 2
ANT PC AUDIO
DIGITAL
AUDIO
OUTPUT
USB 2
5V 500mA
AV1 / COMPONENT AUDIO IN AV2 IN
HDMI 3
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 8 2013-4-3 9:43:23

-9-
REMOTE CONTROL
Remote Control
MPX
INPUT
WIDE
P.MODE S.MODE
MADE IN CHINA
845-051-02B13
20
1
2
321
422
24
6
523
725
8
9
26
27
10
11 28
12 29
13 30
14 31
15 32
16 33
18
17 34
35
19 36
1. POWER
To set the TV to standby or power on.
2. NUMERIC KEY
For direct access to channels.
3. CH.LIST
To display the channel list.
4. P.MODE
To select the picture mode.
5. S.MODE
To select the sound mode.
6. INPUT
To select the input source.
7. CH / CH
To access the next or previous channels.
8. MPX
To switch between different audio languages.
9. SUB.T
To switch between different subtitles in DTV
mode.
10. CURSOR
To move within the menu.
11. MENU
To display TV menu.
12. TEXT
MHEG5 function key.
13. DTV/ATV
To switch between ATV (Analog TV) and DTV
(Digital TV).
14.
Play or pause in media play mode.
15.
Stop in media play mode.
16.
To record the current program.
17.
To start the Time-Shift function.
18. FREEZE (RED)
To freeze the picture.
19. REPEAT (GREEN)
To select between different repeat mode.
20. MUTE
To disable or enable the sound output.
21.
To return to the previous viewing channel.
22. SLEEP
Set timer to turn off the television.
23. FAV
To access your favorite channels list in ATV or
DTV mode.
24. INFO
To display information of current and next
program in DTV mode.
25. VOL+ / VOL-
To adjust sound level.
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 9 2013-4-3 9:43:23

-10-
26. WIDE
To change picture aspect ratio.
27. EPG
To display the Electronic Program Guide screen.
28. EXIT
To return to the previous menu or exit menu.
29. INDEX
To display the channel index in EPG mode.
30. PVR.LIST
To display Personal Video Recorder list.
31. FF
Fast forward.
32. FB
Fast backward.
33.
Next.
34.
Previous.
35. GOTO (BLUE)
Skip to a specic location.
36. A-B (YELLOW)
Repeat a segment between A and B.
REMOTE CONTROL
1. Remove the batteries cover.
2. Insert 2 x AAA 1.5V batteries, make sure the
polarity (+ or -) of the batteries matches the
polarity marks inside the unit.
3. Mount the battery cover. Replace with new
batteries when the television set begins to show
the following symptoms: Operation is unsteady
or erratic. Sometimes the television set does not
function with remote control unit.
Remark:
1) Alkaline battery is recommended.
2) Remove batteries when they are exhausted or
if the remote control is not to be used for a long
period of time.
Insert Batteries into the Remote Control Unit
1 2 3
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 10 2013-4-3 9:43:23

-11-
1. Connect one end of the RF coaxial cable (not
included) to the aerial socket on the wall and the
other end of the cable to the RF (75Ω) socket at
the rear right bottom view of your television.
2. Connect the main cable to the main socket after
you have completed all the connections.
3. In standby mode, press the POWER button on
the front right side panel of the television or the
button on the remote control to turn the television
on. The red LED indicator will turn blue.
4. The rst time you turn the television on, it will go
straight into the Installation Guide menu. (This
screen only appears when the television is turned
on for the rst time.)
5. Press buttons to select your desired OSD
language: English/Simplied Chinese/Traditional
Chinese.
6. Press buttons to select Auto Tuning and then
press OK button to start auto tuning. After tuning,
the screen will show the rst DTV channel.
OPERATION
Turning the television on for the First Time
Installation Guide
Auto Tuning
English
Language/語言
Channel Setting
1. Press MENU button to display the MENU screen,
and then press buttons to select "CHANNEL".
2. Press buttons to select the following channel
options and then press OK.
3. Press buttons to adjust each option’s
setting.
4. Press MENU button to return to the previous
menu.
5. Press EXIT button to exit the menu.
• Auto Tuning
Search all the channels automatically. Press OK
button.
Note:
It will start the DTV tuning rstly, if you want to skip
the DTV tuning, press MENU button to interrupt
the tuning and go to ATV tuning.
All the stored channels will disappear after auto
tuning.
After auto tuning, the television will show the
contents of the rst DTV channel.
• DTV Manual Tuning
You can select a DTV channel, and then nd the
program in this channel.
Press buttons to change the channel number
or input the channel number. Press OK button to
search the programs.
Note:
Bad, Normal and Good means signal intensity.
• ATV Manual Tuning
Press buttons to select the channel number
for manual tuning. Press buttons to select
“Search” or “Fine Tune”, and then press
buttons to conrm.
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Programme Edit
Signal Information
CHANNEL
Channel Tuning
ATV : 0 Programme(s)
1 % UHF CH 21 (DTV)
DTV : 0 Programme(s)
MENU Skip EXIT Exit
DTV Manual Tuning
UHF CH 21 +
NO SIGNAL
Bad Normal Good
ATV Manual Tuning
Storage To 1 +
Frequency 867.75 MHz
System I
Current CH 1
Search
Fine-Tune
Save MENU
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 11 2013-4-3 9:43:24

-12-
1. Press MENU button to display the MENU screen,
and then press buttons to select "PICTURE".
2. Press buttons to select the following picture
options and then press OK.
3. Press buttons to adjust each option’s
setting.
4. Press MENU button to return to the previous
menu.
5. Press EXIT button to exit the menu.
• Picture Mode
There are 4 picture modes: Standard, Mild, User
and Dynamic. You can only adjust the picture
effect when “User” mode is selected.
Note: Tint is available in NTSC system only.
• Color Temperature
There are 4 color temperature modes: Cool,
Medium, Warm and User. You can only adjust the
color components when “User” mode is selected.
• Aspect Ratio
Selects the aspect ratio: Auto/Full/4:3.
• Noise Reduction
Selects the noise reduction level: Off / Low /
Middle / High.
• Screen (VGA mode)
Screen is available in VGA mode only. You can
adjust horizontal position, vertical position, size
and phase here.
• Energy Saving
There are 5 energy saving modes: Off / Low /
Standard / Middle / High.
• Dynamic Enhance Level
Press OK button to select dynamic enhance level:
Off / Low / Middle / High.
Note:
Press RED button to store the channels after
manual tuning.
• Program Edit
You can delete, rename, skip or assign any
programs as your favorite channels.
RED (Delete)
Press RED button, the highlighted channel will be
deleted.
GREEN (Rename)
Only ATV channels can be renamed. Move the
cursor to the channel, press GREEN button to
rename the channel.
Press buttons to choose the character. Press
buttons to move the cursor. Press MENU
button to exit edit. Press EXIT button to exit menu.
Note: ATV channels name can only contain 5
characters.
YELLOW (Move)
Press YELLOW button and then press
buttons to move to the selected channel. Press
YELLOW button to conrm.
BLUE (Skip)
Press buttons to choose the channels, press
BLUE button to skip this channel. The “ ” will
show on the right side of the channel.
Choose the skipped channel, press BLUE button
again, you can cancel the skip, the “ ” will
disappear.
FAVORITE
Press buttons to choose the channel, press
FAV button, it will show “ ” on the right side of
the channel.
Choose the FAV channel, press FAV button again,
you can cancel the FAV, “ ” will disappear.
Once your favorite group is created, you can press
FAV button to quickly access your favorite channel
list.
• Signal Information
Press OK button to view the signal information (for
DTV mode only).
OPERATION
Picture Mode Standard
Color Temperature
Aspect Ratio Full
Noise Reduction Middle
Screen
Energy Saving
Dynamic Enhance Level Off
Picture Setting
Programme Edit
Delete
SkipMove Fav
MENU
11 Home
12 Asia
13 Classic
15 CCTV - 1
16 World
17 SZTV
81 Jade
82 J2
83 iNews
84 Pearl
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
DTV
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 12 2013-4-3 9:43:25

-13-
1. Press MENU button to display the MENU screen,
and then press buttons to select "SOUND".
2. Press buttons to select the following sound
options and then press OK.
3. Press buttons to adjust each option’s
setting.
4. Press MENU button to return to the previous
menu.
5. Press EXIT button to exit the menu.
• Sound Mode
There are 5 sound modes: Standard, Music,
Movie, Sports and User. You can only adjust the
sound effect when “User” mode is selected.
• Balance
Adjusts the volume balance: -50 to +50.
• Auto Volume
Press OK button to turn On/Off auto volume.
Only available when the input signal volume is too
large or with distortion.
• Surround Sound
Selects surround sound type: Off/Surround/SRS
TruSurround HD.
• SPDIF Output
Selects the digital audio output mode: PCM/Auto/
Off.
OPERATION
Sound Setting
Sound Mode Standard
Balance
Auto Volume
Surround Sound
SPDIF Output
SOUND
1. Press MENU button to display the MENU screen,
and then press buttons to select "TIME".
Time Setting
2. Press buttons to select the following time
options and then press OK.
3. Press buttons to adjust each option’s
setting.
4. Press MENU button to return to the previous
menu.
5. Press EXIT button to exit the menu.
• Clock
The clock time will be set automatically after the
DTV channels are tuned.
• Off Time
Set the time to turn off the television automatically.
• On Time
Set the time to turn on the television automatically.
• Sleep Timer
Selects a period of time after which the television
automatically switches to standby mode: Off / 10 /
20 … / 180 / 240 min.
• Auto Sleep
If “Auto Sleep” is set to on, the television will be
automatically powered off if there is no signal
within 5 minutes. In case of USB mode, the
television will be automatically powered off if there
is no operation within 30 minutes.
1. Press MENU button to display the MENU screen,
and then press buttons to select "OPTION".
2. Press buttons to select the following options
and then press OK.
3. Press buttons to adjust each option’s
setting.
4. Press MENU button to return to the previous
menu.
5. Press EXIT button to exit the menu.
• Language
Selects your desired on-screen menu language:
English, Simplied Chinese, Traditional Chinese.
Option Setting
Language/語言 English
PVR File System
Restore Factory Default
OSD Time Out
Blue Screen
OPTION
Clock 01 / Jan 01 : 21
Off Time
On Time
Sleep Timer
Auto Sleep
TIME
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 13 2013-4-3 9:43:25

-14-

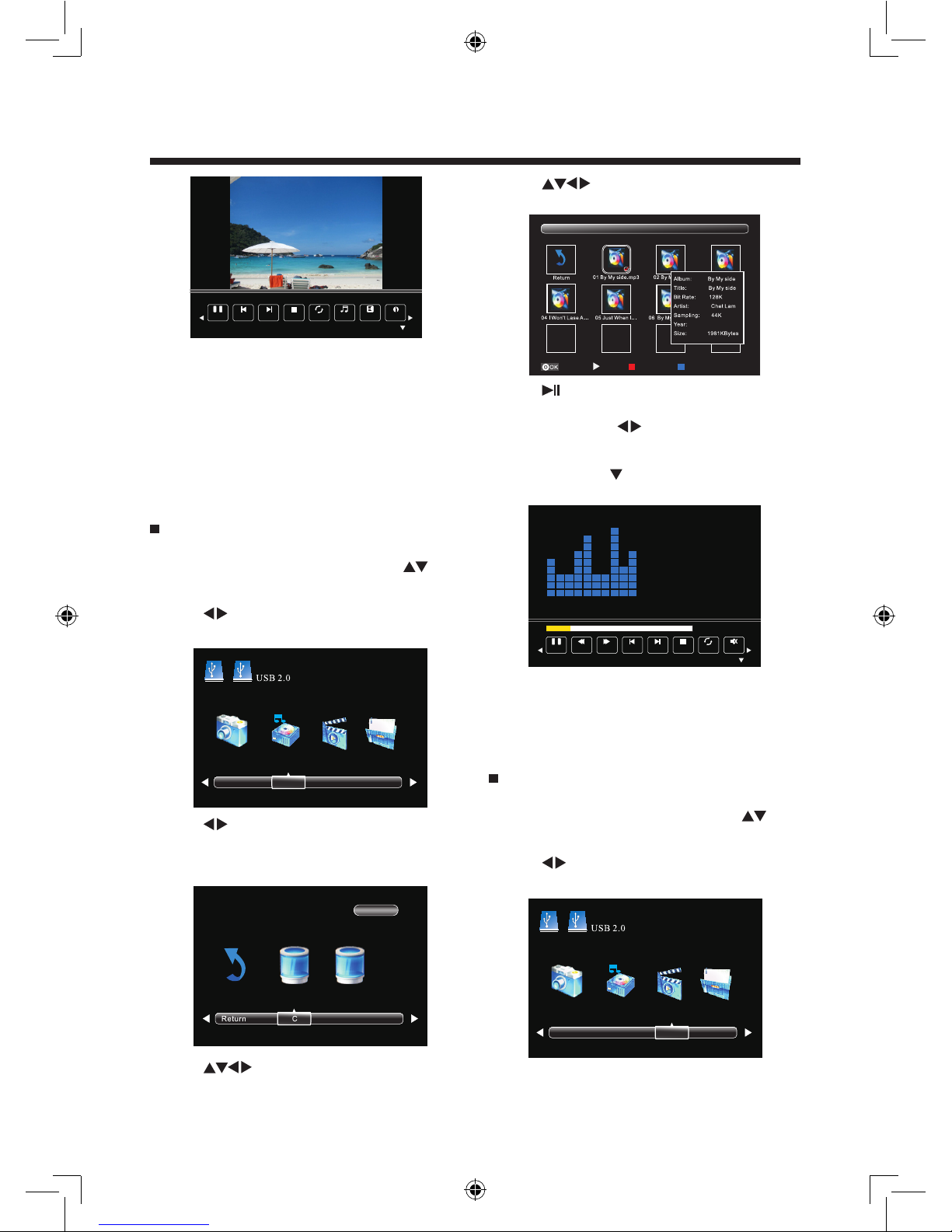

2. Press buttons to select PHOTO and then
press OK.
3. Press buttons to select your storage device
and then press OK. (All the connected USB
storage devices will be displayed here with name
“C”, “D”…)
4. Press buttons to select the picture folder
and then press OK.
5. Press buttons to select the specied
picture, a preview window will pop up.
6. Press button to view the picture in full screen.
7. Press OK button or INFO button to display the
function bar. Press buttons and then OK
button to select the function: Pause / Prev. / Next /
Stop / All / Music / Playlist / Info. / Rotate clockwise
/ Rotate anti-clockwise / Zoom In / Zoom Out /
Move View. Press button or EXIT button to exit
the control bar.
Viewing Photos
1. Press INPUT button on the television or INPUT
button on the remote control, then press
buttons to select the USB mode and then press
OK button to enter multimedia center.
OPERATION
• PVR File System (DTV mode)
Allows you to select your preference in the PVR
le system.
Note:
Before using Time Shift Function or recording
function, it is necessary to rst format the USB
storage device. All the data in the USB storage
device is deleted after format has done.
• Restore Factory Default
Restore all settings to the factory defaults.
• OSD Time Out
Displays time of the on-screen menu: Off / 10s /
20s / … / 80s / 90s.
• Blue Screen
Press OK button to turn on/off blue screen.
1. Switch off the television before connecting any
USB storage device.
2. Connect your USB storage device to the USB
terminal of your television, and then switch on the
television.
3. Press INPUT button on the television or INPUT
button on the remote control, then press
buttons to select the USB mode and then press
OK button to enter multimedia center.
Note:
• The maximum supported storage space of the
hard disk is 1 TB.
• The le system only support FAT32 format.
• If you want to record a DTV program, the transfer
rate of the USB storage device must not be less
than 5MB/s, otherwise the picture and sound of
the program will be affected.
• Disconnect the USB storage device if it is not in
use.
Connecting a USB Storage Device
USB MULTIMEDIA
21
PHOTO MUSIC MOVIE TEXT
D
1 / 1
Select Play Sub Menu Sel/Unsel All
Up Folder
C:\PHOTO 1 / 1
Resolution: 1417 x 1063
Size: 94 KBytes
Date: 2011 / 11 / 28
Time: 12 : 06 : 12
Beach, jpg
Select Disk C:
Check PVR File System Start
USB Disk
Format
Time Shift Size
Speed
Free Record Limit 6 Hr.
MENU
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 14 2013-4-3 9:43:28

-15-
Note:
If this folder also contains music les, you can set
the background music.
Supported photo formats:
• JPEG (JPEG format, les with the extension
“.jpg”)
• BMP (les with the extension “.bmp”)
• PNG (les with the extension “.png”)
Note: Some le formats in the above list may not
be played back correctly.
Pause Prev. Next Stop All Music Playlist Info.
OPERATION
Listening Music
1. Press INPUT button on the television or INPUT
button on the remote control, then press
buttons to select the USB mode and then press
OK button to enter multimedia center.
2. Press buttons to select MUSIC and then
press OK.
3. Press buttons to select your storage device
and then press OK. (All the connected USB
storage devices will be displayed here with name
“C”, “D”…)
4. Press buttons to select the music folder
and then press OK.
5. Press buttons to select the specied
music, a preview window will pop up.
6. Press button to start to play.
7. Press OK button or INFO button to display the
function bar. Press buttons and then OK
button to select the function: Pause / FB / FF /
Prev. / Next / Stop / All / MUTE / Playlist / Info. /
Goto Time. Press button or EXIT button to exit
the control bar.
Supported music formats:
• MP3 (les with the extension “.mp3”)
• WAV (les with the extension “.wav”)
Note: Some le formats in the above list may not
be played back correctly.
21
PHOTO MUSIC MOVIE TEXT
D
1 / 1
Select Play Sub Menu Sel/Unsel All
C:\MUSIC 1 / 1
Pause FB FF Prev. Next Stop All MUTE
00:00:55 / 00:04:57
Viewing Movies
1. Press INPUT button on the television or INPUT
button on the remote control, then press
buttons to select the USB mode and then press
OK button to enter multimedia center.
2. Press buttons to select MOVIE and then
press OK.
21
PHOTO MUSIC MOVIE TEXT
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 15 2013-4-3 9:43:32

-16-
3. Press buttons to select your storage device
and then press OK. (All the connected USB
storage devices will be displayed here with name
“C”, “D”…)
4. Press buttons to select the movie folder
and then press OK.
5. Press buttons to select the specied
movie, a preview window will pop up.
6. Press button to view the movie in full screen.
7. Press OK button or INFO button to display the
function bar. Press buttons and then OK
button to select the function: Pause / FB / FF /
Prev. / Next / Stop / All / Set A / Playlist / Info. /
Slow Forward / Step Forward / Goto Time / Zoom
In / Zoom out / Aspect Ratio / Move View. Press
button or EXIT button to exit the control bar.
Supported movie formats:
• AVI (les with the extension “.avi”)
• MP4 (les with the extension “.mp4”)
• TS (les with the extension “.ts”)
Note: Some le formats in the above list may not
be played back correctly.
OPERATION
D
1 / 1
Select Play Sub Menu Sel/Unsel All
Up Folder
C:\MOVIE 1 / 1
Resolution: 640 x 480
Audio Tra... 1 / 1
Subtitle - - / 0
Program: - - / 0
Size: 97397 KBytes
Animal world.avi
Bird.avi
Pause FB FF Prev. Next Stop All Set A
00:00:55 / 00:04:57
AB
Viewing Text
1. Press INPUT button on the television or INPUT
button on the remote control, then press
buttons to select the USB mode and then press
OK buttons to enter multimedia center.
2. Press buttons to select TEXT and then press
OK.
3. Press buttons to select your storage device
and then press OK. (All the connected USB
storage devices will be displayed here with name
“C”, “D”…)
4. Press buttons to select the text folder and
then press OK.
5. Press buttons to select the specied text,
a preview window will pop up.
6. Press button to view the text in full screen.
7. Press OK button or INFO button to display the
function bar. Press buttons and then OK
button to select the function: Prev. page / Next
page / Prev. / Next / Stop / Music / Playlist / Info..
Press button or EXIT button to exit the control
bar.
21
PHOTO MUSIC MOVIE TEXT
Select Play Sub Menu Sel/Unsel All
Up Folder
C:\TEXT 1 / 1
Size: 4 KBytes
Enghlish Music.txt
1 } Why are you so
far from me?
In my arms is
where you ought
to be
2 } How long will
you make me wait?
My Life.txt
D
1 / 1
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 16 2013-4-3 9:43:37

-17-
OPERATION
Prev P... Next P... Prev. Next Stop Music Playlist Info.
1 } Why are you so far from me?
In my arms is where you ought to be.
2 } How long will you make me wait?
I don’t know how much more I can take.
3 } (Chorus:)
I missed you
But I haven’t met you
Oh but I want to
How I do
Note:
Only the Traditional Chinese with Unicode format
is supported.
Supported text formats:
• TEXT (les with the extension “.txt”)
The EPG menu is used to look at what is being
broadcasted on DTV Channel.
To access the EPG menu, press EPG button, the
following menu will be displayed.
1. RED (Recorder)
Press RED button to display the Recorder screen.
Press buttons to set up the recording
time. Press OK button to save the settings. A
Timer Success screen will display.
EPG MENU (Electronic Program Guide)
2. GREEN (Info)
Press buttons to choose the program, press
GREEN button to display the highlighted program’s
information.
3. YELLOW (Schedule)
Press YELLOW button to display the entire
schedule list. Press buttons to choose the
item, press RED button to delete the selected item.
Press YELLOW button to return to EPG menu.
4. BLUE (Reminder)
Press BLUE button to display the Reminder
Setting screen. Press buttons to set
up the reminder time. The screen will play the
selected program in the reminder automatically.
Press OK button to save the reminder. Press
BLUE button to return to EPG menu.
PROGRAMME GUIDE TIME
01 Mar 16:15
11 Home
12 Asia
13 Classic
15 CCTV-1
16 World
17 SZTV
81 Jade
82 J2
Q & A Lessons (C)
Wealth Blog (C)
I.Q.100 (C)
TV Deama
ERKY PERKY
TV Deama
Bakugan Battle Bra...
Awwsomel Travel Ba...
Recorder Info
Remind Schedule
RECORDER
Return
Start Time
+
16 World
00 Minute
16 Hour
Mar Month
01 Date
End Time
30 Minute
16 Hour
Mar Month
01 Date
Mode Once
Schedule List 16:15 01th Ma r list Dele te
Time Date Programme Title Channel Name
Return
Reminer setting
16 World +
00 Minute
16 Hour
Mar Month
01 Date
Mode Once
Return
MHEG-5 data broadcast is scheduled in Hong Kong.
You can watch a MHEG-5 data broadcast by pressing
TEXT button.
TEXT
Time Shift Function
Please make sure the USB device is inserted and
format is done. If not, a warning message will pop up.
1. During normal television viewing, you may press
button to virtually pause the live viewing
broadcast program if you want to go out for a
while.
2. When you have returned, press button to play
the missed broadcast program.
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 17 2013-4-3 9:43:38

-18-
OPERATION
Recording DTV Program
Please make sure the USB device is inserted and
format is done. If not, a warning message will pop up.
1. Press button to record the program that you are
currently watching.
2. Press button to stop recording.
Play Recorded Program
You can play a recorded program from the recorded
list or from a USB storage device.
Play from the recorded list
1. Press PVR.LIST button to display the recorded
list.
• RED (Delete)
Press RED button to delete the selected
program.
• GREEN (Info)
Press GREEN button to display detailed
information of the selected program (if available).
• INDEX
Press INDEX button to select the category type:
Program / Channel / Time.
2. Press buttons to select the recorded program
that you want to play and then press button to
view.
Recorded List Program
My Sassy Wife - Xu XI. . .
Delete Info
INDEX
My Sassy Wife - Xu XI. . .
My Sassy Wife - Xu XI. . .
Play from a USB storage device
1. Press INPUT button on the television or INPUT
button on the remote control, then press to
select the USB mode and then press OK button to
enter multimedia center.
2. Press to select MOVIE and then press OK.
3. Press to select your storage device and then
press OK.
4. Press buttons to select your recorded
program and then press button to view.
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 18 2013-4-3 9:43:39

-19-

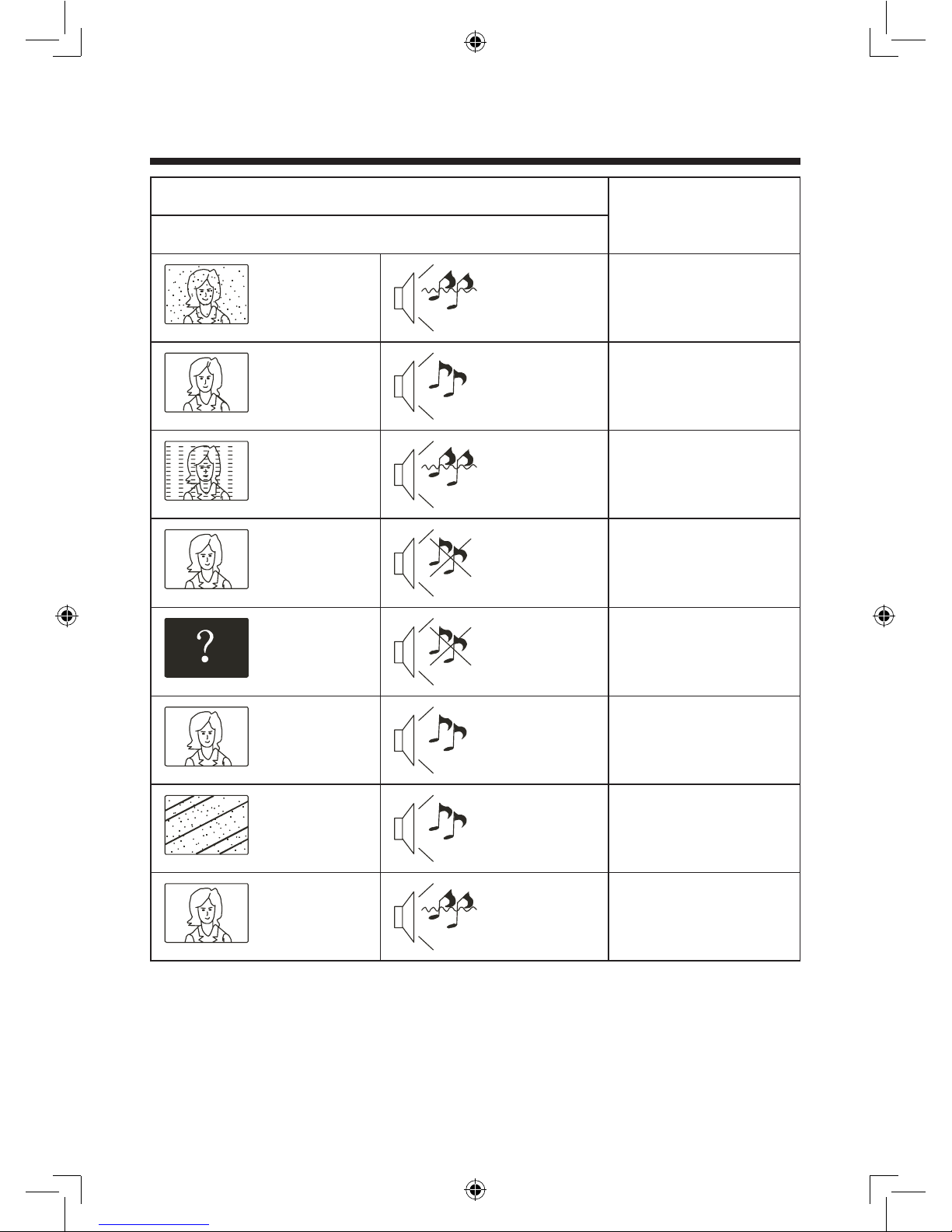

Phenomenon or Symptom
Inspection Check
Picture Audio
Snow Noise Antenna position, direction or
connection
Ghost Normal audio Antenna position, direction or
connection
Interference Noise Electronic equipment, car/
motorcycle, uorescent light
Normal Picture Mute
Volume (check if mute is
activated or if the audio
system connections are not
correct)
No picture Mute
Power cord is not inserted/
Contrast and brightness/
volume setup
No colour Normal audio Colour control
Picture breaking up Normal audio or weak Retune channel
No colour Noise
Check if the TV system is
correct
The LCD TV panel is produced with very high precision technology giving you ne picture details in vibrant
color. Occasionally, a few non-active pixels may appear on the screen as a xed point of red, green, blue, black
or white. Please note this does not affect the performance of the product.
TROUBLE SHOOTING
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 19 2013-4-3 9:43:40

-20-
50
680
617
104
257557
387
Units: mm
DIMENSIONAL DRAWINGS
LC-40LE433H (SHARP香港 SY13050) 說明書英文R5.indd 20 2013-4-3 9:43:45
