Sharp EL-9900 User manual

ENGLISH ..................... Page 1
DEUTSCH .................... Seite 22
FRANÇAIS ................... Page 43
OPERATION MANUAL
BEDIENUNGSANLEITUNG
MODE D’EMPLOI
PC LINK SYSTEM
FOR EL-9900
PC-LINK-SYSTEM
FÜR EL-9900
SYSTÈME PC LINK
POUR EL-9900
For WINDOWS
Für WINDOWS
Pour WINDOWS
CE-LK2

CE-LK1P_EG_cover(E) 02.3.24, 6:07 PM1

1
ENGLISH
PC LINK SYSTEM FOR EL-9900
OPERATION MANUAL
IBM is a registered trademark of International Business Machines Corporation.
Windows and Microsoft Word are registered trademarks of Microsoft Corporation.
All company and/or product names as trademarks and/or registered trademarks of
their respective holders.
Copyright © 2002 SHARP CORPORATION, Japan
CE-LK2_En_01-21 02.4.4, 3:52 PM1

2
< INTRODUCTION >
Thank you for your purchase.
This product is supplied to customers who agree to the following items; please read
them before using this product.
We shall determine that you’ve approved them at setting up this product’s software.
Terms of Use
Sharp Corporation (hereinafter called “our Company”) shall grant a nonexclusive right
of this product “CE-LK2” upon the following terms to you. You shall agree to the
following terms at setting up this product’s software.
•You shall use the software of this product on one Personal Computer. (hereinafter
called “PC”)
•You may make only one copy of the software on a storage medium for backup
purposes only.
•You shall not use or copy part or all of the operation manual without permission.
•Our Company shall not be held liable to anyone for failure arising out of improper
use of this product and accessories, or during use of them, nor for any damages
suffered from other malfunctions or use of this product.
•This product, including its accessories, are subject to change without notice for
product improvement.
Note
• Some of the models described in this manual may not be available in some
countries.
• Illustrations and icons in this manual may differ from the actual ones.
•"EL-96xx" refers to EL-9600/9600c/9650.
CE-LK2_En_01-21 02.4.4, 3:52 PM2

3
♦GETTING STARTED .............................................................................................. 4
What is PC LINK? ............................................................................................ 4
Checking the Accessories ............................................................................... 4
System Requirements ..................................................................................... 5
Setting Up PC LINK ......................................................................................... 5
Connecting the EL-9900 to the PC .................................................................. 6
♦USING PC LINK ..................................................................................................... 7
Files PC LINK can Handle ............................................................................... 7
Starting and Exiting PC LINK .......................................................................... 8
Creating and Saving a New Program .............................................................. 8
Sending, Receiving, and Backup Programs and Various Data ........................ 9
Opening a Saved File .................................................................................... 11
Using Edit Functions ...................................................................................... 12
Saving and Printing the Contents of the Edit Screen ..................................... 15
Screen Capture .............................................................................................. 16
Screen Capture on Microsoft Word®Sheet .................................................... 17
(EL-9900 Screen Capture Tool)
Group/Ungroup .............................................................................................. 18
Converting a File ............................................................................................ 19
♦APPENDIX ........................................................................................................... 20
Table for Converting Special Symbols into TXT Letters ................................. 20
How to Proceed in the Event of Abnormal Conditions ................................... 21
CONTENTS
CE-LK2_En_01-21 02.4.4, 3:52 PM3

4
What is PC LINK?
•Creates and edits EL-9900 programs on a PC.
•Receives and saves programs and various data from EL-9900
•Makes a backup of all the contents of memory of EL-9900.
•Sends programs and various data to EL-9900.
•Loads image data of EL-9900.
•Screen capture on Microsoft Word®sheet
•Converts programs and various data files into a text file.
Converts program text files into a program file.
•Prints out programs and various data files.
This manual is intended for users who already understand how to use the EL-9900
and how to operate a PC.
Also refer to the PC manual with this book.
GETTING STARTED
Checking the Accessories
Please check that all the following accessories are included upon purchase.
•CD-ROM for IBM PC compatible computer 1
•Communication cable 1
•Operation manual (this book) 1
CE-LK2_En_01-21 02.4.4, 3:52 PM4

5
System Requirements
•100% IBM Compatible PC
• Microsoft®Windows®98/98 Second Edition/2000 Professional/Me/XP
•Pentium®150MHz or higher for Microsoft®Windows®98/98 Second Edition
Pentium®200MHz or higher for Microsoft®Windows®2000 Professional/Me
Pentium®/Celeron®Family 300MHz or higher for Microsoft®Windows®XP
•30MB Available Hard Disk Space
•64MB RAM for Microsoft®Windows®98/98 Second Edition/2000 Professional/Me
128MB RAM for Microsoft®Windows®XP
•CD-ROM drive
•1Available Serial Port
•Mouse or Compatible Pointing Device
•Microsoft Word®2000/XP on your PC for installing the "EL-9900 Screen Capture
Tool for Microsoft Word®2000/XP"
Setting Up PC LINK
1Installing the PC LINK Software
1. Start Windows.
2. Insert the supplied CD-ROM into your CD-ROM drive.
3. Click the Start button, and then select Run.
4. Enter “Setup” followed by the path name of the location where the setup program
is saved.
For example, type “D:\setup”.
5. Click on the OK button.
The Setup screen appears, then follow the screen instructions for setup.
When you do not use the Microsoft Word®:
At the Select Components stage, deselect the check box for "EL-9900 Screen
Capture Tool". In case the function needs to be installed later, reinstall CE-LK2 at
the time of installation.
After completing the setup, the SHARP PC-LINK for EL-9900 folder is added in the
Program folder of the Start menu.
NOTE: When uninstalling the software, quit Microsoft Word®application beforehand.
CE-LK2_En_01-21 02.4.4, 3:52 PM5

6

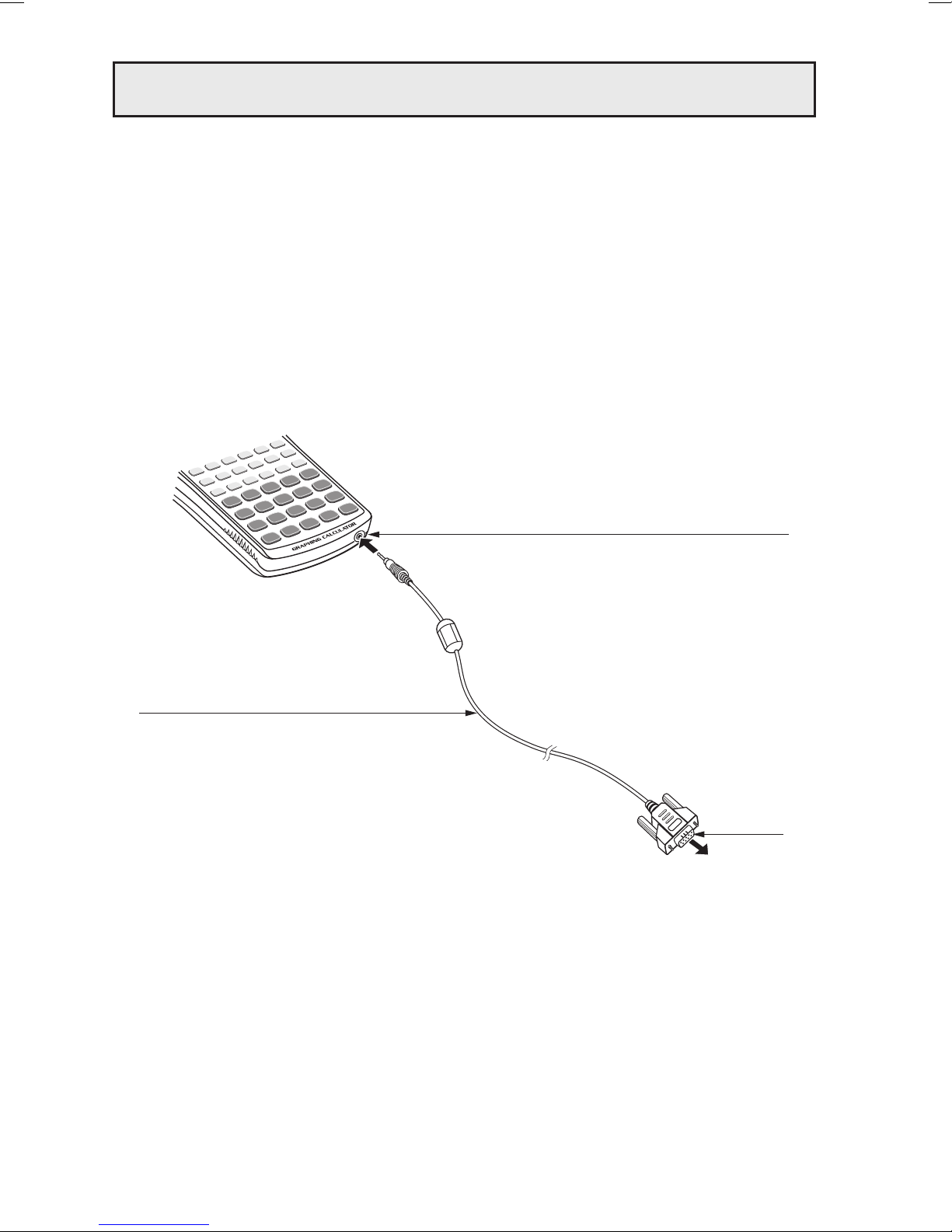

Connecting the EL-9900 to the PC
Connect the EL-9900 to the PC with the supplied communication cable.
NOTE: Push in all connectors firmly and make sure they cannot be removed by pulling
them lightly.
Also tighten the fixing screws.
1. Turn off the EL-9900 and the PC.
2. Connect on side of the supplied communication cable to the peripheral connect-
ing terminal (communication port) on the bottom of the EL-9900; the other side to
the serial port of your PC.
9 pin
Peripheral connecting terminal
communication cable(supplied)
To PC serial port
CE-LK2_En_01-21 02.4.4, 3:52 PM6

7
Files PC LINK can Handle
PC LINK can handle the following files listed below.
USING PC LINK
Backup
Group
Graph Database (GDB)
Graph Equation
Solver Equation
List
List Database (List DB)
Matrix
Program
Slide Show
Table Setup
Window Setup
Data variable
Zoom
Text
Tagged Image Format
Bitmap
Contents of File
backup
Set arbitrarily. (Initial value: Group)
g_data1 to g_data9, g_data0
y1 to y9, y0 / x1t to x6t / y1t to y6t /
r1 to r6 / u / v / w ← for EL-96xx/9900
only
Match it with the file name on the calculator.
pict1 to pict9, pict0
I1 to I6
I_data1 to I_data9, I_data0
mat_a to mat_j
Set arbitrarily.
Match it with the file name on the calculator.
tblsetup
winsetup
variable
zoom
Set arbitrarily.
Set arbitrarily.
Set arbitrarily.
File Name on PC
g3b
g3g
g3d
g3y
-
g3i
g3l
g3n
-
g3p
-
g3t
g3w
g3v
g3z
←
←
←
Extension
EL-9400 EL-9450EL-9900
g5b
g5g
g5d
g5y
-
g5i
g5l
g5n
-
g5p
g5s
g5t
g5w
g5v
g5z
←
←
←
g4b
g4g
g4d
g4y
g4e
g4i
g4l
g4n
g4m
g4p
g4s
g4t
g4w
g4v
g4z
txt
tif
bmp
EL-96xx
g2b
g2g
g2d
g2y
g2e
g2i
g2l
g2n
g2m
g2p
g2s
g2t
g2w
g2v
g2z
←
←
←
NOTE: Attention should be required when assigning variables in integral calculations,
because EL-9400/9450/9600 handles variables differently from EL-9900.
(Tolerance will not be assigned for EL-9400/9450/9600; the number of divisions
will be assigned instead.)
CE-LK2_En_01-21 02.4.5, 3:33 PM7

8
Creating and Saving a New Program
1Creating a New Program
NOTE: Only programs can be created.
1. Select the New from the File menu.
The Newly-Edited screen is displayed.
2. Enter a program name in Title:
3. Enter a program.
(For details on entering a program, refer to “Using Edit Functions” on page 12.)
2Saving a Created Program
1. Select the Save As... from the File menu.
The Save As screen is displayed.
2. Specify the drive and folder, and then enter the file name and extension.
The extension is different depending on your calculator.
3. Click on the OK button.
The created program is saved as a new program file with the contents specified in
2.
*Alphanumeric characters can be used for file names. If a program file stored with a file
name that consists of non-alphanumeric characters is sent to the EL-9900, the file
name may change.
Starting and Exiting PC LINK
1Starting the PC LINK
Select Start →→
→→
→Programs →→
→→
→SHARP PC-LINK for EL-9900 →→
→→
→SHARP
CE-LK2 to start the PC LINK.
The menu bar and the icons are displayed on the top of the window.
2 Exiting the PC LINK
Select the Exit from the File menu, or double-click on the CLOSE box at the upper-
most-left corner on the screen.
Note: If a communication will not be available, check the settings of the communication
(COM) port and the cable connection. If these procedures will not solve the
problem, set the Power Management and the screen saver to OFF.
(See Readme.txt for details.)
CE-LK2_En_01-21 02.4.4, 3:52 PM8

9
Sending, Receiving, and Backup
Programs and Various Data
(1) Programs and various data can be received from the EL-9900 in order to save
them in a file. The contents saved in the file can also be sent to the EL-9900.
(2) Back up all data of the EL-9900 to the file. Also, restore the backup data to the
EL-9900.
1Setting a Communication Port
Set a communication port.
Set the communication port where the communication cable for the PC is connected.
1. Select the Communication Port from the Link menu.
A list of communication ports is displayed.
2. Click on the port to be used or Auto Setting.
2Sending and Receiving Programs and Various Data
Programs and various data can be received from the EL-9900 and saved in a file.
Also, the file can be sent to the EL-9900.
(1) Receiving Programs and Various Data from the EL-9900 to be
Saved in a File
1. Turn on the EL-9900.
2. Select the Receive... from the Link menu.
The Receive Files screen is displayed.
3. Specify the kind of drive, folder, and file, then select the file to be received from
the file list, and click on the Select button.
The selected file is displayed on the File Selected column.
4. Click on the OK button.
The Receiving screen is displayed on the PC screen to start receiving.
5. After the completion of receiving, the initial screen returns.
*If a file stored with a file name that consists of non-alphanumeric characters (Solver
equation, Program, Slide show) is received by a PC, the file name may change.
*If multiple Solver equation and Program files are saved on the EL-9900 with the same
file name, only the initial saved file can be received.
To receive all the files, save each file on the EL-9900 with a different file name.
CE-LK2_En_01-21 02.4.4, 3:52 PM9

10
(2) Sending a File to the EL-9900
NOTE: Group files, Text files, TIFF files, and Bitmap files cannot be sent to the EL-9900.
1. Turn on the EL-9900.
2. Select the Send... from the Link menu.
The Send Files screen is displayed.
3. Specify the kind of drive, folder, and file, then select the file to be sent from the file
list, and click on the Select button.
The selected file is displayed on the File Selected column.
4. Click on the OK button.
The Sending screen is displayed on the PC screen to start sending.
5. After the completion of sending, the initial screen returns.
3Making a Backup
All data of the EL-9900 can be backed up to the disk, and the backed up data can be
restored to the EL-9900.
(1) Making a Backup of All Data
1. Turn on the EL-9900.
2. Select the Receive... from the Link menu.
The Receive Files screen is displayed.
3. Specify the kind of drive, folder, then select “backup.g4b” from the file list, and
click on the Select button.
The selected “backup.g4b” is displayed on the File Selected column.
4. Click on the OK button.
The receiving screen is displayed on the PC screen to start receiving, and then all
data of the EL-9900 will be backed up.
(2) Sending Backup Data to the EL-9900
NOTE: All the contents saved in the EL-9900 immediately before this are erased.
Perform the same procedure of “(2) Sending a file to the EL-9900” on this page to
send the back-up file (backup.g4b) to the EL-9900.
CE-LK2_En_01-21 02.4.4, 3:52 PM10

11
Opening a Saved File
First, display (open) the contents of a file in order to print and edit the contents of the
saved file.
1Displaying the Contents of a File
NOTE: The contents of Backup files, Group files, GDB files, Graph equation files, Solver
equation files, and TIFF files cannot be displayed.
(The files cannot be opened.)
1. Select the Open... from the File menu.
The Open File screen is displayed.
2. Specify the kind of drive, folder, and file, then select the file whose contents are to
be displayed from the file list.
3. Click on the OK button.
The selected file is opened with its contents displayed.
2Printing a File
NOTE: The contents of Backup files, Group files, GDB files, Graph equation files, Solver
equation files, and TIFF files cannot be printed.
1. Display the contents of a file on the screen.
2. Select the Print... from the File menu.
The Print Setting screen is displayed.
3. If necessary, specify items such as the range and the number of copies.
4. Click on the OK button.
The Print Run screen is displayed, and then the contents displayed on the screen
are printed.
CE-LK2_En_01-21 02.4.4, 3:52 PM11

12
Using Edit Functions
NOTE: The files that can be edited with the Edit functions are: List files, List DB files,
Matrix files, Program files, Table setup files, Window setup files, Data variable
files and Zoom files.
The Edit functions are used for creating EL-9900 programs and editing the contents
that have already been saved as files.
1Entering Commands, Strings, and Values on the Edit
Screen
On the Edit screen, the following three ways can be used to enter commands, strings,
and values.
•Keyboard layout
•Func Table
•PC keyboard
(1) Entering from the Keyboard Layout
Display the Keyboard layout of the calculator on the Edit screen, and then enter
necessary items such as commands.
1. Select the Key Board from the View menu.
The Keyboard layout of the calculator is displayed.
2. Move the cursor to the key on the Keyboard layout you want to enter, and then
click on it. The item is entered in the cursor position on the Edit screen.
*For some items such as “STAT PLOT”, “ZOOM”, and “CALC”, the subcategory and
minor category are displayed. In this case, select the item in the left row (the subcat-
egory) to display the right row (the minor category), and then move the cursor to the
item in the right row that you want to enter, for double-click.
CE-LK2_En_01-21 02.4.4, 3:52 PM12

13
(2) Entering from the Func Table
The Func Table is used to select necessary items from the list containing items such
as functions, and enter them.
1. Select the item from the major category of the Func Table menu.
Selecting the Key Pad and Func All displays the subcategory.
Selecting other than the Key Pad and Func All displays the subcategory and
minor category, respectively.
2. Perform either of the following operations, and then enter an item in the cursor
position on the Edit screen.
When only the subcategory is displayed, move the cursor to the item that you
want to enter, for double-click.
When the subcategory and minor category are displayed, select the item in the
left row (the subcategory) to display the right row (the minor category), and then
move the cursor to the item in the right row that you want to enter, for double-click.
(3) Entering from the PC Keyboard
Enter necessary items such as functions from the PC keyboard.
2Editing
(1)Cutting a string
1. Select the string to be cut.
2. Select the Cut from the Edit menu.
The selected string is cut on the Edit screen and moved to the clipboard.
(2)Copying a string
1. Select the string to be copied.
2. Select the Copy from the Edit menu.
The selected string is copied to the clipboard.
(3)Deleting a string
1. Select the string to be deleted.
2. Select the Delete from the Edit menu, or press the DEL on the PC keyboard.
The selected string is deleted.
• Selecting Select All from the Edit menu selects all strings on the Edit screen.
CE-LK2_En_01-21 02.4.4, 3:52 PM13

14
(4)Pasting the contents of a clipboard to the Edit Screen
The contents moved to the clipboard by “Cutting a string” and “Copying a string” can
be pasted at the cursor position on the Edit screen.
*Selecting the Paste from the Edit menu pastes the contents of the clipboard at the
cursor position on the Edit screen.
(5)Finding a string
1. Select the Find... from the Edit menu.
The Find screen is displayed.
2. Enter the string to be searched for.
If necessary, specify the option to differentiate between uppercase and lowercase.
3. Click on the Find Next button.
The cursor moves to the found string.
(6)Replacing a string
1. Select the Replace... from the Edit menu.
The Replace screen is displayed.
2. Enter the string to be searched for, and then the string after replacement.
If necessary, specify the option to differentiate between uppercase and lowercase.
3. Click on the Find Next button.
The cursor moves to the found string.
4. Perform either of the following:
Click the Find Next button to find the next string without replacing the string.
Click the Replace button to find the next string after replacing the found string.
Click the Replace All button to replace all found strings without checking.
*To return to the state immediately before making an operation (such as after making
an input error), select the Undo from the Edit menu.
CE-LK2_En_01-21 02.4.4, 3:52 PM14

15
Saving and Printing the Contents
of the Edit Screen
1Overwriting
NOTE: Program files can be overwritten.
•After completing edition, select the Save from the File menu.
The file is saved in the same file.
2Save As
NOTES: • List files, List DB files, Matrix files, Table setup files, Window setup files, Data
variable files, and Zoom files which are edited with the Edit functions, can be
saved only as text files.
When a file is saved as a text file, letters are included in @s for special
symbols.
(For details on special symbols, see the “Table for Converting Special Symbols
into TXT Letters” on page 20.)
• Alphanumeric characters can be used for file names. If a program file stored
with a file name that consists of non-alphanumeric characters is sent to the EL-
9900, the file name may change.
1. After completing editing, select the Save As... from the File menu.
The Save As screen is displayed.
2. Specify the drive and folder, and then enter the file name and suitable extension.
3. Click on the OK button.
The file is saved with the contents specified in step 2.
3Printing
Perform the same procedure as in step 2 or from “2 Printing a File” on page 11, and
then print the contents displayed on the screen.
CE-LK2_En_01-21 02.4.4, 3:52 PM15

16
Screen Capture
The screen capture function loads image data displayed on the EL-9900 on the PC.
1Setting a Communication Port
Perform the same procedure as in step 1 or from “1 Setting a Communication Port”
on page 9, and then set the communication port.
2Loading Image Data
Load image data displayed on the EL-9900.
1. Display the contents to be loaded on the EL-9900 display.
2. Select the Screen Capture from the Link menu.
The Load screen is displayed to load image data.
3. After the completion of loading, the loaded image data is displayed with the
Screen Image screen.
3Saving and Printing Image Data
Image data can be saved in a file and printed by a printer connected to the PC.
(1)Saving
1. Load the image data.
2. Select the Save As... from the File menu.
The Save As screen is displayed.
3. Specify the drive and folder, and then enter the file name and “tif” or “bmp”
extension.
4. Click on the OK button.
(2) Printing
1. Open or load the image data.
2. If necessary, specify the Print image percentage for printing.
3. Select the Print... from the File menu.
The Print Setting screen is displayed.
4. If necessary, specify items such as the range and the number of copies.
5. Click on the OK button.
The Print Run screen is displayed, and then the contents displayed on the screen
are printed.
CE-LK2_En_01-21 02.4.4, 3:52 PM16

17
Screen Capture on Microsoft Word
®
Sheet
Installing the "EL-9900 Screen Capture Tool" enables you to directly capture and
insert the image from the EL-9900 to the Microsoft Word®document.
1Setting the Communication Port
1. Make sure that your PC and EL-9900 are connected with the supplied communi-
cation cable.
2. Start Microsoft Word®, and select Communica-
tion Port from EL-9900 menu on the menu bar.
Communication Port Setting Dialog will open.
3. Select the port you wish to use or select Auto
and click OK.
2Screen Capture on Microsoft Word®Sheet
1. Open Microsoft Word document.
2. Move the cursor pointer to the location you wish to insert the captured image.
3. Click the Screen Capture icon in the Tool menu bar or select Screen Capture
from EL-9900 menu on the menu bar.
The captured image (bmp) will be inserted into
the cursor location.
Screen Capture icon
CE-LK2_En_01-21 02.4.4, 7:35 PM17

18
Group/Ungroup
1Group (Combine individual files into a group file)
It is possible to create a group file either by combining unrelated individual files or by
combining only related files.
1. Select the Group Files... from the Tools menu. The file selection screen to
choose which files to combine into a group file is displayed.
2. Specify drive, directory and the file type. Select the file to group from the file list
and then click the Select button. The selected file is displayed in the File Selected
column.
Continue this file selection process for each file to group.
3. After selecting all the files for file grouping, click the OK button.
The Save As screen is displayed.
4. Perform the same procedure as in step 2 or from “2 Save As” on page 15, and
save as a group file.
2Ungroup (Ungroup a group file)
1. Select the Ungroup Files... item from the Tools menu.
The group file selection screen to choose which group file to ungroup is displayed.
2. Specify the kind of drive, folder, and file. Select a group file to ungroup from the
file list and then click the OK button.
The folder and drive selection screen to select where to save the individual files
after ungrouping is displayed.
3. Specify the folder and drive and then click the OK button.
The group file selected in step 2 is ungrouped and the individual files are saved
as specified in step 3.
CE-LK2_En_01-21 02.4.4, 3:52 PM18
