Sharp HT-SB400 User manual

SOUND BAR SYSTEM
MODEL
HT-SB400
Thank you for purchasing this SHARP product. To obtain the best
performance from this product, please read this manual carefully. It
will guide you in operating your SHARP product.
SOUNDBAR SYSTEM HT-SB400
SOUNDBAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
is a trademark of SRSLabs, Inc.
Tr u Surround HD technology is incorporated under license
from SRSLabs, Inc.
OPERATION MANUAL
Note:
This product is recommended for flat panel TV (LCD and plasma).
SRSTruSurround HD
TM
creates an immersive, feature-rich
surround sound experience from two speakers, complete with
rich bass, high frequency detail and clear dialog.

2
HT-SB400
Important Instruction
Special notes
WARNINGS
●
When the ON/STAND-BY button is set at STAND-BY
position, main voltage is still present inside the speaker.
When the ON/STAND-BY button is set at STAND-BY
position, the speaker may be brought into operation by the
remote control.
●
This speaker contains no user serviceable parts. Never
remove covers unless qualified to do so. This speaker
contains dangerous voltages, always remove mains plug
from the socket before any service operation and when not in
use for a long period.
● The supplied AC/DC adaptor contains no user serviceable
parts. Never remove covers unless qualified to do so. It
contains dangerous voltages, always remove mains plug
from the main outlet socket before any service operation or
when not in use for a long period.
●
The AC/DC adaptor supplied with the HT-SB400 must not be
used with other equipment.
●
Never use an AC/DC adaptor other than the one specified.
Otherwise, problems or serious hazards may be created.
● To prevent fire or shock hazard, do not expose this appliance
to dripping or splashing. No objects filled with liquids, such as
vases, shall be placed on the apparatus.
● Do not turn the volume on to full at switch on. Listen to music
at moderate levels.
Features
SRS TruSurround HD
TM
creates an immersive, feature-rich
surround sound experience from two speakers, complete with
rich bass, high frequency detail and clear dialog.

3
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
General Information
Accessories

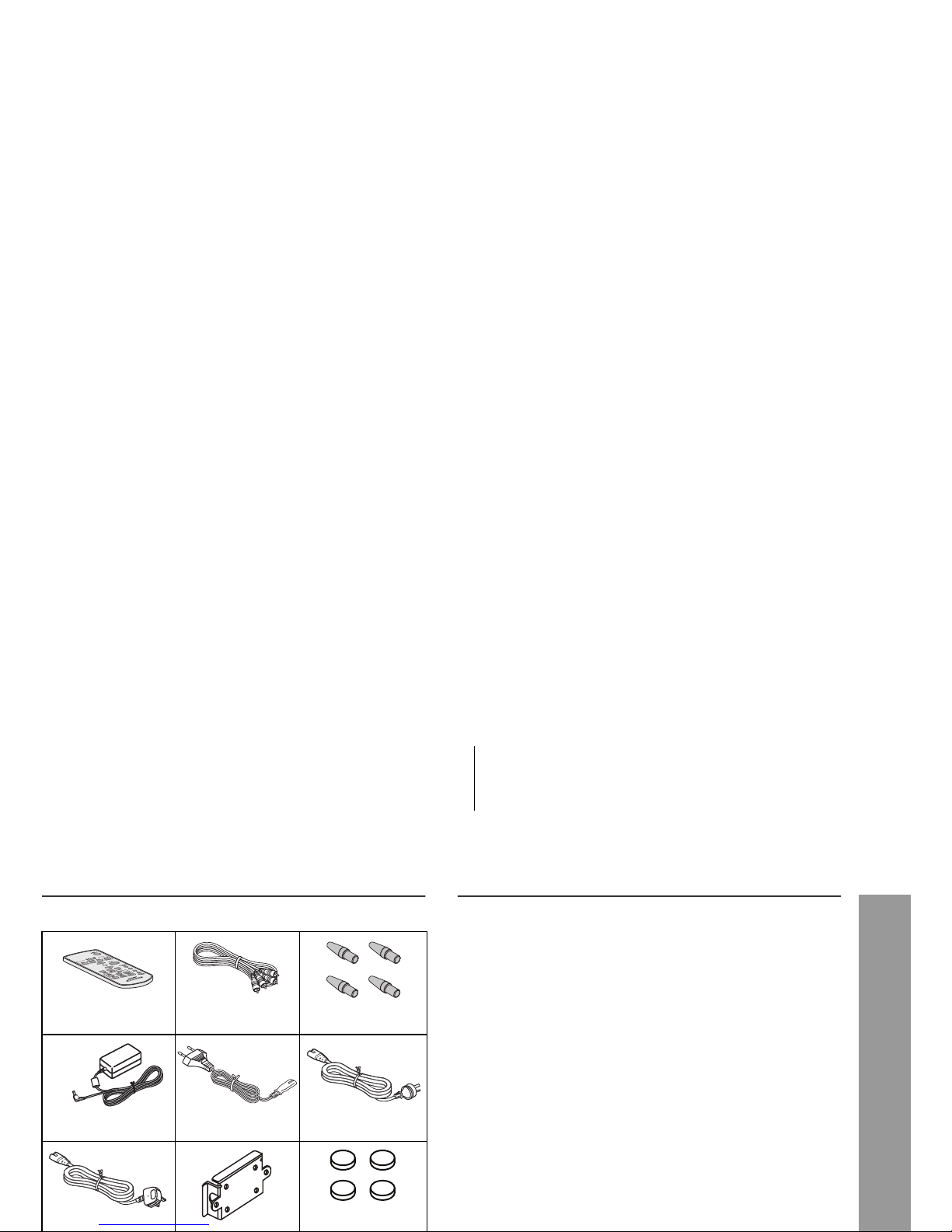

Please confirm that only the following accessories are included.
Note:
The AC/DC adaptor may be different from the one in the
drawing.
Contents
Page
■
General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Controls and indicators . . . . . . . . . . . . . . . . . . 5 - 7
■
Preparation for Use
Speaker preparation . . . . . . . . . . . . . . . . . . . . 8 - 10
Placing the speaker. . . . . . . . . . . . . . . . . . . . . . . . 11
Falling prevention . . . . . . . . . . . . . . . . . . . . . . . . . 12
Speaker connections to TVs . . . . . . . . . . . . 12 - 13
AC power connection . . . . . . . . . . . . . . . . . . . . . . 13
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
■
Basic Operation
General control . . . . . . . . . . . . . . . . . . . . . . . 15 - 16
■
References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . 17
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Error indicators and warnings . . . . . . . . . . . . . . . 18
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Remote control x 1 RCA cable
(2 pins - 2 pins) x 1
Spike x 4
(Length: 25 mm)
AC/DC adaptor x 1 AC power lead x 1 AC power lead x 1
(for Australia only)
AC power lead x 1
(for United
Kingdom and Eire
only)
Wall mount angle
x 2
Foot cushion x 4
Pattern paper x 1 ( Spike + Nut ) x 4
(Length: 30 mm)
Plug adaptor x 1
(for Philippines
only)
Nut

4
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
General Information
Precautions
■ General
● Please ensure that the equipment is positioned in a well-
ventilated area and ensure that there is at least 10 cm (4") of
free space along the sides and top of the equipment.
●
Use the speaker on a firm, level surface free from vibration.
● Keep the speaker away from direct sunlight, strong magnetic
fields, excessive dust, humidity and electronic/electrical
equipment (home computers, facsimiles, etc.) which
generate electrical noise.
●
Do not place anything on top of the speaker.
●
Do not expose the speaker to moisture, to temperatures
higher than 60˚C (140˚F) or to extremely low temperatures.
●
If your system does not work properly, disconnect the AC
power lead from the wall socket. Plug the AC power lead back
in, and then turn on your system.
● Hold the AC power plug by the head when removing it from
the wall socket, as pulling the lead can damage internal
wires.
● The AC power plug is used as a disconnect device and shall
always remain readily operable.
● No naked flame sources, such as lighted candles, should be
placed on the apparatus.
●
Attention should be drawn to the environmental aspects of
battery disposal.
●
This speaker should only be used within the range of
5˚C - 35˚C (41˚F - 95˚F).
● The apparatus is designed for use in moderate climates.
Warning:
The voltage used must be the same as that specified on this
speaker. Using this product with a higher voltage other than that
which is specified is dangerous and may result in a fire or other
type of accident causing damage. SHARP will not be held
responsible for any damage resulting from use of this speaker
with a voltage other than that which is specified.
■ Volume control
The sound level at a given volume setting depends on speaker
efficiency, location and various other factors. It is advisable to
avoid exposure to high volume levels. Do not turn the volume on
to full at switch on. Listen to music at moderate levels.
■ Precaution in using on the touch panel
●
Do not use rough material to wipe the touch panel.
●
Do not press the pad too hard, it can damage the touch
sensor.
● In case of an electrical storm, unplug the speaker for safety.
●
Do not use an external power supply other than the 12V DC
supplied with this speaker as it may be damaged.
●
SHARP is not responsible for damage due to improper use.
Refer all servicing to a SHARP authorised service centre.
SOUNDBARSYSTEM HT-SB400
SOUNDBARSYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
10 cm (4")
10 cm (4") 10 cm (4")
●
Do not remove the outer cover, as this may result in
electric shock. Refer internal service to your local
SHARP service facility.
● The ventilation should not be impeded by covering the
ventilation openings with items, such as newspapers,
tablecloths, curtains, etc.

5
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
General Information
Controls and indicators
■ Front Panel
Reference page
1. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2. Information Display . . . . . . . . . . . . . . . . . . . . . . . . . 15
3. On/Stand-by Pad/Indicator . . . . . . . . . . . . . . . . . . . 15
4. News Pad/Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Cinema/Game Pad/Indicator. . . . . . . . . . . . . . . . . . 15
6. Sport Pad/Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 15
7. Standard Pad/Indicator . . . . . . . . . . . . . . . . . . . . . . 15
8. Function Pad/Indicator . . . . . . . . . . . . . . . . . . . . . . 16
Reference page
9. Volume Down Pad/Indicator . . . . . . . . . . . . . . . . . . 15
10. Volume Up Pad/Indicator . . . . . . . . . . . . . . . . . . . . . 15
11. Left Front Speaker
12. Bass Reflex Duct
13. Subwoofers
14. Left Centre Speaker
15. Right Centre Speaker
16. Right Front Speaker
SOUND BAR SYSTEM HT-SB400
SOUND BAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
11 12 12 1614 1513 13
1 2
43 5 6 7 8 9 10
SOUNDBAR SYSTEM HT-SB400
SOUNDBAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL

6
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
General Information
Controls and indicators (continued)
■ Rear Panel
Reference page
1. Audio Line In 2 Socket. . . . . . . . . . . . . . . . . . . . . . . 13
2. Line In 1 Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. DC Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4. Subwoofer Pre-Out Socket . . . . . . . . . . . . . . . . . . . 11
1 423
LEFT
LEFT
RIGHT
RIGHT
AUDIO
AUDIO
LINE IN 1
LINE IN 1
DC IN
DC IN
LINE IN 2
LINE IN 2
SUBWOOFER
SUBWOOFER
PRE-OUT
PRE-OUT

7
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
General Information
Note:
Before using remote control, please remove plastic shield at
battery holder.

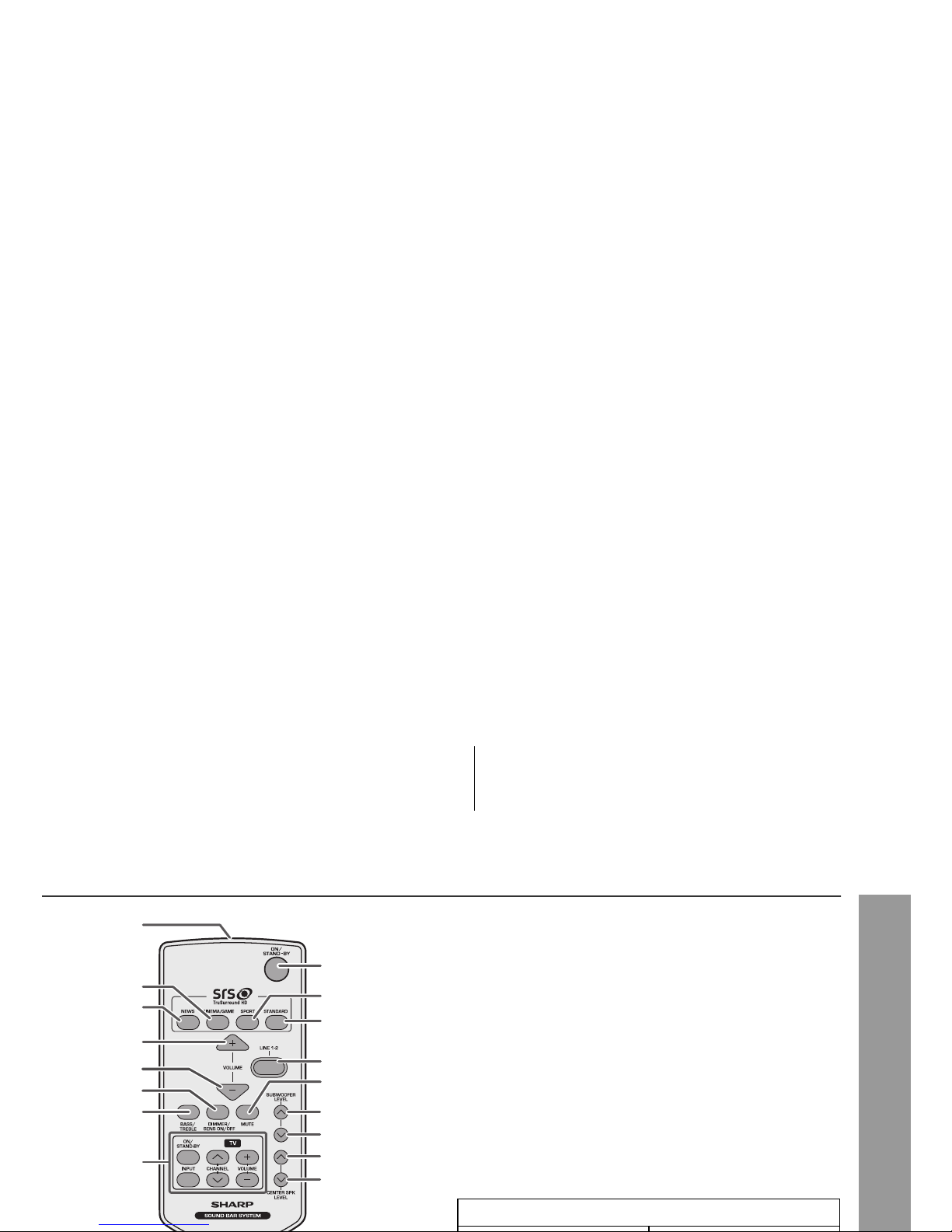

■ Remote Control
Reference page
1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . 14
2. Cinema/Game Button. . . . . . . . . . . . . . . . . . . . . . . . 15
3. News Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4. Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . 15
6. Dimmer/Sensor On/Off Button . . . . . . . . . . . . . . . . 15
7. Bass/Treble Button. . . . . . . . . . . . . . . . . . . . . . . . . . 16
8. TV Operation Buttons . . . . . . . . . . . . . . . . . . . . . . . . 7
9. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . 15
10. Sport Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
11. Standard Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
12. Line 1 - 2 Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
13. Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
14. Subwoofer Level Up Button . . . . . . . . . . . . . . . . . . 16
15. Subwoofer Level Down Button . . . . . . . . . . . . . . . . 16
16. Centre Speaker Level Up Button . . . . . . . . . . . . . . 16
17. Centre Speaker Level Down Button . . . . . . . . . . . . 16
Notes:
●
Some models of SHARP TV may not be operable.
●
SHARP TV remote will not work with HT-SB400 system.
1
9
10
13
14
15
16
17
12
11
2
3
4
6
5
7
8
Remote
control Plastic shield
Battery holder
TV Operation Buttons (Only SHARP TV):
On/Stand-by
Button
Sets the TV
power to “ON”
or “STAND-
BY”.
Input Select
Button (TV)
Press the
button to
switch the
input source.
Volume Up
and Down
Buttons
Turn up/down
the TV
volume.
Channel Up
and Down
Buttons
Switch up/
down the TV
channels.

8
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
Preparation for Use
Speaker preparation

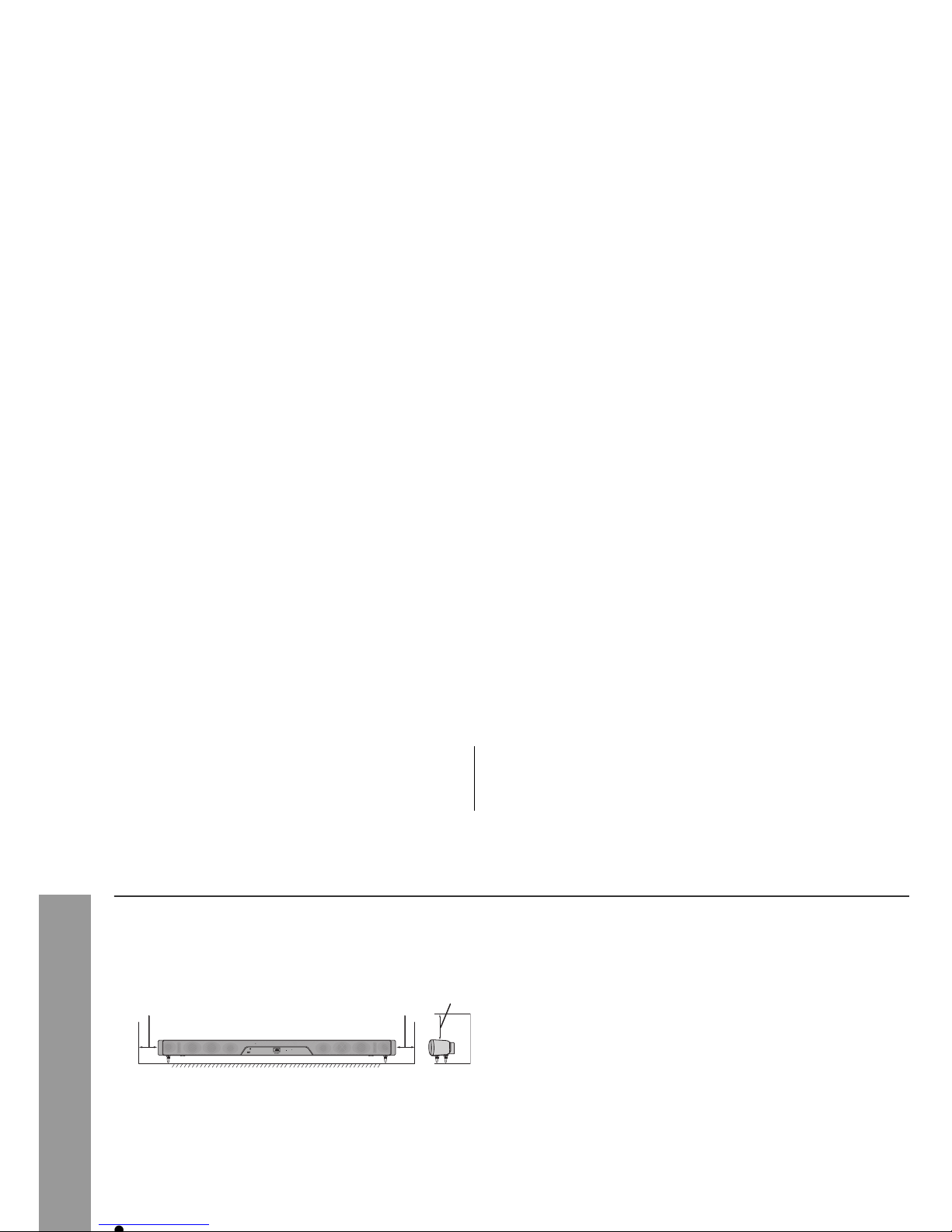

Select from three installation methods according to the
preferred position.
Notes:
●
Option 1 or option 2 indicates spike positions based on LCD
TV stand.
●
When attaching the spikes, place the speaker on a cushion
or soft cloth to avoid damage.
Caution:
When using these spikes on glossy or slippery table such as on
glass top, stick foot cushions at the bottom of the spikes to avoid
slippage.
Note:
Option 1 or option 2 foot cushion positions based on LCD TV
stand.
Make sure to unplug the AC power lead before installing
the speaker or changing the position.
SOUNDBAR SYSTEM HT-SB400
SOUNDBAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
Tighten all spikes as shown
Option 2 Option 1
Using spikes
You may choose from the two different spike lengths provided:
25 mm and 30 mm.
Nuts (secured on 30 mm spikes) must be used when installing
either the 25 mm or 30 mm spikes.
The speaker can be leveled by adjusting the spikes and nuts.
SOUNDBAR SYSTEM HT-SB400
SOUNDBAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
Attach foot cushions as shown
Option 1
Using foot cushions
Option 2

9
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
Preparation for Use
Caution:
●
Be very careful to prevent the speaker [2.15 kg (4.74 lbs.)]
from falling when mounting on the wall.
● Before mounting, check the wall strength. (Do not put on the
veneer plaster or whitewashed wall. The speaker may fall.) If
unsure, consult a qualified service technician.
● Mounting screws are not supplied. Use appropriate ones.
●
Check all wall mount angle screws for looseness.
●
Select a good location. If not, accidents may occur or the
speaker may get damaged.
●
SHARP is not responsible for accidents resulting from
improper installation.
■ Driving screws
SHARP designed the speakers so you may hang them on the
wall. Use proper screws (not supplied). See below for size and
type.
■ Wall mount angle fixed to the wall
(Horizontal position)
continued to the next page
To mount the speaker on the wall.
3.2 mm (1/8")
9 mm (3/8")
Min. 22 mm (7/8")
5 mm
(3/16")
1
Fix the pattern paper to the wall in horizontal position
as below.
2
Make a hole on the wall following the screw point
marks on the pattern paper by using a drill.
3
Fix a wall mount plug into the hole using a hammer,
until it is flush with the wall surface.
29 mm
29 mm
44 mm
44 mm
509 mm
Pattern paper
Wall surface
Wall surface
8 - 9 mm (3/8")
32 mm (1 - 1/4")
Wall surface
8 - 9 mm (3/8")
32 mm (1 - 1/4")

10
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
Preparation for Use
Speaker preparation (continued)
Note:
Make sure all screws are fully tightened. (screws are not
supplied)
■ Installing the speaker
4 Screw the wall mount angle to the wall as shown in the
illustration. (Total screw is 8 pieces)
Wall surface
Wall mount angle
Wall mount angle
Wall surface
Wall surface
Wall mount angle
(screws x 4)
(screws x 4)
1
Align the wall mount slot at the speaker to the wall
mount angle.
2
Slot the speaker into the wall mount angle.
3 Fix them securely.
SOUNDBARSYSTEMHT-SB400
SOUNDBARSYSTEMHT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
Wall surface

11
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
Preparation for Use
Placing the speaker
Installation image:
Place the speaker as shown.
Notes:
●
As the sound from the speaker is omni-directional, you can
place the speaker anywhere you like. However, it is
recommended to place it as close to the TV as possible.
●
The front panel of the speaker is not removable.
Caution:
●
Do not change the installation direction when the speaker is
turned on.
●
Do not stand or sit on the speaker as you may be injured.
■ Using other subwoofer
You can connect a subwoofer with an amplifier to the
SUBWOOFER PRE-OUT socket.
Note:
No sound is heard from the subwoofer without a built-in
amplifier.
SOUNDBARSYSTEMHT-SB400
SOUNDBARSYSTEMHT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
TV
VCR DVD player
SUBWOOFER
SUBWOOFER
PRE-OUT
PRE-OUT
Audio signal
Audio cable
(commercially
available)
Commercially available
subwoofer
(amplifier built in)
To audio input
socket
To SUBWOOFER PRE-
OUT socket
Speaker

12
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
Preparation for Use
Falling prevention
Safety wires (not supplied) are useful to prevent the speaker
from falling off the table.
Loop the safety wires (not supplied) into each hole as shown
and tie the safety wires to the LCD TV stand.
Speaker connections to TVs
Caution:
Turn off all other equipment before making any connections.
Tuner receiving for other audio system
● Placing the aerial near the speaker AC power lead may cause
noise pick up. Place the aerial away from the speaker for
better reception.
Notes:
●
To connect to TV, use either LINE IN 1 sockets or AUDIO
LINE IN 2 socket only.
●
Refer the operation manual of the equipment to be
connected.
● Fully insert the plugs to avoid fuzzy pictures or noises.
■ Connecting to a TV
If the TV/monitor has an audio output, connect it to the LINE IN
1 sockets on the rear of the speaker.
LEFT
LEFT
RIGHT
RIGHT
AUDIO
AUDIO
LINE IN 1
LINE IN 1
DC IN
DC IN
LINE IN 2
LINE IN 2
To audio output sockets
RCA cable (supplied)
Speaker
TV
To LINE IN 1
sockets

13
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
Preparation for Use
■ Connecting to a TV (with Headphone socket)
If the TV/monitor has headphone socket, connect it to the
AUDIO LINE IN 2 socket on the rear of the speaker.
Notes:
●
If the TV volume is continuously in low level, the speaker will
automatically power off. Increase the TV output volume to
enjoy the sound from the speaker.
●
If the speaker volume is continuously in very high level, the
speaker will mute and recover after several seconds.
● The Information Display on the sound bar system will not
display anything when increasing or decreasing the volume
level.
AC power connection
■ Using with the AC/DC adaptor
Notes:
●
Unplug the AC/DC adaptor from the wall socket if the speaker
will not be used for a prolonged period of time.
●
Use only the supplied AC/DC adaptor. Using other AC/DC
adaptor may cause an electric shock or fire.
HEADPHONE
LEFT
LEFT
RIGHT
RIGHT
AUDIO
AUDIO
LINE IN 1
LINE IN 1
DC IN
DC IN
LINE IN 2
LINE IN 2
To HEADPHONE socket
Audio cable
(3.5 mm/stereo socket)
(not supplied)
Speaker
TV
To AUDIO LINE
IN 2 socket
1
Plug the AC power lead into the AC/DC adaptor.
2
Plug the AC/DC adaptor cable into the DC INPUT
socket on the speaker.
3
Plug the AC power lead into wall socket.The On/Stand-
by indicator will turn ORANGE when AC power is
applied. The On/Stand-by indicator will turn GREEN
when the system in “ON”.
LEFT
LEFT
RIGHT
RIGHT
AUDIO
AUDIO
LINE IN 1
LINE IN 1
DC IN
DC IN
LINE IN 2
LINE IN 2
2
1
3
AC/DC Adaptor Cable
DC INPUT socket
(DC 12V)
AC/DC Adaptor
Wall socket
(AC 100 - 240 V ~ 50/60 Hz)
AC power lead

14
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
Preparation for Use
Remote control
■ Battery installation
Precautions for battery use:
● Remove the battery if the speaker will not be used for long
periods of time. This will prevent potential damage due to
battery leakage.
Caution:
● Do not use rechargeable battery (nickel-cadmium battery, etc.).
● Danger of explosion if battery is incorrectly replaced.
● Replace only with the same or equivalent type.
● Batteries (battery pack or batteries installed) shall not be
exposed to excessive heat such as sunshine, fire or the like.
● Installing the battery incorrectly may cause the speaker to
malfunction.
Notes concerning use:
● Replace the battery if the operating distance is reduced or if
the operation becomes erratic. Purchase “CR 2025”, coin
lithium battery.
● Periodically clean the transmitter on the remote control and
the sensor on the speaker with a soft cloth.
● Exposing the sensor on the speaker to strong light may
interfere with operation. Change the lighting or the direction
of the speaker if this occurs.
● Keep the remote control away from moisture, heat, shock,
and vibrations.
■ Test of the remote control
Point the remote control directly at the remote sensor on the
speaker .
The remote control can be used within the range shown
below:
Press the ON/STAND-BY button. Does the power turn on? Now,
you can enjoy your system.
1
Insert pin into the hole as shown and pull to open the
battery holder.
2
Remove the old battery from the battery holder, insert
the new battery and then slide the battery holder back
into the remote control.
Back of
remote control
Pin
Battery holder
Polarity (+) symbol
Battery type
Locking tab Positive (+) side up
SOUND BAR SYSTEM HT-SB400
SOUND BAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
15˚ 15˚
Remote sensor
0.2 m - 6 m
(8” - 20’)

15
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
Basic Operation
General control
■ To turn the power on
Press the ON/STAND-BY button on the remote control or touch
anywhere on the display panel. All the indicators will be
displayed to indicate pad positions.
●
The On/Stand-by indicator turns green. If the power does not
turn on, check whether the power lead is plugged in properly.
To set the speaker to stand-by mode:
●
Press the ON/STAND-BY button again on the remote control
or touch ON/STAND-BY pad on the speaker.
The On/Stand-by indicator turns orange.
■ Display brightness control
Press the DIMMER/SENS ON/OFF button to adjust the
brightness of the display and sound mode indicator.
■ Volume auto fade-in
If you turn off and on the speaker with the volume set to 40 or
higher, the volume starts at 20 and fades in to the last set level.
■ Volume control
Remote control operation:
Press the VOLUME + button to increase the volume and the
VOLUME – button to decrease the volume.
■ Preset sound mode
Speaker operation:
Touch a desired sound mode on the speaker.
Remote control operation:
Press a desired sound mode on the remote control.
Sound mode indicator and display bright.
Display will off after 5 seconds without any button/pad
operation.
Sound mode indicator and display dim.
Display will off after 5 seconds without any button/pad
operation.
SOUND BAR SYSTEM HT-SB400
SOUND BAR SYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
VOL
VOL
VOL
VOL
Speaker operation:
Touch VOL + pad to increase the
volume and touch – VOL pad to
decrease the volume.
■ Muting
The volume is muted temporarily when pressing
the MUTE button on the remote control. Press
again to restore the volume.
NEWS TruSurround HD on for news
CINEMA/GAME TruSurround HD on for cinema/game
sound effect
SPORT TruSurround HD on for sport broadcasting
STANDARD TruSurround HD on for standard sound
effect
00 01 02 ..... 59 60

16
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
Basic Operation
General control (continued)
■ Subwoofer level control
Note:
When sound from the speaker is distorted, decrease the
subwoofer level.
■ Centre speaker level control
■ Bass control
■ Treble control
■ Touch Sensing Off mode
■ Function
Note:
The backup function will protect the memorised function mode
for a few hours should there be a power failure or the AC power
lead becomes disconnected.
Auto power on function:
When you press the LINE button on the remote control, the
speaker will turn on at last function.
Auto power off and auto detect signal:
The speaker will automatically power off after 1 minute of
inactivity. The On/Stand-by indicator turns orange. At this point,
it will automatically power ON if it detects audio signal from
connected equipment.
Note:
Make sure to turn off any source/signal input to speaker before
going to stand-by mode because it will cause the speaker to
power ON again.
The subwoofer level can be adjusted.
To increase the level, press the
SUBWOOFER LEVEL button.
To decrease the level, press the
SUBWOOFER LEVEL button.
The centre speaker level can be adjusted.
To increase the level, press the
CENTER SPK LEVEL button.
To decrease the level, press the
CENTER SPK LEVEL button.
1. Press the BASS/TREBLE button
to select “BASS”.
2. Within 5 seconds, press the
VOLUME (+ or –) button to adjust
the bass.
1. Press the BASS/TREBLE button
to select “TREBLE”.
2. Within 5 seconds, press the
VOLUME (+ or –) button to adjust
the treble.
-5 -4 ... +4 +5
-5 -4 ... +4 +5
-5 +5
-5 +5
During Stand-by mode, press the DIMMER/SENS ON/OFF
button on the remote control and the On/Stand-by indicator will
turn from orange to red.
To turn the power on, press the ON/STAND-BY button on the
remote control or touch the ON/STAND-BY pad on the display
panel.
When the FUNCTION pad on
speaker is touched or LINE 1 - 2
button on the remote control is
pressed, the input source will
change. Touch the FUNCTION pad
on speaker or LINE button on the
remote control repeatedly to select
desired input source.
LINE 1
LINE 2

17
HT-SB400
2009 October 2 HT-SB400_A6_EN_1-17.fm
2
References
Troubleshooting chart
Many potential problems can be resolved by the owner without
calling a service technician.
If something is wrong with this product, check the following
before calling your authorised SHARP dealer or service centre.
■ General
■ Remote control
■ Condensation
Sudden temperature changes, storage or operation in an
extremely humid environment may cause condensation inside
the cabinet or on the transmitter on the remote control.
Condensation can cause the speaker to malfunction. If this
happens, leave the power on until normal playback is possible
(about 1 hour). Wipe off any condensation on the transmitter
with a soft cloth before operating the speaker.
■ If problem occurs
When this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal supply
voltage due to lightning, etc.) or if it is operated incorrectly, it may
malfunction.
If such a problem occurs, do the following:
1.
Set the speaker to the stand-by mode and turn the power on
again.
2. If the speaker is not restored in the previous operation,
unplug and plug in the speaker, and then turn the power on.
■ Factory reset, clearing all setting
Make sure to disconnect all audio input cables attached to the
speaker before performing the factory reset.
Can be operated on the remote control only.
1. Press the ON/STAND-BY button to enter the power stand-by
mode.
2. Press and hold the ON/STAND-BY button until “CL” appears.
Caution:
This operation will erase all data stored in memory.
Symptom Possible cause
No sound is heard.
●
Is the input signal (selection) set
properly?
●
Is the volume level set to “0”?
●
Is muting activated?
Noise is heard
during playback.
●
Move the speaker away from any
computers or mobile phones.
When a button is
pressed, the
speaker does not
respond.
●Set this speaker to the stand-by
mode and then turn it back on.
The power is not
turned on.
●Is the AC/DC adaptor unplugged?
(Refer to page 13)
●The protection circuit may be
activated. Unplug and plug in the
power lead again after 5 minutes or
more.
Symptom Possible cause
The remote control
does not operate
properly.
●Is the battery polarity correct?
●Is the battery dead?
●Is the distance or angle incorrect?
●Are there any obstructions in front of
the speaker?
●Is there a strong light shining on the
remote sensor?
●Is the remote control for another
equipment used simultaneously?
The speaker cannot
be turned on with
the remote control.
●Is the AC power lead of the speaker
plugged in?
●Is the battery inserted?
Symptom Possible cause
TV cannot be
operated with the
remote control.
●Depending on the model, some or all
functions may not be operable using
the remote control of this speaker. In
this case, use the remote control
supplied with the TV.

18
HT-SB400
2009 October 2
HT-SB400_A6_EN_1-17.fm
References
Maintenance
■Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth.
Caution:
● Do not use chemicals for cleaning (petrol, paint thinner, etc.). It may
damage the cabinet finish.
● Do not apply oil to the inside of each component. It may cause
malfunctions.
Error indicators and warnings
When you fail to perform operations properly, the following messages are
displayed on the speaker.
(*): Should the same message appear even if the speaker is unplugged and
plugged in, or is set to the stand-by mode and on again, contact your
local dealer where you purchased the speaker.
Specifications
As part of our policy of continuous improvement, SHARP reserves the right
to make design and specification changes for product improvement without
prior notice. The performance specification figures indicated are nominal
values of production speaker. There may be some deviations from these
values in individual speaker.
■General
(*) This power consumption value is obtained when in the touch sensing off
mode (RED).
Display Meaning
or or
● Malfunction of the surround
circuit. Place the speaker away
from noise source and plug the
AC power lead into another wall
socket. (*)
or
On/Stand-by indicator
(blinks red)
● When the protection circuit of the
amplifier is activated.
SOUNDBARSYSTEM HT-SB400
SOUNDBARSYSTEM HT-SB400
VOL
VOL
STANDARD
STANDARD
SPORT
SPORT
NEWS
NEWS
CINEMA/GAME
CINEMA/GAME
FUNCTION
FUNCTION
ON/STAND-BY
ON/STAND-BY
VOL
VOL
Power source DC IN 12V 4A: AC/DC adaptor
(AC 100 - 240 V ~ 50/60 Hz)
Power
consumption Power on: 12 W Power Stand-by: 0.6 W (*)
Output power Front Speaker:
RMS: 10 W (5 W + 5 W) (10% T.H.D.)
RMS: 9.6 W (4.8 W + 4.8 W) (0.9% T.H.D.)
Centre Speaker:
RMS: 7 W (10% T.H.D.)
RMS: 6.5W (0.9% T.H.D.)
Subwoofer:
RMS: 15 W (10% T.H.D.)
RMS: 9.8 W (0.9% T.H.D.)
Speaker 3.1-way Speaker System
Front Speakers: 40 mm (1-9/16") Full Range (x 2)
Impedance: 12 ohms / Channel
Centre Speakers: 40 mm (1-9/16") Full Range (x 2)
Impedance: 6 ohms
(12 ohms x 2 parallel connections)
Subwoofer: 57 mm (2-1/4") Woofer (x4)
Impedance: 3 ohms
(12 ohms x 4 parallel connections)
Audio output
terminals Subwoofer Pre Out: 10 k ohms
Input terminals Analogue input (LINE 1): RCA type x 1pair (L/R)
500 mV/47 k ohms
Analogue input (LINE 2): Stereo mini socket Ø 3.5 mm
100 mV/47 k ohms
Dimensions Width: 985 mm (38-3/4")
Height: 96 mm (3-3/4")
Depth: 70 mm (2-3/4")
Weight 2.15 kg (4.74 lbs.)

MEMO

SHARP CORPORATION
TINSEA311AWZZ
09K R AS 1
