ART+SOUND UNI75 User manual

UNI75 - OPERATIONS MANUAL
POWERFULL PASSIF
FULL RANGE SPEAKER
Dear Customer, Congratulations on the purchase of
your loudspeaker(s). Please read these instructions
carefully and keep them tor future reference.
SAFETY PRECAUTIONS
• Before connecting the equipment to the power
outlet, first verify that the mains voltage and fre-
quency match the values specified on the equip-
ment.
• If the power cord of the device is equipped with an
earthing contact, then it must be connected to an
outlet with a protective ground. Never deactivate
the protective ground of a power cord.
• Unplug the power cord and power adapter from
the power outlet if there is a risk of a lightning
strike or before extended periods of disuse.
• Replace fuses only with fuses of the same type
and rating. If a fuse blows repeatedly, please con-
tact an authorized service company.
• Do not open or modify this equipment.
• After connecting the equipment, check all cables
in order to prevent damage or accidents, e.g., due
to tripping hazards.
• Do not turn on the Amplifier ON before checking
that all volumes to zero.
ׁIMPORTANT
Never remove the cover, because otherwise
there may be a risk of electric shock. There are
no user serviceable parts inside. Have repairs
carried out only by qualified service personnel.
The lightning flash with arrowhead symbol
within an equilateral triangle is intended to alert
the user to the presence of uninsulated "danger-
ous voltage" within the product's enclosure that
may be of sufficient magnitude to constitute a
risk of electrical shock.
The exclamation mark within an equilateral tri-
angle is intended to alert the user to the pres-
ence of important operating and maintenance
instructions.
The amplifier is marked with this instruction so
please proceed accordingly in order to avoid any
hazard.

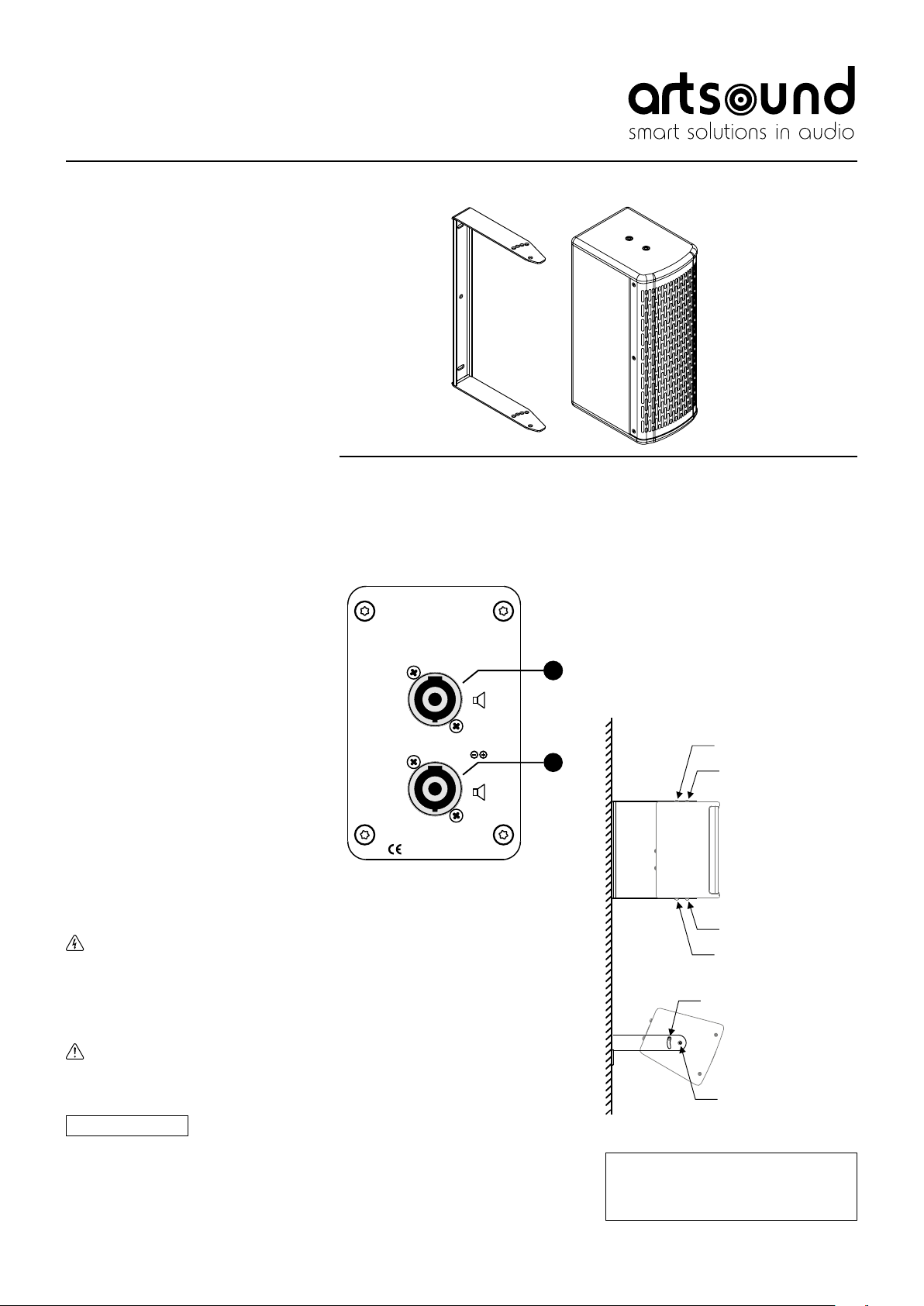

Connections and Controls
Please refer to the following scheme and instruc-
tions:
1. INPUT: Speakon NL4 compatible input (+1/-1).
2. LINK: Speakon NL4 compatible output (parallel
wired with Speakon compatible input (1+/1-).
Install the ‘’U’’ bracket
Before installing the speaker, take a moment to
check the fixture to make sure there is no damage.
Verify that you have all the necessary tools, fittings
and connection hardware to complete the installa-
tion and connection. The Speaker is supplied with
the ‘’U’’ wall mount bracket. Provide suitable struc-
tural support to fully support the speaker.
• STEP 1: Set the location of the Speaker on the wall
where is to be installed and mark the location of
the bracket holes on the wall/ceiling.
• STEP 2: Drill 8mm holes and then screw bracket
on the wall with screw anchors. First fasten upper
screw in bracket only to support the weight.
• STEP 3: Remove the 4x M8 screws off the top and
bottom of the speaker and place the speaker in
position onto the bracket. First screw the 2x M8
(1) that will fix the speaker to the ‘’U’’ bracket.
• STEP 4: The speaker is now fixed to the bracket
and adjust the angle/tilt wanted (4 steps of 12°).
Screw the other 2x M8 (2) to set and finish the
Speaker installation to the wall/ceiling.
• STEP 5: It is possible now to connect the signal
cable to the low impedance input: Speakon Nl4
(+1/-1).
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
1
2
INPUT
LINK
PROUDLY DEVELOPED AND
MANUFACTURED IN PORTUGAL
+1-1
MID/HI
PIN
SIGNAL
M
M






1M8 to fix the speaker to the bracket
2 M8 to adjust the tilt angle of the speaker

Kwww.artsound.be
EArtsound.audio
Qartsoundaudio
House of Music nv
Ronse, Belgium
¼+32 9 380 81 80
º [email protected]
Technical specifications
• range : <200 m2
• system : 2-way system
• woofer : 5”
• tweeter : 1” horn tweeter
• bass reflex
• magnetic shielded
• recommended amp power : 200-380 W
• spread differential: 60 x 60°
• sensibility : 122 dB
• impedance : 4-8Ω
• frequency range : 65Hz~20KHz
• connection : Speakon NL4 in/out
• dimensions (h x w x d) : 430 x 170 x 230 mm
• 7.5 kg/piece
• composition: 15 mm multiplex box with
polyurethane coating
• colour: black
• suspension : U-bracket
Warranty conditions
2 year warranty from the date of manufacture.
The warranty is limited to the repair of replacement
of the detective material insofar as this defect is a
resu Il of normal use and the device has not been
damaged. Artsound is not responsible lor any other
casts that ensue as a result of the defect (e.g. trans-
port). For details, please consult our general terms
and conditions of sale.
