SERVICE MANUAL
LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
OUTLINE AND DIFFERENCES FROM BASE MODEL
OUTLINE.............................................................i
DIFFERENCES FROM BASE MODEL...............i
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRE-
CAUTION........................................................xiii
PRECAUTIONS A PRENDRE LORS DE
LA REPARATION............................................xiv
PRECAUTIONS FOR USING LEAD-FREE
SOLDER ..........................................................xv
CHAPTER 1. OPERATION MANUAL
[1] Parts Name....................................................1-1
[2] OPERATION MANUAL..................................1-7
CHAPTER 2. SPECIFICATIONS
[1] SPECIFICATIONS .........................................2-1
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS ................................................ 3-1
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS ...................4-1
[2] The location putting on the heat measure
sheet .............................................................. 4-7
[3] Precautions for assembly............................... 4-9
CHAPTER 5. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE ......................5-1
CHAPTER 6. TROUBLESHOOTING TABLE
[1] TROUBLESHOOTING TABLE ......................6-1
[2] LED flashing specification at the time of the
error...............................................................6-7
CHAPTER 7. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS.........................7-1
CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK
DIAGRAM
[1] OVERALL WIRING DIAGRAM (LC-
60LE635E,RU/638E).....................................8-1
[2] OVERALL WIRING DIAGRAM (LC-
60LE636E/S).................................................8-2
[3] SYSTEM BLOCK DIAGRAM (LC-
60LE635E,RU/638E).....................................8-3
[4] SYSTEM BLOCK DIAGRAM (LC-
60LE636E/S).................................................8-4
Parts Guide
TopPage
CONTENTS
No. S82X760LE635B
LCD COLOUR TELEVISION
LC-60LE635E(B)/RU(B)
LC-60LE636E(B)/S(B)
LC-60LE638E(B)
MODELS
In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-
inal condition and only parts identical to those specified should be used.
This model is based on the LC-60LE830E and partially modified.
For the contents not covered in this Service Manual, accordingly, please refer to the LC-60LE830E (S81T252LE830E)
Service Manual.
OUTLINE

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
i
OUTLINE AND DIFFERENCES FROM BASE MODEL
OUTLINE
This model is based on the LC-60LE830E and partially modified.
For the contents not covered in this Service Manual, accordingly, please refer to the LC-60LE830E (S81T252LE830E) Service Manual.
DIFFERENCES FROM BASE MODEL
Ref
No. Description LC-60LE830E (S81T252LE830E) LC-60LE635E(B)
LC-60LE635RU(B) LC-60LE638E(B) LC-60LE636E(B) LC-60LE636S(B) Inter-
chang
eabil-
ity
Note
PRINTED WIRING BOARD ASSEMBLIES
N MAIN Unit DKEYDF733FM51 DKEYDF733FM55 DKEYDF733FM57 DKEYDF733FM56 D Chanded
N R/C OPC Unit DUNTKF494FM02 - Changed
N ICON Unit DUNTKF770FM51 DUNTKF770FM53 DUNTKF770FM53 DUNTKF770FM53 D Chanded
N TOUCH SENSOR Unit RUNTKA869WJQ
Z- - - - Delete
N 3D IR TRANSMITTER Unit RUNTKA819WJQ
Z- - - - Delete
N POWER Unit RUNTKA799WJN1 RUNTKA932WJQZ ← ←
ddA-25MF008FKTNUD25MF008FKTNUD25MF008FKTNUD-tinUYEKN
LCD Panel Module
N 60" LCD Panel Module Unit R1LK600D3GW4BH R1LK600D3GV0AY D Chanded
← ←
DUNTKF494FM06
D Chanded
NLCD CONTRL Unit ←
RUNTK4909TPYN DUNTKF778FM53 ←DChanded
←←
CABINET AND MECHANICAL PARTS
Please refer to a Parts Guide.
SUPPLIED ACCESSORIES/PACKING PARTS (NOT REPLACEMENT ITEM)
Please refer to a Parts Guide.
SERVICE JIG (USE FOR SERVICING)
Please refer to a Parts Guide.

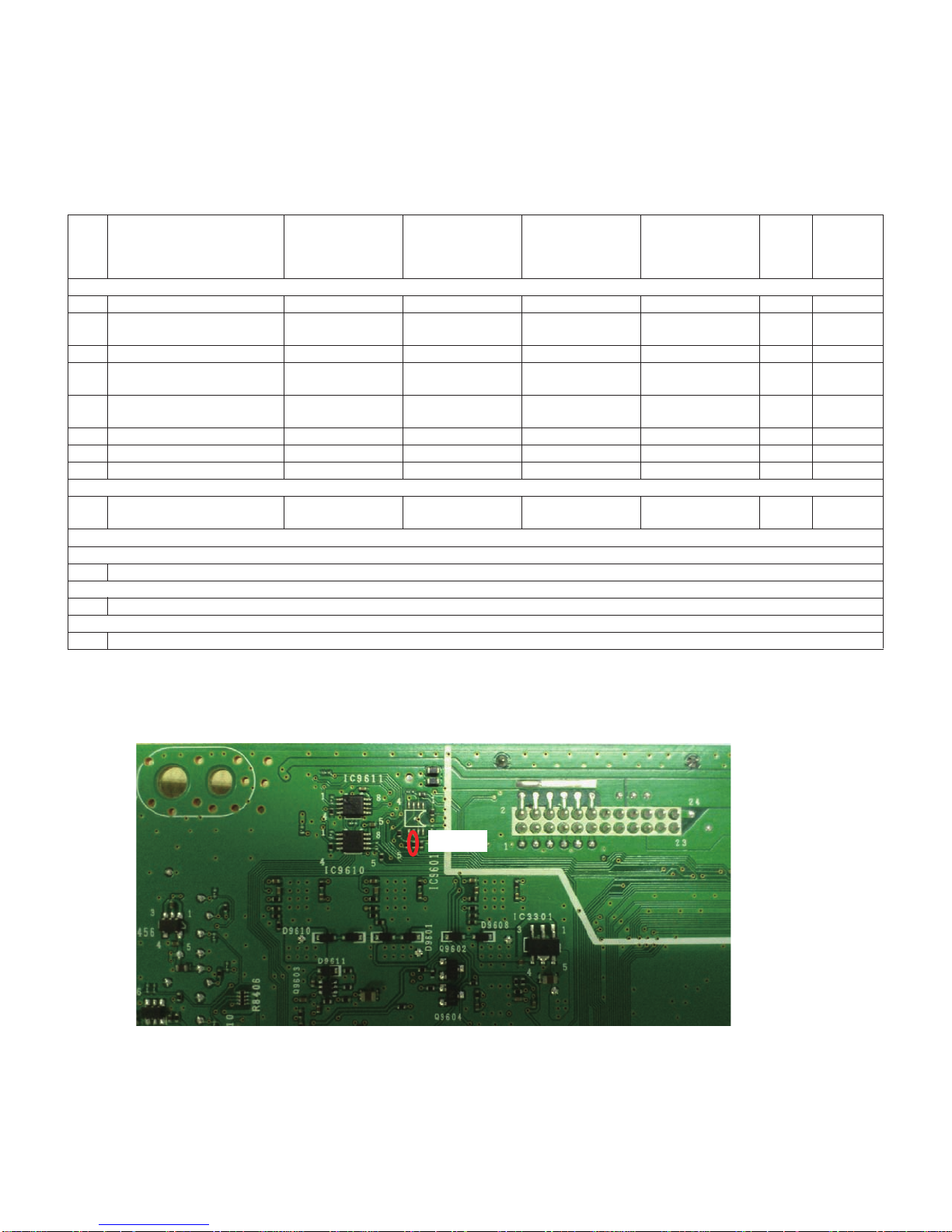

R9682
Note：In the case of changing the MAIN Unit ( DKEYDF733FM55/56/57)
*Please confirm that following part (R9682) is added in this unit

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
xiii
LC60LE635E Service Manual
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY PRECAUTION
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
BEFORE RETURNING THE RECEIVER (Fire &
Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.
5. To be sure that no shock hazard exists, check for leakage current
in the following manner.
• Plug the AC cord directly into a 220-240 volt AC outlet.
• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral-
leled by a 0.15?F capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or elec-
trical ground connected to an earth ground.
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-
sitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts List
and Schematic Diagrams.
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
CAUTION: FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F7001 (250V 5A)
DVM
AC SCALE
1.5k ohm
10W
TO EXPOSED
METAL PARTS CONNECT TO KNOWN EARTH
GROUND
0.15 µ F
TEST PROBE

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
xiv
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
De nombreuses pièces, électriques et mécaniques, dans les télévi-
seur ACL présentent des caractéristiques spéciales relatives à la sé-
curité, qui ne sont souvent pas évidentes à vue. Le degré de protec-
tion ne peut pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces caractéristiques sont
identifiées dans ce manuel; les pièces électriques qui présentent ces
particularités sont identifiées par la marque " " et hachurées dans la
liste des pièces de remplacement et les diagrammes schématiques.
Pour assurer la protection, ces pièces doivent être identiques à celles
utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas
les mêmes caractéristiques que les pièces recommandées par l'usine,
indiquées dans ce manuel, peut provoquer des électrocutions, incen-
dies, radiations X ou autres accidents.
AVERTISSEMENT
1.
2.
3.
4.
5.
•
•
•
•
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux
conseils suivants.
N'entreprendre aucune modification de tout circuit. C'est danger-
eux.
Débrancher le récepteur avant toute réparation.
Inspecter tous les faisceaux de câbles pour s'assurer que les fils
ne soient pas pincés ou qu'un outil ne soit pas placé entre le châs-
sis et les autres pièces métalliques du récepteur.
Inspecter tous les dispositifs de protection comme les boutons de
commande non-métalliques, les isolants, le dos du coffret, les cou-
vercles ou blindages de réglage et de compartiment, les réseaux
de résistancecapacité, les isolateurs mécaniques, etc.
S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la
fuite de courant, de la facon suivante:
Brancher le cordon d'alimentation directem-ent à une prise de cou-
rant de 220-240V. (Ne pas utiliser de transformateur d'isolation
pour cet essai).
A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ
10 watts en parallèle avec un condensateur de 0.15µF en série
avec toutes les pièces métalliques exposées du coffret et une terre
connue comme une conduite électrique ou une prise de terre
branchée à la terre.
Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour
mesurer la chute de tension en travers de la résistance.
Toucher avec la sonde d'essai les pièces métalliques exposées qui
présentent une voie de retour au châssis (antenne, coffret métalli-
que, tête des vis, arbres de commande et des boutons, écusson,
etc.) et mesurer la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir inversé la
fiche du cordon d'alimentation. (Si nécessaire, une prise
d'adpatation non polarisée peut être utilisée dans le but de termin-
er ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.75V (corre-
spondante au courant CA de pointe de 0.5mA).
Dans le cas contraire, il y a une possibilité de choc électrique qui
doit être supprimée avant de rendre le récepteur au client.
VERIFICATIONS CONTRE L'INCEN-DIE ET LE
CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer les vérifica-
tions suivantes.
DVM
ECHELLE CA
1.5k ohm
10W
0.15
µ F
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE
CAUTION: FOR CONTINUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F7001 (250V 5A)

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
xv
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam-
age or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 ?C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 ?C which is higher than the conventional lead solder by 40 ?C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
PARTS CODE PRICE
RANK PART DELIVERY DESCRIPTION
ZHNDAi123250E BL J ?0.3mm 250g (1roll)
ZHNDAi126500E BK J ?0.6mm 500g (1roll)
ZHNDAi12801KE BM J ?1.0mm 1kg (1roll)

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 1
LC60LE635E Service Manual
CHAPTER 1. OPERATION MANUAL
[1] Parts Name
TV (front/side view)
Illumination LED
Remote control sensor
OPC sensor
TV (rear view)
USB 3 ( WIRELESS LAN) port
USB 2 (HDD) port
ETHERNET (10/100) terminal
Satellite antenna terminal
(635/638 series only) Antenna terminal
DIGITAL AUDIO OUTPUT
terminal
HDMI 2/PC AUDIO (L/R)
jack
*
1
The HDMI 2 and PC terminals can both use the same audio input terminal (HDMI 2/PC
AUDIO (L/R)). However, the proper item must be selected in the “Audio select” menu.
* 1
P

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 2
TV (rear view) — continued
SD CARD
(VIDEO STORE) slot
RS-232C terminal
PC terminal
EXT 2 (VIDEO/AUDIO
(L/R)) terminal
EXT 1 (RGB) terminal
EXT 3 (Component/
AUDIO (L/R)) terminal
OUTPUT (Headphones/
AUDIO (L/R)) terminal*2
USB 1 port
HDMI 1 (HDMI/ARC)
terminal
HDMI 3 (HDMI) terminal
HDMI 2 (HDMI) terminal
HDMI 4 (HDMI) terminal
C.I. (COMMON
INTERFACE) slot
When the headphone is connected to the OUTPUT terminal, the audio can be output
from the speakers.
WARNING
Excessive sound pressure from earphones and headphones can cause hearing loss.
Do not set the volume at a high level. Hearing experts advise against extended
listening at high volume levels.
Important information:
Satellite services are only available for the 635/638 model series.
*2

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 3
Remote control unit
6
7
5
4
3
8
9
10
12
13
14
11
2
1 16
15
17
18
19
20
21
22
23
24
1 (Standby/On)
2 ATV
Access conventional analogue TV mode.
DTV
Access digital TV mode.
SAT
Access satellite mode.
RADIO
DTV/SAT: Switch between radio and
data mode.
When only data broadcasting (no radio
broadcasting) is transmitted by DVB,
the radio broadcasting will be skipped.
3 AQUOSLINKbuttons
4 CONTROL
Display a panel to operate some
functions on the screen.
NET: “NET MENU” screen on/off.
5 TIME SHIFT (READY/ / / )
Temporarily record a programme you are
watching.
6 Numeric buttons 0_9
Set the channel. Enter desired numbers.
Set the page in teletext mode.
When the five Nordic countries
(Sweden, Norway, Finland, Denmark
or Iceland) are selected in the country
setting from initial auto installation,
DTV services are four digits.
When another country is selected,
DTV services are three digits.
7 (Flashback)
Return to the previously selected
channel or external input.
8 (Sound mode)
Select a sound multiplex mode.
(Wide mode)
Select a wide mode.
(LC-60LE635E(B),RU(B)/636E(B).S(B))

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 4
9 (Mute)
TV sound on/off.
10 +/- (Volume)
Increase/decrease TV volume.
11 “Menu” screen on/off.
12 None
This button does not work on this
model.
13 ///(Cursor)
Select a desired item.
Execute a command.
ATV/DTV/SAT: Display “CH list” when no
other “Menu” screen is running.
14 ATV/DTV/SAT: Exit the “Menu” screen.
NET: Return to the start page.
15 NET
Access Net TV.
16 (Display information)
Display the station information (channel
number, signal, etc.) on the screen.
P. INFO
Display programme information
transmitted through digital video
broadcasting (DTV/SAT only).
17 (INPUT)
Select an input source.
18 Select audio/video settings.
ECO(Standard/Advanced/Off)
Select “Energy save” setting.
19 (Teletext)
ATV: Display analogue teletext.
DTV/SAT: Select MHEG-5 or teletext for
DTV/SAT.
20 /
ATV/DTV/SAT: Select the TV channel.
NET: Scrolls pages up/down.
21 EPG
DTV/SAT: Display the EPG screen.
22 (Return)
ATV/DTV/SAT: Return to the previous
“Menu” screen.
NET: Return to the previous page (this
may not function for some services).
23 Buttons for useful operations
(Subtitle)
Switch subtitle languages on/off.
(Reveal hidden teletext)
(Subpage)
(Freeze/Hold)
Freeze a moving image on the screen.
Teletext: Stop updating teletext pages
automatically or release the hold mode.
24 R/G/Y/B (Colour) buttons
The coloured buttons are
correspondingly used to select the
coloured items on the screen (e.g., EPG,
MHEG-5, teletext).
Important information:
Satellite services are only available for
the 635 model series.
AV MODE
END
OK
MENU

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 5
Remote control unit (LC-60LE638E(B))
6
7
5
4
3
8
9
10
12
13
14
11
2
1 16
15
17
18
19
20
21
22
23
24
1 (Standby/On)
2 ATV
Access conventional analogue TV mode.
DTV
Access digital TV mode.
SAT
Access satellite mode.
RADIO
DTV/SAT: Switch between radio and
data mode.
When only data broadcasting (no radio
broadcasting) is transmitted by DVB,
the radio broadcasting will be skipped.
3 AQUOSLINKbuttons
4 CONTROL
Display a panel to operate some
functions on the screen.
NET: “NET MENU” screen on/off.
5 TIME SHIFT (READY/ / / )
Temporarily record a programme you are
watching.
6 Numeric buttons 0_9
Set the channel. Enter desired numbers.
Set the page in teletext mode.
Inputting letters with the numeric
buttons is only available with MHP
services (Italy only).
When the five Nordic countries
(Sweden, Norway, Finland, Denmark
or Iceland) are selected in the country
setting from initial auto installation,
DTV services are four digits.
When another country is selected,
DTV services are three digits.
7 (Flashback)
Return to the previously selected
channel or external input.
8 (Sound mode)
Select a sound multiplex mode.
(Wide mode)
Select a wide mode.

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 6
9 (Mute)
TV sound on/off.
10 +/- (Volume)
Increase/decrease TV volume.
11 MENU
“Menu” screen on/off.
12 None
This button does not work on this
model.
13 /// (Cursor)
Select a desired item.
OK
Execute a command.
ATV/DTV/SAT: Display “CH list” when no
other “Menu” screen is running.
“CH list” may not be displayed even
by pressing OK when executing the
MHP application. If so, you
can display “CH list” from “Menu” >
“CH list”.
14 ATV/DTV/SAT: Exit the “Menu” screen.
NET: Return to the start page.
15 NET
Access Net TV.
16 (Display information)
Display the station information (channel
number, signal, etc.) on the screen.
P. INFO
Display programme information
transmitted through digital video
broadcasting (DTV/SAT only).
17 (INPUT)
Select an input source.
18 APP
Display the MHP application list (Italy
only).
ECO(Standard/Advanced/Off)
Select “Energy save” setting.
19 (Teletext)
ATV: Display analogue teletext.
DTV/SAT: Select teletext for DTV/SAT.
20 P /
ATV/DTV/SAT: Select the TV channel.
NET: Scrolls pages up/down.
21 EPG
DTV/SAT: Display the EPG screen.
22 (Return)
ATV/DTV/SAT: Return to the previous
“Menu” screen.
NET: Return to the previous page (This
may not function for some services).
23 Buttons for useful operations
(Subtitle)
Switch subtitle languages on/off.
(Reveal hidden teletext)
(Subpage)
(Freeze/Hold)
Freeze a moving image on the screen.
Teletext: Stop updating teletext pages
automatically or release the hold mode.
24 R/G/Y/B (Colour) buttons
The coloured buttons are
correspondingly used to select the
coloured items on the screen (e.g., EPG,
MHP, teletext).
END

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
1 – 7
[2] OPERATION MANUAL
Attaching the stand unit
Before attaching (or detaching) the stand, unplug the AC cord.
Before performing work, spread cushioning over the
surface on which you will be laying the TV. This will
prevent it from being damaged.
CAUTION
Attach the stand in the correct direction.
Be sure to follow the instructions. Incorrect
installation of the stand may result in the TV falling
over .
1Confirm that there are twelve screws (eight long
screws and four short screws) supplied with the
stand unit.
2
1Set the supporting post for the stand unit
onto the polystyrene foam.
2Attach the stand base to the supporting
post.
3Insert and tighten the eight screws into the
eight holes on the bottom of the stand base.
Hold the stand unit securely with one hand, and
then tighten the screws.
swercsgnoLesabdnatS
TV front
Supporting post
3Insert the stand into the openings on the bottom
of the TV (hold the stand so it will not drop from
the edge of the base area).
Make sure that the stand is firmly inserted into the
TV. Improper installation may result in tilting of the
TV set.
Soft cushion
4Insert and tighten the four screws into the four
holes on the rear of the TV.
Short screws

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
2 – 1
LC60LE635E Service Manual
CHAPTER 2. SPECIFICATIONS
[1] SPECIFICATIONS
Specifications
Item LCD COLOUR TV (60"/152 cm),
LC-60LE635E(B)
LC-60LE635RU(B)
LC-60LE636E(B)
LC-60LE636S(B)
LCD panel 152 cm (60") X-Gen panel
stod3x080,1x029,1noituloseR
Video colour system PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV
function TV- standard Analogue CCIR (B/G, I, D/K, L/L’)
Digital
(635 series ) DVB-T (2K/8K OFDM), DVB-C, DVB-S/S2
Digital
(636 series ) DVB-T (2K/8K OFDM), DVB-T2 (1K/2K/4K/8K/16K/32K OFDM), DVB-C
Receiving
channel VHF/UHF IR A ch_E69 ch (Digital), E2_E69 ch, F2_F10 ch,
I21_I69 ch, IR A_IR J ch
CATV Hyper-band, S1_S41 ch
Satellite
(635 series
only)
950_2150 MHz*
1
TV-tuning system Auto Preset 999 ch (non-Nordic [DTV]),
Auto Preset 9999 ch (Nordic [DTV]),
Auto Preset 99 ch (ATV), Auto Label, Auto Sort,
Auto Preset 9999 ch (SAT [635 series only])
Stereo/Bilingual A2/NICAM
2xW01reifilpmaoiduA 2x)mm23xmm051(rekaepS
Terminals Antenna VHF/UHF 75 Din type (analogue & digital)
Satellite
(635 series
only)
75 F type (DVB-S/S2)
RS-232C D-sub 9 pin male connector
EXT 1
SCART (AV input, Y/C input, RGB input, TV output)
EXT 2 RCA pin (AV input/AUDIO L/R)
EXT 3 Component (AV input/Audio L/R)
nip51bus-DinimCP
HDMI 1 (EXT 4) HDMI (ARC)
HDMI 2 (EXT 5) HDMI
HDMI 3 (EXT 6) HDMI
HDMI 4 (EXT 7) HDMI
USB 1 USB
USB 2 (HDD) USB
USB 3 (WIRELESS LAN) USB
ETHERNET (10/100) Network connector
HDMI 2/PC AUDIO (L/R) Ø 3.5 mm jack*
2
DIGITAL AUDIO OUTPUT Optical S/PDIF digital audio output
C. I. (Common Interface) EN50221, R206001, CI Plus specification
OUTPUT/Headphones RCA pin (AUDIO L/R)/Ø 3.5 mm jack (audio
output)
SD CARD (VIDEO
STORE) SD card
,nainotsE,hsilgnE,hctuD,hsinaD,hcezCegaugnalDSO Finnish, French, German, Greek, Hungarian,
Italian, Latvian, Lithuanian, Norwegian, Polish,
Portuguese, Russian, Slovak, Slovene, Spanish,
Swedish, Turkish, Ukrainian, Romanian
Power requirement AC 220-240 V, 50 Hz
Power consumption
(method IEC62087) 168 W (0.1 W standby*
3
))dnatstuohtiw(gk5.62thgieW 29.5 kg (with stand)
Operating temperature 0 °C to + 40 °C
*1 The satellite channel’s frequency may vary according to satellites and antennas.
*2 The HDMI 2 and PC terminals can both use the same audio input terminal.
Standby power consumption applies when the TV is set to not receive EPG data.
As a part of our policy of continuous improvement, SHARP reserves the right to make
design and specification changes for product improvement without prior notice. The
performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
*3
LC-60LE638E(B)

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
3 – 1
LC60LE635E Service Manual
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS
Dimensional drawings
(1329.12)
*1
(1329,12)
*1
(872)
(839)
(1383)
(747.63)
*1
(747,63)
*1
(536)
(470)
(400)
(52)
(215)
(230)
(400)
(149)
(333)
(72.0) (72,0)
(26.4) (26,4)
*2
Active area
Thinnest part
NOTE
Dimensions do not include protrusions such as screws and some parts.
Unit:mm
*1
*2

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
4 – 1
LC60LE635E Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 4 lock screws and detach the Stand Unit .
2. Remove the 1 lock screw and detach the AC Cord Cover .
3. Disconnect AC wire and detach the AC Cord .
4. Remove the 4 VESA Covers , 9 lock screws , 3 lock screws and 17 lock screws and detach the Rear Cabinet Ass’y .
[Precaution when removing the rear cabinet]
If the rear cabinet is removed with the set upright, the speakers may fall; it results in connector disconnection. Therefore, never remove the rear cab-
inet with the set upright.
Be sure to remove the rear cabinet with the screen side down.
[Precaution when mounting the rear cabinet]
Put the speakers in place with the screen side down, and attach the rear cabinet.
Since the speakers are fixed by the rear cabinet, they cannot be fixed without the rear cabinet.
2Stand Unit
Rear Cabinet Ass'y
10
4
AC Cord Cover 5AC Cord
VESA Cover
8
9
7
6
3
1
[AC]
[AC]
Screws for fixing Speaker
and Rear Cabinet Speaker incline. Speaker fall down.

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
4 – 2
[Precautions when fixing the Rear Cabinet]
When fixing the Rear Cabinet, be careful not to catch the backlight LED harness, speaker harness and other harnesses in it.
• The hooks on the external wall of the Rear Cabinet are fitted in the Front Cabinet Ass’y. After putting the Rear Cabinet in place, fit the hooks
securely; then tighten the screws.
(Work method of Rear Cabinet fixation)
(Front Cabinet Ass’y/Rear Cabinet fingernail fixation place)
Rear Cabinet
(Mat parts)
Front Cabinet Ass'y
(Luster parts)
There is a gap without the fingernail fitting in completely only when covering
with Rear Cabinet.
It becomes the factor of a gap increase of Front Cabinet Ass'y/Rear Cabinet
and the Rear Cabinet misregistration.
Please tighten the screw after Rear Cabinet is firmly pushed, and the
fingernail is confirmed.
17 places

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
4 – 3
2. Removing of Speaker (L/R), KEY Unit and S-T-CON Angle.
1. Detach the Bottom Cover
2. Disconnect the SP wire.
3. Detach the Speaker (L) , Speaker (R) .
4. Disconnect the RC wire.
5. Detach the KEY Unit Ass’y .
6. Disconnect the KM wire.
7. Remove the 2 lock screws and detach the Key Button from Key Cover .
8. Detach the KEY Unit from Key Button .
9. Remove the 15 lock screws and detach the S-T-CON Angle .
2Speaker (L)3Speaker (R)
MAIN Unit
[SP]
[RC]
[KM]
[SP]
75
4
8
6Key Button
10
9
S-T-CON
Angle
1Bottom
Cover
KEY Unit
KEY Unit Ass'y
Key Cover

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
4 – 4
3. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (PD, LV, PL, Cl)
2. Disconnect the following connectors from the POWER Unit. (PD, LA)
3. Disconnect the following connectors from the LCD CONTROL Unit. (LW, PL)
MAIN UnitPOWER Unit
LCD Control Unit
MAIN Unit
[PD]
[LV]
[LW]
[PD]
[PL]
[CI]
[PL]
[LA]
[LA]

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
4 – 5
4. Removing of 60” LCD Panel Module Unit, LCD CONTROL Unit, MAIN Unit, POWER Unit.
1. Remove the 8 lock screws .
2. Detach the 14 Fixing Metal Angles .
3. Remove the 8 Hooks and detach the 60” LCD Panel Module Unit .
4. Remove the 2 Connecting Cords , 2 Cores and 6 lock screws and detach the LCD CONTROL Unit .
5. Remove the 5 lock screws and detach the MAIN PWB Shield .
6. Remove the 2 lock screws and detach the MAIN Unit and remove the Hexagon screw (except LC-60LE636E(B)/S(B)) and Terminal Angle
(Bottom) and Spring (Tuner) .
7. Remove the 6 lock screws and detach the POWER Unit and remove 1lock Tray Shaft and detach AC Cord Barrier .
8. Remove the 8 lock screws and detach the 2 Center Angles .
60" LCD Panel
Module Unit
3
LCD CONTROL Unit
7
17
Center
Angle
2Fixing Metal
Angle
5Core
2 Fixing Metal
Angle
1
16
1117 Center
Angle
1
16
Hook
4 Connecting
Cord
Hook
2Fixing Metal
Angle
15AC Cord Barrier
2
8
Fixing Metal
Angle
2
Fixing Metal
Angle
14
POWER Unit
13 12 11
MAIN Unit
10Terminal Angle
(Bottom)
9
MAIN PWB
Shield
6
18
19 Spring
(Tuner)
20

LC-60LE635E(B),RU(B)/636E(B),S(B)/638E(B)
4 – 6
5. Removing of R/C OPC Unit, ICON Unit.
1. Detach the R/C OPC Unit .
2. Disconnect the RA wire.
3. Remove the 1 lock screw and detach the ICON Unit .
4. Disconnect the CI wire.
Front Cabinet Ass'y
2
[CI]
3ICON Unit
[RA]
1R/C OPC Unit
