28LF-94E
SERVICE MANUAL
This document has been published to
be used for after sales service only.
AK-53 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identi-
cal to those specified should be used.
CONTENTS
ELECTRICAL SPECIFICATIONS ........................................................................................ 3
IMPORTANT SERVICING NOTES ...................................................................................... 4
CONTROLS & TERMINALS ................................................................................................ 5
PRINTED WIRING BOARD LAYOUT ................................................................................. 7
PARTS LISTING ................................................................................................................... 9
HOW TO UPDATE THE TECHNICAL INFORMATION ...................................................... 19
SHARP CORPORATION
SE0028LF94S00
Issued: 7th July 2004
In order to service the model 28LF-94E, refer to
the AK-53 Chassis Service Manual
(SE00AK53CHA00).
MODEL 28LF-94E
PAL B/G / SECAM L/L’, B/G, D/K SYSTEM COLOUR TELEVISION

2
28LF-94E
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.

3
28LF-94E
ELECTRICAL SPECIFICATIONS
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
•Picture Intermediate frequency
L’ ................................................ 33.9MHz
L, B/G, D/K ................................. 38.9MHz
•Sound Carrier Trap
L’ ................................................ 40.4MHz
L, D/K ......................................... 32.4MHz
B/G ............................................ 33.4MHz
•Adjacent Sound Carrier Trap
L’ ................................................ 32.4MHz
L, D/K, B/G ................................ 40.4MHz
•Adjacent Picture Carrier Trap
L’ ................................................ 41.9MHz
L, D/K ........................................ 30.9MHz
B/G ............................................ 31.9MHz
•Aerial Input Impedance
VHF/UHF ................. 75 ohm Unbalanced
•Tuning Ranges ..... 48.25MHz thru 855.25 MHz
VHF: S1 - S41 CH (Hiperband)
E2 - E12 / F2 - F10
UHF: E21 - E69
•Power Input .................... 220V-240 Volts AC 50 Hz
•Power Consumption
Normal Operation (Method IEC60107) ............. 113 W
Stand-by Operation .......................................... < 3 W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ................................. 10 W, 7 Ω
Internal Right Speaker ............................... 10 W, 7 Ω
•Speakers
Full range (2 pcs) ................................... 60 x 120 mm
•Convergence (Maximum Misconvergence)
MODEL DESTINATION (Operation Manual Languages)
28LF-94E: Deutsch, Français, Nederlands.
AREA 28” W
A0.4
BC 1.2
DE 0.8
FGHJ 1.6
KLMN 1.4
F’G’H’J’ 1.4
STUV 1.2
mm
•White Level
Apply the rated voltage at the rated frequency to the TV set, while it is receiving full white pattern RF signal of 60
dB/µV from its RF input via the pattern generator.
Turn all picture controls to maximum value. Measure the colour temperatures at the center of the screen by
using the colour analyzer.
X=0.290 ± 0.015 Y=0.300 ± 0.015

4
28LF-94E
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
Servicing of High Voltage System and CRT
It is important that the static charge is removed from the high voltage system when carrying out work on the
receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from the CRT
cavity connector to the CRT ground tag. This must be carried out with the AC supply disconnected from the
receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe working.
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-Ray
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions and
servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem when in
close proximity to the receiver for long periods of time. To reduce any risks associated with this, please
observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 33 KV (at a
instantaneous beam current of 1800 µA).
2. Ensure that during normal operation the EHT does not exceed 29,65 KV (at a beam current of 1800 µA).
This level has been preset in the factory. Always check that this level has not been exceeded after
carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may cause
excessive x-ray radiation.
Before returning the receiver to the customer
In addition to the above checks, the following should also be carried out before returning the receiver to the
customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or pinched
by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control knobs,
insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators, etc.

5
28LF-94E
CONTROLS & TERMINALS
VIDEO
AUDIO L (L/S/G/I) = Audio left
AUDIO R (R/D/D/D) = Audio right
= Headphone 3,6 mm Ø
Speakers (left + right)
= ower On / Off
= Volume -/+
CH = rogram -/+
S-VIDEO
&+
&+ 69,'(2 9,'( 2 /6*,

5'''
$8', 2
69,'(2 9,'(2 /6*,

5'''
$8',2
FRONT PANEL
REAR TV
RF Input
1. Aerial terminal
21-pin In/Out
2. 21-pin Audio/Video (RGB) (EXT.1) With
AL/SECAM/NTSC/S-Video Input
3. 21-pin Audio/Video (EXT.2) With
AL/SECAM/NTSC Video Input
(;7
(;7


6
28LF-94E
REMOTE CONTROL
1
= Stand By
= Cursor Up
= Cursor Right
OK = Store / Still icture
= Info ( rogram Table)
- 9 = Direct rogram
- / - - = Double Digit
= Screen Format button
P/CH+ = rogram Up
+ = Volume Up
= TV / Quit Menu
(;7
= EXT button (EXT-1, EXT-2, S-VHS, S-VHS EXT2 or FRONT-AV)
Yellow = Feature Menu
Blue = Installation Menu
= Hold
16
= Update
= Index age
= Reveal
= Expand
= Mix
21
= Teletext
= Time
23
Red = Sound Menu
Green = icture Menu
= Mute
I-II = Mono/Stereo - Dual I-II
- = Volume Down
- P/CH = rogram Down
= Flash back button
30
M = Menu
31
= Cursor Down
32
= Cursor Left

7
28LF-94E
CHASSIS LAYOUT
Mother Unit
Front Unit (SW+Keyboard+FAV)

8
28LF-94E

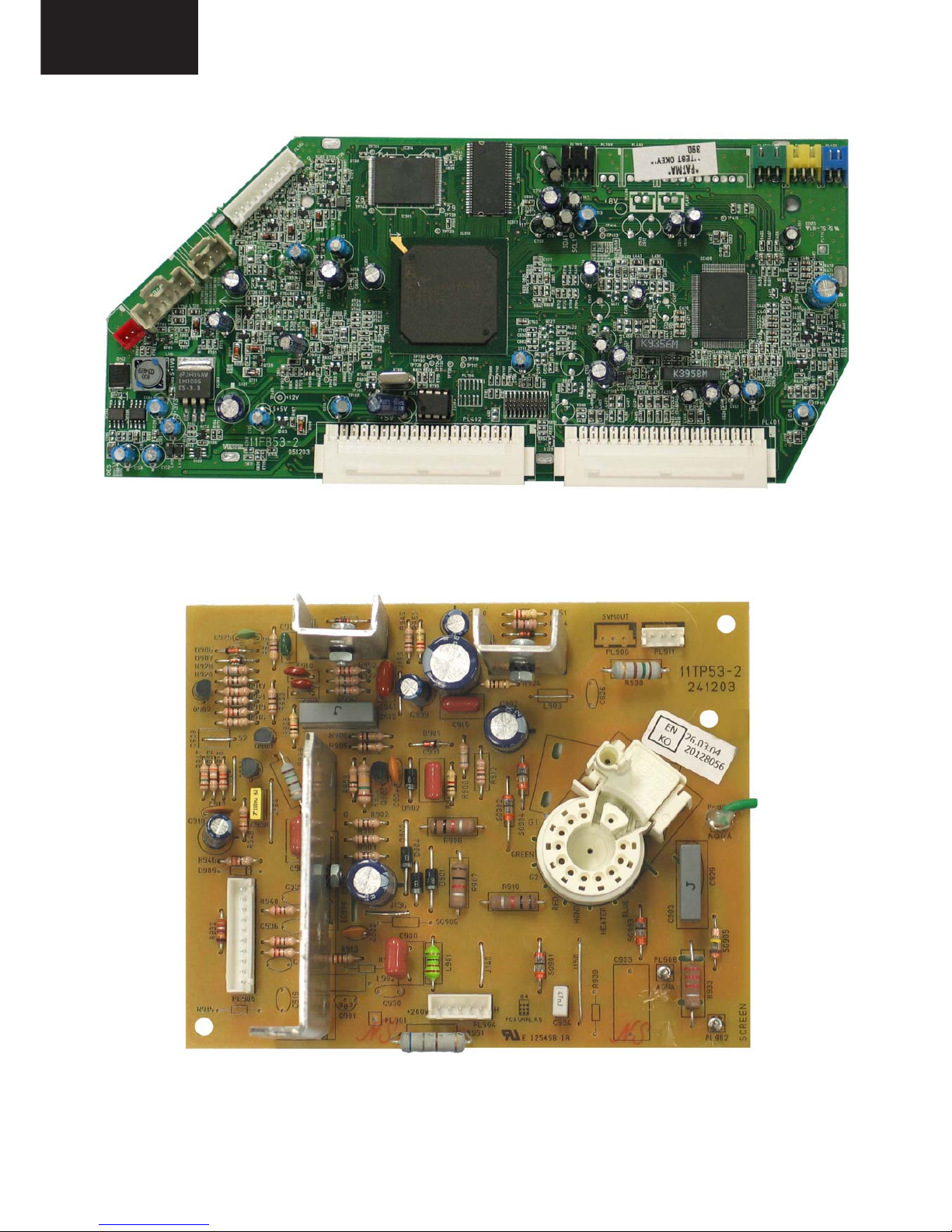

Digital Module Unit
CRT Socket Unit

9
28LF-94E
PARTS LISTING
REPLACEMENT PARTS
Replacement parts which have special safety characteristics are identified in
this manual. Electrical components having such features are identified by
in the Replacement Parts Listing.
The use of a substitute replacement part which does not have the same safety
characteristics as the factory recommended is not permitted.
Replacement parts not shown in this service manual may create shock fire, or
other hazards.
HOW TO ORDER REPLACEMENT PARTS
To have your order completed promptly and correctly please supply the follow-
ing information.
1. MODEL NUMBER 2. REF. NO.
3. PART NO. (*) 4. DESCRIPTION
5. CODE 6. QUANTITY
(*) When ordering any part, a “V” should be added before the Part No.
(*)
REF No. PARTS DESCRIPTION SN CODE EX CODE
Q117 30001458 TR BC858B SMD AA AB
Q400 30001458 TR BC858B SMD AA AB
Q401 30001457 TR BC848B SMD AA AC
Q402 30001457 TR BC848B SMD AA AC
Q403 30001457 TR BC848B SMD AA AC
Q404 30001457 TR BC848B SMD AA AC
Q405 30001458 TR BC858B SMD AA AB
Q406 30001458 TR BC858B SMD AA AB
Q412 30001457 TR BC848B SMD AA AC
Q413 30001457 TR BC848B SMD AA AC
Q700 30001458 TR BC858B SMD AA AB
Q701 30001457 TR BC848B SMD AA AC
Q702 30001457 TR BC848B SMD AA AC
Q703 30001457 TR BC848B SMD AA AC
Q704 30001457 TR BC848B SMD AA AC
Q706 30001457 TR BC848B SMD AA AC
Q707 30001458 TR BC858B SMD AA AB
Q708 30001457 TR BC848B SMD AA AC
Q709 30001458 TR BC858B SMD AA AB
Q710 30001458 TR BC858B SMD AA AB
Q711 30001457 TR BC848B SMD AA AC
Q712 30001458 TR BC858B SMD AA AB
Q713 30001458 TR BC858B SMD AA AB
Q714 30001457 TR BC848B SMD AA AC
Q715 30001458 TR BC858B SMD AA AB
Q716 30001458 TR BC858B SMD AA AB
Q717 30001457 TR BC848B SMD AA AC
Q718 30001458 TR BC858B SMD AA AB
Q719 30001457 TR BC848B SMD AA AC
Q720 30001457 TR BC848B SMD AA AC
Q722 30001458 TR BC858B SMD AA AB
Q725 30001457 TR BC848B SMD AA AC
Q729 30001458 TR BC858B SMD AA AB
Q733 30001457 TR BC848B SMD AA AC
Q734 30001458 TR BC858B SMD AA AB
Q735 30001457 TR BC848B SMD AA AC
Q801 30001454 TR BC548B AA AC
Q802 30001386 TR MTP6N60E (PLASTIC) AE AP
Q803 30001454 TR BC548B AA AC
Q804 30001457 TR BC848B SMD AA AC
Q805 30001454 TR BC548B AA AC
Q806 30001428 TR BF423 AA AC
Q807 30001457 TR BC848B SMD AA AC
Q808 30001457 TR BC848B SMD AA AC
Q810 30001454 TR BC548B AA AC
Q811 30001457 TR BC848B SMD AA AC
Q812 30001458 TR BC858B SMD AA AB
Q813 30007802 TR STP20N06LFP AD AL
Q814 30001455 TR BC558B AA AC
Q815 30023137 IC TL431 %1 TOL (TO-92) AA AD
Q816 30023137 IC TL431 %1 TOL (TO-92) AA AD
Q817 30001384 TR MCR22-6 AB AG
Q818 30010149 TR BD243C AC AG
Q900 30001427 TR BF422 AA AE
Q902 30017863 TR BF199 AA AD
Q903 30017862 TR BF370 AA AE
Q904 30003768 TR BD139 AB AF
Q905 30013531 TR BD140 AB AF
Q906 30017863 TR BF199 AA AD
DIODES
D100 30001291 DIODE HER107 1A/800V 30A AA AB
D100 30003720 DIODE ZENER BZT55C5V6 5.6V SMD AA AB
D100 20060150 BRACKET LED 20 AA AD
D100 30001279 LED RED/GREEN LTL293SJ AC AH
D101 30001371 DIODE ZENER 5.1V ZPD AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
. 30016949 28" CPT TUBE 16:9 100HZ REALFLAT CE CZ
. 30029092 28" 16:9 RF DEG COIL&EARTH CB. WO/UL S AL AX
TUNER
TU200 30009637 TUNER WSP (PLL) CTF5510A AR BC
INTEGRATED CIRCUITS
IC100 30013687 IC TDA8177F AH AT
IC100 30001669 PREAMPLIFIER TFMS1380 AD AM
IC103 30022479 IC LDO LM1086 3.3V/1.5A D2PAK VINMAX=18V AC AK
IC104 30022477 IC STEP DOWN CS51033 1A SO8 AE AP
IC105 30001665 IC LM358N AA AE
IC105 30022958 TR PMOS STS5PF30L -5A/-30V SO8 AB AF
IC309 20164379 IC M24C64 D01341111172111221111 AC AK
IC309 30021752 IC M24C64 (SO8W6) AD AK
IC313 30021602 IC PNX3006E / N302 BC BS
IC314 30027713 IC FLASH 32Mbit 3V x8/x16 (TSOP-56) AQ BB
IC315 30029152 IC SDRAM 64MBIT(1Mx16bitx4bank)TSOP(CTV) AR BC
IC316 30022895 IC RESET NE56610-29 AD AL
IC400 30021285 IC PNX3000HL / N2 AS BD
IC401 30018422 IC AAMP TDA7480L 10W PDIP20 AG AS
IC402 30018422 IC AAMP TDA7480L 10W PDIP20 AG AS
IC801 30015087 IC SAFE OPTOCOUPLER TCET1102G AA AE
IC803 30001500 IC LM7808 AC AH
IC804 30011968 IC SMPS MC44608 DIP8 AF AQ
IC900 30008721 IC TDA6108 AH AT
TRANSISTORS
Q100 30018627 TR NMOS IRFU110 4.3A/100V TO251 AB AG
Q101 30016686 TR 2SC5302 AK AV
Q102 30001458 TR BC858B SMD AA AB
Q102 30001457 TR BC848B SMD AA AC
Q103 30001458 TR BC858B SMD AA AB
Q103 30001457 TR BC848B SMD AA AC
Q104 30007799 TR BDX53BFI AC AK
Q105 30001454 TR BC548B AA AC
Q106 30001458 TR BC858B SMD AA AB
Q106 30025524 TR PMEM4010PD PNP/SCH -1A -40V SOT457 AB AF
Q107 30001452 TR BC327 AA AC
Q108 30001457 TR BC848B SMD AA AC
Q109 30001452 TR BC327 AA AC
Q110 30001453 TR BC337 AA AC
Q111 30001453 TR BC337 AA AC
Q112 30001457 TR BC848B SMD AA AC
Q113 30001457 TR BC848B SMD AA AC
Q114 30001457 TR BC848B SMD AA AC
Q115 30001458 TR BC858B SMD AA AB
Q116 30023137 IC TL431 %1 TOL (TO-92) AA AD
PICTURE TUBE
!
!
!

10
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
D102 30007760 DIODE ZENER SMD BZT55C10 AA AB
D102 30018574 DIODE SCH SS33 3A/30V DO214AB AA AE
D102 30001371 DIODE ZENER 5.1V ZPD AA AB
D103 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D103 30001371 DIODE ZENER 5.1V ZPD AA AB
D104 30007678 DIODE GUC DTV32F1500A 6A/1500V 100A AD AL
D104 30001371 DIODE ZENER 5.1V ZPD AA AB
D105 30007768 DIODE STTA506F 5A/600V 55A AD AM
D105 30001371 DIODE ZENER 5.1V ZPD AA AB
D106 30001291 DIODE HER107 1A/800V 30A AA AB
D106 30001371 DIODE ZENER 5.1V ZPD AA AB
D107 30001291 DIODE HER107 1A/800V 30A AA AB
D107 30001371 DIODE ZENER 5.1V ZPD AA AB
D108 30001299 DIODE UF5404 3A/400V 150A AA AD
D109 30001299 DIODE UF5404 3A/400V 150A AA AD
D110 30001291 DIODE HER107 1A/800V 30A AA AB
D111 30001288 DIODE BYV27-200 2A/200V 50A AA AD
D112 30012412 DIODE ZENER 2.4V SMD AA AB
D113 30001377 DIODE ZENER 33V UZT 33B AB AF
D114 30001285 DIODE 1N4148 SMD AA AB
D117 30001285 DIODE 1N4148 SMD AA AB
D118 30001285 DIODE 1N4148 SMD AA AB
D119 30001285 DIODE 1N4148 SMD AA AB
D120 30001318 DIODE BA159 1A/800V 20A AA AB
D121 30009699 DIODE ZENER SMD BZT55C12 AA AB
D122 30009699 DIODE ZENER SMD BZT55C12 AA AB
D123 30001318 DIODE BA159 1A/800V 20A AA AB
D124 30009699 DIODE ZENER SMD BZT55C12 AA AB
D125 30001291 DIODE HER107 1A/800V 30A AA AB
D127 30001285 DIODE 1N4148 SMD AA AB
D128 30001285 DIODE 1N4148 SMD AA AB
D201 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D202 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D203 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D204 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D205 30018735 DIODE ZENER BZT55C15 15V SMD AA AB
D207 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D400 30012411 DIODE BA782 SMD AA AD
D404 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D700 30001285 DIODE 1N4148 SMD AA AB
D701 30001285 DIODE 1N4148 SMD AA AB
D703 30021518 DIODE ZENER BZT55C2V7 2.7V SMD AA AA
D705 30021443 DIODE ZENER BZT55C22 22V SMD AA AA
D707 30021445 DIODE ZENER BZT55C47 47V SMD AA AA
D711 30001285 DIODE 1N4148 SMD AA AB
D713 30022478 DIODE SCH BAT254 0.2A/30V SOD110 AA AC
D714 30007169 DIODE BAV99 (SOT23) 0.25A/70V 4.5A AA AA
D715 30007169 DIODE BAV99 (SOT23) 0.25A/70V 4.5A AA AA
D716 30001285 DIODE 1N4148 SMD AA AB
D717 30001285 DIODE 1N4148 SMD AA AB
D718 30001285 DIODE 1N4148 SMD AA AB
D801 30001318 DIODE BA159 1A/800V 20A AA AB
D802 30001323 DIODE BY299 2A/800V 70A AA AD
D803 30009366 DIODE UF5402 3A/200V 150A AB AF
D804 30009366 DIODE UF5402 3A/200V 150A AB AF
D805 30007681 DIODE UF5407 3A/800V 150A AB AF
D805+ 30001964 FERRITE BAR 5*8 AA AD
D806 30001344 DIODE ZENER 6.2V 1/2W AA AB
D807 30000613 RES SMD 1/8W 2.4K G AA AA
D808 30001288 DIODE BYV27-200 2A/200V 50A AA AD
D809 30001285 DIODE 1N4148 SMD AA AB
D810 20108354 DIODE BRIDGE GBU4M 4A/1000V 150A(FORMLU) AB AE
D811 30009366 DIODE UF5402 3A/200V 150A AB AF
D812 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D813 30006691 DIODE ZENER 3.3V AA AA
D814 30001318 DIODE BA159 1A/800V 20A AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
D815 30001318 DIODE BA159 1A/800V 20A AA AB
D818 30001318 DIODE BA159 1A/800V 20A AA AB
D819 30001285 DIODE 1N4148 SMD AA AB
D820 30001285 DIODE 1N4148 SMD AA AB
D821 30001285 DIODE 1N4148 SMD AA AB
D822 30009699 DIODE ZENER SMD BZT55C12 AA AB
D823 30001285 DIODE 1N4148 SMD AA AB
D824 30009366 DIODE UF5402 3A/200V 150A AB AF
D827 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D829 30001318 DIODE BA159 1A/800V 20A AA AB
D830 30001285 DIODE 1N4148 SMD AA AB
D831 30001329 DIODE 1N4007 1A/1000V 30A AA AB
D901 30001318 DIODE BA159 1A/800V 20A AA AB
D902 30001318 DIODE BA159 1A/800V 20A AA AB
D903 30001318 DIODE BA159 1A/800V 20A AA AB
D904 30001318 DIODE BA159 1A/800V 20A AA AB
D905 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D906 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D907 30001284 DIODE 1N4148 0.15A/100V 0.5A AA AB
D910 30006918 DIODE BAV21 0.25A/200V 1A AA AB
D911 30006918 DIODE BAV21 0.25A/200V 1A AA AB
D951 30001285 DIODE 1N4148 SMD AA AB
D965 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D966 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D967 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D968 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D969 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D970 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D971 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D972 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D973 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
D974 30007763 DIODE ZENER SMD BZT55C5V1 AA AB
PACKAGED CIRCUITS
X700 30022663 XTAL 13.5MHZ AA AD
COILS
L100 30007771 FIXED COIL 100UH AA AE
L100 30001979 FIXED COIL 1UH Q45 M-A AA AB
L1000 30001992 FIXED COIL 10UH Q65 K-A AA AB
L1001 30001992 FIXED COIL 10UH Q65 K-A AA AB
L101 30007757 COIL INJECTION EW 6MH AK28 AC AH
L101 30023096 FIXED COIL SMD 10uH 2.5A 10x10x4.5mm AC AG
L101 30001979 FIXED COIL 1UH Q45 M-A AA AB
L102 30022848 FERRITE SMD 30/100MHz 4A (0603) AA AC
L103 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L104 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L104 30019483 COIL BRIDGE 300UH 32KHZ AK52 AD AM
L105 30006712 FERRITE BEAD 3.5X4.7X0.8 AA AB
L106 30006712 FERRITE BEAD 3.5X4.7X0.8 AA AB
L107 30001996 FIXED COIL 22UH Q40 K AA AB
L107 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L108 30001996 FIXED COIL 22UH Q40 K AA AB
L108 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L109 30001996 FIXED COIL 22UH Q40 K AA AB
L109 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L112 30018093 COIL SMD 3.3uH (2520) AA AC
L113 30018093 COIL SMD 3.3uH (2520) AA AC
L114 30018093 COIL SMD 3.3uH (2520) AA AC
L115 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L213 30013413 FERRITE BEAD ACB2012H-300 AA AB
L214 30013413 FERRITE BEAD ACB2012H-300 AA AB
L215 30013413 FERRITE BEAD ACB2012H-300 AA AB
L216 30013413 FERRITE BEAD ACB2012H-300 AA AB
L217 30013413 FERRITE BEAD ACB2012H-300 AA AB
L218 30013413 FERRITE BEAD ACB2012H-300 AA AB

11
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
L219 30013413 FERRITE BEAD ACB2012H-300 AA AB
L220 30013413 FERRITE BEAD ACB2012H-300 AA AB
L404 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L405 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L406 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L417 30006712 FERRITE BEAD 3.5X4.7X0.8 AA AB
L418 30006712 FERRITE BEAD 3.5X4.7X0.8 AA AB
L419 30001960 FERIT BAR 6*20MM AK16 AA AD
L420 30001960 FERIT BAR 6*20MM AK16 AA AD
L420 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L421 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L422 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L423 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L424 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L426 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L428 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L429 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L430 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L431 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L432 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L439 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L440 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L441 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L442 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L443 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L447 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L448 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L456 30020936 COIL SMD 10UH 300mA WINDING TYPE(1210) AA AC
L457 30018093 COIL SMD 3.3uH (2520) AA AC
L458 30020936 COIL SMD 10UH 300mA WINDING TYPE(1210) AA AC
L462 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L464 30028986 COIL SMD .220UH WINDING AA AC
L700 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L701 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L702 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L703 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L704 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L706 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L707 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L710 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L711 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L712 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L713 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L714 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L715 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L717 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L718 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L719 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L720 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L721 30020531 FERRITE SMD (805) BLM21PG221SN1 AA AA
L722 30020936 COIL SMD 10UH 300mA WINDING TYPE(1210) AA AC
L723 30020936 COIL SMD 10UH 300mA WINDING TYPE(1210) AA AC
L724 30020936 COIL SMD 10UH 300mA WINDING TYPE(1210) AA AC
L728 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L729 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L730 30016162 FERRITE BEAD (0805) BLM21A102FPT AA AB
L802 30001971 FERRITE BEAT (805) BLM21A601S AA AD
L803 30001992 FIXED COIL 10UH Q65 K-A AA AB
L805 30018078 LINE FILTER SAFE 2X22MH (AK37) AC AK
L951 30001979 FIXED COIL 1UH Q45 M-A AA AB
CERAMIC FILTERS
Z400 30001692 FILTER SAW OFWK3953M AH AV
Z401 30012545 FILTER SAW K9656M AG AR
TRANSFORMERS
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
TR100 30006743 TRF. HORIZONTAL DRIVER 15AK17-17" AC AH
TR101 30017521 TRF FBT SAFESINGLECOMMONFOCUSLAYER(AK41) AS BD
TR801 30019205 TRF SMPS SAFE AK52 (170-270V) 170W AK AW
. 30018270 TRF PFC SAFE 1,7A 43MH 170W AM AX
CAPACITORS
C100 30000294 CAP SMD 100NF 50V K (0805) AA AB
C100 30000190 CAP CER 100PF 50V J CH AA AB
C101 30000353 CAP EL 100UF 25V M AA AB
C101 30000190 CAP CER 100PF 50V J CH AA AB
C102 30010517 CAP MKT 33NF 100V K AA AB
C102 30000352 CAP EL 100UF 16V M AA AB
C102 30000190 CAP CER 100PF 50V J CH AA AB
C103 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C103 30000190 CAP CER 100PF 50V J CH AA AB
C104 30000345 CAP EL 10UF 50V M AA AB
C104 30000352 CAP EL 100UF 16V M AA AB
C105 30012590 CAP SMD 47NF 50V K (0603) AA AA
C105 30000352 CAP EL 100UF 16V M AA AB
C106 30000362 CAP EL 1UF 50V M AA AB
C107 30000346 CAP EL 10UF 100V M AA AB
C107 30000407 CAP EL 470UF 16V M AA AC
C108 30012567 CAP SMD 220PF 50V J (0603) AA AB
C108 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C109 30000352 CAP EL 100UF 16V M AA AB
C109 30000140 CAP MKP 1.8NF 2KV %3.5 AA AE
C109 30000371 CAP EL 22UF 50V M AA AB
C110 30032105 CAP MKP 10NF 2000Vdc / 1700Vpp SHARP AB AF
C111 30012003 CAP MKP SAFE 18NF 630V J AA AC
C112 30000352 CAP EL 100UF 16V M AA AB
C112 30032031 CAP MKP SAFE 560NF 250V J.P=15 SHARP AA AE
C113 30000415 CAP EL 4.7UF 250V M AA AC
C113 30000352 CAP EL 100UF 16V M AA AB
C114 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C114 30000172 CAP MKP SAFE 680NF 250V J (P=15) AC AH
C115 30028072 CAP EL 100UF 200V M (HR) AE AQ
C116 30000431 CAP CER 100PF 1KV M AA AC
C116 30000352 CAP EL 100UF 16V M AA AB
C117 30000350 CAP EL 10UF 250V M AA AD
C117 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C118 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C119 30000402 CAP EL 47UF 100V M AA AB
C119 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C120 30000360 CAP EL 1000UF 25V M AA AE
C120 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C124 30000360 CAP EL 1000UF 25V M AA AE
C124 30000352 CAP EL 100UF 16V M AA AB
C125 30000294 CAP SMD 100NF 50V K (0805) AA AB
C125 30022244 CAP SMD 100PF 50V J (402) AA AA
C126 30000294 CAP SMD 100NF 50V K (0805) AA AB
C126 30000352 CAP EL 100UF 16V M AA AB
C127 30022242 CAP SMD 68PF 50V J (402) AA AA
C128 30000296 CAP CER 100NF 100V Z F AA AB
C129 30000078 CAP MKT 1UF 100V M AB AF
C130 30000271 CAP CER 680PF 50V J SL AA AA
C131 30000298 CAP CER 1.5NF 50V K B AA AD
C132 30000078 CAP MKT 1UF 100V M AB AF
C133 30000353 CAP EL 100UF 25V M AA AB
C134 30000393 CAP EL 3.3UF 50V M AA AB
C135 30019641 CAP MKT 100NF 100V J NO-HIT AA AB
C136 30000353 CAP EL 100UF 25V M AA AB
C137 30000294 CAP SMD 100NF 50V K (0805) AA AB
C138 30000294 CAP SMD 100NF 50V K (0805) AA AB
C139 30000400 CAP EL 47UF 50V M AA AB
C140 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C141 30000415 CAP EL 4.7UF 250V M AA AC
!
!
!
!
!
!
!

12
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
C142 30000074 CAP MKT 100NF 63V J AA AC
C144 30000104 CAP MKT 4.7NF 100V J AA AB
C145 30000286 CAP CER 1NF 500V K B AA AB
C146 30000296 CAP CER 100NF 100V Z F AA AB
C148 30000296 CAP CER 100NF 100V Z F AA AB
C149 30000107 CAP MKT 47NF 250V J AA AD
C154 30007708 CAP CER 1NF 1KV K (PULSE) AA AD
C155 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C233 30012592 CAP SMD 6.8NF 50V K (0603) AA AA
C235 30012592 CAP SMD 6.8NF 50V K (0603) AA AA
C236 30012592 CAP SMD 6.8NF 50V K (0603) AA AA
C237 30012592 CAP SMD 6.8NF 50V K (0603) AA AA
C239 30012607 CAP SMD 150PF 50V J (0603) AA AA
C240 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C241 30012607 CAP SMD 150PF 50V J (0603) AA AA
C243 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C244 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C246 30012607 CAP SMD 150PF 50V J (0603) AA AA
C247 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C248 30012607 CAP SMD 150PF 50V J (0603) AA AA
C249 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C251 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C252 30012569 CAP SMD 33PF 50V J (0603) AA AA
C253 30012569 CAP SMD 33PF 50V J (0603) AA AA
C256 30012569 CAP SMD 33PF 50V J (0603) AA AA
C261 30012607 CAP SMD 150PF 50V J (0603) AA AA
C262 30012569 CAP SMD 33PF 50V J (0603) AA AA
C263 30012569 CAP SMD 33PF 50V J (0603) AA AA
C266 30012569 CAP SMD 33PF 50V J (0603) AA AA
C267 30012569 CAP SMD 33PF 50V J (0603) AA AA
C301 30000284 CAP SMD 1NF 50V K R (0805) AA AB
C404 30012560 CAP SMD 100PF 50V J (0603) AA AB
C405 30000074 CAP MKT 100NF 63V J AA AC
C406 30012568 CAP SMD 270PF 50V J (0603) AA AA
C407 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C407 30012560 CAP SMD 100PF 50V J (0603) AA AB
C408 30000100 CAP MKT 330NF 63V J AA AD
C408 30012560 CAP SMD 100PF 50V J (0603) AA AB
C409 30000295 CAP CER 100NF 50V Z F AA AB
C410 30000295 CAP CER 100NF 50V Z F AA AB
C411 30000100 CAP MKT 330NF 63V J AA AD
C411 30012560 CAP SMD 100PF 50V J (0603) AA AB
C412 30012560 CAP SMD 100PF 50V J (0603) AA AB
C413 30012560 CAP SMD 100PF 50V J (0603) AA AB
C414 30012560 CAP SMD 100PF 50V J (0603) AA AB
C415 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C416 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C417 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C418 30012582 CAP SMD 10NF 50V K R (0603) AA AA
C419 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C419 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C420 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C420 30022338 CAP SMD 4.7NF 50V J (402) AA AA
C421 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C421 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C422 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C423 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C423 30000407 CAP EL 470UF 16V M AA AC
C424 30000383 CAP EL 2200UF 25V M AA AC
C424 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C425 30012582 CAP SMD 10NF 50V K R (0603) AA AA
C426 30012568 CAP SMD 270PF 50V J (0603) AA AA
C427 30012585 CAP SMD 2.2NF 50V K R (0603) AA AB
C427 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C428 30000100 CAP MKT 330NF 63V J AA AD
C428 30022244 CAP SMD 100PF 50V J (402) AA AA
REF No. PARTS DESCRIPTION SN CODE EX CODE
C429 30000295 CAP CER 100NF 50V Z F AA AB
C430 30000295 CAP CER 100NF 50V Z F AA AB
C430 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C431 30000100 CAP MKT 330NF 63V J AA AD
C432 30000383 CAP EL 2200UF 25V M AA AC
C432 30022338 CAP SMD 4.7NF 50V J (402) AA AA
C433 30012589 CAP SMD 4.7NF 50V K (0603) AA AB
C433 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C434 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C436 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C437 30012582 CAP SMD 10NF 50V K R (0603) AA AA
C438 30012582 CAP SMD 10NF 50V K R (0603) AA AA
C439 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C442 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C443 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C446 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C448 30012570 CAP SMD 330PF 50V J (0603) AA AA
C450 30000384 CAP EL 2.2UF 50V M AA AB
C451 30010571 CAP EL 10UF 16V M AA AA
C452 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C455 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C455 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C456 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C456 30012574 CAP SMD 470PF 50V J (0603) AA AA
C457 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C458 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C458 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C459 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C460 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C461 30000384 CAP EL 2.2UF 50V M AA AB
C462 30000353 CAP EL 100UF 25V M AA AB
C462 30012574 CAP SMD 470PF 50V J (0603) AA AA
C463 30000353 CAP EL 100UF 25V M AA AB
C463 30000384 CAP EL 2.2UF 50V M AA AB
C464 30000353 CAP EL 100UF 25V M AA AB
C465 30000353 CAP EL 100UF 25V M AA AB
C465 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C467 30012574 CAP SMD 470PF 50V J (0603) AA AA
C468 30000352 CAP EL 100UF 16V M AA AB
C468 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C469 30000069 CAP MKT 1NF 100V J AA AC
C469 30012574 CAP SMD 470PF 50V J (0603) AA AA
C470 30000069 CAP MKT 1NF 100V J AA AC
C470 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C471 30000433 CAP CER 1NF 1KV M B AA AB
C471 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C472 30000069 CAP MKT 1NF 100V J AA AC
C472 30012574 CAP SMD 470PF 50V J (0603) AA AA
C473 30000069 CAP MKT 1NF 100V J AA AC
C473 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C474 30000433 CAP CER 1NF 1KV M B AA AB
C474 30012574 CAP SMD 470PF 50V J (0603) AA AA
C475 30000092 CAP MKT 220NF 63V J AA AD
C477 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C478 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C479 30000106 CAP MKT 47NF 100V J AA AB
C479 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C480 30000106 CAP MKT 47NF 100V J AA AB
C480 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C482 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C483 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C484 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C485 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C486 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C487 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C489 30016126 CAP SMD 220NF 16V K R (0603) AA AB

13
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
C490 30012610 CAP SMD 10NF 50V J (0603) AA AB
C493 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C494 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C498 30010571 CAP EL 10UF 16V M AA AA
C499 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C500 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C501 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C502 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C503 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C505 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C508 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C514 30010571 CAP EL 10UF 16V M AA AA
C515 30010571 CAP EL 10UF 16V M AA AA
C518 30010571 CAP EL 10UF 16V M AA AA
C520 30022242 CAP SMD 68PF 50V J (402) AA AA
C521 30022242 CAP SMD 68PF 50V J (402) AA AA
C522 30022242 CAP SMD 68PF 50V J (402) AA AA
C523 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C524 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C525 30012560 CAP SMD 100PF 50V J (0603) AA AB
C535 30016126 CAP SMD 220NF 16V K R (0603) AA AB
C536 30000352 CAP EL 100UF 16V M AA AB
C541 30010571 CAP EL 10UF 16V M AA AA
C542 30022201 CAP SMD 1.2NF 50V J (402) AA AA
C543 30022201 CAP SMD 1.2NF 50V J (402) AA AA
C544 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C547 30000352 CAP EL 100UF 16V M AA AB
C548 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C549 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C550 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C551 30000362 CAP EL 1UF 50V M AA AB
C552 30022242 CAP SMD 68PF 50V J (402) AA AA
C700 30000371 CAP EL 22UF 50V M AA AB
C701 30000371 CAP EL 22UF 50V M AA AB
C702 30022242 CAP SMD 68PF 50V J (402) AA AA
C704 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C705 30022242 CAP SMD 68PF 50V J (402) AA AA
C706 30000371 CAP EL 22UF 50V M AA AB
C707 30000371 CAP EL 22UF 50V M AA AB
C708 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C710 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C711 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C713 30000352 CAP EL 100UF 16V M AA AB
C714 30000352 CAP EL 100UF 16V M AA AB
C715 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C716 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C717 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C718 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C719 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C720 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C721 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C722 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C723 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C725 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C726 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C727 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C728 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C729 30000352 CAP EL 100UF 16V M AA AB
C730 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C732 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C734 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C735 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C736 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C738 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C739 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C740 30016654 CAP SMD 100NF 16V K R (0603) AA AB
REF No. PARTS DESCRIPTION SN CODE EX CODE
C742 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C744 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C745 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C747 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C748 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C749 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C751 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C752 30012560 CAP SMD 100PF 50V J (0603) AA AB
C753 30012560 CAP SMD 100PF 50V J (0603) AA AB
C754 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C755 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C757 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C758 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C759 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C760 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C761 30012610 CAP SMD 10NF 50V J (0603) AA AB
C762 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C763 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C764 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C765 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C766 30000352 CAP EL 100UF 16V M AA AB
C767 30012610 CAP SMD 10NF 50V J (0603) AA AB
C769 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C770 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C772 30000352 CAP EL 100UF 16V M AA AB
C773 30022338 CAP SMD 4.7NF 50V J (402) AA AA
C774 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C775 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C776 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C777 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C780 30012590 CAP SMD 47NF 50V K (0603) AA AA
C781 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C782 30022242 CAP SMD 68PF 50V J (402) AA AA
C783 30012590 CAP SMD 47NF 50V K (0603) AA AA
C784 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C785 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C786 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C787 30012566 CAP SMD 22PF 50V J (0603) AA AB
C788 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C789 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C790 30000413 CAP EL 4.7UF 50V M AA AB
C792 30022244 CAP SMD 100PF 50V J (402) AA AA
C794 30012566 CAP SMD 22PF 50V J (0603) AA AB
C795 30012566 CAP SMD 22PF 50V J (0603) AA AB
C799 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C800 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C801 30000094 CAP MKT SAFE 220NF 275V M AC AA AB
C802 30000094 CAP MKT SAFE 220NF 275V M AC AA AB
C803 30000294 CAP SMD 100NF 50V K (0805) AA AB
C803 30000352 CAP EL 100UF 16V M AA AB
C804 30000387 CAP EL 33UF 50V M AA AB
C805 30000161 CAP MKP SAFE 47NF 630V J AB AE
C806 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C806 30022233 CAP SMD 12PF 50V J (402) AA AA
C807 30000422 CAP EL 330UF 400V M AK AV
C807 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C808 30000319 CAP CER 2.7NF 500V K B AA AC
C808 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C809 30009208 CAP CER 470PF 1KV K (PULSE) AA AC
C809 30012610 CAP SMD 10NF 50V J (0603) AA AB
C810 30000440 CAP CER SAFE 2.2NF 4KV M AA AC
C810 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C811 30000309 CAP SMD 2.2NF 50V K R 0805 AA AB
C812 30000099 CAP MKT 33NF 63V J AA AB
C813 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C814 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
!
!
!

14
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
C814 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C815 30007308 CAP CER 220PF 1KV K (PULSE) AA AD
C815 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C816 30028072 CAP EL 100UF 200V M (HR) AE AQ
C817 30000294 CAP SMD 100NF 50V K (0805) AA AB
C817 30012610 CAP SMD 10NF 50V J (0603) AA AB
C818 30000294 CAP SMD 100NF 50V K (0805) AA AB
C818 30012574 CAP SMD 470PF 50V J (0603) AA AA
C821 30000383 CAP EL 2200UF 25V M AA AC
C822 30000383 CAP EL 2200UF 25V M AA AC
C823 30000294 CAP SMD 100NF 50V K (0805) AA AB
C824 30000295 CAP CER 100NF 50V Z F AA AB
C824 30012590 CAP SMD 47NF 50V K (0603) AA AA
C825 30000383 CAP EL 2200UF 25V M AA AC
C825 30012590 CAP SMD 47NF 50V K (0603) AA AA
C826 30000383 CAP EL 2200UF 25V M AA AC
C826 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C827 30000294 CAP SMD 100NF 50V K (0805) AA AB
C827 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C828 30000400 CAP EL 47UF 50V M AA AB
C831 30000295 CAP CER 100NF 50V Z F AA AB
C831 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C832 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C833 30000362 CAP EL 1UF 50V M AA AB
C834 30000411 CAP EL 4700UF 16V M AC AH
C834 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C835 30022244 CAP SMD 100PF 50V J (402) AA AA
C836 30022244 CAP SMD 100PF 50V J (402) AA AA
C837 30000367 CAP EL 1UF 250V M AA AB
C837 30000352 CAP EL 100UF 16V M AA AB
C839 30012581 CAP SMD 1NF 50V K R (0603) AA AB
C840 30000352 CAP EL 100UF 16V M AA AB
C840 30022250 CAP SMD 330PF 50V K (402) AA AA
C841 30022250 CAP SMD 330PF 50V K (402) AA AA
C842 30000360 CAP EL 1000UF 25V M AA AE
C842 30022250 CAP SMD 330PF 50V K (402) AA AA
C843 30000433 CAP CER 1NF 1KV M B AA AB
C843 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C844 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C845 30000393 CAP EL 3.3UF 50V M AA AB
C845 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C846 30000294 CAP SMD 100NF 50V K (0805) AA AB
C846 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C848 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C850 30000440 CAP CER SAFE 2.2NF 4KV M AA AC
C851 30000360 CAP EL 1000UF 25V M AA AE
C852 30012567 CAP SMD 220PF 50V J (0603) AA AB
C857 30000375 CAP EL 220UF 16V M AA AB
C858 30016654 CAP SMD 100NF 16V K R (0603) AA AB
C860 30000433 CAP CER 1NF 1KV M B AA AB
C861 30000075 CAP MKT 100NF 250V K (DC) AA AD
C862 30000367 CAP EL 1UF 250V M AA AB
C864 30000190 CAP CER 100PF 50V J CH AA AB
C867 30012574 CAP SMD 470PF 50V J (0603) AA AA
C868 30000436 CAP CER 10NF 1KV ZE AA AC
C900 30000075 CAP MKT 100NF 250V K (DC) AA AD
C902 30000415 CAP EL 4.7UF 250V M AA AC
C903 30006841 CAP MKP 1.2NF 1.6KV J AA AE
C904 30000330 CAP CER 4.7NF 50V K B AA AB
C905 30000350 CAP EL 10UF 250V M AA AD
C906 30000075 CAP MKT 100NF 250V K (DC) AA AD
C909 30000071 CAP MKT 10NF 63V J AA AB
C910 30000104 CAP MKT 4.7NF 100V J AA AB
C911 30000104 CAP MKT 4.7NF 100V J AA AB
C912 30000131 CAP MKP SAFE 100NF 250V J AA AB
C914 30000388 CAP EL 33UF 160V M AB AF
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
C915 30000075 CAP MKT 100NF 250V K (DC) AA AD
C917 30000295 CAP CER 100NF 50V Z F AA AB
C918 30000352 CAP EL 100UF 16V M AA AB
C925 30000191 CAP CER 100PF 50V J SL AA AB
C931 30000075 CAP MKT 100NF 250V K (DC) AA AD
C932 30000225 CAP CER 220PF 50V J SL AA AB
C934 30000107 CAP MKT 47NF 250V J AA AD
C938 30000074 CAP MKT 100NF 63V J AA AC
C939 30000352 CAP EL 100UF 16V M AA AB
C940 30000352 CAP EL 100UF 16V M AA AB
C941 30000106 CAP MKT 47NF 100V J AA AB
C951 30012603 CAP SMD 100NF 25V K R (0603) AA AB
C953 30000345 CAP EL 10UF 50V M AA AB
C954 30000345 CAP EL 10UF 50V M AA AB
C956 30000400 CAP EL 47UF 50V M AA AB
CXX 30000302 CAP CER 1.8NF 50V KB AA AA
RESISTORS
R100 30000689 RES CF 1/4W 3.9K J AA AB
R101 30021996 RES SMD 1/16W 10K J (0402) AA AA
R101 30018581 RES MO 2W 150R J AA AA
R101 30000526 RES CF 1/4W 1.5K J AA AB
R102 30000529 RES SMD 1/10W 1.5K J AA AB
R102 30000594 RES CF 1/4W 22K J AA AB
R103 30001131 RES MO 1W 0.22R J AA AB
R103 30000770 RES CF 1/4W 680R J AA AB
R104 30001079 RES MO 1W 100R J AA AA
R104 30021987 RES SMD 1/16W 4.7K J (0402) AA AA
R104 30000594 RES CF 1/4W 22K J AA AB
R105 30000583 RES CF 1/4W 220R J AA AB
R105 30000712 RES CF 1/4W 470R J AA AB
R106 30022084 RES SMD 1/16W 33K J (0402) AA AA
R106 30000712 RES CF 1/4W 470R J AA AB
R107 30012506 RES SMD 1/16W 1.5K J (0603) AA AB
R107 30022046 RES SMD 1/16W 2.2K J (0402) AA AA
R107 30000712 RES CF 1/4W 470R J AA AB
R108 30000469 RES SMD 1/10W 1K J 0805 AA AB
R108 30000650 RES CF 1/4W 33R J AA AB
R109 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R109 30022042 RES SMD 1/16W 1K J (0402) AA AA
R109 30000650 RES CF 1/4W 33R J AA AB
R110 30000718 RES CF 1/4W 4.7K J AA AB
R110 30022142 RES SMD 1/16W 2.7K F (0402) AA AA
R110 30000471 RES CF 1/4W 10K J AA AB
R111 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R111 30022896 RES SMD 1/16W 1.2K F (0402) AA AA
R111 30000808 RES CF 1/4W 82R J AA AB
R112 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R112 30022067 RES SMD 1/16W 6.2K J (0402) AA AA
R112 30000471 RES CF 1/4W 10K J AA AB
R113 30012708 RES SMD 1/16W 68K J (0603) AA AA
R113 30022067 RES SMD 1/16W 6.2K J (0402) AA AA
R113 30000808 RES CF 1/4W 82R J AA AB
R114 30022067 RES SMD 1/16W 6.2K J (0402) AA AA
R115 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R115 30021996 RES SMD 1/16W 10K J (0402) AA AA
R116 30021996 RES SMD 1/16W 10K J (0402) AA AA
R116 30001086 RES MO 2W 10K J AA AD
R118 30000466 RES CF 1/4W 1K J AA AB
R119 30012641 RES SMD 1/16W 10K J (0603) AA AB
R120 30012696 RES SMD 1/16W 47K J (0603) AA AB
R121 30000918 RES MF 1/4W 2.1K F AA AA
R122 30001190 RES MO 2W 68R J AA AA
R123 30000852 RES MF 1/4W 100K F AA AB
R124 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB
R125 30009036 RES FUSE SAFE 1/2W 0.1R J AA AC
!
!

15
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
R126 30000564 RES CF 1/4W 18K J AA AB
R127 30000718 RES CF 1/4W 4.7K J AA AB
R128 30001246 RES FUSE SAFE 1W 0.47R J AA AB
R129 30000729 RES CF 1/4W 470K J AA AB
R130 30017867 RES FUSE 2W 2.7R J AA AB
R131 30000631 RES SMD 1/10W 2.7K J 0805 AA AB
R132 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R136 30000779 RES CF 1/4W 68K J AA AB
R137 30000942 RES MF 1/4W 27K J AA AA
R138 30000636 RES SMD 1/10W 27K J 0805 AA AB
R139 30001110 RES MO 1W 1.5R J AA AA
R140 30001124 RES MO 3W 220R J AA AB
R141 30017136 RES MO 1W 0.56R J AA AA
R142 30001011 RES MF 1/4W 6.8K F AA AB
R143 30001011 RES MF 1/4W 6.8K F AA AB
R145 30001077 RES MO 2W 10R J AA AC
R149 30000660 RES CF 1/4W 3.3K J AA AB
R150 30012665 RES SMD 1/16W 20K J (0603) AA AA
R151 30012641 RES SMD 1/16W 10K J (0603) AA AB
R152 30012689 RES SMD 1/16W 39K J (0603) AA AB
R153 30012673 RES SMD 1/16W 270R J (0603) AA AB
R154 30012673 RES SMD 1/16W 270R J (0603) AA AB
R155 30000784 RES CF 1/4W 680K J AA AB
R156 30001036 RES MF 1/4W 95K F AA AA
R157 30000779 RES CF 1/4W 68K J AA AB
R158 30012641 RES SMD 1/16W 10K J (0603) AA AB
R159 30000721 RES SMD 1/10W 4.7K J AA AB
R160 30000721 RES SMD 1/10W 4.7K J AA AB
R161 30000475 RES SMD 1/10W 10K J 0805 AA AB
R162 30000721 RES SMD 1/10W 4.7K J AA AB
R163 30010560 CAP SMD 220NF 25V K R (0805) AA AB
R165 30000622 RES CF 1/4W 270R J AA AB
R166 30000529 RES SMD 1/10W 1.5K J AA AB
R168 30012657 RES SMD 1/16W 1K J (0603) AA AB
R169 30000628 RES CF 1/4W 2.7K J AA AB
R171 30000626 RES SMD 1/10W 270R J AA AB
R179 30000649 RES CF 1/2W 33R J AA AB
R180 30001077 RES MO 2W 10R J AA AC
R181 30001084 RES MO 1W 1K J AA AA
R182 30000689 RES CF 1/4W 3.9K J AA AB
R183 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB
R185 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R186 30000531 RES CF 1/4W 15K J AA AB
R187 30012655 RES SMD 1/16W 180R J (0603) AA AA
R215 30012668 RES SMD 1/16W 220R J (0603) AA AA
R216 30012707 RES SMD 1/16W 680R J (0603) AA AB
R217 30012668 RES SMD 1/16W 220R J (0603) AA AA
R218 30012707 RES SMD 1/16W 680R J (0603) AA AB
R402 30012510 RES SMD 1/16W 100R J (0603) AA AB
R403 30012682 RES SMD 1/16W 30K J (0603) AA AA
R403 30012510 RES SMD 1/16W 100R J (0603) AA AB
R404 30012657 RES SMD 1/16W 1K J (0603) AA AB
R405 30012657 RES SMD 1/16W 1K J (0603) AA AB
R406 30012691 RES SMD 1/16W 4.3K J (0603) AA AA
R408 30012657 RES SMD 1/16W 1K J (0603) AA AB
R409 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R409 30012657 RES SMD 1/16W 1K J (0603) AA AB
R410 30012657 RES SMD 1/16W 1K J (0603) AA AB
R411 30012657 RES SMD 1/16W 1K J (0603) AA AB
R412 30022118 RES SMD 1/16W 75R J (0402) AA AA
R415 30014420 RES SMD 1/16W 10K F (0603) AA AA
R415 30021991 RES SMD 1/16W 100R J (0402) AA AA
R417 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R418 30012698 RES SMD 1/16W 5.6K J (0603) AA AB
R420 30022118 RES SMD 1/16W 75R J (0402) AA AA
R421 30022028 RES SMD 1/16W 150R J (0402) AA AA
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
R422 30012677 RES SMD 1/16W 3.3K J (0603) AA AA
R422 30022052 RES SMD 1/16W 200R J (0402) AA AA
R423 30022118 RES SMD 1/16W 75R J (0402) AA AA
R424 30012657 RES SMD 1/16W 1K J (0603) AA AB
R424 30022118 RES SMD 1/16W 75R J (0402) AA AA
R425 30000459 RES CF 1/4W 100R J AA AB
R425 30021988 RES SMD 1/16W 1.8K J (0402) AA AA
R426 30012510 RES SMD 1/16W 100R J (0603) AA AB
R426 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R427 30012714 RES SMD 1/16W 820R J (0603) AA AA
R427 30012696 RES SMD 1/16W 47K J (0603) AA AB
R428 30012714 RES SMD 1/16W 820R J (0603) AA AA
R428 30022098 RES SMD 1/16W 390R J (0402) AA AA
R429 30012696 RES SMD 1/16W 47K J (0603) AA AB
R430 30022084 RES SMD 1/16W 33K J (0402) AA AA
R432 30022069 RES SMD 1/16W 6.8K J (0402) AA AA
R433 30022046 RES SMD 1/16W 2.2K J (0402) AA AA
R434 30000815 RES CF 1/4W 8.2K J AA AB
R434 30021447 RES SMD 1/16W 1.6K J (0603) AA AA
R435 30012504 RES SMD 1/16W 1.2K J (0603) AA AB
R436 30012696 RES SMD 1/16W 47K J (0603) AA AB
R437 30022046 RES SMD 1/16W 2.2K J (0402) AA AA
R440 30012696 RES SMD 1/16W 47K J (0603) AA AB
R441 30012696 RES SMD 1/16W 47K J (0603) AA AB
R443 30012696 RES SMD 1/16W 47K J (0603) AA AB
R446 30012696 RES SMD 1/16W 47K J (0603) AA AB
R448 30022042 RES SMD 1/16W 1K J (0402) AA AA
R449 30022113 RES SMD 1/16W 68R J (0402) AA AA
R450 30022113 RES SMD 1/16W 68R J (0402) AA AA
R451 30022042 RES SMD 1/16W 1K J (0402) AA AA
R455 30021991 RES SMD 1/16W 100R J (0402) AA AA
R456 30021991 RES SMD 1/16W 100R J (0402) AA AA
R457 30021991 RES SMD 1/16W 100R J (0402) AA AA
R458 30012510 RES SMD 1/16W 100R J (0603) AA AB
R459 30021991 RES SMD 1/16W 100R J (0402) AA AA
R460 30021991 RES SMD 1/16W 100R J (0402) AA AA
R461 30021991 RES SMD 1/16W 100R J (0402) AA AA
R464 30012714 RES SMD 1/16W 820R J (0603) AA AA
R465 30022118 RES SMD 1/16W 75R J (0402) AA AA
R467 30022118 RES SMD 1/16W 75R J (0402) AA AA
R468 30022118 RES SMD 1/16W 75R J (0402) AA AA
R470 30022118 RES SMD 1/16W 75R J (0402) AA AA
R471 30022118 RES SMD 1/16W 75R J (0402) AA AA
R472 30022118 RES SMD 1/16W 75R J (0402) AA AA
R474 30012696 RES SMD 1/16W 47K J (0603) AA AB
R475 30012510 RES SMD 1/16W 100R J (0603) AA AB
R478 30012510 RES SMD 1/16W 100R J (0603) AA AB
R479 30012510 RES SMD 1/16W 100R J (0603) AA AB
R490 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R491 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R493 30012696 RES SMD 1/16W 47K J (0603) AA AB
R499 30022056 RES SMD 1/16W 220R J (0402) AA AA
R500 30022056 RES SMD 1/16W 220R J (0402) AA AA
R509 30021999 RES SMD 1/16W 10R J (0402) AA AA
R511 30021991 RES SMD 1/16W 100R J (0402) AA AA
R512 30021991 RES SMD 1/16W 100R J (0402) AA AA
R513 30021996 RES SMD 1/16W 10K J (0402) AA AA
R514 30021960 RES SMD 1/16W 47R J (0402) AA AA
R515 30021996 RES SMD 1/16W 10K J (0402) AA AA
R516 30021960 RES SMD 1/16W 47R J (0402) AA AA
R517 30021991 RES SMD 1/16W 100R J (0402) AA AA
R518 30021991 RES SMD 1/16W 100R J (0402) AA AA
R700 30021996 RES SMD 1/16W 10K J (0402) AA AA
R701 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R702 30012712 RES SMD 1/16W 8.2K J (0603) AA AB
R703 30021996 RES SMD 1/16W 10K J (0402) AA AA

16
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
R785 30012641 RES SMD 1/16W 10K J (0603) AA AB
R786 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R787 30022085 RES SMD 1/16W 33R J (0402) AA AA
R788 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R789 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R791 30012509 RES SMD 1/16W 100K J (0603) AA AB
R792 30022085 RES SMD 1/16W 33R J (0402) AA AA
R793 30021987 RES SMD 1/16W 4.7K J (0402) AA AA
R794 30021996 RES SMD 1/16W 10K J (0402) AA AA
R795 30021987 RES SMD 1/16W 4.7K J (0402) AA AA
R796 30012641 RES SMD 1/16W 10K J (0603) AA AB
R797 30022113 RES SMD 1/16W 68R J (0402) AA AA
R798 30012641 RES SMD 1/16W 10K J (0603) AA AB
R799 30012641 RES SMD 1/16W 10K J (0603) AA AB
R800 30022085 RES SMD 1/16W 33R J (0402) AA AA
R802 30000718 RES CF 1/4W 4.7K J AA AB
R803 30000593 RES SMD 1/10W 2.2K J (0805) AA AB
R803 30021987 RES SMD 1/16W 4.7K J (0402) AA AA
R804 30000481 RES CF 1/4W 1M J AA AB
R805 30000983 RES MF 1/4W 4.7K F AA AB
R805 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R806 30000452 RES CF 1/4W 10R J AA AB
R806 30012641 RES SMD 1/16W 10K J (0603) AA AB
R807 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R807 30021996 RES SMD 1/16W 10K J (0402) AA AA
R808 30012641 RES SMD 1/16W 10K J (0603) AA AB
R809 30021996 RES SMD 1/16W 10K J (0402) AA AA
R810 30001159 RES MO 1W 0.33R J AA AB
R810 30021996 RES SMD 1/16W 10K J (0402) AA AA
R812 30001257 RES MG SAFE 1/2W 4.7M J AA AD
R812 30012641 RES SMD 1/16W 10K J (0603) AA AB
R813 30000710 RES SMD 1/10W 47R J (0805) AA AB
R813 30012657 RES SMD 1/16W 1K J (0603) AA AB
R814 30013199 RES SMD 1/10W 2.4K F 0805 AA AA
R814 30021996 RES SMD 1/16W 10K J (0402) AA AA
R815 30012510 RES SMD 1/16W 100R J (0603) AA AB
R815 30012641 RES SMD 1/16W 10K J (0603) AA AB
R816 30022067 RES SMD 1/16W 6.2K J (0402) AA AA
R818 30025723 RES SMD 1/10W 68K F (0805) AA AA
R819 30012641 RES SMD 1/16W 10K J (0603) AA AB
R819 30012657 RES SMD 1/16W 1K J (0603) AA AB
R820 30000590 RES CF 1/4W 2.2K J AA AB
R820 30021991 RES SMD 1/16W 100R J (0402) AA AA
R821 30000590 RES CF 1/4W 2.2K J AA AB
R821 30021991 RES SMD 1/16W 100R J (0402) AA AA
R822 30012641 RES SMD 1/16W 10K J (0603) AA AB
R823 30000718 RES CF 1/4W 4.7K J AA AB
R823 30022061 RES SMD 1/16W 27K J (0402) AA AA
R824 30000718 RES CF 1/4W 4.7K J AA AB
R825 30012641 RES SMD 1/16W 10K J (0603) AA AB
R825 30022042 RES SMD 1/16W 1K J (0402) AA AA
R826 30021996 RES SMD 1/16W 10K J (0402) AA AA
R827 30000588 RES SMD 1/10W 220R J 0805 AA AB
R827 30012657 RES SMD 1/16W 1K J (0603) AA AB
R828 30001174 RES MO 2W 0.47R J AA AB
R829 30000477 RES CF 1/4W 100K J AA AB
R829 30022040 RES SMD 1/16W 18K J (0402) AA AA
R830 30000475 RES SMD 1/10W 10K J 0805 AA AB
R831 30007026 RES SMD 1/10W 5.1K J(0805) AA AA
R831 30022078 RES SMD 1/16W 3.9K J (0402) AA AA
R832 30000466 RES CF 1/4W 1K J AA AB
R832 30021958 RES SMD 1/16W 47K J (0402) AA AA
R833 30001174 RES MO 2W 0.47R J AA AB
R834 30000469 RES SMD 1/10W 1K J 0805 AA AB
R834 30022078 RES SMD 1/16W 3.9K J (0402) AA AA
R835 30000475 RES SMD 1/10W 10K J 0805 AA AB
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
R704 30022085 RES SMD 1/16W 33R J (0402) AA AA
R705 30022056 RES SMD 1/16W 220R J (0402) AA AA
R706 30012650 RES SMD 1/16W 15K J (0603) AA AB
R707 30012650 RES SMD 1/16W 15K J (0603) AA AB
R708 30012708 RES SMD 1/16W 68K J (0603) AA AA
R709 30012708 RES SMD 1/16W 68K J (0603) AA AA
R710 30022118 RES SMD 1/16W 75R J (0402) AA AA
R711 30021996 RES SMD 1/16W 10K J (0402) AA AA
R712 30022118 RES SMD 1/16W 75R J (0402) AA AA
R713 30021996 RES SMD 1/16W 10K J (0402) AA AA
R714 30021996 RES SMD 1/16W 10K J (0402) AA AA
R715 30021984 RES SMD 1/16W 1.6K J (0402) AA AB
R716 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R717 30012679 RES SMD 1/16W 3.9K J (0603) AA AB
R719 30021996 RES SMD 1/16W 10K J (0402) AA AA
R720 30012703 RES SMD 1/16W 56K J (0603) AA AA
R721 30012708 RES SMD 1/16W 68K J (0603) AA AA
R722 30012703 RES SMD 1/16W 56K J (0603) AA AA
R723 30012708 RES SMD 1/16W 68K J (0603) AA AA
R724 30022085 RES SMD 1/16W 33R J (0402) AA AA
R725 30012983 RES SMD 1/16W 15R J 0603 AA AA
R726 30022089 RES SMD 1/16W 680R J (0402) AA AA
R727 30021975 RES SMD 1/16W 15R J (0402) AA AA
R728 30012983 RES SMD 1/16W 15R J 0603 AA AA
R729 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R730 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R731 30022083 RES SMD 1/16W 330R J (0402) AA AA
R732 30012657 RES SMD 1/16W 1K J (0603) AA AB
R733 30022085 RES SMD 1/16W 33R J (0402) AA AA
R734 30022089 RES SMD 1/16W 680R J (0402) AA AA
R735 30021975 RES SMD 1/16W 15R J (0402) AA AA
R736 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R737 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R738 30022083 RES SMD 1/16W 330R J (0402) AA AA
R739 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R740 30022085 RES SMD 1/16W 33R J (0402) AA AA
R741 30022085 RES SMD 1/16W 33R J (0402) AA AA
R742 30022085 RES SMD 1/16W 33R J (0402) AA AA
R744 30012657 RES SMD 1/16W 1K J (0603) AA AB
R746 30022085 RES SMD 1/16W 33R J (0402) AA AA
R747 30022089 RES SMD 1/16W 680R J (0402) AA AA
R748 30021975 RES SMD 1/16W 15R J (0402) AA AA
R749 30012657 RES SMD 1/16W 1K J (0603) AA AB
R750 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R751 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R752 30022083 RES SMD 1/16W 330R J (0402) AA AA
R753 30012669 RES SMD 1/16W 22K J (0603) AA AB
R754 30012669 RES SMD 1/16W 22K J (0603) AA AB
R755 30022085 RES SMD 1/16W 33R J (0402) AA AA
R756 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R757 30012657 RES SMD 1/16W 1K J (0603) AA AB
R758 30012662 RES SMD 1/16W 2.7K J (0603) AA AB
R761 30022481 RES SMD 1/16W 240R F (0402) AA AA
R762 30021996 RES SMD 1/16W 10K J (0402) AA AA
R763 30021996 RES SMD 1/16W 10K J (0402) AA AA
R764 30022085 RES SMD 1/16W 33R J (0402) AA AA
R771 30012641 RES SMD 1/16W 10K J (0603) AA AB
R772 30021987 RES SMD 1/16W 4.7K J (0402) AA AA
R773 30021996 RES SMD 1/16W 10K J (0402) AA AA
R775 30021977 RES SMD 1/16W 1.2K J (0402) AA AA
R779 30012692 RES SMD 1/16W 4.7K J (0603) AA AB
R780 30012641 RES SMD 1/16W 10K J (0603) AA AB
R781 30012696 RES SMD 1/16W 47K J (0603) AA AB
R782 30022085 RES SMD 1/16W 33R J (0402) AA AA
R783 30022085 RES SMD 1/16W 33R J (0402) AA AA
R784 30012641 RES SMD 1/16W 10K J (0603) AA AB

17
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
R905 30000477 RES CF 1/4W 100K J AA AB
R906 30000477 RES CF 1/4W 100K J AA AB
R907 30020603 RES CC 1W 1K K AA AD
R908 30020603 RES CC 1W 1K K AA AD
R909 30000477 RES CF 1/4W 100K J AA AB
R910 30020603 RES CC 1W 1K K AA AD
R911 30000466 RES CF 1/4W 1K J AA AB
R912 30000459 RES CF 1/4W 100R J AA AB
R913 30000492 RES CF 1/4W 120R J AA AB
R916 30000531 RES CF 1/4W 15K J AA AB
R917 30000526 RES CF 1/4W 1.5K J AA AB
R918 30000594 RES CF 1/4W 22K J AA AB
R919 30000580 RES CF 1/4W 22R J AA AB
R920 30000459 RES CF 1/4W 100R J AA AB
R921 30000459 RES CF 1/4W 100R J AA AB
R923 30000452 RES CF 1/4W 10R J AA AB
R924 30000466 RES CF 1/4W 1K J AA AB
R925 30000466 RES CF 1/4W 1K J AA AB
R926 30000752 RES CF 1/4W 56K J AA AB
R927 30000752 RES CF 1/4W 56K J AA AB
R928 30000770 RES CF 1/4W 680R J AA AB
R929 30000452 RES CF 1/4W 10R J AA AB
R931 30001194 RES MO 2W 680R J AA AC
R932 30001245 RES FUSE SAFE 1/4W 0.47R J AA AC
R933 30021483 RES CC 1W 2.2K K AA AD
R938 30001100 RES MO 1W 150R J AA AB
R940 30000580 RES CF 1/4W 22R J AA AB
R941 30000580 RES CF 1/4W 22R J AA AB
R942 30000580 RES CF 1/4W 22R J AA AB
R943 30006562 RES MO 1/2W 150R J AA AB
R944 30001244 RES FUSE SAFE 1/2W 0.47R J AA AB
R945 30000488 RES CF 1/4W 1R J AA AA
R946 30000650 RES CF 1/4W 33R J AA AB
R947 30000531 RES CF 1/4W 15K J AA AB
R948 30000612 RES CF 1/4W 2.4K J AA AB
R949 30000706 RES CF 1/4W 47R J AA AB
R950 30000607 RES CF 1/4W 2.2R J AA AB
R951 30000607 RES CF 1/4W 2.2R J AA AB
R951 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R952 30000628 RES CF 1/4W 2.7K J AA AB
R952 30000459 RES CF 1/4W 100R J AA AB
R953 30000702 RES CF 1/4W 430R J AA AA
R954 30000459 RES CF 1/4W 100R J AA AB
R965 30000775 RES CF 1/4W 6.8K J AA AB
R966 30012644 RES SMD 1/16W 12K J (0603) AA AB
R993 30000712 RES CF 1/4W 470R J AA AB
PRINTED WIRING BOARD MODULES
.20147535 MD.ASY.FB53-4511117211112121111 (Dig. Mod. Unit) BN CE
. 20152909 CHS.ASSY.53-11314111162121122117F (Mother Unit) BU CN
. 20163353 MD.ASY.SB112-FAV+HP+SVHS 2862/3262 (AK53) (Front Unit) AT BD
. 20168819 CRT B.ASSY.TP53-SIN.FOC.W/BSVM(AK53)SHARP (CRT Unit) AS BC
MISCELLANEOUS PARTS
. 20128056 CRT B.ASSY.TP53-SIN.FOC.W/BSVM(AK53) AT BD
. 20140457 BACK COVER 2862W EKO2GRAY(I) AS BD
. 20141081 SNOW BOX ASSY 2862W RF AM AY
. 20140469 SNOW BOX TOP 2862W AD AN
. 20140470 SNOW BOX BOTTOM 2862W AD AN
. 20108124 BACK DOOR AK45/52 (I) AC AH
. 35000212 SCREW S C ZNSY YSMB 2.9*13 AA AB
. 35000212 SCREW S C ZNSY YSMB 2.9*13 AA AB
. 35000217 SCREW S C SYF YFMB 3.5*9.5 AA AB
. 35004572 SCREW P C AgSYF YSB 4x20 AA AB
. 35005084 SCREW C ZN RYAKB 6x30 AA AB
. 35005418 SCREW P C ZN YSB 3.5x10 (KN1031 T35X10) AA AA
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
R835 30022042 RES SMD 1/16W 1K J (0402) AA AA
R836 30000664 RES SMD 1/10W 3.3K J (0805) AA AB
R836 30022042 RES SMD 1/16W 1K J (0402) AA AA
R837 30000503 RES SMD 1/10W 12K J (0805) AA AB
R837 30022040 RES SMD 1/16W 18K J (0402) AA AA
R838 30000517 RES SMD 1/10W 15R J 0805 AA AB
R838 30022057 RES SMD 1/16W 22K J (0402) AA AA
R839 30012641 RES SMD 1/16W 10K J (0603) AA AB
R840 30012641 RES SMD 1/16W 10K J (0603) AA AB
R841 30012657 RES SMD 1/16W 1K J (0603) AA AB
R841 30021996 RES SMD 1/16W 10K J (0402) AA AA
R842 30012641 RES SMD 1/16W 10K J (0603) AA AB
R843 30000466 RES CF 1/4W 1K J AA AB
R844 30021996 RES SMD 1/16W 10K J (0402) AA AA
R845 30012695 RES SMD 1/16W 470R J (0603) AA AB
R845 30022030 RES SMD 1/16W 15K J (0402) AA AA
R846 30022030 RES SMD 1/16W 15K J (0402) AA AA
R847 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R848 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R848 30022078 RES SMD 1/16W 3.9K J (0402) AA AA
R849 30012641 RES SMD 1/16W 10K J (0603) AA AB
R849 30022057 RES SMD 1/16W 22K J (0402) AA AA
R850 30000469 RES SMD 1/10W 1K J 0805 AA AB
R851 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R852 30012659 RES SMD 1/16W 2.2K J (0603) AA AB
R852 30021996 RES SMD 1/16W 10K J (0402) AA AA
R853 30012641 RES SMD 1/16W 10K J (0603) AA AB
R854 30012657 RES SMD 1/16W 1K J (0603) AA AB
R855 30000925 RES MF 1/4W 2.2K F AA AB
R856 30000918 RES MF 1/4W 2.1K F AA AA
R858 30021999 RES SMD 1/16W 10R J (0402) AA AA
R860 30000718 RES CF 1/4W 4.7K J AA AB
R861 30012641 RES SMD 1/16W 10K J (0603) AA AB
R862 30012641 RES SMD 1/16W 10K J (0603) AA AB
R863 30012657 RES SMD 1/16W 1K J (0603) AA AB
R864 30012695 RES SMD 1/16W 470R J (0603) AA AB
R866 30000660 RES CF 1/4W 3.3K J AA AB
R866 30021996 RES SMD 1/16W 10K J (0402) AA AA
R867 30012689 RES SMD 1/16W 39K J (0603) AA AB
R867 30021996 RES SMD 1/16W 10K J (0402) AA AA
R868 30025723 RES SMD 1/10W 68K F (0805) AA AA
R868 30021991 RES SMD 1/16W 100R J (0402) AA AA
R869 30000475 RES SMD 1/10W 10K J 0805 AA AB
R869 30022056 RES SMD 1/16W 220R J (0402) AA AA
R870 30018085 CAP VAR SAFE 510V K MFCN14D511 AA AD
R870 30022078 RES SMD 1/16W 3.9K J (0402) AA AA
R871 30021958 RES SMD 1/16W 47K J (0402) AA AA
R872 30022042 RES SMD 1/16W 1K J (0402) AA AA
R873 30022094 RES SMD 1/16W 680K J (0402) AA AA
R874 30022000 RES SMD 1/16W 470K J (0402) AA AA
R875 30022057 RES SMD 1/16W 22K J (0402) AA AA
R876 30022042 RES SMD 1/16W 1K J (0402) AA AA
R878 30022038 RES SMD 1/16W 180R J (0402) AA AA
R879 30022038 RES SMD 1/16W 180R J (0402) AA AA
R882 30022038 RES SMD 1/16W 180R J (0402) AA AA
R883 30022057 RES SMD 1/16W 22K J (0402) AA AA
R884 30021958 RES SMD 1/16W 47K J (0402) AA AA
R885 30022028 RES SMD 1/16W 150R J (0402) AA AA
R886 30022028 RES SMD 1/16W 150R J (0402) AA AA
R887 30022028 RES SMD 1/16W 150R J (0402) AA AA
R898 30022085 RES SMD 1/16W 33R J (0402) AA AA
R900 30000788 RES CF 1/4W 6.8M J AA AB
R901 30000459 RES CF 1/4W 100R J AA AB
R902 30000459 RES CF 1/4W 100R J AA AB
R903 30000459 RES CF 1/4W 100R J AA AB
R904 30000535 RES CF 1/2W 150K J AA AB
!
!

18
28LF-94E
REF No. PARTS DESCRIPTION SN CODE EX CODE
. 35009300 SCREW P C ZN FYSB 4X16 (D:11) AA AB
. 30012631 CNAS 2P/760 DIS W/BL C+FER UL2547 AWG24 AB AG
. 30027382 SPEAKER 7R 12W F/R 60x120MM-28&32" SHARP AE AP
. 40016872 SPEAKER BRACKET 286XW AA AE
. 30028208 POWER CORD SAFE EURO 2.2M SHARP W/FILTER AG AT
. 20152358 FRONT 2862W W/H SLV285S(P)(PW/S) AT BE
. 20152375 CONTROL PANEL DOOR 2862W (SLV285S/P) AD AL
. 20152376 SPEAKER GRILL 2862W SLV285S(P) AF AQ
. 20004519 CABLE HOLDER CRT (I) AA AB
. 20140467 BRACKET BF 2862W (I) V.0 AA AD
. 30009784 SOCKET IC 8P (DIP) (IC309) AA AB
. 35008849 DOOR METAL SPRING (30mmX20mmX0.5mm) AA AC
. 20140466 BRACKET CHS XX62-64W (I) V.0 AD AM
. 35005061 SCREW RB C SK ZN YFMB 2.9*9.5 AA AA
. 20153349 BUTTON ASSY 2862W/3262WRF (SLV285S(P) AC AK
. 35008861 SPRING ON/OFF SWITCH 1462 SHARP(SHARP) AA AA
. 35000010 EARTH SPRING (4CM) AA AB
. 20143026 R/C 1548 SHARP (EKO2GRAY/I) (GRAY/S) AM AY
. 50051457 I/B SHARP 28LF94E P/AK53/1548/GER/DUT/FR AD AM
. 20161563 LBL.CART.BOX SHARP 28LF94E AA AC
. 50043776 LABEL LOT W/BARCODE (100X280) SHARP AA AC
. 20161566 LBL.BCK.CVR.SHARP 28LF94E "AK53" AA AC
. 20013018 LBL.BCK.CVR.ASSY (TV) (WO/UL) AA AB
. 50023173 LABEL LOT W/BARCODE (77X256) AA AC
. 35000136 FUSE HOLDER TK79-A (GRAY) AA AD
. 30015231 ROTATION COIL AK33 29" AE AQ
. 30029836 CNAS 2P-3/150SVM+F SIS W/DC UL1007 AWG28 AB AE
. 40016814 LOGO SHARP (D.C.-SILVER)28-32" AD AK
F100 30001731 FUSE SAFE 2.5A 250V 5*20MM AA AC
GND 30000271 CAP CER 680PF 50V J SL AA AA
J130 30006712 FERRITE BEAD 3.5X4.7X0.8 AA AB
JK100 30026584 TV JACK BOARD JXTI046 AG AS
JK101 30001902 JACK HEADPHONE STEREO WO/SW AC AH
PL100 30020822 CNAS 6P/450 FLT W/C+FER UL2468AWG24 AC AG
PL101 30006709 CONN HEADER 5P 2.5MM TOP WHT SD AA AB
PL101 30017799 CNAS 5P/500 TUB SIS W/DC UL1007AWG24 AC AH
PL101 30001838 CONN HEADER 3P 2.5MM TOP YELLOW SD AA AC
PL101 30020137 CNAS 600 FAV SVHS W/DC+FER AF AQ
PL102 30020137 CNAS 600 FAV SVHS W/DC+FER AF AQ
PL102 30001830 CONN HEADER 2P 2.5MM TOP BLUE SD AA AB
PL103 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL103 30020137 CNAS 600 FAV SVHS W/DC+FER AF AQ
PL103 30001839 CONN HEADER 3P 2.5MM TOP GREEN SD AA AC
PL104 30008726 CNAS 3P/550 FLT W/BLK C UL2468AWG24 AB AF
PL105 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB
PL107 30001829 CONN HEADER 2P 2.5MM TOP WHT SD AA AB
PL107 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL107 30014711 CNAS 2P/250 W/DC AB AF
PL108 35000135 TEST PIN 1.1MM AA AB
PL108 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL203 30010921 DOUBLE-DECK SCART SOCKET AD AM
PL401 30018410 CONN HEADER 35P 3.0MM SIDE DR AC AK
PL402 30018410 CONN HEADER 35P 3.0MM SIDE DR AC AK
PL404 30001844 CONN HEADER 3P 2.5MM SIDE GREEN SD AA AC
PL405 30001762 CONN HEADER 2P 2.5MM(9.7MM) TOP AA AC
PL405 30001833 CONN HEADER 2P 2.5MM SIDE BLUE SD AA AC
PL406 30001764 CONN HEADER 2P 2.5MM(9.7MM) TOP BLACK AA AC
PL418 30009846 CABL 1P/40 SIS AA AB
PL419 30009846 CABL 1P/40 SIS AA AB
PL420 30009846 CABL 1P/40 SIS AA AB
PL421 30009846 CABL 1P/40 SIS AA AB
PL422 30026034 CNAS 1P/460-330 DIS W/RED DC UL1672AWG24 AA AE
PL423 30018412 CONN HOUSING 35P 3.0MM TOP DR AD AM
PL424 30018412 CONN HOUSING 35P 3.0MM TOP DR AD AM
PL602 30016483 CNAS 2P/600 HRZ DIS W/C UL1672AWG24 AA AE
PL603 30019083 CNAS 2P/600 SIS W/C+FER UL1007AWG24 AB AF
!
!
!
!
REF No. PARTS DESCRIPTION SN CODE EX CODE
PL700 30001770 CONN HEADER 3P 2.5MM TOP BD AA AC
PL701 30001784 CONN HEADER 6P 2.5MM TOP BD AA AC
PL702 30001831 CONN HEADER 2P 2.5MM TOP RED SD AA AB
PL703 30001841 CONN HEADER 3P 2.5MM SIDE BLACK SD AA AB
PL704 30012894 CONN HEADER 10P 2.54MM TOP WHT AA AB
PL707 30021923 CONN MALE 20P TOP 1.257 DUAL HEADER AG AT
PL801 30001795 CONN HEADER 3P 5/7.5MM TOP WHT AA AC
PL802 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL804 30001792 CONN HEADER 2P 7.5MM TOP WHT AA AC
PL853 30029835 CNAS 10P/400 AK53 SHL W/DC+F UL1533AWG24 AF AR
PL904 30006709 CONN HEADER 5P 2.5MM TOP WHT SD AA AB
PL905 30012894 CONN HEADER 10P 2.54MM TOP WHT AA AB
PL910 30001855 SOCKET CRT SAFE NARROWNECK W/GND AD AM
PL911 30018976 CONN HEADER 3P 2.5MM TOP BSVM AA AB
RL801 30002183 RELAY SAFE MON15 KI-S-212M AG AS
S408 30012982 RES SMD 1/16W 10R J 0603 AA AB
S409 30012982 RES SMD 1/16W 10R J 0603 AA AB
S802 30012657 RES SMD 1/16W 1K J (0603) AA AB
SG901 30000428 SPARK GAP 300V AB AG
SG902 30000428 SPARK GAP 300V AB AG
SG903 30000428 SPARK GAP 300V AB AG
SG904 30000428 SPARK GAP 300V AB AG
SG905 30021532 SPARK GAP 1500V AC AG
SW100 30002181 SWITCH TACT(4) AA AC
SW101 30002181 SWITCH TACT(4) AA AC
SW102 30002181 SWITCH TACT(4) AA AC
SW103 30002181 SWITCH TACT(4) AA AC
SW104 30017848 SWITCH SAFE ON/OFF 4A/128A JVC(PANASONI) AC AH
TH801 30001270 PTC SAFE 9 OHM AC AK
!
!
!
!

19
28LF-94E
HOW TO UPDATE THE TECHNICAL INFORMATION APPEARED ON THIS SERVICE MANUAL
1. Web site: https://www.vestelservice.com
2. Select: Technical Support
3. Login: 101278
4. Password: SHPII278
By this access you can consult the latest schematic diagram or request the Parts Listing of a concrete Production Date
/ Serial Number.
By this way it can be also consulted the issued Technical Reports (Service Bulletins).

20
28LF-94E
PRINTED BY: ON:
No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any
form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.
Technical information and Production:
Vestel Electronik AS
Technical information re-issued:
SHARP ELECTRONICA ESPAÑA S.A.
Service Manual Group
Engineering Dept.
Polígono Industrial Can Sant Joan
08190 Sant Cugat del Vallès
Barcelona
Spain
Think Ecology, please use
RECYCLED PAPER
