Sharp 40BJ2I Technical manual

Quick Start Set Up Guide
For information on using the TV’s features, please refer to the Operating Instructions. (Available online to download.)
Model Numbers
40BJ2I
40BJ3I
40BJ4I
40BJ5I
Trademark Sharp
Model ID 40BJ2I
40BJ3I
40BJ4I
40BJ5I
Energy eciency class A
Visible screen size (diagonal) 102 cm / 40 inches
On-mode power consumption 62.0 W
Annual energy consumption *1 91 kWh
Standby power consumption *2 <0.50 W
O mode power consumption n/a
Screen resolution 3840 (H) x 2160 (V)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365
days. The actual energy consumption will depend on how the television is used.
*2: When the TV is turned o with the remote control/standby button and no function is active.
40BJ2I
40BJ3I
40BJ4I
40BJ5I
RF 75 ohm Antenna / Analog / DVB / Satellite
Inputs 3 x HDMI, 3 x USB, 1 x SD card reader,
1 x RJ45 LAN/Ethernet,
1 x Composite/CVBS Video & Component/YPbPr Input, 1 x L/R Audio input for
Composite/CVBS & Component YPbPr
Sound Outputs 1 x Digital Optical Audio output, 1 x 3.5mm Headphone
Speaker*/ Amplier Watts (RMS) 2 x 10 / 2 x 8
Voltage and power consumption AC 220V ~ 240V; 50Hz
62/90/110W (home mode/standard/max)
(<0.5W in Standby)
Dimensions including stand (mm) 914W x 572H x 184D
Net weight (Kgs) 6.8
Wall Mounting VESA 200 x 200 (mm)
Win a
Soundbar
Register your manufacturers guarantee online within 14 days of purchase at
www.registertoday.co.uk/sharp and enter into a prize draw to
Terms and conditions apply. Online registration only.
p
and
enter
into
a
prize
draw
to
n
ly
.
SHA/QSW/0174
Harman Kardon is trademark of HARMAN International
Industries, Incorporated, registered in the United States
and/or other countries.
The terms HDMI, HDMI High-Denition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc.
*Built-in Harman Kardon speaker systems (Full-range speaker and tweeter).
Product che
Technical Specication
SHA/QSW/0174
Quick & easy guide for setting up your TV
What is included in the box
Using the remote control
Setting up the TV for the rst time - including attaching the stand
Connecting other devices to the Television
Need help setting up or using your TV?
Please contact the UK & ROI Helpline*
Telephone UK 0330 024 0803 or ROI 01443 3323
Online support at: www.umc-uk.co.uk
Email support at: servic[email protected].uk
*Calls to 0330 numbers are charged at standard call rates and are included as part of any bundled minutes with your
phone provider.
Calls to the ROI number are charged at the local call rate.
The telephone opening hours are:
Monday to Friday: 8.30am – 6pm
Saturday: 9am – 5pm
Bank Holidays: 10am – 4pm
Closed Christmas and New Years day
Online Manual
To launch the Online Manual, press the [MENU] button and then select:
Settings>About TV>Help Information>View Online Manual
Sky Remote Code
If you wish to use your Sky remote to operate the TV’s basic
functions, you will need a Sky remote control (Revision 9 or later) and
you will need to program it with the code 2134. If you wish to use
your Sky Q remote to operate the TV’s basic functions, you will need
to program it with the code 4170.
Microsoft PlayReady™
This product contains technology subject to certain intellectual property rights of Microsoft. Use or
distribution of this technology outside of this product is prohibited without the appropriate license(s) from
Microsoft.
Content owners use Microsoft PlayReady™ content access technology to protect their intellectual property,
including copyrighted content. This device uses PlayReady technology to access PlayReady-protected
content and/or WMDRM-protected content. If the device fails to properly enforce restrictions on content
usage, content owners may require Microsoft to revoke the device’s ability to consume PlayReady-protected
content. Revocation should not aect unprotected content or content protected by other content access
technologies. Content owners may require you to upgrade PlayReady to access their content. If you decline
an upgrade, you will not be able to access content that requires the upgrade.
Using the remote control
To receive Freeview channels, in particular Freeview HD channels, you will need a Digital TV aerial and be in a good Freeview
coverage area. You can check coverage for your postcode at www.freeview.co.uk.
Please note that any Freeview HD channels found during tuning will be placed in channel positions above 100. For
example, 101 (BBC1 HD) 102 (BBC2 HD) etc.
Accessories
Included with this TV are the following accessories
What is included in the box
Please save your box/packaging as you will need this in the event of warranty/service repair or support.
We are unable to carry out warranty/service if you are unable to package it correctly. The safest way to
package your item in the event of warranty/service repair is in it’s original box/packaging.
RF Cable
Additional Accessories
If you don’t have the RF cable shown below, then you can purchase one from www.umc-uk.co.uk/cables
If you are intending to connect your TV to an RF socket in order to receive Freeview you will need this
cable.
1 x Quick Start Guide 1 x Remote Control and 2 x AAA Batteries
1 x Stand installation pack1 x Safety Leaflet
789
0
123
456
TV
GUIDE
VOL CH
SOURCE
SOUND
ON/OFF MUTE
TEXT
SUBTITLE
INFO
TV
BACK
FAV
NET+
GOTO
DVD SETUP
DVD MENU
A-B
3D
REPEAT
REC LIST
PVR/MEDIA
EXIT
MENU
OK
1
4
2
3
ON/OFF - Switch on the TV when in standby or vice versa.
MUTE - Mute the sound or vice versa.
NUMBER BUTTONS - 0–9 to select a TV channel directly.
TV GUIDE - Opens the 7 day TV guide (digital TV mode).
- To return to the previous channel viewed.
VOL (+/-) - To increase/decrease the sound level.
PICTURE - Scrolls through picture mode options.
SOUND- Scrolls through sound mode options.
SOURCE - To display the input/source menu.
CH (+/-) - To increase or decrease the channel being watched.
MENU - To display OSD menu.
EXIT - To exit all menus.
( / / / / OK)- Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
BACK - To go back a previous step.
FAV - To display favourites menu.
INFO - Press once for now/next channel information.
- Press twice for information about the current programme.
TEXT - To enter/exit Text.
SUBTITLE - To switch the dialogue at the bottom of the screen (on/off).
TV - To switch to Digital Channels.
YOUTUBE - Access the Youtube App.
NETFLIX - Access the Netflix App.
NET+ - Access the Aquos NET+ Smart Portal.
RECORD/DVD MENU - Access the USB record function/Access the
DVD menu of the DVD inserted (must be set to the DVD source).
REC LIST/DVD SETUP - Opens the list of previously recorded items/Access
the TV’s DVD setup menu (must be set to the DVD source).
GOTO - To go to a specific chapter.
A-B - Press once to set point, press a second time to return to point.
ANGLE/3D - Select different angle of DVD.
REPEAT - To repeat playback.
Key
3
2
1
For models with integrated DVD players.
For models with PVR Function.
For models with USB Playback.
For models with 3D functions.
- Torestart thecurrent chapter
- To advance forward to thenextchapter
-To stoptheplayback/Eject Disc
(To EJECTthediscpress/hold thebuttonfor4seconds)
- Toplay in fastrewindmode
-Toplay in fastforward mode
- Toplay/pause
4
SHA-QSW-0174_40BJxI.indd 1SHA-QSW-0174_40BJxI.indd 1 06/10/2020 12:50:4206/10/2020 12:50:42

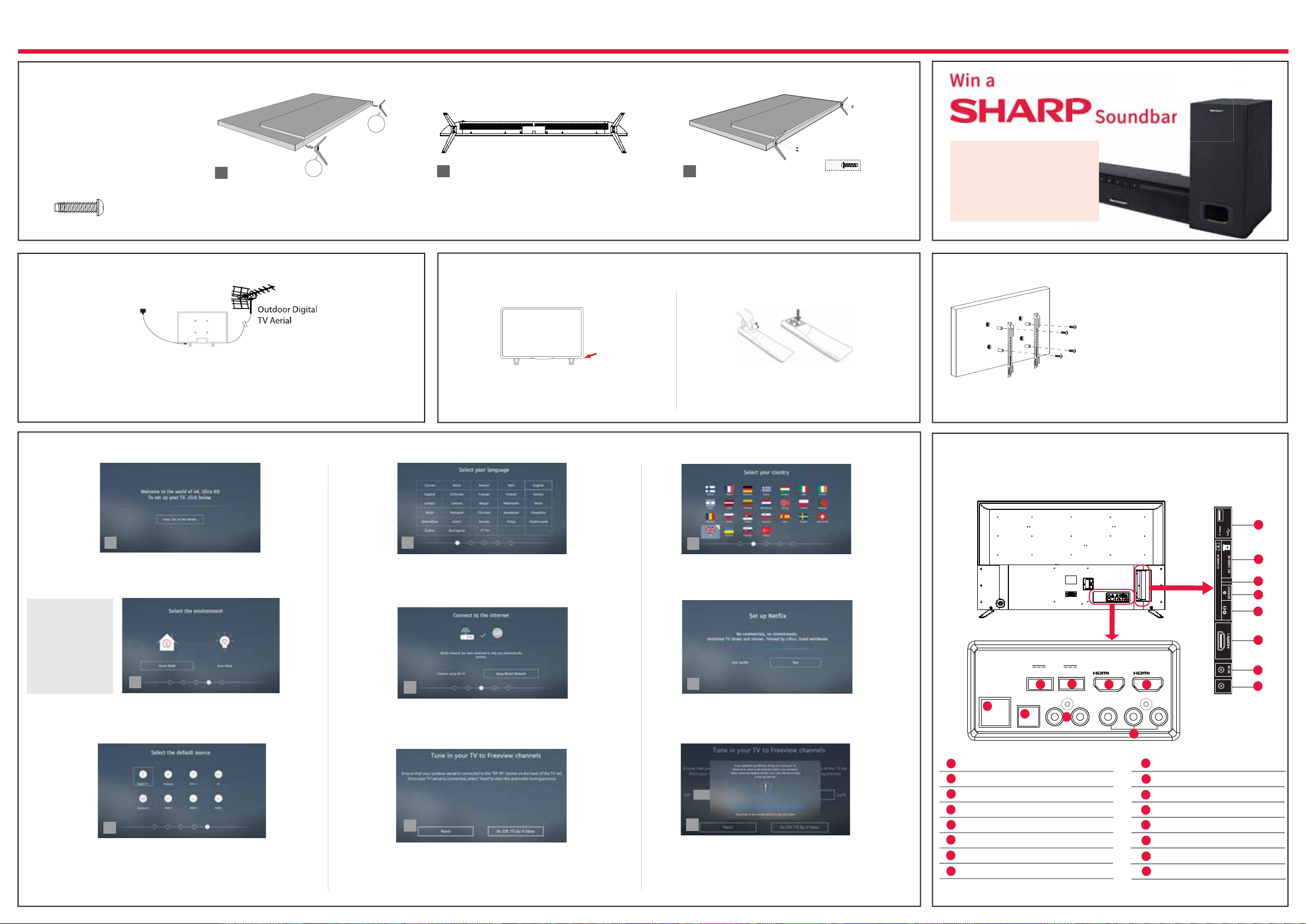

Connecting your set
4 First time installation
Introduction
When the set first turns on, it enters the First Time Installation
mode. This can be restarted by restoring the set to default settings
in the ‘About TV’ Menu.
Country Selection
Select the correct flag for the country in which the set will be
used in. This will enable the set to correctly install the functions
applicable in the country of use.
Environment of Use
Home Mode: For normal use, by default it is set to a power saving mode
which reduces the energy used by up to 25% (by reducing the power to
the LED/LCD panel). This can be changed in the picture mode settings.
Network setup
You can connect the TV to your broadband router or wireless network in order
to take advantage of the Smart functions. If you connect the TV to your router
using an Ethernet cable (recommended) this step will be skipped.
Set Up Netflix
If you have a Netflix account, it can be set up on the television
here. Once set up and validated, the First Time Installation
returns to the next step.
Default Source
Select the source which you use the most. If Digital TV (Freeview) is chosen,
then at the next step, the set will tune in and default to Digital TV (Freeview).
If one of the other sources is selected, then the set will not tune in at this
stage and default to that input. If it is required to tune the set in later, press
the [MENU] button and then select Settings>Channels
Tune in Channels
Choose to install terrestrial channels now or later.
Support Advice
Information regarding support is displayed for a little while.
Tuning continues and a progress bar is shown with the number of
channels found indicated below.
If you are picking up signals from more than one transmitter, you
will be requested to select your primary and secondary regions.
1 2 3
456
789
Basic installation steps are shown below. These may vary slightly depending on model.
Note: In home mode,
the TV will switch off
automatically after 4
hours in the event that
no buttons are pressed on
the TV or remote control.
(You can change this
by pressing the [MENU]
button and then selecting
Settings>Time>Auto
Standby)
Languages
Select your preferred on-screen display language. This will change the language
in which the menus and associated information is displayed in. When set up has
been completed, to change this press the [MENU] button and then select Settings >
System Menu > Language
HDMI input
Ethernet/LAN* Network connection
Digital Audio Digital Optical Audio Output
USB 1 USB port 2.0
USB 2 USB port 2.0
L/R HDMI input
HDMI 1 HDMI input
Video/YPbPr
SAT IN Satellite input
RF in RF / TV aerial input
HDMI 3 HDMI input (ARC)
Earphones Earphone input
Service Input
CI card in Common interface module
SD SD card input
USB 3 USB port 2.0
Setting up the TV set for the rst time
Connectivity
1) Connect the TV to your power socket.
2) If you wish to use the TV to receive Freeview/Saorview channels, connect the RF input from
the TV to your outdoor Digital TV aerial. If you do not wish to receive Freeview/Saorview, skip
this step.
2
* The Ethernet/LAN port is used for Freeview HD services and smart functions.
EARPHONE
SATI N US B 3(2.0)
900mA MAX
ARC
K
M
O
3Powering On the TV
Switch on the television by pressing the TV control stick
located on the TV set.
TV control stick
Insert the batteries supplied into the remote control and
press the standby button to power on the TV.
TV Control Stick Remote Control:
Installing Batteries
Terms and conditions apply. Online registration only.
Register your manufacturers
guarantee online within
14 days of purchase at
www.registertoday.co.uk/sharp
and enter into a prize draw to
win a Sharp Soundbar
A
H
L
K
B
I
M
C
D
E
F
G
J
1 2
ETHERNET
DIGITAL AUDIO
OUT OPTICAL L R VIDEO/Y Pb Pr
5V
500mA MAX
USB 1 (2.0)
5V
500mA MAX
USB 2 (2.0)
A
B
CD
E
F G I
J
L
N
P
Video Input (green) and HD input
(Ypbpr)
HDMI 2
Audio shared for Video/Composite
and component/ YPbPr
H
P
O
Input is used only by
service centres
N
L
R
Used for attaching the stand
to the TV set (g.2)
4 x
Place the TV set on a flat and clean surface
with the panel facing downwards to avoid
damage.
When the stand feet are installed correctly the
stand feet will be longest at the front of the TV
and shortest at the back with the feet pointing
away from each other.
When the stand/feet are in the correct position,
secure the feet to the underside of the TV set
using 4 screws provided.
Fitting the stand
1
124 x
3
4
1
2
3
TV panel must be facing downwards.
For the stand installation,
there is one type of screw
provided as shown below.
Note: To complete the stand
installation you will require a
cross head screw driver.
Wall Mounting the TV
Image for illustration only.
1. Remove the four screws that are supplied
in the wall mounting holes.
2. The wall mount can now be easily
attached to the mounting holes on
the rear of the TV.
3. Install the wall mounting bracket to the
television as advised by the bracket
manufacturer.
The picture shows the use of spacers, which
are not applicable to all sets/installations.
For the dimensions of the VESA mounting,
please refer to the Technical Specifications
section of this document.
Back/Shortest
Front/Longest
SHA-QSW-0174_40BJxI.indd 2SHA-QSW-0174_40BJxI.indd 2 06/10/2020 12:50:4906/10/2020 12:50:49
