1
70GS-62S
MODEL
70GS-62S
DE /GG / IT
SHARP CORPORATION
PAL BG SYSTEM COLOUR TELEVISION
SESG70GS62S00
SERVICE MANUAL
Issued: 30th May ‘01
This document has been published to
be used for after sales service only.
GA-10 CHASSIS
In the interests of user safety (required by safety
regulations in some countries) the set should restored
to its original condition and only parts identical to
those specified should be used.
ADJUSTMENTS PROCEDURES......................7

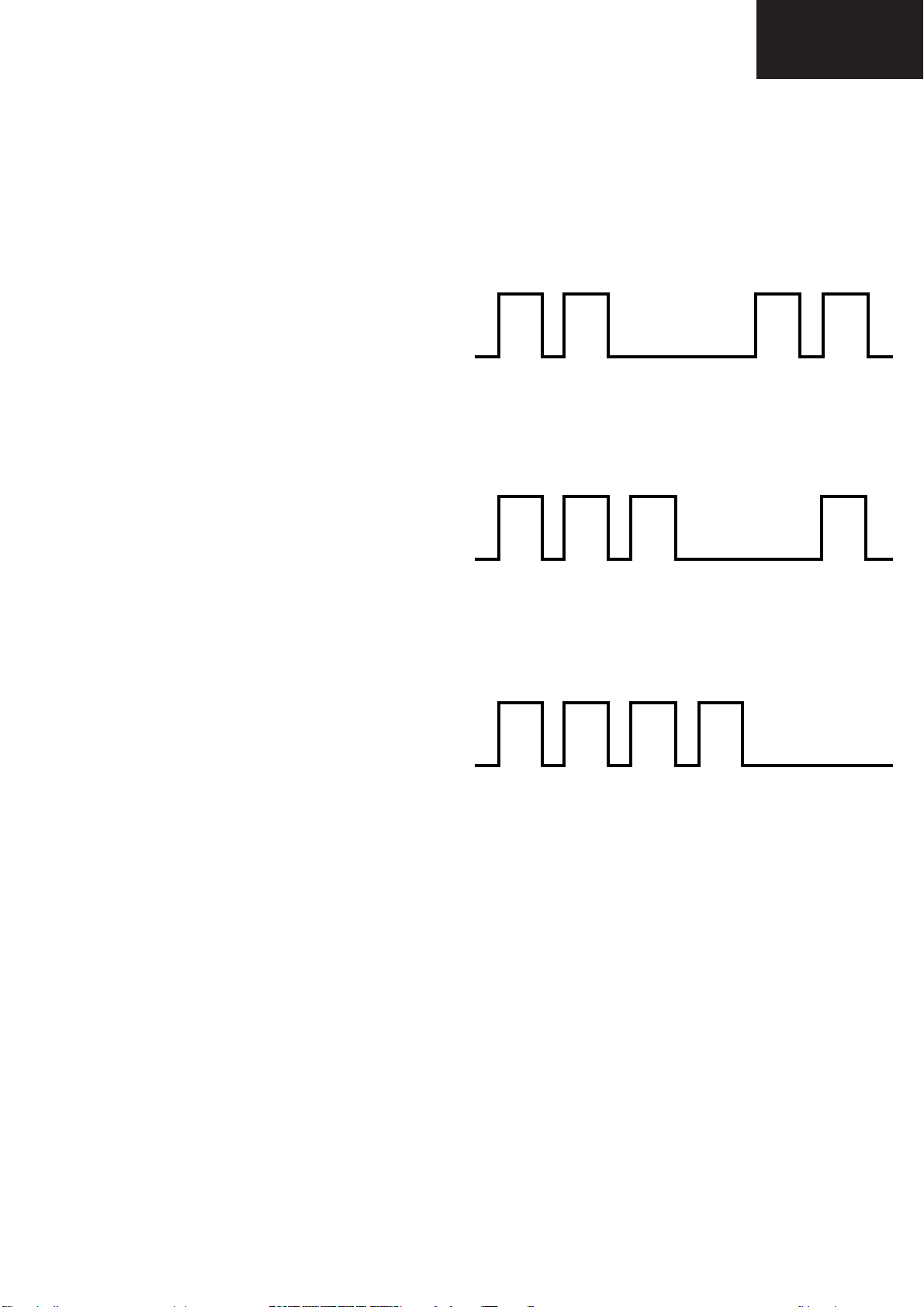

STEREO LED FLASHING CODES..................11 PARTS LISTING..............................................38
CONTENTS
ELECTRICAL SPECIFICATION........................3
IMPORTANT SERVICE NOTES........................4
CONTROL & TERMINALS.................................5
SCHEMATIC DIAGRAM..................................31

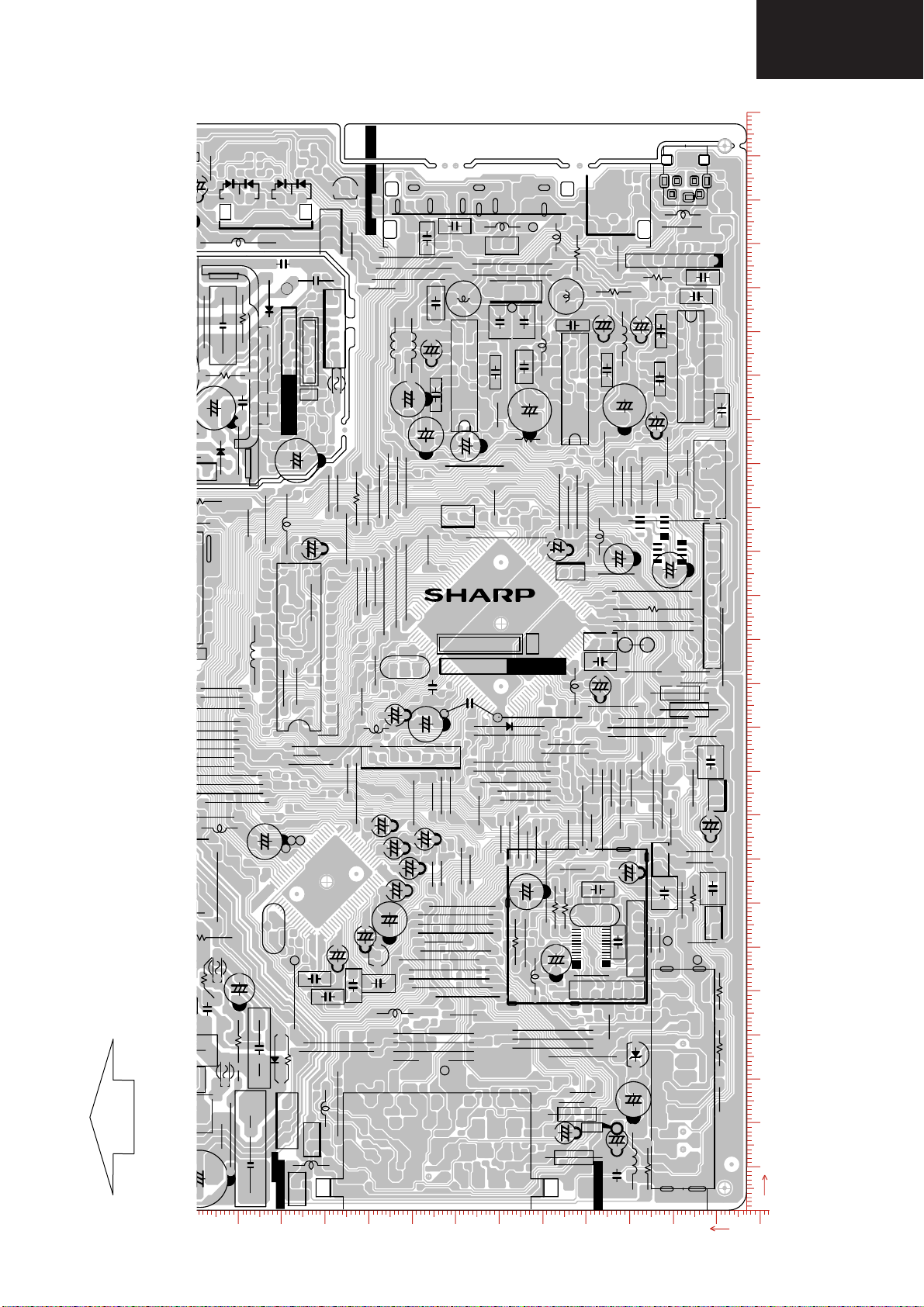

PRINTED WIRING BOARDS..........................12 PACKING OF THE SET & ACCESSORIES....46
CHASSIS LAYOUT...........................................16
ICs ADITIONAL INFORMATION.....................21
COMPONENT LOCATION TABLES................16
2
70GS-62S
Use this page to keep any special servicing information as Technical Report (Bulletin), Technical Information, etc.
If only part number changes are required, just change part number directly the part number in the Parts Listing Section.
If you need more information, please refer to the Technical Report (Bulletin).
SERVICE MANUAL UPDATE LOG SHEET
Part No.
Technical Report No.
Technical Bulletin No. Cause / Solution Page No. Application
Data /Serial No.
3
70GS-62S
ELECTRICAL SPECIFICATIONS
•Focus ....................... High Bi-Potential Electrostatic
•Sweep Deflection ..................................... Magnetic
•Picture Intermediate frequency................... 38.9MHz
•Sound Carrier Trap................................... 33.4MHz
•Adjacent Sound Carrier Trap ................... 40.4MHz
•Adjacent Picture Carrier Trap.................. 31.9MHz
.
•Aerial Input Impedance
VHF/UHF ...................... 75 ohm Unbalanced
•Tuning Ranges........... 48.25 MHz thru 855.25 MHz
VHF: E2-E12 CH
S1-S41 CH (Hiperband)
UHF: E21-E69 CH
•White Level
Set brightness control to get total picture tube cathode current of 600 milliammeter under no signal
condition. Maximum necessary correction of each picture tube cathode current to get 8900 de-
grees K-20 MPCD screen temperature should not exceed 15% of its original value.
X=0.290 Y=0.300
WARNING
The chassis in this receiver is partially hot. Use an isolation transformer between the line cord plug
and power receptacle, when servicing this chassis.
To prevent electric shock, do not remove cover. No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Specifications are subject to change without prior notice.
•Power Input .................... 220V-240 Volts AC 50Hz
•Power Consumption
Normal Operation ...................................87W
Stand-by Operation ..................................1W
•Audio Power Output Rating (MPO) / Impedance
Internal Left Speaker ...................... 10W, 7Ω
Internal Right Speaker .................... 10W, 7Ω
•Speakers
Left / Right ...................................... 12 x 6cm
•Convergence
Static (Centre) ........ between any two colours
Dynamic ..................... after static equals zero
MODEL DESTINATION & DIFFERENCES:
70GS-62SDE: Germany, Austria. Particular Operation Manual.
70GS-62SGG: Greece. No Operation Manual from Factory.
Greek Teletext (NVM: Page 00, Position 95, Value: 03 05).
70GS-62SIT: Italy. Particular Operation Manual.
4
70GS-62S
IMPORTANT SERVICING NOTES
Only qualified service personnel are allowed to carry out maintenance and repair of this receiver.
SERVICING OF HIGH VOLTAGE SYSTEM AND CRT
It is important that the static charge is removed from the high voltage system when carrying out work
on the receiver. This can be achieved by connecting a 10K resistor (with a suitably insulated lead) from
the CRT cavity connector to the CRT ground tag. This must be carried out with the AC supply discon-
nected from the receiver.
Note the following:
•The CRT in this receiver employs Integral Implosion Protection.
•If the CRT has to be changed it MUST be replaced with the correct type for continued safe
working
•DO NOT lift the CRT by its neck.
•When handing the CRT, ensure that shatterproof goggles are worn.
•Ensure that the CRT is discharge before handling.
X-RAY
This receiver is designed to keep any x-ray emission to an absolute minimum. Some fault conditions
and servicing procedures may produce potentially hazardous x-ray radiation levels. This is a problem
when in close proximity to the receiver for long periods of time. To reduce any risks associated with
this, please observe the following precautions:
1. When undertaking any servicing on this chassis, DO NOT increase the EHT to more than 29.9 KV,
(at a instantaneous beam current of 1300µΑ).
2. Ensure that during normal operation the EHT does not exceed 27KV±1.5KV (at a beam current of
1000µΑ). This level has been preset in the factory. Always check that this level has not been ex-
ceeded after carrying out any repair on the receiver.
3. DO NOT replace the CRT with any other type than that specified in the parts listing as this may
cause excessive x-ray radiation.
BEFORE RETURNING THE RECEIVER TO THE CUSTOMER
In addition to the above checks, the following should also be carried out before returning the receiver
to the customer.
1. Inspect all the leads to ensure that they are dressed correctly and that they are not obstructed or
pinched by any other parts.
2. Ensure that all protective devices are in good condition. These will include nonmetallic control
knobs, insulating fish papers, cabinets backs, compartment covers or shields, mechanical insulators,
etc.
5
70GS-62S
TV 1. Stand-by ON/OFF switch (TV)
Video 2. Power ON / OFF switch (VCR)
TV 3. Digit b ttons 0 ∼ 9
4. Flashback b tton
Teletext 5. Colo r b tton (green)
6. Colo r b tton (red)
TV 7. Vol me Down/C rsor control Left
8. Men b tton
Teletext 9. Reveal b tton
10. List selector
11. Store b tton
12. Cancel b tton
13. Top/ Bottom/F ll b tton
14. Reset b tton
Video 15. Rewind/pict re search/reverse
16. Play b tton
17. Pa se / Still b tton
18. Stop b tton
TV 19. TV / VIDEO selector
20. Channel call b tton
21. Single/Do ble entry
Teletext 22. Colo r b tton (yellow)
23. Colo r b tton (bl e)
TV 24. Channel Up/C rsor control Up
25. Vol me Up/C rsor control Right
26. Channel Down/C rsor control Down
27. TV b tton / S btitle
TV/Teletext 28. Time b tton
TV 29. So nd mode selector
Teletext 30. Hold b tton
TV 31. So nd M te b tton
Teletext 32. Text/Mix b tton
33. Index b tton
Video 34. Channel Up selector
35. Fast forward/pict re search/forward
36. Channel Down selector
37. Record b tton
8
?
I
i
LIST
X

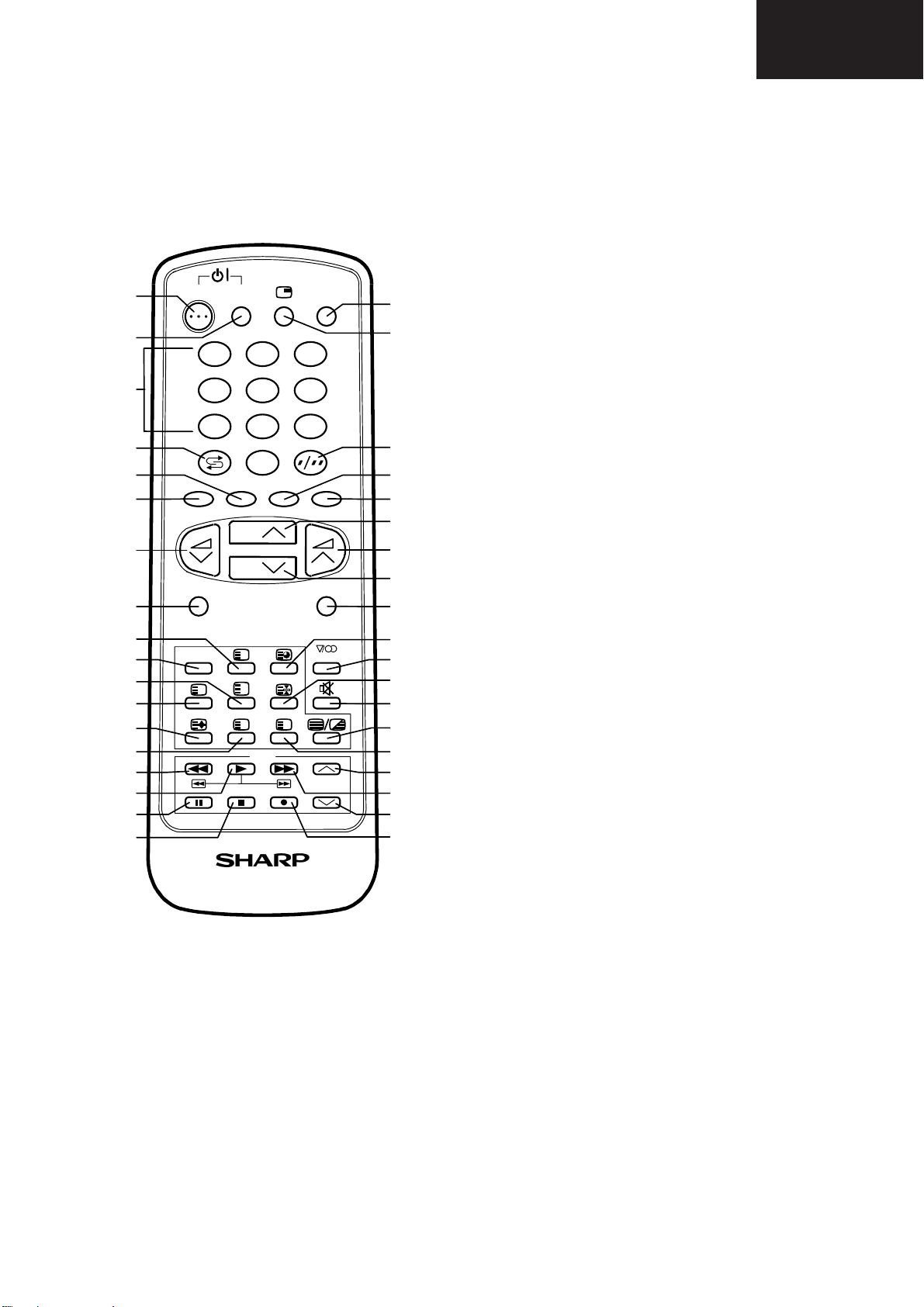

TV / VCR / TEXT REMOTE CONTROL
G1061SA
TV/VIDEO
0
M NU
CH
VCR
S
I/II/I+II
TV VCR
TV
CH
CH
2
5
1
4
7 9
6
3
32.
34.
33.
31.
35.
36.
37.
30.
29.
27.
28.
25.
26.
24.
23.
20.
19.
21.
22.
2.
3.
1.
4.
5.
6.
7.
8.
9.
10.
11.
13.
14.
15.
16.
17.
18.
12.
REMOTE CONTROL
6
70GS-62S
CH
1 5 3 2 6 6 4 8 7
/ I / II
OPC
FRONT TV
1. Main Power
On/Off Switch
2. Power Indicator
3. Program Selector
(UP/DOWN)
4. Vol me B ttons
(UP/DOWN)
5. Remote Control Sensor
6. So nd Indicator
7. Remote Control Indicator
8. DOOR
Behind the door
9. Headphone Socket
(3.5 mm Ø / 16~600 ȍ)
HOW TO OP N TH DOOR
Press the top of the door, opening it slightly.
Hook yo r finger inside and p ll open.
OPC
R AR TV
RF Input
1. Antenna terminal
21-pin In/Out
2. 21-pin E ro SCART (RGB)
3. 21-pin A dio/Video (AV-1)
With S-Video Inp t
9
AV/T RMINAL
SCART
P RIT L VISION
2
3
1
CONTROLS & TERMINALS
7
70GS-62S
ADJUSTMENT PROCEDURES
All adjustments to this chassis, except for focus, are carried out in the service mode.
••
••
•SERVICE MODE
The service mode is provided to enable the engineer to correctly set up the receiver to the CRT fitted in the set.
Note that these adjustments may vary from one receiver to another.
To enter the service mode, carry out the following procedure.
1. Connect a test pattern to the antenna terminal.
2. Tune the receiver to this signal.
3. Turn the receiver off using the mains switch.
4. Press volume down and channel up buttons on the
front of the receiver at the same time. See Fig.1.
5. Keeping these buttons pressed, turn the mains on. See Fig.1.
6. When the set starts up it will be in service mode.
7. Release the two buttons.
••
••
•Use the channel up and down buttons to move between the options.
••
••
•Use the volume control buttons to change the data.
••
••
•To store the data, use the stand-by button on the remote control.
••
••
•To exit the service mode, turn the receiver off using the mains switch.
When the service mode is entered the following On Screen Display appears
-SERVICE SOFTWARE AND HEXADECIMAL COUNTER DISPLAY:
SW ON XXXX SW OFF XXXX HOURS ON XXXX
The figures displayed in the XXXX locations are hexadecimal representations of the number of times that particular
function has been executed. For example if the hexadecimal number displayed after SW ON was 0E4A, this would
correspond to the receiver being turned on 3658 times.
Adjustment menu:
The following adjustments can be carried out in the service mode.
•Horizontal Shift
• East West Width
• Pin Phase
• Pin Amp
• Corner Amplitude
• Corner Symmetry
• Vertical Linearity
• Vertical Angle
• Vertical Bow
• Vertical Amplitude
• S Correction
• Vertical Shift
• Red Gain
• Green Gain
• Blue Gain
• Red Cut Off
• Green Cut Off
• Blue Cut Off
• Alter NVM Page
• Alter NVM Position
• Alter NVM Value
• Teletext Mix Mode Contrast
• Teletext Contrast
• OSD Contrast
• DVCO Adjustment (Only PAL)
• DVCO Adjustment (Only NTSC)
• AGC Adjustment
• Auto Installation On/Off
8
70GS-62S
The following geometry adjustments can be carried out. Detailed instructions on how to execute these are given on
the following pages
Horizontal
• Horizontal Shift
• E-W Width
• Pin Phase
• Pin Amp
• Corner Amplitude
• Corner Symetry
Vertical
• Vertical Amplitude
• S Correction
• Vertical Shift
• Vertical Linearity
• Vertical Angle
• Vertical Bow
Just in case the TV set requires a full geometries adjustment, please proceed first with
Vertical according to the above order, and after that, adjust Horizontal according to the
above order.
Horizontal Shift
Adjust the horizontal shift so that the picture is centred.
The effect of this adjustment is shown in figure 2.
•When the volume up button is pressed, the picture moves to the right.
•When the volume down button is pressed, the picture moves to the left.
•Press the stand-by button on the remote control to store.
E-W Width
Adjust the E-W Width so that 9% over-scan is achieved.
The effect of this adjustment is shown in figure 3.
•When the volume up button is pressed, horizontal scanning increases.
•When the volume down button is pressed, horizontal scanning decreases.
•Press the stand-by button on the remote control to store.
Pin Phase
Adjust the Pin Phase so that the picture is symmetrical top and bottom.
The effect of this adjustment is shown in figure 4.
•When the volume up button is pressed, side pincushion changes.
•When the volume down button is pressed, side pincushion changes.
•Press the stand-by button on the remote control to store.
Pin Amp
Adjust the Pin Amplitude so that the picture is centred.
The effect of this adjustment is shown in figure 5.
•When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel
shape to pincushion.
•Press the stand-by button on the remote control to store.
Corner Amplitude
Adjust the Corner Amplitude so that the picture is centred.
The effect of this adjustment is shown in figure 6.
Note: This adjustment affects to upper and lower sides.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
•When the volume down button is pressed, side pincushion changes from barrel
shape to pincushion.
•Press the stand-by button on the remote control to store.
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
9
70GS-62S
Corner Symmetry
Adjust the Corner Symmetry so that the picture is centred.
The effect of this adjustment is shown in figure 7.
Note: This adjustment affects to upper and lower sides.
• When the volume up button is pressed, side pincushion changes from pincushion to
barrel shape.
• When the volume down button is pressed, side pincushion changes from pincushion to
barrel shape.
• Press the stand-by button on the remote control to store.
Vertical Linearity
Adjust the Vertical Linearity so that the upper and lower parts of the picture are symmetrical.
The effect of this adjustment is shown in figure 8.
• When the volume up button is pressed, the upper picture scanning decreases and the
lower picture scanning increases.
• When the volume down button is pressed, the upper picture scanning increases and the
lower picture scanning decreases.
• Press the stand-by button on the remote control to store.
Vertical Angle
Adjust the Vertical Amplitude so that the picture is centred.
The effect of this adjustment is shown in figure 9
• When the volume up button is pressed, the vertical angle changes to right.
• When the volume down button is pressed, the vertical angle changes to left.
• Press the stand-by button on the remote control to store.
Vertical Bow
Adjust the Vertical Bow so that the picture is centred.
The effect of this adjustment is shown in figure 10
• When the volume up button is pressed, the vertical bow changes to right.
• When the volume down button is pressed, the vertical bow changes to left.
• Press the stand-by button on the remote control to store.
Vertical Amplitude
Adjust the Vertical Amplitude so that the picture is over-scanned.
The effect of this adjustment is shown in figure 11.
• When the volume up button is pressed, the vertical size of the picture decreases.
• When the volume down button is pressed, the vertical size of the picture increases.
• Press the stand-by button on the remote control to store.
S Correction
Adjust the S Correction so that the picture symmetrical between the top, centre and bottom.
The effect of this adjustment is shown in figure 12.
• When the volume up button is pressed, the top and bottom scanning increases and the
centre scanning decreases.
Fig.8
Fig.12
Fig.11
Fig.10
Fig.9
Fig.7
10
70GS-62S
Colour Adjustments
The following adjustments should only be carried out when
the CRT IC801 are replaced.
G2, Cut Off and Gain Adjustments
1. Follow the procedure below to set the G2
1.1 Tune the set to the output of a signal generator
(cross hatch pattern).
1.2 In the user menu, set contrast to 80/100 and
brightness to 40/100.

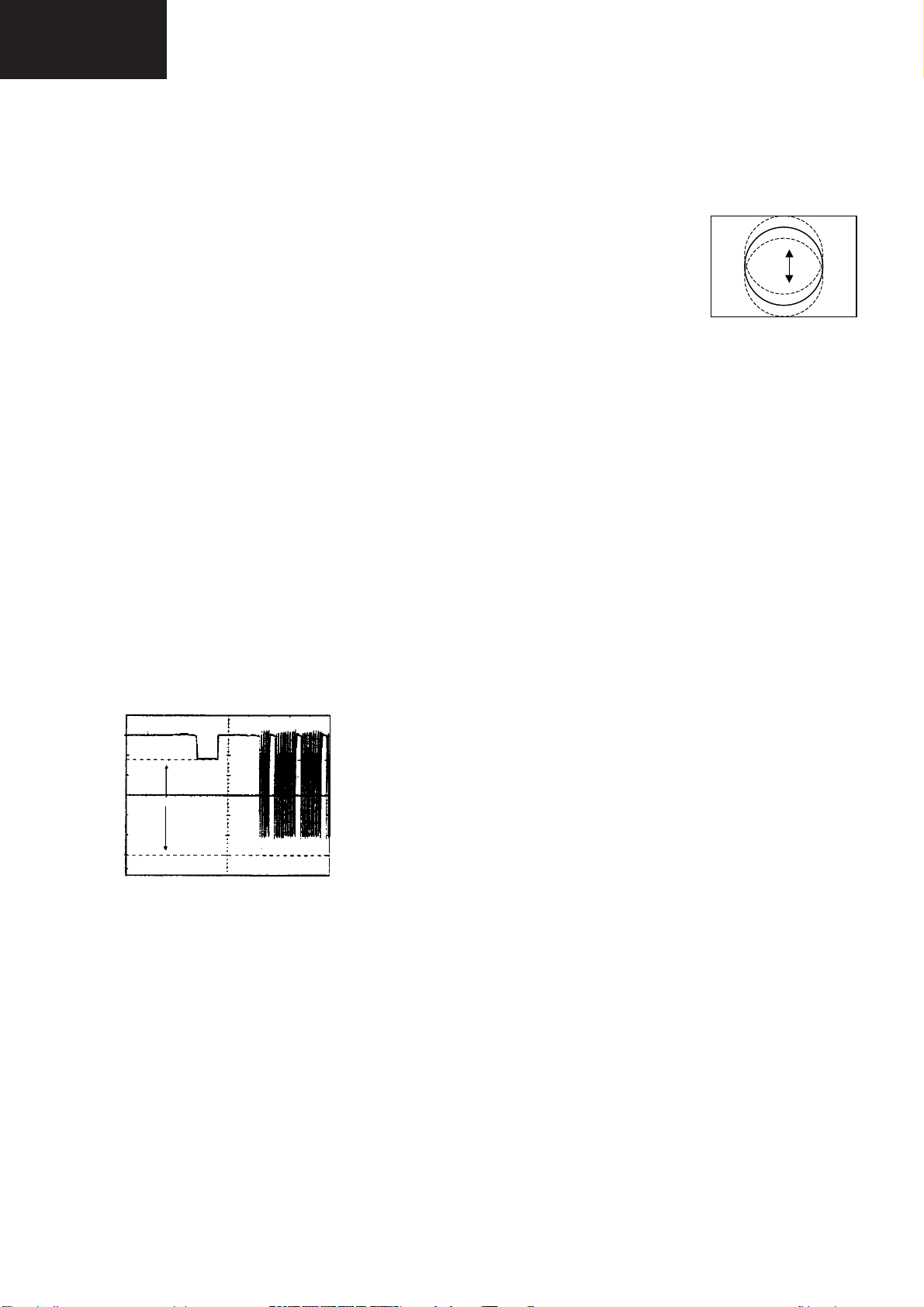

1.3 Connect the oscilloscope to the red cathode and
adjust G2 to read 140V on the sensor pulse as
in the drawing:
NOTE:
Oscilloscope should be adjusted for vertical TV field trigger
and synchronized with video signal.
2. Follow the procedure below to set the Cut Off.
2.1 Adjust G2.
2.2 Tune a white card.
2.3 Adjust colour to minimum.
2.4 Position colorimeter in the centre of screen.
2.5 Adjust brightness and contrast to obtain a lumi-
nance of ≈20 NITS.
2.6 Operate in Service Mode and select location RED
CUT OFF, GREEN CUT OFF and BLUE CUT
OFF, to obtain colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease press
volume down button.
RED CUT OFF alter «X» coordinate.
GREEN CUT OFF alter «Y» coordinate.
BLUE CUT OFF alter «X» and «Y» coordinate.
3. Follow the procedure below to set the GAIN.
3.1 Using brightness and contrast buttons, select a
luminance of ≈120 NITS.
3.2 Operate in Service Mode and select location RED
GAIN, GREEN GAIN and BLUE GAIN, to obtain
colour coordinates:
X=0.290 ± 0.015 Y=0.300 ± 0.015
To increase press volume-up button and to decrease
press volume down button.
RED GAIN alter «X» coordinate.
GREEN GAIN alter «Y» coordinate.
BLUE GAIN alter «X» and «Y» coordinate.
3.3 Exit Service Mode and check colour coordinates
«X» and «Y» at 20 and 120 NITS. It may be nec-
essary to repeat procedure 2 and 3 of Colour
Adjustments.
Changing NVM Data
To change the data contained within the Non Volatile
Memory, it is necessary to first select the page the data is
stored in, then the position and finally to change the data
itself. The procedure below outlines this process.
1. While on ALTER NVM PAGE, use the volume up/down
buttons to change this data (data is shown in hexadecimal
format).
2. Press the channel up button and ALTER NVM POSITION
appears, use the volume up/down buttons to change this
data (data is shown in hexadecimal format).
3. Press the channel up button and ALTER NVM VALUE
appears, use the volume up/down buttons to change this
data (data is shown in hexadecimal format).
• When the volume down button is pressed the top and bottom scanning decreases and
the centre scanning increases.
• Press the stand-by button on the remote control to store.
Vertical Shift
Adjust the Vertical Shift so that the picture is centred.
The effect of this adjustment is shown in figure 13.
• When the volume up button is pressed, the picture moves down.
• When the volume down button is pressed, the picture moves up.
• Press the stand-by button on the remote control to store. Fig.13
140 V
CH1 gnd
11
70GS-62S
4. Once this data has been set, press the stand-by button
to store.
5. If another NVM value has to be changed, use the chan-
nel down button to select the page or position and repeat
as necessary.
Note:
DO NOT change any NVM data, unless you have been ad-
vised to do so by a Sharp representative. If data is incor-
rectly changed, serious damage may occur to the receiver.
Contrast Adjustments
Three types of contrast levels can be varied as listed be-
low:
• TELETEXT MIX MODE CONTRAST
• TELETEXT CONTRAST
• OSD CONTRAST
Use the volume up/down buttons to adjust to a suitable level,
then press the stand-by button to store.
DVCO Adjustment (PAL)
Carry out the DVCO Adjustment (PAL) as shown below:
1. Receive a Phillips pattern signal.
2. While in the DVCO ADJUSTMENT (PAL) menu, press
the stand-by button.
3. The adjustment will be carried out automatically and
stored.
DVCO Adjustment (NTSC)
No adjustment required.
AGC Adjustment
To correctly align the Automatic Gain Control, follow the
procedure outlined below:
1. Tune the set into a pattern generator on CH10.
2. Adjust the signal strength of the pattern generator to 57
dB/uV
3. Enter the service mode.
4. Enter the AGC Adjustment menu.
5. Press the stand-by button on the remote control.
6. The adjustment will be carried out and stored automati-
cally.
Auto Installation On/Off
To return the receiver to the original Auto Installation mode,
using the volume up or down button, set the Auto Installa-
tion On/Off to On. This setting is automatically stored and
when the receiver is turned on the next time it will start up in
Auto Installation mode.
STEREO LED FLASHING CODES.
If the TV set does not work and the stereo led is flashing,
follow the sequence according to the information below, as
a guide to fault finding.
1. Unable to read or write into NVM: 66% ON, 33% OFF
twice and OFF for a second.
2. MSP failure: 66% ON, 33% OFF for three times and
OFF for a second.
3. VCT failure: 66% ON, 33% OFF for four times and OFF
for a second.
On Off
On Off
On Off
12
70GS-62S
Page 13
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
X
010 11 12
123456 789
JF64
D719
D798
F703
F702
JF65
3
2
1
(M)
C710 J15
C729
+
R503
R553
J242
R651
C619
J275
C617
L605
J322
F602
C705
Q502
J309
C711
D749
POR701
C720
+
JF702
C731
+
Q709
R738
J39
C732
+
AK
J206
TP602
TP601
TP701
D607
C602
J16
L3
TRC
GND
12 11 10
9
8
7
6
5
L901
R907
C901
+
R554
R531
J153
+
D712
JF27
K
IC702
R
+
C726
J65
T702
C628
(F)
12
34
5
C601
C621
C1019
+
J5
J2
R798
D740
+
C734
C625
J38
C713
R787
C738
R530
R609
(H)
5
R650
R617
J142
Q702 J116
C796
R723
C717
R718
C799
C704
R714
J4
C702
+
C511
C613
R747
J68
M1000
D610
J205
J15
F601
J212
J214
J213
C630
J216
D602
J239
IC703
J16
J273
J272
J15
J217
J16
J16
J16
C504
T3.15AH
S701
L701
L501
Q605
B
C
E
Q601
R614
S705S704 OPC1
S703S702
T601
12
11
10
9
8
76
5
4
3
2
1
(L2)
C622
+
C623
C620
R629
J276
J16
T701
J32
J16
D611
J152
J151
D701
C703
D704
C706
D703
J15
R746
R214
R501
+
C618
D605
C609
+
J296
R
IC705
K
D510
C640
+
FB501
+
C526
J122
IC501
J74
J155
J148
J207
FB603
R518
C721
D736
D729
Q703
D709
D613
D612
R790
J37
C798
Q701
DIP
L705
J149
+
C735
J215
J115
C725
C730
R799
C727
+
LP701
C701
D702
(G)
2
1
J67
J118
J117
F704
D722
+
C728
D720
D721
+
C733
R603
L609
D634
J40
C642
+
C707
Q602
JF28
C603
J34
+
C712
J35
C524
+
C709
D621
J166
R908
C905
R906
J1
+
C520
L610
J307
FB702
FB701
C627
FB703
(H).
1
C904
+
D627
+
C737
J165
JF61
C914
J326
D609
R601
R602
VAR1
F701
F7315N4. MOTHER UNIT PWB. Component side.
13
70GS-62S
Page 12
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
20 21 22 23 24 2513 14 15 16 17 18 19
L318
R936
J159
C809
+
C1040
(AV).
C619
75
R618
17
JF63 R627
JF62
J295
L1007
R387
JL13 C402
JL12.
J269
JL14. C404
C916
R213
+
C308
IC708
I
C316
+
C309
JL8
J281
J280 J286
J285
L602
JL7
JF55
L351
J17
JF46
JF47
J202
J139
J47
JF702
+
C1041
J83
+
C909
R738
J263
C1005
+
J203
J237
J238
R252
J236
J235
L401
R223
J259
R337
TP201
C1016
JL8.
FB303
J16
R904
+
C803
19 IC901
.F7316BMN4
G2
.
TRC
J218
J169
J173
J125
J126
J170 L801
JF38
J284
1
12
(SA)
J107
J105
J106
J102
(RT)
J108
L1001
J99
J98
C201
X201
R652
C626
+
J230
J187
J233
J234
C801
+
C220
J279
J250
JF37 J171
J228
J227
J226
J222
J179
J225
J232
J223
J251
R202
J224
J181
J190
J110
5
C1019 J5
L302
J13
J195
J193
X1002
+
C215
1
1
1
RGB AV1
J156
C320
+
E
Q708
C
J167
K7315BM
.
J103
J100
J30
C386
J290
C643
C388
L303
R358
J20 J19
(VS)
L350
C362
+
C358
J158
J217
J163
J162
J56 J55
C355
IC302
C373
R355
F7315BMN4
ESPA¥A
TN201
AGC
TU
AS
CL
DA
B+
33V
IF1
IF2
J161
L202
C204
+
J262
51
SF201
SF202
1
5
C205
81
IC304
J401
CN4
4
2
6
5
317
QKITP7315BMN4
D1001 D1002
IC1002
IC305
R219 R220
R629
J276
C624
C319 C317
J160
C392
J321
J164
+
C311
J23
J24
L352
(SP) 1
C361 C376
IC301
C353
J18
C370
L353
L315
C365 +
J52
R359
L316
+
C377
C3308
C3309
C372
+
C368
C378
+
C3310 +
J136
+
C1001
J191
J192
J91
J92
(SB)
1
6
J247
J248
J249
J243
J244
J245
J257
J246J253
C212
+
C389
J127
J157
X301
J178
J95
AV1
IC202
1
(MO)
J268
J266
J62
J114
C1006
+
IC501
5
L203
J194
+
C330
+
C1031
J220
J221
C304
+
+
C301
J289 FB302
1(K)
8
+
C805
+
C302
J177
J189
J180
J219
J97
J94
J96
J184
JF54
J140
JL1.
J172
J196
J201
J198
0
(K).
1
C902
D901
C915
+
C422
R203
J231
JL3
C524
C318
R631
D630
J183
J166
J137
R908
C905
K7316BM
L1004
J89
J88
J90
R1036
J93
J9
JL1
JL7.
JF48
J176
C303
+
J44
J45
(AV)
J109
J111
J61
C351
+
J59
J113
D1007
J197
JF32
JF36
J277
J278
J287
J282 J283
J182
C221
(H).
1
D903
J310
L403
JL14
+
C222
JL13. L402
+
C363
L301
J165
FB402
FB401
J188
FB801
1
02
C312
+
JL17
JL17.
C356
J138
JL12 J328
J82
J133
C1027
F7315N4. MOTHER UNIT PWB. Component side.
14
70GS-62S
Page 15
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Y
19 18 17 16 15 14 1325 24 23 22 21 20
C1051
C1017
J329
JF72
JF69
J298
L318
C1049
C1048
J258
R208
C208
Q906
J159
J308
R423
C809
+
D622
K
C223
K
D628
J29
R333
C305
C306
Q1005
J319
J318
J317
D1003
K
R935
R934
C339
R413
C543
J295
C1013
C1015C1014
R1023
R1026
L1007
C424
J256
R387
Q403
C402
J269
JF59
C433
C404
R901
C916
C1046
C1045
C397
C1044 C385
R330
R213
R405
D404
K
D403
K
J10
IC1009
JF4
C741
+
C308
IC708
C316
C307
K
D723
C310
+
C309
C323
J281
J280
J286
J285
R1018
L1005
C405
J32
JF55
J43
C380
J22
L351
J17
JF46
JF47
J202
J139
R339
JF44
J47
K
D204
C214 D205
K
C213
R240
J85
JF702
C1042
+
C1041
J83
J104
C911
R905
C910
J42
+
J101
J79
J
J80
R738
J292
R221
R210
C209
R211
R212
J265
J263
J294
J270
C1030
C1004
+
J203
J204
J237
J238
R252
J236
J235
R222
R509
L401
C423
C382
R337
R386
C802
C1028
R801
R410
R418
R322
J300
D422
K
D408
K
R225
R1004
C324
C326
J16
R904
+
C803
IC901
9
1
R921
Q907
R926
Q908
R915
R918
Q910
R933
R927
Q909
R932
R922
R923
C908
R919
R917
R916
R903
Q904
Q905
R925
R910
R911
R912
R914
R902
C907
R913
Q901
C906
Q902
R909
R920
Q903
C359
C407
C327
J175
R802
J173
J125
J126
K
D1008
J170
L801
C350
JF38
R303
R628
J284
R1008
12
(SA)
J107
J105
J106
J102
R362
J108 L1001
C1008
L1003
C1010
J99
C1011
J98
C201
X201
R652
D623
K
JF29
Q609
+
C431
J230
C216
J187
J233
J234
C801
Q204
+
C220
J279
C427
C428
C337
C341
JF26
R321
JF23
C430
C347
C429
C348
J250
C203
JF25
R416
JF24
D1004
K
JF37
J171
J228
J227
J226
J222 J179
J225
R422
J229
J232
J223
J251
J252
J261
J190
J110
J50
R385
Q306
+
J5
R332
R328
JF19
L302
R329
C523
K
D1009
G
C343 C344
J302
J299
J193
+
C215
Q1006
C1020
J25
JF18
R1007
Q707
Q706
Q405
Q404
Q305
R1037
R1034
R1025
J185
R1015
R1014
R1013
R1010
R1009
R1005
R1003
R758
R757
R756
R755
R625
R624
R
R450
R434
R421
R420
R411
R409
R407
R370
R369
J48
R357
R356
R353
R347
R346
R345
R344
R338
R336
R335
R334
R331
R326
R325
R324
R323
R320
R319
R313
R312
R311
R310
R309 R308
R230
R209
R207
R206
R204
R201
JF15
JF14
J28
J8
J7
J21
J53
J301
C3313
C3304
C3305
C3303
C3302
C3301
C3300
C1021
C1012
C211 C210
C207 C202
KD724
K
D203
D202
K
L205
J156
C320
+
D727
K
E
C
Q708
R406
K
D421
IC1003
J167
D1006
K
J103
J100
K
D406
J30
J290
C388
L303
R358
J20
J19
(VS)
L350
C362
+
C358
J158
J217
J163
J162
IC1004
J56 J55
C355
C373
R355
IF2
IF1
B+
DA
CL
AS
TN201
J161
+
D201K
IC201
SF202
C205
IC1001
1
8
1
IC304
J401
CN4
D100
D1002
V
32
17
16
1
IC1002
R219 R220
C623
C319
C317
J160
J321
J164
+
C311
J23
J24
L352
(SP)
1
C361
C376
C353
J18
C370
C365
+
J52
R359
L316
+
C377
+
C368
C378
+
+
J136
+
C1001
J191 J192
J91
J92
(SB)
K
D409
K
D410
J247
J248
J249
J243
J244 J245
J257
J246
J253
C212
+
J157
IC303
1
24
25
80
J178
J95
1
D420
K
D411
K
IC202
R412
1
(MO)
J266
R419
J62
J114
K
D1005
C321
C325
C340
C357
C360
C366
C367 C369
C371
C374
C375
C379
C383
C384
C387
C390
C391
C403
C502
C503
C506
C507
C510
J14
J271
J260
J84
J6
J64
J58
J54
J27
J49
J51
J31
J57
J15
J267
J264
J60
J112
J288
J291
J186
J255
JF5
JF6
JF7
JF8
JF9
JF10
JF12
JF13
Q1001
Q1002
Q1003
Q1007
Q1008
J124
C505
+
J74
JF17
R1040
R408
L203
J26
R380
R381
R382
R352
C354 R383
C1024
C1018
L1006
J194
+
C330
+
C1031
J221
K
D305
R306
R304
+
K
D304
+
C301
J289
FB302
1
(K)
+
J134
R804
R301
+
C302
R302
R1011
J177
R305
J189
J254
J219
J11
C1009
J97
J94
J96
C408
C409
JF54
J140
R1041
J174
J172
C346
R1024
J129
J130
C393
R340
C394
C396
C395
R341
C1002
L1002
C322
JF1
R217
J196
R1020
C1034
R361
C1037
Q201
C1038
R931
6
D901
C915
C217
C218 C206
C219
R630
+
C422
R203
R205
J231
C524
Q202
C912
R1035
C318
R1016
J166
J137
R1001
R1002
R1006
R908
C905
R803
J128 J86
J87
D902
K
C381
L317
JF39
J89
J88
J90 R1036
J93 J9
JF53
JF48
J176
JF50
+
J44 J45
JF16
JF52
C399
C398
R342
J63
J109
J111
J61
C351
+
C352
J59
J113
D1007
J197
R435
J277
J278
J287 J282J283
J182
C221
J304
R766
J305
J33
R360
1
D903
J310
C904
C1033
K
D1011
C1060
C338
R231
L403
R415
D405
K
R414
J311
JF58
+
C222
C432
R417
L402
J81
C1036
C1043
D306
K
J314
R343
J313
J315
J316
J312
L1008
JF43
+
C363
C364
R351
J46
R350
R327
C345
KD423 K
D424
C342
K
D425 K
D426
R318
K
D407
L301
K
D303
K
D302
R307
C313
J165
FB402
FB401
J188
C225
C224
R1022
FB801
J297
+
R384
C328
C329
C356
C1007
C1003
J138
J328
C810
C1032
C1006
J82
JF66
JF67
JF68
J133
J168
JF71
JF70
C804
C521
F7315N4. MOTHER UNIT PWB. Copper side.
15
70GS-62S
Page 14
Y
X
22
23
24
25
17
18
19
20
21
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
0
10 9 876 54 3 2113 12 11
JF64
D719
D798
D744
K
D742
K
F703
F702
JF65
(M)
1
2
3
J303
C710
K
D737
D747
K
J75
R548
R535
K
D604
R550
D508K
K
D511
R502
J159
C729
+
R503
R505
C604
R635 C632
R760
R633
C629
R639
R643
C631
J306
R626
J327
C617
K
D628
D904 K
K
D905
D906
K
R656
R728
R721
J324
J322
C606
R215
J320
R1033
R935
F602
JF60
R1099
R744
R745
R516
R511
R791
C705
K
D746
B
E
Q502
J309
D606
K
R612
K
D617
JF57
R709
R710
R716
R788
R786
Q721
R750
C711
D749
JF701
R611
C736
R735
R733
D512
K
R767
R544
C534
POR701
R1032
+
R759
J72
C731
+
C550
Q709
J77
J76
J79
J78
J80
8
J39
+
JF1015
JF1016
J206
R509
Q603
C512
C740
JF3
C542
R1039
J147
C719
D739
K
JF35
JF34
R644
D607
K
D631
C913
J16
.
L3
+
F7316BMN4
12
11
10
9
8
7
65
GND
L901
R907
C901
R782
R632 C525
R725
R554
R795
J153
R628
+
R749R772R773
KD735
D712
R506
JF27
IC702
K
D728
R652
+
C726
R713
R752
Q704
R705
J65
Q720
C628
(F)
1
2
C621
KD629
C1019
+
J5
J2
R798
R717
D740
R768
Q713
J143
K
D733
+
R732
C625
D
S
G
J38
K
D743
R726
R753
R701
D730
K
C738
J209
J208
R530
J210
J146
5
R650
D615
K
R617
K
D713
J116
R722
D717
K
K D734
R723
R718
C799
C704
R714
D716
K
.
C1022
J4
C702
R645
R551
Q510
R552
J123
+
C511
R513
J119
C522
R549
R534
R508
R526
R528
C613
IC502
Q507
J73
J120
R545
R747
Q611
Q608
Q606
Q604
R1017
R1013
R638
R637
R620
R608
R604
R515
R510
R369
JF1013
JF1012
JF1011
JF1010
JF1009
JF1008
JF1007
JF1006
JF1005
JF1004
JF1003
JF1002
JF1001
JF21
JF20
M1000
Q613
D626
K
156
F601
J214
J213
C630
J216
D602
J239
IC703
7
L606
J273
J272
IC601
Q503
J158
17
63
62
S701
B
E
Q605
Q601
R614
S705 S704
D1001
S703 S702
+
12
11
10
9
8
7
6
5
4
3
2
1
T601
C622
+
C623
C620
J160
J164
IC1008
J152
J151
D701
C703
D704
C706
D703
R765 R774
J157
R746
R214
K
D619
K
D625
K
D608
+
C618
+
2
3
6
7
C508
0
C610
J6
J145
J296
IC705
R
5
D510
+
J293
R517
R547
R504
R514
Q505
J121
R512
+
J122
R623
C641
R770
R771
4
R783
J155
J148
Q712
R715
R751
Q723
C723
K
D731
R731
C721
D736
D729
R727
R704
Q725
C716
K
D738
D708
KKD725
R781
R729
Q715
R724
R720
R779
R719
Q1004
D706
K
D705
K
D613
D612
R790
R785
D741
K
R703
IC701
J37
R706
R712
R708
C798
K
D714 J66
K
D707
F7315BMN4
L705
+
C735
J215
J115
C713
C725
C730
R799
C607
C727
+
J3
LP701
C701
R622
D702
2
1
(G)
J67
R754
Q705
R748
Q610
R742
R794
R777
+
J69
R250
K
D715
J71
J70
R784
R507
L609
D634
D635
K
R736
R776
R761
Q714
R792
R793
J40
C642
D636 K
JF33
C540
Q796
R711
+
R607
D618
K
JF28
C612
R616
D620
K
R610
C603
J274
R789
+
C712
J36
J35
C524
+
R700
Q724
J141
K
D718
D732
K
R653
D621
C718
C724
R1043
6
8
R906
J41
R654
R1030
R1031
R1044R1045
R1046
J1
R740
R739
D748
K
K
D616 R621
+
C520
R737
Q711 C739
R743
R780
L610
J307
FB702
FB701
C627
JF1014
(H).
1
D903
C904
C608
R741
C722
C715
C1050
K
D750
J81
J241
C541
+
C737
01
307
J165
Q607
J323
R634
J325
JF61
C914
J326
D624
K
D609
C605
R655
R778
VAR1
F701
D507
K
D632
K
D633
K
F7315N4. MOTHER UNIT PWB. Copper side.
16
70GS-62S
F7315N4. CHASSIS LAYOUT.
PTC UNIT (F7347N0) PWB & COMPONENT LOCATION TABLES.
1
2
3
4
5
Y
X
012
(DG)
POR1701
1
D1702 R1704
R1701
C1701
+
F7347BMN0
JL23
5HI1R ;XP <XP
'*
&
'
-/
-/
325
5
5
5HI1R ;XP <XP
&
'
,&
4
5
5
Copper Side.
Component Side.
Y
X
1
2
3
4
5
0
21
R1701
(DG) POR1701
IC708
13
4
6
D1701
K
D1702
R1704
C1702
R1703
Q1701
C1701
+
R1702
Component Side. Copper Side.
17
70GS-62S
MOTHER UNIT (F7315N4) PWB COMPONENT LOCATION TABLES.
Component Side.
5HI1R ;XP <XP
$9
$9
)
*
+
+
.
.
0
02
57
6$
6%
63
96
$9
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&1
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
)
)
)
)
)
)
)%$
)%
)%
)%
)%
)%
)%
)%
)%
)%
)%
*
5HI1R ;XP <XP
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
,&
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
18
70GS-62S
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-/
-/
-/
-/
-/
-/
-/
-/
-/
-/
-/
-/
-/
-/
-/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
MOTHER UNIT (F7315N4) PWB COMPONENT LOCATION TABLES.
Component Side Copper Side
5HI1R ;XP <XP
/
/
/
/
/
/
/
/
/
/
/
/
/
/3
0
325
4
4
4
4
4
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5HI1R ;XP <XP
5
5
5
5
5
5
5
5
5
5
5
5
5()
5()
6
6
6
6
6
6)
6)
7
7
7
71
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
5HI1R ;XP <XP
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
73&
75&
9$5
;
;
;
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
19
70GS-62S
MOTHER UNIT (F7315N4) PWB COMPONENT LOCATION TABLES.
Copper Side.
5HI1R ;XP <XP
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
&
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
5HI1R ;XP <XP
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
'
5HI1R ;XP <XP
'
'
'
'
'
'
'
'
'
'
'
'
'
'
,&
,&
,&
,&
,&
,&
,&
,&
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
5HI1R ;XP <XP
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
5HI1R ;XP <XP
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
-)
/
/
/
/
/
/
/
/
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
20
70GS-62S
MOTHER UNIT (F7315N4) PWB COMPONENT LOCATION TABLES.
Copper Side.
5HI1R ;XP <XP
4
4
4
4
4
4
4
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5HI1R ;XP <XP
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5HI1R ;XP <XP
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5HI1R ;XP <XP
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5HI1R ;XP <XP
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
This manual suits for next models
2
Table of contents
Other Sharp TV manuals
Sharp
Sharp SX76NF200 User manual
Sharp
Sharp SX68JS10 User manual
Sharp
Sharp 32U-S600 User manual
Sharp
Sharp 21GT-22 User manual
Sharp
Sharp 21J-FG1GA User manual
Sharp
Sharp BL Series User manual
Sharp
Sharp LC-50U35T User manual
Sharp
Sharp LC-65UI7252K User manual
Sharp
Sharp AQUOSLC-42GX3H User manual
Sharp
Sharp Aquos LC-46D92U User manual
Sharp
Sharp SX68K7X User manual
Sharp
Sharp 21F-PA330I User manual
Sharp
Sharp 21V-FR95S User manual
Sharp
Sharp 14V-L70M User manual
Sharp
Sharp R771M-006 User manual
Sharp
Sharp 66FW-54H User manual
Sharp
Sharp 32SC26B User manual
Sharp
Sharp LC-65D93U User manual
Sharp
Sharp AQUOS LC-70LE740E User manual
Sharp
Sharp 28LF-92H User manual
