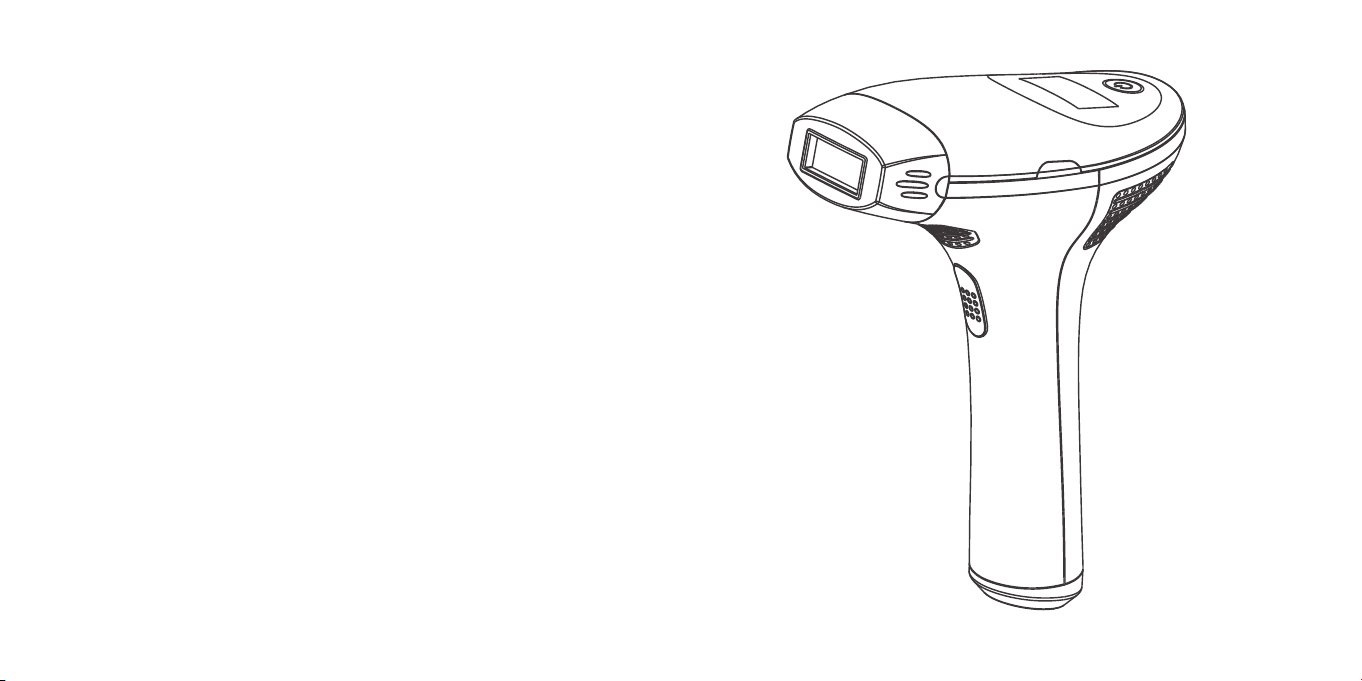

Shenzhen Marustar Technology T3 User manual

Supreme beauty own the world
T3
User Manual

Preface
Product notice
Product introduction
Contraindications
Operation cautions
Using T3
Skin sensitivity test
Choose energy
Operation procedure
Warranty
T3 service introduction
01-02
01-02
03-05
06-07
08-09
10-11
11-12
11-12
13-16
17-18
19-20
Table of contents

01-02
Preface
Thanks for choosing T3 multifunctional IPL beauty device
delicately manufactured by Shenzhen Mareal Technology Co.,
Ltd. T3 multifunctional IPL beauty device use E-IPL
technology ( filter out harmful light and invalid light to keep
effective light according to three different functions) and could
achieve hair removal, skin rejuvenation, acne clearance by
changing different function lamps. This product with efficient,
fashion, technology, health as the foundation of enterprise
development. Choosing T3 means that you construct a private
beauty salon. It is the beginning of beauty.
In order to get better effect for T3, we suggest you:
View user manual carefully before using and safe keep this
user manual.
If you have any problem using the device please call 0086-
0755-36607559.
1.Product notice
This user manual guide you how to use T3 multifunctional IPL
beauty device.
We follow sustainable development strategy. So we keep the right that
we will not notify customers when we change product function,
interface and appearance.
If there is difference between description and actual product due to
upgrade, please refer to actual product.
Please use device according to correct operation steps and treatment
setting.
●
●
●
●
T3

2.Product introduction
1) Packing: main body X 1, lamp X 1, goggles X 1, adapter X 1, user manual X 1.
user manual X 1
adapter X 1
goggles X 1
main body X 1,
lamp X 1
2) Model No.: T3
3) Function: three functions by changing different lamps (Figure 1)
Function 1: IPL hair removal
Function 2: IPL skin rejuvenation
Function 3: IPL acne clearance
●
●
●
4)Parameters:
Input Power: 36W;
Voltage Rating: 100V-240V;
Rated Frequency Range: 50Hz/60Hz;
Storage Temperature: 0℃-45℃;
Working Temperature: 5℃-35℃;
Working Humidity: 25%-75%.
●
●
●
●
●
●
HR (hair removal)
lamp
(Figure 1)
SR (skin rejuvenation)
lamp
AC (acne clearance)
lamp
03-04
T3

Shooting button
5) Product structure: ( Figure 2)
3.Contraindications
Do not use if you are under the age of 18. The effects of using the
system in this age group are unknown.
Do not use if the skin, in the area you want to treat, is tanned or
burned. Use of the device on tanned or burned skin may result in
temporary or even permanent whitening ordarkening fo the skin.
Do not use if you are pregnant, trying to become pregnant
(conceiving) or breast-feeding. Hormonal changes occur during
pregnancy or breast-feeding and could increase the risk of skin injury
or skin sensitivity.
Do not use if you have epilepsy or light-induced seizures or
migraines. The energy flashes might cause severe headaches and
migraines.
Do not use on tattoos, dark brown or black spots ( such as dark
freckles, birthmarks, moles or warts). Tattoos or dark spots may
absorb too much light energy which could cause skin swelling,
temporary or permanent blisters or discoloration of the skin or
whitening of the skin.
05-06
Power / energy
choosing button
LCD
DC input
Status
indicator
Replaceable
lamp
(Figure 2)
T3

Do not use on the head, ears, necks, nipples, genitalia, or around the
anus. Use in these areas could cause skin swelling, blisters, or
temporary skin discoloration or whitening of the skin.
Do not use if you have any active skin condition in the treatment
area, including acne, sores, psoriasis, eczema, burns, herpes
simplex, wounds or a rash. These conditions can make the skin more
sensitive to the light treatment and could make the treatment
uncomfortable or cause skin swelling, blisters or infection. If your skin
conditions has healed enough to use the device, then please consult
with your doctor.
Do not use the device if you have a history of kelodial scar formation,
a known sensitivity to light (photosensitivity) or are taking medication
that makes the skin more sensitive to light, including non-steroidal
anti-inflammatory agents, (e.g.,aspirins, ibuprofens, cetaminophen),
tetracyclines, phenothiazines, thiazide, diuretics, sulfonyluraes,
sulfonamides, DTIC, fluorouracil, vinblastine, griseofulvin, Alpha-
Hydroxi Acids(AHAS), Beta-Hydroxi Acids(BHAS),
Retin-A, Accutane and/or topical retinoids.
Do not use if you have a disease related to photosensitivity, such as
porphyria, polymorphic light eruption, solar urticaria, lupus, etc.
These conditions make the skin more sensitive to the light treatment
and could make the treatment uncomfortable or cause skin swelling,
blisters or infection.
4.Operation cautions
The product is not allowed to power on without inserting lamp,
replace the lamp under disconnected adapter. During the operation,
do not shield the air intake and ventilation holes to impact heat
dispassion;
Wear googles during the operation. Do not look at the light twinkling
directly or light to eyes;
Scrapped lamp could not be recycled. Please deal with scrapped
lamps according to your local laws;
Before operation, please clean the skin treatment area. It is not
allowed to apply any cosmetics to avoid the destroy of instrument
and affect result;
Adjust the energy level from low to high level. On condition of safety,
the higher the energy level is, the better result it will be. After
treatment, it is normal to have skin redness, suggest to use ice pad
after treatment;
Use skin moisture and sun block product after phototherapy
treatment;
After treatment suggest to apply pure plant moisture and repair
cosmetics;
07-08
T3

After treatment then power off, please use wet cotton swab or cloth
to clean treatment window. This can avoid hair and sebum of carbon
sticking glass and affecting energy of shooting light;
Please only use dry oft cloth or no alcohol wet cloth to clean outside
system ;
Please don’t let system and accessories touch liquid or put it in
humid environment;
Please store instrument in ventilated and dry environment and keep
far away from children;
Please don’t put metal object into heat emission hole. Otherwise
there will be risk of electric shock;
In case the system is soaked please send it back to the factory for
examination to determine whether it is repairable. In case the system
is electrified when it is soaked, please power off before touching the
system for your safety;
Please don’t try to disassemble and repair it at your own discretion;
If device can not be operated normally, please send the system and
accessories back manufacturer. Our qualified maintenance
personnel will overhaul it.
5.Using T3
1.Clean the cartridge light output window with wet cloth or cotton swab. This is
done in order to remove hairs and dust from the treatment window.
2.Please hold lamp above and below, then insert or pull out parallelly. (Figure 3)
(Figure 3)
Pull out lamp Install lamp
3.Connect the power cord into the T3 system.
4.Place the T3 system on a table or area near an electrical wall outlet. Move
away any liquids from the area.
5.Make sure lamp is installed well before turning on.
6.After connecting the power cord to the wall electrical outlet, status indicators
of device’s two sides will flash in green slowly.
7.Press the power button above 2 seconds to get device power on/off. After
turn on, then the fan starts and LED lights. Lamp type, remaining pulse,
energy level (default is level 1), thermometer icon, fan icon will be shown on
the LED ( as figure 4). The status indicator flashes which means the device is
at the ready condition. After ready the indicator goes out.When the treatment
window touches skin, the indicator turns green which means the device is
ready for emitting lights.
09-10
T3

(Figure 5)
Remaining pulse
Lamp type
(HR / hair removal, SR / skin rejuvenation,
AC / acne clearance)
Main body temperature status
(light as normal,flash as fault)
Fan status
(light as normal,flash as fault)
(Figure 4)
Energy level
●Press the power button in a little while to adjust the energy level from low to high, level 1
is the lowest and level 5 is the highest.
Let the treatment window touh on treated area tightly and vertically. ( Figure 5)
The device will power off automatically if there isn’t any operation in 5 minutes.
●
●
6.Skin sensitivity test
If you are using the system for the first time or on a new body area,
choose a small area close to the area you intend to treat, for the purpose
of performing a skin sensitivity test. Use the LOW T3 level. Follow the
treatment instructions below but make sure to emit only 2-3 pulses. After
the skin test, wait 60 minutes and check you skin for any reaction. If after
60 minutes the skin appears normal and there is no redness or other skin
reaction, then you are ready to perform a full treatment.
7.Choose energy
Choose the suitable energy according to your skin tolerance and increase
energy from one to five level gradually. If there isn’t unsuitable or reaction,
you could increase energy gradually. Don’t hold the applicator window still
over one spot on the skin and flash multiple pulses on the skin. Doing so
may cause too much heat and may result in skin swelling, blisters, or
temporary or permanent changes in the color of your skin.After each flash,
move treatment window slowly to a neighboring skin spot. Before
returning to a previously treated skin spot, wait for at least 20 seconds.
11-12
T3

8.Operation procedure
T3 hair removal (choose HR lamp)
A. Application:
●
Lip hair, armpit hair, body hair and legs, hair on places that affecting looks
such as hair line on forehead and bikini area.
The effect is different according to skin color. It is not suitable for white and
light color hair.
●
(Figure 6)
Skin and hair color comparison table
Not applicable Applicable ×
White Ivory tint Beige
Dark brown
and black
Light brown
Brow
×
×
×
×
××× ×× × ××× ×× × ××× ×× ×
Black
Dark brown
Brown
Golden
Red
White
Gray
Hair
color
Skin
color
B.Operation procedure:
Step 1: Shave and clean the treated area;
Step 2: Wear goggles to avoid IPL light stimulating eyes;
Step 3: Choose suitable energy level ( refer to point 7 “choose energy”) and
start from low level;
Step 4: Let the treatment window touches treated areas vertically, and treat
the areas by turns. Don’t repeat and omit;
Step 5: Treat on the starting area and repeat step 4 for 2-3 times;
Step 6: Apply anti-hair cream after treatment;
Step 7: Power off and use wet cloth or cotton swab to clean treatment
window;
Step 8: Put device and accessories into packing box and store it in safe
place.
C.Treatment setting:
7-9 treatments
In the first 3 treatment do one treatment every week;
In the following 4-9 treatments, do one treatment every 2-3 weeks;
In the maintenance period, do one treatment every 2 months for area with
hair regrowth.
13-14
T3

T3 skin rejuvenation ( choose SR lamp)
A.Application:
For rough and aging skin dim skin big pores, wrinkles, lack of elasticity and
radiance.
B.Operation Procedure:
C.Treatment setting
8 treatments, one treatment every week.
Step 1: Clean the treated area and lamp;
Step 2: Wear goggles to avoid IPL light stimulating eyes;
Step 3: Choose suitable energy level ( refer to point 7 “choose energy”) and
start from low level;
Step 4: Let the treatment window touches treated areas vertically, and treat
the areas by turns. Don’t repeat and omit.
Step 5: Treat on the starting area and repeat step 4 for 2-3 times;
Step 6: Apply moisture essence;
Step 7: Use wet cloth or cotton swab to clean treatment window;
Step 8: Put device and accessories into packing box and store it in safe
place.
T3 acne clearance (choose AC lamp)
A.Application:
Oil skin with papula, impetigo, tuber and cystic inflammatory acne.
B.Operation Procedure:
Step 1: Clean treated area and lamp;
Step 2: If there are inflammatory before treatment, clean the serious
inflammatory acne with acus;
Step 3: Wear goggles to avoid IPL light stimulating eyes;
Step 4: Choose suitable energy level ( refer to point 7 “choose energy”) and
start from low level;
Step 5: Let the treatment window touches treated areas vertically, each
pulse interval is at least 20 seconds;
Step 6: Keep skin clean and apply moisture essence;
Step 7: Use wet cloth or cotton swab to clean treatment window;
Step 8: Put device and accessories into packing box and store it in safe
place.
C.Treatment setting:
10 treatments
Do treatments only for acne every 3 days.
Suggest to clean the serious inflammatory acne with acus.
15-16
T3

a. 对于火灾、地震、第三者的行为，客户的故意或过失，误用，其他异常条件下的使
用，不可预测性事件，等引起的故障及损坏。
b. 对于本商品的作用或使用产生的附随性损害(事业利益的损失，事业的中断，包括使用
仪器的损失、更换任何设备、装置或服务所产生的成本，或贵客户的索赔要求)。
c. 对于应用本说明书的内容以外的使用方法而产生的损害。
d. 还包括：本公司无法控制的情况；使用非本公司销售之附件、配件或替代品发生问题
时，解决该问题所需的服务及零件；以及接受未经授权的修改或服务而发生问题所需的
服务；误用、滥用、未依照本公司指示操作、维修或非法拆装仪器。
e. 在非产品所规定的工作环境下使用造成的故障或损坏，包括超出工作负荷。
f. 因用户保管不当（如鼠害，液体渗入等）。
1、保修期限：
●整机保修：从消费者购买当天算起，整机保修期限为1年。
●灯头保修：对于剩余发数大于30%的灯头，非人为原因的质量问题，我
们将进行维修。
3、保修规范：
●用户在保修期申请免费保修服务时，需出示有效的购机凭证（如：发票或保
修卡等）
●如果您在寄回该仪器时由于自己包装不当使产品在运输中受损，则不予免费
保修或更换。
●如果属于以几点本公司将一概不负责任，并不在保修范围内。
2、保修责任划分：
如果仪器在保修期内出现产品质量问题，在检测非人为因素造成的，将免费
保修；由于其他不正常使用或不可抗拒因素造成的故障在不保修范围内。
9.Warranty
1) Warranty period
●
Main body: The warranty of the main body is 1 years from the date of
purchase.
Lamp: Lamps fault with remaining shots over 30% caused by non-artificial
reason we should maintain it freely.
●
2) Warranty scope
If the system is within the warranty period, the company will replace new
product for you after checking non-artificial reason. Other faults resulted from
abnormal use and force majeure are not within the warranty scope.
3) Warranty limits
●
When applying for free maintenance for the product that is within warranty
period, users should show valid proof of purchase (such as invoice, warranty
card etc).
Free maintenance is not provided for the damaged products which are
resulted from our improper pacing when you are sending back the
instrument.
The company is not responsible for the following situations and will not
provide warranty service in case of the following situations.
●
●
A. Faults and damage resulted from the fire, earthquake, the behavior of a
third party, fault or misuse caused by users, usage under other abnormal
conditions and unpredictable events.
B.The attached damage caused by the usage of the products ( such as loss of
business benefit, interruption of business including the loss results from the
usage of system and the cost resulted from the replacement of equipment,
device or service, or the claim required by users).
C.Damage resulted from the operation which is beyond content of the
instruction.
D. Including: the uncontrollable situations; the required service and parts for
solving problems resulted from the usage of accessories, fittings or substitutes
that are not sold by the company; and the required service for solving
problems resulted from acceptableness or illegal disassembly and assembly
of instrument without following the instructions.
E. Faults or damage resulted from the working environment which is not for
the product including overload.
F. Improper storage by users ( such as damages caused by rats and liquid
infiltration).
17-18
T3

10.T3 service introduction
Dear customers:
In order to provide you with more convenient service, when you buy T3
multifunctional IPL beauty device, please consult according to below
contact information if you have any problems.
Customer service hotline:
Mainland users: 400-666-9152
International users: 0755-36607559
Shenzhen Mareal Technology Co., Ltd.：http://www.mlayn.com
warranty card
Product Name: Model:
Purchase Date: Produce date:
Check Out:
The product complies with standard quality requirements after testing,
and is approved for release.
Check Out Standard:
GB4706.1-2005
Home use IPL beauty device T3
19-20
T3
