Woxcon TPUH630 User manual

TPUH630
HDMI2.0 HDBaseT Extender
All Rights Reserved
Version: TPUH630_2018V1.0
User Manual

HDMI2.0 HDBaseT Extender
Preface
Read this user manual carefully before using this product. Pictures shown in this
manual is for reference only, different model and specifications are subject to real
product.
This manual is only for operation instruction only, not for any maintenance usage. The
functions described in this version are updated till April 2017. In the constant effort to
improve our product, we reserve the right to make functions or parameters changes
without notice or obligation. Please refer to the dealers for the latest details.
All product function is valid till 2017-4-13.
Trademarks
Any other trademarks mentioned in this manual are acknowledged as the properties of
the trademark owner. No part of this publication may be copied or reproduced without
the prior written consent.
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. It has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a commercial
installation.
Operation of this equipment in a residential area is likely to cause interference, in which
case the user at their own expense will be required to take whatever measures may be
necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would void
the user’s authority to operate the equipment.

HDMI2.0 HDBaseT Extender
SAFETY PRECAUTIONS
To i n s u r e t h e best from the product , p l e a s e read all instr u c t i o n s carefully before u s i n g
the device. Save this manual for further reference.
l Unpack the equipment carefully and save the original box and packing material for
possible future shipment
l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury
to persons.
l Do not dismantle the housing or modify the module. It may result in electrical shock
or burn.
l Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
l Refer all servicing to qualified service personnel.
l To prevent f i r e o r shock hazard, do not e x p o s e t h e un it to rain, m o i s t u r e or install
this product near water.
l Do not put any heavy items on the extension cable in case of extrusion.
l Do not remove the housing of the device as opening or removing housing may
expose you to dangerous voltage or other hazards.
l Install the device in a place with fine ventilation to avoid damage caused by
overheat.
l Keep the module away from liquids.
l Spillage into the housing may result in fire, electrical shock, or equipment damage.
If an object or liquid falls or spills on to the housing, unplug the module immediately.
l Do not twist or pull by force ends of the optical cable. It can cause malfunction.
l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to
the device before cleaning.
l Unplug the power cord when left unused for a long period of time.
l Information on disposal for scrapped devices: do not burn or mix with general
household waste, please treat them as normal electrical wastes.

HDMI2.0 HDBaseT Extender
Contents
1. Introduction .................................................................................................................. 1
1.1 Brief Introduction ................................................................................................ 1
1.2 Features ............................................................................................................. 1
1.3 Package List ....................................................................................................... 1
2. Panel Description ........................................................................................................ 2
2.1 Transmitter ......................................................................................................... 2
2.2 Receiver ............................................................................................................. 3
3. System Connection ..................................................................................................... 5
3.1 Usage Precautions ............................................................................................. 5
3.2 System Diagram ................................................................................................. 5
4. Specification ................................................................................................................ 8
5. Troubleshooting & Maintenance .................................................................................. 9
6. After-sales Service ..................................................................................................... 11

HDMI2.0 HDBaseT Extender
1
1. Introduction
1.1 Brief Introduction
This product is an ultra-thin HDMI2.0 HDBaseT Extender, includes Transmitter and
Receiver. It extends 3840x2160@60Hz 4:4:4 (Max) HDMI signal up to 100m via
Cat5e/6 based on HDBaseT technology, providing a good solution for long-distance
transmission application.
Flexible power design (24V PoC) allows this extender to be powered at either the
Transmitter or Receiver end, and only one power supply is required.
The extender boasts 3 Ethernet ports to work as Ethernet Switch, with any one
connecting to LAN, other ports access Ethernet.
The bidirectional wideband IR, bidirectional RS232 pass-through capabilities make the
extender compatible with most control systems. Furthermore, this product supports
ARC function, making it more flexible.
1.2 Features
§ Support HDMI 2.0, 3840x2160@60Hz 4:4:4, HDR.
§ HDCP2.2 pass-through.
§ Extends 3840x2160@60Hz 4:4:4 (Max) signal up to 100m.
§ Supports bi-directional IR/RS232 pass-through.
§ Supports bi-directional 24V PoC.
§ Works as Ethernet Switch.
§ LEDs indicate the system status.
1.3 Package List
§ 1 x Transmitter
§ 1 x Receiver
§ 1 x Power Adapter (DC24V 1.25A)
§ 2 x 3-pin Phoenix Connector
§ 4 x Mounting Ears & 4 x Screws
§ 8 x Plastic Cushions
§ 1 x User Manual
&
Confirm if the product and the accessories are all included, if not, please contact
with the dealers.

HDMI2.0 HDBaseT Extender
2
2. Panel Description

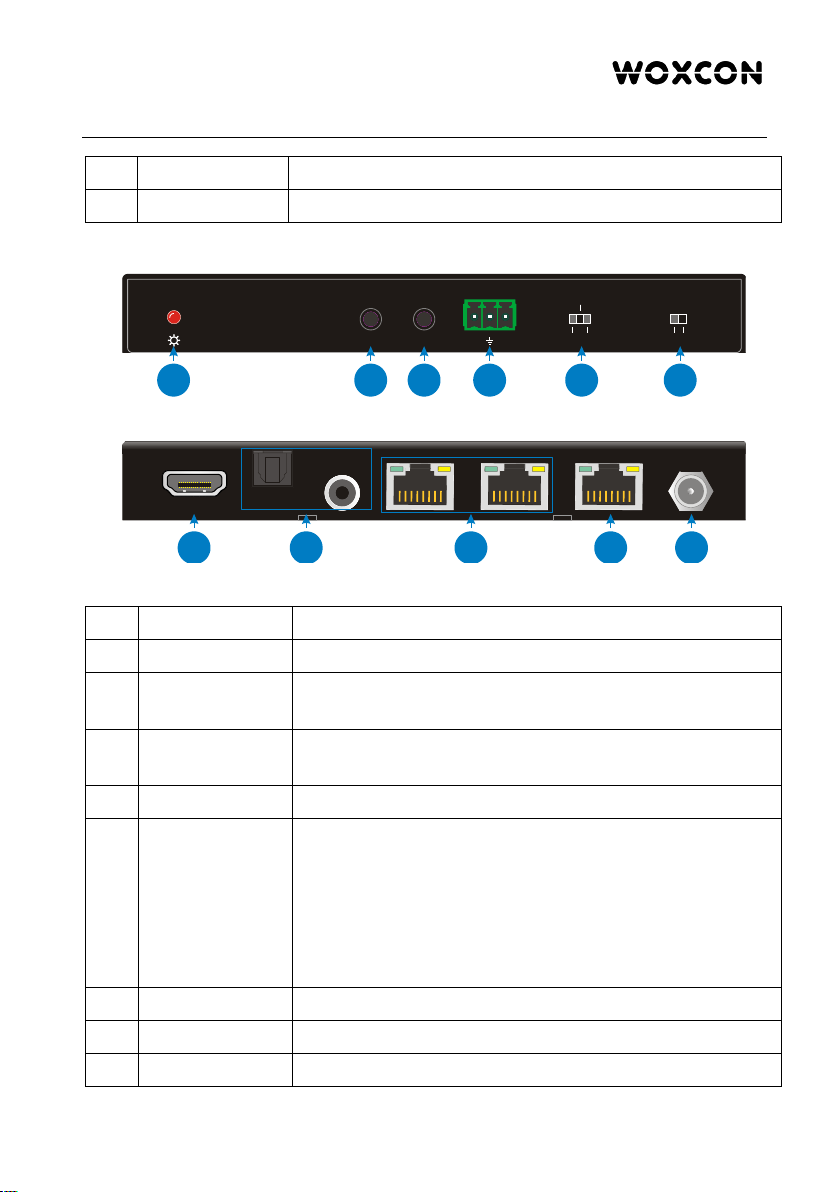

2.1 Transmitter
No.
Name
Description

Power LED
RED when DC power present.

IR IN
Connect with IR Receiver to collect infrared signal, work with
far-end IR OUT port.

IR OUT
Connect with IR Emitter to send infrared signal, work with
far-end IR IN port.

RS232
Serial port, supports bi-directional RS232 pass-through.

RS232 MODE
switcher
§ CTRL: RS232 pass-through control mode;
§ UPDATE A: Update Valens IC program, connect a PC
to the RS232 port, and then double-click the update file
(.bat).
§ UPDATE B: Update compression IC program, the
upgrade method is the same as the above UPDATE A.

ARC Switcher
ON: Enable ARC function; OFF: Disable ARC function

HDMI IN
Connect with HDMI source.

SPDIF OUT
Digital audio output port.

L+R OUT
Stereo analog audio output port.

ETHERNET
Ethenet port, work as Ethernet Switch together with the 2
Ethenet ports of Receiver. Connect router to any one port,
the others are able to access LAN.
IR IN IR OUT
ARC
OFF
UPDATE A UPDATE B
CTRL
ON
Tx Rx
R
L
123456
78910 11 12

HDMI2.0 HDBaseT Extender
3
⑪
HDBT OUT
Connect to the Receiver via Cat5e/6 cable.
⑫
DC 24V
Connect with the included power adapter.
2.2 Receiver
No.
Name
Description

Power LED
RED when DC power present.

IR IN
Connect with IR Receiver to collect infrared signal, work
with far-end IR OUT port.

IR OUT
Connect with IR Emitter to send infrared signal, work with
far-end IR IN port.

RS232
Serial port, supports bi-directional RS232 pass-through.

RS232 MODE
switcher
§ CTRL: RS232 pass-through control mode;
§ UPDATE A: Update Valens IC program, connect a PC
to the RS232 port, and then double-click the update
file (.bat).
§ UPDATE B: Update compression IC program, the
upgrade method is the same as the above UPDATE
A.

ARC Switcher
ON: Enable ARC function; OFF: Disable ARC function.

HDMI OUT
Connect with HDMI display.

SPDIF IN/TO TX
Tosli n k audio input port, connect with audio source.
IR IN IR OUT
ARC
OFF
UPDATE A UPDATE B
CTRL
ON
Tx Rx
123456
78910 11

HDMI2.0 HDBaseT Extender
4
Coaxial audio input port, when this port is connected with
audio sourcethe Tosli n k a u d i o i n p u t p o r t shouldn’t be
connected.

ETHERNET
2 Ethenet ports, work as Ethernet Switch together with the
Ethenet port of Transmitter. Connect router to any one port,
the others are able to access LAN.

HDBT IN
Connect to the Transmitter via Cat5e/6 cable.
⑪
DC24V
Connect with the included power adapter.
&
This extender to be powered at either the Transmitter or Receiver end, and only
one power adaptor is required.

HDMI2.0 HDBaseT Extender
5
3. System Connection
This extender has a good application in occasions where high-definition AV distribution,
long-distance transmission, Ethernet Switch are needed, such as computer realm,
monitoring, big screen displaying, meeting room, education and bank & securities
institution etc.
3.1 Usage Precautions
§ System should be installed in a clean environment and has a prop temperature
and humidity.
§ All of the power switches, plugs, sockets and power cords should be insulated
and safety.
§ All devices should be connected before power on.
3.2 System Diagram
This extender boast ARC (Audio Return Channel) function, which enables a display via
a single audio/ HDMI cable, to send (upstream) audio to amplifiers/ speakers,
increasing user flexibility.
Mode
ARC Switcher Status
Description
Transmitter
Receiver
①
ON
ON
The audio signal can be transmitted from the
HDTV display back to HDMI IN, SPDIF OUT
and L+R OUT ports.
②
OFF
OFF
The audio signal can be transmitted from the
SPDIF IN to SPDIF OUT and L+R OUT ports.

HDMI2.0 HDBaseT Extender
6

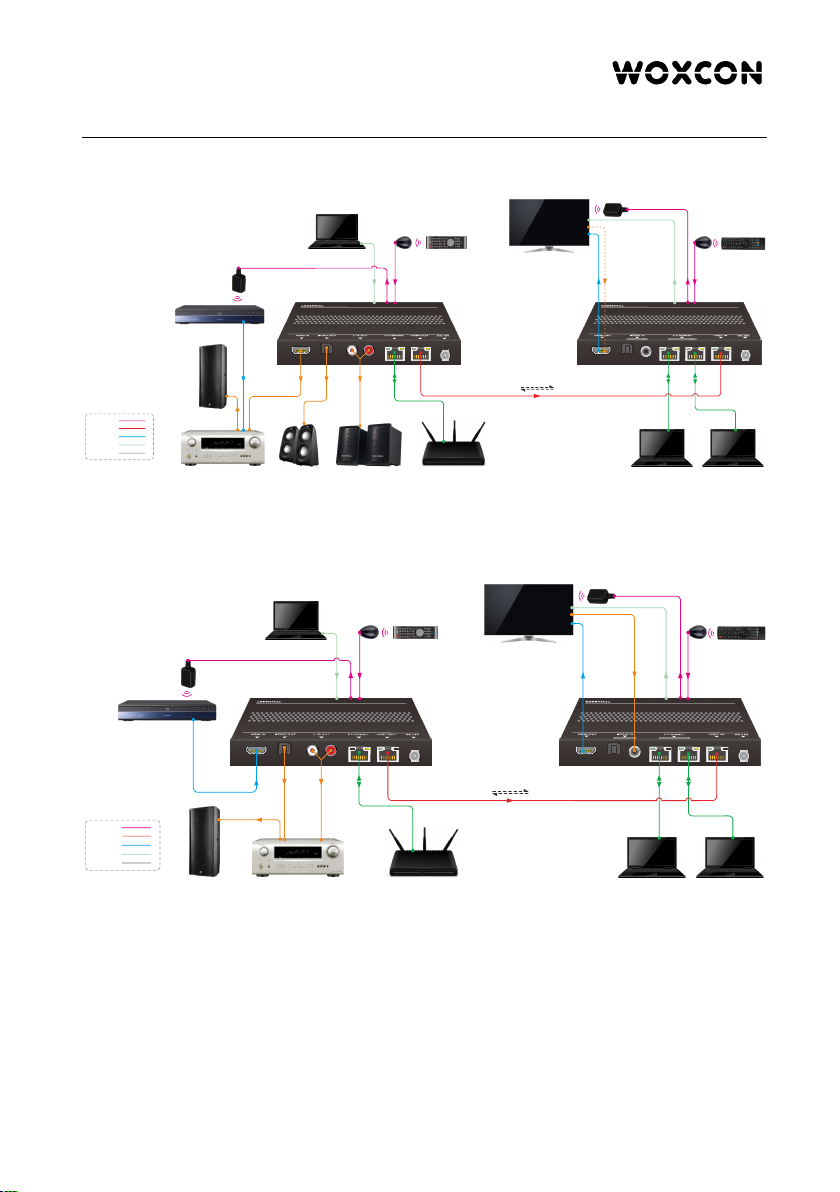

①
Transmitter: ARC ON; Receiver: ARC ON
Figure 3-1 System Diagram (ON ON)
②
Transmitter: ARC OFF; Receiver: ARC OFF
Figure 3-2 System Diagram (OFF OFF)
&
§ When using ARC feature, please connect the amplifier via HDMI cable.
§ All utilized devices including the HDMI cable should support ARC.
§ System Diagram shown in this manual are for reference only, more specific
schemes depend on real devices.
R
L
4K 100m 1080P 150m,
Router
4K Blu-R ay
Laptop
IR Emitt er
ARC ON
IR Rec ei ve r TV Remot e HDTV
IR Emitt er
IR Recei ve r
Laptop Laptop
Amplifier
Speaker
SpeakerSpeaker
ARC
PoC
Blu-Ray
Remote
HDMI:
IR:
RS232:
CATx:
Power:
ARC
R
L
4K 100m 1080P 150m,
Router
4K Blu -Ra y
Laptop
IR Emi tter
IR Rec eiv er TV R emo te HDTV
IR Emi tter
IR Rec eiv er Blu-Ray
Remote
Laptop Laptop
HDMI:
IR:
RS232:
CATx:
Power:
AmplifierSpeaker
ARC
PoC
ARC OFF

HDMI2.0 HDBaseT Extender
7
§ Connect HDBT ports via straight-thru CAT5e/6 cable with TIA/EIAT568B standard
terminations at both ends.
§ RS232 communication protocol: Baud Rate: 9600; data bit: 8; stop bit: 1; parity:
none. This extender receives RS232 control from devices with various baud rate
(2400, 4800, 9600, 19200, 38400, 57600, 115200).
§ HDBT ports can work with our company’s HDBT devices that has same power
supply solution.
§ Make sure the switchers on front panel are in the necessary status.

HDMI2.0 HDBaseT Extender
8
4. Specification
Model
Spec
Transmitter
Receiver
Audio& Video
Input
(1) HDMI
(1) HDBT; (1) SPDIF
Input Connector
(1) 19-pin Type-A male
(1) RJ45; (1) Toslink/Coax
Output
(1) HDBT; (1) L+R ; (1) SPDIF
(1) HDMI
Output Connector
(1) RJ45; (1) L&R (RCA);
(1) Tosl i n k
(1) 19-pin Type-A male
Control Parts
Control
(1) IR IN; (1) IR OUT;
(1) RS232; (1) Ethernet
(1) IR IN; (1) IR OUT;
(1) RS232; (2) Ethernet
Control Connector
(2) 3.5mm mini jack;
(1) 3-Pin phoenix connector;
(1) RJ45
(2) 3.5mm mini jack;
(1) 3-Pin phoenix connector;
(2) RJ45
General
Transmission Mode
& Distance
HDBaseT; 4Kx2K@60Hz 4:4:4≤100m
Resolution
Up to 3840x2160@60Hz 4:4:4.
Signal Standard
HDMI2.0& HDCP2.2.
Temperature
-10~ 55.
Reference Humidity
10% ~ 90%.
Power Supply
Input: 100V~240V AC; Output: 24VDC, 1.25A.
Power Consumption
19W (Max.)
Dimension(W*H*D)
152mm x 19mm x84mm
152mm x 19mm x84mm
Net Weight
227g
232g

HDMI2.0 HDBaseT Extender
9
5. Troubleshooting & Maintenance
Problems
Causes
Solutions
No reaction to
any operation,
power indicator
is off
Haven’t been powered on.
Insert power adapter to either
end.
The poor quality of network
cable.
Should the replacement
CAT5e/CAT6a cable of high
quality.
Abnormal
indication of the
status LEDs
Wrong specification of the
power adapter.
Change for DC 24V 1.25A
power adapter.
Color lose or
poor picture
quality
Bad quality of the HDMI cable.
Ensure the HDMI cables used
at source, transmitter, receiver
and display are properly
connected and are of good
quality.
HDMI cables are too long to
transmit 4K HDMI signal
successfully.
The longest HDMI cable is 8m
for 4K input signal, and 20m for
4K output signal.
Shorten the length of HDMI
cables.
No video output
Communication cables has no
connection or bad connection.
Recheck all cables and ports.
The display that you use is
incompatible with this device.
It is recommended that you use
mainstream display.
No digital audio
output
Input source and output device
are connected to the wrong
ports.
Check again and make sure
input source and output device
are connected correctly.

HDMI2.0 HDBaseT Extender
10
Audio Output device don’t
support the audio format.
Change for other output
devices that support the audio
formats listed in Specifications.
No analog
audio output
Audio OUT port (RCA
connector) only support PCM
format.
Change for other audio input
device that support PCM
format.
Cannot use
ARC function
ARC switcher is dialed to OFF
Dial the switcher to ON.
Devices or cables utilized don’t
support ARC
Change for devices/ cables
that support ARC
Cannot work as
an Ethernet
Switch. PCs
cannot connect
to the internet.
The DHCP switch of Router is
turned on, but the IP address of
PCs are static.
Recheck all PCs and set these
Pcs to use dynamic IP mode.
The DHCP switch of Router is
turned off, but the IP address of
PCs are dynamic.
Recheck all PCs and set these
Pcs to use static IP mode and
make sure the difference of IP
addresses to avoid IP address
conflict.
Network or server failure.
Please contact to your Internet
Service Provider.
Cannot use the
device
the device is broken
Send it to authorized dealer for
repairing.
If your problem persists after following the above troubleshooting steps, seek further
help from authorized dealer or our technical support.

HDMI2.0 HDBaseT Extender
11
6. After-sales Service
If there appear some problems when running the device, please check and deal with
the problems reference to this user manual.
l
Product Limited Warranty: We warrants that its products will be free from defects
in materials and workmanship for three years, which starts from the first day the
product leaves warehouse (check the SN mark on the product).
Proof of purchase in the form of a bill of sale or receipted invoice must be presented
to obtain warranty service.
l
What the warranty does not cover:
§ Warranty expiration.
§ Factory applied serial number has been altered or removed from the product.
§ Damage, deterioration or malfunction caused by:
ü Normal wear and tear
ü Use of supplies or parts not meeting our specifications
ü No certificate or invoice as the proof of warranty.
ü The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
ü Damage caused by force majeure.
ü Servicing not authorized.
ü Other causes which does not relate to a product defect.
§ Delivery, installation or labor charges for installation or setup of the product.
l
Technical Support: Email to our after-sales department or make a call, please
inform us the following information about your cases.
§ Product version and name.
§ Detailed failure situations.
§ The formation of the cases.
Remarks: For any questions or problems, please try to get help from your local
distributor.
