MODEL: SD1025, SD1026
DESCRIPTION

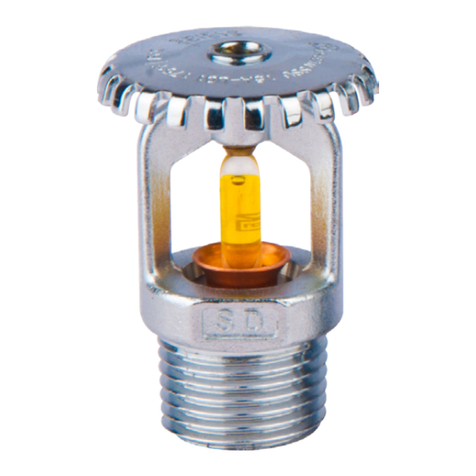

The SHIELD Sprinkler, SD1025, SD1026 (Glass Bulb Type)
½” Orice, Conventional sprinkler is designed for standard or
recessed installation. The design incorporates state-of-the-art,
heat responsive, frangible glass bulb design (standard or quick
response) for prompt, precise operation. The die cast frame is
more streamlined and attractive than traditional sand cast frames.
It is cast with a hex-shaped wrench boss to allow easy tightening
from many angles, reducing assembly effort. This sprinkler is
available in various temperature ratings and nishes to meet
many design requirements. The recessed pendent should be
utilized with a recessed escutcheon which provides up �” of
adjustments. All sprinklers are manufactured using the time
proven Belleville seal used exclusively by all major manufactures
to ensure long life and safe operation.
SPRINKLER OPERATION
The operating mechanism is a frangible glass bulb which contains
a heat responsive liquid. During a re, the ambient temperature
rises causing the liquid in the bulb to expand.
When the ambient temperature reaches the rated temperature
of the sprinkler, the bulb shatters. As a result, the waterway is
cleared of all sealing parts and water is discharged towards the
deector. The deector is designed to distribute the water in a
pattern that is most effective in controlling the re.
MAXIMUM COVERAGE
Standard spray coverage is up to: Light Hazard = 229
square feet(20.9 sq.m); Ordinary Hazard = 130 square
feet(12.1 sq.m)per NFPA 13.
TECHNICAL SPECIFICATION
RATINGS
SPRINKLER HEAD
Conventional Sprinkler
Sprinkler Identication
Number
Standard SD1025 (bulb
5mm), Quick Response
SD1026 (bulb 3mm)
Style Conventional Sprinkler
K Factor 5.6gpm/psi½. (80lpm/bar½)
Response Time Index
(RTI)
Standard Response 50
Quick Response 30
Nominal Thread Size ½”NPT (15mm)
Orice Size 13mm
Max. Working Pressure 175PSI(1200kPa)
Factory Hydrostatic Test 100%@500PSI(3450 kPa)
Min. Operation Pressure 7 PSI(48 kPa)
Sprinkler Temperature
Classication
Norminal Sprinkler
Temperature Rating
N.F.P.A Maximum Ambient
(Ceiling) Temp.(Allowed) Glass Bulb Color
Ordinary 135ºF/57ºC 100ºF/38ºC Orange
Ordinary 155ºF/68ºC 100ºF/38ºC Red
Intermediate 175ºF/79ºC 150ºF/65ºC Yellow
Intermediate 200ºF/93ºC 150ºF/65ºC Green
High* 286ºF/141ºC 225ºF/107ºC Blue
Extra High* 360ºF/182ºC 300ºF/149ºC Mauve
Open* Open - No Bulb
* Non-Approved

30 www.shieldglobal.com
PART LIST
SD1026SD1025
1. Frame 2. Deector 3. Cap 4. Cap Seat 5. Load Screw 6. Seal 7. Bulb
DISCHARGE CURVE

31
www.shieldglobal.com
WARNINGS
The SHIELD Sprinklers must be installed and maintained
in compliance with this document. Depressurize and drain
the piping system before attempting to install, remove,
or adjust any Sprinklers. Failure to do so may impair the
performance of these sprinklers. The owner is responsible
for maintaining the re protection system and devices in
operation.
WRENCH DESCRIPTION
The Sprinkler Wrench is a tool specically designed for
installing SHIELD Sprinklers. These special wrenches must
be used to provide the proper leverage when tightening the
sprinkler and to minimize slippage during installation. Any
other wrench may damage the sprinkler.
INSTALLATION
All SHIELD Sprinklers must be installed according to
NFPA 13 Standards. Deviations from these requirements
and standards or any alteration to the sprinkler itself will
void any warranty made by manufacturer. In addition,
installation must also meet local government provisions,
codes and standards as applicable.
The system piping must be properly sized to insure the
minimum required ow rate at the sprinkler. Check for the
proper model, style, orice size and temperature rating
prior to installation. Install sprinklers after the piping is in
place to avoid mechanical damage, replace any damaged
units. Wet pipe systems must be protected from freezing.
Upon completion of the installation, the system must be
tested per recognized standards. In the event of a thread
task, remove the unit, apply new pipe joint compound or
tape, and reinstall.
ADDITIONAL
Recessed Sprinkler - To install the escutcheon plate,
align with it and push or thread over the sprinkler body
into the upper support piece, until the outer edge of the
escutcheon meets the mounting surface.
INSTALLATION SEQUENCE
Step 1. The unit must be installed in the upright position for
the Upright Sprinklers, and in the Pendent position for the
Pendent Sprinkler, Pendent Recessed Sprinkler.
Step 2. Use only a non-hardening pipe joint compouind or
tape seal. Apply only to the male threads.
Step 3. Hand tighten the sprinkler into tting.
Step 4. For Conventional Sprinklers, use a standard
wrench. Tighten the unit into the tting. A lead-tight joint
requires only 7 to 14ft.-lbs (9.5 to 19.0Nm) of torque. A
tangential force of 14 to28ft.-lbs (62.3 to 124.5N) delivered
through a 6”(150mm) handle will deliver adequate torque.
Once torque level reach over 21ft.-lbs (28.6Nm) it may
distort the orice seal, resulting in leakage. For exposed
piping systems, the sprinkler should be oriented so the
frame arms are parallel with the branch line pipe.
CAUTION
Do not over-tighten or under-tighten the sprinkler to
compensate for inaccurate escutcheon plate adjustment.
Protection clips are used to protect its bulb. Please have
clip on at all times during transportation.
MAINTENANCE
Sprinklers must never be altered after manufacture. Any
alteration such as painting and coating will directly harm
the sprinkler and cause malfunctions. Sprinkler in contact
with corrosive products should be replaced if they cannot
be cleaned completely.
Visual inspections are recommended after installation.
After installation, a close-up inspection annually will
sufce.
Inspection and maintenance of re protection system is
the responsibility of the owner. It is recommended that
automatic sprinkler system be inspected and tested
according to local and/or national regulations.
Sprinkler Wrench

32 www.shieldglobal.com
DISTRIBUTION PATTERNS
K5.6 CONVENTIONAL SPRINKLER
DISTRIBUTION PATTERNS - TRAJECTORY
K5.6 CONVENTIONAL SPRINKLER
DISTRIBUTION PATTERNS - TRAJECTORY

33
www.shieldglobal.com
DIMENSIONS
STANDARD CONVENTIONAL SPRINKLER
RECESSED CONVENTIONAL SPRINKLER
Maximum Extension Maximum Recess
