Shindaiwa DGW310DMC User manual

Caution
Do not operate the generator/
welder, or any other appliance,
before you have read and
understand the instructions for use
and keep near for readily use
OWNER’S MANUAL
GENERATOR / WELDER
DGW310DMC
DGW310MC
Sound Proof
Vertical, Water-Cooled
4-Cycle Diesel Engine
Table of Contents
1. Safety Guidelines ···················································2
2. Specifications ·························································6
3. Use ···········································································7
4. Parts ········································································7
5. Incorporated ···························································10
5-1 ． Eco Welding 10
5-2 ． Display 10
5-3 ． Frequency Change 10
5-4 ． Monitor Lamp 10
5-5 ． Remote Control (Option) 12
5-6 ． Earth Leakage Relay/Grounding 13
5-7 ． Slow-Down Feature 15
6. Initialization & Pre-check ·······································16
6-1 ． Checking Engine Oil 16
6-2 ． Checking Coolant/Water 17
6-3 ． Checking Fuel 18
6-4 ． Leakage Check for the above 18
6-5 ． Checking Battery 19
7. Operation ································································20
7-1 ． Start 20
7-2 ． Stop 22
8. Welding Operation ··················································22
8-1 ． Selection – Welding Cable 22
8-2 ． Polarity 23
8-3 ． Connection – Welding Cable 23
8-4 ． Welding 24
9 ．
．．
． Generator Operation ·············································26
9.1 ． Output Range 26
9-2 ． Output Limitation 27
9-3 ． Operation 28
10 ．
．．
． Simultaneous Use – Weld & Generate ··············30
11 ．
．．
． Checking & Maintenance ····································31
12 ．
．．
． Long-term Storage ··············································36
13 ．
．．
． Trouble Shooting ················································37
14. Warranty Sheet (Type B) ········································39
CERTIFIED

1
Introduction
Thank you f or purchasing Shindaiwa Sound Proof Diesel Engine Generator.
●This user manual was prepared to ensure the safe operation of this equipm ent. Therefore,
the manufacturer of this equipment strongly recommends that the user follow the
instructions herein, to avoid unnecessary accidents and repairs.
●Please operate this equipment after thoroughly reviewing and understanding the contents of
this manual.
●Please attach this manual, if the equipm ent will be sub-leased.
●Please store this manual near the equipment for easy reference.
●Following conversion will be used throughout the manual to indicate the degree of cautions.
● Even some of the items noted in 『 Caution 』 may lead to serious injuries.
Please read every item and follow all the safety guidelines.
Danger: Can cause serious injuries or death
Caution: Can cause minor injuries or damage to the equipment or other
properties.
＜
＜＜
＜ Caution ＞
＞＞
＞ : Other types of caution

2
Danger: Suffocation from exhaust fume
●Exhaust fume from the engine contains many elements harmful to human.
Do not operate this equipment in poorly ventilated areas, such as inside a
room or in a tunnel.
Danger: Electric Shock
●Do not touch the output terminals during operation
●Do not insert metal objects (such as pin or wire) into receptacle
●Do not touch wires or electric parts inside the equipment during operation.
●Before connecting or disconnecting a load cable from output terminals, always turn the circuit
breaker to OFF position.
●Before connecting or disconnecting a load cable from output terminals, always turn the circuit
breaker to OFF position.
●Before connection or disconnection a welding cable from DC output terminal, stop the engine
and remove the engine key.
●Before performing any equipment check or maintenance, stop the engine and remove the
engine key. A maintenance person should always keep the key.


Danger: Burns
●Do not open the radiator cap while operating this equipment or immediately after stopping the
equipment, to avoid sustaining burns from hot vapor.


Danger: Injuries
●Close all doors and place locks during operating this equipment, to avoid injuries by
unintentional touching a cooling fan and fan belt.
Caution: Suffocation from exhaust fume
●Do not point the exhaust fume toward pedestrians or building.


 Caution: Suffocation from exhaust fume
●Be sure to wear a fume proof mask in operation, because welding fume contains poisonous gas
and dust. Pay attention to the airflow direction and ventilation also in order to prevent from
inhaling the fume.
1. Safety Guidelines
1. Safety Guidelines1. Safety Guidelines
1. Safety Guidelines

3
Caution: Injuries to eye and skin
●Be sure to wear spark protection glass (es), long-sleeve shirts, gloves, etc. in order to protect
eyes and skin from harmful spark in welding.
●Battery fluid contains diluted sulfuric acid. Avoid contact with eyes skin or on clothing.
If the acid comes in contact, especially with eyes, flush water with a lot of water and contact a
physician immediately.
Caution: Electric Shock
●Do not flush water onto the equipment nor operate it in the rain.
Caution: Explosion
●Do not use the equipment or charge the battery, in the case the battery fluid level is lower than
the LOWER level.
●Battery may emit some combustible gas, so keep it away from fire and sparks.
Caution: Fire
●The equipment run on Diesel Oil. When refueling, always stop the engine and keep away from
fire. Moreover, always wait until the engine cools down before refueling.
●Always wire any drip of Diesel fuel or lubrication oil. Do not use this equipment when any leak is
found. Repair it before use.
●Tem peratur e ar oun d m uff ler an d exh aus t can ge t extr em el y high. K eep a ny
infl amm abl e item s (s uch as f ue l, gas , pain t, etc .) a wa y fr om t he eq uipm en t.
●Always operate this equipment on flat surface, at least 1 meter away from any objects (wall, box,
etc.)
●Always operate this equipment on flat surface and at least
1 meter away from any objects (wall, box, etc.)
●Do not connect AC output to any indoor wiring.
●Alwa ys wa it unti l the equ ipm ent co ols do wn, bef or e plac in g a n y co ver ing
ma t eria l for s tor ag e.

4
Caution: Burns
●Do not touch the engine and muffler during operation and immediately after stopping the equipment,
for the temperature can reach extremely high.
●When checking engine oil or changing oil, always stop the engine, and wait until the engine cools
down. If you open either the oil gauge or the oil plug during operation, hot oil may cause some
injuries.
●Be sure to wear leather gloves, apron, shoe covers, eye protection glass (es) (mask), safety shoes,
and safety cap and long sleeve shirts, because welding splashes spatters.
Caution: Injuries
●When lifting the equipment, always use a lift hook. Do not lift the handle, for it may cause the
equipment to drop due to handle breaking off.
●When carrying the equipment by truck, fix it strongly to keep the equipment from sliding as roping
two points of handle.
●Always place the equipment on a flat and stable surface, to keep it from sliding. Be sure to lock the
wheels for with wheel type.
●When starting the engine, turn off the connected equipment
●And set the circuit breaker to 『 OFF 』 position.
●Do not move the equipment during operation.
●When performing equipment check and maintenance, always stop the engine.
●Do not operate the equipment if the equipment are modified or parts are removed

5

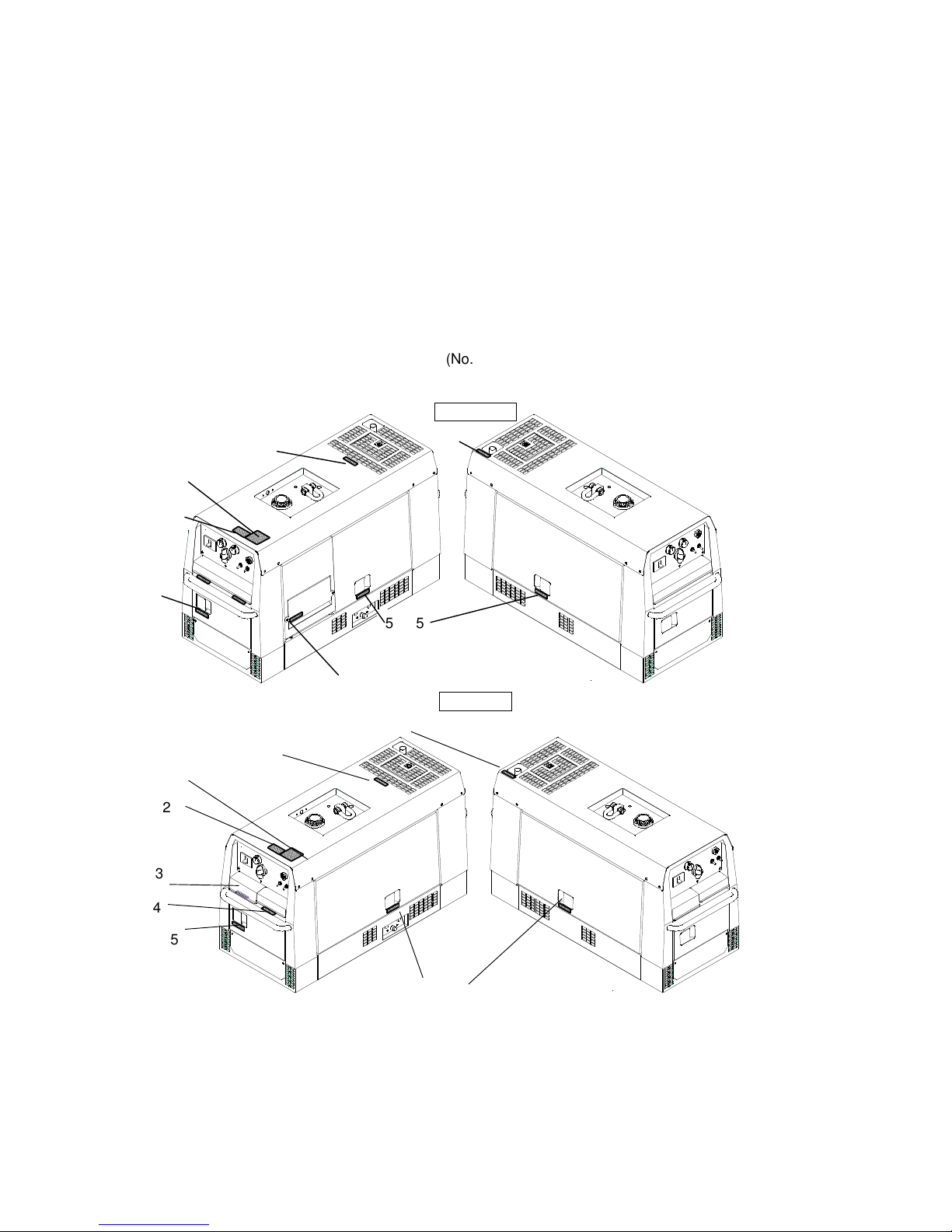

■Location of warning labels
When any warning label becomes unreadable or damaged, place a new label on the appropriate location.
When ordering a new label, use the following part number.
1. Suffocation from exhaust fume (No.19402-00106)
2. Suffocation from welding fume (No.19402-00107)
3. Electric Shock (No.19402-00102)
4. Electric Shock (No.19402-00103)
5. Injuries (No.19402-00109)
6. Burns (No.19402-00108)
7. Burns (No.19402-00112)
DGW310DMC
DGW310MC
1
1
2
6
4
3
7
5
5
2
3
5
4
6
5
5
7

6
Model DGW310DMC DGW310MC
Generating Method Rotating Field
Rated Current (A) 260
／ 280
Rated Load Voltage (V) 30.4
／ 31.2
Rated Duty Cycle (%) 100
Rated Speed （ min
-1
) 3000 ／ 3600
No Load Voltage (V) MAX
85
Adjustable Range (A) 30
～ 160 30 ～ 160
Welding Rod (φ)
Eco
2.0 ～ 4.0
Eco
2.0 ～ 4.0
Adjustable Range (A) 70
～ 280/85 ～ 310 35 ～ 280/45 ～ 310
Welding Rod (φ) Single
2.6 ～ 6.0
Normal
2.0 ～ 6.0
Adjustable Range (A) 35
～ 150/45 ～ 160
Welding generator
Output
change
Welding Rod (φ) Dual
2.0 ～ 4.0
Rated Frequency (Hz) 50/60
Rated Speed （ min
-1
) 3000 ／ 3600
Phase 1-Phase 3-Phase
Rated Voltage (V) 100/110 200/220 200/220
Power Factor 1.0 0.8
Rated Output (kVA)
6
Receptacle1.5kVA×2 and
output terminal
8
(Output Total) 9.9
AC Generator
Rate Continuous
Model Kubota D722
Method Vertical In-lined Water Cooled 3 Cylinders Diesel Engine
Displacement (L) 0.719
Rated Output (kW{PS}/ min
-1
) 11.7{15.9}/3000 14.0{19.0}/3600
Fuel Diesel Fuel No.JIS2
Lubricant API Class CD or better
Lubricant Volume (L) 3.8(effective1.4)
Coolant Volume (L) 3.0(including sub tank 0.6)
Engine
Starting Method Starter Motor
Battery 46B24L
Fuel Tank Capacity (L) 37
Length (mm) 1410 (1280 Canopy Length)
Width (mm) 566
Dimension
Height (mm) 760 (870 with wheel)
Dry Weight (kg) 338 (348 w/wheel) 333 (343 w/wheel)
Full Weight (kg) 382 (392 w/wheel) 377 (387 w/wheel)
2. Specifications

7
●Arc Welding
●Electric Tools and Home Appliances
●Power Supply to lights
DGW310DMC
3. Use

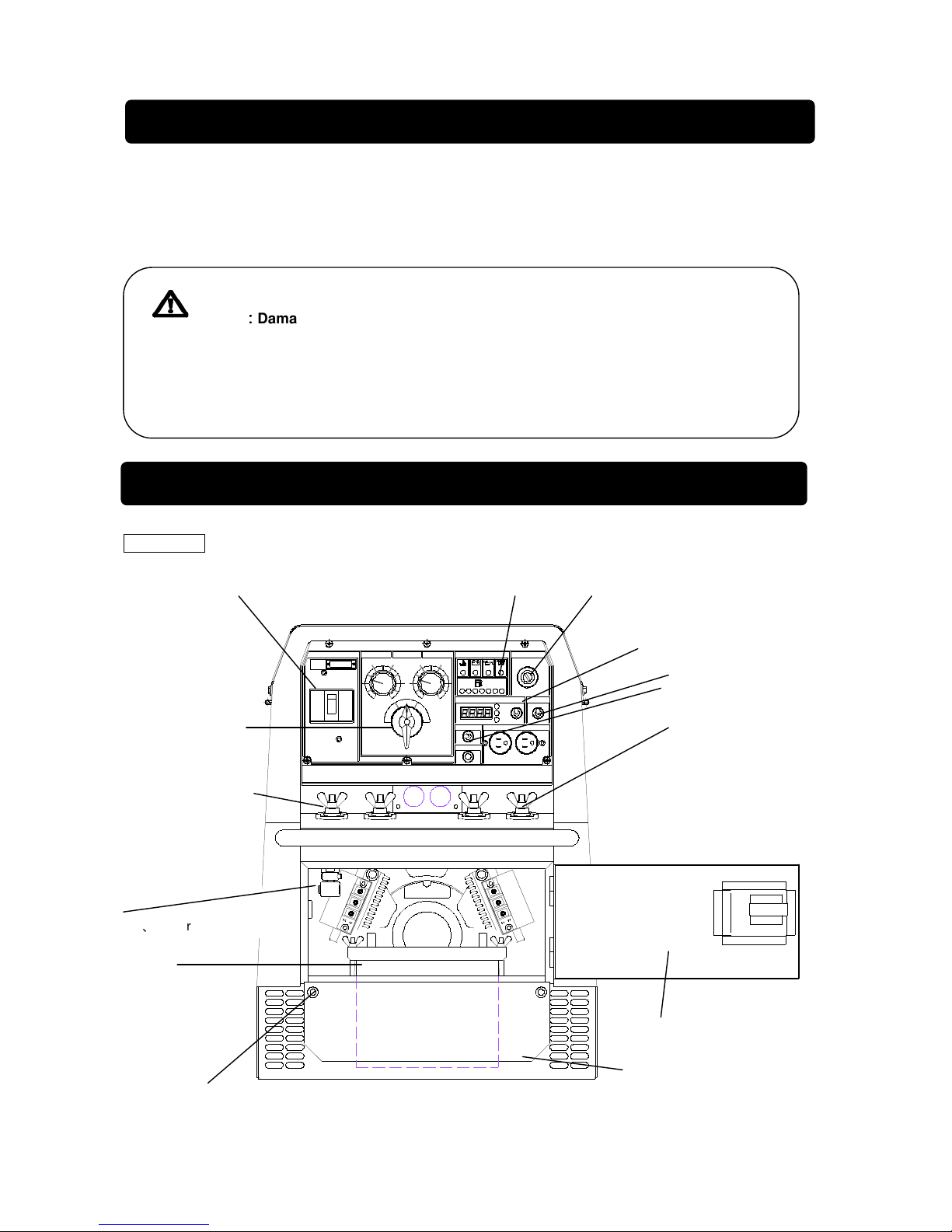

4. Parts
Caution ：
：：
： Damage to the property and secondary damage
●Do not use other than the above purposes
●Never use it without consulting with medical equipment manufacturer, doctor, hospital and
obtaining confirmation in Hospital.
Breaker Starter Switch
Output Change SW
Slow Down SW
Display Change SW
Display
Frequency Change SW
Welding Terminal B
Battery
Fuse
(Upper10A 、 Lower 50A)
Welding Terminal A
Grounding Terminal
Front Door
Under Plate

8
DGW310MC
DGW310DMC
Breaker
Starter Switch
Out ut Change SW
Slow Down SW
D
is lay Change SW
Dis l
a
y
Frequency Change SW
Welding Terminal
Battery
Fuse(U er10A 、 Lower 50A)
3P Out ut Terminal
Groun
ding Terminal
Front Door
Under Plate
ELCB grounding terminal
AC 3-P 200V out
AC 1-P 100V out ut
Fuel lever /Strainer
Fuel drain lug Oil drain lug
Air Cleaner
Sub tank
Oil gauge
Oil inlet
Water drain lug

9

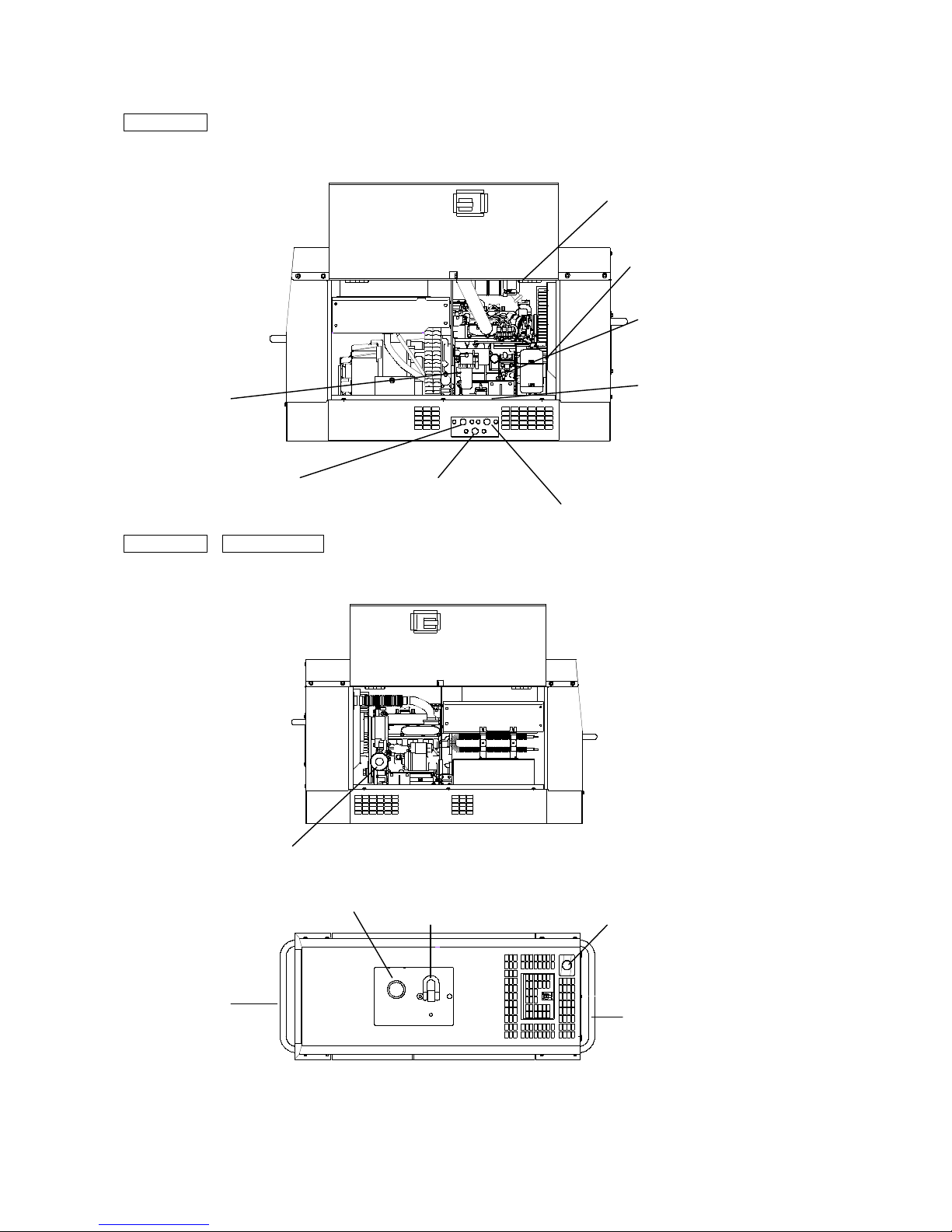

DGW310MC
DGW310MC DGW310DMC
Air Cleaner
Sub tank
Oil gauge
Oil inlet
Water drain lug
Fuel lever /Strainer
Fuel drain lug Oil drain lug
Oil filter
Fuel inlet
Exhaust gas outlet
Lift hook
Handle
Handle

10
5-1. Eco Welding
The equipment is incorporated in Eco Welding Feature that is aiming at performing
The low noise, the lower fuel consumption and the low gas emission than those of conventional models.
When you turn the selector switch to Eco, you will be able to weld with Max 4.0mmφrod at the slow
down speed.
＜
＜＜
＜ Caution ＞
＞＞
＞
●When welding is performed, do not turn the output selector switch which causes the burnout of the
switch
●Eco is designed for welding only. The breaker activates to TRIP, in case it is used for AC Output

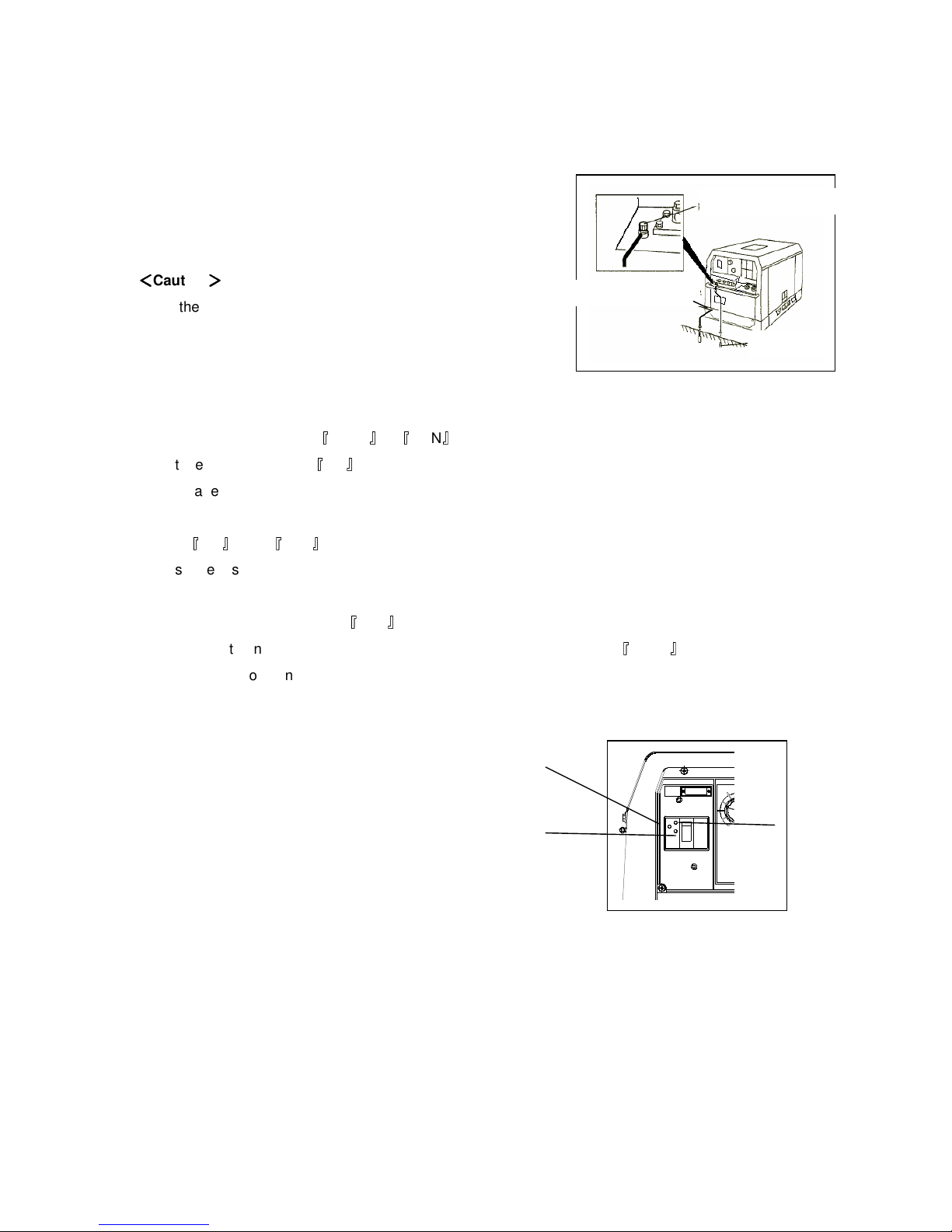

5-2. Display
The equipment is incorporated in Digital Display. It displays 『 Voltage 』 , 『 Hour 』 , 『 Speed 』 successively,
by changing the display selector switch.
＜
＜＜
＜ Caution ＞
＞＞
＞
●During operation, voltage meter always displays the voltage in 200/220V, 3-Phase both at the
breaker position 『 ON 』 and 『 OFF 』 .
5-3. Frequency Selection
Selector either 50 or 60Hz by the selector switch on the front panel, in accordance with the load
frequency.

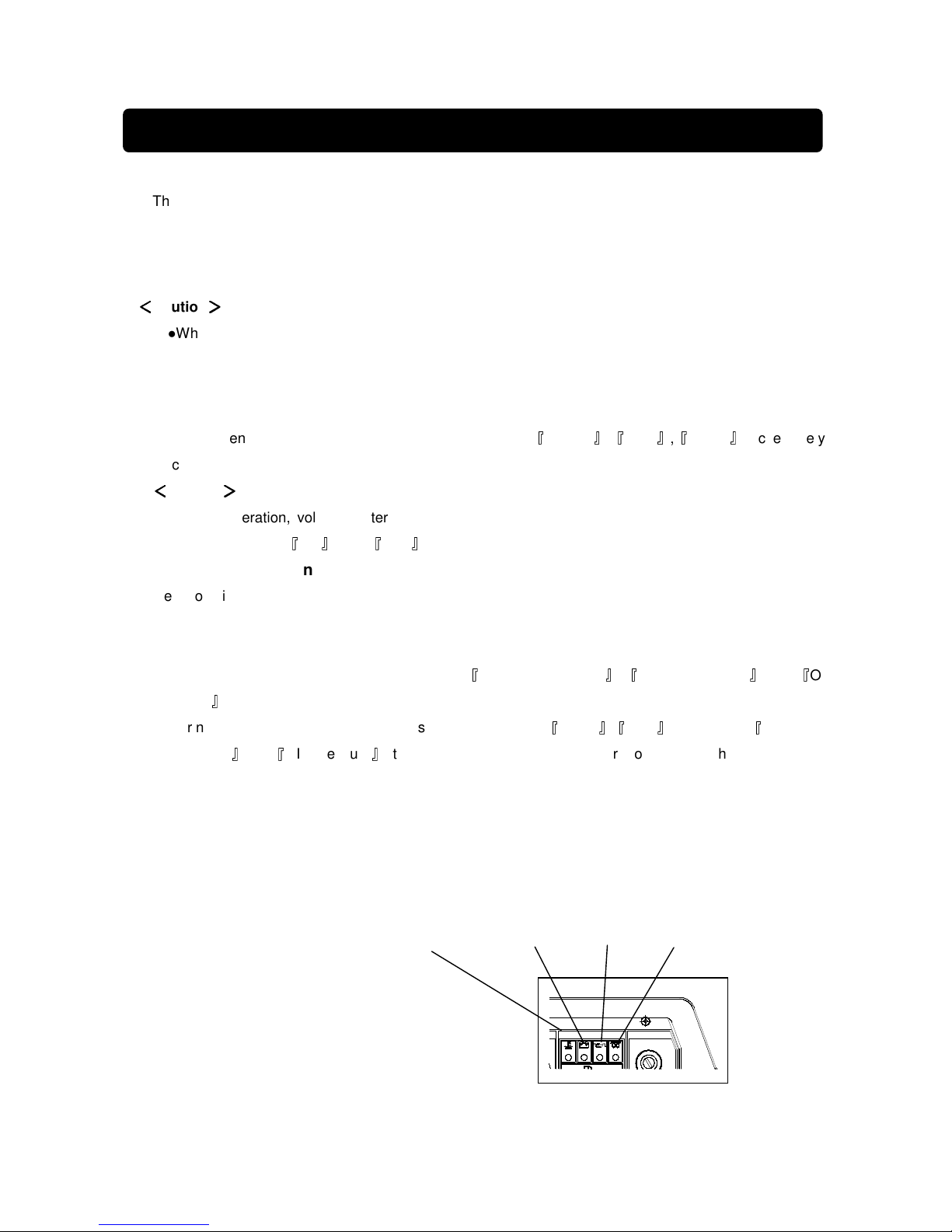

5-4. Monitor Lamp
The equipment incorporates monitor lamps as 『 Water Temperature 』 , 『 Battery Charging 』 and 『 Oil
Pressure 』 .
Under normal condition, when the starter switch is turned from 『 STOP 』 to 『 REN 』 , the lamps of, 『 BATTERY
CHARGING 』 and 『 OIL Pressure 』 turned To ON and all the lamps turn to OFF after the Engine starts.
When abnormality happens in running, monitor lamps flicker
And the engine stops automatically.
In the case the automatic shutdown is engaged, turn the starter switch to STOP once, and then restart
the engine. When the automatic shutdown is engaged again, check which lamp turns ON or OFF and
point out where the abnormality is.
5. Incorporated
Water Temp
Charge
Oil Pres
Preheat

11
Danger: Injuries
● Close all the doors and place lock during operation, to avoid injuries by unintentional touch of cooling
fan or fan belt.
Danger: Burns
●Do not open the radiator cap while operating this equipment or immediately after
Caution: Burns
●Do not touch the engine and muffler during operation and immediately after stopping it, for
Danger: Injuries
●Close all the doors and place lock during operation, to avoid injuries by unintentional touch
of cooling fan or fan belt.
(1) Water Temperature Monitor Lamp
When the water temperature rises abnormally, the water temperature lamp flashes and the automatic
shutdown will be engaged.
When this happens, check water tank and replenish if needed. （ Refer to 『 6-2. Check the water
temperature 』
If the water level is normal, there may be possibility of overload. Always use the equipment within the
rated duty cycle and output power.
(2) Battery Charge Monitor Lamp
When the battery charge becomes unable during operation, the monitor lamp flashes and the automatic
shutdown is engaged.
Please consult with our authorized distributor or service section.
＜
＜＜
＜ Caution ＞
＞＞
＞
●The monitor cannot detect battery degradation or insufficient battery liquid.
Be sure to check battery liquid level periodically.
(Refer to 『 6-5. Battery Check 』 )
(3) Oil Pressure Monitor Lamp

12
Caution: Burns
●Do not touch the engine and muffler during operation and immediately after stopping it, for the
temperature can reach extremely high
●When checking engine oil or changing oil, always stop the engine, and wait until the engine
cools down. If you open either the oil gauge or the oil plug during operation, hot oil may cause
some injuries.
When the oil pressure drops during operation, the monitor lamp flashes and the automatic shutdown is
engaged. When this occurs, check the engine oil level and replenish the maximum level if needed.
＜
＜＜
＜ Caution ＞
＞＞
＞
●The monitor cannot detect the degradation of engine oil. Please check engine oil periodically and replenish if
needed.
(Refer to 『 11. Checking and Maintenance 』 )
●Check fuse next, when the abnormality other than 『 Water Temp 』 , 『 Charge 』 or 『 Oil Pressure 』 is detected.
If a fuse is burnet, consult with our authorized distributor or our service section, because there may be an
abnormality of electric/electronic parts or wiring and repairing may be required.
(Refer to 『 4. Parts 』 )

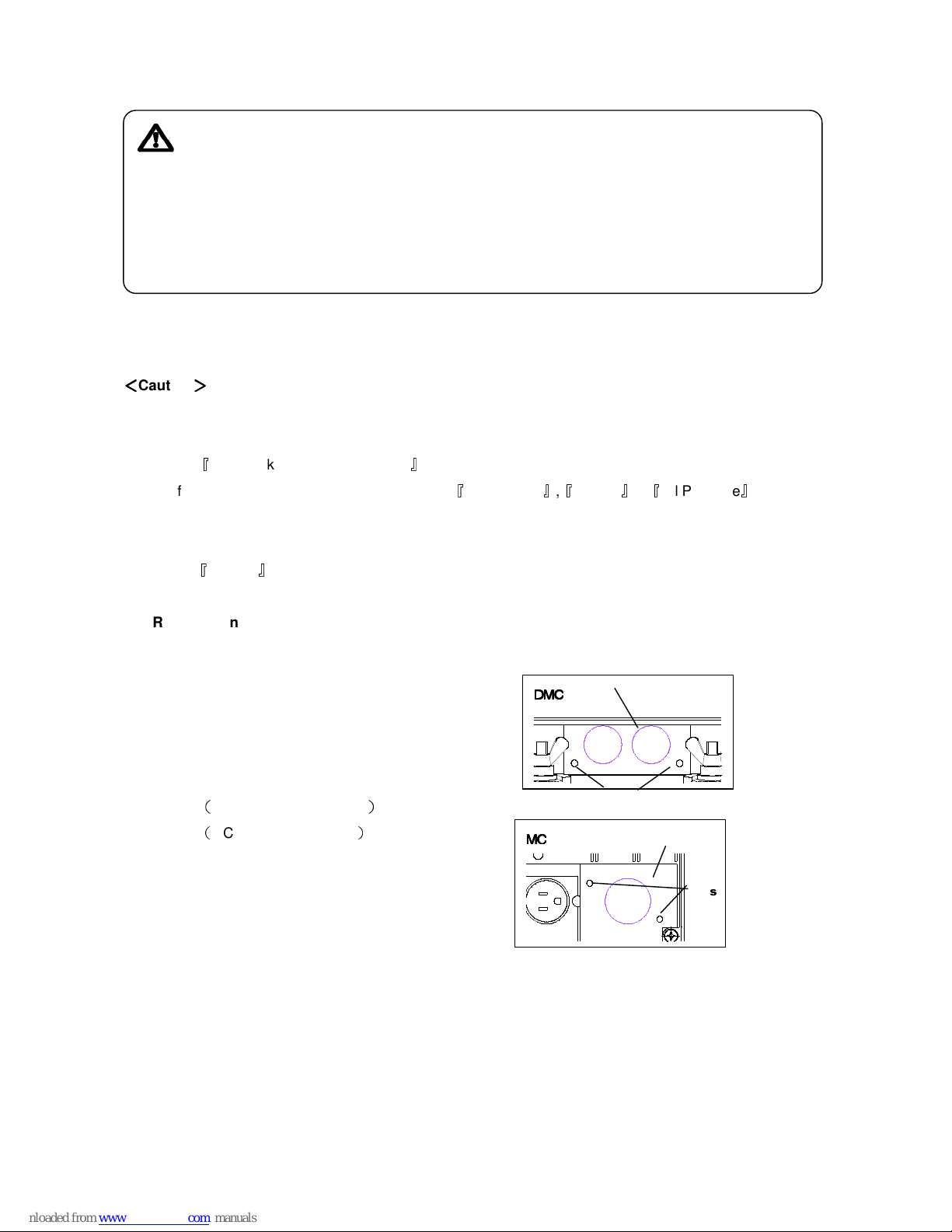

5-5. Remote Control Box (Option)
You can make remote control by connecting our remote control box
■How to connect remote control box
1. Remove the remote control
Receptacle cover.
（ DMC: M5 Screw x 2 pcs ）
（ MC: M4 Screw x 2 pcs ）
DMC
DMCDMC
DMC
cover
screw
MC
MCMC
MC
cover
screw

13
2 Insert the extension cord plug into
The receptacle.
In case of DGW310DMC, insert either A or B to be remote controlled.
3 Insert the plug into the receptacle of extension cord reel.
You can use 3 reels in series (30mx3)
＜
＜＜
＜ Caution ＞
＞＞
＞
●Never connect a remote control box plug to a receptacle of extension reel connected to AC100/110 Output
receptacle in the equipment. The abnormality lamp in the box turns ON to show abnormality when it is
connected by mistake.
●Never connect any device to a receptacle in the extension reel other than a remote controller.
●In case of using the cord reel incorporating ELCB set the ELCB ON and use.
5-6. ELCB and Grounding
Danger: Electric Shock
●Ground every grounding terminal to the earth as set in the manual. If even one of all is unconnected by
mistake or accident, it will make much more dangerous for human than the NO RELAY case, because
leaking current inevitably goes through the body.
●Even though all the terminals of the loads have been grounded to the earth, the bonnet grounding
thermal should be grounded to the earth.
●Grounding should be made after the engine stopped.
●Whenever the ELCB relay has activated, you should repair the leaking part always first of all.
＜
＜＜
＜ Caution ＞
＞＞
＞
●The ELCB activates only for AC output.
●ELCB activates when AC output is used with the output selector switch at 『 ECO 』 position for protection
load damage.
The circuit breaker is incorporated with ELCB to protect electric shock
The breaker trips when current leakage is detected due to insufficient insulation of loads
The specifications of ELCB are as follows.
●Rated Sensitive Current
less than 30mA (Grounding Resistance less than 500Ω)
●Activation Time less than 0.1 second

14
(1) Grounding
A qualified electrician should perform the grounding work for the following 3 points. (Ground Resistance
less than 500Ω)
●The ELCB grounding terminal
●The bonnet grounding terminal
●The load bonnet terminal
＜
＜＜
＜ Caution ＞
＞＞
＞
●In the event you cannot ground, consult with our
authorized distributor or our service section.
(2) Operation Check
1. Turn a tarter switch from 『 STOP 』 to 『 RUN 』 .
2. Set the breaker lever to 『 ON 』 .
3. Push a test button in the breaker.
(The device is normal when ELCB Lamp (Red) turns ON and the lever positions at the middle of
『 ON 』 and 『 OFF 』 ).
4. Push the reset button.
(The ELCB lamp (red) turns OFF)
5. Push down the breaker lever 『 OFF 』 .
6. Proceed with engine start procedure once returning a starter switch to 『 STOP 』 .
In the event you cannot complete all steps as above, the device is out of order. Consult with our
authorized distributor or our service section.
Reset Button Test Button
ELCB Lam
ELCB Grounding terminal
Earth lod
Bonnet Grounding terminal

15
(3) The ELCB has activated
Caution: Electric Shock/Injuries
●Be sure to disconnect all the loads to the equipment when turning the breaker ON
again after ELCB has activated.
ELCB lamp (Red) turns ON and the breaker lever positions at the middle of 『ＯＮ』 and 『 OFF 』 .
In that case, reset the ELCB per the following procedure after having finished the leaked points.
1. Push the reset button.
2. Push the breaker lever down to 『 OFF 』 .
The above procedure brings restoration of the breaker lever to 『 ON 』 .
＜
＜＜
＜ Caution ＞
＞＞
＞
●In the case ELCB monitor lamps keep OFF on using, it means that
AC Output over supply or AC output Supply under output selector switch positions at ECO. Refer to 『 9-3.
Operation 』 to recover.
5-7. Slow-down Feature
The Slow-down feature is to set the engine speed low automatically (in about 8seconds) for the purpose of
reducing noise and fuel consumption, whenever no welding operation or electric supply is performed.
In the case of using the Slow-Down feature, turn the slow-down switch to ON. By the condition, the engine
automatically moves to high speed, whenever welding operation or electric supply starts.
△Caution: Damage to properties
●When using the load with magnet switch, turn the slow-down switch 『 OFF 』 .
＜
＜＜
＜ Caution ＞
＞＞
＞
●When the load less than 0.5A are connected to use, the slow-down feature does not function
sometimes. So, turn the switch 『 OFF 』 .
●When welding and AC supply are used alternately or intermittently, turn the switch 『 OFF 』 .
●When the output selector switch is at 『 ECO 』 ,the engine does not turn to high speed.

16
△Caution: Fire/Burns/Injuries
●When checking engine, always stop the engine and keep away from hire.
Wait until the engine cools down before performing any check.

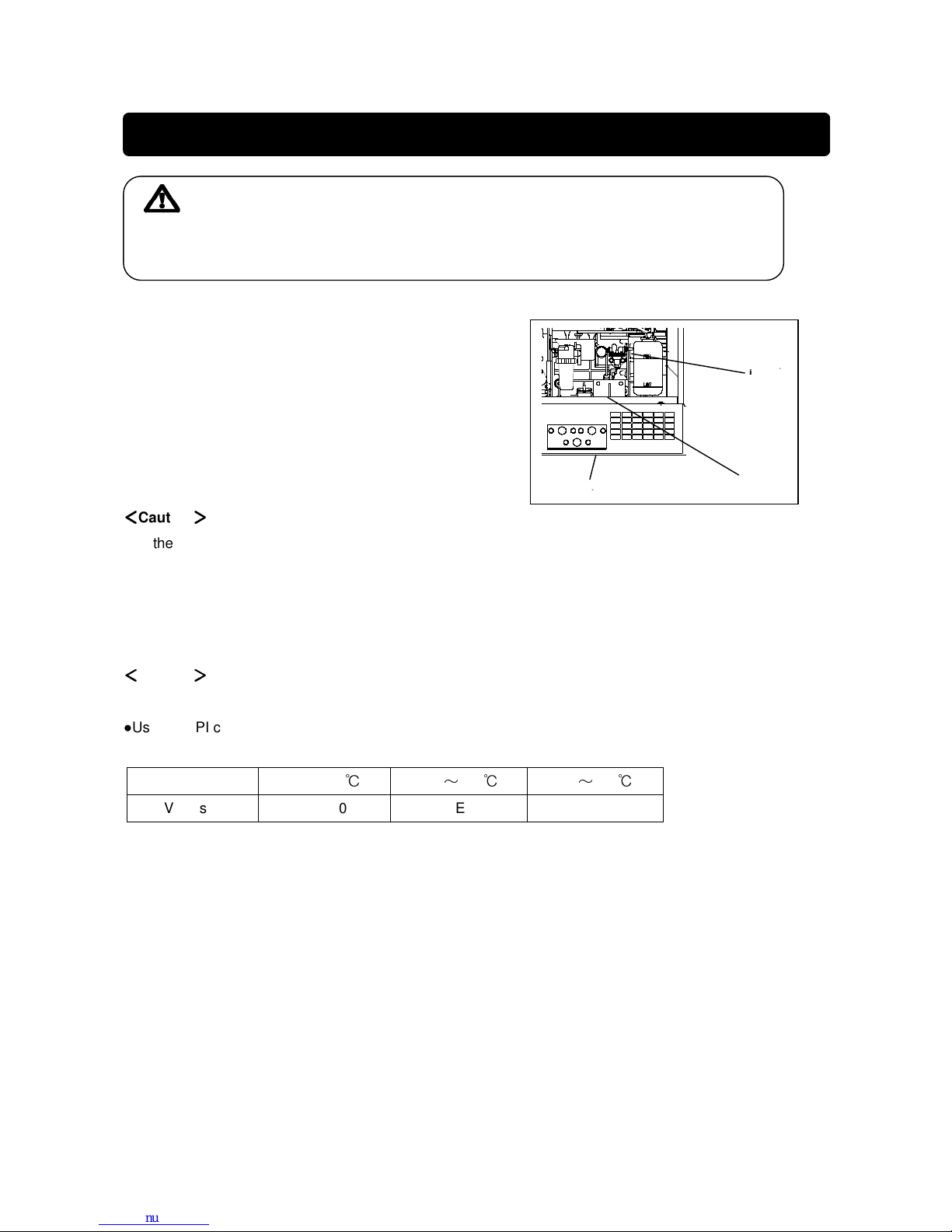

6-1. Engine Oil
When checking engine oil, be sure to
Keep the equipment leveled and insert
The oil gauge all the way in.
Before starting the equipment, make
Sure to fill the engine oil to the UPPER
Line through the oil inlet.
＜
＜＜
＜ Caution ＞
＞＞
＞
●If the equipment is not levels, you cannot obtain accurate oil level. Do not overfill (over UPPER line) the
engine oil. The excessive oil may damage the engine (inside cylinder).
■Selection of proper engine oil
Select the proper viscosity engine oil in compliance with ambient temperature. (Refer to the chart below)
＜
＜＜
＜ Caution ＞
＞＞
＞
●Use the API class CD or higher.
Viscosity and temperature
Temperature Over+20 ℃ +10 ～ +20 ℃ -10 ～ +40 ℃
Viscosity SAE30 SAE20 SAE10W/30
6. Initialization and Pre-check
Oil Drain Plug ﾞ
Oil Plug
Oil Inlet
Oil Gage ﾞ

17
6-2. Coolant and Water
Danger: Injuries
●Close all doors and locks during operating equipment to avoid injuries by accidental touch cooling fan or
fan belt.
Danger: Burns
●Do not open the radiator cap while operating the equipment or immediately after stopping the equipment to
avoid sustaining burn from hot vapor.


Caution: Burns
●Do not touch the engine or muffler during operation or immediately after stopping the equipment for
the temperature can reach extremely high.
Check to see if the coolant/water level is between 『 FULL 』 and 『 LOW 』 in the sub tank.
If it is below 『 LOW 』 level, fill he tank and the radiator accordingly.
(1) Filling the sub tank
1. Remove the sub tank cap.
2. Fill up the sub tank to 『 FULL 』 level.
3. Install the cap again.
(2) Filling the radiator
1. Open the top plate.
2. Remove the radiator cap.
3. Fill the radiator up to the top/
4. Install the cap again and tighten.
5. Close the top plate.
＜
＜＜
＜ Caution ＞
＞＞
＞
●Use Long Life Coolant to prevent from freeze and rust.
(30% mixture LLC is filled when shipped out from factory)
Ca
Sub Tank
To Door
Radiator
Ca
Water Inlet
Sub tank

18
●Mixture ratio of the coolant should be 30%-45% depending on the ambient temperature.
●Replace LLC at every year or 2000 hours.
Recommended LLC concentration (for reference only)
Lowest Temp. -15 ℃ -20 ℃ -30 ℃
Mixture Ratio 30% 35% 45%
6-3 Fuel
Caution: Fire
●Always wipe any drip of fuel. Do not use the equipment when any leak is found.
Repair the equipment before use.
Check the fuel level and add the fuel if it is necessary.
＜
＜＜
＜ Caution ＞
＞＞
＞
●Use Diesel Fuel JIS No.2 in the event ambient temperature down to -5 ℃
●In colder area, use JIS No.3 (down
To -15 ℃ .) or JIS No. Special 3
(down to -25 ℃ )
●Always use fuel strainer in the
fuel inlet.
●Fill the fuel tank slightly less
than the FULL tank.
6-4.Fuel, Engine Oil and Water Leakage
Caution: Fire
●Do not use the equipment when any leak is found. Repair the equipment before use.
Be sure to check any leakage for fuel, oil and coolant/water at the hose connections by opening the side
doors. Whenever checking leakage, turn the fuel lever OPEN and be sure to close the fuel lever after
checking.
Tank Ca
Strainer
Fuel Inlet
