Shinybow USA SB-5644 User manual

P a r t N o. : E N C L 0 0 5 6 4 4 A 0 0 A 0
Tha nk y o u fo r p urc ha sing the SB- 5644 C o m p o n e nt M a trix Sw itc h e r. Y o u will find this un it e a s y to insta ll
a nd hig h ly re lia b le b ut it is e sse ntia l tha t y o u re a d this m a nua l thro ug hly b e fo re a tte m p tin g to u se 4 x 4
C o m p o n e nt V id e o - Dig ita l- A ud io M a trix Sw itc h e r.
C om po ne nt M at ri x S witc he r S er ie s
4 x 4 C O M PO N ENT-AUDIO M ATRIX S WITC HER
M O DEL : SB-5 6 4 4
Instruction Manual
M U L T I M E D I A A U D I O A N D V I S U A L

SAFETY INFORMATION
THIS SAFETY INFORMATION IS OF A GENERAL NATURE AND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL
1. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original
factory packing.
2. Read all documentation before operating your equipment. Retain all documentation for future reference.
3. Follow all instructions printed on unit chassis for proper operation.
4. Do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
5. Make sure power outlets conform to the power requirements listed on the back of the unit.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not likely to be walked on
or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit
7. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the means of grounding of
a piece of equipment is not defeated.
8. Mains voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC voltage is not covered by
any warranty.
9. Power down & disconnect unit from mains voltage before making connections.
10. Never hold a power switch in the ＂ON＂position.
11. Do not use the unit near stoves, heat registers, radiators, or other heat Producing devices.
12. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal flow of air around the unit,
13.
such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky environment, the unit should be
Periodically ＂blown free＂of foreign matter.
14.
Do not remove the cover. Removing the cover will expose you to potentially dangerous voltages. There are no user serviceable parts inside.
15.
Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
16.
Non-use periods. The power cord of equipment should be unplugged from the outlet when left unused for a long period of time.
Service Information Equipment should be serviced by qualifier service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
from the appliance.
IMPORTANT SAFETY INSTRUCTIONS
To insure the best from this product, please read this manual carefully. Keep it in a safe place for future reference.
To reduce the risk of electric shock, do not remove the cover from the unit. No user serviceable parts inside. Refer servicing to qualified personnel.
To reduce the risk of fire, do not expose the unit to rain, water or excessive moisture.
Do not force switched or external connections.
When moving the unit disconnect the serial port connections first then the power cable and finally the interconnecting cables to other devices.
Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Use a clean dry cloth.
Installation of this unit should be in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold.

PAGE 3SB-5644 INSTRUCTION & OPERATION MANUAL
TABLE OF CONTENTS & INTRODUCTION
This symbol is intended to alert the user to the presence of uninsulated
enclosure tha may be of sufficientmagnitude to constitue a risk of
electric shock to persons.
This symbol is intended to alert the user to the presence of important
operational and maintenance (serving) instructions in the literature
accompanying the appliance.
T prevent electric shock do not use this (polarised) plug with ano
extension cord, receptacle or other outlet unless the blades can
be fully inserted to prevent blade exposure.
T prevent electric shock, match wide blade of plug to wide slot,o
fully insert.
Caution:
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK),
NO USER SERVICEABLE PARTS INSIDE,
REFER SERVICING TO QUALIFIED SERVICE PERSONAL.
WARNING!
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK
T
I
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE. .
RISK OF ELECTRIC SHOCK
DO NOT OPEN
of uninsulated “dangerous voltage” within the products enclosure that
PACKAGE CONTENTS
INSTRUCTION
1. Main console unit
2. Operating Instructions
3. IR Remote Controller (SW-5644)
4. 19 inch 1D(1RU) high Ear mount pair
5. RS232 DRV package
6. Power Supply 12VDC, Universal Type 50/60Hz, 100~230 VAC
Before attempting to use this unit, please check the packaging and make certain
the following items are contained in the shipping carton :
Note :
Please retain the original packing material should the need ever arise to return the unit.
If you find any items are missing, contact your reseller or Shinybow immediately.
Have the model number, Serial Number and Invoice available for reference when you call.
Congratulations on your purchase of one of the most innovative Component/Digital/Audio matrix switching
products on the market Today. The SB-5644 is a true Matrix Routing Switcher for Component Video, Digital
and Stereo Audio signals. It is an 4 individual Component inputs with 4 individual Component outputs.
Because it is a matrix router, any input may be routed to any output; or the same input may be routed to all
outputs or any combination. It completely eliminates the need to constantly move around audio and video
input and output cables. The SB-5644 is useful for Matrix signals from AV source devices (such as: VCRs,
Camcorders, Video Game Consoles, Video CDs, DVDs, Satellite Receivers, CATV Set Top Boxes, etc.) to
AV destination devices (such as: LCD TV, HDTV, Plasma displays, Projectors, etc.). Selection of inputs is
made via the Front Panel push buttons or an Infrared Remote Control unit or RS 232 control by computer.
3
RS232 SERIAL PROTOCOL COMMANDS
4
5
6
7
FRONT PANEL
REMOTE CONTROL
RS232 SERIAL INTERFACE
TABLE OF CONTENTS & INTRODUCTION
8
9

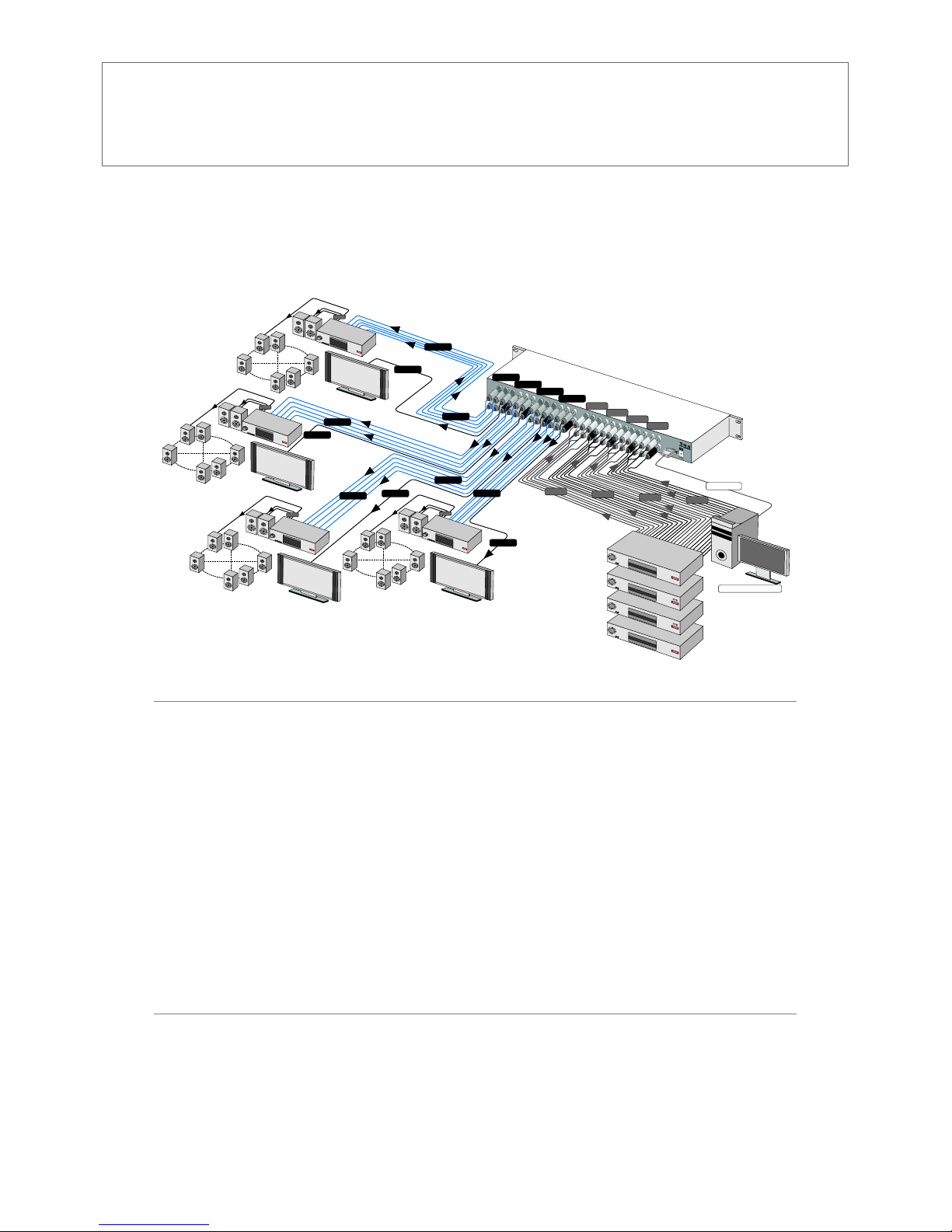

TYPICAL APPLICATION
10
REAR PANEL
11
FEATURES & SPECIFICATIONS
LIMITED WARRANTY

PAGE 4 SB-5644 INSTRUCTION & OPERATION MANUAL

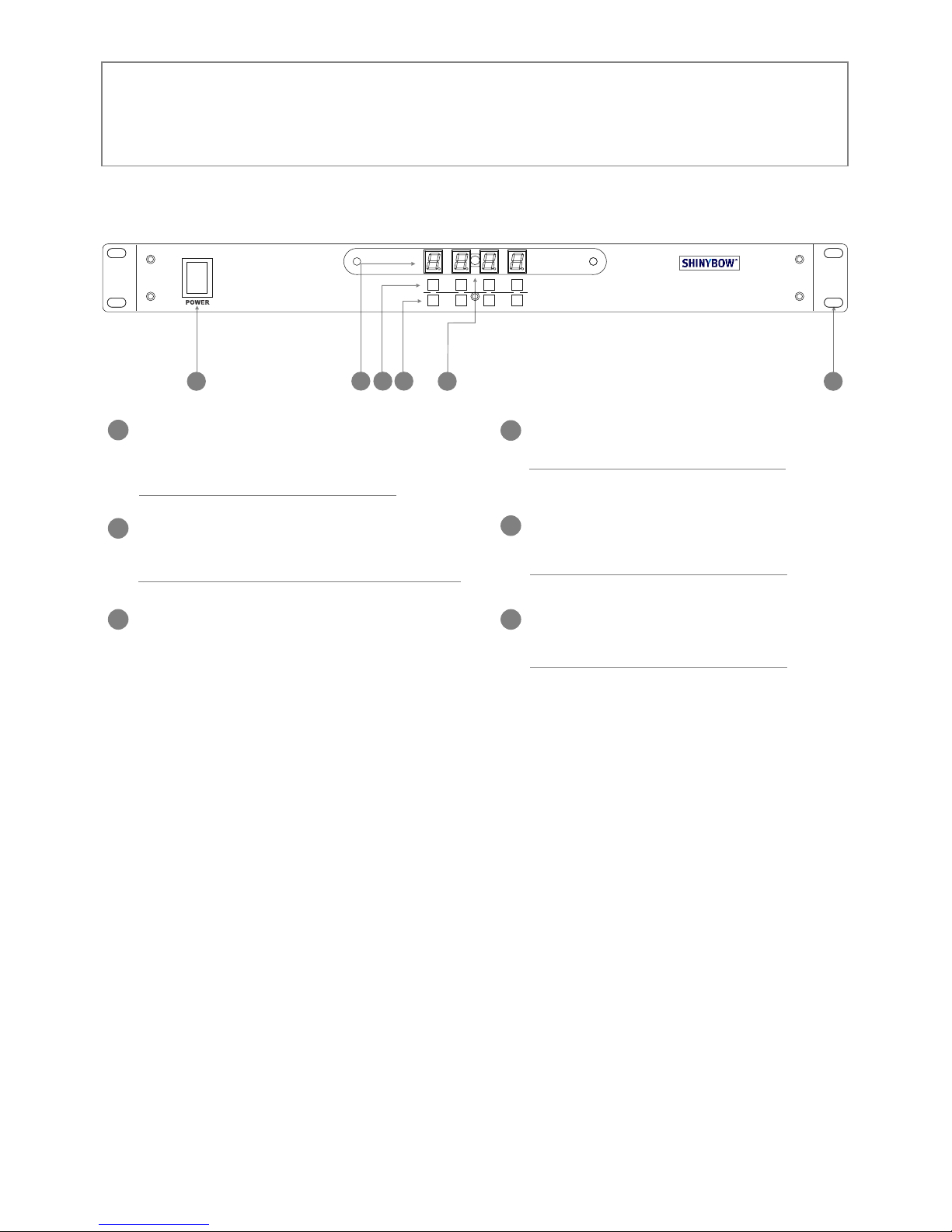

FRONT PANEL
FRONT PANEL
25
POWER ON SWITCH
UP SELECT INPUT SOURCE BUTTONS
1
The power switch turns the unit on and off.
The LED will illuminate red to indicate
that the switcher is ON and is receiving power
OUTPUT SOURCES STATUS LED DISPLAY
2
Output channel 1 to 4 show from LED display illuminates
red to indicate that a video source is present on that input.
Setup the input sources 1 ~ 4 channels
3
IR SENSOR
4
The IR sensor receives IR commands from the
supplied remote controller.
DOWN SELECT INPUT SOURCES
5
Setup the input sources 1 ~ 4 channels
6
16
3
19 INCH EAR MOUNT PAIR
19 inch 1RU(1D) high case Ear Mount pair
Part number : 1U-440L
POWER AND CONNECTIONS
This unit is not disconnected from the AC power source as long as it is connected to the wall outlet. The off state for this unit is called
standby mode. In standby mode the unit is designed to consume a reduced quantity of power compared to normal operating modes.
When not using the unit for a long period of time. Insure that the AC power cord is disconnected from the wall outlet.
The AC wall outlet should be installed near to the unit and be easily accessible.
Do not plug in or attempt to operate an obviously damaged unit.
OPERATING THE UNIT
Once you have connected the SB-5644 as described above, you must be certain that the input are being fed appropriate signals
and are not suffering from signal loss due to cabling problems or problems with the source device.
If the input signals to the SB-5644 are appropriate, switch the power switch to <ON> and you should see and hear the signals on
the devices you have connected to the various output connectors of the SB-5644.
4
IRIR
1234
4x4 COMPONENT MATRIX SWITCHER
OUTPUT OUTPUT
SB-5644MRM

PAGE 5SB-5644 INSTRUCTION & OPERATION MANUAL
1
REAR PANEL
REAR PANEL
1
2
INPUTS-1~4 COMPONENT-DIGITAL-AUDIO
3
Input 1~ 4 port source signals :
- Component Video(YPBPR), 3x RCA Connectors
- Digital Audio (PCM), 1x RCA Connector
- Stereo Audio(AR/AL), 2x RCA Connectors
RS 232 CONNECTION
RS 232 control port to allow for interfacing to a
PC, Such as a computer or touch panel control,
to the SB-5644 switcher via this DB-9pin
Female connector for serial RS-232 control.
DC POWER INLET
The SB-5644 is fitted with a DC power plug-park
input connector. Please ensure that the plug-park
used is of an approved type and is of sufficient
current carrying capacity with the correct voltage
and connector polarity. 12Volt DC power supply
1.25A Max.
OUTPUTS-1~ 4 COMPONENT-DIGITAL-AUDIO
4
Remote port :
DB-9pin Female connector
Component Video (YPBPR) Via 3x RCAs
Digital Audio(PCM) Via 1x RCA connector
Stereo Audio(AR/AL) Via 2x RCA connectors
Connect a signal source of Component Video(YPBPR)/
digital Audio(PCM)/Stereo Audio devise to 4x4 switcher.
Note:
With 6x RCA female connectors.
Connect a signal of Component Video(YPBPR),digital video &
audio direct to Female RCA connector. This connector supports
component video, digital video & audio to HDTV display device.
Power Jack:
DC Jack - inner OD O 2.1mm (+ )
Outside OD O 5.5mm (GND)
Power input - 12VDC, 1.25A
CONNECTING THE HARDWARE
Please study the panel drawings below and become familiar with the signal input-output, Power requirements plus
any controls present.
Before using the SB-5644, please take the time to make certain that the device you wish to connect to its inputs
is functioning properly in all respects. Verify that the video and audio signals are present and are being displayed
properly on a suitable device.
If all is well connect the appropriate cables between the output of the device you wish to distribute to output(s)
of the SB-5644 to the carious devices you wish to feed a signal to. Lastly, connect the AC to DC adaptor,
connect the DC connector to the SB-5644 first and then plug the adaptor into a functional AC outlet.
2
INPUT 1INPUT 1
Y/G Pb/B Pr/R
Digital
R/V
L/H
Component Video (YPBPR) Via 3x RCAs
Digital Audio(PCM) Via 1x RCA connector
Stereo Audio(AR/AL) Via 2x RCA connectors
Note:
With 6x RCA female connectors.
OUTPUT 1OUTPUT 1
Y/G Pb/B Pr/R
Digital
R/V
L/H
Output 1~ 4 display port signals :
- Component Video(YPBPR), 3x RCA Connectors
- Digital Audio (PCM), 1x RCA Connector
- Stereo Audio(AR/AL), 2x RCA Connectors
RoHS/95/EC
INPUT 1INPUT 1
OUTPUT 4OUTPUT 4
RS-232
INPUT 2INPUT 2INPUT 3INPUT 3INPUT 4INPUT 4
OUTPUT 3OUTPUT 3 OUTPUT 2OUTPUT 2 OUTPUT 1OUTPUT 1
4x4 MATRIX SWITCHER
COMPONENT VIDEO YPbPr(RGB)
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
R/V
L/H
Coaxial
Y/G Pb/B Pr/R
STEREO AUDIO AR/AL(VD/HD)
COAXIAL (PCM)
DC 12V
INPUT
43

POWERPOWER
0FF0 10EF 12ED 13EC
04FB 05FA 06F9 0DF2
10EF 00FF 1BE4 18E7
1FE0 1AE5 17E8 16E9
1CE3
TV OUT- 1TV OUT- 1
1234
TV OUT- 2TV OUT- 2
1234
TV OUT- 3TV OUT- 3
1234
TV OUT- 4TV OUT- 4
1234
4x4 COMPONENT MATRIX SW4x4 COMPONENT MATRIX SW
SW-5644SW-5644
PAGE 6 SB-5644 INSTRUCTION & OPERATION MANUAL
Before making any connections to the SB-5644. Observe the following:
> Ensure the mains voltage supply matches the label on the supplied plug-
Pack (+/- 10%)
> Ensure that the power switch is OFF
> Ensure that all system grounds (earth) are connected to a common point.
> Avoid powering equipment within a system from multiple power sources
that may be separated by large distances
REMOTE CONTROL
REMOTE CONTROL
> Connect all audio video sources and destination equipment
> power up all source and destination audio-visual sources
> For each destination output select the appropriate input source by using
> Upon power up the switcher will return to its last used setting before
The front panel input 1~4 select buttons. The supplied IR remote control.
Or through the RS 232 serial communications port.
Powered down.
1
2
SWITCH POWER ON or OFF
1
Controller with a separate power ON and OFF
OUTPUT 1~ 4 : OUTPUT TO TV DISPLAYS
Output -1 : TV-1 Component Video (YPBPR) HDTV Display
2
3
INPUT 1~ 4 : INPUT VIDEO SOURCES SELECTIONS
3
Output -2 : TV-2 Component Video (YPBPR) HDTV Display
Output -3 : TV-3 Component Video (YPBPR) HDTV Display
Output -4 : TV-4 Component Video (YPBPR) HDTV Display
Input -1 : AV-1 Component Video (YPBPR) Signal source device
Input -2 : AV-2 Component Video (YPBPR) Signal source device
Input -3 : AV-3 Component Video (YPBPR) Signal source device
Input -4 : AV-4 Component Video (YPBPR) Signal source device
Series Code: 24DB

PAGE 7SB-5644 INSTRUCTION & OPERATION MANUAL
FEATURES & SPECIFICATIONS
As product improvements are continuous, specifications are subject to change and without notice.
FEATURES
SPECIFICATIONS
1. Supports 4x inputs to 4x outputs Component Video(YPBPR) Matrix Switcher
2. Input/Output signals via Component Video(YPBPR), Digital(PCM), Stereo Audio(AR/AL)
3. Higher Video Bandwidth 325MB each path signals.
4. Supported HDTV high definition resolutions 408p, 576i/p, 720p, 1080i/1080p
5. Digital Audio (PCM) and Composite Video compliant
6. Compatible with all Component Video devices, Plasma TV display and HDTV
7. Supported RS232 serial interface protocol commands list
8. Control PC RS232 Drive compatible with win-95/98/2000/xp
9. Various User Interface controls:
•Attached Window based control software for Desktop or NB control by RS232 port
•Manual controlled by Front Panel button
•IR remote control
10. Support desktop with Ear mount and 19 inch Rack mountable type panel
11. Power supply DC12Volt, Universal Type Switch 100~230VAC, 50/60Hz
Type of Switcher:
I/O Signals:
Video Supported:
Controls:
Low all hostile crosstalk:
Audio Supported:
PC RS232 Control :
Gain control:
Safety Approvals:
Dimensions (LWH):
Power Supply:
Shipping Weight :
4 in To 4 out, Component Video-Digital-Audio Matrix Switcher
Component Video (YPBPR) 0.5~1.0Vpp, DDC 5Vpp,
Digital Audio (PCM), Via 1x RCA connector
Higher resolution formats 480i/p, 720p & 1080i/p
IR remote, Select buttons on the front panel & RS232
-83 db@5MHz
Digital Audio(PCM) and Stereo Audio(AR/AL)
RS232 interface serial via DRV on a PC
60MHz 0.1 db gain flatness
CE, FCC, RoHS(2002/95/EC).
19”x 7.87”x 1.73”(482mm x 200mm x 44mm)
DC12V / 1.25A (consumption 0.8A Max)
2.45 Kgs / 4.08 lb
Use Universal Switch Type 50/60Hz,100~230 VAC
Stereo Audio (AR/AL), Via 2x RCA connector(Red/white)
Video Bandwidth : 325MHz (-3db), 200mVp-p
Chassis Material: Metial (T=1mm)

PAGE 8 SB-5644 INSTRUCTION & OPERATION MANUAL
RS-232 SERIAL INTERFACE
RS232
The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC,
The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1.
When the unit recognizes a complete command it will perform the requested action - there is no delimiter character required.
The unit does not send out a message when a value is changed from the front panel or by IR control. If the unit needs to be
controlled via the front panel in addition to the RS232 control, you should regularly poll the unit status to ensure the control
system accurately relate the current settings.
PROTOCOL COMMANDS
To Switch Inputs to Outputs
- Where X is Output Number (1~4) and Y is
Number (1~4)
Unit will respond with
SBUD0XOY - Where X is Output Number (1~4) and Y is
Input Number (1~4)
Example : Send Input 4 to Output 3
-Send
SBUD04O3 -Rcvd
or similar third party control system.
SBI04O03
SBI0XO0Y
RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM
1 5
6 9
RS-232 SERIAL INTERFACE
Pin RS-232 Definition
1 ------ Not used
2 TX Transmitter
3 RX Receiver
4 ------ Not used
5 GND Ground
6 ------ Not used
7 ------ Not used
8 ------ Not used
9 ------ Not used

PAGE 9SB-5644 INSTRUCTION & OPERATION MANUAL
RS-232 SERIAL COMMANDS
FRONT PANEL LOCK
Note : Hard resetting the unit will unlock the Front Panel controls.
SBSYSMLK
- When front panel is locked, changes can only be
made by RS232
SBSYSMUK
- Front Panel Unlock
Unit will respond with
SBSYSLOK
- Front Panel has been Locked
SBSYSULK
- Front Panel has been Unlocked
Example : Lock Front Panel Buttons
SBSYSMLK -Send
SBSYSLOK -Rcvd
UNIT RESET
SBALLRST
- Reset every output to Input 1
Unit will respond with
SBRSTACK
- Unit has reset each Output to Input 1
Example : Reset all outputs to Input 1
SBALLRST
-Send
SBRSTACK
-Rcvd
Power Off mode.
- Put system into Standby (Soft Power Off)
- Bring unit out of Standby (Soft Power On)
Unit will respond with
- Unit is in Standby
SBALONAK
- Unit is no longer in Standby
Example : Put Unit in Standby (Soft Power)
SBSYSMOF -Send
SBALOFAK
-Rcvd
SBALOFAK
SBSYSMON
SBSYSMOF
MORE STUFF FOR SB-5644
Note:
Turning the unit System Power Off over RS232 will distinguish the LED display leaving only the Power
Switch LED on. The Video and Audio outputs will also mute. While the unit is turned off by RS232 it will
continue to accept and act upon switching commands. For example, if the unit is in the off mode
(via RS232) and you send a command to switch an input to an output, that route will complete and the
video and audio will now appear on that channel only. The front panel LED for that particular output will
also show the input selected (for that single output channel only). The remaining LED’s will remain off
and video and audio outputs muted. The unit will still return status and change messages in response
to commands sent while in Power Off state. A hard reset command (SBALLRST) will return the unit to
normal operation and also unlock the front panel.

PAGE 10
SB-5644 INSTRUCTION & OPERATION MANUAL
TYPICAL APPLICATION
INSTALLING
INPUTS 1 ~ 4 PORT HD SOURCE SIGNALS :
COMPONENT VIDEO - Component Video(YPBPR), connector with RCA
OUTPUT 1 ~ 4 PORT HDTV DISPLAY SIGNALS :
SB-5644 SUPPORT COMPONENT FOUR INPUTS MATRIX TO FOUR SWITCH OUTPUTS
SUPPORT CONTROL IR & RS 232 INTERFACE SYSTEM PORTS.
CONTROL PORTS :
1. IR REMOTE - IR Remote Controller
SHINYBOW
SB-5644 V2
4x Component sources to 4x Component Output Matrix Switcher
2. RS 232 Interface - RS 232 interface system
DIGITAL - Digital Audio(PCB), connector with RCA
AUDIO - Stereo Audio (AR/AL), connector with RCA
COMPONENT VIDEO - Component Video(YPBPR), connector with RCA
DIGITAL - Digital Audio(PCB), connector with RCA
AUDIO - Stereo Audio (AR/AL), connector with RCA
HD Device Source
OUTPUT
INPUT
DVD
4-Sat. Receiver
3-HD Player
2-VCR Player
DVD
1-DVD Player
PC ControlRS232
CAL-RS232
HDTV-1
Stereo Audio
AR/AL
Audio Amp
UP
Front
Right Lift
Rear
Down
S/PDIF
INPUT
HDTV-1
Stereo Audio
AR/AL
Audio Amp
UP
Front
Right Lift
Rear
Down
S/PDIF
INPUT
HDTV-2
Stereo Audio
AR/AL
Audio Amp
UP
Front
Right Lift
Rear
Down
S/PDIF
INPUT
HDTV-2
Stereo Audio
AR/AL
Audio Amp
UP
Front
Right Lift
Rear
Down
S/PDIF
INPUT
OUTPUT
OUTPUT
INPUT
INPUT
INPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT
OUTPUT OUTPUT
OUTPUT
OUTPUT
INPUT INPUT INPUT INPUT

PAGE 11SB-5644 INSTRUCTION & OPERATION MANUAL
LIMITED WARRANTY
SHINYBOW WARRANTY
SHINYBOW Technology warrants this product against defects in materials and workman
ship for a period of 1 year from the date of purchase.
Should this product, in SHINYBOW Technology,s opinion, Prove defective within this
warranty period, SHINYBOW Technology, at its option, repair this product without charge,
to whatever extent it shall deem necessary to restore said product to proper operation
condition.
This warranty does not apply if the fault has been caused by misuse, improper handling
care, electrical or mechanical abuse, and abnormal operating condition or non-SHINYBOW
Technology authorized modification to the product.
If repairs are necessary under the warranty policy, the original purchaser must return the
product to local distributor, freight prepaid.
After repairs are complete, the product will be returned.
REGULATORY COMPLIANCE
The product complies with the relevant standards for CE, FCC and RoHS approval.
The power Adaptor/Supply has been tested for compliance with UL.CSA and CE standards.
TROUBLESHOOTING
If you experience a <no signal> with this switcher or distributor outputs, first make certain that
the signal being fed to its inputs is acceptable.
Disconnect the cables from the this switcher or distributor inputs and connect them directly to
an appropriate monitoring device, if you do not see or hear a signal the problem may well be
he signal source itself. Also check that the AC outlet you have used to power the switcher or
distributor is actually providing power as a wall switch often controls an AC outlet.
The second most common problem with this switcher or distributor revolves around the cables,
Inspect the cables for loose connectors or cable damage such as crushed cable or cables with
cuts or nicks. Replace any cable exhibiting these problem.
You also must use the highest quality cables if you want to achieve the best results. Poor quality
cables provide will poor quality signals.

M U L T I M E D I A A U D I O A N D V I S U A L
1399 Wildfire Lane | Frisco, TX 75034
1-877-SHINY-USA 1-877-744-6987 1-972-377-2508
[e-mail]
www.shinybowusa.com
