INSTRUCTION MANUAL
MODEL : SB-8804LCM
8x8 DIGITAL-AUDIO MATRIX SWITCHER
8x8 DIGITAL-AUDIO MATRIX SWITCHER
Digital - Audio Matrix Switcher Series
Thank you for purchasing the SB-8804LCM 8x8 DIGITAL-AUDIO Matrix Switcher. You will find this unit easy to
install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this
switcher.
MULTIMEDIA AUDIO AND VISUAL

SAFETY INFORMATION
1. To ensure the best results from this product, please read this manual and all other documentation before operating your equipment.
Retain all documentation for future reference.
2. Follow all instructions printed on unit chassis for proper operation.
3. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid.
4. Make sure power outlets conform to the power requirements listed on the back of the unit. Keep unit protected from rain, water and
excessive moisture.
5. Do not attempt to clean the unit with chemical solvents or aerosol cleaners, as this may damage the unit. Dust with a clean dry cloth.
6. Do not use the unit if the electrical power cord is frayed or broken. The power supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience
receptacles, and the point where they exit from the appliance.
7. Do not force switched or external connections in any way. They should all connect easily, without needing to be forced.
8. Always operate the unit with the AC ground wire connected to the electrical system ground. Precautions should be taken so that the
means of grounding of a piece of equipment is not defeated.
9. AC voltage must be correct and the same as that printed on the rear of the unit. Damage caused by connection to improper AC
voltage is not covered by any warranty.
10. Turn power off and disconnect unit from AC current before making connections.
11. Never hold a power switch in the “ON” position.
12. This unit should be installed in a cool dry place, away from sources of excessive heat, vibration, dust, moisture and cold. Do not use
the unit near stoves, heat registers, radiators, or other heat producing devices.
13. Do not block fan intake or exhaust ports. Do not operate equipment on a surface or in an environment which may impede the normal
flow of air around the unit, such as a bed, rug, carpet, or completely enclosed rack. If the unit is used in an extremely dusty or smoky
environment, the unit should be periodically “blown free” of foreign dust and matter.
14. To reduce the risk of electric shock, do not remove the cover. There are no user serviceable parts inside. Refer all servicing to
qualified service personnel. There are no user serviceable parts inside.
15. When moving the unit, disconnect input ports first, then remove the power cable; finally, disconnect the interconnecting cables to
other devices.
16. Do not drive the inputs with a signal level greater than that required to drive equipment to full output.
17. The equipment power cord should be unplugged from the outlet when left unused for a long period of time.
18. Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit,
use only the original factory packing.
19. Service Information Equipment should be serviced by qualifier service personnel when:
A. The power supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the equipment.
C. The equipment has been exposed to rain
D. The equipment does not appear to operate normally, or exhibits a marked change in performance
E. The equipment has been dropped, or the enclosure damaged.
THIS SAFETY INFORMATION IS OF AGENERAL NATUREAND MAY BE SUPERSEDED BY INSTRUCTIONS CONTAINED WITHIN THIS MANUAL

TABLE OF CONTENTS
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the
PSU if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow
for sufficient space for air to circulate around the unit.
DISCLAIMERS
The information in this manual has been carefully checked and
is believed to be accurate. We assume no responsibility for any
infringements of patents or other rights of third parties which may
result from its use.
We assume no responsibility for any inaccuracies that may be
contained in this document. We make no commitment to update or
to keep current the information contained in this document.
We reserve the right to make improvements to this document and/
or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted,
transcribed,stored in aretrieval system,or anyof itspart translated
into any language or computer file, in any form or by any means
— electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise — without express written permission and consent
© Copyright 1997. All Rights Reserved.
Version 1.3 MAR 2014
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may
be trademarks of the companies with which they are associated.
CONTENTS
INTRODUCTION ..............................................................1
FEATURES & SPECIFICATIONS .....................................2
FRONT PANEL .................................................................3
BACK PANEL ....................................................................6
REMOTE CONTROL .......................................................7
REMOTE PROTOCOL COMMANDS ................................8
RS-232 SERIAL INTERFACE ...........................................9
IR EXTENDER ...............................................................10
TYPICAL APPLICATION ................................................12
INTRODUCTION
Congratulations on your purchase of one of the most innovative
8x8 Digital & Stereo Audio matrix switching product on the market
Today. The SB-8804LCM is a true Matrix Routing Switcher for
Digital Audio (compatible Composite Video signal) and Stereo
Audio. Support Composite Video on digital port input and output.
It is a 8 individual Digital Audio and Stereo Audio inputs with 8
individual Digital audio and Stereo Audio outputs. Because it is a
matrix router, any input may be routed to any output; or the same
input may be routed to all outputs or any combination. It completely
eliminates the need to constantly move around audio input and
output cables. The SB-8804LCM is useful for Matrix signals from
Digital Audio and stereo audio source devices (such as: VCRs,
Camcorders, Video Game Consoles, Video CDs, DVDs, Satellite
Receivers, CAT5 Set Top Boxes, etc.) To Composite Video/Audio
destination devices (such as: LCD TV, HDTV, Plasma displays,
Projectors, etc.). Selection of inputs is made via the Front Panel
push buttons or an Infrared Remote Control unit or PC RS-232.
PACKAGE CONTENTS
Check that you have the following components;
• SB-8804LCM 8x8 Matrix Switcher
• RS-232 V2.0 Protocol Instructions
• Master wireless IR Remote Control (SW-8804)
• 19 inch Ear mount bracket (Part # 1U-440L)
• SB-100 IR Extender distance 984 feet (300M) Receiver pack.
• SB-100C IR Extender distance 6 feet (2M) Receiver Cable
• CDContents : Manual,Windows GUI, ISPV1.0 Windowsdriver
• RS-232 Cable 6 feet (2M)
• Users Guide
• AC/DC Adapter: 12VDC, 2A Universal Type 50/60Hz,
100~230 VAC
1

FEATURES & SPECIFICATIONS
FEATURES
• Supports 8x inputs to 8x outputs Digital (SPDIF) & Stereo Audio Matrix Switcher
• Input / Out put signals via Digital(SPDIF) or Composite Video & StereoAudio(AR/ AL)
• Higher Video Bandwidth 300MB each path signals.
• Supported selection buttons direct channel on front panel
• Support Audio Volume control via Push Button select Audio Value from unit front panel (Stereo audio only)
• Compatible with all Digital(SPDIF) and Stereo Audio devices, Digital port supports : Composite VideoAR/AL port supported
• Supported RS-232 serial interface protocol commands list
• Control PC RS-232 Drive compatible with win-95/98/2000/xp
• Various User Interface controls:
• Attached Window based control software for Desktop or NB control by RS-232 port
• Manual controlled by Front Panel button
• IR remote control
• IR Extension control
• Support desktop with Ear mount and 19 inch 1U Rack mountable type panel
• Power supply DC12 Volt, Universal Type Switch 100~230VAC, 50/60Hz
SPECIFICATIONS
• Type of Switcher: 8 in To 8 out, Digital (SPDIF) / Stereo Audio Matrix Switcher
• I/O Signals:
• Digital : Digital or Composite Video 0.5~1.0Vpp, 75 Ohms, RCA(Orange)
• Analog : Stereo Audio (AR/AL), Via 2x RCAconnector(Red/white)
• Video Bandwidth: 300MHz (-3db), 200mVp-p
• Digital Supported: Digital Audio SPDIF, Composite Video and Component Video (Y)
• Audio Supported: Stereo Audio(AR/AL), Adjust Audio volume on each destination.
• Low All Hostile Crosstalk: -83 db@5MHz
• Controls: IR remote, Select buttons on the front panel & RS-232
• PC RS-232 Control: RS-232 interface serial via DRV on a PC
• Gain Control: 60MHz 0.1 db gain flatness
• Dimensions (WxDxH): 19 x 7.87 x 1.73 in (482x200x44mm)
• Shipping Weight: 2.85 Kgs / 4.75 lb
• Safety Approvals: CE, FCC, RoHS(2002/95/EC).
• Power Supply: DC12V / 2A (consumption 1250mA Max) Use Universal Switch Type 50/60Hz,100~230 VAC
As product improvements are continuous, specifications are subject to change without notice.
2

FRONT PANEL
FRONT PANEL
1. POWER ON SWITCH
The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power.
The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked.
2. INPUT STATUS DISPLAY
Input sources 1 to 8 LED illuminates blue to indicate that a Composite video source is present on that input.
3. OUTPUT STATUS DISPLAY
Each Output (destination) Channel shows which input (source) is assigned.
4. DESTINATION SELECT BUTTONS
Separate outputs 1 thru 8 select buttons are provided for each destination assignment. Routing can be Source to Destination or one
source to multiple destinations. Example: Press Destination 1,3,5 then press Source 2 will route Input 2 to Output 1,3,5 respectfully
5. SOURCE SELECT BUTTONS
Separate inputs 1 thru 8 select buttons are provided each source selection.
6. IR SENSOR
The IR sensor receives IR commands from the supplied remote controller or third party IR emitter.
7. 19 INCH EAR MOUNT PAIR
Converts desk-top to 19 inch rack mount bracket (part # 1U-440L) INCLUDED. Image shows rack mount bracket attached.
3

FRONT PANEL
FRONT PANEL
8. FUNCTION KEY - ALL
Disables (mute) video on all destinations OR Selects the same source to all destinations.
Option 1
- Press ALL followed by OFF button. The display will show ”0” indicating all destinations have no video selected.
Option 2
- Press ALL followed by Source 1 thru 8. The display will show the Source selected.
- Press ENTER The pre-set source selection will be assigned all destinations.
9. FUNCTION KEY - OFF
Disables (mute) video to selected channels. Either destinations.
- Press OFF button followed by any Destination channel.
- Press 1 thru 8 output destination. The display will show “ 0 “ for the selected channel indicating no video selected.
10. FUNCTION KEY - RECALL
The system will show previously stored presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or
Destination keys 1 thru 8 as the memory preset location.
- Press RECALL button.
- Press 1 thru 8 on either Source or Destination row.
- Press ENTER The pre-set configuration will execute.
Operation completes.
Note: Operation will abort if no keys are dressed within 5 seconds.
11. FUNCTION KEY - ENTER
Press ENTER to confirm entries.
4

FRONT PANEL
FRONT PANEL
12. FUNCTION KEY - VOLUME Repeatedly depressing the source 1 button will cycle down thru the options.
Repeatedly depressing the source 2 button will cycle up thru the options.
The button will flash blue and the display will show the currentAudio volume +0~100 Status.
The system will show previously stored presets, up to a total of 8 outputs. Presets are stored in audio volume memory using Destination
keys 1 thru 8 as the memory preset location.
- Press VOLUME button.
- Press 1 thru 8 on either Destination row.
- Press Source #1 or #2 button row for adjust the audio volume 0~100 level.
- Press ENTER The pre-set audio volume selection will be assigned all destinations.
Operation completes.
Note: Operation will abort if no keys are dressed within 5 seconds.
13. FUNCTION KEY - MEMORY
The system will show store presets, up to a total of 16. Presets are stored in local memory using Source keys 1 thru 8 or Destination keys
1 thru 8 as the memory preset location.
- Configure desired matrices .
- Press MEMORY button.
- Press 1 thru 8 on either Source or Destination row.
- Press ENTER to ready memory location.
- Or press MEMORY again to cancel operation.
Operation completes.
Note: Operation will abort if no keys are dressed within 5 seconds.
14. FUNCTION KEY - LOCK
- Press and hold LOCK button for two seconds lockout the front panel.
- Press and hold LOCK button for two seconds to enable front panel.

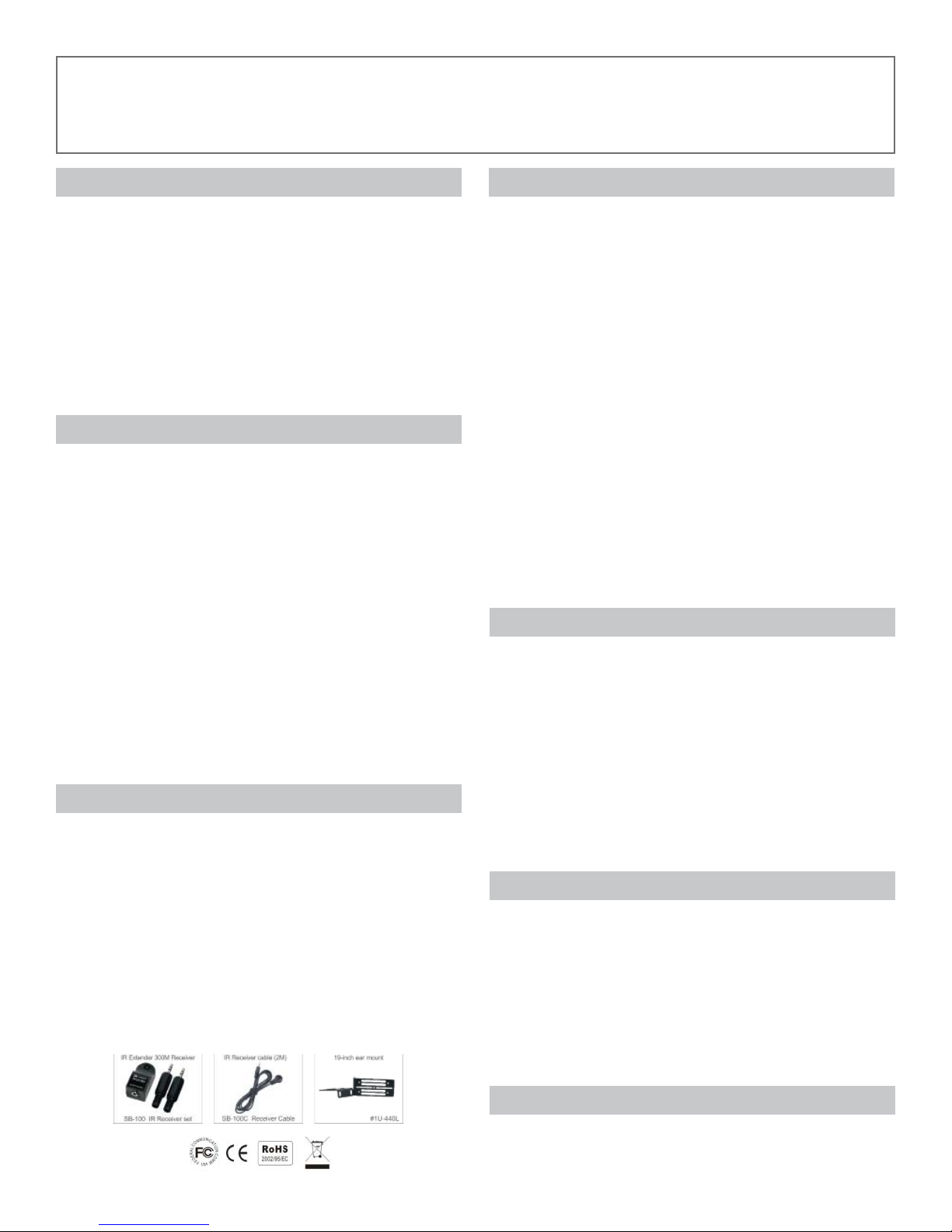

15. 19 INCH EAR MOUNT PAIR
Converts desktop to 19 inch rack mount. Bracket (part # 1U-440L) INCLUDED. Image shows rack mount bracket attached.
5

BACK PANEL
BACK PANEL
CONNECTING THE HARDWARE
Please study the panel drawings below and become familiar with the signal input-output, Power requirements plus any controls present.
Before using the switcher, please take the time to make certain that the device you wish to connect to its inputs is functioning properly in
all respects. Verify that the video and audio signals are present and are being displayed properly on a suitable device. If all is well connect
the appropriate cables between the output of the device you wish to distribute to output(s) of the switcher to the carious devices you wish
to feed a signal to. Lastly, connect the AC to DC adaptor, connect the DC connector to the switcher first and then plug the adaptor into a
functional AC outlet.
6
1. DC POWER INLET:
The switcher is fitted with a DC power plug input connector.
Please ensure that the plug used is of an approved type and is
of sufficient current carrying capacity with the correct voltage and
connector polarity. 12Volt DC power supply 2A Max.
2. IR EXTENDER CONTROL:
Support one of IR Extender (IR input) Extend distance maximum
984 ft. (300 m)
3. RS-232 CONNECTION:
RS-232 control port to allow for interfacing to a PC, such as a
computer or touch panel control, to the switcher via this DB-9pin
Female connector for serial RS-232 control.
4. INPUTS-1~8 DIGITAL / AUDIO(AR/AL):
Connect a signal source of Digital audio or composite video and
Stereo Audio (AR/AL) devise to 8x8 matrix switcher.
Input 1~8 port source signals : Digital audio or composite video/
Stereo Audio.
5. OUTPUTS-1~8 DIGITAL / AUDIO(AR/AL):
Connect a signal source of Digital audio or composite video and
Stereo Audio (AR/AL) direct to Female RCA connector. This
connector supports Digital audio or composite video and Stereo
Audio display device.
Output 1~8 destination port signals : Digital audio or composite
video and Stereo Audio.
Power Jack:
DC Jack - Inner OD Ø 2.1 mm (+)
Outside OD Ø 5.5mm (GND)
Power input -12VDC, 2A
IR Extender Jack: Female Jack - inner OD Ø 3.5mm
Remote port: DB-9pin Female connector
Digital Audio and Stereo Audio Via 3x RCA
connectors
Note: With 3x RCA female connectors.
Digital Audio and Stereo Audio Via 3x RCA
connectors
Note: With 3x RCA female connectors.

7
REMOTE CONTROL
Before making any connections to the SB-8804LCM. Observe the following:
• Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%).
• Ensure that the power switch is OFF.
• Ensure that all system grounds (earth) are connected to a common point.
• Avoid powering equipment within a system from multiple power sources that may be separated by large distances.
• Connect all audio video sources and destination equipment.
• Power up all source and destination audio-visual sources.
• For each destination output select the appropriate input source by using The front panel input 1-8 select buttons. The supplied IR remote
control. Or through the RS-232 serial communications port.
• Upon power up the switcher will return to its last used setting before Powered down.
REMOTE CONTROL
IR REMOTE CONTROL KEY :
IR REMOTE : SW-8804 IR PCB : RA-02
1. & 2. SWITCH POWER ON or OFF:
Controller with a power ON and OFF
3. DESTINATION : 1 thru 8 OUTPUT SELECTION:
Press the destination button to select the output display channel.
4. SOURCE : 1 thru 8 INPUT SOURCE SELECTION:
Press input 1~8 sources with selection button
5. AUDIO VOLUME KEY:
Adjust Audio Volume from +0 ~ +100 levels.
6. FUNCTION KEY:
ALL - function selection button
OFF - function selection button
RECALL - function selection button
DEMO or ENTER - function selection button
MEMORY - function selection button
LOCK - function selection button

8
REMOTE PROTOCOL COMMANDS
IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD)
HOW TO SETUP IR CODES : CUSTOM CODE : 40BF
POWER ON : 40BF A15E VOLUME + : 40BF C33C
POWER OFF : 40BF A25D VOLUME - : 40BF C43B
ALL : 40BF B04F RECALL : 40BF B24D
OFF : 40BF B14E ENTER : 40BF B34C
LOCK : 40BF B54A MEMORY : 40BF B44B
PRESS TV DESTINATION - # then PRESS SOURCE - #
DESTINATION #1 : 40BF 01FE SOURCE #1 : 40BF 01FE
DESTINATION #2 : 40BF 02FD SOURCE #2 : 40BF 02FD
DESTINATION #3 : 40BF 03FC SOURCE #3 : 40BF 03FC
DESTINATION #4 : 40BF 04FB SOURCE #4 : 40BF 04FB
DESTINATION #5 : 40BF 50AF SOURCE #5 : 40BF 05FA
DESTINATION #6 : 40BF 609F SOURCE #6 : 40BF 06F9
DESTINATION #7 : 40BF 078F SOURCE #7 : 40BF 07F8
DESTINATION #8 : 40BF 087F SOURCE #8 : 40BF 08F7
For example;
Select Destination # 1 to show Source #1~8,
The IR Data Code list when press Destination # then press Source #
Press Destination # 1 & Source #1 40BF 01FE 40BF 01FE
Press Destination # 1 & Source #2 40BF 01FE 40BF 02FD
Press Destination # 1 & Source #3 40BF 01FE 40BF 03FC
Press Destination # 1 & Source #4 40BF 01FE 40BF 04FB
Press Destination # 1 & Source #5 40BF 01FE 40BF 05FA
Press Destination # 1 & Source #6 40BF 01FE 40BF 06F9
Press Destination # 1 & Source #7 40BF 01FE 40BF 07F8
Press Destination # 1 & Source #8 40BF 01FE 40BF 08F7
