Shogun ES50 User manual

ES50 e-SCOOTER
What’s in the box
Each state and territory in Australia has a
different set of rules and regulations
pertaining to the usage of e-scooters
(including where e-scooters can legally be
used and whether e-scooters need to be
registered with relevant road traffic authority).
Any user of this scooter must ensure that they
check and abide by their local by-laws and
use responsibly. Ride with caution and always
wear a helmet and protective gear when
riding this scooter.
- Electric scooter
- Handlebar
- Power adapter
- Instruction manual
- Screws x 4
- Allen key
Dashboard
Electronic
Accelerator
Brake Lever
Bell
Charge Port
Folding Switch
Disc Brake
Brake Light
Front Light
Hook
Motor Stand
Battery
compartment
Dashboard Display
Power switch. Press once to turn on. Press once again to turn lights on. Press again to
turn lights off. Press and hold for 3 seconds to turn scooter off.
Battery Level Indicator. Five-bar displayed means that the charge is between 100%-
86%; four-bar displayed means the charge is between 85%-71%, and so on. When
there is only one bar left, the power is about to run out, please recharge.
FOLDING Grip riser with one hand, slide safety button on side of quick release lever upwards. Then
pull quick release forward and fold riser gently back to rear guard. Then raise the spring loaded
latch on rear guard and engage with hook on handlebar.
UNFOLDING Release hook from latch from rear guard and unfold riser to up right position. Press
quick release lever firmly to riser until it clicks into position.
WARNING: Grip the handlebars with your hands while your foot is firmly on the platform pull back
2-3 times to ensure the folding mechanism is securely locked.
Folding and Unfolding your Scooter
Page 1

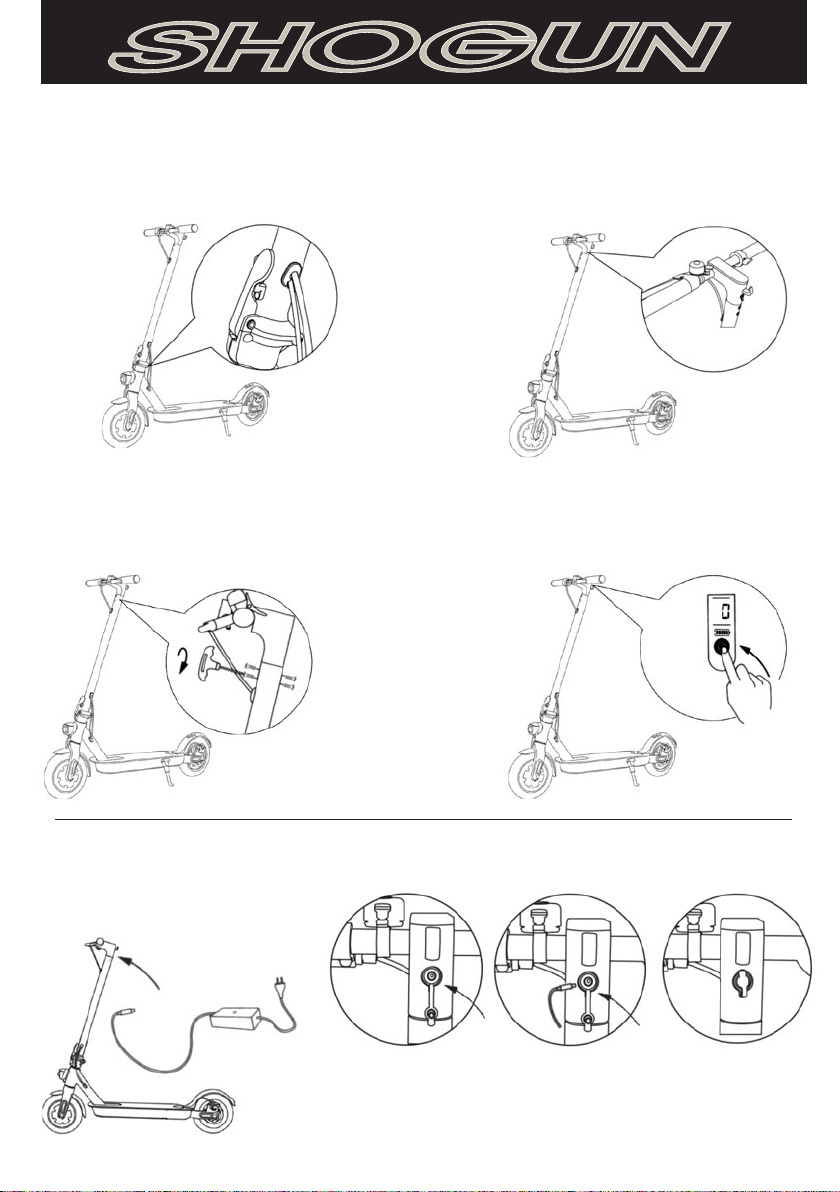

Assembly
1. Fix the handlebar stem and lower the kickstand.
3. Use the allen key in the package box to
tighten the screws on both sides. Do not
over tighten.
4. Turn on the electronic display and
familiarise yourself with its function
before riding.
2. Attach the handlebar wire loom to the
riser wire loom. Install the handlebar onto
the stem.
Open the
rubber plug
Insert the
charging lead
Replace the rubber
plug after charging
Charger Connection
Page 2

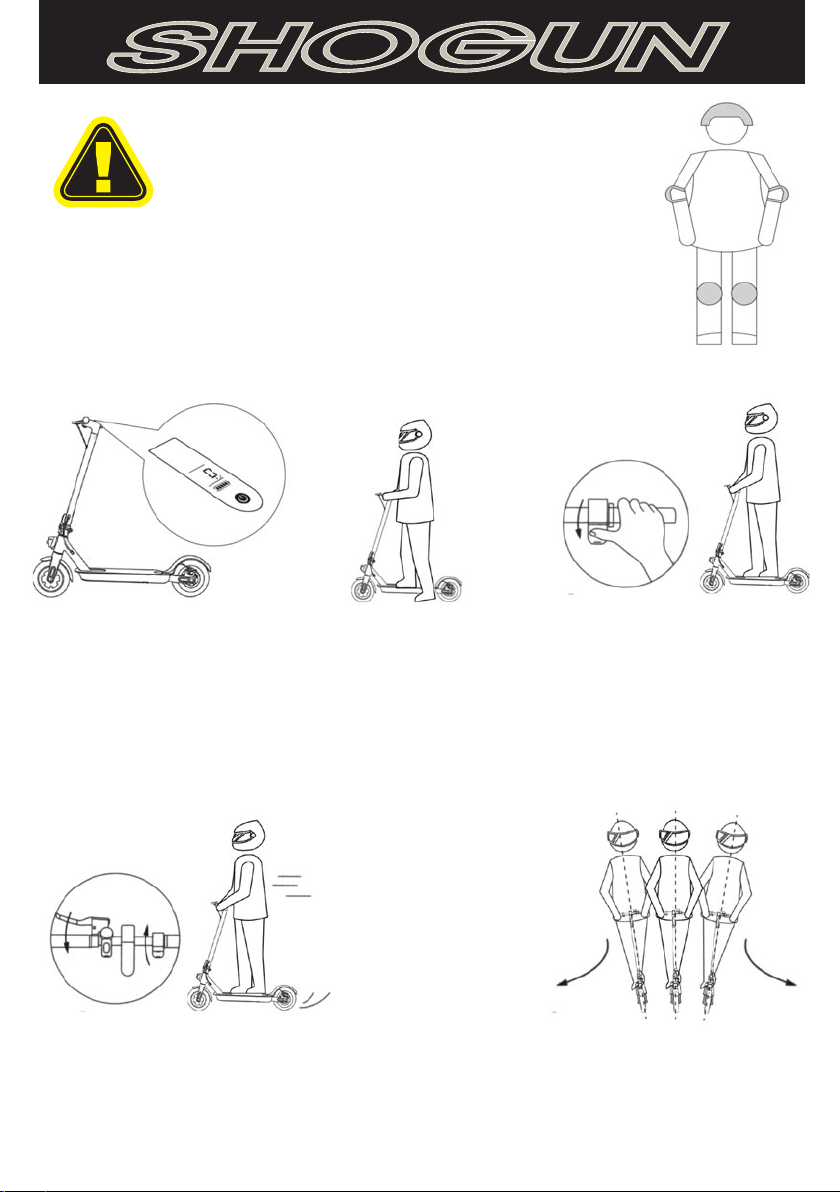

1. Power switch. Press once to turn
on. Press once again to turn lights
on. Press again to turn lights off.
Press and hold for 3 seconds to
turn scooter off.
2. Place one foot on the
platform and push off with
the other foot.
3. When the electric scooter
begins to coast, place the
other foot on the platform and
gently press the Electronic
Accelerator. (Minimum start
speed is 5km/h)
WARNING: THERE ARE CERTAIN
RISKS RIDING A SCOOTER. WEAR
AN APPROVED HELMET AND
PROTECTIVE GEAR THROUGHOUT
THE PROCESS AS SHOWN.
How to Turn on your e-Scooter
4. Release the Electronic Accelerator switch to
reduce speed slowly and the energy recovery
system will aid deceleration. Apply the brake
handle on the left handlebars for braking.
5. Gently lean into corners to
maintain balance.
Page 3

SAFETY WARNINGS
1. Always wear safety equipment such as a helmet,
knee pads and elbow pads. DO NOT lend the scooter
to people who don’t know how to ride it.
2. It is recommended to ride at low speeds until you
are familiar with the scooter. The recommended speed
is below 15KM/h.
3. DO NOT ride in the rain.
4. Pay attention to obstacles while riding, to avoid
collision.
5. Ride at low speed on unconventional roads such as
speed humps.
6. Reduce speed when going downhill use EABS. The
faster you ride the longer the braking distance you
need.
7. DO NOT hang heavy objects on the handlebars.
8. DO NOT press electronic accelerator while walking.
9. DO NOT ride on one foot.
10. CHECK LOCAL LAWS REGARDING SCOOTER USE.
Check local laws and regulations to see where and
how you may use your scooter legally. DO NOT ride on
roads.
11. DO NOT ride with more than one person on the
scooter at any time (including children).
12. DO NOT ride in water.
13. DO NOT step on the folding mechanism whilst riding.
14. Keep both hands on the handlebar at all times.
15. No sharp turns while riding at high speeds.
16. DO NOT touch the front wheel motor, as it may get
very hot after riding.
17. DO NOT perform any jumps or stunts of any kind
whilst riding.
Battery
1.DO NOT use different brands of batteries.
2.DO NOT open and puncture the battery case. Avoid the
risk of short circuit caused by metal objects touching the
battery contacts.
3.Improper disposal of used batteries may pollute the
environment. Observe the local regulations for disposal of
batteries.
4.DO NOT place the battery in a high temperature or low
temperature environment. DO NOT place the battery into
the fire.
Power Adapter
1.Only use the original power adapter to charge the
battery, other power adaptors may over heat and
cause fire.
2. DO NOT disassemble the charger casing and avoid
contact with the metal port when the power is on,
otherwise there is a risk of electric shock or damage to
the charger.
Daily maintenance
1. Check the scooter before riding for any loose nuts, bolts
or fittings. Do not use the scooter if you are unsure.
2.Do not use alcohol, gasoline, kerosene or other
corrosive liquids to clean your scooter. This may damage
the appearance and internal structure of the scooter
body. DO NOT use a pressure washer to wash scooter.
3. Before cleaning, please make sure that the scooter is
turned off, the charger has been unplugged, and the
rubber plug of the charging port is covered. Failure to do
so may cause damage to the electronic components.
4. Charge the battery after each ride to avoid battery
drain.
5. In standby mode, the low battery should be charged
every 30-60 days.
6. DO NOT try to disassemble the battery.
7. DO NOT use the electric scooter in low temperature or
high temperature environment. Extreme temperature may
effect the performance and function of the scooter.
Specifications Table
The scooter Item Number ES50
Unfolded Size 116cm x 43cm x 120cm
Folded Size 116cm x 43cm x 49cm
Net Weight 16.3KG
Max Load 100KG
Max Speed 25Km/h (Subject to rider weight and terrain)
Max Distance 20-25Km (Subject to rider weight and terrain)
Max Climbing Degree 14°+
Operating Temperature -10-40°
Storage Temperature -20-50°
Battery Rated Voltage 36V
Max Charging Voltage 42V
Battery Capacity 36V 8AH lithium battery
Charging Temperature 0-40°
Battery Management System Overheat/short circuit/overcurrent/overcharge protection
Motor Rated Power 250W
Max Power 500W
Charger Output rating 71W
Rated voltage range 100-240V
Rated output voltage 42V
Rated current 1.7A
Charge time 5h
