Shoprider 889DXD User manual

Owner’s Manual
ATTENTION
Please read your
owner’s manual
before driving your
scooter.
889DXD

2
CONTENTS
INTRODUCTION ......................................................................................................3
FEATURE GUIDE .....................................................................................................3
SAFETY ADVICE .....................................................................................................4
EMI Warning ............................................................................................................6
ADJUSTMENTS .......................................................................................................8
SCOOTER TILLER CONTROLS ..............................................................................10
FREE WHEEL OPERATION ....................................................................................12
STARTING TO DRIVE YOUR SCOOTER.................................................................13
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER ............................14
BATTERIES AND BATTERY CHARGER ................................................................15
MAINTENANCE .......................................................................................................16
TROUBLE SHOOTING GUIDE ................................................................................17
TECHNICAL SPECIFICATIONS ..............................................................................18
NOTES .....................................................................................................................19
DISCLAIMER ...........................................................................................................20

3
INTRODUCTION
Congratulations on your purchase of the Shoprider®scooter. This scooter incorporates the
latest innovative designs patented and only available on a Shoprider®scooter. This scooter
canbeusedinconfinedspacesoutdoors. Directdrivetransaxlesandelectromagneticbrakes
give a safe and efficient ride. This Shoprider®scooter is designed for persons with limited
mobility.
Please read this manual carefully and thoroughly before using your scooter and make
sure you understand all the instructions.
FEATURE GUIDE
1. Tiller Handle Bar
2. Detachable Seat
3. Armrests
4. Pneumatic Gray Tire
5. Footrest Pad
6. Headlight
7. Detachable Basket
8. Indicator Light
9. Taillight
1
2
3
5
7
64
8
8
9

4
SAFETY ADVICE
• Only carry one passenger.
•ThismobilityProductisintendedtoassistyou.Foryourownsafety,pleasereadtheOwner’s
Manual before using the Scooter. If in any doubt, contact your supplier directly for advice.

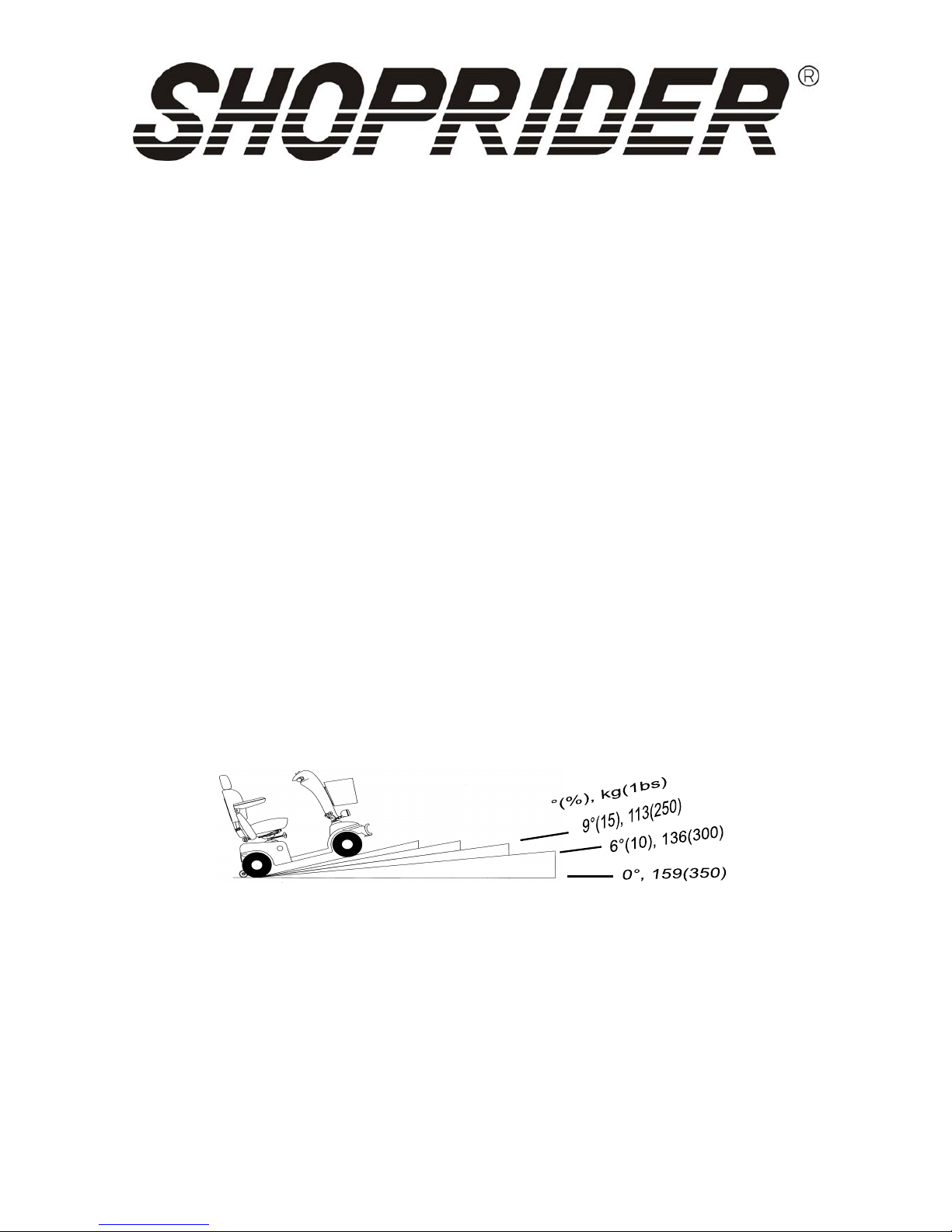

• Do not exceed inclines over 9 degrees (15% grade).
• Driver weight may exceed weight of the unit, speed must be reduced when turning.
• Do not get on or off the scooter unless the brake is on and the scooter is switched off.
• Do not switch off the scooter while the scooter is moving.
• Do not drive the scooter where you can not safely or legally walk.
•Donotattempttodriveovercurbsgreaterthan3inchesinheight.Doingsocouldcauseyour
scooter to turn over, causing personal injury or damage to the scooter. For curbs less than
3 inches, always approach them at an angle of 90 degrees and at a low speed.
• Do not drink or use a mobile phone when driving your scooter.
• Do not exceed the suggested user weight limit to use the product. Doing so, could cause
personal injury and invalidate the warranty.
• Always keep your feet on the scooter when moving.
• Please make sure that you are physically fit to operate this unit. Consult your dealer/doctor
for advice.
• Always slow down and proceed carefully when traveling over rough or uneven ground.
• For individuals with balance problems, practice getting on the scooter with the assistance of
a qualified healthcare professional.
• Do not use an escalator to move a scooter between floors or serious injury could occur.
• Do not drive the scooter on an incline that has oil, water or ice film on it.
•Donottrytoliftthescooterbyitsseat,tiller,rearchassis cover,oranyremovableparts. Any
of these could cause injury to the user or damage to the scooter.
• Do not use parts or accessories that are not authorized by the original manufacturer of the
scooter.
• Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure
thePOWERisoffandthescootercannotmoveunderitsownpower.Asageneralprecaution,
always remove the key from the ignition while the scooter is not in use. This will prevent the
use by untrained and unauthorized persons.

5
• Do not connect any foreign device to the scooter battery or charging port. This could cause
failure of the device, the scooter and personal injury.
• Make sure the tiller is properly adjusted and locked to the user or damage and injury could
result.
• It is not allowed to have any person sitting in the scooter when transported by a vehicle,
otherwise any injury or damage that might result.
• Do not use the scooter in the rain, near a shower or in a damp bathroom. Direct exposure to
rain or dampness could cause the scooter to electrically malfunction and prematurely rust.
• Do not lean against or pull forward on the tiller while mounting or dismounting the scooter.
Otherwise, injury may occur.
• Do not operate the unit or turn the key on while charging.
•Wheneveracenterboltofthewheelassemblyhasbeenloosened,pleasereplaceaspecified
new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm together with
Loctite 271 adhesive (or equivalent).
• Charge batteries daily after use.
• Charging plug has to be removed from the scooter after charging.
• Battery cables must be securely fastened onto battery terminals by the authorized dealers
before using the unit.
• Batteries must be tied down correctly and securely.
• Any loose cable can not be allowed when the unit is driving.
• Must check the battery charge remained before operating the unit.
• Always charge the batteries of the unit in a well ventilated area.
• If the unit went over or sank into deep water, please switch off power of the unit and consult
with your authorized dealer for help right away.
• Switch off power of the unit while not in use or before charging, removing and installing the
batteries. Otherwise, injury and/or damage to the unit or surrounding property may occur.
• Do not operate the unit in the way of exceeding to the product’s specification listed in this
owner’s manual.
• Do not use the thumb/finger lever before the key switch is turned on, or the operation will be
prohibited until to turn key switch off and then on.
EMI Warning

6
Shoprider®scootersmaybesusceptibletoelectromagneticinterference(EMI),whichisakind
of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV
stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The
interference (from radio wave sources) can cause the scooter to release its brakes, move by
itself,ormoveinunintendeddirections. Itcanalsopermanentlydamagethescooter’scontrol
system. The sources of radiated EMI can be broadly classified into three types:
1.Hand-heldportabletransceivers(transmitters-receivers)withtheantennamounteddirectly
onthetransmittingunit.Examplesinclude:citizensband(CB)radios,“walkietalkie”,security,
fireandpolicetransceivers,cellulartelephones,andotherpersonalcommunicationdevices.
NOTE!SomecellulartelephonesandsimilardevicestransmitsignalswhiletheyareON,
even when not being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of the
vehicle.
3. Long-range transmitters and transceivers, such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
NOTE! Other types of hand-held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such
as electric shavers and hair dryers, so far as we know, are not likely to cause problems
to the scooter.
Scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the transmitting
antenna (source), the EM fields from hand-held radio sources (transceivers) are of special
concern. It is possible to unintentionally bring high levels of EM energy very close to the
scooter’s control system while using these devices. This can affect scooter movement and
braking. Therefore, the warnings listed below are recommended to prevent possible
interference with the control system of the scooter.
WARNINGS
1.Donotoperatehand-heldtransceivers(transmitters-receivers),suchascitizensband(CB)

7
radios, or turn ON personal communication devices, such as cellular phones, while the
scooter is turned ON.
2.Beawareofnearbytransmitters,suchasradioorTVstations,andtrytoavoidcomingclose
to them.
3.Ifunintendedmovementorbrakereleaseoccurs,turnthescooterOFFassoonasitissafe.
4. Be aware that adding accessories or components, or modifying the scooter may make it
more susceptible to EMI.
NOTE! There is no easy way to evaluate the overall immunity of the scooter.
5.ReportallincidentsofunintendedmovementorbrakingtoyourShoprider®dealer,andnote
whether there are sources of EMI nearby.
WARNING:Theoriginalmanufacturerandtheimporterofthescooterisnotresponsible
for damage or injury incurred due to improper and unsafe use of our scooter.
ADJUSTMENTS
Tiller Angle Adjustment (Fig. 1)
On the left hand side at the base of the tiller
is a red lever. Push the lever to release the
Tiller Angle
Adjustable Lever

8
pin and select the required tiller angle. Refit
the pin into one of the five location holes.

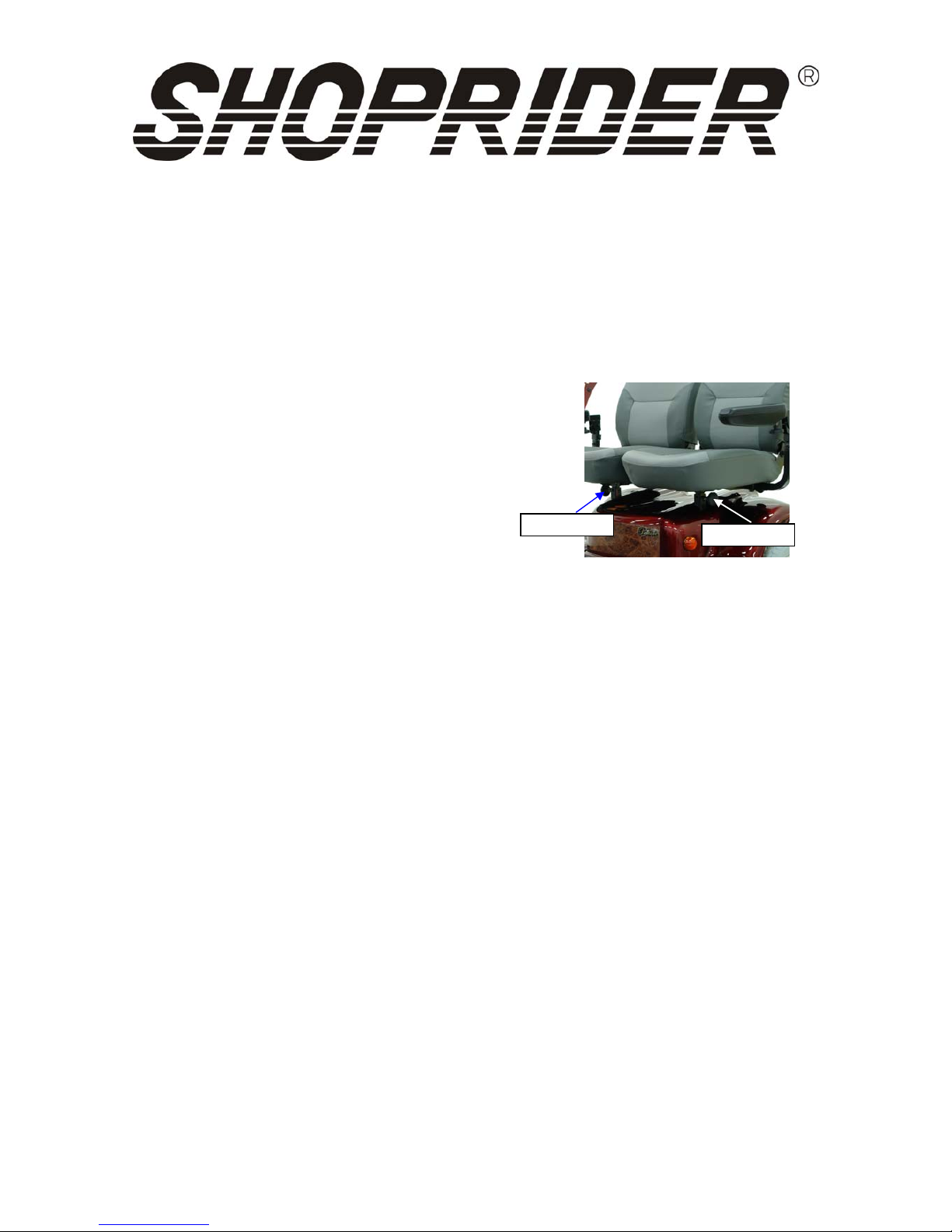

Seat Removal (Fig. 2)
Fold down the back of the seat. Loosen
the hand knob (fig. 2) and carefully lift
seat off.
Hand Knob Hand Knob
Fig. 2

9
Armrest Adjustment
Width (Fig. 3)
On the underside of the seat there are two
hand knobs, one either side. Loosening the
hand knob allows the arm rest to be adjusted
to the required width, or removed for
transportation.
Do not use the scooter without the arms
being fitted.
Angle (Fig. 4)
Flip up the armrests to allow access to the
adjustable bolt and lock nut, unscrew the
lock-nut and screw the bolt in or out to
increase or decrease the angle. Re-tighten
the lock-nut. Your scooter is dispatched
from the factory with the armrests set
parallel to the floor.
Length (Fig. 5)
Located under the armrest bracket is a
hand knob. By turning counter-clockwise
to release, the armrest can be extended
and reset in position by re-tightening the
hand knob.
Armrest Adjustable
Hand Knobs
Fig. 3
Lock-Nut
Adjustable
Bolt
Fig. 4
Armrest Adjustable
Hand Knob
Fig. 5

10
SCOOTER TILLER CONTROLS
(1) Speed Controls
The speed control allows you to set a speed between 1 (minimum) and 10 (maximum).
Turnthedialknobcounter-clockwiseto“minimum”todecreasespeed,andclockwisetowards
“maximum” to increase your speed.
(2) Battery Level Indicator
The number of LED bars lit, shows the amount of charge left in your batteries. The amount of
charge will only show at its true level when the scooter is in drive.
Caution – Do not allow the LED bars go out completely as complete discharge of the
batteries could cause irreversible damage.
(3) Lights
A blue colored button at the rear of the tiller operates the lights.
(4) Horn
A yellow button at the rear of the tiller operates the horn.
1
2 6
5
3
7
4
5
8

11
(5) Thumb/Finger Lever Controls
The left thumb/finger lever controls the reverse and the right thumb/finger lever controls the
forward motion. The amount of pressure applied to each lever will determine the speed the
scooter travels at. Release the lever and the scooter will slowly come to a stop and the
electromagnetic brake will be applied.
(6) On/Off Key Switch
Insert the key in the right side of the tiller. Turn the key and the LED bars will light up. There
isadelaybeforethethumb/fingerlevercontrolcanbeoperated,whilethecontrollerischecking
the circuits.
(7) Indicator Switch
Operates turn indicator lights.
(8) Hazard Warning Switch
A red button operates all indicator flashers.
Electromagnetic Brake
The brake is automatically operated when the control levers are released. There is a slight
delay when the scooter decelerates; this allows the scooter to come to a smooth stop.

12

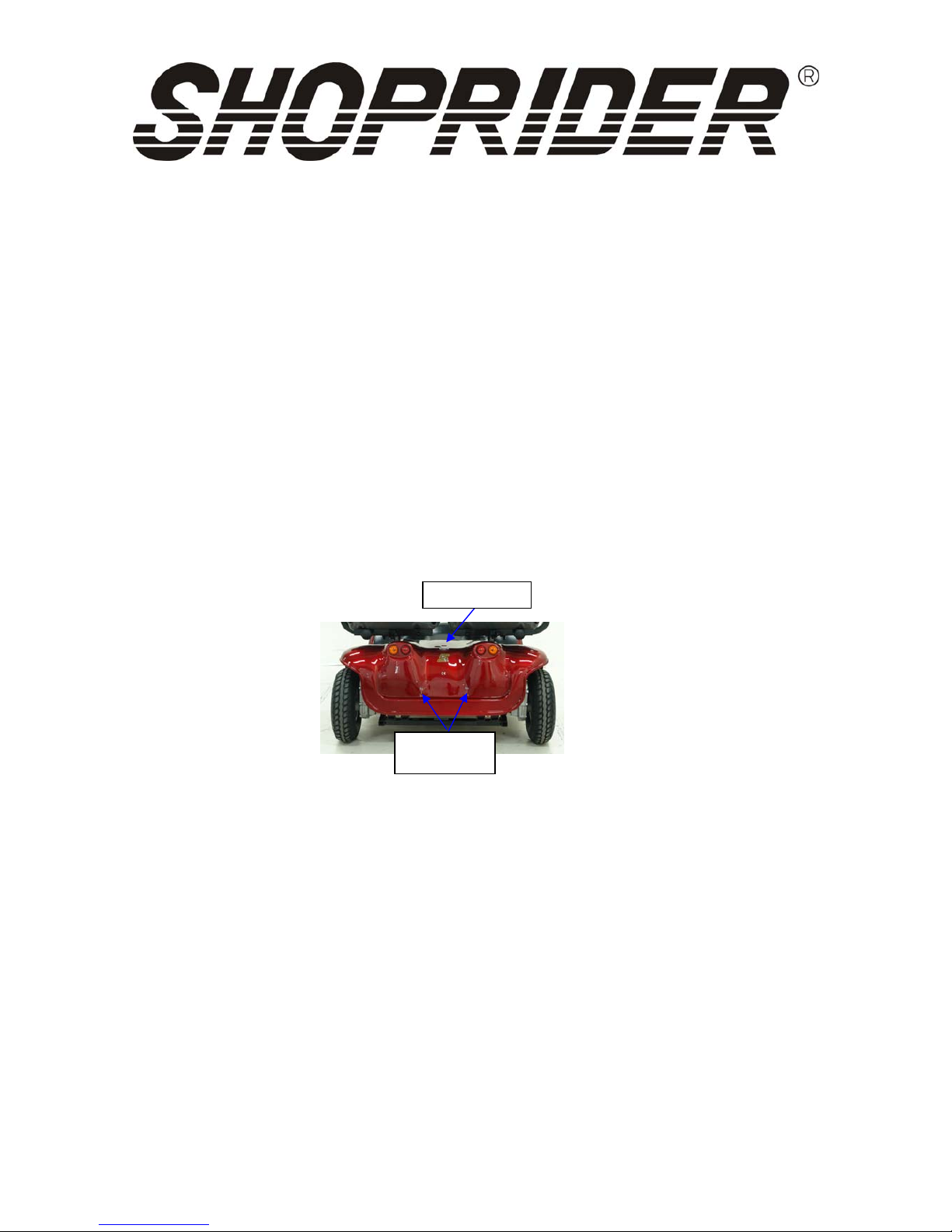

FREE WHEEL OPERATION
The free wheel release levers (yellow handle) are located inside the rear chassis cover. To
disengagethemotor,liftupthelevers(thescootercannowbepushed).Tore-engagethemotor
push down on the levers.
WARNING! Always re-engage the free wheeling device after use.
Failure to do so may result in injury.
Theoriginalmanufacturerandtheimporterofthescooterisnotresponsiblefordamage
or injury incurred due to improper or misuse of the scooter.
Circuit Breaker
Freewheel
Release Lever

13
STARTING TO DRIVE YOUR SCOOTER
Getting Started
• Select a level area with plenty of space.
• Mount the scooter, either by lifting the arm and sliding on to the seat or rotate the seat
outwards and then rotate the seat back to face the tiller.
• Adjust the tiller and seat as described previously.
Starting Scooter Movement
• Ensure that you are seated in a comfortable position.
• Turn the key to the ON position.
• Your speed setting should be on 1 or 2.
•Pullyourrighthandfingerlever,thescooterwillmoveforwardslowly.Theharderyoupullthe
faster the scooter goes but will only reach the speed level that has been selected.
• Release the lever and the scooter will slowly come to a stop and the magnetic brake will
be applied.
Steering
Steeringthescooterislightandeasy.Ensurewhenstartingoffyougiveawideclearancewhen
turningsothattherearwheelsclearanyobstaclethatyouarepassing.Whensteeringthrough
limited spaces such as a doorway or when turning around, turn the tiller handles where you
want to go and apply power gently. The scooter will turn very tightly, but will still move with
complete stability as long as the speed is not too high.
Reversing
Beforereversingensurethatthe areabehindis freefromanyhazardsorobstructions. Adjust
your speed setting to a low setting before you reverse. Pull/press the left thumb/finger lever,
and steer wide of all corners and obstacles.
Dismounting
Before dismounting ensure that the key is turned to the off position.
CAUTION:Pleaseensurethatcareisexercisedwhenenteringorleavingthescooterand
that the tiller and foot rest is not used for support.

14
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER
Ramps
The stability of your scooter is governed by several factors such as the seating position, the
angleoftheslopeandyourheightandweight.Whenapproachinganincline,dosodirectlyand
notatanangleandwheneverpossibleavoidmakingturns.Whengoingdownaramporslope
keep the speed settings to slow. This will ensure there is a safe controlled descent. When the
finger levers are released the scooter will slowly stop.
Safe Climbing Angle
Always follow the guidelines of the safe climbing angle shown as shown in figure 6.
Caution - Do not turn off the control key while the unit is in motion
Grass and Gravel
Please follow the guidelines given previously and your scooter will perform admirably over
many surfaces. Avoid long grass, loose gravel and sand.
NOTE:Youshouldnotoperateyourscooterinwetweatheroronwetsurfaces.Thismay
cause the motor to sort out.
Angles and weights shown here for this scooter indicate the safe working angles for the user
andequipment.Anyscooterusedoutsidetheseparametersmaybeunsafeandorcausefuture
problems with the electrical systems
(Single user) (Fig. 6)

15
BATTERIES AND BATTERY CHARGER
TheShoprider®scooterissuppliedwithmaintenancefree,sealedleadacidbatteries. Battery
performance can be affected by temperature, terrain, condition of battery, type of battery
charger,theweightoftheuser,windspeed,etc.Thebatterylevelindicatorisonly aguideand
is most effective when the scooter is moving, only then is the true discharge level displayed.
• When the scooter stops the battery level indicator may indicate full.
• An active user can use up to 30% of battery capacity or more per day.
• Inactive users may only use 50% of battery capacity in a week.
• In both these instances the battery should be put on charge over night.
Battery Charger
The battery charger supplied is special to your scooter, and may not be suitable for any other
power mobility product. Use only the charger supplied with your scooter; other marks of
chargers may permanently damage your scooter batteries, and would void the warranty. All
the information of battery charger and its operation instruction shall be referred to the user
manual attached with the charger in its packaging paper box.
First Time Use
Priortousingyour Portablescooterforthefirst time, youmustchargethe batteriesfully(refer
to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries
completely prior to first time use will benefit battery efficiency. Failure to do so may cause
damage.
Charging
Tochargethebatteriesconnectthe3-pinmaleplugleadintothe3-pin
femalebattery-chargingsocketlocatedonthetiller.PlugtheA/Ccord
plug into the wall socket and the other end into the charger (2-pin).
Please refer to the LED indicator description based on charging status
of the charger’s manual. Once the batteries are completely charged,
unplugtheA/Ccordfromthewallthenunplugthe3-pinleadfromthe
tiller.
WARNING: Only use the original Shoprider®approved charger!
This charger is for indoor use only. DO NOT expose it to rain or water spray.
Do not leave the charger plugged into the charger port if the charger is not charging.
Charging Port

16
MAINTENANCE
Lubrication
At six-month intervals you should lubricate the following parts with a light oil or similar
lubricant:
• Seat pivot post.
• Seat release lever pinion.
• Wheel bearings.
• Axle of scooter.
CAUTION – DO NOT USE WD40 TO LUBRICATE PARTS!! DO NOT LUBRICATE
TRANSAXLE/GEAR BOX!! In the event of any difficulties please consult your dealer.
Cleaning
Yourscootershouldbecleanedasrequiredhoweveraswithallelectricalequipmentyoumust
ensure that extreme care is used to not water damage e any sensitive parts.
Read the following warnings
• Only use a soft damp cloth.
• Never use a hose to wash your scooter.
• Do Not use abrasive cleaning products – Mild detergents only should be used. .
Wheels and Tires
The wheels of your scooter have split rims. This allows any punctures to be repaired easily.
Tochangethewheelsremovethecenter13mmboltandslidethewheeloffitsaxles.Takecare
nottolosethedrivekeyontherearwheels.Whenchangingatireyoumustdeflatethetirefirst.
Remove the four bolts to split the rim if required. Ensure that when refitting the wheel the
retaining bolt is fitted with a locking washer (with drive key for the rear wheel). Tire pressure
isrecommendedtobekeptat30psionthereartiresand25psionthefront.Notewhenrefitting
thetubeasmallamountofairinthetubewillpreventthetubefrompinchingwhenreassembling
the split rim.
Caution: On the tire it states maximum tire pressure is 50psi. This is a maximum tire
pressure and the tires should never be inflated to this pressure.
Attention: Tires should be maintained at the correct pressure noted above to ensure
even wear and ride comfort.

17
TROUBLE SHOOTING GUIDE
Circuit Breaker
Your scooter is fitted with the latest in electronic controls that are programmed to protect the
electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker,
should there be a situation that your scooter stops for no apparent reason please check that
thecircuitbreakerhasnotpoppedout.Thecircuitbreakercanbefoundundertherearchassis
cover accessible through a port hole under the seat.
Check List
If your scooter fails to operate, please check the following:
• Unit is switched on.
• All plugs and connectors are firmly fixed.
• Battery level shows full charge.
• Freewheeling device is in the drive position.
If the free wheel device has been operated with the scooter left switched on, then the scooter
will not operate until the ignition key has been switched off and then on again.
Please consult your dealer if your scooter does not run after checking these points.

18
TECHNICAL SPECIFICATIONS
Models 889DXD
Overall Dimensions: L1x W x H in 55 x 38 x 39
Front Tire Diameter Front 2 x 12.5”
Rear Tire Diameter Rear 2 x 12.5”
Suggested User Weight
(on the Level Road) lb 350
Total Weight (w/ Battery Pack, Basket, Seat) lb 310
Battery Capacity _V_Ah x Pcs 12V 36Ah x 4
Charger Amp 8A
Output Power of Motor
(Reference Only) W 400 x 2
Max. Speed2mph 3.8 ~ 4.5
Safe Climbing Angle Degrees (%) Fig. 6
Range3 (Per charge w/ standard battery) mile 28~30
Turning Radius in 85
***ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
1. Not the anti-tip wheels
2. Driver weight may exceed weight of the unit; although the speed must be reduced when
turning.
3. The actual driving range varies with the factors shown below:
a) the weight of occupant
b) ground surface
c) battery conditions
d) type of charger
e) ambient temperature
f) the way of driving
g) terrain
h) the wind speed
i) etc.

19
NOTES

20
Disclaimer
Congratulations on your purchase of the Shoprider® Scooter.
This Scooter is not intended to be used by individuals with physical limitations that could
prevent the user from operating the Scooter safely. Shoprider®disclaims all responsibility for
anypersonalinjuryorpropertydamage,whichmayoccurasaresultofimproperorunsafeuse
of its products.
Warranty is only valid when genuine Shoprider®parts are used. All modifications on the
Scooter, unless approved and authorized by Shoprider®will automatically invalidate the
warranties. Standard warranty does not extend to consumable items and parties other than
the original user.
The preceding guidance is intended to assist you in the safe operation of this Scooter. If you
should have any questions about the correct operation of the Scooter, please contact your
authorized Shoprider®provider.
Model Name –
Provider Stamp
Serial No.:_______________________
P/N:
