INTRODUCTION
Congratulations on your purchase of the Shoprider® Dasher 9 Portable scooter. The
Dasher is the ultimate combination of style, comfort and portability.
The Dasher comes with three interchangeable colors, giving you the choice of a
different color every day, and includes several innovative and convenient features.
The Dasher goes with you wherever you go and can be assembled or disassembled in
just seconds with wireless quick-connect components. The Dasher is super light and
compact, and can be stored in small areas such as the trunk or back seat of your car.
The compact features support easy transportation of your Dasher for today’s active
lifestyle.
The Dasher can be used in confined spaces both indoors and out. Direct drive
transaxle and electromagnetic brake give a safe and efficient ride. We know that the
Dasher portable scooter will provide many years of mobility for you.
Please ensure that you read this manual carefully, it is important for your safety
that you understand the guidelines and instructions given.

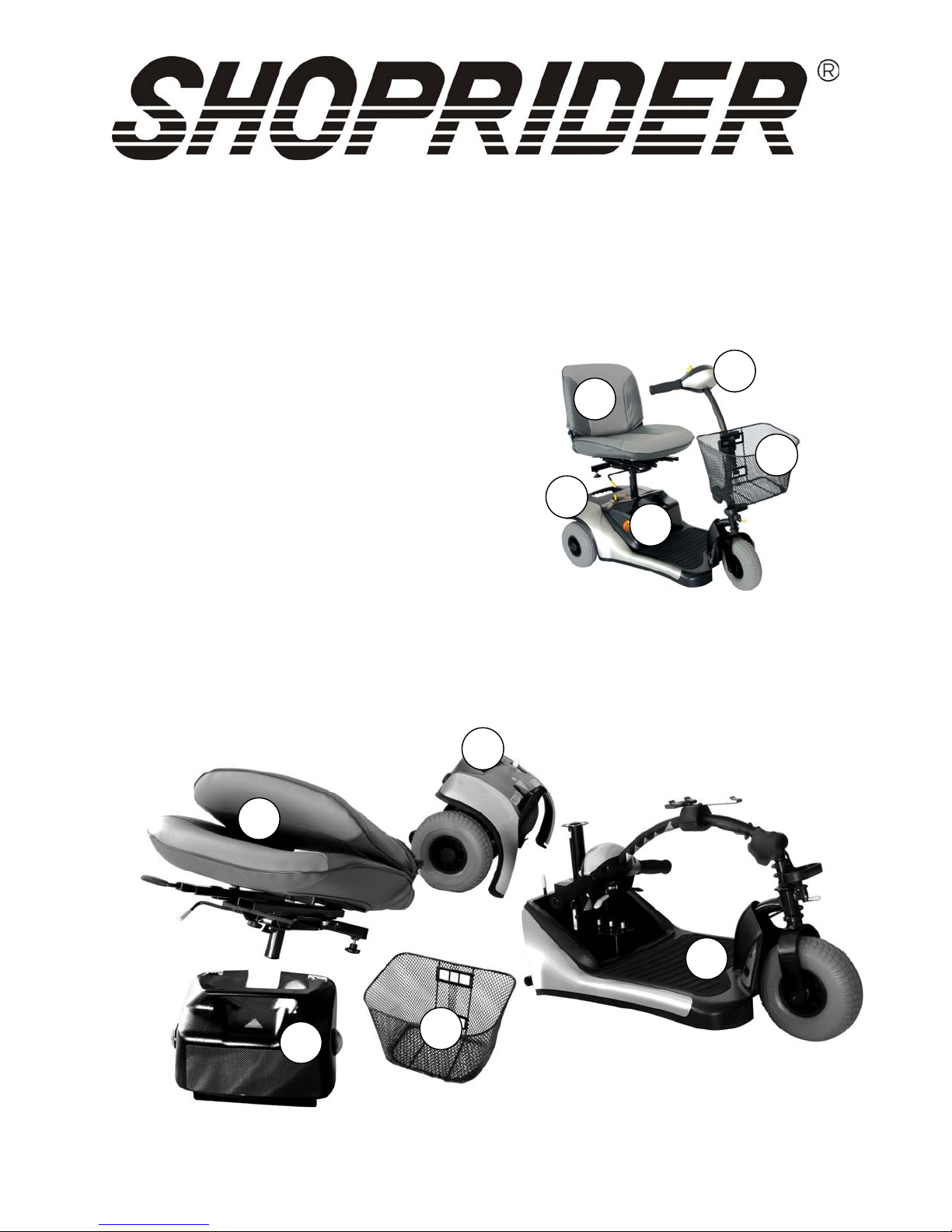

SMART FEATURE GUIDE (Fig 1)
1. Tiller control head
2. Detachable seat with fold down
Back with removable pads
3. Flip down arm rests
4. Detachable basket
5. Detachable battery-pack
6. Tiller adjustment knob
7. Swivel seat lever and seat
release lever
8. Puncture proof tires
9. Anti-tip wheels
10. Tiller lock for transport
(For Safety, this lock is
designed to break away
if the scooter is driven
when locked)
1
Figure 1
1
2
4
8
9
3
5
10
7
6

5/11/2007
4
SAFETY ADVICE
•DO NOT carry passengers.
•DO NOT exceed inclines over 6 degrees (10% grade).
•DO NOT turn on steep inclines.
•DO NOT turn suddenly at high speeds.
•DO NOT get on or off the scooter unless the brake is on and the scooter is switched
off.
•DO NOT switch off the scooter while the scooter is moving.
•DO NOT drive the scooter where you can not safely or legally walk.
•DO NOT drive the scooter on the road, street or highway.
•DO NOT attempt to drive over curbs greater than 2 inches in height. Doing so could
cause your scooter to turn over, causing injury or damage to the scooter.
•DO NOT drink or use a mobile phone when driving your scooter.
•DO NOT exceed the suggested user weight limit. Doing so, could cause personal
injury and invalidate the warranty.
•ALWAYS keep your feet on the scooter when moving.
•Consult your doctor if there is any doubt about your ability to use a scooter safely.
•ALWAYS slow down and proceed carefully when traveling over rough or uneven
ground.
•For individuals with balance problems practice getting on the scooter with assistance
of a qualified healthcare professional.
•DO NOT operate the scooter without anti-tip wheels installed.
•DO NOT use an escalator to move a scooter between floors. Serious injury could
occur.
•DO NOT drive the scooter on an incline that has oil, water or ice film on it.
•DO NOT try to lift the scooter by its seat, tiller, or any removable parts. Any of these
could cause injury to the user or damage to the scooter.
•DO NOT use parts or accessories that are not authorized by Shoprider®.
•Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will
insure the POWER is off and the scooter can not move under its own power.
•As a general precaution, always remove the key from the ignition while the scooter is
not in use. This will prevent use by untrained and unauthorized persons.
•DO NOT connect any medical device to the scooter battery. This could cause failure
of the device, the scooter and personal injury.
•Make sure the tiller is properly adjusted to the user or damage and injury could result.
•DO NOT transport in a vehicle WHILE seated on the scooter. Shoprider® will not be
responsible for any injury or damage that might result.
•DO NOT use the scooter in the rain or near any other water source where the scooter
may get wet. Direct exposure to rain or dampness could cause damage to the scooter
electrical components.
•For maximum battery life, make sure to fully charge batteries for up to 12 hours prior
to first use.
EMI WARNING

5/11/2007
5
Shoprider® scooters may be susceptible to electromagnetic interference (EMI), which is
a kind of interfering electromagnetic energy (EM) emitted from sources such as radio
stations, TV stations, amateur radio (HAM) transmitters, two-way radio, and cellular
phones. The interference (from radio wave sources) can cause the scooter to release
its brakes, move by itself, or move in unintended directions. It can also permanently
damage the scooter’s control system.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held portable transceivers (transmitters-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios,
“walkie talkie”, security, fire and police transceivers, cellular telephones, and other
personal communication devices.
NOTE! Some cellular telephones and similar devices transmit signals while they
are ON, even when not being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of
the vehicle.
3. Long-range transmitters and transceivers, such as commercial broadcast
transmitters (radio and TV broadcast antenna towers) and amateur (HAM) radios.
NOTE! Other types of hand-held devices, such as cordless phones, laptop
computers, AM/FM radios, TV sets, CD players, and cassette players, and small
appliances, such as electric shavers and hair dryers, so far as we know, are not
likely to cause problems to the scooter.
Scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the
transmitting antenna (source), the EM fields from hand-held radio sources (transceivers)
are of special concern. It is possible to unintentionally bring high levels of EM energy
very close to the scooter’s control system while using these devices. This can affect
scooter movement and braking. Therefore, the warnings listed below are
recommended to prevent possible interference with the control system of the scooter.

5/11/2007
6
WARNINGS
1. Do not operate hand-held transceivers (transmitters-receivers), such as citizens
band (CB) radios, or turn ON personal communication devices, such as cellular
phones, while the scooter is turned ON.
2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid
coming close to them.
3. If unintended movement or brake release occurs, turn the scooter OFF as soon as it
is safe.
4. Be aware that adding accessories or components, or modifying the scooter may
make it more susceptible to EMI.
NOTE! There is no easy way to evaluate the overall immunity of the scooter.
5. Report all incidents of unintended movement or braking to your Shoprider® provider,
and note whether there are sources of EMI nearby.
WARNING! Shoprider® is not responsible for damage or injury incurred due to
improper and unsafe use of our scooter.

5/11/2007
7
ADJUSTMENTS
Tiller Angle Adjustment (Fig 2)
At the base of the tiller is a round knob.
Turn the knob counterclockwise to loosen the tiller
and select the desired tiller angle. Turn the knob
clockwise to securely lock the tiller into place. Below
the knob there is a lock designed to stop the tiller
from turning left or right. **Do not forget to unlock
this before driving the scooter**
NOTE: For Safety, this lock is
designed to break away if the
scooter is driven when locked.

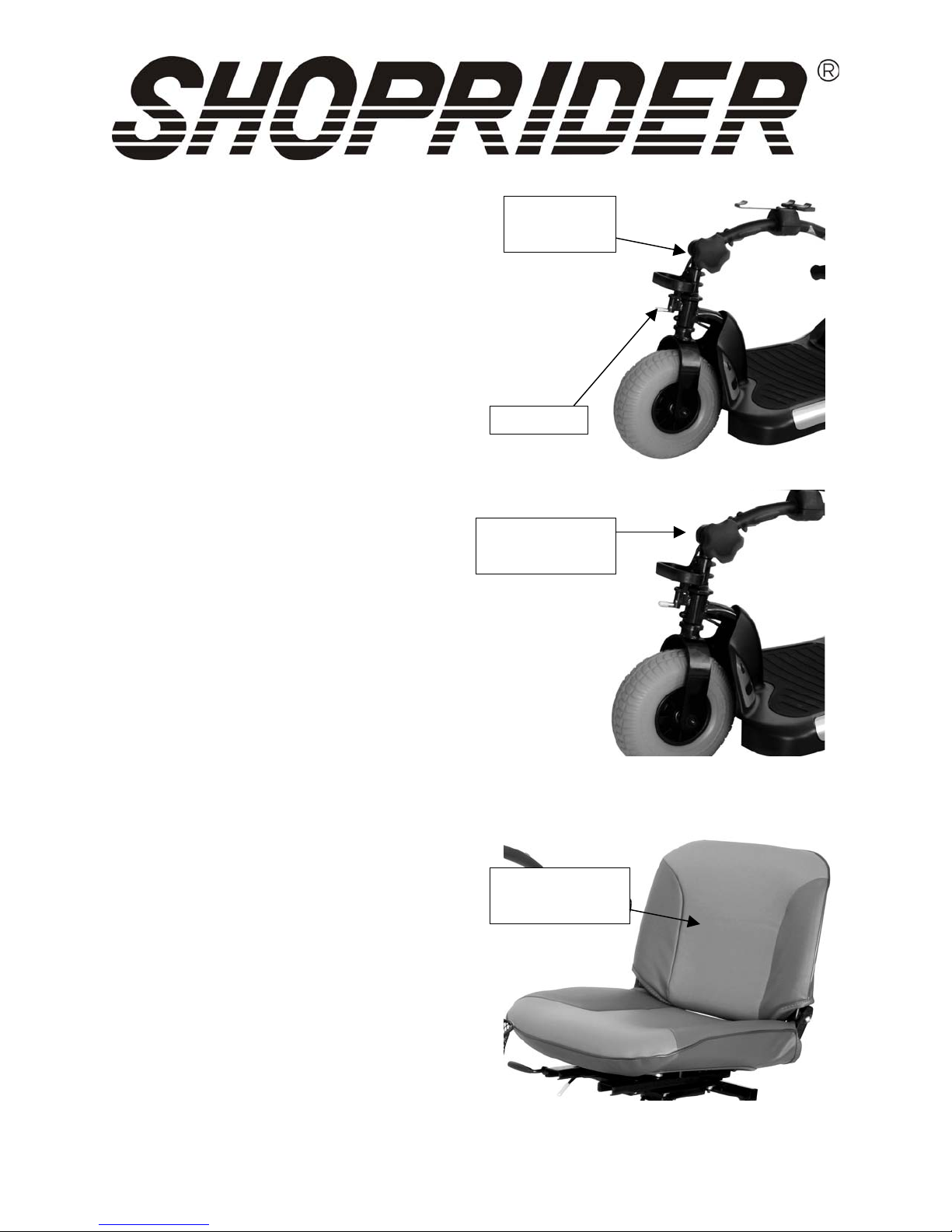

Folding the Tiller (Fig 3)
Fold down the tiller by loosening the tiller angle
adjustment knob located at the base of the tiller
(fig 2). Tighten knob to lock tiller in place. You may
lock the tiller assembly into place so that it doesn’t
swing from side to side by lifting the yellow tiller
lock lever up and to the right.
Seat Removal (Fig 4)
Fold down the back of the seat. Lift the
swivel seat release handle up to lift the seat
up and off the seat post.
Tiller angle
adjustment
Tiller lock
Figure 2
Figure 3
Tiller angle
adjustment knob
Fold down seat
assembly
Figure 4

5/11/2007
8
Seat Height Adjustment (Fig 5)
Remove seat as described (fig 4). Remove battery
pack (refer to disassembly section). Using two 13mm
wrenches, remove locking bolt and nut. Adjust seat
post up or down to desired position. The seat height
can be adjusted to five different positions by inserting
the locking bolt in the desired hole. Replace washer
and nut and tighten. Replace battery pack and seat.
Serial Number (Fig 5)
Serial number is located on the seat post. It is on a
white sticker with a barcode. The serial number is 13
alphanumerical digits beginning with a 1.
Armrest Width Adjustments (Fig 6)
On the underside back of the seat there are two
arm rest hand knobs, one on each side. Turn
hand knobs counterclockwise to loosen.
Loosening the arm rest hand knob allows the
armrest width to be adjusted or arm rest to
be removed. Once the desired positions
of the arm rests are set, tighten the hand
knobs by turning clockwise to lock the arm
rests into place.
Armrest Adjustments (Fig 6)
The arm rests are hinged and can be pulled
up and out of the way for sideways transfer.
Pull arm rest up and back.
Arm Rest
Hand Knob
Pull Arm Up
Figure 6
Figure 5
Seat Post
Serial Number

5/11/2007
9

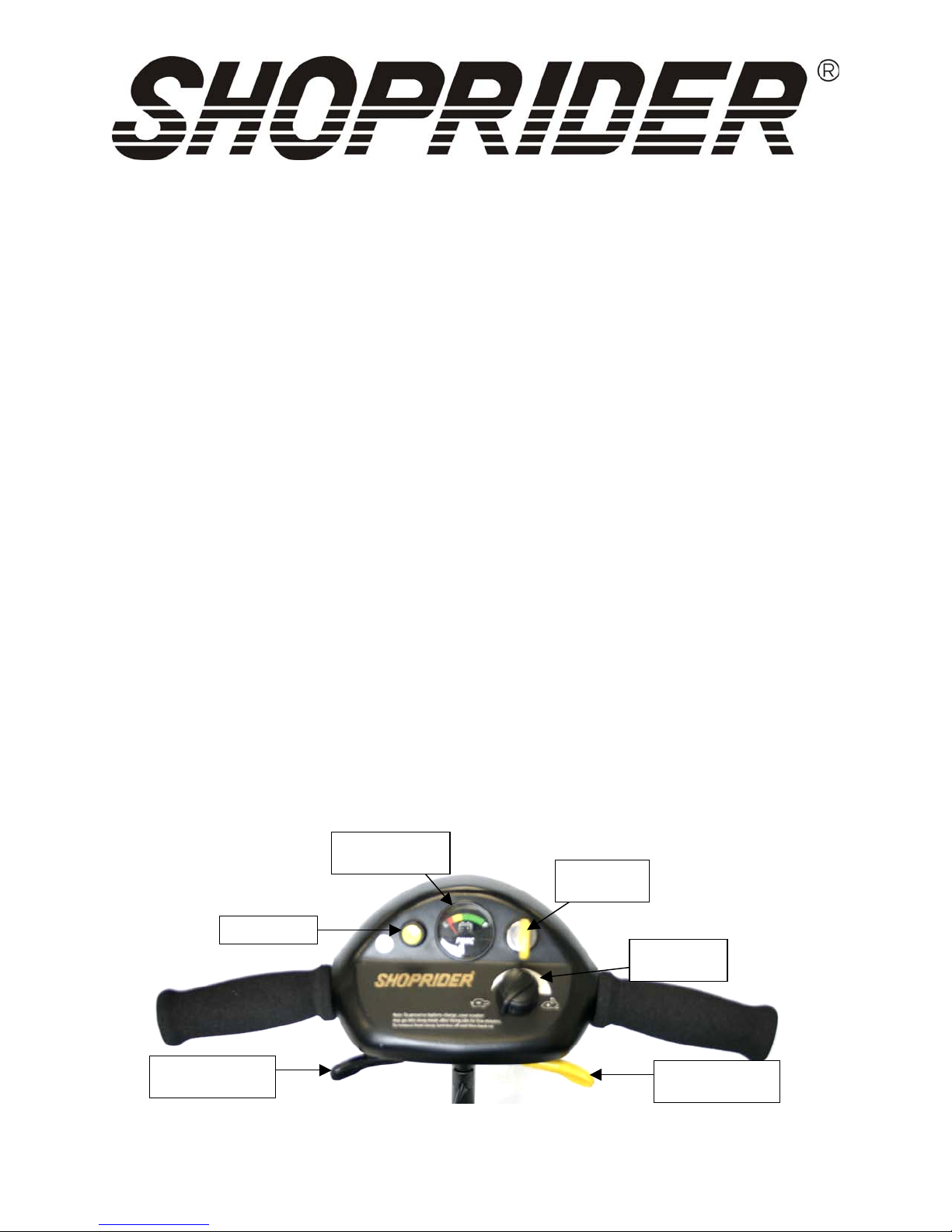

SCOOTER TILLER CONTROLS (FIG 7)
Speed Controls
The speed control allows you to set a speed between slow (turtle) and fast (rabbit).
Battery Level Indicator Gauge
Where the needle sits, shows the amount of charge left in your batteries. The amount of
charge will only show at its true level when the scooter is in drive. Always charge the
batteries completely before beginning out on any journey.
Caution – Do not allow the gauge needle to go down completely as complete
discharge of the batteries could cause irreversible battery damage.
Horn
A yellow button on top of the tiller operates the horn.
Thumb Lever Controls
The left thumb lever controls the reverse and the right thumb lever controls the forward
motion. The amount of pressure applied to each lever will determine the speed the scooter
travels at up to the speed selected. Release the thumb lever and the scooter will
automatically come to a stop as the electromagnetic brake is applied to the motor.
On/Off Key Switch
Insert the key into the key switch located on top of the tiller. Turn the key and the battery
gauge needle will move. There may be a slight delay before the thumb lever control can be
operated, while the main controller checks the circuits.
Electromagnetic Brake
The brake is automatically operated when the thumb control levers are pressed or
released. There is a slight delay when the scooter accelerates and decelerates; this allows
the scooter to start smoothly and come to a smooth stop.
Battery Level
Indicator Gauge
Speed
Control Dial
On/Off
Key Switch
Horn Button
Thumb Lever
Control (Forward)
Thumb Lever
Control (Reverse)
Figure 7

5/11/2007
10
DRIVE/FREEWHEEL OPERATION (FIG 8)
The drive/freewheel lever (yellow ball handle) is located under the seat at the right rear of
unit. This lever allows you to disengage the drive mechanism and push the scooter while in
freewheel mode. To disengage the drive mechanism (neutral), move the lever forward (the
scooter can now be pushed). To re-engage the drive mechanism (drive), move the lever
backward (now the unit may be driven).
Note: The scooter will not operate while the drive/freewheel lever is in the neutral position
(forward). The scooter must be turned off, lever moved backward (drive position) and then
turned on in order to reset the circuits.
WARNING! Always re-engage the free wheeling device after use. Failure to do so
may result in injury.
Anti-tip wheels
The anti-tip wheels are located at the rear of the scooter frame (Fig 8). The scooter should
not be used unless the anti-tipping wheels are in place.
Shoprider® is not responsible for damage or injury incurred due to improper or
misuse of the scooter.
Scooter serial number
The scooter serial number is located on the seat post and consists of a combination of 13
numbers and letters. Shoprider recommends that you write the serial number down on the
back of this manual for future reference. Refer to Fig 5.
Figure 8
Free Wheel
Lever (yellow)
Anti-Tip Wheels
Charging Port
Detach Lever
(yellow)
Circuit Breaker
(Reset Button)

5/11/2007
11
STARTING TO DRIVE YOUR SCOOTER
First Time Use
Prior to using your Dasher Portable scooter for the first time, you must charge the batteries
fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging
the batteries completely prior to first time use will benefit battery efficiency. Failure to do so
may cause permanent damage.
Getting Started
•Select a level area with plenty of space.
•Mount the scooter by pushing the arm upward out of the way and sliding onto the seat
or swivel the seat around to mount. Use the arm rest for support if necessary.
•Adjust the tiller and seat as previously described.
Starting Scooter Movement
•Ensure that you are seated in a comfortable position.
•Turn the key to the on position.
•Your speed setting should be on or near the turtle (slow).
•Push your right thumb lever (yellow) and the scooter will move forward slowly. The
harder you push, the faster the scooter goes but will only reach the speed level that has
been selected.
•Release the lever and the scooter will slowly come to a stop as the magnetic brake
automatically engages.
Steering
Steering the scooter is light and easy. When starting off ensure that you give a wide
clearance when turning so that the rear wheels clear any obstacle that you are passing.
When steering through limited spaces such as a doorway or when turning around, turn the
tiller handles where you want to go and apply power gently. The scooter will turn very
tightly, but will still move with complete stability as long as the speed is not too high.
Reversing
Before reversing ensure that the area behind is free from any hazards or obstructions.
Adjust your speed setting to a low setting before you move in reverse. Push your left
thumb lever (black), and steer wide of all corners and obstacles.
Dismounting
Before dismounting ensure that the key is turned to the off position.
Dismount the scooter by pushing the arm upward out of the way and sliding off the seat or
swivel the seat around to dismount. Use the arm rest for support if necessary.
CAUTION: Please ensure that care is exercised when mounting or dismounting the
scooter and that the tiller and foot rest is not used for support.

5/11/2007
12
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER
Ramps
The stability of your scooter is governed by several factors such as the seating position, the
angle of the slope and your height and weight. When approaching an incline, do so directly
and not at an angle and where ever possible avoid making turns. When going down a
ramp or slope keep the speed settings to slow. This will ensure there is a safe controlled
descent. When the thumb levers are released the scooter will slowly stop.
Safe Climbing Angle
Always follow the guidelines of the safe climbing angle as shown in figure 9.
Caution - Do not turn off the control key while the unit is in motion
Grass and Gravel
Please follow the guidelines given previously and your scooter will perform admirably over
many surfaces. Avoid long grass, loose gravel and sand.
NOTE: You should not operate your scooter in wet weather or on wet surfaces. This
may cause the motor to short out or cause other irreversible damage.
NOTE: To preserve battery charge, your scooter may go into sleep mode after being
idle for a few minutes. To remove from sleep mode, turn the key off and back on
again.
Figure 9

5/11/2007
13
TRANSPORT / STORAGE
The Dasher Portable scooter is designed to be quickly and easily disassembled into
sections for transportation and storage. Follow these simple guidelines for disassembly:
Dasher 9 Disassembly (Fig 10 & 11)
1) Remove the front basket: Lift basket up and
off.
2) Fold the seat down and remove: Pull yellow
swivel seat lever up and lift seat up and off.
3) Remove battery pack: Lift battery pack up
and off using handle (Note: battery pack is
secured by Velcro).
4) Fold tiller down and lock into place: Loosen
tiller adjustment knob, lower tiller, and tighten
adjustment knob. Lock tiller assembly by
pulling yellow lever up and to the right.
5) Detach rear section from front section:
Detach lever (yellow) is located in the rear of
the scooter next to the freewheel lever. Slide lever to “detach” and separate rear
section from front section.
1
2
3
4
5
2
1
4
3
5
Figure 11
Figure 10

5/11/2007
14
BATTERIES AND BATTERY CHARGING
The Shoprider® Dasher Portable scooter is supplied with maintenance-free, sealed lead
acid batteries. For easy handling, the batteries are contained within a battery pack. Battery
life and performance may be affected by temperature, terrain, condition of battery, the
weight of the user, and care of batteries. The battery needle gauge is only a guide and is
most effective when the scooter is moving, only then is the true discharge level displayed.
•When the scooter stops the battery needle gauge may indicate full.
•An active user can use up to 30% of battery capacity or more per day.
•Inactive users may only use 50% of battery capacity in a week.
•In both these instances the battery should be put on charge over night.
Keeping the batteries charged will extend the life of the batteries
Battery Charger
The battery charger is a 3-amp off board. The Dasher Portable scooter has a built in
charger port on the rear side of the battery pack. This special feature allows the batteries
within the battery pack to be charged without the scooter. A compartment built into the
battery pack is designed to store the battery charger when not in use.
First Time Use
Prior to using your Dasher Portable scooter for the first time, you must charge the batteries
fully (refer to Battery Charging Procedures). Charging may take up to 12 hours. Charging
the batteries completely prior to first time use will benefit battery efficiency. Failure to do so
may cause damage.
Charging
To charge the batteries plug the A/C cord plug into the wall socket and connect the 3-pin
male plug lead into the 3-pin female battery-charging socket located on the battery pack.
The battery charger has two indicator lights. The red light, when solid, indicates power. The
green light will flash when charging and go solid green when the charging cycle is
complete. If the red light flashes when charger is plugged into charging port of battery pack,
then there is a problem. Please contact your provider or Shoprider for assistance. Once the
batteries are completely charged, unplug the A/C cord from the wall then unplug the 3-pin
lead from the battery pack.
WARNING: Only use the original Shoprider approved charger!
This charger is for indoor use only. DO NOT expose it to rain or water spray.
Do not leave the charger plugged into the charger port if the charger is not charging.

5/11/2007
15
MAINTENANCE
Tires
Since your tires are flat free tires, there is no need to ever worry about tire air pressure.
General Maintenance and Lubrication
•Inspection for loose wheel bolts, seat and arm tightening bolts, and other nuts and bolts
is recommended on a regular basis.
•Most lubricated components on the Dasher Portable scooter are designed to be
maintenance free and are sealed. Therefore lubrication is not required for these
components. However, the driving axles and seat post should always have a very light coat
of multipurpose grease.
DO NOT USE TOO MUCH GREASE!
Drips may stain or damage carpets, furnishings, etc.
•It is recommended that the driving axles (inside the drive wheel assembly) be checked
and cleaned occasionally for hair and debris build-up, which will hinder the performance of
the unit.
•Check the batteries on a regular basis. For extended battery life, it is highly
recommended that the batteries be fully charged after each use. If the batteries are weak,
severely discharged or old, a variety of problems may occur with the unit including charging
problems, reduced speed, loss of range, and others. Please contact your local Shoprider®
provider for battery replacement.
TROUBLESHOOTING GUIDE
Circuit Breaker (Reset Button)
Your scooter is fitted with the latest in electronic controls that are programmed to protect
the electrical system from abnormal overloads. Provided for extra protection is a circuit
breaker, located on the side of the battery pack. Should there be a situation where your
scooter stops for no apparent reason, please check that the circuit breaker has not popped.
NOTE: To preserve battery charge, your scooter may go into sleep mode after being idle for
a few minutes. To remove from sleep mode, turn the key off and back on again.
Check List
If your scooter fails to operate, please check the following:
•Unit is switched on.
•Drive/Freewheel mechanism is in the drive position.
•All plugs and connectors are clean and firmly connected.
•Battery level shows full charge.
If the free wheel device has been operated with the scooter switched on, then the scooter
will not operate until the ignition key has been switched off and then on again.
Please consult your dealer if your scooter does not run after checking these points.

5/11/2007
16
TECHNICAL SPECIFICATIONS
UNIT SPECIFICATIONS
DASHER 9
Overall Dimensions: L1 x W x H
in
38.8” x 22” x 36”
Front
9” x 1 Flat Free
Number, Size of Tires
Rear
9” x 2 Flat Free
Suggested User Weight
(on the Level Road)
lb
MAX. 300
Weight of Heaviest Part
(Battery Pack 21Ah x 2)
lb
35
Total Weight (w/ 21Ah Battery
Pack, Basket, Seat)
lb
110
Battery Pack Module Weight
lb
35
Battery Module Capacity
_V_Ah
x Pcs
12V 21Ah x 2
Charger
Amp
3 Amp (Off Board)
Output Power of Motor
hp
0.75
Maximum Speed2 (on a leveled road)
mph
3.8
Safe Climbing Angle (Maximum
Single User Weight)
% ( º )
10 (6) / 16 (9)
Refer to fig 10a
Range4(per charge w/ STD
21AH Battery / 90
kg User Weight) (After the
battery and
mechanical moving parts
fully break in)
mile
11.2
Turning Radius
in
31.5”
Detachable Chassis
Y / N
Y
***ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
1. Include the Anti-Tip wheel.
2. Driver weight may exceed weight of the unit; speed must be reduced when turning.
3. The actual driving range varies with the factors shown below:
a) the weight of occupant
b) ground surface
c) battery conditions
d) type of charger
e) ambient temperature
f) the way of driving
g) terrain

5/11/2007
17
QUARTERLY INSPECTION
For your own safety, quarterly inspection and service on the product has to be performed
and signed by an authorized provider. Maintenance records (below) should be kept at all
times. The manufacturer / distributor / vendor will be indemnified from any product liability
claim if the above maintenance / service requirement is not met.
NOTE! Regular (Monthly) inspection is strongly recommended by the manufacturer
to ensure ultimate performance of the vehicle.
Service Record: Date of Purchase: / /
Purchaser:____________________________________________________
Model #: GK73 Serial #: ___________________________________
Provider Unit Was Purchased From: _______________________________
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y
M / D / Y

5/11/2007
18
WARRANTY
Please refer to warranty information included with unit.
DISCLAIMER
Congratulations on your purchase of the Shoprider® Dasher Portable scooter.
It is not intended to be used by individuals with physical limitations that could prevent
the user from operating this unit safely. Shoprider® disclaims all responsibility for any
personal injury or property damage, which may occur as a result of improper or unsafe
use of its products. Mechanical or electrical defects will be dealt with on a contingency
liability basis.
The preceding guidelines are intended to assist you in the safe operation of your
powered scooter. If you should have any questions about the correct operation of your
scooter, please contact your authorized Shoprider® provider.
Model Name:DASHER 9 Serial No.
Shoprider® Mobility Products, Inc.
[phone]
www.shoprider.com
Provider’s Stamp
