Shoprider TE-889NRS User manual

Owner’s Manual
TE-889NR
ATTENTION
Please read your
owner’s manual before
driving your scooter.
TE-889NRS

2
CONTENTS
INTRODUCTION ......................................................................................................3
FEATURE GUIDE .....................................................................................................3
SAFETY ADVICE .....................................................................................................4
EMI Warning ............................................................................................................6
ADJUSTMENT .........................................................................................................8
SCOOTER TILLER CONTROLS ..............................................................................10
FREE WHEEL OPERATION ....................................................................................12
STARTING TO DRIVE YOUR SCOOTER.................................................................13
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER ............................14
BATTERIES AND BATTERY CHARGER ................................................................15
MAINTENANCE .......................................................................................................16
TROUBLE SHOOTING GUIDE ................................................................................17
TECHNICAL SPECIFICATIONS...............................................................................18
NOTES ......................................................................................................................19
DISCLAIMER ...........................................................................................................20

3
INTRODUCTION
Congratulations on your purchase of the Shoprider®scooter. This scooter incorporates the
latest innovative designs patented and only available on a Shoprider®scooter. This scooter
can be used in confined spaces both indoors and outdoors. Direct drive transaxles and
electromagnetic brakes give a safe and efficient ride. This Shoprider®scooter is designed for
persons with limited mobility.
Please read this manual carefully and thoroughly before using your scooter and make
sure you understand all the instructions.
FEATURE GUIDE
1. Tiller Handle Bar
2. Black Vinyl Captain Seat
3. Armrests
4. Seat Reclining
5. Black Pneumatic Tire
6. Footrest Mat
7. Front Bumper
8. Headlight
9. Basket
10. Rear Indicators & Hazard Lights
11. Taillights
12. Anti-tip Wheels
13. Rear Bumper
12
10
11
13
6
5
4
3
2
1
8
7
9

4
SAFETY ADVICE
• Do not carry passengers.
•ThismobilityProductisintendedtoassistyou.Foryourownsafety,pleasereadtheOwner’s
Manual before using the Scooter. If in any doubt, contact your supplier directly for advice.
• Do not exceed inclines over 9 degrees (15% grade).
• Driver weight may exceed weight of the unit, speed must be reduced when turning.
• Do not get on or off the scooter unless the brake is on and the scooter is switched off.
• Do not switch off the scooter while the scooter is moving.
• Do not drive the scooter where you can not safely or legally walk.
• Do not attempt to drive over curbs greater than 1.5 inches in height. Doing so could cause
your scooter to turn over, causing personal injury or damage to the scooter. For curbs less
than 1.5 inches, always approach them at an angle of 90 degrees and at a low speed.
• Do not drink or use a mobile phone when driving your scooter.
• Do not exceed the suggested user weight limit to use the product. Doing so, could cause
personal injury and invalidate the warranty.
• Always keep your feet on the scooter when moving.
• Please make sure that you are physically fit to operate this unit. Consult your dealer/doctor
for advice.
• Always slow down and proceed carefully when traveling over rough or uneven ground.
• For individuals with balance problems, practice getting on the scooter with the assistance of
a qualified healthcare professional.
• Do not operate the scooter without anti-tip wheels installed.
• Do not use an escalator to move a scooter between floors or serious injury could occur.
• Do not drive the scooter on an incline that has oil, water or ice film on it.
•Donottrytoliftthescooterbyitsseat,tiller, rearchassiscover,oranyremovableparts. Any
of these could cause injury to the user or damage to the scooter.
• Do not use parts or accessories that are not authorized by the original manufacturer of the
scooter.
• Before sitting in or exiting the scooter, REMOVE the key from the ignition. This will insure
thePOWERisoffandthescootercannotmoveunderitsownpower.Asageneralprecaution,
always remove the key from the ignition while the scooter is not in use. This will prevent the
use by untrained and unauthorized persons.
• Do not connect any foreign device to the scooter battery or charging port. This could cause

5
failure of the device, the scooter and personal injury.
• Make sure the tiller is properly adjusted and locked to the user or damage and injury could
result.
• It is not allowed to have any person sitting in the scooter when transported by a vehicle,
otherwise any injury or damage that might result.
• Do not use the scooter in the rain, near a shower or in a damp bathroom. Direct exposure to
rain or dampness could cause the scooter to electrically malfunction and prematurely rust.
• Do not lean against or pull forward on the tiller while mounting or dismounting the scooter.
Otherwise, injury may occur.
• Do not operate the unit or turn the key on while charging.
•Wheneveracenterboltofthewheelassemblyhasbeenloosened,pleasereplaceaspecified
new bolt from authorized dealers and secure with a torque of 240 ± 5 kg-cm together with
Loctite 271 adhesive (or equivalent).
• Charge batteries daily after use.
• Charging plug has to be removed from the scooter after charging.
• Battery cables must be securely fastened onto battery terminals by the authorized dealers
before using the unit.
• Batteries must be tied down correctly and securely.
• Any loose cable can not be allowed when the unit is driving.
• Must check the battery charge remained before operating the unit.
• Always charge the batteries of the unit in a well ventilated area.
• If the unit went over or sank into deep water, please switch off power of the unit and consult
with your authorized dealer for help right away.
• Switch off power of the unit while not in use or before charging, removing and installing the
batteries. Otherwise, injury and/or damage to the unit or surrounding property may occur.
• Do not operate the unit in the way of exceeding to the product’s specification listed in this
owner’s manual.
• Do not use the thumb/finger lever before the key switch is turned on, or the operation will be
prohibited until to turn key switch off and then on.

6
EMI Warning
Shoprider®scootersmaybesusceptibletoelectromagneticinterference(EMI),whichisakind
of interfering electromagnetic energy (EM) emitted from sources such as radio stations, TV
stations, amateur radio (HAM) transmitters, two-way radio, and cellular phones. The
interference (from radio wave sources) can cause the scooter to release its brakes, move by
itself,ormoveinunintendeddirections. Itcanalsopermanentlydamagethescooter’scontrol
system. The sources of radiated EMI can be broadly classified into three types:
1.Hand-heldportabletransceivers(transmitters-receivers)withtheantennamounteddirectly
onthetransmittingunit.Examplesinclude:citizensband(CB)radios,“walkietalkie”,security,
fireandpolicetransceivers,cellulartelephones,andotherpersonalcommunicationdevices.
NOTE!SomecellulartelephonesandsimilardevicestransmitsignalswhiletheyareON,
even when not being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances, and taxis. These usually have the antenna mounted on the outside of the
vehicle.
3. Long-range transmitters and transceivers, such as commercial broadcast transmitters
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
NOTE! Other types of hand-held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, and cassette players, and small appliances, such
as electric shavers and hair dryers, so far as we know, are not likely to cause problems
to the scooter.
Scooter Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense as one moves closer to the transmitting
antenna (source), the EM fields from hand-held radio sources (transceivers) are of special
concern. It is possible to unintentionally bring high levels of EM energy very close to the
scooter’s control system while using these devices. This can affect scooter movement and
braking. Therefore, the warnings listed below are recommended to prevent possible
interference with the control system of the scooter.

7
WARNINGS
1.Donotoperatehand-heldtransceivers(transmitters-receivers),suchascitizensband(CB)
radios, or turn ON personal communication devices, such as cellular phones, while the
scooter is turned ON.
2.Beawareofnearbytransmitters,suchasradioorTVstations,andtrytoavoidcomingclose
to them.
3.Ifunintendedmovementorbrakereleaseoccurs,turnthescooterOFFassoonasitissafe.
4. Be aware that adding accessories or components, or modifying the scooter may make it
more susceptible to EMI.
NOTE! There is no easy way to evaluate the overall immunity of the scooter.
5.ReportallincidentsofunintendedmovementorbrakingtoyourShoprider®dealer,andnote
whether there are sources of EMI nearby.
WARNING:Theoriginalmanufacturerandtheimporterofthescooterisnotresponsible
for damage or injury incurred due to improper and unsafe use of our scooter.
ADJUSTMENTS

8

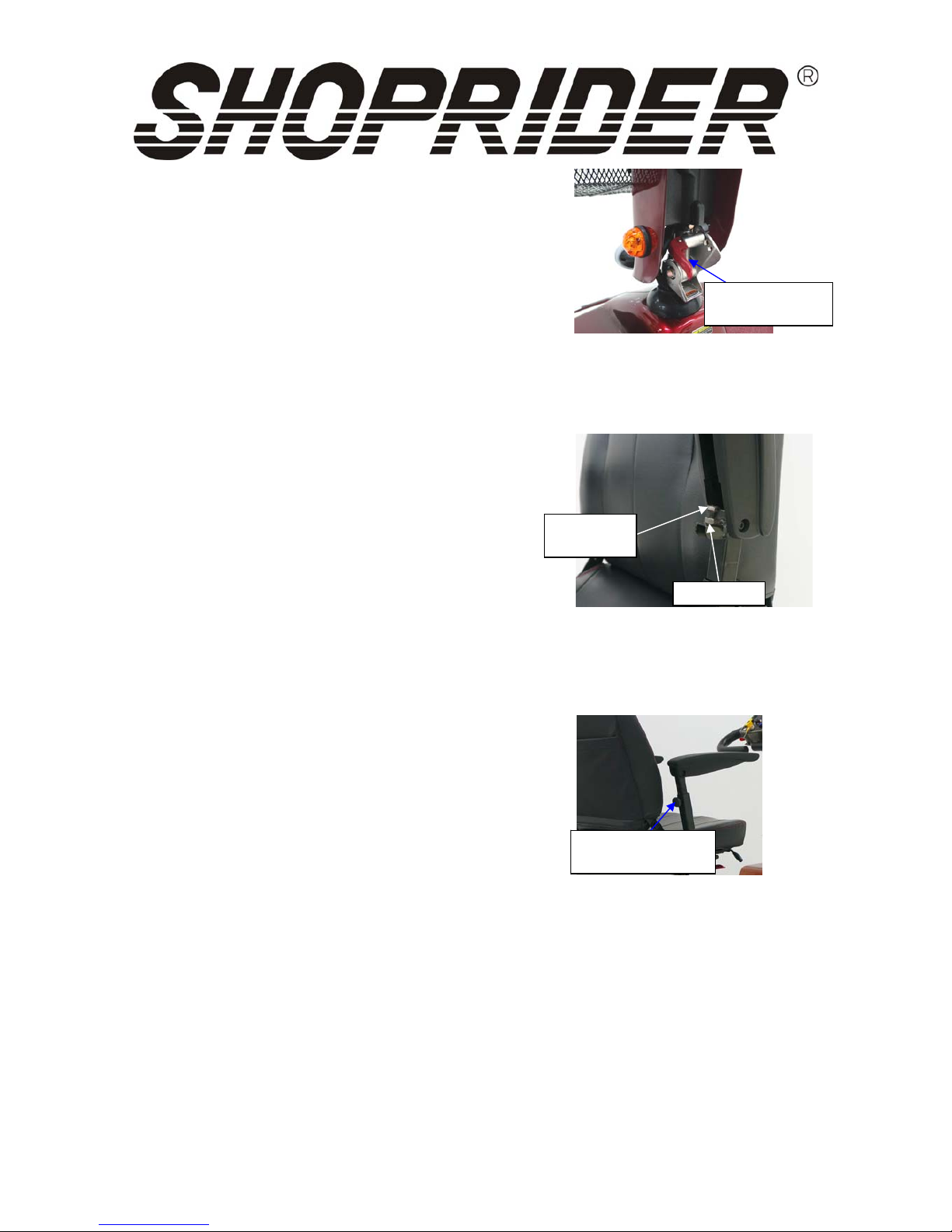

Tiller Angle Adjustment (Fig. 1)
The red lever located on the left hand side at
the joint base of the tiller is used for tiller angle
adjustment. Push the lever to release the
pin and select the required tiller angle. Refit
the pin into one of the five location holes to
complete the adjustment.
Armrest Angle Adjustment (Fig. 2)
Flip up the armrests to allow access to the
adjustable bolt and lock nut, unscrew the
lock-nut and screw the bolt in or out to
increase or decrease the angle. Re-tighten
the lock-nut. Your scooter is dispatched from the
factory with the armrests set parallel to the floor.
Armrest Height Adjustment (Fig. 3)
The vertical square tube connected with
the armrest can be reset to the desired
position by re-tightening the hand knob
for armrest height adjustment.
Lock-Nut
Adjustable
Bolt
Fig. 2
Armrest Adjustable
Hand Knob
Fig. 3
Tiller Angle
Adjustable Lever
Fig. 1

9

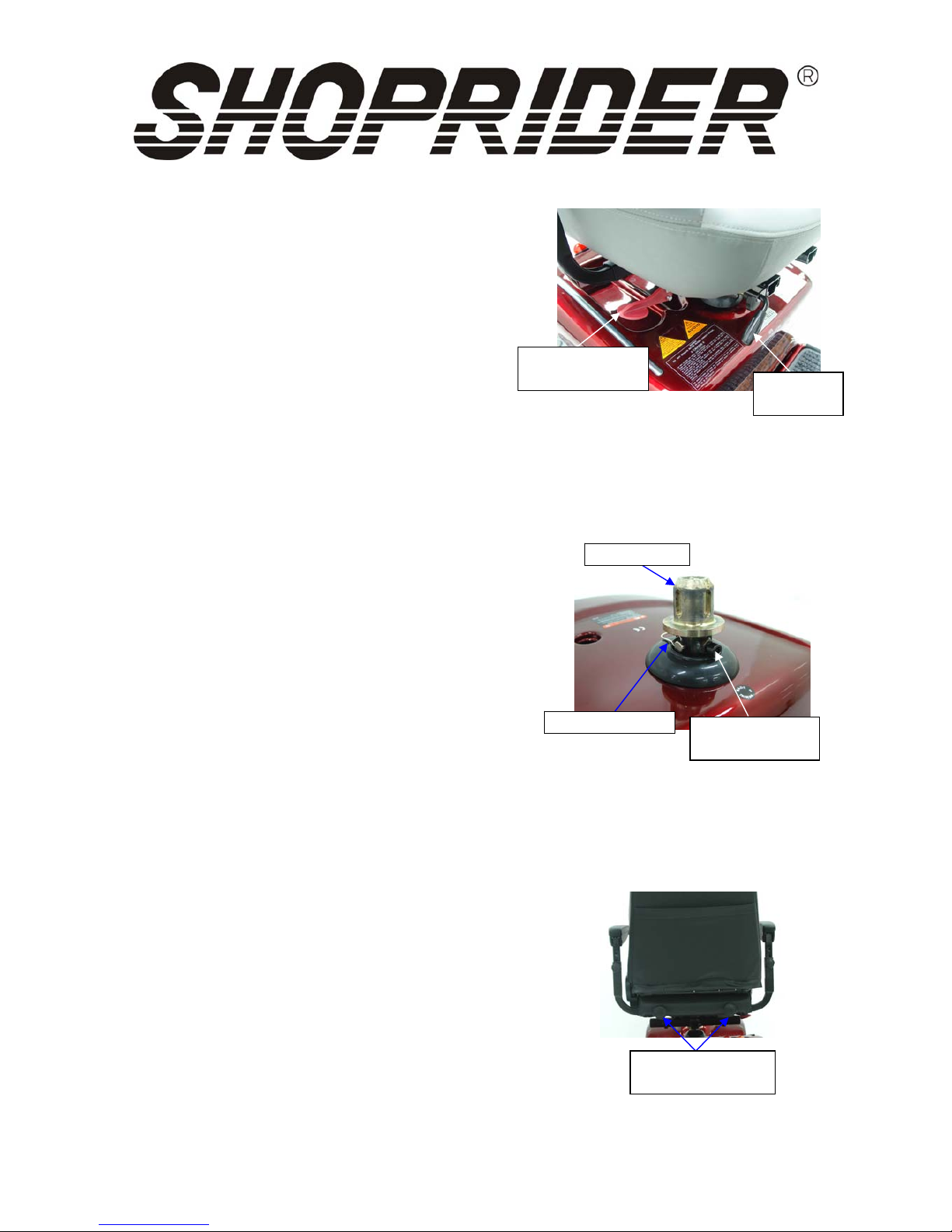

Seat Slide & Swivel Adjustment (Fig. 4)
Pulling up on the seat slide lever allows the
seat position to be adjusted forward or
backward. Release the lever and the seat
will lock in that position. Under the right
side of the seat there is a spring loaded red
lever. Pulling up on the lever allows the seat
to swivel, when released the seat will lock
into one of 3 positions.
Seat Removal (Fig. 5)
Fold down the back of the seat. Pull up the
swivel seat adjustable lever (fig. 4) and lift
seat off.
Seat Height Adjustment (Fig. 5)
Remove seat as described above. Loosen
seat tightening bolt by hex key wrench.
Remove the locking pin that secures the seat
adaptor. Lift the seat adaptor out of the seat
post. The seat height can be adjusted to
different settings by inserting the steel locking
pin in the required hole. Retighten the bolt and
replace the seat.
Armrest Width Adjustment (Fig. 6)
On the underside of the seat there are two
hand knobs, one either side. Loosening the
hand knob allows the armrest to be adjusted
to the required width, or removed for
transportation.
Do not use the scooter without the arms
being fitted.
Armrest Adjustable
Tightening Knob
Fig. 6
Swivel Seat
Adjustable Lever Seat Slide
Lever
Fig. 4
SeatTighteningBolt
Seat Locking Pin
Seat Post
Fig. 5

10

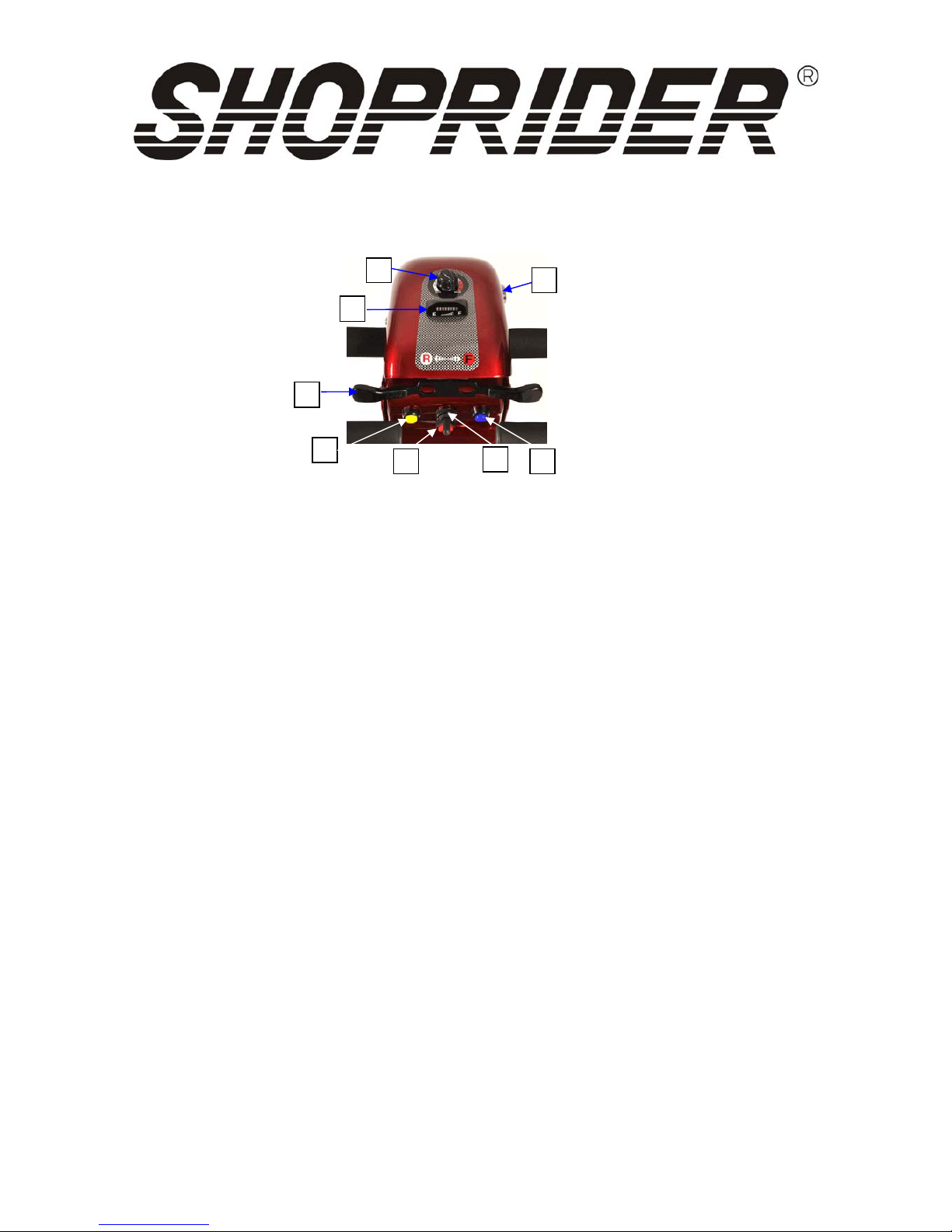

SCOOTER TILLER CONTROLS (Fig. 7)
(1) Speed Controls
The speed control allows you to set a speed between 1 (minimum) and 10 (maximum).
Turnthedialknobcounter-clockwiseto“minimum”todecreasespeed,andclockwisetowards
“maximum” to increase your speed.
(2) Battery Level Indicator
The gauge is marked from “E” empty, to “F” full. For extra clarity there is a colored graduated
scale ranging from RED, (E) through YELLOW to GREEN, (F).
GREEN indicates ready for use.
YELLOW indicates batteries to be charged as soon as possible.
RED indicates charge batteries immediately.
(3) Lights
A blue colored button operates the LED headlights.
(4) Horn
A yellow button operates the horn.
Fig. 7
1
2
6
5
4 8 7 3

11
(5) Thumb/Finger Lever Controls
The left thumb/finger lever controls the reverse and the right thumb/finger lever controls the
forward motion. The amount of pressure applied to each lever will determine the speed the
scooter travels at. Release the lever and the scooter will slowly come to a stop and the
electromagnetic brake will be applied.
Electromagnetic Brake
The brake is automatically operated when the control levers are released. There is a slight
delay when the scooter decelerates; this allows the scooter to come to a smooth stop.
(6) On/Off Key Switch
Insert the key in the right side of the tiller. Turn the key on and the needle arm indicator will
indicate the battery charge. There is a delay before the thumb/finger lever control can be
operated, while the controller is checking the circuits.
(7) Indicator Switch
Two yellow triangle buttons operate the Right or Left indicator respectively. To depress the
button again will turn off the indicator.
(8) Hazard Warning Switch
A red button operates all indicators flashing.

12

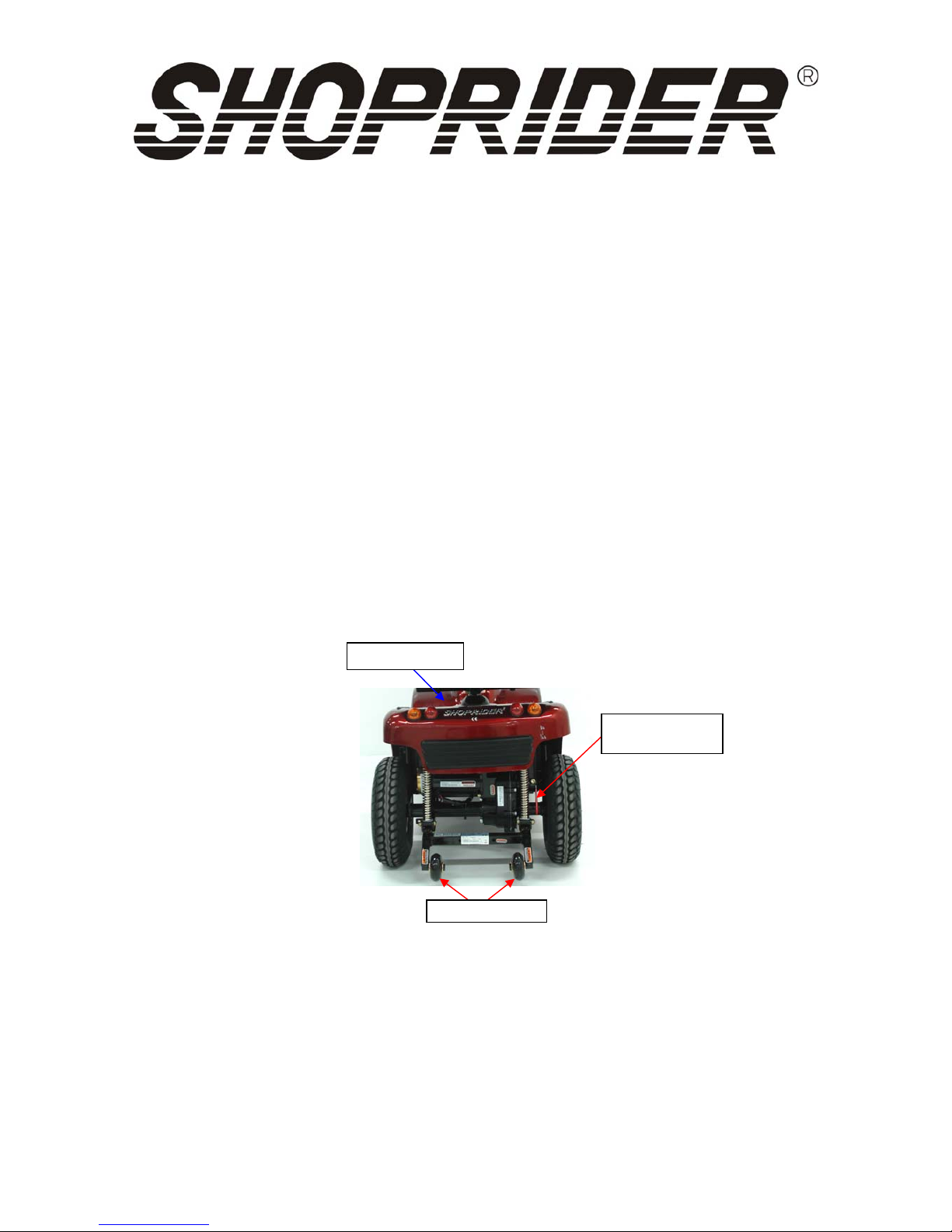

FREE WHEEL OPERATION (Fig. 8)
The free wheel release lever (red handle) is located inside the right / left rear wheel. To
disengagethemotor,liftupthelever(thescootercannowbepushed).Tore-engagethemotor
push down on the lever.
WARNING! Always re-engage the free wheeling device after use.
Failure to do so may result in injury.
Anti-tip wheels
Theanti-tipwheelsarelocatedattherearofthescooterframe.Thescootershouldnotbeused
unless the anti-tipping wheels are in place.
Theoriginalmanufacturerandtheimporterofthescooterisnotresponsiblefordamage
or injury incurred due to improper or misuse of the scooter.
Anti-tip wheels
Circuit Breaker
Freewheel
Release Lever
Fig. 8

13
STARTING TO DRIVE YOUR SCOOTER
Getting Started
• Select a level area with plenty of space.
• Mount the scooter, either by lifting the arm and sliding on to the seat or rotate the seat
outwards and then rotate the seat back to face the tiller.
• Adjust the tiller and seat as described previously.
Starting Scooter Movement
• Ensure that you are seated in a comfortable position.
• Turn the key to the ON position.
• Your speed setting should be on 1 or 2.
•Pullyourrighthandfingerlever,thescooterwillmoveforwardslowly.Theharderyoupullthe
faster the scooter goes but will only reach the speed level that has been selected.
• Release the lever and the scooter will slowly come to a stop and the magnetic brake will
be applied.
Steering
Steeringthescooterislightandeasy.Ensurewhenstartingoffyougiveawideclearancewhen
turningsothattherearwheelsclearanyobstaclethatyouarepassing.Whensteeringthrough
limited spaces such as a doorway or when turning around, turn the tiller handles where you
want to go and apply power gently. The scooter will turn very tightly, but will still move with
complete stability as long as the speed is not too high.
Reversing
Beforereversingensure thattheareabehindisfree fromanyhazardsorobstructions. Adjust
your speed setting to a low setting before you reverse. Pull/press the left thumb/finger lever,
and steer wide of all corners and obstacles.
Dismounting
Before dismounting ensure that the key is turned to the off position.
CAUTION:Pleaseensurethatcareisexercisedwhenenteringorleavingthescooterand
that the tiller and foot rest is not used for support.

14
EXTRA GUIDELINES IN THE CONTROL OF YOUR SCOOTER
Ramps
The stability of your scooter is governed by several factors such as the seating position, the
angleoftheslopeandyourheightandweight.Whenapproachinganincline,dosodirectlyand
not at an angle and whenever possible avoid making turns. When going down a ramp or slope keep
thespeedsettingstoslow.Thiswillensurethereisasafecontrolleddescent. Whenthefinger
levers are released the scooter will slowly stop.
Safe Climbing Angle
Always follow the guidelines of the safe climbing angle shown as shown in figure 9.
Caution - Do not turn off the control key while the unit is in motion
Grass and Gravel
Please follow the guidelines given previously and your scooter will perform admirably over
many surfaces. Avoid long grass, loose gravel and sand.
NOTE:Youshouldnotoperateyourscooterinwetweatheroronwetsurfaces.Thismay
cause the motor to sort out.
Angles and weights shown here for this scooter indicate the safe working angles for the user
andequipment.Anyscooterusedoutsidetheseparametersmaybeunsafeandorcausefuture
problems with the electrical systems
(Single user) Fig. 9

15
BATTERIES AND BATTERY CHARGER
TheShoprider®scooterissuppliedwithmaintenancefree,sealedleadacidbatteries. Battery
performance can be affected by temperature, terrain, condition of battery, type of battery
charger,the weightoftheuser,wind speed,etc.Thebatterylevelindicatorisonly aguideand
is most effective when the scooter is moving, only then is the true discharge level displayed.
• When the scooter stops the battery level indicator may indicate full.
• An active user can use up to 30% of battery capacity or more per day.
• Inactive users may only use 50% of battery capacity in a week.
• In both these instances the battery should be put on charge over night.
Battery Charger
The battery charger supplied is special to your scooter, and may not be suitable for any other
power mobility product. Use only the charger supplied with your scooter; other marks of
chargers may permanently damage your scooter batteries, and would void the warranty. All
the information of battery charger and its operation instruction shall be referred to the user
manual attached with the charger in its packaging paper box.
First Time Use
Priortousingyour Portablescooterforthefirst time, youmust charge the batteries fully (refer
to Battery Charging Procedures). Charging may take up to 12 hours. Charging the batteries
completely prior to first time use will benefit battery efficiency. Failure to do so may cause
damage.
Charging
Tochargethebatteriesconnectthe3-pinmaleplugleadintothe3-pinfemalebattery-charging
socket located on the scooter tiller. Plug the A/C cord plug into the wall socket and the other
endintothecharger(2-pin).PleaserefertotheLEDindicatordescriptionbasedonchargingstatus
ofthecharger’smanual. Once the batteries are completely charged, unplug the A/C cord from
the wall then unplug the 3-pin lead from the scooter tiller.
WARNING: Only use the original Shoprider®approved charger!
This charger is for indoor use only. DO NOT expose it to rain or water spray.
Do not leave the charger plugged into the charger port if the charger is not charging.

16
MAINTENANCE
Lubrication
At six-month intervals you should lubricate the following parts with a light oil or similar
lubricant:
• Seat pivot post.
• Seat release lever pinion.
• Wheel bearings.
• Axle of scooter.
CAUTION – DO NOT USE WD40 TO LUBRICATE PARTS!! DO NOT LUBRICATE
TRANSAXLE/GEAR BOX!! In the event of any difficulties please consult your dealer.
Cleaning
Yourscootershouldbecleanedasrequiredhoweveraswithallelectricalequipmentyoumust
ensure that extreme care is used to not water damage e any sensitive parts.
Read the following warnings
• Only use a soft damp cloth.
• Never use a hose to wash your scooter.
• Do Not use abrasive cleaning products – Mild detergents only should be used. .
Wheels and Tires
The wheels of your scooter have split rims. This allows any punctures to be repaired easily.
Tochangethewheelsremovethecenter13mmboltandslidethewheeloffitsaxles.Takecare
nottolosethedrivekeyontherearwheels.Whenchangingatireyoumustdeflatethetirefirst.
Remove the four bolts to split the rim if required. Ensure that when refitting the wheel the
retaining bolt is fitted with a locking washer (with drive key for the rear wheel). Tire pressure
isrecommendedtobekeptat30psionthereartiresand25psionthefront.Notewhenrefitting
thetubeasmallamountofairinthetubewillpreventthetubefrompinchingwhenreassembling
the split rim.
Caution: On the tire it states maximum tire pressure is 50psi. This is a maximum tire
pressure and the tires should never be inflated to this pressure.
Attention: Tires should be maintained at the correct pressure noted above to ensure
even wear and ride comfort.

17
TROUBLE SHOOTING GUIDE
Circuit Breaker
Your scooter is fitted with the latest in electronic controls that are programmed to protect the
electrical system from abnormal overloads. Fitted for extra protection is a circuit breaker,
should there be a situation that your scooter stops for no apparent reason please check that
thecircuitbreakerhasnotpoppedout.Thecircuitbreakercanbefoundundertherearchassis
cover accessible through a port hole under the seat.
Check List
If your scooter fails to operate, please check the following:
• Unit is switched on.
• All plugs and connectors are firmly fixed.
• Battery level shows full charge.
• Drive/Freewheel device is in the drive position.
If the free wheel device has been operated with the scooter left switched on, then the scooter
will not operate until the ignition key has been switched off and then on again.
Please consult your dealer if your scooter does not run after checking these points.
Please consult your selling Shoprider provider if your scooter does not run after
checking these points.

18
TECHNICAL SPECIFICATIONS
Model Name TE-889NR TE-889NRS
Overall Dimensions: L1x W x H mm(in) 1350(53)x600(24)x
1130(44.5)
1400(55)x600(24)x
1340(63)
Front Pneumatic Tire Diameter pcs x in 2 x 12.5
Rear Pneumatic Tire Diameter pcs x in 2 x 12.5
Suggested User Weight
(on the Level Road) Kg(lb) 136(300)
Total Weight (w/ 36Ah Batteries,
Basket, Seat) Kg(lb) 86(189) 100(220)
Battery Capacity _V_Ah x Pcs 12V 36 Ah x 2 12V 50 Ah x 2
Charger V_Amp AC 220/110 V / DC 24V 5A
Output Power of Motor (Reference
Only) W(Hp) 780 (1)
Max. Speed2Kph(mph)
6~7(3.8~4.3)
9~10(5.6~6.3)
6~7(3.8~4.3)
9~10(4.5~5)
Safe Climbing Angle Degree(%) Fig. 9
Range3 per charge (Battery Capacity) Km(mile) 25~28(16~18) 36~38(23~24)
Turning Radius mm(in) 1470(58) 1672(66)
***ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
1. To include the anti-tip wheels
2. Driver weight may exceed weight of the unit; although the speed must be reduced when
turning.
3. The actual driving range varies with the factors shown below:
a) the weight of occupant
b) battery conditions
c) type of charger
d) ambient temperature
e) the way of driving
f) terrain
g) the wind speed
h) etc.

19
Notes

20
Disclaimer
Congratulations on receiving the scooter.
Thisscooterisnotintendedtobeusedbyindividualswithphysicallimitationsthatcouldprevent
the user from operating the scooter safely. SHOPRIDER®disclaims all responsibility for any
personal injury or property damage, which may occur as a result of improper or unsafe use of
its products. Mechanical or electrical defects will be dealt withon a contingency liability basis.
Warranty is only valid when genuine SHOPRIDER® parts are used. All modifications on the
Scooter, unless approved and authorized by SHOPRIDER® will automatically invalidate the
warranties.Standardwarrantydoesnotextendtoconsumableitemsandpartiesotherthanthe
original user.
TheprecedingguidelinesareintendedtoassistyouinthesafeoperationofthisScooter.Ifyou
should have any questions about the correct operation of the Scooter, please contact your
authorized SHOPRIDER® provider.
Provider Stamp
Serial No.:
