Amigo Fiesta One User manual

1
Fiesta One
OWNER’S MANUAL

2
1. PREFACE…………………………………………………………….. 3
2. SAFETY NOTICE……………………………………………………
2.1 Before Driving
2.2 While Driving
4
3 EMI ……………………………………………………………………7
4. ASSEMBLYAND DISASSEMBLY………………………………… 9
5.

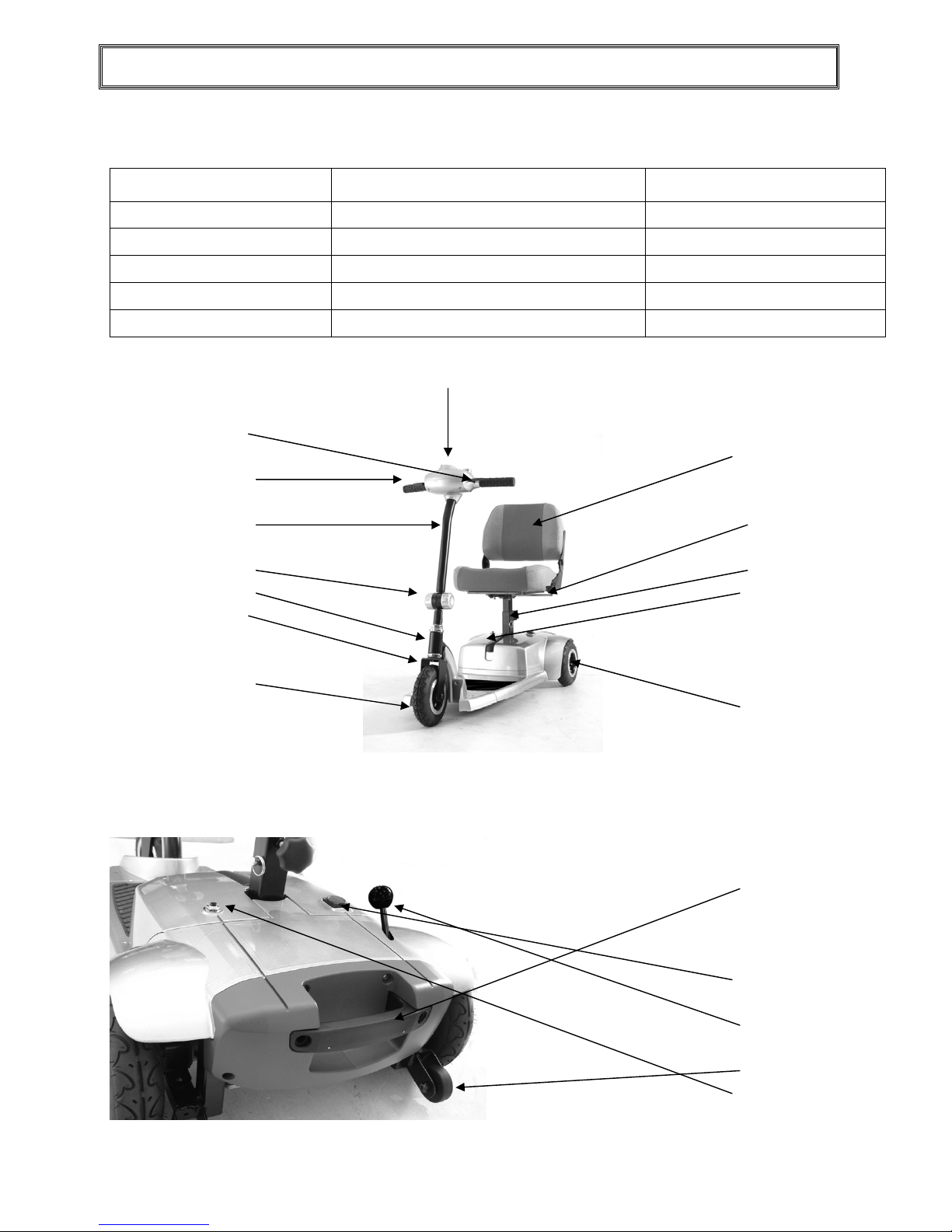

PARTS INTRODUCTION…………………………………………...
Parts Description
10
6. OPERATION…………………………………………………………
6.1 Operation Panel
6.2 How to Operate Your Vehicle
6.3 How to Set to Freewheel Mode
11
7. CHARGINGAND BATTERY……………………………………….
7.1 Charging the Battery
7.2 Charger
7.3 Battery
16
8. INSPECTION AND MAINTENANCE……………………………..
8.1 Daily Checking
8.2 Regular Checking Record
8.3 Battery, Circuit Breaker and Tire
8.4 Maintenance
8.5 Storage
19
9. TROUBLE SHOOTING…………………………………………….. 23
10. SPECIFICATIONS………………………………………………….. 24
11. WARRANTY………………………………………………………….
11.1 Vehicle Serial Number
11.2 Warranty Policy
25
TABLE OF CONTENT

3
1. PREFACE
Please carefully read this owner’s manual before using the vehicle. Improper use of the
vehicle could result in harm, injury or accidents.
♦This owner’s manual includes operation instructions for all aspects of the vehicle,
assembly, and how to deal with possible accidents.
♦This owner’s manual is written solely for the Fiesta™ One.
♦The symbols used in this manual are explained below.
[Warning
Improper use of this vehicle could lead to serious injury
VAttention
Improper use of this vehicle could lead to personal injury and/or
property damage.
LSuggestion
Follow these instructions to maintain safe and efficient operations
and functions of this vehicle.
♦This manual includes a repair and maintenance record chart and the Warranty. Please
keep it in safe place or in the vehicle.
♦If someone else uses the vehicle, make sure that you give them the instruction
manual for his or her reference.
♦We reserve the right to make design modification without notifying the buyer. It is
your responsibility to maintain an updated manual either by requesting it through
mail or visiting our website.
“Caution: Federal law restricts this device to sale by or on the order of a
practitioner licensed by the law of the State in which he/she practices.”

4
2. SAFETY NOTICE
2.1 Before Driving
The user should get familiar with all functions and features to operate this vehicle before
driving. Please always keep safety in mind. There may be situations where the user
should have a trained assistant present so the user can become familiar with the
operations and functions of the vehicle. An assistant can be a family member or a care
professional. To minimize any personal injury please read all of the following safety
precautions prior to driving.
¾The same traffic rules that apply to pedestrians apply to the use of this vehicle
For your safety, please follow the rules that apply to pedestrians.
♦Ride on the sidewalk, parkway or pedestrian areas only. Never ride on freeways or
roads. It may be difficult for traffic to see you when driving your vehicle.
♦Always be aware of all obstacles around you. (Cars, people, terrain, and weather).
♦Be extremely cautious when driving your vehicle in busy areas, shopping malls,
business centers, etc.
♦If you take prescription drugs please consult your physician before operating your
vehicle. Some medications may impair your ability to maintain safe operations of
your vehicle.
♦Please do not operate your vehicle when you are under the influence of alcohol, this
may impair your ability to operate your vehicle in a safe manner.
♦Please do not drive your vehicle at night.
♦Please follow pedestrian traffic lights.
¾Practice operating your vehicle
Use care and common sense when driving your vehicle. While becoming familiar
with the operations of your vehicle, please practice in a wide open area, like a park.
In order not to fall out of your vehicle while driving, keep in mind the status of the
driving motion, such as accelerating, stopping, turning, reversing and up-and-down
ramps.
♦Please set the speed dial to the low setting during your initial practice.
♦Be sure to have someone accompany you and watch out for your safety when
driving for the first time.
♦Be sure you are able to control and operate your vehicle easily and confidently. Then
you can adjust your vehicle to a higher speed.
¾The Fiesta One vehicle is limited to one passenger
Do not carry passengers on your vehicle. (Including children)

5
¾Do not use this vehicle to carry or haul goods
♦The maximum weight that can be carried is 220 lbs (100 kg) (includes goods). Refer
to section “9-SPECIFICATIONS” on page 24 “WEIGHT CAPACITY”
♦Maximum loading weight for the basket is 8.8 lbs.
2.2 While Driving
¾Please carry out daily inspections. It is important to complete your daily checklist
before each use to insure your vehicle will operate smoothly and safely.
Refer to section 7.1 “DAILY CHECKING” on page 19.
¾Do not stretch your body out of the vehicle while driving
♦Such action may cause you to lose your balance or to be injured due to falling.
♦Pay attention to avoid your clothes being tangled in the wheels.
¾When crossing train tracks.
♦Before entering the crossing please stop completely. When crossing make sure that
the vehicles wheels do not get stuck in track.
¾Do not use your vehicle under circumstances below.
♦Roads with heavy traffic, mud, gravel, bumps, snow or ice. Use caution on roads
that have a canal or waterway without any fences or hedges or that are too narrow.
These conditions can affect the performance of your vehicle and could lead to an
accident or injury.
Keep away from places where your wheels may get stuck.
♦Do not drive at night or in raining, snowing, misting or gale weather. Driving in
these conditions may affect your ability to drive in a safe manner and could lead to
an accident or injury.
♦Do not drive your vehicle in “S” curves or make sudden turns. Sudden turns or
driving in a zig-zag motion can result in the tipping of your vehicle and could lead to
possible injury or damage to your vehicle. To avoid accidents, it is a good idea to
practice making turns to become familiar with how your vehicle maneuvers.
♦Your vehicle is not designed to travel up or down stairs or escalators, always use an
elevator.
¾About mobile phone and other electric equipment.
♦Do not use a mobile phone or other wireless communication devices while driving.
♦Do not charge your mobile phone or other electric device from your vehicle’s
battery.
¾Ramps, inclines and declines
♦Do not drive onto steep ramps. Refer to section “9-SPECIFICATIONS” on page 24
“SLOPE GRADE ABILITY.”
2. SAFETY NOTICE

6
♦When coming to an inclined road, please drive slowly. You should adjust the speed
dial to a middle setting. It is a good idea to maintain a safe speed and avoid any
sudden stops or starts. When going down a decline it is a good idea to set the speed
dial to a low setting to insure a safe and controlled descent. Never put the vehicle in
reverse when driving down a decline.
♦Do not drive over large drop offs. Refer to section “9-SPECIFICATIONS” on page
24 “MAX. GROUND CLEARANCE”
♦Do not cross wide gutters, it may cause your wheels to get stuck.
♦Please slow down when driving on roads with drop offs.
♦Do not make sudden turns when driving on gravel roads or ramps.
♦Avoid any terrain or obstacle that makes you feel uncomfortable or if you have any
doubt that your vehicle will not perform in a safe manner.
♦Many buildings now have ramps with 180 degree turns, so it is a good idea to
practice your turning skills so you do not get stuck on railings or get caught on any
obstacles which could lead to injury.
[WARNING
♦Do not set the vehicle in freewheel mode when driving on an incline or decline.
♦To protect yourself, while you are driving down a steep decline (over 13 degrees),
the vehicle will not be driven automatically and an electromagnetic brake will
activate, turn the power on again to restart your vehicle.
¾Maximum User Weight Limit
Refer to section “9-SPECIFICATIONS” on page 24 “WEIGHT CAPACITY.”
Loading over the limitation will lead to the damage of your vehicle or malfunction
and hence your safety. The warranty does not cover this type of over-loading
damage.
2. SAFETY NOTICE

7
This portion of the owner’s manual will provide the user with basic information about
the problems with EMI, known sources of EMI, protective measures either to lessen the
possibility of exposure or to minimize the degree of exposure; and this section also
shows some conditions that unexpected or erratic movements may occur.
Caution: It is very important that you read this information regarding the possible
effects of electromagnetic interference on your electric vehicle.
¾ELECTROMAGNETIC INTERFERENCE (EMI) FROM RADIO WAVE
SOURCES
Powered vehicles may be susceptible to electromagnetic interference (EMI), which is
interfering electromagnetic energy (EM) emitted from sources such as radio stations,
TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones.
The interference from radio wave sources can cause an electric powered vehicle to
release its brakes, move by itself, or move in unintended directions. It can also
permanently damage the electric powered vehicle’s control system. The intensity of
the interfering EM energy can be measured in volts per meter (V/m). Each electric
powered vehicle can resist EMI up to certain intensity. This is called its “immunity
level”. The higher the immunity level is, the greater the protection is. At this time,
current technology is capable of achieving at least a 20 V/m immunity level, which
would provide useful protection from the more common sources of radiated EMI.
This electric powered vehicle model as shipped, with no further modification, has an
immunity level of 20 V/m without any accessories.
There are a number of sources of relatively intense electromagnetic fields in the
everyday environment. Some of these sources are obvious and easy to avoid. Others
are not apparent and exposure is unavoidable. However, we believe that by following
the warning listed below, your risk to EMI will be minimized.
The sources of radiated EMI can be broadly classified into three types:
1. Hand-held portable transceivers (transmitter-receivers) with the antenna mounted
directly on the transmitting unit. Examples include: citizens band (CB) radios,
walkie talkies, cellular telephones and other personal communication devices.
NOTE: Some cellular telephones and similar devices transmit signals while they are
ON, even when not being used.
2. Medium-range mobile transceivers, such as those used in police cars, fire trucks,
ambulances and taxis. These usually have the antenna mounted on the outside of
the vehicle.
3. EMI

8
3. Long-range transmitters and transceivers, such as commercial broadcast transmitter
(radio and TV broadcast antenna towers) and amateur (HAM) radios.
Note: Other types of hand-held devices, such as cordless phones, laptop computers,
AM/FM radios, TV sets, CD players, and cassette players and small appliances, such
as electric shavers and hair dryers, are not likely to cause EMI problems to your
powered vehicle.
¾ELECTRIC POWERED VEHICLE ELECTROMAGNETIC INTERFERENCE
(EMI)
Because EM energy rapidly becomes more intense as you move closer to the
transmitting antenna (source), the EM fields from hand-held radio wave sources
(transceivers) are of special concern. It is possible to unintentionally bring high
levels of EM energy very closer to the powered vehicle’s control system while using
these devices. This can affect powered vehicle movement and braking. The
warnings listed below are recommended to prevent possible interference with the
control system of the powered vehicle.
¾WARNINGS
Electromagnetic interference (EMI) from sources such as radio and TV stations,
amateur radio (HAM) transmitters, two-way radios, and cellular phones can affect
electric powered vehicles and motorized scooters. Following the warnings listed
below should reduce the chance of unintended brake release or electric powered
vehicle movement that could lead to serious injuries.
1. Do not operate hand-held transceivers-receivers, such as citizens band (CB) radios,
or turn ON personal communication devices, such as cellular phones, while the
powered vehicle is turned ON.
2. Be aware of nearby transmitters, such as radio or TV stations, and try to avoid
coming close to them.
3. If unintended movement or brake release occurs, turn the electric powered vehicle
OFF as soon as it is safe.
4. Be aware that adding accessories or components, or modifying the electric powered
vehicle, may make it more susceptible to EMI (Note: There is no easy way to
evaluate their effect on the overall immunity of the powered vehicle).
5. Report all incidents of unintended movement or brake release to the electric
powered vehicle to the manufacturer, and note whether there is a source of EMI
nearby.
¾IMPORTANT INFORMATION
1. 20 Volts per meter (V/m) is generally an acceptable immunity level against EMI
(The higher the level, the greater the protection). This product has an immunity level
of 20 V/m without any accessories connected to it.
3. EMI

9

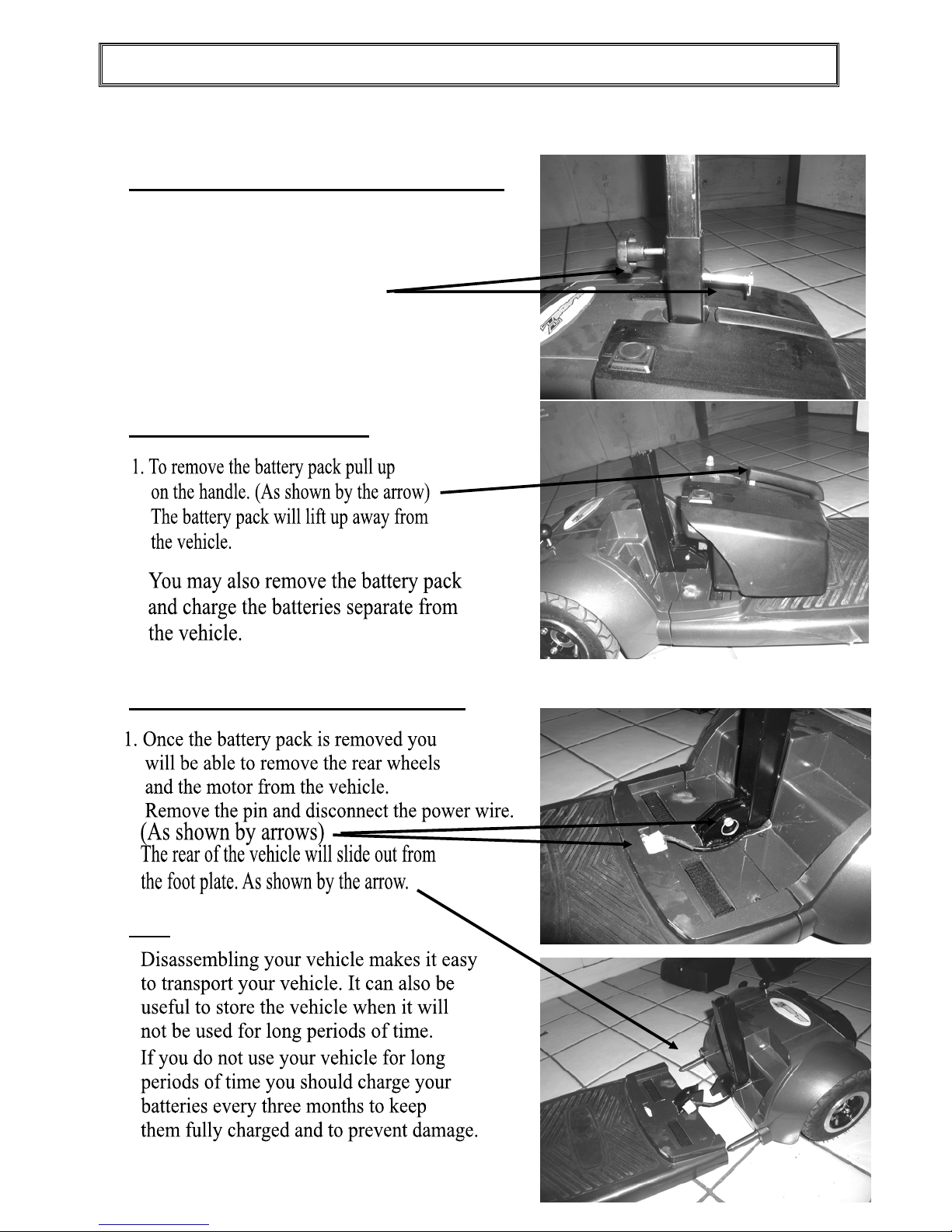

¾Removing the Seat and Folding the Handle
1.Remove the seat height adjuster pin and
loosen the seat height adjustment bolt.
2.Once you have removed the pin and loosened
the bolt (As shown by arrows)
3.Remove the seat by pulling it up
from the base of the vehicle.
4. Loosen the tiller and fold the handle bars down.
¾Removing the Battery Pack
¾Removing the Rear Wheels and Motor
¾Note
4. ASSEMBLY AND DISASSEMBLEY

10
¾PARTS DESCRIPTION, FIESTA ONE
1.Speed Dial 2.Speed Control Lever 3.Rubber Handlebar
4. Tiller 5. Tiller Angle Adjustment 6. Head Tube
7. Fork 8. Front Wheel 9. Foldable Seat
10. Seat Turning Lever 11. Seat Height-Adjusting Pin 12. Battery Carrying Lever
13. Rear Wheel 14.Motor/Rear Wheel Carrying Lever 15.Off-BoardChargerSocket
16.Freewheel Mode Lever 17. Anti-Tip Wheels 18.Reset
5. PARTS INTRODUCTION
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
1.
14.
15.
16.
17.
1
8.

11
6. OPERATION

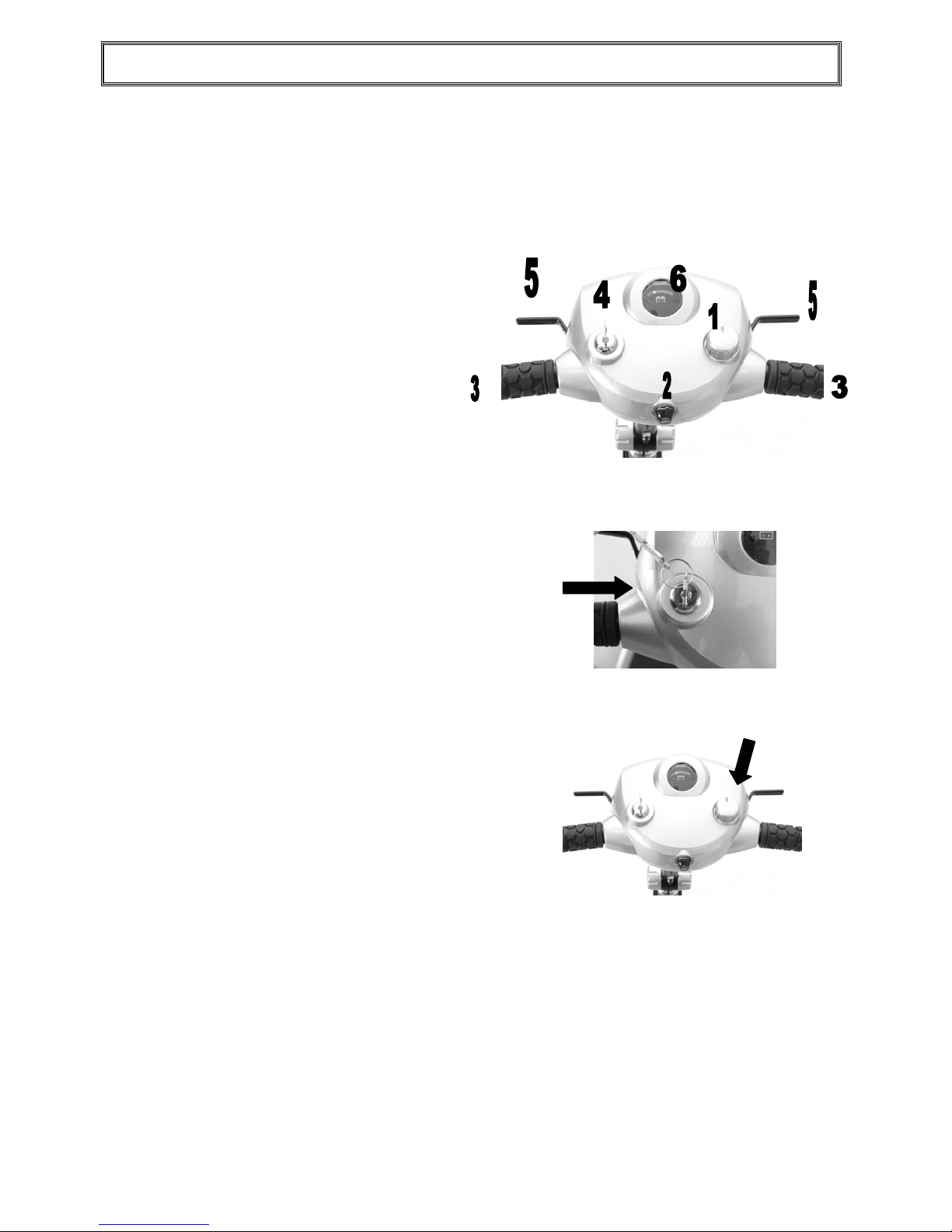

6.1 OPERATION PANEL
1. Speed Dial
2. Horn Button
3. Handle Bar
4. Key Hole
5. Speed Control Lever
6. Battery Condition Meter
6.2 HOW TO OPERATE YOUR VEHICLE
¾Power switch
Turn the key to power ON or OFF
ON: Power is turned on when key is in the
Horizontal position
OFF: Power is turned off when key is in the
Vertical position
¾Speed Dial
Allows the user to adjust the forward and
reverse speed.
¾Forward, Reverse and Braking
♦Pull the speed control lever down with your right hand and the vehicle will move
forward.
♦Pull the speed control lever down with your left hand and the vehicle will move
backward.
♦The horn will beep when the vehicle is in reverse.
♦Release the speed control lever while in either forward or reverse direction, the
electromagnetic brake in the motor will be activated and the vehicle will stop.

12
6. OPERATION
¾Horn Button
The warning horn will be activated when you push the button. Push the button again,
and the horn will be cancelled.
¾Key Hole/ Power Switch
Turning the key to “ON” will turn on the vehicle.
¾Braking
♦Electromagnetic brake: Release the speed control lever completely and the
electromagnetic brake will be activated.
[WARNING
When going down an incline, NEVER set to free-wheel mode. In such cases, the
electromagnetic brake will not activate.

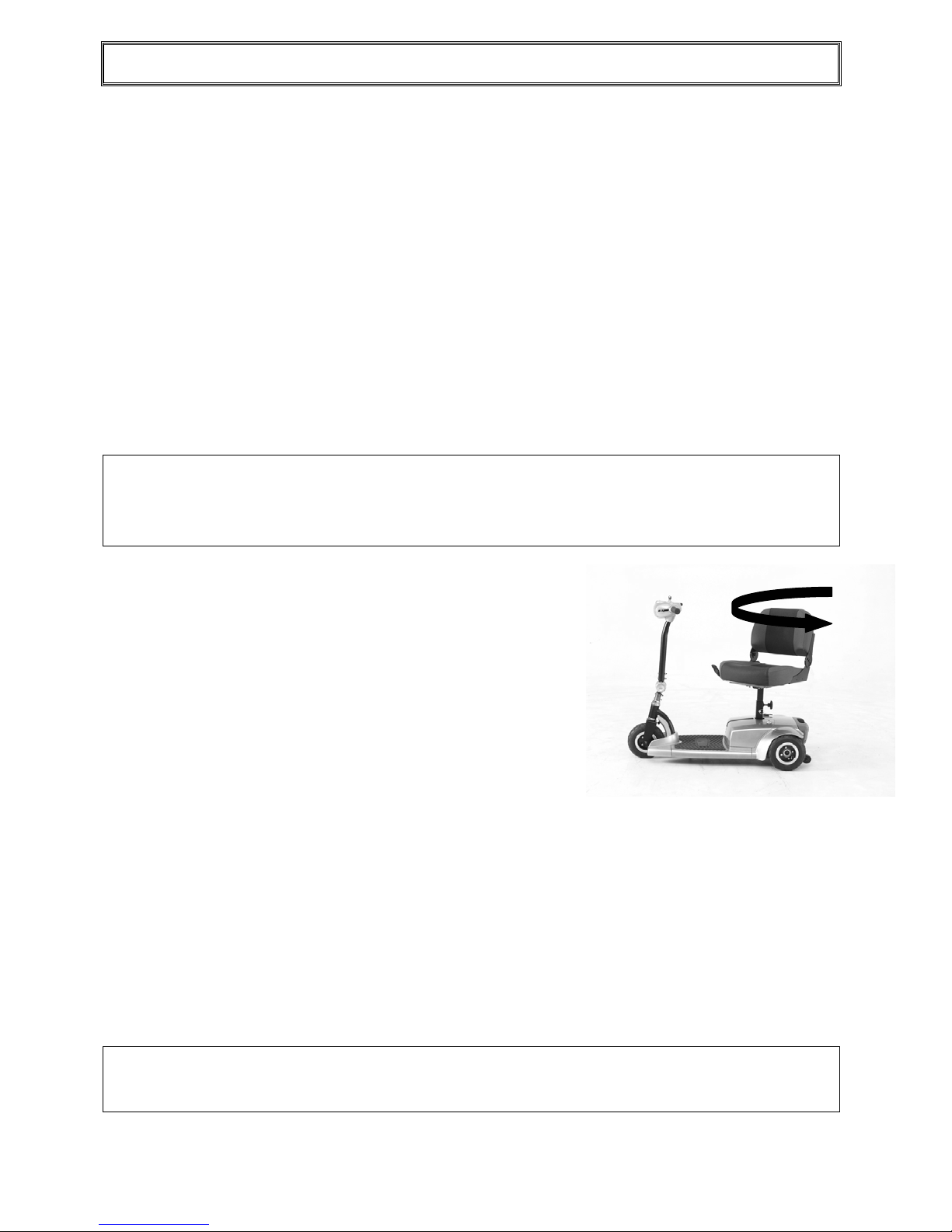

¾Seat
♦The seat can be turned to 90 degree increments.
♦Push the seat adjustable bar forward to change angle
♦Seat height can be adjusted by loosening the seat
height adjustment bolt and removing the seat height
adjustment pin, adjusting the seat to the desired
height and then re-tightening the bolt and inserting
the seat height adjustment pin.
¾Armrest Adjustment
♦The armrest width can be adjusted using a 5mm Allen
wrench.
VATTENTION
Be sure to return the seat to the forward position before driving.

13
6. OPERATION
¾Battery Condition Meter
♦The needle points out the remaining power. Right
side in green range: full power. Left-side in red
range: not enough power.
♦The remaining power indicated by battery meter
will vary by the driving time and the way the
vehicle is driven. The repeated starting, stopping,
climbing will consume the power more quickly.
LSUGGESTION
1. You are recommended to charge the batteries immediately when the needle points to
the yellow or red area.
2. After charging or replacing the batteries, drive the vehicle for 2-3 minutes to make
sure the battery holds a charge.
3. In wintertime, the batteries may respond slower and the traveling distance may be less
than in the summertime.
4. When driving on an incline, the needle may suddenly move to red and yellow area,
and move back to the green area when the vehicle is on level ground. This is normal.
5. Under normal circumstances, it is natural for the capacity of the batteries to decay as
time passes which will result in short travel distance compared to brand new batteries.
When you find the travel distance is about 50% of brand new batteries traveling
distance, it is time for replacement batteries. If you continue to use the old batteries
less travel distance will be expected.
6. Travel distances will be shortened when driving frequently on a slope or ground with
big dips, due to more power consumption.
¾Tiller Adjustment
The Tiller can be adjusted between 00 ~800 by following these steps.
1. Loosen the adjusting lever on the tiller.
2. Adjust the tiller to the desired angle.
3. Tighten the lever, and the tiller will be fixed in the desired angle.

14
¾Starting and Driving
1. Make sure the seat is properly installed.
2. Make sure the tiller has been properly secured.
3. Make sure the armrest has been returned to the lowest position.
4. Turn the power switch to “ON”. .
5. Check battery meter to ensure there is enough power for your trips. If you have the
doubt about the remaining power, please charge the battery before leaving.
6. Set to the proper speed by the speed dial.
7. Be sure the forward / reverse speed lever is in working condition.
8. Make sure the electromagnetic brake is in working condition.
VATTENTION
1. Do not push both Right Hand & Left Hand side speed levers simultaneously. This
might lead you to be unable to control your vehicle.
2. Do not turn the power switch to OFF while driving. This will lead to an emergency
stop and possible danger.
3. Do not set to highest speed when driving indoors.
4. Do not adjust speed dial while driving, the sudden change of the highest speed may
endanger you and cause the failure of your vehicle.
5. Do not place magnetic devices near the area of the control panel. This could affect the
safe operation of your vehicle.
6. Be careful while driving in heavy traffic or crowded areas.
7. While reversing the vehicle, be aware of people or objects around you.
¾About Driving speed
The speed scale is printed on speed dial label, ranging from left (Lowest speed) to right
(Highest speed.) The end of right side is the maximum speed.
Speed Scale Circumstances of Recommend speed
Left side ♦Speed equivalent to walking slowly
♦On an incline or decline
♦Driving indoors or in a narrow space
Middle ♦Speed equivalent to walking normally
♦Driving outdoors on flat ground
Right side ♦Speed equivalent to walking quickly
♦Driving in an open space.
6. OPERATION

15
6. OPERATION
¾Stopping
1. Release the speed control lever completely. The vehicle will naturally brake and stop.
2. Turn the power switch to “OFF”. Then pull out the key.
VATTENTION
♦The stopping distance will vary with your forward / reverse speed. Begin braking as
early as you can.
♦While parking your vehicle, be sure to park on flat ground and then turn the power
to “OFF” before you get off.

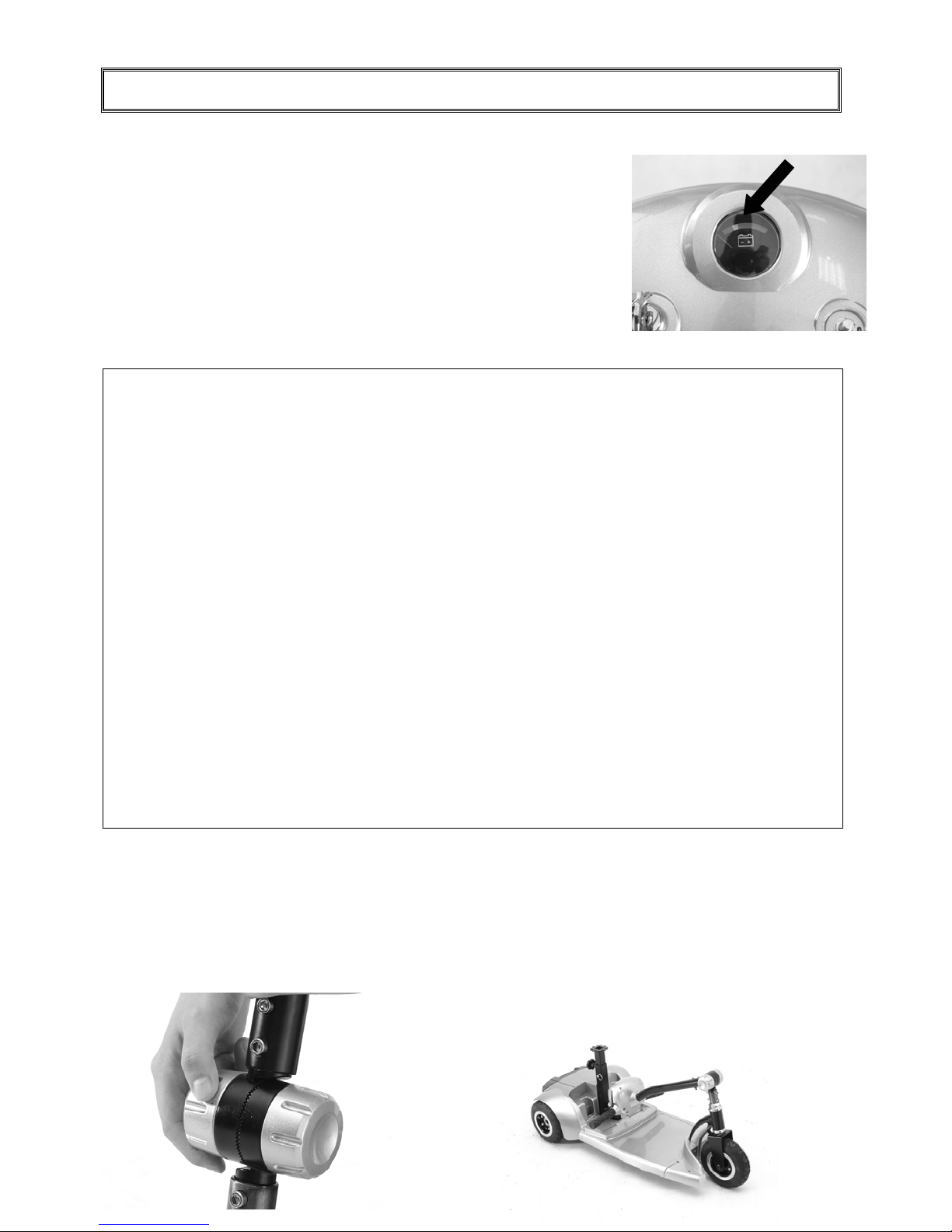

6.3 HOW TO SET TO FREE-WHEELMODE
♦Driving mode: Push the lever down completely, the vehicle can be driven by motor
power.
♦Free-wheel Mode: Lift the lever up completely, the vehicle can be moved manually.
Freewheel Mode
Drive–on Mode

16

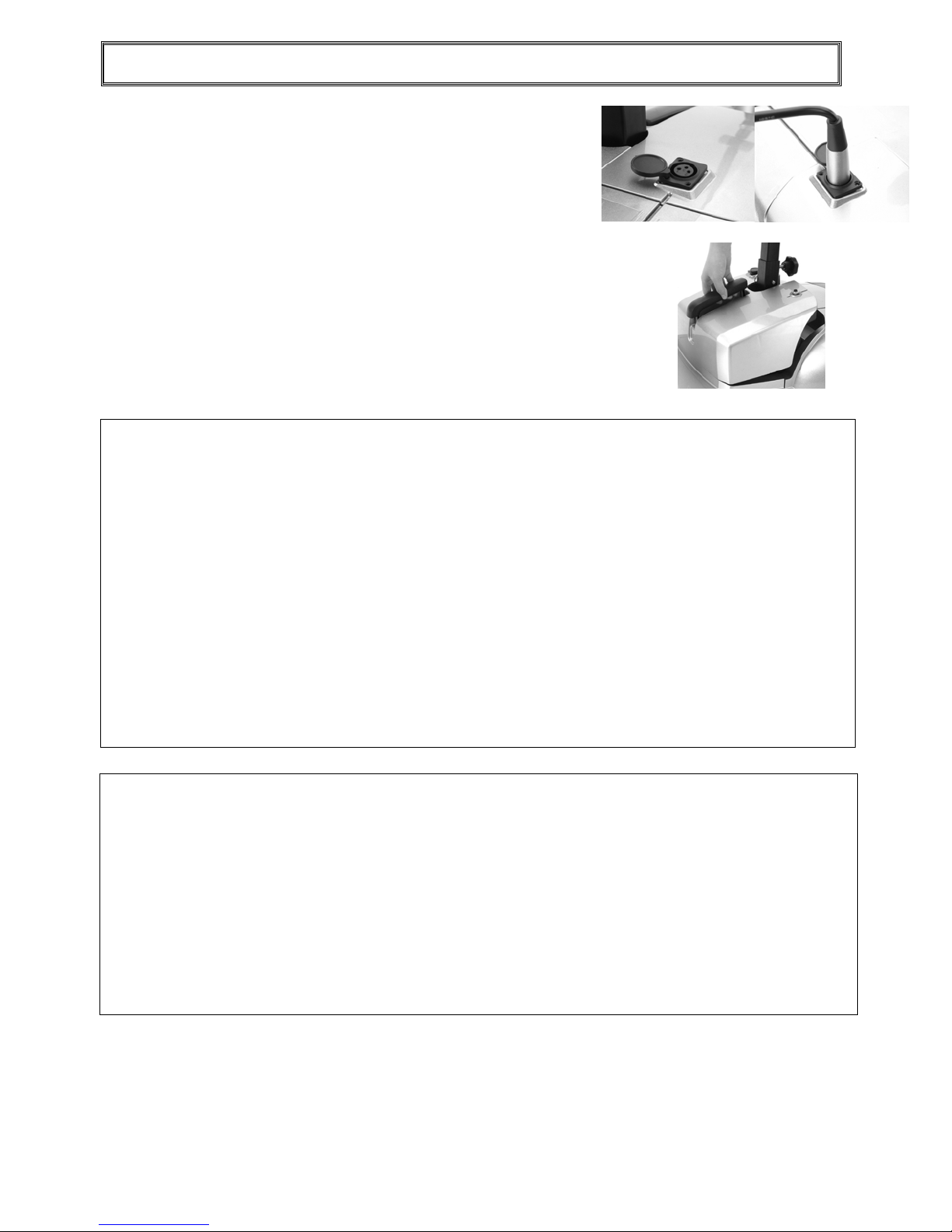

7. CHARGING AND BATTERY
7.1 CHARGING BATTERY
Be sure to follow all procedures below.
1. Turn the power switch to “OFF.”
2. Open the charging socket cap and insert charger.
3. Do not stop the charge until the battery is
completely charged.
4. The charging duration is 8 hours, but it will vary up to 10
hours, based on the status of battery and ambient
temperature.
5. The battery package can be removed from vehicle and
separately charged.
6. Disconnect the cord when charging is complete.
LSUGGESTION
1. Do not disconnect the charger cord if the charging is not completed. The battery life
will be seriously shortened or decayed if the batteries are repeatedly used without
being fully charged. Be sure to fully charge the batteries every time.
2. Always continue the charge until the needle stops in green area. NEVER stop
charging before it is completed.
3. When finished charging, the electric power will slowly discharge if the cord is
disconnected.
4. If you do not use your vehicle for long periods of time, it should be charged at least
every three months to keep the batteries in good condition.
5. Charging time will be affected by the ambient temperature, and it will be longer in
the wintertime.
VATTENTION: Please follow the rules below to avoid accidents while charging.
1. Please charge the batteries completely with every use and make sure voltage is correct.
2. Never disassemble or modify the plug.
3. Please charge in a well ventilated space that is not directly exposed to sunlight. Do not
charge in a space which is humid, or under rainfall and morning dews.
4. Do not cover the vehicle with any waterproof cloth or other objects while charging.
5. Do not charge in temperatures less than 14 degrees F or higher than 122 degrees F, as
the charger may not work and the battery may be damaged.

17
7. CHARGING AND BATTERY
7.2 CHARGER
♦Never pull out the charging cord before the battery
is fully charged. The charging cord should be away
from heat and water. When charging, the cord needs
to be tightly inserted in the sockets.
[WARNING
Please park the vehicle near the electric outlet and slowly pull out the charging cord.
If the charging cord is broken, DO NOT charge the vehicle until a new charger cord
is obtained.
7.3 BATTERY
♦Do not expose the battery to temperatures below 14 degrees F or above 122 degrees F
when charging or storing the vehicle. Exceeding the specified temperature ranges can
lead to freezing or over heating of the batteries. Such case will damage the batteries
and shorten their lifetime.
♦The batteries used on your vehicle are sealed lead acid batteries, maintenance-free, so
it is not necessary to change the batteries’liquid or refill the liquid.
[WARNING
Do not open the battery seal cap at any time.
[WARNING
1.Keep away from flammable objects while charging. This may lead to fire or
explosion of the batteries.
2. As the batteries may produce hydrogen, do not smoke while charging. Always
charge your batteries in a well-ventilated space.
3.Never connect or disconnect the charger cord with wet hands. Do not connect or
disconnect the charger cord if it is wet. This may lead to an electric shock.

18
¾Cleaning the battery
If the battery is contaminated by dirty water, battery acid, dust or other garbage, the
battery will discharge quickly. Follow these steps to clean the battery.
1. Turn the vehicle power switch to OFF.
2. Remove the seat and battery pack.
3. Remove the battery case cover by removing fasteners.
4. Use a clean cloth to wipe off the soiled area.
5. Take out the battery.
6. Clean the battery with a clean cloth. If the terminal is covered by white powder, please
clean it by using warm water.
7. Reassemble battery pack.
LSUGGESTION
If necessary, ask for help from your local Dealer for cleansing and replacing of the
battery.
LSUGGESTION
1. Make sure the terminal is installed properly and replace the cover.
2. Do not use the batteries to charge telecom equipment or other items.
3. Battery capability will vary with outside conditions. The driving distances will
be shorter in the winter. If the vehicle is not to be used for a long time, please
charge the batteries at least every three months.
4. Always replace both batteries simultaneously.
7. CHARGING AND BATTERY

19
8. INSPECTION AND MAINTENANCE
8.1 DAILY CHECKING
Check following items before driving. If you find any thing abnormal, go to your
local Dealer for further instructions before using it.
Item Inspection Content
Handle bar ♦Are they loose?
♦Can they be turned left and right smoothly?
Speed Control Dial ♦Can it be adjusted freely and function properly?
Speed Control Lever ♦Does the vehicle move when the lever is pressed down?
♦Does the vehicle stop if the lever is released?
Motor ♦Are there any abnormal noises from the motor?
♦Does the electromagnetic brake work properly?
Freewheel Mode ♦Does free-wheel mode lever work properly?
Battery Condition meter ♦Does the needle move when power is switched on?
♦Is the remaining power enough for your trip?
Horn ♦Does the horn work properly?
Seat ♦Can the seat be turned and adjusted properly?
Tires
♦Are there any cracks or other damage to the tires?
♦Do they have proper air pressure?
♦Check the tires tread depth.
Other ♦Are there any abnormal noises?
♦Is there oil leakage from transmission box?
VATTENTION
Go to your local Dealer for inspection and maintenance if you find anything wrong.

20
8. INSPECTION AND MAINTENANCE
8.2 REGULAR CHECKING RECORD
To make sure your vehicle remains in good condition, go to your local Dealer regularly
for maintenance and record it every six months after purchasing. (Fee Required)
LSUGGESTION
Even if you don’t use your vehicle for a long time, the vehicle should be maintained
regularly.
I – Inspection A-Adjustment R-Repair RP- Replacement T - Tightening
C - Clean L - Add Oil
Item \ Period
1
mth 6 mth 12 mth 18 mth 24 mth 30 mth
Forward/Reverse speed lever
The function of switches
Operate
Panel Connection of Socket / Plug is good?
Operation and Noise
Function of Electromagnetic Brakes
Motor Connection of Socket / Plug is good?
Freewheel mode leverTrans-
mission Any oil leakage from transmission box
Looseness or corrosion of terminals
Connection of Socket / Plug is good
Battery Any broken electrical cords
Charging function and LED light
Charger Any broken Sockets / Plugs / Cords
Angle adjustment bar
Seat Seat post looseness
Right /Left Turn of tiller
Tiller Adjustment of Tiller angle
Crack or damage of tire surface
Tread depth
Tire Abnormal wearing
