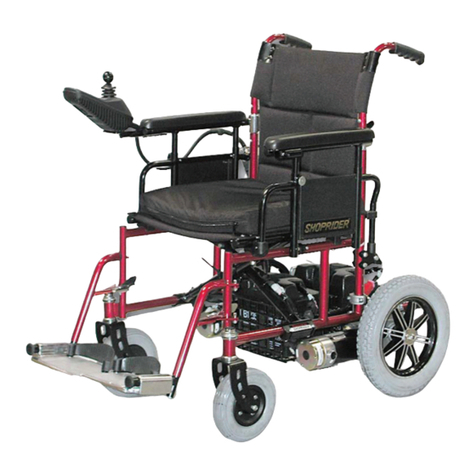

JIMMIE (UL8WPB, UL8WPBS)
Shoprider®introduces another first in powered mobility with its extremely lightweight, portable, user-
friendly Jimmie™power chair. The Shoprider®Jimmie™features the latest in wireless take-apart technology,
electronics and high efficiency in-line motors. All these advanced features plus many more adjustability
features are stylishly packaged into a comfortable power chair designed to move with your active lifestyle
today. The Jimmie™is Travel-Friendly too with One-Touch effortless disassembly and transportability.
™

JIMMIE™ (UL8WPB, UL8WPBS)
• Connectorless technology
for easily assembly
•
Extra light total weight 93.5 lbs (UL8WPB)
• Easy to dismantle into
three major parts:
Seat w/ controller: 24.7 lbs (UL8WPB)
Front Chassis w/ batts: 35.4 lbs
Rear Chassis w/ drive train: 29.9 lbs
• Adjustable seat height
• Padded full function, armrest
(width, height & angle adjustable)
• Removable fold up footrest
with full function (height,
length & angle adjustable)
Toll-Free: 800.743.0772
www.shoprider.com
Overall Dimensions (L*1xWxH*2)
Number,Size of Tires (front; mid; rear)
Fish-On/Capt seat w controller assy;
Front chassis w/ batteries
Rear chassis w/ drive train
Total Weight (w/Batteries, Seat)
Battery pack weight
BatteryCapacity
Charger
Output Power of Motor
(Reference Only)
Turning Radius
Max. Single User Weight
(On the Level Road)
Maximum Speed*3 (On the Level Road)
Suggested Climbing Angle
Range *4
(per charge with 12 Ah Battery/
198 lbs User Weight)(After the Battery and
Mechanical Moving Parts fully Break In)
33.5 x 21.7 x 19-22
2, 6”; 2, 9”
24.7 37.3
35.4
29.9
93.5 106.1
19.3
12v -12 Ah x 2
2amp Off-Board
0.45 x2
15.5
250
3.75
Shown as illustration
Up to 10 miles
in
ea, in
lb
lb
lb
lb
lb
Ah
Amp
hp
in
lb
mph
%, lbs
Mile
JIMMIE™S PECIFICATIONS UL8WPB UL8WPBS
All specifications are subject to
change without prior notice.
Shoprider Mobility Products, Inc.
reserves the rights of any changes
to the unit.
*1) Include the anti-tip wheel.
*2) Depending on the height of the
seat back.
*3) When proceeding up any
incline, please move your seat
to the most forward position or
if you have the deluxe seat,
make sure that it is in the 90
degree (upright) position.
*4) The actual driving range varies
with the factors shown as below.
A. The weight of occupant
B. Level ground
C. BatteryCondition
D. Type of Charger
E. Ambient Temperature
F
.The Way of Driving
G. ETC.
Length: 33.5”
Width: 21.7”
Height: 19”-22” (Ground to Seat)
Weight: 106lbs (UL8WPBS)
93.5lbs (UL8WPB)
Maximum Speed: 3.75 mile
Maximum User weight: 250 lbs
Safe Climbing Angle: 10 % (6º)
Turning Radius: 15.5”
Battery range: Up to 10 miles
10 (17), 90 (198)
6 (10), 100 (220)
0 (0), 113 (250)
Single User
Available Color
Red
Optional Seat Upgrade Shown
UL8WPBS - Jimmie w/ Captain Seat
