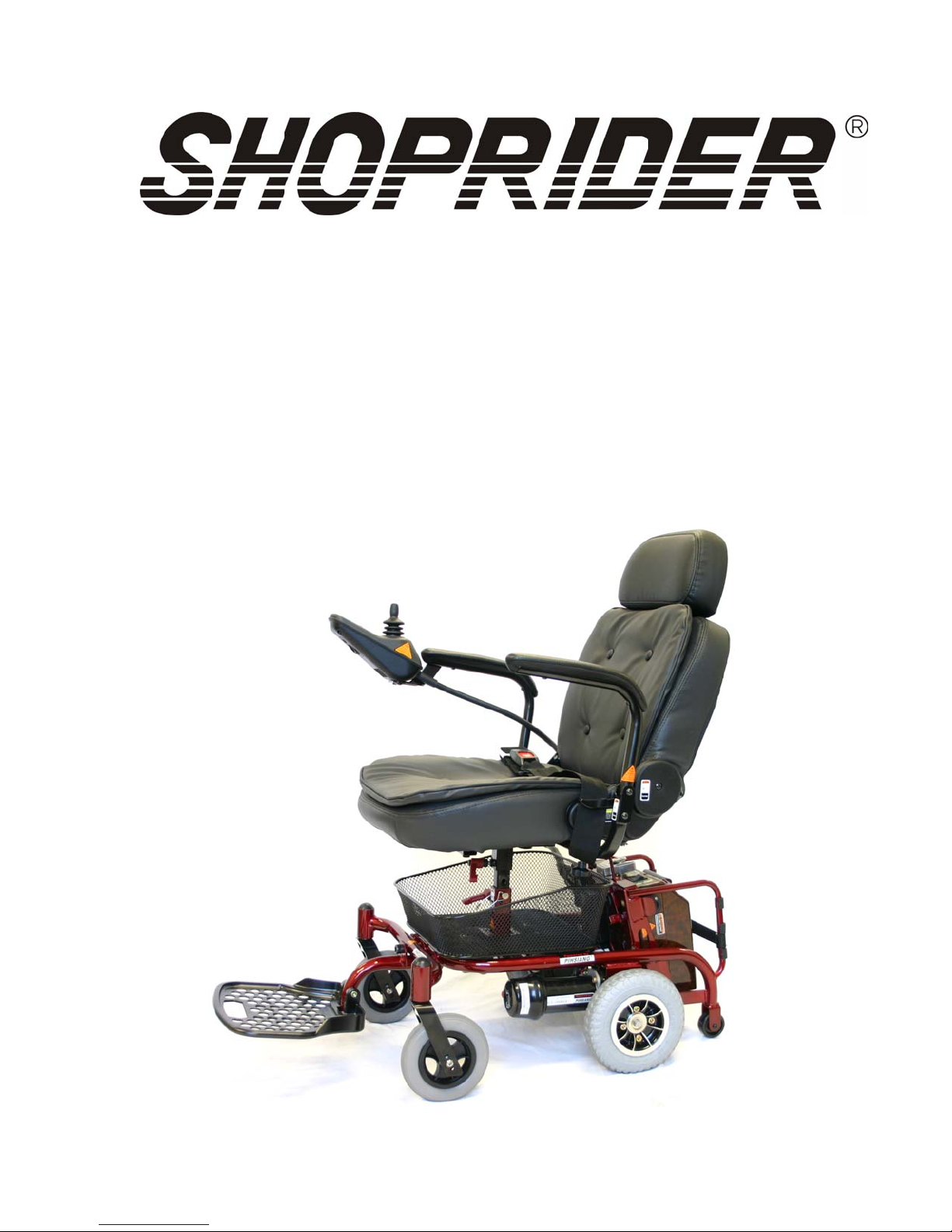

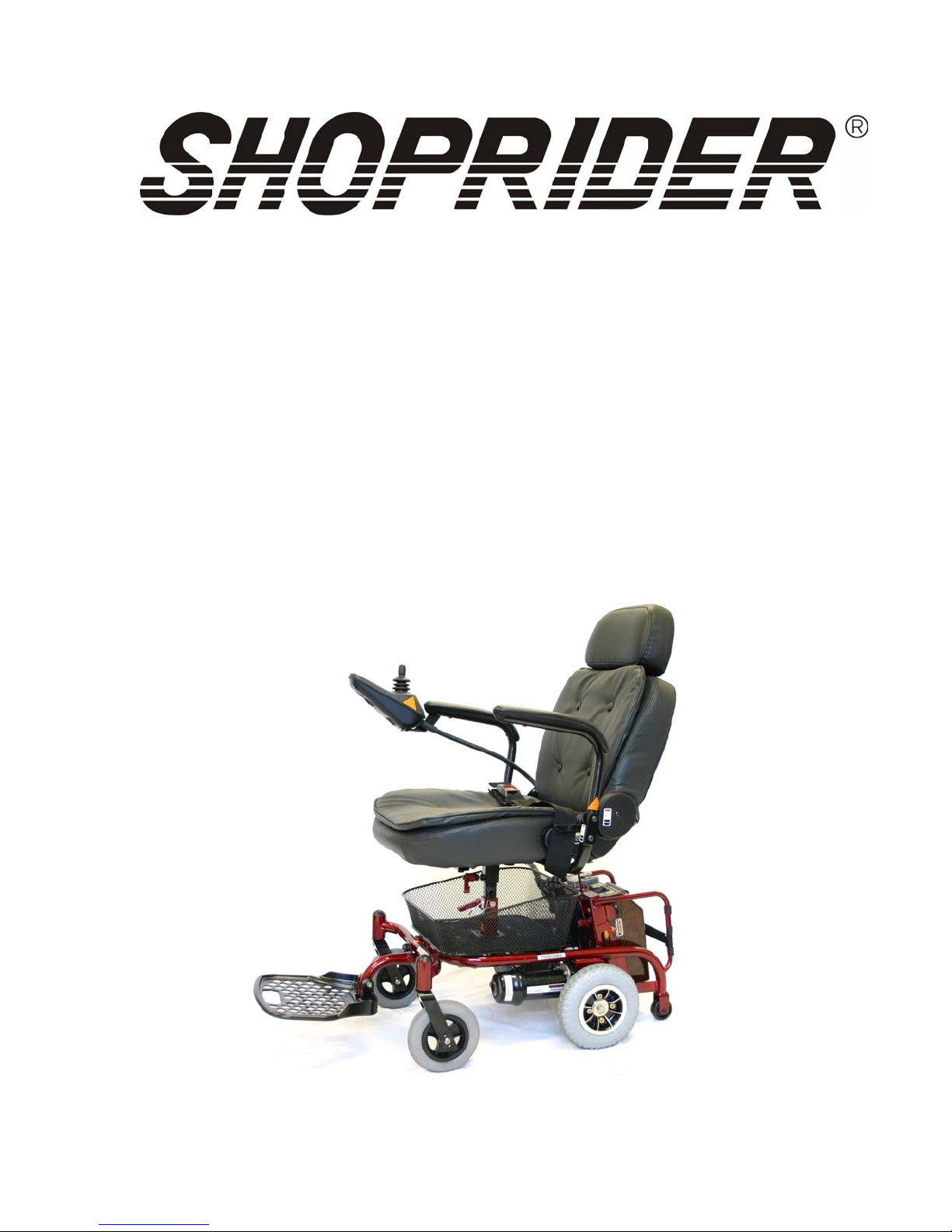

Shoprider XtraLite Jiffy UL7WR User manual

XtraLite Jiffy
Portable Powerchair
USER MANUAL
Models: UL7WR/ULWR11

8/16/2005 2
Table of Contents
INTRODUCTION ................................................................................ 3
EMI WARNING................................................................................... 4
ELECTROMAGNETIC INTERFERENCE FROM RADIO WAVES ................... 4
POWERED CHAIR ELECTROMAGNETIC INTERFERENCE (EMI) ................ 5
SAFETY INSTRUCTIONS ................................................................. 6
FEATURE GUIDE .............................................................................. 8
GETTING TO KNOW YOUR JIFFY POWERCHAIR ......................... 9
THE JOYSTICK CONTROLLER (VSI)........................................................ 9

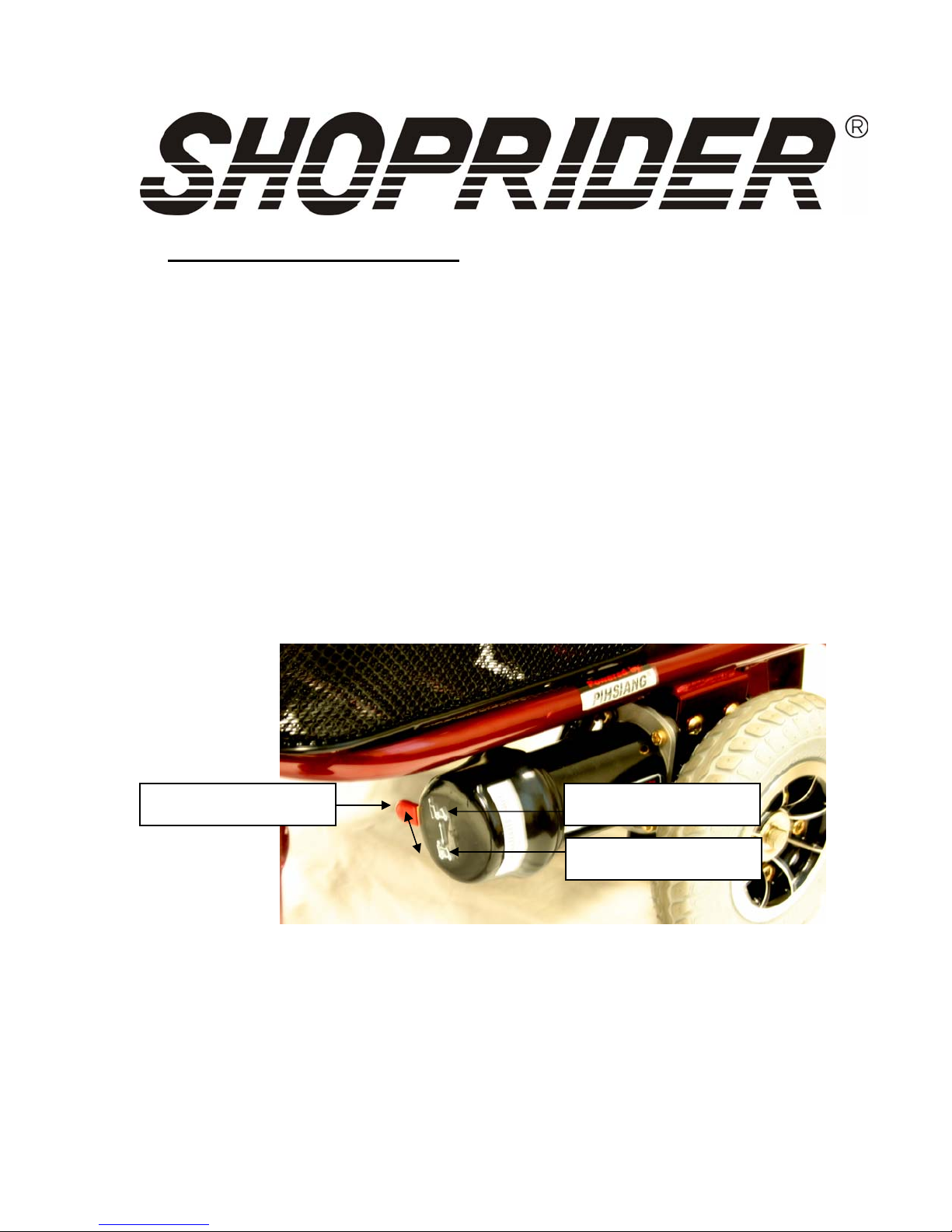

DRIVE/FREEWHEEL MECHANISM ........................................................ 11
USER TRANSFERRING........................................................................ 12
RECLINING SEAT................................................................................ 12
DISASSEMBLING/TRANSPORTING YOUR JIFFY POWERCHAIR .............. 13
DRIVING YOUR JIFFY POWERCHAIR .......................................... 14
CARING FOR YOUR JIFFY POWERCHAIR................................... 15
BATTERIES AND BATTERY CHARGING...................................... 16
BATTERIES ........................................................................................ 16
BATTERY CHARGING PROCEDURES ................................................... 17
TROUBLESHOOTING ..................................................................... 18
SPECIFICATIONS ........................................................................... 19
QUARTERLY INSPECTION ............................................................ 20
DISCLAIMER ................................................................................... 22

8/16/2005 3
INTRODUCTION
Congratulations on insisting the best. The Shoprider Jiffy portable
Powerchair is the ultimate combination of style, comfort and
portability. The compact features support easy transportation of
your Shoprider Powerchair for today’s active lifestyle. We know
that it will provide many years of mobility for you.
This manual contains important information regarding the safe use
of the Shoprider Jiffy Powerchair. Please read this manual
carefully and thoroughly before using your Powerchair and make
sure you understand all the instructions.

8/16/2005 4
EMI WARNING
Electromagnetic Interference (EMI) from Radio Wave Sources
Powered electric chairs may be susceptible to electromagnetic
interference, which is a kind of interfering electromagnetic energy
(EM) emitted from sources such as radio stations, TV stations,
amateur radio (HAM) transmitters, two-way radios and cellular
phones. The interference (from radio wave sources) can cause the
power chairs to release its brakes, move by itself or move in
unintended directions. It can also permanently damage the powered
chair’s control system.
The sources of radiated EMI can be broadly classified into three
types:
1. Hand-held portable transceivers (transmitters-receivers) with
the antenna mounted directly on the transmitting unit. Examples
include: citizens band (CB) radios, “walkie talkies”, security, fire
and police transceivers, cellular telephones and other personal
communication devices
NOTE: Some cellular telephones and similar devices transmit
signals while they are ON, even when not being used.
2. Medium-Range mobile transceivers, such as those used in
police cars, fire trucks, ambulances and taxis. These usually
have the antenna mounted on the outside of the vehicle.
3. Long-Range transmitters and transceivers, such as commercial
broadcast transmitters (radio and TV broadcast antenna
towers) and amateur (HAM) radios.
NOTE: Other types of hand-held devices, such as cordless
phones, laptop computers, AM/FM radios, TV sets, CD
players, cassette players and small appliances such as
electric shavers and hair dryers, so far, as we know, are not
likely to cause problems to your Powerchair.

8/16/2005 5
Powered Chair Electromagnetic Interference (EMI)
Because EM energy rapidly becomes more intense the closer one
moves to the transmitting antenna (source), the EM fields from hand-
held radio sources (transceivers) are of special concern. It is possible
to unintentionally bring high levels of EM energy very close to the
Powerchair’s control system while using these devices. This can
affect the Powerchair’s movement and braking. Therefore, the
warnings listed below are recommended to prevent possible
interference with the control system of the Powerchair.
WARNINGS
The following warnings listed below should reduce the chance of
unintended brake release or Powerchair movement, which could
result in serious injury.
1. Do not operate hand-held transceivers (transmitter-receivers),
such as citizens band (CB) radios, or turn ON personal
communication devices, such as cellular phones, while the
Powerchair is turned ON.
2. Be aware of nearby transmitters, such as radio or TV stations,
and try to avoid coming close to them.
3. If unintended movement or brake release occurs, turn the
Powerchair OFF as soon as it is safe.
4. Be aware that adding accessories or components, or modifying
the Powerchair may make it more susceptible to EMI.
NOTE: There is no easy way to evaluate the overall immunity
of the powered chair.
Report all incidents of unintended movement or brake to your
Powerchair provider, and note whether there are sources of EMI
nearby.

8/16/2005 6
Safety Instructions
Please do use the Jiffy Powerchair to enhance your active lifestyle.
With increased mobility, please observe a few rules to ensure safe
operation of your Jiffy Powerchair. So please…
1. Do not drive the Powerchair without reading this manual.
2. Do not exceed the safe climbing maximum angle (Table 2).
3. Do not use the joystick in an erratic manner when going up or
down an incline.
4. Do not carry passengers or exceed the maximum weight limit
(Table 2).
5. Do not turn off the joystick controller by switching the On/Off
Button when moving at any speed. This will bring the
electromagnetic brakes on immediately and could cause
damage to the joystick controller.
6. Do not drive over deep and soft terrain (soft dirt, loose gravel,
deep grass).
7. Do not attempt to mount a curb height above 2 inches.
8. Do not mount or dismount the Powerchair unless the
electromagnetic brakes are engaged and the joystick
controller is off.
9. Do not operate the Powerchair if the unit is in freewheel
mode.
10. Do not use on the road, except when crossing between
sidewalks.
11. Do not sit on the Powerchair when in a vehicle, but transfer to
a vehicle seat.
12. Do not exceed any grade over 8 degrees (14%).
13. Always stop fully before changing forward or reverse
direction.
14. Always engage a slow speed when going down gradients
(move the joystick slowly towards center position to reduce
the speed).
15. Always approach and climb over curbs at slow speed.

8/16/2005 7
16.Always approach curbs and gradients at 90 degrees.
17.Always use the safety belt.
18.Always keep the feet on the leg rest while driving.
19.Always make sure the batteries are fully charged before
setting out on a journey.
20.Always charge the Powerchair in a well ventilated area to
prevent any possible risk.
21.Always check that the drive wheels are engaged. Someone
may have left the Powerchair in freewheel mode.
22.Always reduce your speed when turning sharply.
23.Avoid turning sharply on a slope or gradient.
24.To brake in an emergency simply release the joystick.
25.Always try to find a “dropped curb” or “curb cutout” whenever
possible.
26.Always keep your Powerchair properly maintained.
27.Never try to use your Powerchair beyond it’s limitations as
described in this manual.
Important Notes
The Jiffy Powerchair is designed to assist in your individual mobility
needs. Any usage outside of the guidelines in this manual may result
in damage to the chair or injury to the user or third party.
Please do not lift the wheelchair by the armrests.
First Time Use
Prior to using your Jiffy portable Powerchair for the first time, you
must charge the batteries fully (refer to Battery Charging
Procedures). Charging may take up to 8 hours. Charging the
batteries completely prior to first time use will benefit battery
efficiency.

8/16/2005 8

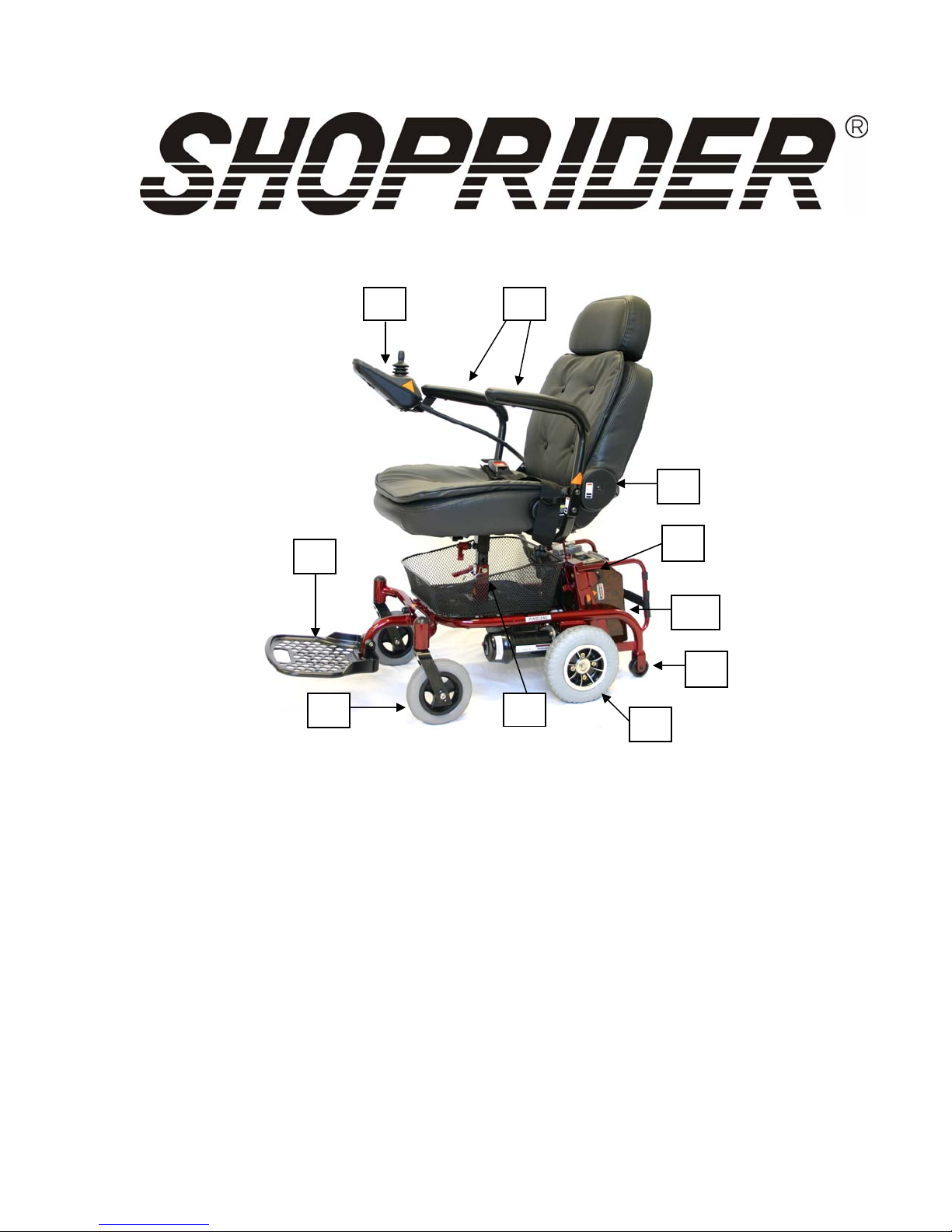

Feature Guide
(1) Removable Armrests with Width Adjustment (Flips Down for
Transport and Easy Seat Access)
(2) VSI Joystick Controller
(3) Charging Port
(4) Reclining Pillow-Top Leatherette Seat
(5) Standard Foot Plate
(6) Front Castor Assy (6” flat free tire)
(7) Frame Serial Number (13 alphanumeric characters)
(8) Rear Drive Wheel (8” flat free tire)
(9) Anti-tip Wheel
(10)Removable Battery Pack
1
2
3
4
5
6
9
8
10
7
Figure 1

8/16/2005 9
Getting to Know Your Shoprider Jiffy Powerchair
The Joystick Controller (VSI 50)
1. On-Off Button: This button turns the joystick
controller (hereinafter referred to as VSI) on
and off. Do not use this button to stop the
folding power chair, except in an emergency.
2. Battery Gauge: This is a 10-segment
display, which indicates if the VSI is switched
on and gives the state of charge of the
battery. Additionally, any faults in the
Powerchair electrical system are also
indicated by this display. Refer to Table 1 for
more details.
3. Maximum Speed Indicator: This is a 5-
segment display, which indicates the
maximum speed setting selected.
4. Horn Button: This button operates the
Powerchair’s horn.
5. Speed Decrease Button: This button
decreases the maximum speed.
6. Speed Increase Button: This Button
Increases the maximum speed.
7. Joystick: This controls the speed and direction of the Powerchair.
Push the joystick in the direction you want to go. The further you
push it, the faster the speed will be. Releasing the joystick will
automatically engage the brakes and stop the Powerchair.
8. Charging Port for Off-Board Charger: This is a secondary
charging port, in addition to the charging port located on the battery
pack. Only plug into this port with the qualified charger certified by
the original manufacturer of the Powerchair. This port should not be
used as a power supply for any other electrical devices. The
behavior against the two states as above will void the warranty of the
Powerchair.
Note: The controller can be fitted to suit either right or left-handed
users.
8
Figure 2
7
3
6
21
4
5

8/16/2005 10
Locking/Unlocking the VSI Joystick
LOCK MODE: The VSI controller can be locked to prevent
unauthorized use. The locking method is achieved through a
sequence of key presses and joystick movements, as detailed below.
To lock Powerchair controller:
While the controller is switched on, depress and hold the on/off
button.
After 1 second the controller will bleep. Now release the on/off
button.
Push the joystick forward until the controller bleeps.
Push the joystick in reverse until the controller bleeps.
Release the joystick, there will be a long bleep.
The Powerchair controller is now locked.
To unlock the Powerchair controller:
Use the on/off button to switch the controller on. The maximum
speed/profile indicator will be rippling up and down.
Push the joystick forward until the controller bleeps.
Push the joystick in reverse until the controller bleeps.
Release the joystick, there will be a long bleep.
The Powerchair is now unlocked.
SLEEP MODE: If the controller is left on and not used for more than
ten minutes, the controller will automatically “go to sleep”. This is
recognized by a slow intermittent flash of the battery indicator lights.
Simply turn the controller off and back on to reset.

8/16/2005 11
Drive/Freewheel Mechanism
The drive/freewheel levers are found toward the front of the
Powerchair, one on each side, located at the end of each motor.
These levers will allow you to disengage the drive mechanism and
push the Powerchair while in freewheel mode.
Always leave the chair in drive mode. The freewheel option is
there only to allow the chair to be pushed manually when the need
arises (i.e., to store or push unit out of a tight space).
The Powerchair will not function while the drive mechanism is
disengaged. In addition, the VSI-50 will flash a fault code and
beep steadily if turned on. Refer to Table 1 for more details.
Figure 3
Freewheel Lever
Drive Powerchair
Push Powerchair

8/16/2005 12
User Transferring
You can transfer either
forward, left or right from the
chair. The armrests are
hinged at the bottom and can
be pushed down and out of
the way for sideways transfer.
Pull armrest up, then push
armrest forward and down for
side transfer.
Reclining Seat
The Jiffy Powerchair comes with
a reclining seat. The reclining
seat lever is located on the left
side below the armrest. Simply
pull the lever up to adjust. This
feature also allows the seat to be
folded (Refer to Figure 7 for
picture of folded seat).
1
)
Pull U
p
2) Push Forward
& Down
Figure 4
Figure 5

8/16/2005 13
Disassembling/Transporting the Shoprider Jiffy Powerchair
Follow these simple guidelines for
disassembly:
1. Park the Powerchair on a
level surface
2. Ensure the wheels are
locked in drive mode (Fig 3)
3. Fold up footplate
4. Unplug VSI from rear of unit
5. Remove battery pack from
rear of unit
6. Remove seat by unscrewing
the tightening knobs and
lifting seat upward and off
2
3
4
5
6
Figure 6
1
2
3
4 5
6
Figure 7

8/16/2005 14
Driving Your Shoprider Jiffy Powerchair
Ramps, Slopes and Cambers
The Jiffy indoor/outdoor Powerchair has the ability to negotiate
ramps, slopes and cambers of a low to medium gradient. It is of the
utmost importance that the following points are observed:
1. Never attempt to go up or down an incline which has a rough,
wet or slippery surface (loose gravel, tree roots, wet grass,
polished floor, etc.)
2. Always approach an incline head on, not at an angle
3. Always travel at a speed that you are comfortable with and that
you feel in complete control
4. Avoid sudden or erratic action with the joystick
5. When riding along in a straight line you may experience
“veering to one side”. This is due to the natural camber in the
construction of the pavement. To correct this you simply have
to steer slightly against it, as you continue to move forward.
Figure 8

8/16/2005 15
Caring for Your Shoprider Jiffy Powerchair
First Time Use
Prior to using your Jiffy portable Powerchair for the first time, you
must charge the batteries fully (refer to Battery Charging
Procedures). Charging may take up to 8 hours. Charging the
batteries completely prior to first time use will benefit battery
efficiency.
Tires
Since your tires are flat free tires, there is no need to ever worry
about tire air-pressure.
General Maintenance and Lubrication
Inspection for loose wheel bolts, seat and arm tightening bolts,
castor nuts and other nuts and bolts is recommended on a
regular basis.
Most lubricated components on the Jiffy Powerchair are
designed to be maintenance free and are sealed. Therefore,
lubrication is not required for these components. However, the
driving axles should always have a very light coat of multi-
purpose grease.
DO NOT USE TOO MUCH GREASE!
Drips may stain or damage carpets, furnishings, etc.
It is recommended that the driving axles (inside the drive wheel
assy) and castor assemblies be checked and cleaned
occasionally for hair and debris build-up, which will hinder the
performance of the unit.
Check the batteries on a regular basis. For extended battery
life, it is highly recommended that the batteries be fully charged
after each use. If the batteries are weak, severely discharged or
old, a variety of problems may occur with the unit including
charging problems, reduced speed, loss of range, and others.
Please contact your provider for battery replacement.

8/16/2005 16
Batteries & Battery Charging
Batteries
The Shoprider Jiffy Powerchair is designed to operate on two 12
volt/12Ah sealed lead acid or gel type maintenance free batteries. For
easy handling, the batteries are contained within a battery-pack. The
life of the batteries may be affected by temperature, terrain, weight of
user, and care of batteries. The battery gauge (Refer to Figure 2) is a
guide on the remaining charge of the batteries.
The active user will need to charge the batteries after using
approximately more than 30% of battery capacity. As an inactive
user, only using from once a week to every other day, the recharge
point would be at 50% of discharge (Refer to Figure 8). For extended
battery life, it is highly recommended that these guidelines be
followed.
Keeping the batteries charged will extend the life of the batteries
Batteries should be kept fully charged at all times. They must not be
left in a discharged state if the unit is not being used for some time or
the “charging space” within the batteries will be lost and can never be
regained. The batteries should be checked once a month and kept
charged as needed.
Green Top
3 Bars
Full battery charge.
Red Bottom
3 Bars
Flashing. Danger, you
must stop and
recharge the batteries.
Failure to do so may
result in damage of
Amber Middle
4 Bars
From 30% - 50%
discharge.
Batteries will
need charging.
Figure 9

8/16/2005 17
Battery Charging Procedure
There are two ways to charge the Jiffy portable Powerchair:
1) Plug the A/C power cord into the wall. Plug the male three-pin
charger plug into the female 3-pin receiver located on the
bottom of the VSI (Refer to Figure 2, #8).
2) Remove the battery-pack from the unit. Plug the A/C power
cord into the wall. Located on the battery-pack is a charger port.
Slide the charger port cover over to expose the charger female
3-pin receiver. Plug the male three-pin charger plug into the
female 3-pin receiver. It is not necessary for the battery-pack to
be attached to the Powerchair to charge.
The battery charger’s light indicator is as follows:
Red - Charging
Green - Charging complete
Depending on the amount of battery discharge, the charge time can
take up to 12 hours. The battery charger has an electronic switch that
will terminate the charge when the batteries are fully charged. Do not
remove the battery charger until the charging cycle is complete. Be
sure to unplug charger from the wall first before unplugging charger
from the Powerchair.
WARNING! Only use the original manufacturer approved
charger!
This charger is for indoor use only. Do not expose it to rain or
water spray.
Do not leave the charger plugged into the Charging Port if the
charger is not charging.

8/16/2005 18
Troubleshooting
The Self-Help Guide (Table 1) is intended to assist in the location of a
fault that may occur in a certain part of the Powerchair.
If after checking the fault from the table below and the fault is still
showing, do not use the Powerchair. Turn off the power and consult
your provider immediately.
Table 1
BATTERY
GAUGE POSSIBLE VSI-50 FAULT
10 Bars flash Battery voltage is too high, check the battery connections.
9 Bars flash Solenoid brake fault
8 Bars flash Possible controller fault
7 Bars flash Possible joystick fault
6 Bars flash Battery charger connected
5 Bars flash Right-hand motor wiring fault
4 Bars flash Right-hand motor disconnected
3 Bars flash Left-hand motor wiring fault
2 Bars flash Left-hand motor disconnected
1 Bar flash Low battery voltage

8/16/2005 19
Specifications
Table 2
Jiffy (UL7WR) Jiffy 11 (UL7WR11)
Overall Dimensions: L1x W x H 37” x 19” x 33” 37” x 21” x 33”
Number, Size of Front Tires 2, 6 inches 2, 6 inches
Number, Size of Rear Tires 2, 8 inches 2, 8 inches
Total Weight of Unit 100 lbs 104 lbs
Maximum User Weight 225 lbs 250 lbs
Battery Capacity 12v - 12Ah x 2 12v - 12Ah x 2
Charger Off-Board, (2amp) Off-Board, (2amp)
Output Power of Motor .45 hp .45 hp
Ground Clearence 2.25 inches 2.25 inches
Seat Floor Height 19, 20, 21in 19, 20, 21in
Maximum Speed 3 mph 3 mph
Safe Climbing Angle, Maximum
Single User Weight
Refer to
Figure 8
Refer to
Figure 8
Range29 mi 9 mi
Turning Radius 27.5 inches 28.5 inches
As a part of our ongoing product improvement initiative, Shoprider
reserves the right to change specifications and design without prior
notice. All specifications and dimensions are approximate.
1Includes the anti-tip wheel.
2The actual driving range varies with the factors shown below:
1. The weight of the user
2. Ground surface condition
3. Battery condition
4. Type of charger
5. Ambient temperature
6. Driving style
7. Terrain

8/16/2005 20
QUARTERLY INSPECTION
For your own safety, quarterly inspection and service on the product has
to be performed and signed by an authorized provider. Maintenance
records (below) should be kept at all times. The manufacturer /
distributor / vendor will be indemnified from any product liability claim if
the above maintenance / service requirement are not met.
NOTE! Regular (Monthly) inspection is strongly recommended by
the manufacturer to ensure ultimate performance of the vehicle.
