Show Tec Galactic G-30 User manual

VERSION:2.0
This manual contains important laser system safety and operation
information. Read and understand all instructions prior to powering on
laser unit the first time, to avoid laser eye injury and to avoid breaking
the law. Keep this manual in a safe place for future reference.

USER MANUAL
1
1. FEATURES
zThis device has been designed to produce decorative effect lighting and is used
light show systems.
zSPARK is done with bran-new metal mode design, big difference from
traditional mini laser projector.
zThe high quality open loop 5kpps scanner is small size ,fast speed, stable
scanning, never missing step and fleshing.
zControlled by our new analogy driver and feed back PCB, it has faster and
better quality pattern.
zSeveral working modes:
{DMX controlled, 8channels
{Stand-alone with built-in microphone
{Stand-alone automatic mode
{Master/Slave mode(automatic&sound)
{Easy remote control
zDMX-addressing with LED display
zLaser Safety key switch
zComplies to EN/IEC 60825-1 for Laser Safety
2. BEFORE USE
zBefore you start using this unit, please check if there’s no transportation
damage. Should there be any, do not use the device and consult your dealer
first.
zImportant: This device left our factory is in perfect condition and well packaged,
It is absolutely necessary for the user to strictly follow the safety instruction and
warnings in this user manual. Any damage caused by mishandling is not
subject to warranty. The dealer will not accept responsibility for any resulting
defects or problems caused by disregarding this user manual.
Check the contents:
The carton contains the following items：
NAME QTY
Laser Light 1 PCS
KEYS (for key switch) 2 PCS
Mains Cable 1 PCS
USER MANUAL 1 PCS

USER MANUAL
2
3. SAFETY INSTRUCTIONS:
Every person involved with installation and maintenance of this device have to:
-be qualilfied
-follow the instructions of this manual
zTo protect the environment, please try to recycle the packing material as much
as possible.
zTo prevent fire or shock hazard, do not expose this appliance to rain or
moisture.
zTo avoid condensation to be formed inside, allow this unit to adapt to the
surrounding temperatures when bringing it into a warm room after transport.
Condense sometimes prevents the unit from working at full performance or may
even cause damages.
zThis unit is for indoor use only.
zDon’t place metal objects or spill liquid inside the unit. Electric shock or
malfunction may result. If a foreign object enters the unit, immediately
disconnect the mains power.
zLocate the fixture in a well ventilated spot, away from any flammable materials
and/or liquids. The fixture must be fixed at least 50cm from surrounding walls
zDon’t cover any ventilation openings as this may result in overheating.
zPrevent use in dusty environments and clean the unit regularly.
zKeep the unit away from children.
zInexperienced persons should not operate this device.
zMaximum save ambient temperature is 45 degree Don’t use this unit at higher
ambient temperatures.
zMake sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
zAllow the device about 10 minutes to cool down before replacing the bulb or
start servicing.
zAlways unplug the unit when it is not used for a longer time or before replacing
the bulb or start servicing.
zThe electrical installation should be carried out by qualified personal only,
according to the regulations for electrical and mechanical safety in your country.
CAUTION! Be careful with your operations. Witch a high
voltage you can suffer a dangerous electric shock
when touchin
g
th wires
!

USER MANUAL
3
zCheck that the available voltage is not higher than the one stated on the rear
panel of the unit.
zThe power cord should always be in perfect condition: switch the unit
immediately off when the power cord is squashed or damaged.
zNever let the power-cord come into contact with other cables.
zThis fixture must be earthed to in order comply with safety regulations.
zDon’t connect the unit to any dimmer pack.
zAlways use an appropriate and certified safety cable when installing the unit.
zIn order to prevent electric shock, do not open the cover, Apart from the lamp
and mains fuse there are no user serviceable parts inside.
zNever repair a fuse or bypass the fuse holder. Always replace a damaged fuse
with a fuse of the same type and electrical specifications!
zIn the event of serious operating problems. stop using the fixture and contact
your dealer immediately
zThe housing and the lenses must be replaced if they are visibly damaged.
zPlease use the original packing when the device is to be transported.
zDue to safety reasons it is prohibited to make unauthorized modifications to the
unit.
4. LASER SAFETY INSTRUCTIONS:
zAccording to the EN 60825-1：1994 + A2：2002 regulations, this laser fall under
the classification 3B.Direct eye exposure can be dangerous.
zThis is so-called show laser, emitting radiation with a wavelength spectrum
between 400 and 700nm and producing lighting effects for shows.
zDue to the instruction of this laser, the beam is moved so fast, that it can only hit
the eye very short. This is why the use of this laser for a laser-light show can be
regarded as save.
zNever direct the laser beam to people or animals and never leave this device
running unattended.
Important: Never look directly into the light source! Don’t use the effect
in the presence of persons suffering from epilepsy.

USER MANUAL
4
zThis laser may only be used for shows. The operation of a class 3B show laser
is only allowed if the operation is controlled by a skilled and well-trained
operator.
zDepending on the classification, operating a laser product can produce laser
radiation that may cause permanent eye damage and /or skin damage. The
legal instructions for using a laser product vary from country to country. The
user must always inform himself on the legal instructions valid in his country
and apply them to his situation.
Please note that the laser light can not be made liable for damages caused
by incorrect installations and unskilled operation!
5. OVERHEAD RIGGING
zImportant: The installation must be carried out by qualified service
personal only. Improper installation can result in serious injuries and /or
damage to property. Overhead rigging required extensive experience!
Working load limits should be respected, Certified installation materials
should be used, the installed device should be inspected regularly for
safety.
zMake sure the area below the installation place is free from unwanted persons
during rigging, de-rigging and servicing.
zLocate the fixture in a well ventilated spot, far away from any flammable
materials and /or liquids. The fixture must be fixed at least 50cm from
surrounding walls.
zThe device should be installed out of reach of people and outside areas where
persons may walk by or be seated.

USER MANUAL
5
zBefore rigging make sure that the installation area can hold a minimum point
load of 10 times the device’s weight.
zAlways use a certified safety cable that can hold 12 times the weight of the
device when installing the unit. This secondary safety attachment should be
installed in a way that no part of the installation can drop more than 20cm if the
main attachment fails.
zThe device should be well fixed; a free swinging mounting is dangerous and
may not be considered!
zDo not cover any ventilation openings as this may result in overheating.
zThe operator has to make sure that the safety relating and machine technical
installations are approved by an expert before using them for the first time. The
installations should be inspected every year by a skilled person to be sure that
safety is still optimal.
5.1 Connection to the mains
if you wish to change the power supply settings, see the chapter below.
Connect the fixture to mains with the
enclosed power cord and pulg.
The earth has to be connected!
The occupation of the connection-cables is as follows:

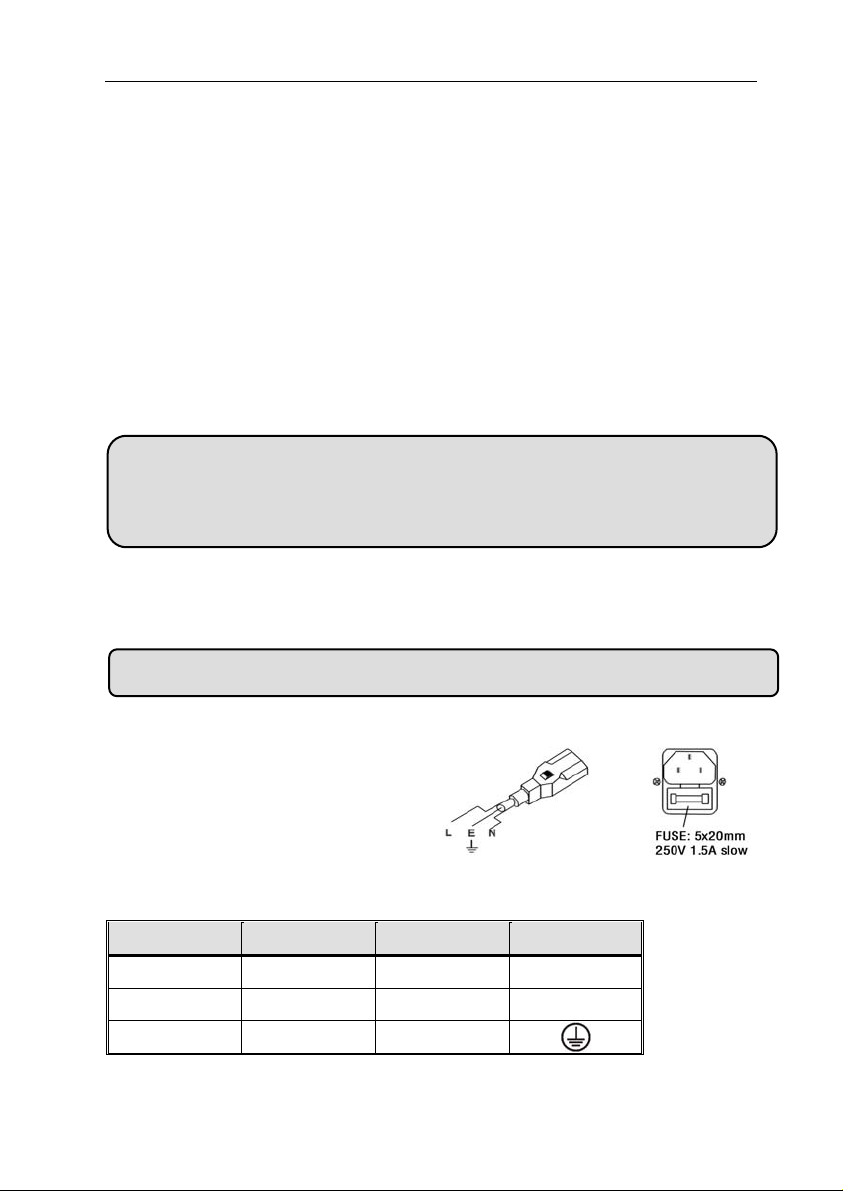

Cable(EU) Cable(US) Pin International
Brown Black Live L
Liht blue White Neutral N
Yellow/Green Green Earth
Verify the power supply settings before applying power!
CAUTION EYEDAMAGE: Always position the laser in a way that
prevents the audience from looking directly into the laser beams. The
installation should assure that the beam will not strike the audience.

USER MANUAL
6
5.2 DMX-512 connection/connection between fixtures
zThe fixture is equipped with 3-pin XLR sockets for DMX input and output. The
sockets are wired in parallel. Only use a shielded twisted-pair cable designed
for 3-pin XLR-plugs and connectors in order to connect the controller with the
fixture or one fixture with another.
Occupation of the XLR-connection:
Building a serial DMX-chain:
zIf you are using the standard DMX-controllers, you can connect the DMX-output
of the controller directly with the DMX-input of the first fixture in the DMX-chain.
If you wish to connect DMX-controllers with other XLR-outputs, you need to use
adapter cables.
zConnect the DMX-output of the first fixture in the DMX-chain with the
DMX-input of the next fixture. Always connect output with the input of the next
fixture until all fixtures are connected.
Caution: At the laser fixture, the DMX-cable has to terminated
with a terminator. Solder a 120 Ohm resistor between Signal (-)
and Signal (+) into a 3-pin XLR-plug and plug and plug it in the
DMX-output of the last fixture.

USER MANUAL
7
Building a master/slave-chain:
Connect the DMX-output of the master fixture in the data-chain with the
DMX-input of the first slave, Always connect output with the input of the next slave
until all slaves are connected.
Caution: It’s necessary to insert the XLR termination plug (with 120Ohm) into the
input of the master fixture and into the output of the last slave fixture in the link in
order to ensure proper transmission on the data link.
6. DESCRIPTION:

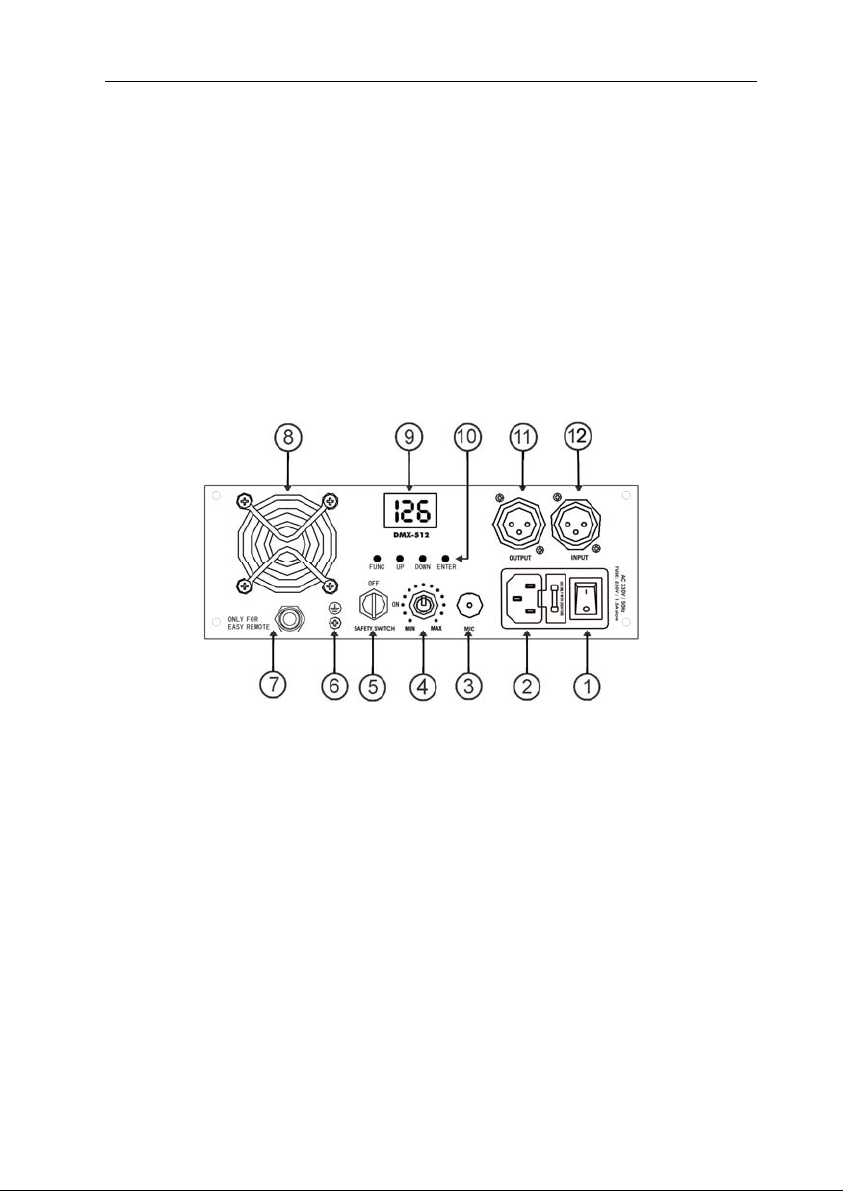

6.1 Back panel of the fixture
1. POWER Switch: Switch on and off the power
2. MAINS INPUT: with IEC socket and integrated fuse holder, connect the
supplied mains cable here.
3. INTERNAL MICROPHONE: the built- in microphone is used to synchronize the
laser show to the beast of the music
4. MUSIC INPUT SENSITIVITY: This potentiometer is used to adjust the music
input sensitivity. Turn the potentiometer until the laser works in sync with the
music.
5. INTERLOCK: used to connect the optional emergency stop switch (see
picture). When you push this switch the laser beam will disappear
immediately.

USER MANUAL
8
6. Earth Enclose: Used to connect to the earth.

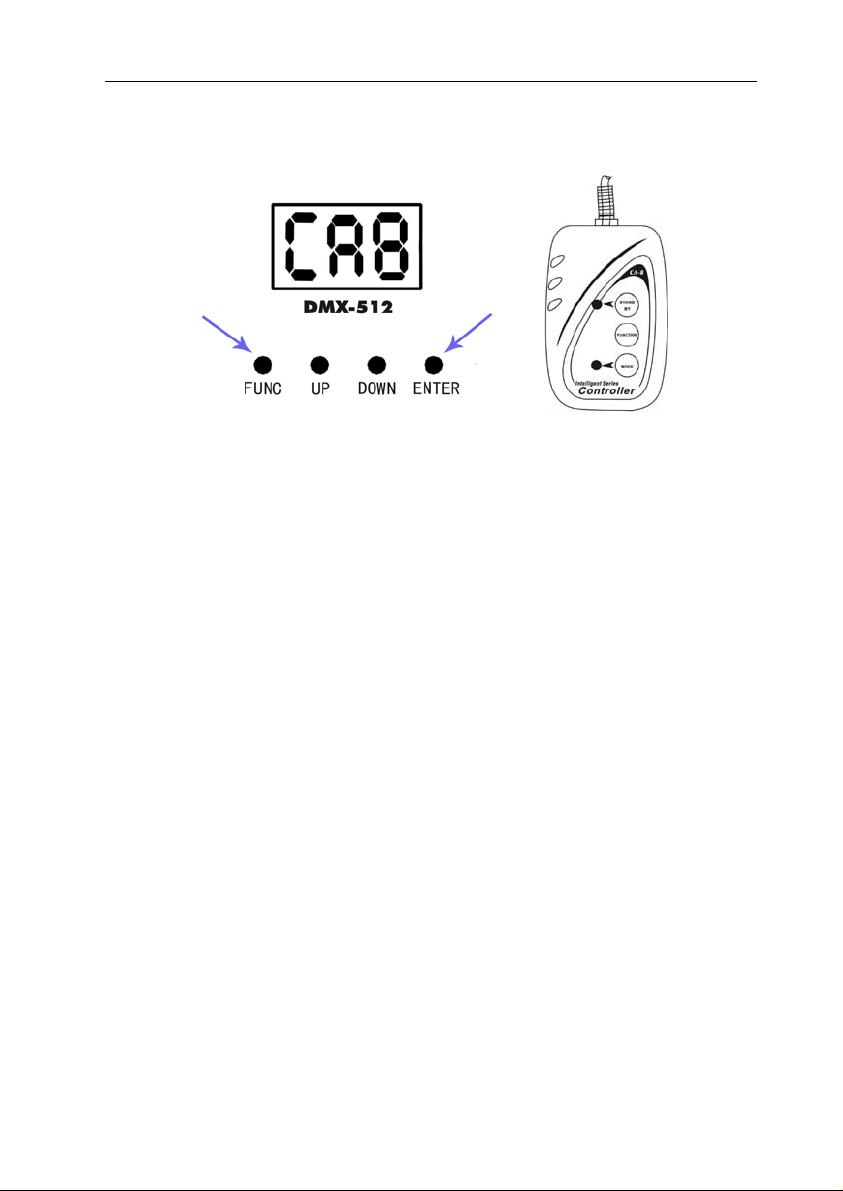

7. Easy Controller: Used to connect to optional easy controller CA-8.
8. COOLING FAN: used to cool the components inside the enclosure. Make sure
to never cover this fan outlet!

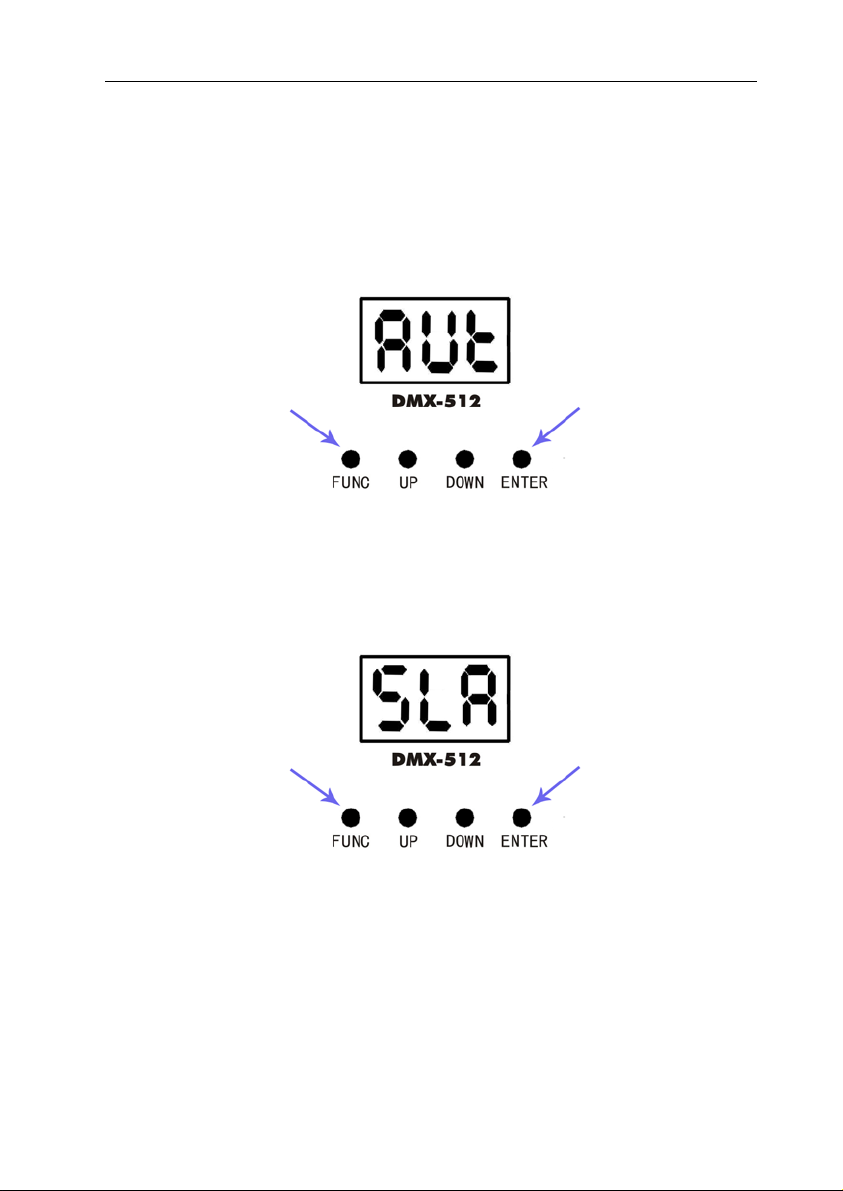

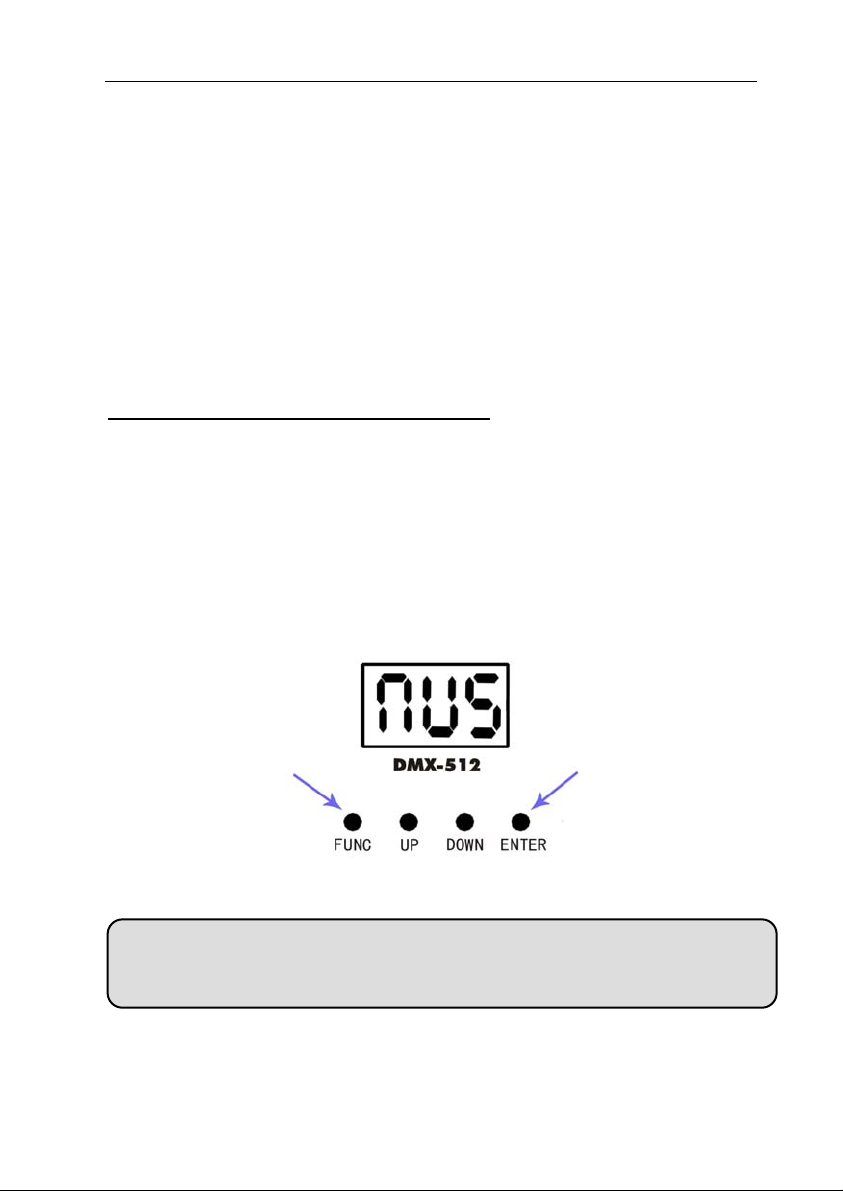

9. LED DISPLAY: Show the operating mode and DMX address
10. Control Panel: Used to set operating mode and DMX address
11. DMX OUTPUT: 3pin female XLR-connector used to connect the space color
laser with the next unit in the DMX chain.
12. DMX INPUT: 3pin male XLR- connector used to connect universal
DMX-cables. This input receives instructions from a DMX-controller.
6.2 Front panel of the fixture
13. POWER LED: indicates that the unit is switched on.
14. MUSIC LED: flashes to the sound of the music detected by the mic.
15. LASER OUTPUT: here the laser beam leaves the enclosure, make sure to
never look inside the unit through this opening while the laser effect is
switched on!

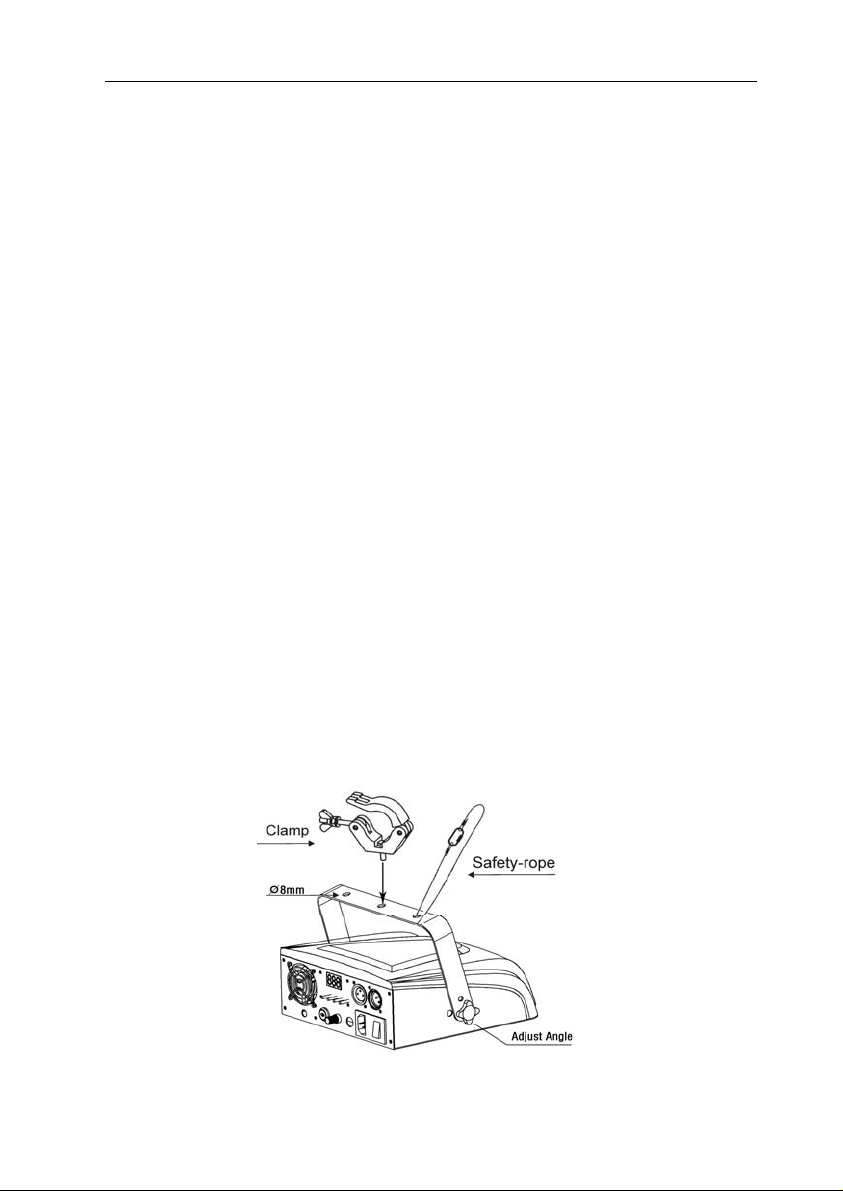

16. HANGING BRACKTET: with 2knob on both sides to fasten the unit and a
mounting hole to fix a mounting hook.

USER MANUAL
9
7. HOW TO SET UP AND CONTEROL THE UNIT
zRegular breaks during operation are essential to maximize the life of this device
as it is not designed for continual use.
zDo not switch the unit on and off in short time intervals as this reduces the lamp
life.
zAlways unplug the unit when it is not used for a longer time. Or before replacing
the bulb or star servicing.
zIn the event of serious operating problems, stop using the fixture and contact
your dealer immediately.
zImportant: Never look directly into the laser beam! Don’t use the effect in the
presence of persons suffering from epilepsy.
You can operate the unit in 5 Modes:
7.1 MUSIC CONTROLLED STAND-ALONE MODE:
zPress “FUNC” button till to the “MUS” letter is shown on LED DISPLAY.
zPress “ENTER” to select this “MUS” mode.
When “MUS” mode is selected, the laser is operating in MUSIC CONTROLLED
STAND-ALONE MODE. It is running laser show with music volume and speed.
The laser is operating this mode until next setting.
CAUTION ！ The laser will be automatically block out in 5 second if there
is no Music (Sound) signal is detected.

USER MANUAL
10
7.2 AUTO RUNNING STAND-ALONE MODE:
zPress “FUNC” button till to the “AUT” letter is shown on LED DISPLAY.
zPress “ENTER” to select this “AUT” mode.
When “AUT” mode is selected, the laser is operating in AUTO RUNNING
STAND-ALONE MODE. It is running laser show with preprogram. The laser is
operating this mode until next setting.
7.3、SLAVE MODE
zPress “FUNC” button till to the “SLA” letter is shown on LED DISPLAY.
zPress “ENTER” to select this “SLA” mode.
When “SLA” mode is selected, the laser is operating in SLAVE MODE. Connect
the SLAVE MODE laser to MASTER MODE laser (either Auto or Music mode)
with standard DMX512 cable, the SLAVE MODE laser is running laser show
exactly as the MASTER MODE laser does. The laser is operating this mode until
next setting.

USER MANUAL
11
7.4、EASY REMOTE CONTROL MODE：
zPress “FUNC” button till to the “CA8” letter is shown on LED DISPLAY.
zPress “ENTER” to select this “CA8” mode.
When “CA8” mode is selected, the laser is operating in EASY REMOTE
CONTROL MODE. It could be controlled by the optional CA-8 easy controller
as function list below. The laser is operating this mode until next setting.
zSTAND BY button:
Used to set the connected unit in blackout mode. The LED is on when the
unit is set to blackout.
zMODE / FUNCTION button:
Press the MODE button to toggle the different modes:
{MODE LED is off: The unit is in “full automatic” mode. The Function
Button is not used.
{MODE LED is on; The unit is in “manual pattern select” mode. One of
the24 the build-in patterns can be selected with the FUNCTION button.

USER MANUAL
12
7.5 DMX512 CONTROL MODE：
zPress “FUNC” button till to the DMX address is shown on LED DISPLAY.
zPress “UP” or “DOWN” to set the DMX address
zPress “ENTER” to select DMX CONTROL MODE and confirm the DMX
address.
CAUTION ！： In case of DMX cable disconnecting or no DMX signal is
detected, the DMX address on LED DISPLAY keeps
flashing. Please check the DMX cable connection.
Important: In every setting operation, please ensure to press “ENTER”
button to confirm the mode or setting that you did.
Otherwise, the settin
g
is not finish and settin
g
will be back to

USER MANUAL
13
8. DMX PROTOCOL
8.1 DMX CHANNEL LIST:
通道 DMX512 值 控制内容
1
000-063 Laser Block Out
064-127 Music Control Stand Alone Mode
128-191 Auto Running Stand Alone Mode
192-255 DMX Mode
2
000-063 Pattern Group 1 LINE
064-127 Pattern Group 2 TUNNEL
128-191 Pattern Group 3 CURVE
192-255 Pattern Group 4 OTHERS
3 000-255 8 Patterns in each group in Channel 2
4 000-134 Rotation Position
135-255 Rotating Speed
5 0-128 Size
129-255 Zooming Speed
6 0-136 Horizontal(Y)Position
137-255 X Moving Speed
7 0-128 Vertical(X)Position
129-255 YMovingSpeed
8
0-85 Original Pattern
86-171 Pattern without Blanking (More Powerful)
172-255 Block Out

USER MANUAL
14

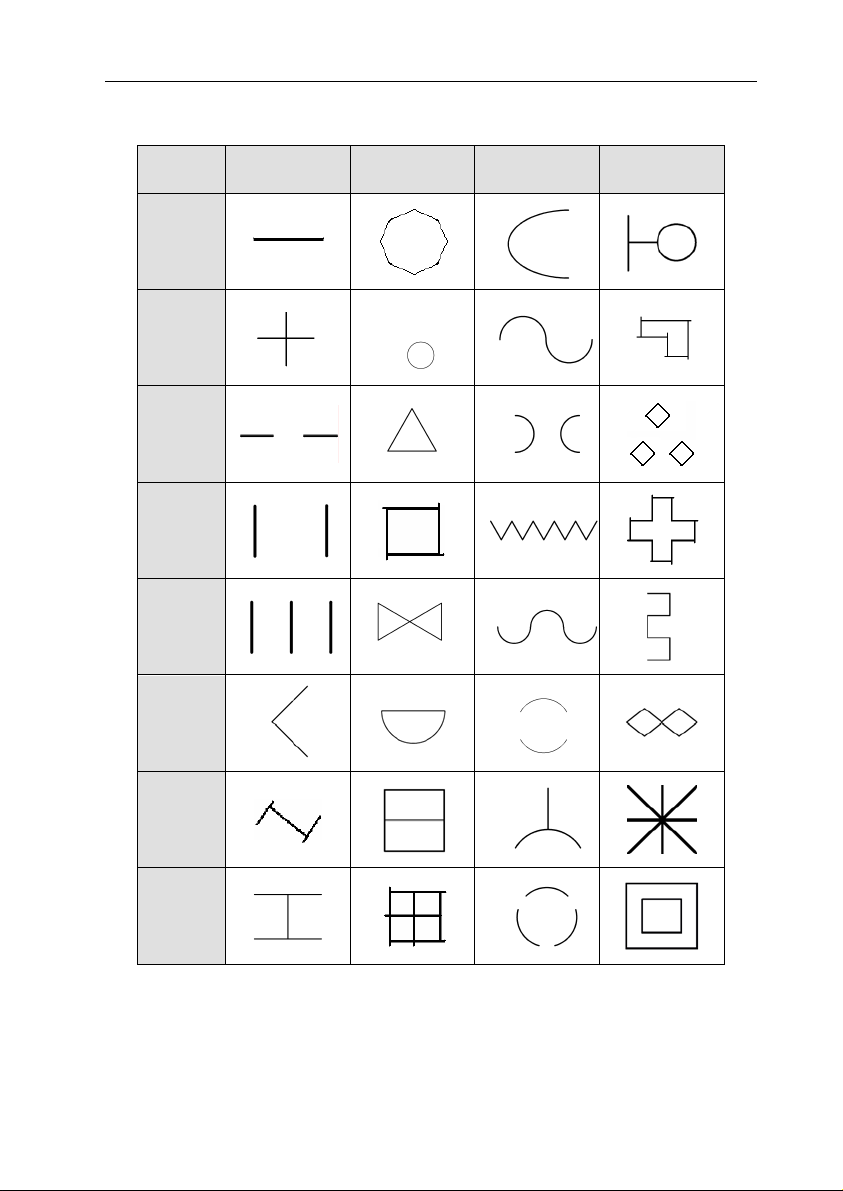

8.2 PATTERN LIST IN CHANNEL 3：
DMX Group 1 Group 2 Group 3 Group 4
000-031
032-063
064-095
096-127
128-159
160-191
192-223
224-255

USER MANUAL
15

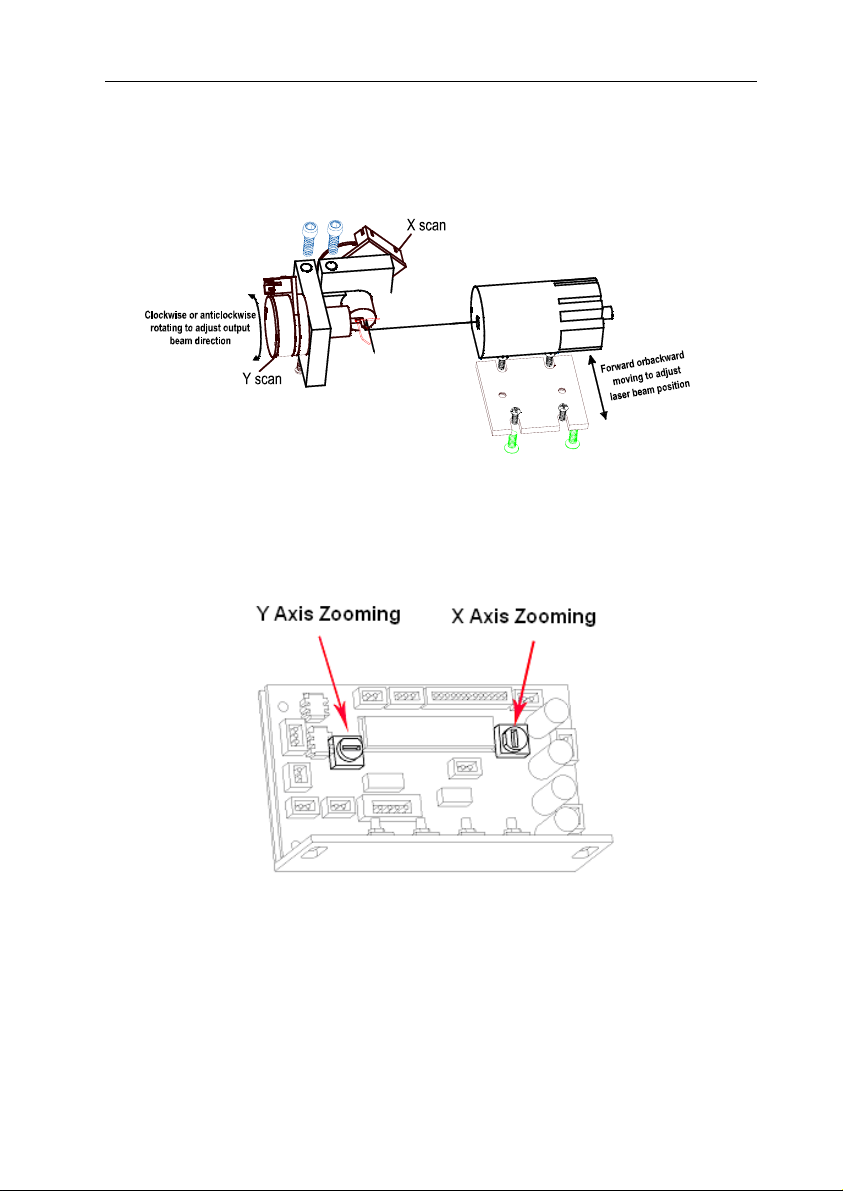

9. OUTPUT LASER ADJUSTMENT
9.1 To adjust the output laser beam position and direction.
9.2 X/Y AXIS ZOOMING ADJUSTMENT

USER MANUAL
16
10. MAINTENANCE
zMake sure the area below the installation place is free from unwanted persons
during servicing
zSwitch off the unit , unplug the mains cable and wait until the unit has been
cooled down.
During the inspection the following points should be checked:
zAll screws used for installing the device and any of its parts should be tightly
fastened and may not be corroded
zHousings, fixations and installations spots( ceiling, truss, suspensions) should
be totally free from any deformation
zWhen an optical lens is visibly damaged due to cracks or deep scratches, it
must be replaced
zThe mains cables must be in impeccable condition and should be replaced
immediately when even a small problem is detected
zIn order to protect the device from overheat the cooling fans(if any ) and
ventilation openings should be cleaned monthly.
zThe interior of the device should be cleaned annually using a vacuum cleaner
or air-jet.
zThe cleaning of internal and external optical lenses and / or mirrors must be
carried out periodically to optimize light output. Cleaning frequency depends on
the environment in which the fixture operates: damp. smoky or particularly dirty
surroundings can cause greater accumulation of dirt on the unit’s optics
{Clean with a soft cloth using normal glass cleaning products.
{Always dry the parts carefully.
{Clean the external optics at least once every 30 days.
{Clean the internal optics at least very 90 days.
Attention: We strongly recommend internal cleaning to be carried out by
qualified personnel!

USER MANUAL
17

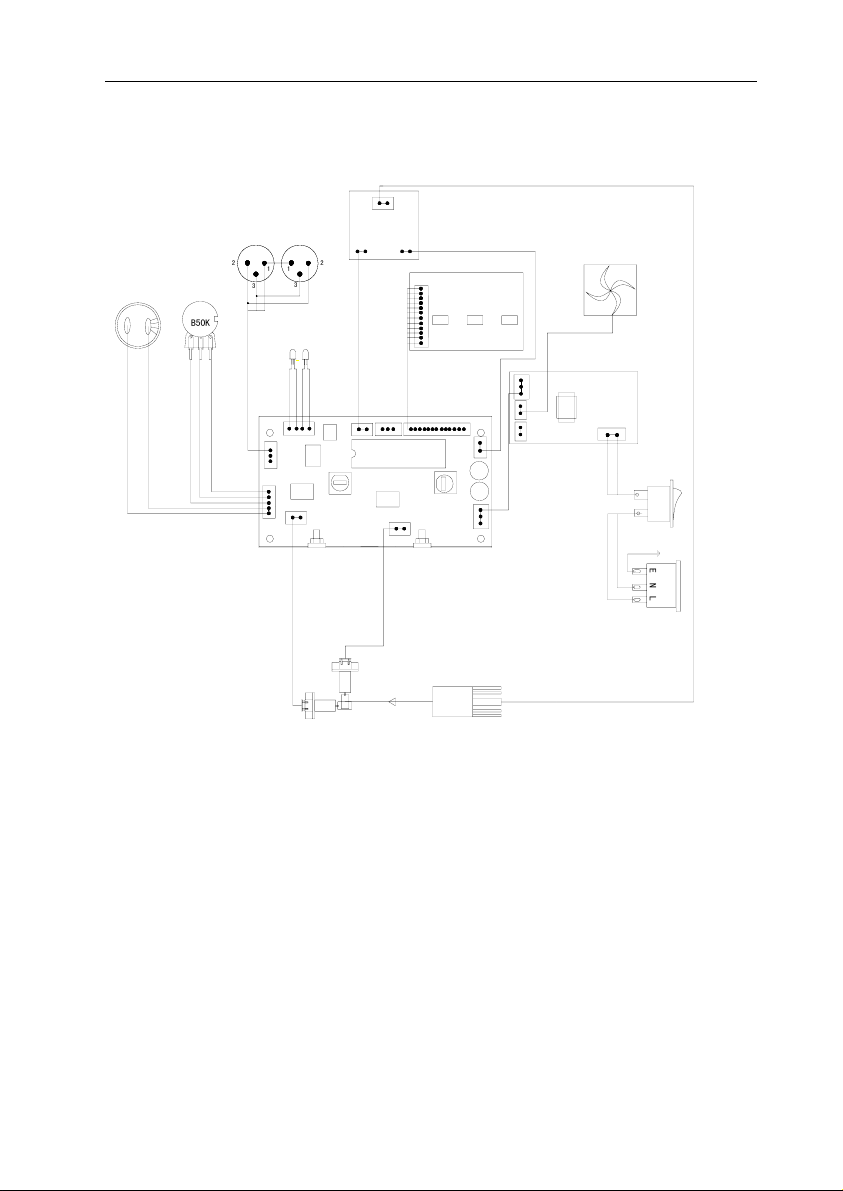

11. CIRCUIT DIAGRAM
3
21
3
2
1
B 5 0 K
E
N
L

USER MANUAL
18
12. SPECIFICATIONS
zMains Input: AC100~240V, 50/60Hz
zFuse: 250V 1.5A slow blow(20mm glass)
zScanning Angle: 0~±20º
zLaser Diode Blanking: 1~1000Hz
zSound Control: Internal microphone
zDMX connections: 3pinXLRmale/female
zDMX channels: 8 channels
zLaser Power: 30mW Green CW laser (λ=532nm)
zLaser radiation class: 3B
zLaser Safety Standard: EN60825-1:1994+A1:2002+A2:2002
zWorking Temperature: 10 ~40℃℃
zMain Power: 20W
zSize: 22x21x10cm
zWeight: 2kg
