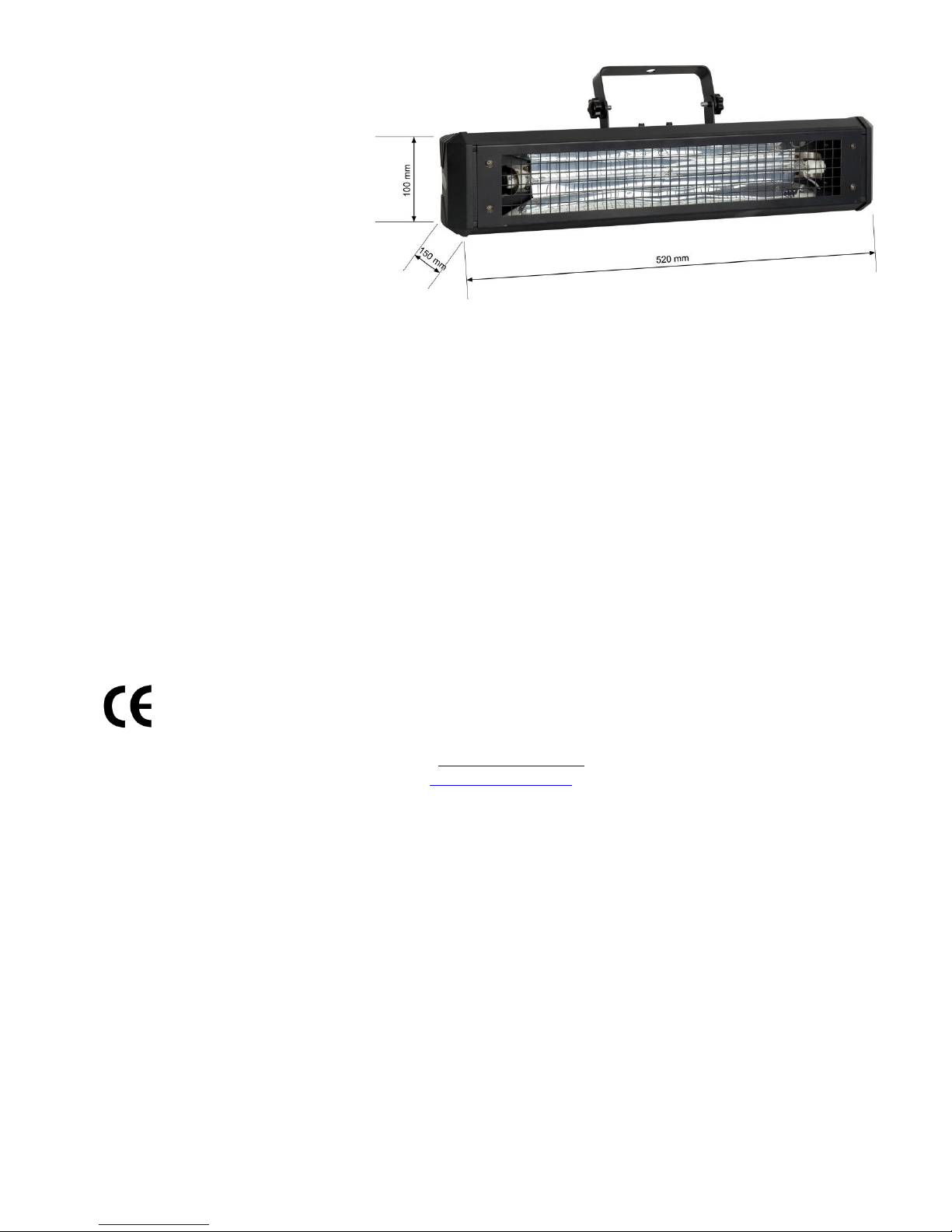

Show Tec Jumbo Strobe MKIII DMX User manual

Jumbo Strobe MKIII DMX
ORDERCODE 40218

Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Jumbo Strobe MKII brings excitement to any venue. Whether you want simple plug-&-play
action or a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
3
4
5
5
6
6
7
8
8
8
8
9
9
11
12
12
12
12
12
12
13
Showtec
Showtec Jumbo Strobe MKII™Product Guide
Warning.................................................................................…...……………..…………………………….………..…
Safety-instructions………………………………………………………………………………………………………..
Operating Determinations.…………………………………………………………………………………………….
Rigging.…………………………………………………………………………………………………………………….
Return Procedure……………………………………………………………………………......................................
Claims…………………………………………………………………………….........................................................
Description...............................................................................…...………………………………………….…………
Features and Overview ………………………………...….……………….………….……….……….…………….
Backside…………………………………………………...…...….……………….…………………...….……………..
Installation...............................................................................…...…………………………………………………..…
Installing the Lamp ........................................................…………………………………………………….………
Set Up and Operation.............................................................................................................................................
One Jumbo Strobe MKII Stand-alone.…...........................……………………………………………………..…
DMX-Control…...................................................………………………………………………..………………………..

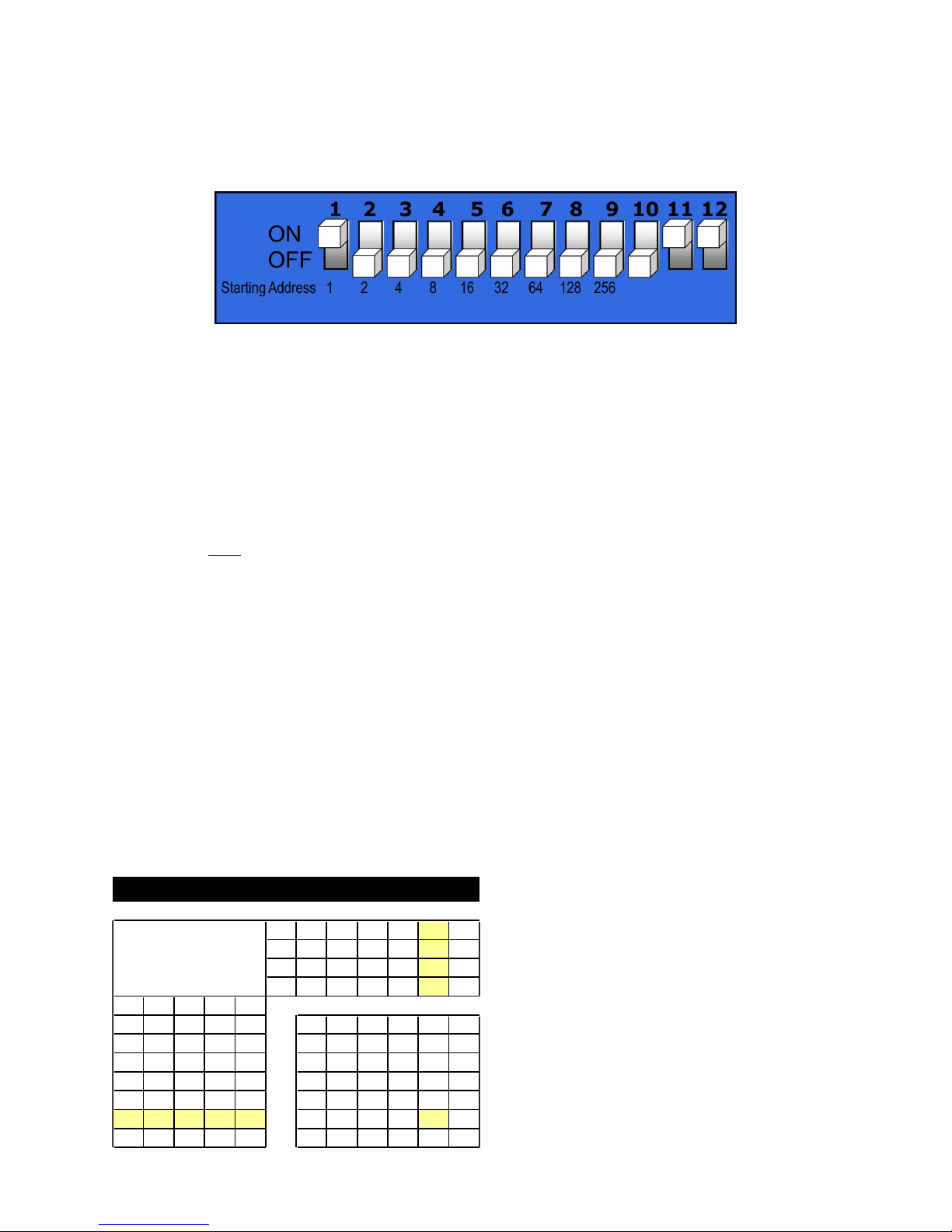

DMX Dip Switch Setting.......................…………………………………………………………………………….….

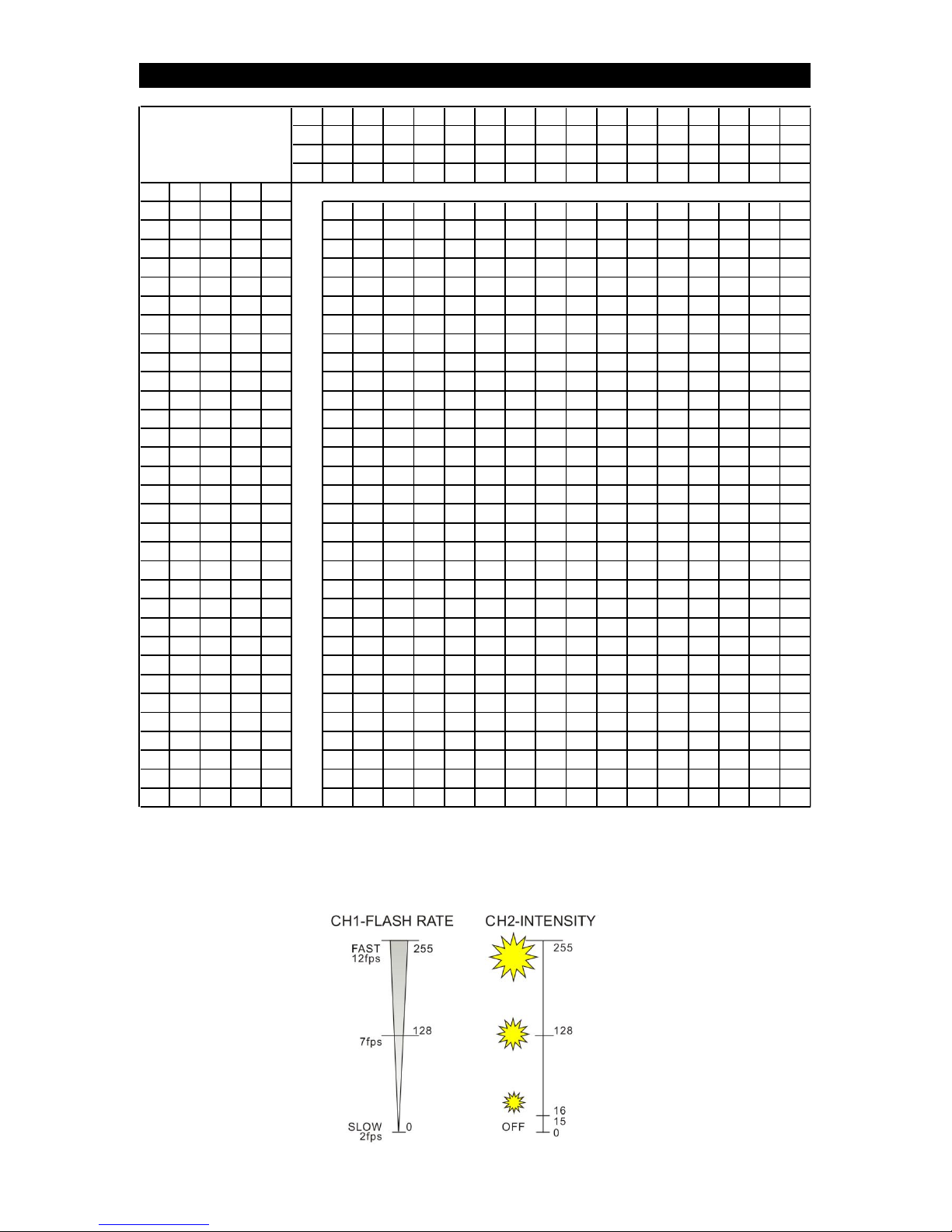

DMX Channel Chart.......................................................................………..………….…….……………..…………..
Maintenance...................................................................................………..………….…….……………………..….
Changing the Lamp........................................................................…………………….………………...……….
Replacing the Fuse........................................................................…………………….…………………………..
Troubleshooting............................................................................………………….………………….……………….
No Light, No Movement - All Products............................................………………….…………………………..
No Response to DMX ....................................................................………………….…………………………..…
Product Specifications.................................................................……………….…….……………………………….

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never use anything to cover the ground contact.
Never run the device without lamp!
Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may
expose and emit a high ultraviolet radiation, which may cause burns.
Never look directly into the light source.
Never leave any cables lying around.
Never modify, bend, mechanically strain, put pressure on, pull or heat up the power cord.
Never strain the cable insert or the female part in the device. There must always be sufficient
cable going to the device. Otherwise, the cable will be damaged, which can cause serious
damage.
Never operate the stroboscope without protective shield! When the shield is cracked, replace it
before using the device again.
Do not insert objects into air vents.
Do not connect this device to a dimmerpack.
Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
Do not shake the device. Avoid brute force when installing or operating the device.
Only use device indoor, avoid contact with water or other liquids.
Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
Only operate the device after having familiarized with its functions.
CAUTION!
Keep this device away from rain and moisture!
Unplug mains lead before opening the housing!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!

3
Avoid flames and do not put close to flammable liquids or gases.
Always replace the lamp, when it is damaged or deformed due to the heat.
Always keep case closed while operating.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used, before cleaning or when
replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the
power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
Make sure that the core diameter of extension cords and power cords is sufficient for the required
power consumption of the device.
If device is dropped or struck, disconnect main power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do
not switch it on immediately. The arising condensation water might damage your device. Leave
the device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit
running unattended.
For replacement use lamps of same type and rating only.
Allow time to cool down, before replacing lamp.
Keep away from direct insulation.
This device is only allowed for an installation via the mounting bracket.
This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
The relative humidity must not exceed 50 % with an ambient temperature of 45° C.
During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 0.8 meter.
The maximum ambient temperature tamust never be exceeded.
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash
etc.
You endanger your own safety and the safety of others!
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(meant especially for epileptics) !

4
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
If the strobe is lowered from the ceiling or high joists, professional trussing systems have to be used.
Use a clamp to mount the strobe, with the mounting-bracket, to the trussing system.
The strobe must never be fixed swinging freely in the room.
The installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
When rigging, derigging or servicing the strobe, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
FASE
N
BLUE
BLACK
SILVER
NUL
YELLOW/GREEN
GREEN
GREEN
EARTH
Make sure that the device is always connected properly to the earth!

5
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the fixture.
Be prepared to provide the model number, serial number and a brief description of the cause for the
return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the
customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
1) Your name
2) Your address
3) Your phone number
4) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
otherwise agreed in writing.
Complaints against us must be made known in writing or by fax within 10 working days after receipt of the
invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement of which the obligation is resulting.

6
Description of the device
Features
The Showtec Jumbo Strobe MKII is a dimmable, DMX-controlled strobe light with a high output.
• 1500W flash
• DMX-control via standard DMX-controller
• 2 DMX-control channels required
• Strobe-effect with adjustable speed (1 - 12 flashes/sec.)
• Lamp: Strobe Bulb GE XOP-1500W (80603)
• Fuse 15A / 250V
Overview

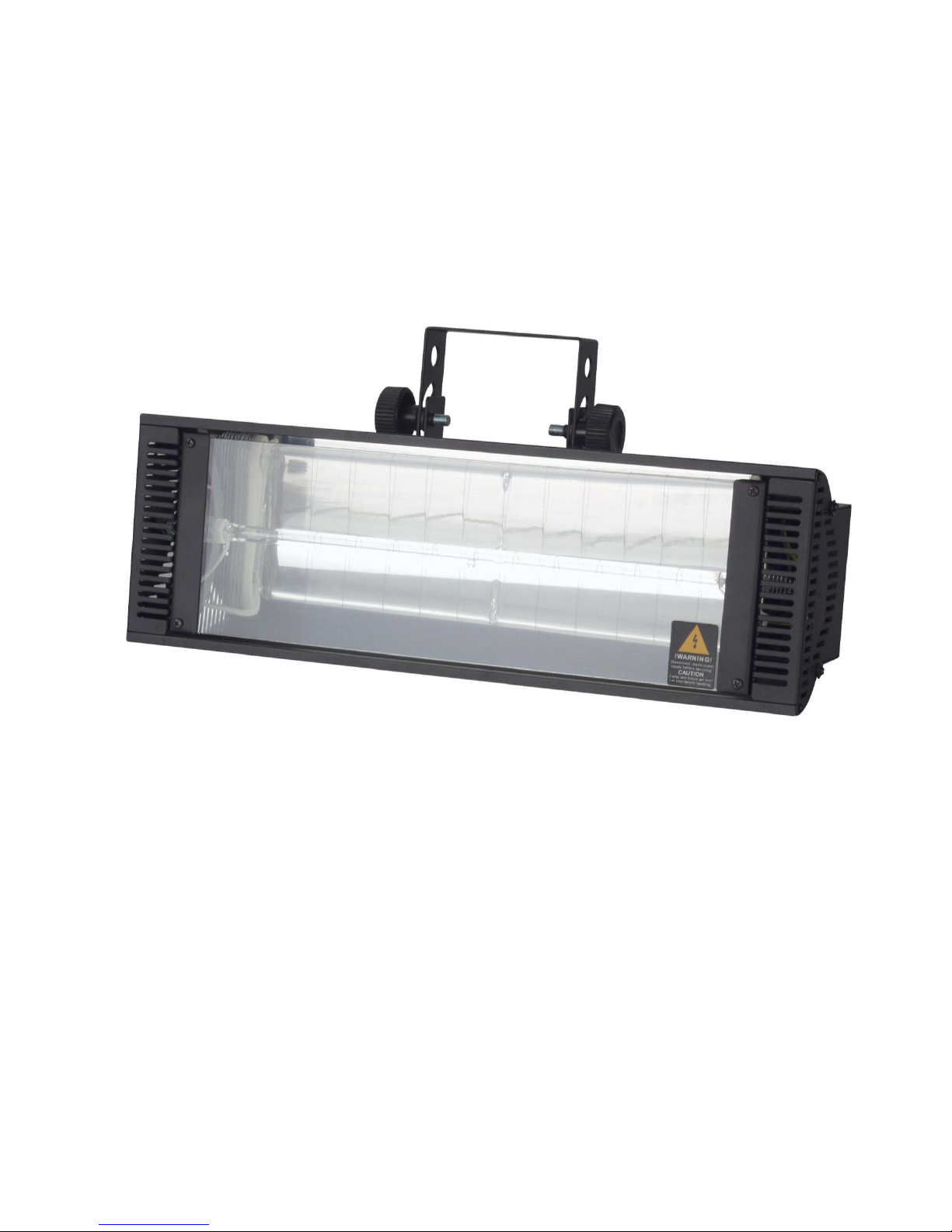

Fig. 1

7
Backside
1 2
Fig. 2
5
3 6
4 7
Fig. 3
1) Manual Control Intensity
2) Manual Control Flash rate speed
3) DMX signal connector (OUT)
4) DMX signal connector (IN)
5) Dip Switches
6) Fuse 15A / 250V
7) Power cable

8
Installation
Installing the Lamp
The Showtec Jumbo Strobe MKII uses the GE XOP-1500W (ordercode 80603) strobe bulb as manufactured
by all popular manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
DANGEROUS: Leave the device disconnected for 15 min before opening. Otherwise you could be
seriously injured due to a power shock !!!
Procedure :
1. Disconnect from main power supply, and leave for 15 minutes. Loosen the 4 screws of the glass cover.
2. Remove the glass cover. With the left hand gently pull the lamp out the spring, while pushing the spring
back with the right hand.
3. Leave the lamp laying in the mirror. Then put the glass cover back and fasten the 4 screws again.
4. Turn the strobe over and loosen the 6 screws (4) on the back. Remove the back cover.
5. Carefully loosen the 3 screws (5) Turn the strobe over again and remove the glass cover, then remove
the lamp. Read lamp instructions. Do not touch the lamp bulb glass. Oil on hands shortens the lamp
life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free towel and rubbing alcohol.)
Hold the lamp with one hand and Insert the lamp into the spring. Put the glass cover back and fasten
the 4 screws.
6. Turn the strobe over and insert the 3 cables, then fasten the 3 screws. Put the cover back and fasten
the remaining 6 the screws snugly.
1 2 3 4 & 5
Fig. 4
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
One Jumbo Strobe MKII Stand-alone
1. Fasten the Jumbo Strobe MKII onto firm trussing. Leave at least 1 meter on all sides for air circulation.
2. Before connecting the strobe with the mains, the Intensity-control and the Flash Rate-control have to
be set to a minimum position . For manual control, all DIP-switches have to be set to OFF. Plug the cord
into a proper electric power supply socket. The strobe will now start.

9
DMX Control
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp bolted onto the
Showtec Jumbo Strobe bracket). Leave at least 0,5 meter on all sides for air circulation.
2. Link the units as shown in Figure 5. Plug a DMX signal cable from the controller to the first unit's DMX "in"
socket. Then plug a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"
socket. Repeat this process to link following units.
3. Set DMX dip switches for DMX Mode as follows.
Units Dip Switch ON
Unit 1 #1, #12
Unit 2 #1, #2, #12
Unit 3 #1 ,#3, #12
Unit 4 #1 , #2, #3, #12
For more units, continue to use standard DMX dip switch settings. See page 10 for DIP Switch setting.
4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other
end of the mains power cord into proper electric power supply sockets. Do so for all units and the
controller.
Fig. 5
Note : Link all DMX cables and set dip switches before connecting electric power
5. Do not supply power before the whole system is set up and connected properly.
Design your show according to your DMX controller functions.
DMX Dip Switches Setting
DMX Dipswitch #1 - #9 control DMX Address
DMX Dipswitch #10 has no function
DMX Dipswitch #11 ON=50Hz, OFF=60Hz
DMX Dipswitch #12 ON=DMX Mode, OFF=Auto

10
DMX Dip Switch Value Guide
DMX products must have their own "address" to receive DMX signals.
Addresses on the Showtec Jumbo Strobe are set by flipping the appropriate DMX dip switches.
Note: You only have to use Dipswitch #1 - #9 to set the DMX Address.
Dipswitch #12 must be set to ON when working in DMX Mode.
You need to know that DMX address settings are the sum of the dip switch values.
A standard DMX address for a Showtec Jumbo Strobe, which has 2 channels (Flash rate CH1 and intensity
CH2) is as follow:
Example
Jumbo Strobe Address Value DMX Dip Switches "ON"
Unit 5 9 #1 , #4, #12
Switch Value
#1 1
#4 8 +
Total sum 9
DMX Mode: Dipswitch #12 must be set to ON.
Explanation: Since each unit has 2 channels, each address advances 2 values (See Address Value
above).
Once address values are determined, add DMX dip switch values to obtain the appropriate address
(DMX Dip Switches "ON") for each unit. Flip appropriate DMX dip switches on each unit. All strobes with
the same starting address work synchronically.
Example:
1. If you want to give a Jumbo Strobe DMX address 133, you first have to find the number 133 in the DMX
Chart.
2. Then look at the left side (Dip Switches #1-#5) horizontally from 133.
In the Table you’ll see #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF.
3. Finally look at the upper side of the table (Dip Switches #6-#9) vertically from 133.
In the Table you’ll see #6=OFF, #7=OFF, #8=ON, #9=OFF.
DMX Address Quick Reference Chart
#9 0 0 0 0 0 0
#8 0 0 0 0 1 1
#7 0 0 1 1 0 0
#6 0 1 0 1 0 1
#1 #2 #3 #4 #5
0 0 0 0 0 32 64 96 128 160
1 0 0 0 0 1 33 65 97 129 161
0 1 0 0 0 2 34 66 98 130 162
1 1 0 0 0 3 35 67 99 131 163
0 0 1 0 0 4 36 68 100 132 164
1 0 1 0 0 5 37 69 101 133 165
0 1 1 0 0 6 38 70 102 134 166
DMX DIPSWITCH SET
0=OFF
1=ON

11
#9 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
#8 0 0 0 0 1 1 1 1 0 0 0 0 1 1 1 1
#7 0 0 1 1 0 0 1 1 0 0 1 1 0 0 1 1
#6 0 1 0 1 0 1 0 1 0 1 0 1 0 1 0 1
#1 #2 #3 #4 #5
00000 32 64 96 128 160 192 224 256 288 320 352 384 416 448 480
1 0 0 0 0 1 33 65 97 129 161 193 225 257 289 321 353 385 417 449 481
0 1 0 0 0 2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482
1 1 0 0 0 3 35 67 99 131 163 195 227 259 291 323 355 387 419 451 483
0 0 1 0 0 4 36 68 100 132 164 196 228 260 292 324 356 388 420 452 484
1 0 1 0 0 5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485
0 1 1 0 0 6 38 70 102 134 166 198 230 262 294 326 358 390 422 454 486
1 1 1 0 0 7 39 71 103 135 167 199 231 263 295 327 359 391 423 455 487
0 0 0 1 0 8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488
1 0 0 1 0 9 41 73 105 137 169 201 233 265 297 329 361 393 425 457 489
01010 10 42 74 106 138 170 202 234 266 298 330 362 394 426 458 490
11010 11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491
00110 12 44 76 108 140 172 204 236 268 300 332 364 396 428 460 492
10110 13 45 77 109 141 173 205 237 269 301 333 365 397 429 461 493
01110 14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494
11110 15 47 79 111 143 175 207 239 271 303 335 367 399 431 463 495
00001 16 48 80 112 144 176 208 240 272 304 336 368 400 432 464 496
10001 17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497
01001 18 50 82 114 146 178 210 242 274 306 338 370 402 434 466 498
11001 19 51 83 115 147 179 211 243 275 307 339 371 403 435 467 499
00101 20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500
10101 21 53 85 117 149 181 213 245 277 309 341 373 405 437 469 501
01101 22 54 86 118 150 182 214 246 278 310 342 374 406 438 470 502
11101 23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503
00011 24 56 88 120 152 184 216 248 280 312 344 376 408 440 472 504
10011 25 57 89 121 153 185 217 249 281 313 345 377 409 441 473 505
01011 26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506
11011 27 59 91 123 155 187 219 251 283 315 347 379 411 443 475 507
00111 28 60 92 124 156 188 220 252 284 316 348 380 412 444 476 508
10111 29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509
01111 30 62 94 126 158 190 222 254 286 318 350 382 414 446 478 510
11111 31 63 95 127 159 191 223 255 287 319 351 383 415 447 479 511
Dip Switch Position DMX Address
1=ON
DMX Address Quick Reference Chart
Dip Switch Position
DMX DIPSWITCH SET
0=OFF
DMX CHANNEL CHART

12
Maintenance
The Showtec Jumbo Strobe MKII requires almost no maintenance. However, you should keep the unit
clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power
supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe glass clean with glass
cleaner and a soft cloth. Do not use alcohol or solvents.
The glass will require regular cleaning, as smoke-fluid tends to build up residues, reducing the light-output
quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
The following points have to be considered during the inspection:
1. All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
2. There may not be any deformations on housings, fixations and installation spots.
3. The electric power supply cables must not show any damages or material fatigue.
Changing the Lamp
1. Disconnect mains power supply. Loosen the 4 screws on of the glass cover.
2. Follow directions for installing a new lamp, page 8.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below to do
so.
1. Unplug the unit from electric power source.
2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time
gently push a bit (Turn and Push). The fuse will come out.
3. Remove the used fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover. Be sure to
use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
No Light
This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps
below in sequence until a solution is found. Once the unit operates properly, do not carry out following
steps.
If the light effect does not operate properly, refer servicing to a technician.
Response: Suspect three potential problem areas: the power supply, the lamp, the fuse.
1. Power supply. Check that the unit is plugged into an appropriate power supply.
2. The lamp. Replace the old lamp with a new one with the same specifications. See page 8 for
replacing lamps.
3. The fuse. See page 12 for replacing the fuse.
No Response to DMX
Response: Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card
malfunction.
1. Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power.
Try your DMX control again.
2. Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products ? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.

13
Product Specification
Model: Showtec Jumbo Strobe MKII
Voltage: 240V-50Hz (CE)
Power: 1500W
Fuse: 15A / 250V
Dimensions: 520x150x100mm (LxWxH)
Weight: 2,2 kg
Operation and Programming
Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
DMX Channels 2
Signal input 3-pin XLR male
Signal output 3-pin XLR female
Manual controllable intensity
Manual controllable flash rate
Strobe-effect with variable speed (1 flash -- 12 flashes/sec.)
DMX-control via standard DMX-controller
Lamp
Strobe Bulb GE XOP-1500W (100 hr; 37500 Lumen) ordercode 80603
Minimum distance:
Minimum distance from flammable surfaces: 0.5m
Minimum distance to lighted object: 0.8m
*: Versions for other lamps may be produced. Please check the specification label on your product.
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [e-mail]
