Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec Galaxy 1200 brings excitement to any venue. Whether you want simple plug-&-play action or
a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [email protected]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
2
3
5
5
6
6
7
7
7
9
9
12
16
16
16
18
18
18
18
19
19
19
19
20
20
20
20
22
Showtec
Showtec Galaxy 1200™Product Guide
Warning..…...................................................................................…………………………………………..
Safety-instructions………………………………………………………………………………………….….
Operating Determinations…………………………………………………………………………………….
Rigging………………………………………………………………………………………………………….
Description..…..............................................................................……….…………………………………
Features and Overview ………………………………...….……………….………….………………….….
Installation...............................................................................…...…………………………………….…..
Installing the Lamp ........................................................………………………………………..…………
Set Up and Operation.....................................................................……..……………………………….…
One Galaxy ............................................................................……………………………………………
Multiple Galaxys..............................................................................……………………………………..
DMX-Protocol…...................................................…………………………………………………………….
Program Mode 13F – 13 Channels............................................…………………………………………
Program Mode 19F – 19 Channels............................................…………………………………………
Control Panel….............……....................................……………………………………………………….
Control Mode........................................………………………………………………………………………
DMX addressing...................................………………………………………………………………………
Stand – alone mode...................................………………………………………………………………….
Functions control panel...................................………………………………………………………………
Master/Slave mode...................................…………………………………………………………………..
Channel settings………………………………………………………………………………………………..
Rotating Gobowheel...............................………………………………………………..……………………
Maintenance...................................................................................………..………….…….………………
Changing the Lamp........................................................................…………………….…………………
Replacing the Fuse........................................................................…………………….…………………
Replacing a Gobo….......................................................................…………………….…………………
Troubleshooting............................................................................………………….………………….…..
No Light, No Movement - All Products............................................………………….…………………..
No Response to DMX ....................................................................………………….…………………..
Product Specifications.................................................................……………….…….…………………..

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should
there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
•Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
•Never remove warning or informative labels from the unit.
•Never use anything to cover the ground contact.
•Never run the device without lamp!
•Never ignite the lamp if the objective-lens or any housing-cover is open, as discharge lamps may
expose and emit a high ultraviolet radiation, which may cause burns.
•Never lift the fixture by holding it at the projector-head, as the mechanics may be damaged. Always
hold the fixture at the transport handles.
•Never look directly into the light source.
•Never leave any cables lying around.
•Never unscrew the screws of the rotating gobo, as the ball bearing will otherwise be opened.
•Do not insert objects into air vents.
•Do not connect this device to a dimmerpack.
•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.
•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
•Do not shake the device. Avoid brute force when installing or operating the device.
•Only use device indoor, avoid contact with water or other liquids.
CAUTION!
Keep this device away from rain and moisture!
Un
p
lu
g
mains lead before o
p
enin
g
the housin
g
!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dan
g
erous electric shock when touchin
g
the wires!

3
•Only operate the fixture after having checked that the housing is firmly closed and all screws are
tightly fastened.
•Only operate the device after having familiarized with its functions.
•Avoid flames and do not put close to flammable liquids or gases.
•Always replace the lamp, when it is damaged or deformed due to the heat.
•Always keep case closed while operating.
•Always allow free air space of at least 50 cm around the unit for ventilation.
•Always disconnect power from the mains, when device is not used, before cleaning or when
replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the
power-cord.
•Make sure that the device is not exposed to extreme heat, moisture or dust.
•Make sure that the available voltage is not higher than stated on the rear panel.
•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord
from time to time.
•If the lens is obviously damaged, it has to be replaced. So that its functions are not impaired, due to
cracks or deep scratches.
•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
•For adult use only. Movinghead must be installed out of the reach of children. Never leave the unit
running unattended.
•For replacement use lamps and fuses of same type and rating only.
•Allow time to cool down, before replacing lamp.
•This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
•During the initial start-up some smoke or smell may arise. This is a normal process and does not
necessarily mean that the device is defective.
•Repairs, servicing and electric connection must be carried out by a qualified technician.
•WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
This device is not designed for permanent operation. Consistent operation breaks will ensure that the device
will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 1.3 meter.
The maximum ambient temperature tamust never be exceeded.
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
CAUTION ! EYEDAMAGES !.
Avoid looking directly into the light source.
(
meant es
p
eciall
y
for e
p
ile
p
tics
)
!

4
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be
used.
•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.
•The projector must never be fixed swinging freely in the room.
•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety-cable.
•When rigging, derigging or servicing the projector, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
Cable Pin International
BROWN FASE L
BLUE NUL N
YELLOW/GREEN EARTH
Make sure that the device is always connected properly to the earth!

5
Description of the device
Features
The Showtec Galaxy 1200 is a center-effect with high output and great effects.
• 1 Gobo-wheel with 1 glass and 6 metal interchangeable rotating gobos plus open
• DMX-control via standard DMX-controller
• 13/19 DMX-control channels required
• Strobe-effect with adjustable speed (1 - 10 flashes/sec.)
• Sound-controlled via built-in microphone
• Pan 0º -- 180º
• Tilt 0º -- 90º
• Lamp HMI 1200
• Fuse T15A / 250V

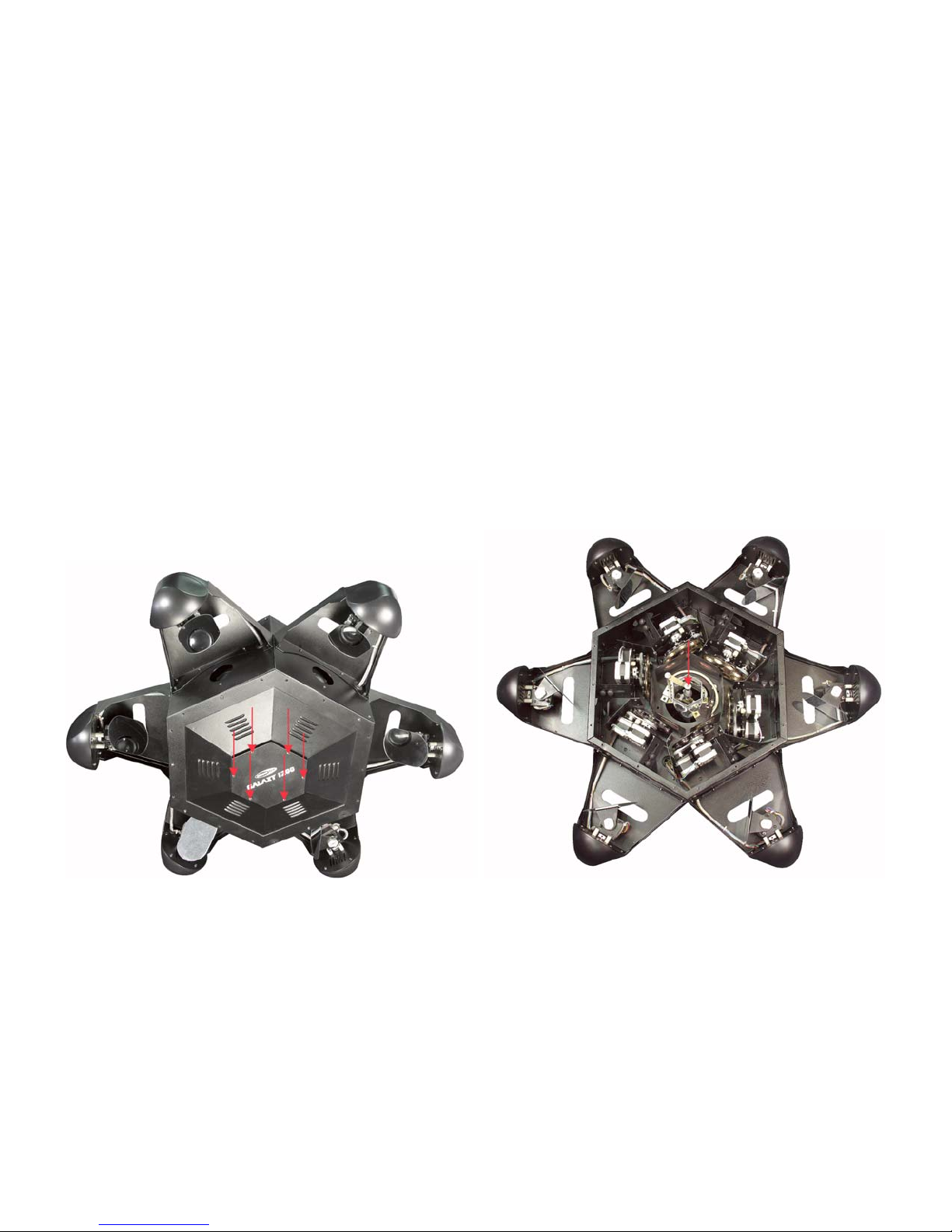

Overview
Fig. 1
1. XLR Input
2. Microphone
3. XLR Output
4. Blackout
1 2
3 4
Fig. 2

6
Installation
Installing the Lamp
The Showtec Galaxy 1200 uses the HMI 1200 (ordercode 80902O, 80902P) reflectorbulb as manufactured
by all popular manufacturers. Use only the appropriate lamp for your unit.
Note that, product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure :
1. Loosen the 6 screws on the metal housing.
2. Gently remove the small metal housing.
3. Read lamp instructions. Do not touch the lamp bulb glass. (See Figure 3.)
Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free
towel and rubbing alcohol.).
4. Insert the lamp into the lamp socket.
5. Put the metal housing back and fasten the screws snugly
1 2
Fig. 3

7
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
One Galaxy
1. Fasten the moving head onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the
Galaxy ). Leave at least 1 meter on all sides for air circulation.
2. Plug one end of the electric mains power cord into the IEC socket on the unit.
Then plug the other end of the cord into a proper electric power supply socket.
3. Turn on the music. If N1N-N (Audio) is set, then the fixture will react to the beat of the music.
Multiple Galaxy’s
1. Fasten the effect light onto firm trussing (Use a 30-kg rated or stronger C-clamp fastened onto the
Galaxy ). Leave at least 1 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Galaxy’s and other devices.
The pins:
1. Earth
2. Signal -
3. Signal +

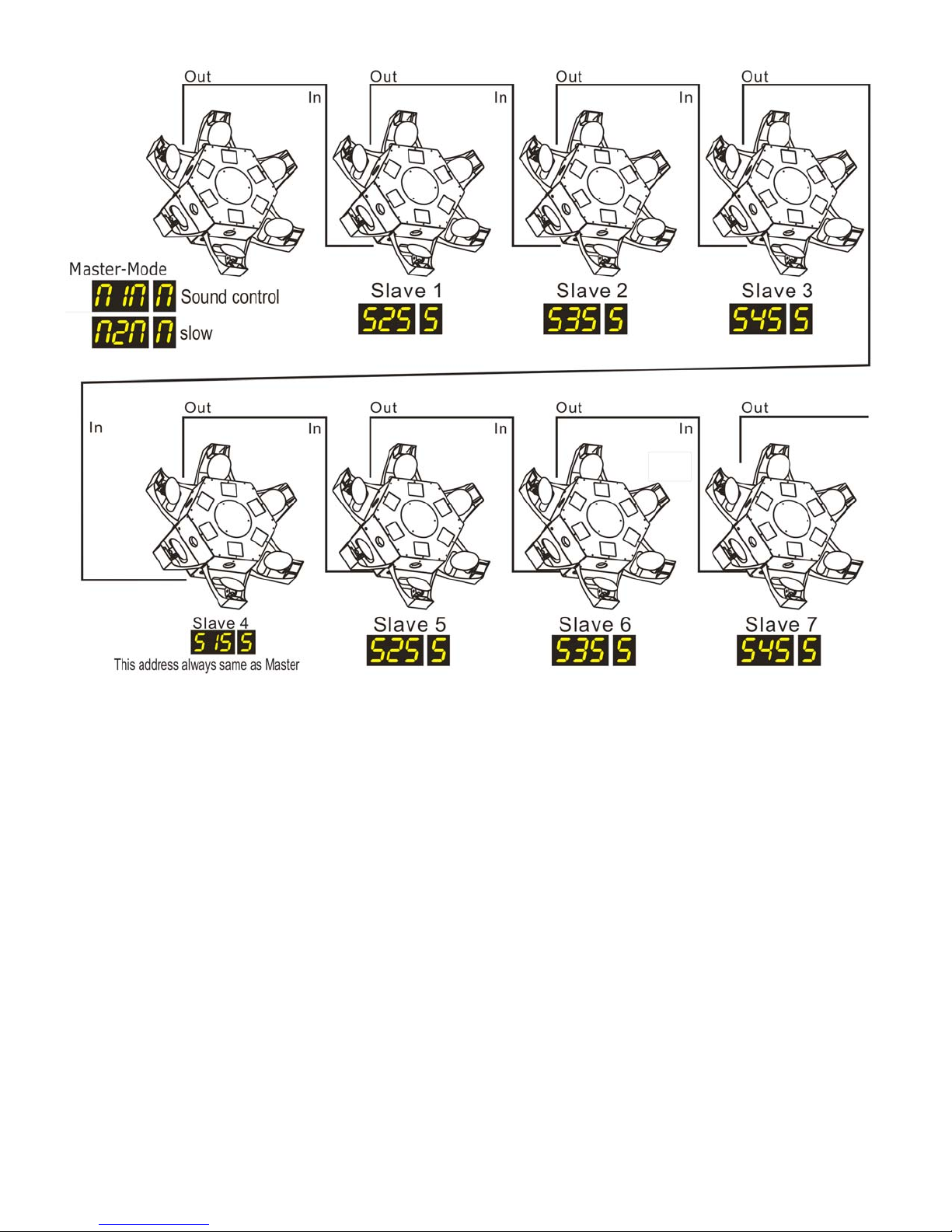

3. Link the units as shown in (figure 4), Connect a DMX signal cable from the first unit's DMX "out" socket to
the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other
end of the mains power cord into proper electric power supply sockets, starting with the first unit. Do not
supply power before the whole system is set up and connected properly.
Multiple Galaxy’s Set Up
DMX-Set up
Master/Slave Set up
Fig. 4
Note : Link all cables before connecting electric power

8
Fig. 5

9
DMX Protocol
Program Mode 13F – 13 Channels
Channel 1 - Horizontal movement Mirror 1 and 4 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 2 - Vertical movement Mirror 1 and 4 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 3 - Horizontal movement Mirror 2 and 5 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 4 - Vertical movement Mirror 2 and 5 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 5 - Horizontal movement Mirror 3 and 6 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 6 - Vertical movement Mirror 3 and 6 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 7 – Pan / Tilt Speed
0Maximum speed
1-31 Speed 1
32-63 Speed 2
64-95 Speed 3
96-127 Speed 4
128-159 Speed 5
160-191 Speed 6
192-223 Speed 7
224-255 Speed 8
Channel 8 – Shutter, strobe, reset
0-3 Shutter closed
4-109 Dimmer
110-133 Shutter open
134-244 Strobe effect from slow to fast
245-249 Shutter closed
250-255 Shutter open

10

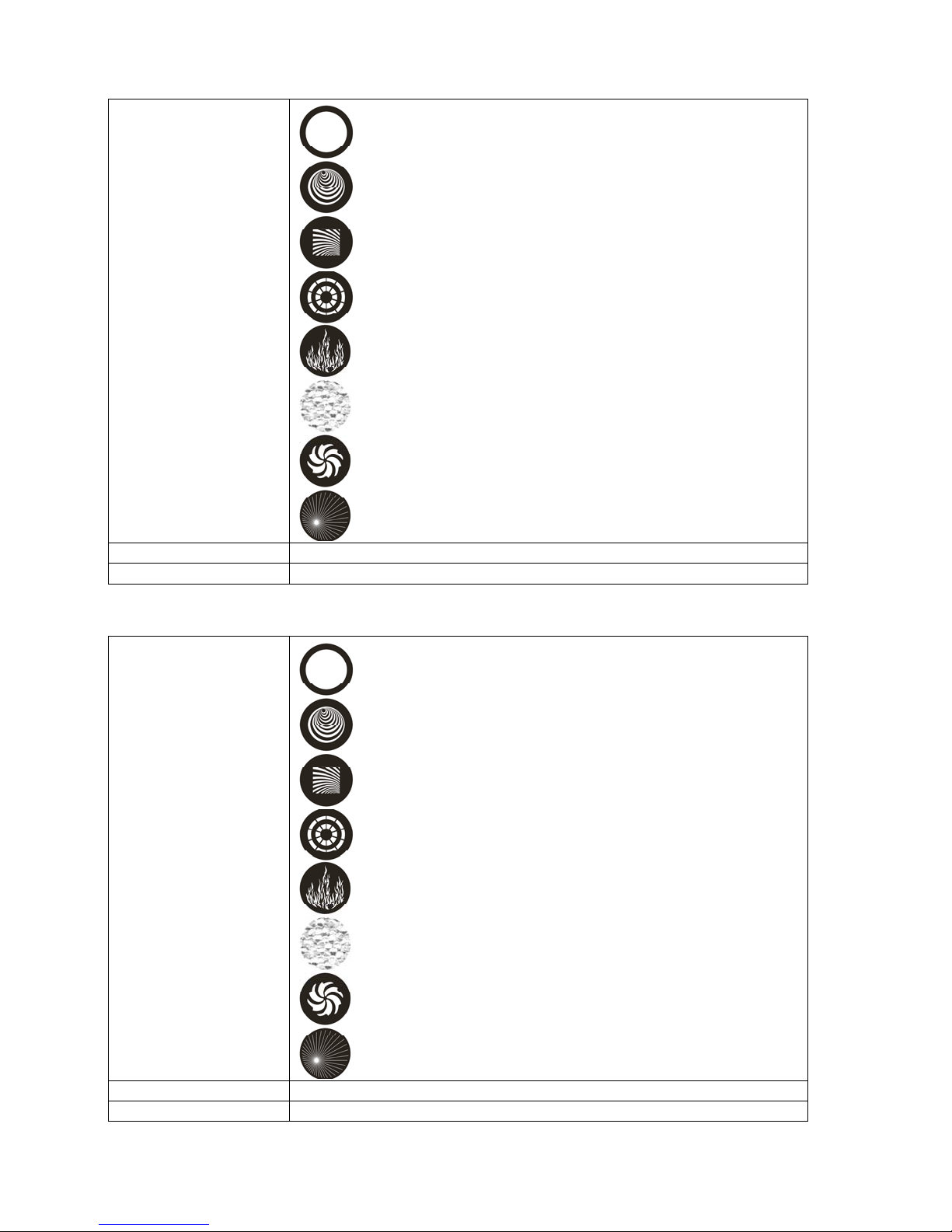

Channel 9 – Rotating Gobo-wheel (Mirror 1,4)
0-15
16-31 (Orange)
32-47 (Cherry)
48-63 (Green)
64-79
80-95 (Glass Gobo)
96-111 (Yellow)
112-127 (Blue)
128-191 Positive rainbow effect with increasing speed
192-255 Negative rainbow effect with increasing speed
Channel 10 – Rotating Gobo-wheel (Mirror 2,5)
0-15
16-31 (Orange)
32-47 (Cherry)
48-63 (Green)
64-79
80-95 (Glass Gobo)
96-111 (Yellow)
112-127 (Blue)
128-191 Positive rainbow effect with increasing speed
192-255 Negative rainbow effect with increasing speed

11
Channel 11 – Rotating Gobo-wheel (Mirror 3,6)
0-15
16-31 (Orange)
32-47 (Cherry)
48-63 (Green)
64-79
80-95 (Glass Gobo)
96-111 (Yellow)
112-127 (Blue)
128-191 Positive rainbow effect with increasing speed
192-255 Negative rainbow effect with increasing speed
Channel 12 – Gobo rotation
0-16 No Rotation
17-135 Positive Gobo rotation with increasing speed
136 No Rotation
137-255 Negative Gobo rotation with increasing speed
Channel 13 – Switching the Lamp, Rest, Internal Programs
0DMX (PAN/TILT movement, channel 1-12 or 1-6 is active)
1-7 Movable macro 1
8-15 Movable macro 2
16-23 Movable macro 3
24-31 Movable macro 4
32-39 Movable macro 5
40-47 Movable macro 6
48-55 Movable macro 7
56-63 Movable macro 8
64-71 Movable macro 9
72-79 Movable macro 10
80-87 Movable macro 11
88-95 Movable macro 12
96-103 Movable macro 13
104-111 Movable macro 14
112-119 Movable macro 15
120-127 Movable macro 16
128-160 Sound-controlled movable macros

12
161-193 Lamp on (after 5 second)
194-226 Lamp off (after 5 second)
227-254 Reset (after 5 second)
255 DMX (PAN/TILT movement, Channel 1-12 is active)
Program Mode 19F – 19 Channels
Channel 1 - Horizontal movement Mirror 1 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 2 - Vertical movement Mirror 1 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 3 - Horizontal movement Mirror 2 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 4 - Vertical movement Mirror 2 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 5 - Horizontal movement Mirror 3 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 6 - Vertical movement Mirror 3 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 7 - Horizontal movement Mirror 4 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 8 - Vertical movement Mirror 4 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 9 - Horizontal movement Mirror 5 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.

13
Channel 10 - Vertical movement Mirror 5 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 11 - Horizontal movement Mirror 6 (Pan)
Push the slider up, in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 180°and stopped at any position you wish.
Channel 12 - Vertical movement Mirror 6 (Tilt)
Push the slider, up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255, 128-center).
The mirror can be turned by 90°and stopped at any position you wish.
Channel 13 – Pan / Tilt Speed
0Maximum speed
1-31 Speed 1
32-63 Speed 2
64-95 Speed 3
96-127 Speed 4
128-159 Speed 5
160-191 Speed 6
192-223 Speed 7
224-255 Speed 8
Channel 14 – Shutter, strobe, reset
0-3 Shutter closed
4-109 Dimmer
110-133 Shutter open
134-244 Strobe effect from slow to fast
245-249 Shutter closed
250-255 Shutter open

14
Channel 15 – Rotating Gobo-wheel (Mirror 1,4)
0-15
16-31 (Orange)
32-47 (Cherry)
48-63 (Green)
64-79
80-95 (Glass Gobo)
96-111 (Yellow)
112-127 (Blue)
128-191 Positive rainbow effect with increasing speed
192-255 Negative rainbow effect with increasing speed
Channel 16 – Rotating Gobo-wheel (Mirror 2,5)
0-15
16-31 (Orange)
32-47 (Cherry)
48-63 (Green)
64-79
80-95 (Glass Gobo)
96-111 (Yellow)
112-127 (Blue)
128-191 Positive rainbow effect with increasing speed
192-255 Negative rainbow effect with increasing speed

15
Channel 17 – Rotating Gobo-wheel (Mirror 3,6)
0-15
16-31 (Orange)
32-47 (Cherry)
48-63 (Green)
64-79
80-95 (Glass Gobo)
96-111 (Yellow)
112-127 (Blue)
128-191 Positive rainbow effect with increasing speed
192-255 Negative rainbow effect with increasing speed
Channel 18 – Gobo rotation
0-16 No Rotation
17-135 Positive Gobo rotation with increasing speed
136 No Rotation
137-255 Negative Gobo rotation with increasing speed
Channel 19 – Switching the Lamp, Rest, Internal Programs
0DMX (PAN/TILT movement, channel 1-12 or 1-6 is active)
1-7 Movable macro 1
8-15 Movable macro 2
16-23 Movable macro 3
24-31 Movable macro 4
32-39 Movable macro 5
40-47 Movable macro 6
48-55 Movable macro 7
56-63 Movable macro 8
64-71 Movable macro 9
72-79 Movable macro 10
80-87 Movable macro 11
88-95 Movable macro 12
96-103 Movable macro 13
104-111 Movable macro 14
112-119 Movable macro 15
120-127 Movable macro 16
128-160 Sound-controlled movable macros

16
161-193 Lamp on (after 5 second)
194-226 Lamp off (after 5 second)
227-254 Reset (after 5 second)
255 DMX (PAN/TILT movement, Channel 1-12 is active)
The Galaxy 1200 can be operated with a controller in control mode or without the controller in stand-alone
mode.
Control Panel
When the indicator light is on, means the Galaxy is working
Fig. 6
A. Up Button
B. Down Button
C. [MODE] Button
Control Mode
The fixtures are individually addressed on a data-link and connected to the controller.
The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it,
the controller will display the saved DMX address the next time.)
DMX Addressing
The control panel on the front side of the base allows you to assign the DMX fixture address, which is the
first channel from which the Galaxy will respond to the controller.
Please note when you use the controller, the unit has 19 channels.
When using multiple Galaxys, make sure you set the DMX addresses right.
Therefore, the DMX address of the first Galaxy should be 1(001); the DMX address of the second Galaxy
should be 1+19=20 (020); the DMX address of the third Galaxy should be 20+19=39 (039), etc.
Please, be sure that you don’t have any overlapping channels in order to control each Galaxy correctly.
If two or more Galaxys are addressed similarly, they will work similarly.
For address settings, please refer to the instructions under ”Addressing’ (menu )
Controlling:
After having addressed all Galaxy fixtures, you may now start operating these via your lighting controller.
Note: After switching on, the Galaxy will automatically detect whether DMX 512 data is received or not. If
there is no data received at the DMX-input, the “LED “ on the control panel will not flash.
The problem may be:
- The XLR cable from the controller is not connected with the input of the Galaxy.
- The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It’s necessary to insert a XLR termination plug (with 120 Ohm) in the last fixture in order to ensure
proper transmission on the DMX data link.

17
Mode Button Up /Down Button
DMX Mode:
Light 1
Dmx Mode:
DMX Mode:
Light 512
Master Mode
Sound-control
Master Mode
Master Mode: Slow
Master Mode
Standby
Slave-Mode
Slave 1
Slave-Mode
Slave 2
Slave Mode
Slave-Mode
Slave 3
Slave-Mode
Slave 4
Program Mode
13 Channels
Program Mode
19 Channels
Fig. 7
Remotely controllable functions
Rotating gobo-wheel
This rotating gobo-wheel has 6 metal gobos, 1 glass gobos and open.
Shutter/Dimmer/Strobe
The dimming (0-100%) is provided by a simple mechanical shutter unit. This unit may also be used for
strobe effect (1-10 flashes per second).

18
Stand-alone Mode
The fixtures on a data-link are not connected to the controller, but can execute pre-set programs, which can
be different for every fixture.
To set the program to be played, see the page 8. Stand-alone operation” can be applied to a single fixture
(the fixture may be set to the master/slave mode or controller mode) or to multiple fixture operating
synchronously.
For synchronous operation of multiple fixtures the fixtures must all be connected on a data-link and one of
them is set as a master (master mode) and the rest as slaves (slave mode). The DMX address of all the
slaves are assigned to and on that particular slave address only one fixture can be connected. To the
fixture as the master or slave, see “Addressing” (menu ).
If the master fixture resets or runs a test (program), all slaves will execute these acts too.
You can’t play or edit any program on a slave, if the master is switched on and connected to the
master/slave chain.
Note: Disconnect the fixtures from the DMX controller before master/slave operating, otherwise data
collisions can occur and the fixtures will not work properly!
It’s necessary to insert the XLR termination plug (with 120 Ohm ) into the input of the master fixture and into
the output of the last slave fixture in the data-link, in order to ensure proper transmission on the data link.
From the master’s control panel it is possible to control any slave in a master/slave chain.
19 Channels
13 Channels
