Show Tec LED Flamelight User manual

LED Flamelight
ORDERCODE 43030

Congratulations!
You have bought a great, innovative product from Showtec.
The Showtec LED Flamelight brings excitement to any venue. Whether you want simple plug-&-play action or
a sophisticated DMX show, this product provides the effect you need.
You can rely on Showtec, for more excellent lighting products.
We design and manufacture professional light equipment for the entertainment industry.
New products are being launched regularly. We work hard to keep you, our customer, satisfied.
For more information: [e-mail]
You can get some of the best quality, best priced products on the market from Showtec.
So next time, turn to Showtec for more great lighting equipment.
Always get the best -- with Showtec !
Thank you!

1
2
2
3
3
4
4
4
5
5
5
6
6
7
7
7
8
Showtec
Showtec LED Flamelight™Product Guide
Warning..…...................................................................................………………………………………………………..
Safety-instructions…………………………………………………………………………………………………………
Operating Determinations…….………………………………………………………………………………………..
Rigging…………………………….………………………………………………………………………………………..
Description..…................................................................................……….……………………………………………..
Features and Overview …………..……………………...….……………….………….……….……….…………….
Backside……………………………….…………………...…...….……………….…………………...…………………
Installation...............................................................................…...………………………………………….………..….
Set Up and Operation.....................................................................……..………………………………………………
Stand-alone..……..……………………………………………………………………………….……………………..…
DMX Dip Switch Setting……….……..………………………………………………………………………….…….….
DMX Channels…………………..………..………………………………………………………………………………..
Maintenance...................................................................................………..………….…….…………………………..
Changing the Fuse........................................................................…………………….………………………..…...
Troubleshooting............................................................................………………….………………….………………...
Product Specifications.................................................................……………….…….………………………………...

2
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY
BEFORE YOUR INITIAL START-UP!
SAFETY INSTRUCTIONS
Every person involved with the installation, operation and maintenance of this device has to:
-be qualified
-follow the instructions of this manual
Before your initial start-up, please make sure that there is no damage caused by transportation. Should there
be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow
the safety instructions and warning notes written in this manual.
Please consider that damages caused by manual modifications to the device are not subject to warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-
observance of this manual or any unauthorized modification to the device.
Never let the power-cord come into contact with other cables! Handle the power-cord and all
connections with the mains with particular caution!
Never remove warning or informative labels from the unit.
Never leave any cables lying around.
Do not open the device and do not modify the device.
Do not connect this device to a dimmerpack.
Do not shake the device. Avoid brute force when installing or operating the device.
Do not switch the device on and off in short intervals, as this would reduce the system’s life.
Only use device indoor, avoid contact with water or other liquids.
Only operate the device after having familiarized with its functions.
Avoid flames and do not put close to flammable liquids or gases.
Always allow free air space of at least 50 cm around the unit for ventilation.
Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power-cord by the plug. Never pull out the plug by tugging the power-cord.
Make sure that the device is not exposed to extreme heat, moisture or dust.
Make sure that the available voltage is not higher than stated on the rear panel.
Make sure that the power-cord is never crimped or damaged. Check the device and the power-
cord from time to time.
CAUTION!
Keep this device away from rain and moisture!
indoor use only!
CAUTION! Be careful with your operations.
With a dangerous voltage you can suffer
a dangerous electric shock when touching the wires!

3
If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
For adult use only. The device must be installed out of the reach of children. Never leave the unit
running unattended.
For replacement use fuses of same type and rating only.
Repairs, servicing and electric connection must be carried out by a qualified technician.
WARRANTY: Till one year after date of purchase.
OPERATING DETERMINATIONS
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
The LED Flamelight can only be placed on a flat stage floor.
Improper installation can cause serious damage to people and property !

4
Description of the device
Features
The LED Flamelight is a LED system from Showtec.
• 29 pcs 1 Watt LEDs (16 Red, 10 Yellow, 3 Blue)
• Stand-alone mode
• DMX-512
• DMX Channels: 4 channels (Red, Yellow, Blue, Dimmer)
• Signal connector: XLR 3 pole Male/ Female
• Flame length: 1,5m
• IP-rate: Indoor use
• Included: Wired remote, with on/off function
•Fuse: 250V / T500mA
• Power consumption: 120 Watt
NOTE: Knowledge of DMX is required to fully utilize this unit.
Overview
Fig. 1
Backside
Fig. 2
1) Stand-alone LED 6) Remote Control with 10m cable
2) Dipswitches 7) LEDs ON/OFF
3) DMX LED 8) ON/OFF
4) DMX signal connector (IN) 3-pin 9) Fuse 500mA
5) DMX signal connector (OUT) 3-pin 10) Powercable

5
Installation
Remove all packing materials from the LED Flamelight. Check that all foam and plastic padding is removed.
Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.
Set Up and Operation
Before plugging the unit in, always make sure that the power supply matches the product specification
voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.
NOTE: The button on the remote control has to be pressed. Otherwise the LEDs will not light up.
Stand-alone Mode

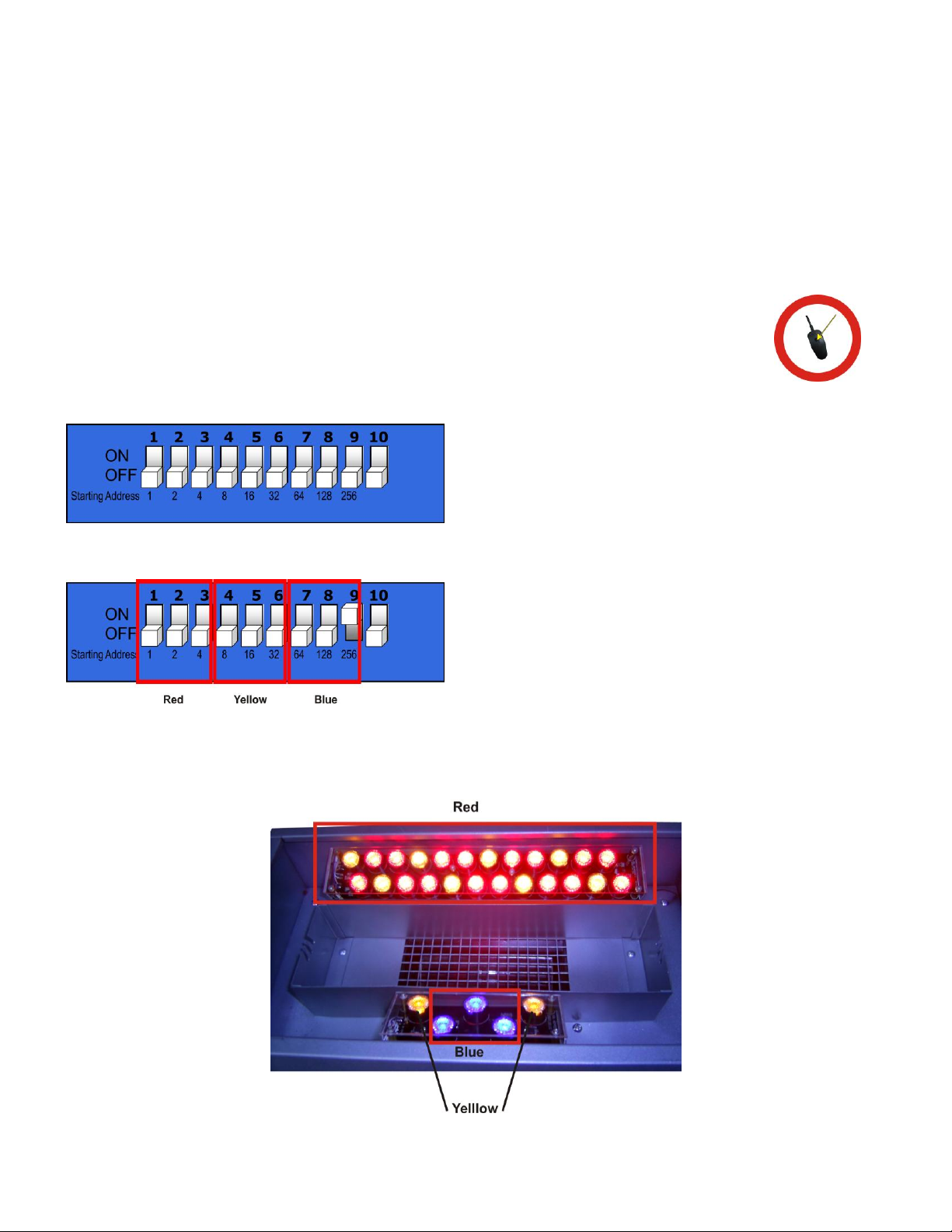

1. Set dip switch 10 to OFF, this unit is in Stand-alone mode.
Use dipswitches #1 - #9 to control the intensity of the LEDs
Dip switch 1, 2, 3 are assigned to control the intensity of Red.
Dip switch 4, 5, 6 are assigned to control intensity of Yellow.
Dip switch 7, 8, 9 are assigned to control intensity of Blue.

6
DMX Dip Switch Setting
Set dip switch 10 to ON, this unit is in DMX Mode. Follow DMX address setting printed on the rear of the strobe
for the desired flash speed and dimmer.
A. In DMX Mode, see the following figure for the desired Channel Setting:

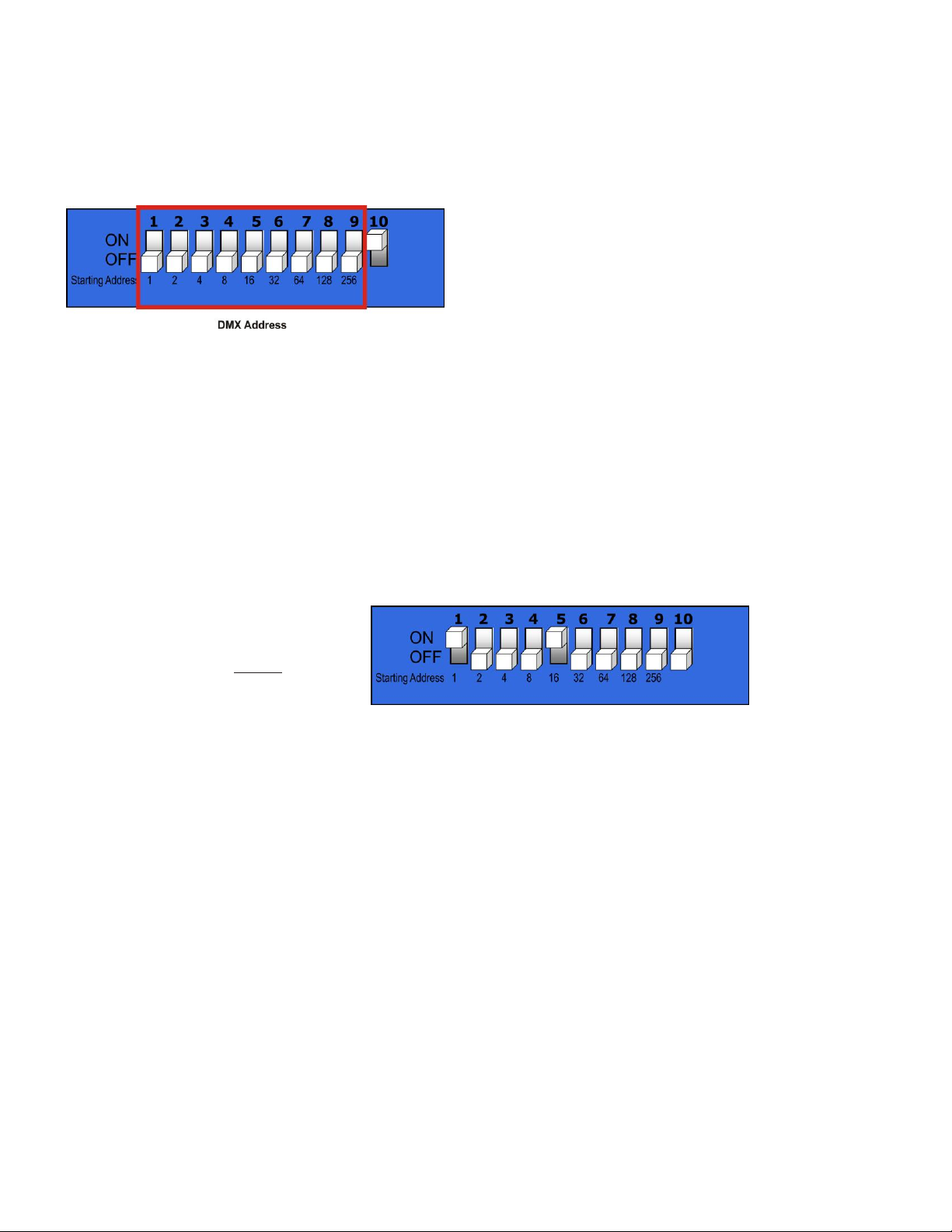

Use dipswitches #1 - #9 to set the DMX address
DMX products must have their own "address" to receive DMX signals.
Addresses on the Showtec LED Flamelight are set by flipping the appropriate DMX dip switches.
You need to know that DMX address settings are the sum of the dip switch values.
A standard DMX address for a Showtec LED Flamelight, which has 4 channels is as follow:
Example
LED Flamelight Address Value DMX Dip Switches "ON"
Unit 5 17 #1 , #5
Switch Value
#1 1
#5 16 +
Total sum 17
Explanation: Since each unit has 4 channels, each address advances 4 values (See Address Value above).
Once address values are determined, add DMX dipswitch values to obtain the appropriate address (DMX
Dip Switches "ON") for each unit. Flip appropriate DMX dipswitches on each unit.
DMX Channels
Channel 1: Red
Channel 2: Yellow
Channel 3: Blue
Channel 4: Dimmer

7
Maintenance
The operator has to make sure that safety-relating and machine-technical installations are to be inspected
by an expert after every four years in the course of an acceptance test.
The operator has to make sure that safety-relating and machine-technical installations are to be inspected
by a skilled person once a year.
The following points have to be considered during the inspection:
1. All screws used for installing the device or parts of the device have to be tightly connected and must
not be corroded.
2. There may not be any deformations on housings, fixations and installation spots.
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
4. The electric power supply cables must not show any damages or material fatigue.
The LED Flamelight requires almost no maintenance. However, you should keep the unit clean. Disconnect
the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid.
Keep connections clean. Disconnect electric power, and then wipe the audio connections with a damp
cloth. Make sure connections are thoroughly dry before linking equipment or supplying electric power.
Replacing a Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the fuse
burns out, the product will not function whatsoever. If this happens, follow the directions below to do so.
1. Unplug the unit from electric power source.
2. Insert a screwdriver into the slot in the fuse cover. Turn the screwdriver to the left, at the same time gently
push a bit (Turn and Push). The fuse will come out.
3. Remove the broken fuse. If brown or unclear, it is burned out.
4. Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse cover.
Be sure to use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
Showtec LED Flamelight
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates
properly, do not carry out following steps.
1. If the device does not operate properly, unplug the device.
2. Check the fuse, power from the wall, all cables etc.
3. If all of the above appears to be O.K., plug the unit in again.
4. If you are unable to determine the cause of the problem, do not open the LED Flamelight, as this may
damage the unit and the warranty will become void.
5. Return the device to your Showtec dealer.

8
Product Specification
Model: Showtec LED Flamelight
Voltage : AC 230V-50Hz (CE)
Power: 120W
Fuse: 250V / T500mA
DMX Input : 3-pin XLR Male connector
DMX Output : 3-pin XLR Female connector
29 pcs 1 Watt LEDs (16 Red, 10 Yellow, 3 Blue)
Stand-alone mode
DMX-512
DMX Channels: 4 channels (Red, Yellow, Blue, Dimmer)
IP-rate: Indoor use
Included: Wired remote, with on/off function

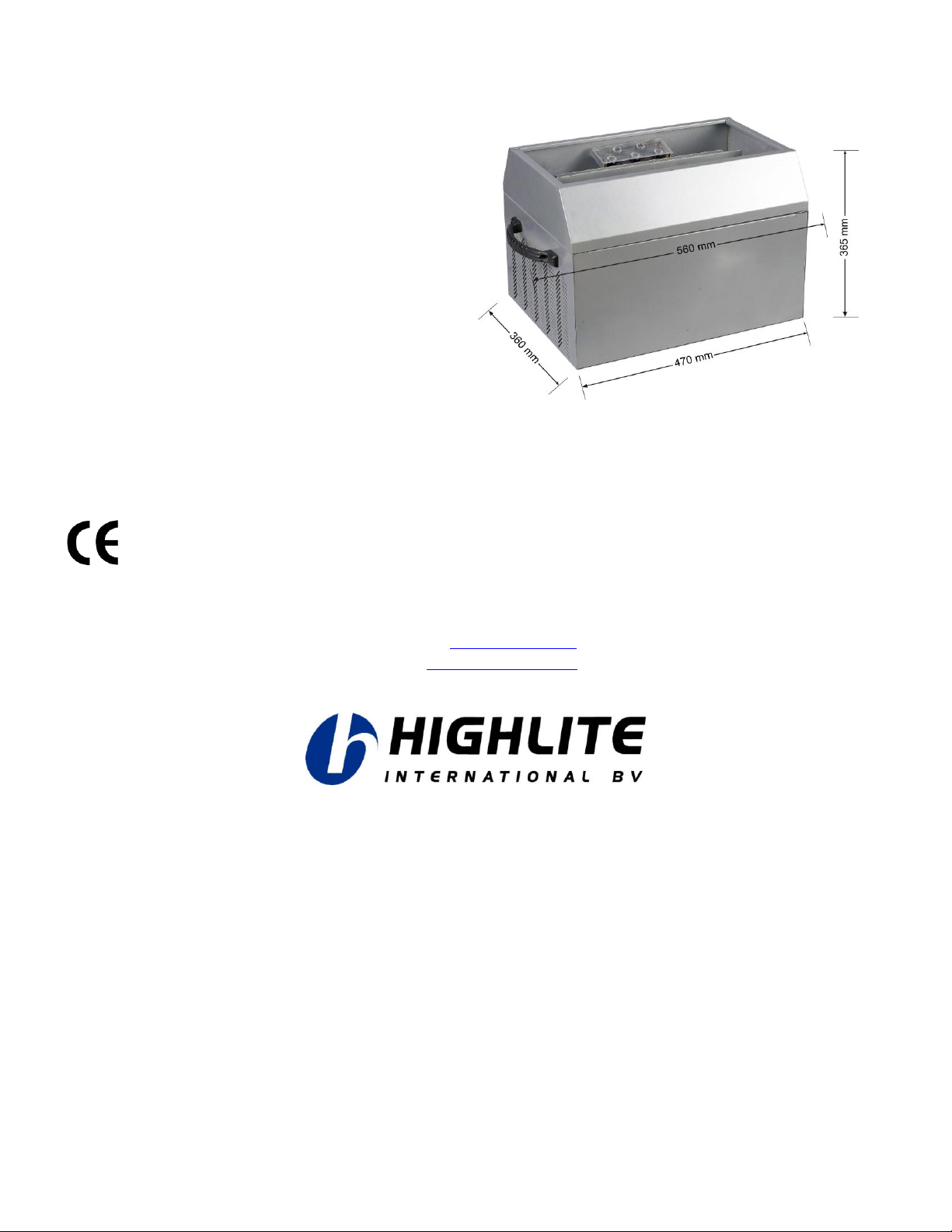

Dimensions : 560 x 360 x 365 mm (LxWxH)
Weight : 15,20 kg
Design and product specifications are subject to change without prior notice.
Website: www.Highlite.nl
Email: [e-mail]

2007 Showtec.
