Show Tec Stage Blinder 2 Black DMX Bulb User manual

Stage Blinder 2 Black DMX Bulb V2
Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands
Ordercode: 30770
MANUAL
ENGLISH

1
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Table of contents
Warning ...............................................................................................................................................................................2
Safety Instructions .........................................................................................................................................................2
Operating Determinations ..........................................................................................................................................4
Rigging ............................................................................................................................................................................4
Connection with the mains.........................................................................................................................................5
Return Procedure..........................................................................................................................................................6
Claims..............................................................................................................................................................................6
Description of the device.................................................................................................................................................7
Frontside..........................................................................................................................................................................7
Backside .........................................................................................................................................................................8
Installation...........................................................................................................................................................................8
Installing the Lamp........................................................................................................................................................9
Set Up and Operation .....................................................................................................................................................10
Control Modes.............................................................................................................................................................10
One Stage Blinder (Stand-alone) .........................................................................................................................10
Multiple Stage Blinders (DMX control) .................................................................................................................10
DIP Switch Setting for DMX Mode ............................................................................................................................12
DMX Address Quick Reference Chart .................................................................................................................13
Device Linking .............................................................................................................................................................14
Data Cabling...............................................................................................................................................................14
DMX Channels .............................................................................................................................................................14
1 Channel..................................................................................................................................................................14
Maintenance....................................................................................................................................................................15
Changing the Lamp...................................................................................................................................................15
Replacing the Fuse.....................................................................................................................................................15
Troubleshooting ...............................................................................................................................................................15
No Light.........................................................................................................................................................................15
No Response to DMX..................................................................................................................................................16
Product Specifications....................................................................................................................................................17
Dimensions........................................................................................................................................................................18

2
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Warning
Unpacking Instructions
Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure
that all parts are present, and have been received in good condition. Notify the dealer immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a device must be
returned to the factory, it is important that the device be returned in the original factory box and
packing.
Your shipment includes:
●Stage Blinder 2 Black DMX Bulb with Schuko power
cable (0,8 m)
●User manual
Safety Instructions
Every person involved with the installation, operation and maintenance of this device has to:
●be qualified
●follow the instructions of this manual
Before the initial start-up, please make sure that there is no damage caused by transportation.
Should there be any, consult your dealer and do not use the device.
To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes contained in this manual.
Please consider that damages caused by manual modifications to the device are not subject to
warranty.
This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

3
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance of
this manual or any unauthorized modification to the device.
●Never let the power cord come into contact with other cables! Handle the power cord and all
connections with the mains with particular caution!
●Never remove warning or informative labels from the device.
●Never use anything to cover the ground contact.
●Never run the device without lamp!
●Never leave any cables lying around.
●Never look directly into the light source.
●Never use the device during thunderstorms. Unplug the device immediately.
●Do not insert objects into air vents.
●Do not open the device and do not modify the device.
●Do not connect this device to a dimmer pack.
●Do not shake the device. Avoid brute force when installing or operating the device.
●Do not switch the device on and off in short intervals, as this would reduce the system’s life.
●Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).
●Only use device indoors, avoid contact with water or other liquids.
●Only operate the device after having checked that the housing is firmly closed and all screws are
tightly fastened.
●Only operate the device after having familiarized with its functions.
●Avoid flames and do not put close to flammable liquids or gases.
●Always replace the lamp, when it is damaged or deformed due to the heat.
●Always keep case closed while operating.
●Always allow free air space of at least 50 cm around the device for ventilation.
●Always disconnect power from the mains, when device is not used or before cleaning! Only handle
the power cord by the plug. Never pull out the plug by tugging the power cord.
●Make sure that the device is not exposed to extreme heat, moisture or dust.
●Make sure that the available voltage is not higher than stated on the rear panel.
●Make sure that the power cord is never crimped or damaged. Check the device and the power
cord from time to time.
●If one of the lamps is obviously damaged, it has to be replaced. So that its functions are not
impaired, due to cracks or deep scratches.
●If the external cable is damaged, it has to be replaced by a qualified technician.
●If device is dropped or struck, disconnect mains power supply immediately. Have a qualified
engineer inspect for safety before operating.
●If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not
switch it on immediately. The arising condensation water might damage your device. Leave the
device switched off until it has reached room temperature.
●If your Showtec device fails to work properly, discontinue use immediately. Pack the device securely
(preferably in the original packing material), and return it to your Showtec dealer for service.
●For adult use only. The device must be installed out of the reach of children. Never leave the device
running unattended.
●The user is responsible for correct positioning and operating of the Stage Blinder 2. The manufacturer
will not accept liability for damages caused by the misuse or incorrect installation of this device.
●This device falls under protection class I. Therefore it is essential to connect the yellow/green
conductor to earth.
●For replacement use lamps and fuses of same type and rating only.
●Allow time to cool down, before replacing lamp.
●Repairs, servicing and electric connection must be carried out by a qualified technician.
●WARRANTY: Till one year after date of purchase.

4
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Operating Determinations
●This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
●The minimum distance between light output and the illuminated surface must be bigger than 2
meters.
●In order to eliminate wear and improve the device’s lifespan, during periods of non-use, completely
disconnect from power source via breaker or by unplugging.
●The maximum ambient temperature ta= 40°C must never be exceeded.
●The relative humidity must not exceed 50 % with an ambient temperature of 40°C.
●If this device is operated in any other way than the one described in this manual, the product may
suffer damages and the warranty becomes void.
●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash, etc.
You endanger your own safety and the safety of others!
Rigging
Please follow the European and national guidelines concerning rigging, trussing and all
other safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
●If the Stage Blinder is lowered from the ceiling or high joists, professional trussing systems have to be
used.
●Use a clamp to mount the Stage Blinder, with the mounting bracket, to the trussing system.
●The Stage Blinder must never be fixed swinging freely in the room.
●The installation must always be secured with a safety attachment, e.g. an appropriate safety net or
safety cable.
●When rigging, derigging or servicing the Stage Blinder, always make sure, that the area below the
installation site is secured and that there are not any unauthorized people around.

5
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
The Stage Blinder can be placed on a flat stage floor or mounted to any kind of truss with a clamp.
Improper installation can cause serious injuries and/or damage of property!
Connection with the mains
Connect the device to the mains with the power-plug.
Always check if the right color cable is connected to the right place.
International
EU Cable
UK Cable
US Cable
Pin
L
BROWN
RED
YELLOW/COPPER
PHASE
N
BLUE
BLACK
SILVER
NEUTRAL
YELLOW/GREEN
GREEN
GREEN
PROTECTIVE GROUND
Make sure that the device is always properly connected to the earth!
Improper installation can cause serious injuries and/or damage of property!

6
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Return Procedure
Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.
Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned
without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.
Call Highlite 0031-455667723 or mail [e-mail] and request an RMA prior to shipping the
device. Be prepared to provide the model number, serial number and a brief description of the cause for
the return. Be sure to properly pack device, any shipping damage resulting from inadequate packaging
is the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace
product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.
Note: If you are given an RMA number, please include the following information on a piece of paper
inside the box:
01) Your name
02) Your address
03) Your phone number
04) A brief description of the symptoms
Claims
The client has the obligation to check the delivered goods immediately upon delivery for any short-
comings and/or visible defects, or perform this check after our announcement that the goods are at their
disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be
reported to the carrier upon receipt of merchandise.
It is the customer's responsibility to report and submit claims with the shipper in the event that a device is
damaged due to shipping. Transportation damage has to be reported to us within one day after receipt
of the delivery.
Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with
a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless
agreed otherwise in writing.
Complaints against us must be prepared in writing or sent by fax within 10 working days after receipt of
the invoice. After this period complaints will not be handled anymore.
Complaints will only then be considered if the client has so far complied with all parts of the agreement,
regardless of the agreement from which the obligation is resulting.

7
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Description of the device
Features
The Stage Blinder 2 Black DMX Bulb is a DMX blinder with high output.
●Input voltage: 240 V AC, 50/60 Hz
●Power consumption: 1300 W
●Light source: 2 x Par 36 120 V 650 W DWE Showgear
●Lumen total: 48000 lm
●Setup and addressing: DIP switches
●DMX mode: 1 channel
●Dimmer: 0–100 %
●Control protocol: DMX-512
●Housing: Metal
●Color: Black
●Control modes: Auto, Manual, DMX
●IP rating: IP20
●Cooling: Convection
●Connections: Schuko power cable (0,8 m) & 3-pin DMX signal connector IN/OUT
●Fuse: F8 A/250 V

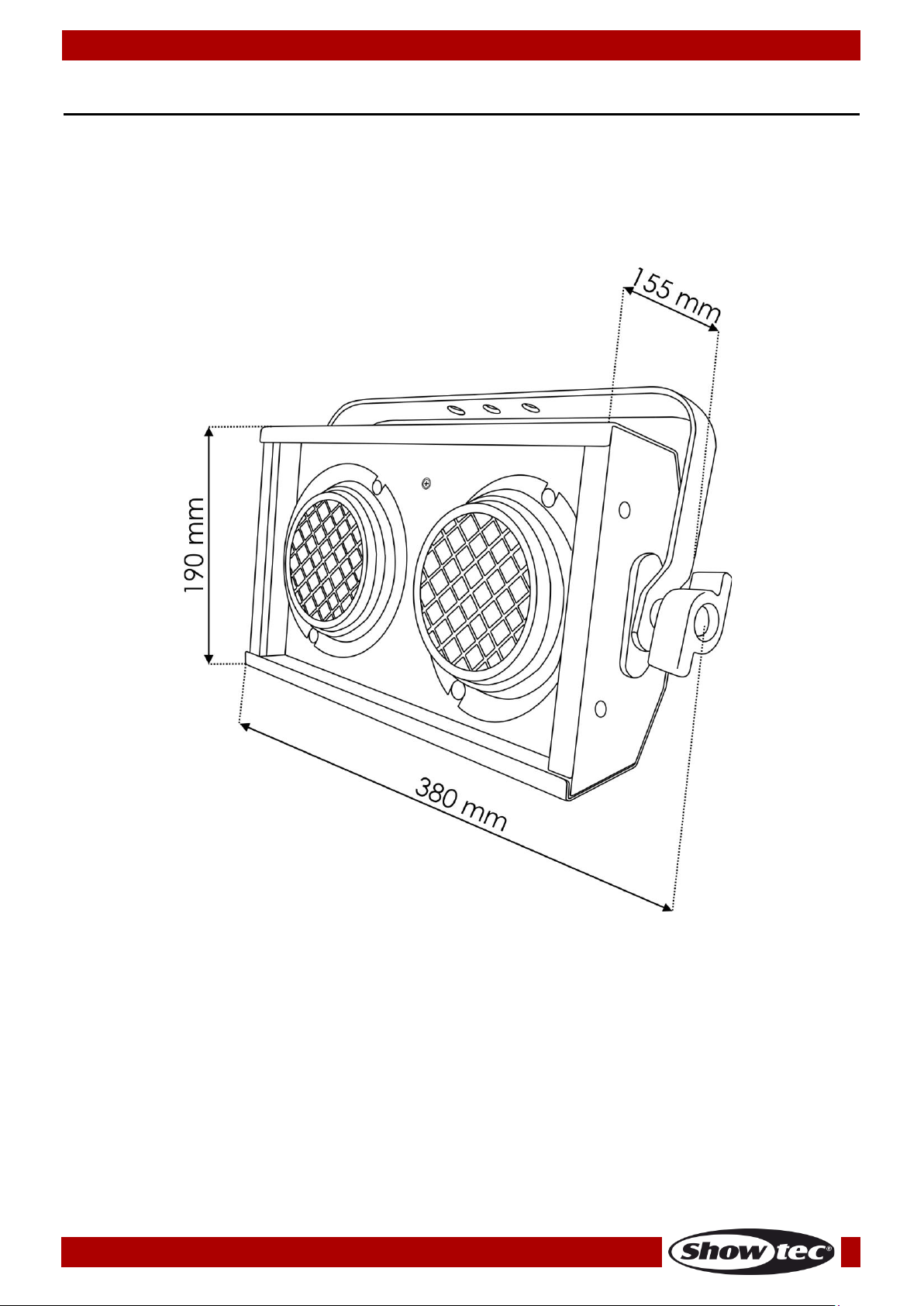

●Dimensions: 380 x 155 x 190 mm (LxWxH)
●Weight: 3,64 kg
Optional accessories:
80170 –Par 36 120 V 650 W DWE Showgear
Frontside
Fig. 01
01) 2 x Par 36 120 V 650 W
02) Ground/earth connection
03) Adjustment screw
04) Mounting bracket with inclination screw

8
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb

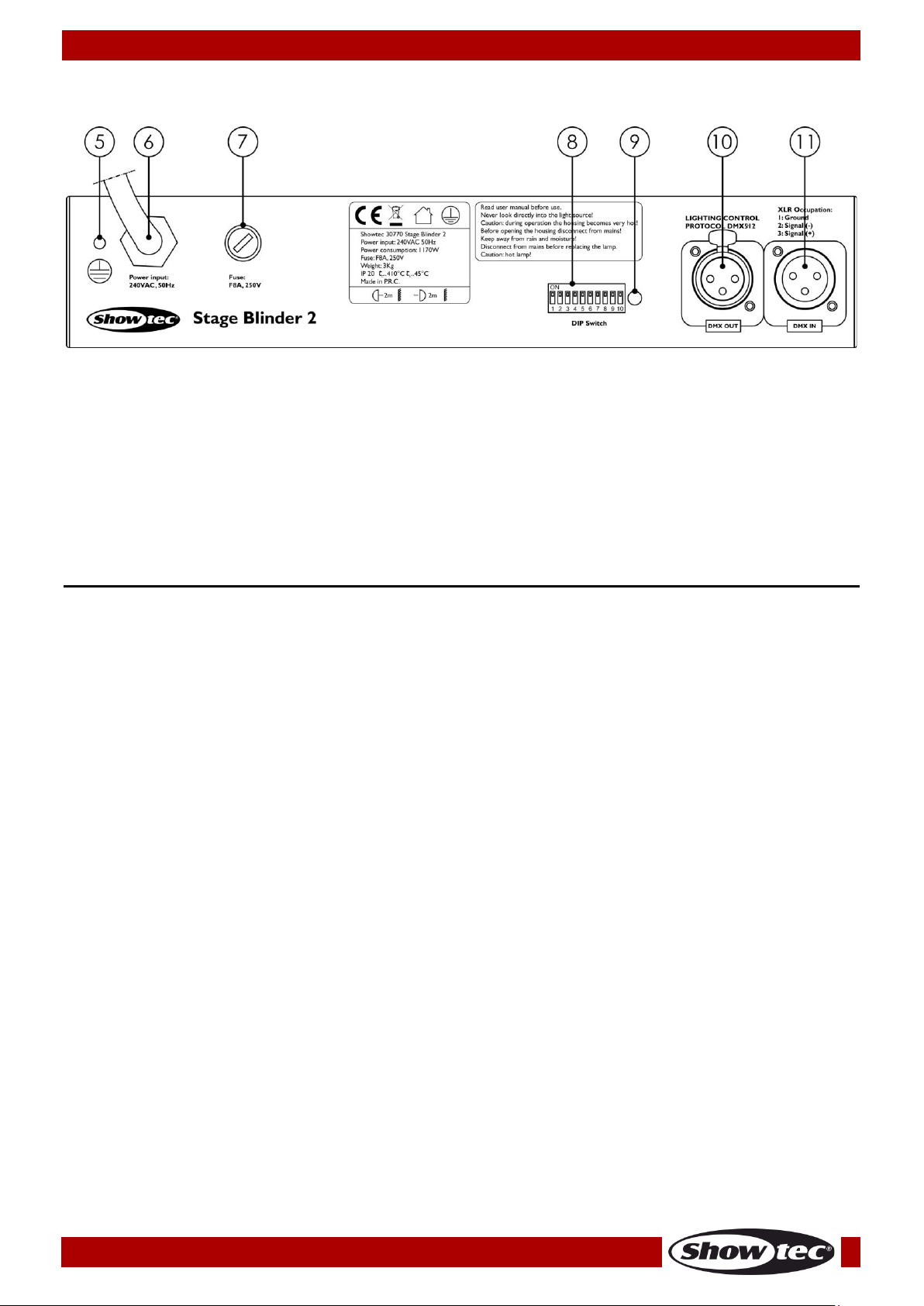

Backside
Fig. 02
05) Ground/earth connection
06) Schuko power cable (0,8 m)
07) Fuse F8 A/250 V
08) DIP switches
09) DMX signal LED indicator
10) 3-pin DMX signal connector OUT
11) 3-pin DMX signal connector IN
Installation
Remove all packing materials from the Stage Blinder 2 Black DMX Bulb. Check if all foam and plastic
padding is removed. Connect all cables.
Do not supply power before the whole system is set up and connected properly.
Always disconnect from electric mains power supply before cleaning or servicing.
Damages caused by non-observance are not subject to warranty.

9
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Installing the Lamp
The Stage Blinder 2 Black DMX Bulb uses the Par 36 120V 650W DWE Showgear (ordercode: 80170) bulb as
manufactured by all popular manufacturers. Use only the appropriate lamp for your device.
Note, that product versions that use other lamps, may be offered in the future. Check your product
specification label for information.
Always disconnect from electric mains power supply before changing lamps.
The lamp has to be replaced when it is damaged or deformed due to the heat.
Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the
device was not designed for.
Damages caused by non-observance are not subject to warranty.
Procedure
01) Loosen the 2 screws on the front of the lamp housing (Fig. 03).
02) Gently remove the metal lamp cover (Fig. 04).
03) Read lamp instructions. Do not touch the lamp bulb glass. Gently remove the lamp from its socket.
04) Remove the 2 cables on the back of the lamp and remove the lamp. Oil on hands shortens the lamp
life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free towel and rubbing alcohol.)
05) Take the new lamp out of the box (Fig. 05).
06) Take the 2 cables and by using the screws, fit them to the back of the lamp. Place the lamp in the
housing (Fig. 06).
07) Put the metal lamp housing back and fasten the 2 screws.
Fig. 03
Fig. 04
Fig. 05
Fig. 06

10
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Set Up and Operation
Follow the directions below, as they pertain to your preferred operation mode.
Before plugging the device in, always make sure that the power supply matches the product
specification voltage. Do not attempt to operate a 120 V specification product on 230 V power, or vice
versa.
Connect the device to the main power supply.
Control Modes
There are 2 modes:
●Stand-alone (Auto)
●DMX-512 (1CH)
One Stage Blinder (Stand-alone)
01) Fasten the effect light onto firm trussing. Leave at least 2 meters on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Plug the end of the electric mains power cord into a proper electric power supply socket.
04) When the Stage Blinder is not connected with a DMX cable, it functions as a stand-alone device. DIP
switch #10 must always be set to ON for Stand-alone control.
Stand-alone: DIP switch # 10 to ON position.
Red LED on the backside of the Stage Blinder is
ON.
Multiple Stage Blinders (DMX control)
01) Fasten the effect light onto firm trussing. Leave at least 2 meters on all sides for air circulation.
02) Always use a safety cable (ordercode 70140 / 70141).
03) Use a 3-pin XLR cable to connect the Stage Blinders and other devices.
DMX control: DIP switch # 10 to OFF position.
Move DIP switches # 1–9 to set the desired DMX
address. Red LED on the backside of the device is
blinking.
01) Link the devices as shown in Fig. 07. Connect the first device's DMX "out" socket with the second
device's "in" socket, using a DMX-signal cable. Repeat this process to link the second, third, and
fourth devices.
02) Supply electric power: Plug the power cords into proper electric power supply sockets, starting with
the first device. Do not supply power before the whole system is set up and connected properly.

11
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Multiple Stage Blinders DMX Setup
Fig. 07
Note: Link all cables and set DIP switches before connecting electric power
After switching on, the Stage Blinder will automatically detect whether DMX 512 data is received or not.
If there is no data received, the problem may be:
01) The XLR cable from the controller is not connected with the input of the Stage Blinder.
02) The controller is switched off or defective, the cable or connector is detective, or the signal wires are
swapped in the input connector.
Note: It is necessary to insert a XLR termination plug (with 120 Ohm) in the last device in order to ensure
proper transmission on the DMX data link.

12
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
DIP Switch Setting for DMX Mode
DMX products must have their own address to receive DMX signals.
Addresses on the controller are set by flipping the appropriate DIP switches # 1–9.
DMX address settings are the sum of the DIP switch values.
A standard DMX address for the Showtec Stage Blinder is as follows:
Example 1
Stage Blinder
Address Value
DMX DIP Switches "ON"
Device 5
5
#1 , #3
Switch
Value
#1
1
#3
4+
Total sum
5
Explanation: Since each device has 1 channel, each address advances by 1 value (See Address Value
above). Once address values are determined, add DMX DIP switch values to obtain the appropriate
address (DMX DIP switches "ON") for each device. Flip appropriate DMX DIP switches on each device.
Example 2
01) If you want to give a Stage Blinder DMX address 133, you first have to find the number 133 in the DMX
Chart (see page 13).
02) Look at the left side (DIP switches #1-#5) horizontally from 133.
In the table you will see #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF.
03) Finally look at the upper side of the table (DIP switches #6-#9) vertically from 133.
In the table you will see #6=OFF, #7=OFF, #8=ON, #9=OFF.

13
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
DMX Address Quick Reference Chart

14
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Device Linking
You will need a serial data link to run light shows of one or more devices using a DMX-512 controller or to
run synchronized shows of two or more devices set to a master/slave operating mode. The combined
number of channels required by all the devices on a serial data link determines the number of devices
the data link can support.
Important:
Devices on a serial data link must be daisy-chained in a single line. To comply with the
EIA-485 standard, no more than 30 devices should be connected on one data link.
Connecting more than 30 devices on one serial data link without the use of a DMX optically
isolated splitter may result in deterioration of the digital DMX signal.
Maximum recommended DMX data link distance: 100 meters
Maximum recommended number of devices on a DMX data link: 30 devices
Data Cabling
To link devices together, you must obtain data cables. You can purchase DAP Audio certified DMX
cables directly from a dealer/distributor or construct your own cable. If you choose to create your own
cable, please use data-grade cables that can carry a high quality signal and are less prone to
electromagnetic interference.
DAP Audio DMX Data Cables
●DAP Audio Basic microphone cable for allround use. bal. XLR/M 3-pin > XLR/F 3-pin. Ordercode
FL01150 (1,5 m), FL013 (3 m), FL016 (6 m), FL0110 (10 m), FL0115 (15 m), FL0120 (20 m).
●DAP Audio X-type data cable XLR/M 3-pin > XLR/F 3-pin. Ordercode FLX0175 (0,75 m),
FLX01150 (1,5 m), FLX013 (3 m), FLX016 (6 m), FLX0110 (10 m).
●DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL71150 (1,5 m), FL713 (3 m), FL716 (6 m), FL7110 (10 m).
●DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by
Neutrik®. Ordercode FL7275 (0,75 m), FL72150 (1,5 m), FL723 (3 m), FL726 (6 m), FL7210 (10 m).
●DAP Audio 110 Ohm cable with digital signal transmission. Ordercode FL0975 (0,75 m),
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m).
●DAP Audio data cable FL08 DMX/AES-EBU, XLR/M 5-pin > XLR/F 5-pin.Ordercode FL08150 (1,5 m),
FL083 (3 m), FL086 (6 m), FL0810 (10 m), FL0820 (20 m).
●DAP Audio DMX adapter: 5-pin/3-pin. Ordercode FLA29.
●DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30.
●DAP Audio DMX Terminator 3-pin. Ordercode FLA42.
●DAP Audio DMX Terminator 5-pin. Ordercode FLA43.
DMX Channels
1 Channel
Channel 1 –Dimmer
0–255
Dimmer intensity, from dark to brightest

15
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Maintenance
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by an expert after every year in the course of an acceptance test.
The operator has to make sure that safety-related and machine-technical installations are to be
inspected by a skilled person once a year.
The following points have to be considered during the inspection:
01) All screws used for installing the device or parts of the device have to be tightly connected and
must not be corroded.
02) There may not be any deformations on housings, fixations and installation spots.
03) Mechanically moving parts like axles, eyes and others may not show any traces of wearing.
04) The electric power supply cables must not show any damages or material fatigue.
The Showtec Stage Blinder 2 Black DMX Bulb requires almost no maintenance. However, you should keep
the device clean. Otherwise, the device’s light output will be significantly reduced. Disconnect the mains
power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lamps clean
with glass cleaner and a soft cloth. Do not use alcohol or solvents.
The lamps will require weekly cleaning, as smoke-fluid tends to build up residues, reducing the light-
output very quickly.
Keep connections clean. Disconnect electric power, and then wipe the DMX and audio connections
with a damp cloth. Make sure connections are thoroughly dry before linking equipment or supplying
electric power.
Changing the Lamp
01) Disconnect mains power supply, and allow 15 minutes to cool down.
02) Loosen the knurled bolt on the back of the lamp housing and pull the housing out.
03) Holding it by the base, remove the lamp from its retention box.
04) Follow directions for installing a new lamp, page 9.
Replacing the Fuse
Power surges, short-circuit or inappropriate electrical power supply may cause a fuse to burn out. If the
fuse burns out, the product will not function whatsoever. If this happens, follow the directions below.
01) Unplug the device from electric power source.
02) Insert a screwdriver into the slot in the fuse cover. Turn the fuse holder counterclockwise. The fuse will
come out.
03) Remove the used fuse. If brown or unclear, it is burned out.
04) Insert the replacement fuse into the holder where the old fuse was. Reinsert the fuse holder. Be sure
to use a fuse of the same type and specification. See the product specification label for details.
Troubleshooting
This troubleshooting guide is meant to help solve simple problems.
If a problem occurs, carry out the steps below in sequence until a solution is found. Once the device
operates properly, do not carry out following steps.
No Light
If the light effect does not operate properly, refer servicing to a technician.
Suspect three potential problem areas as: the power supply, the lamp, the internal fuse.
01) Power supply. Check that the device is plugged into an appropriate power supply.
02) The lamp. Replace the lamp. See page 9 for installing the lamp.
03) The fuse. Replace the fuse. See page 15 for replacing the fuse.
04) If all of the above appears to be O.K., plug the device in again.
05) If you are unable to determine the cause of the problem, do not open the Stage Blinder, as this may
damage the device and the warranty will become void.
06) Return the device to your Showtec dealer.

16
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
No Response to DMX
Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction.
01) Check the DMX setting. Make sure that DMX addresses are correct.
02) Check the DMX cable: Unplug the device; change the DMX cable; then reconnect to electrical
power. Try your DMX control again.
03) Determine whether the controller or light effect is at fault. Does the controller operate properly with
other DMX products? If not, take the controller in for repair. If so, take the DMX cable and the light
effect to a qualified technician.
Problem
Probable cause(s)
Solution
One or more
devices do not
function at all
No power to the device
●Check if power is switched on and cables
are plugged in
Primary fuse blown
●Replace the fuse
Devices reset
correctly, but all
respond
erratically or not
at all to the
controller
The controller is not connected
●Connect controller
3-pin XLR Out of the controller
does not match XLR Out of the first
device on the link (i.e. signal is
reversed)
●Install a phase reversing cable between
the controller and the first device on the
link
Devices reset
correctly, but
some respond
erratically or not
at all to the
controller
Poor data quality
●Check data quality. If much lower than
100 percent, the problem may be a bad
data link connection, poor quality or
broken cables, missing termination plug,
or a defective device disturbing the link
Bad data link connection
●Inspect connections and cables. Correct
poor connections. Repair or replace
damaged cables
Data link not terminated with 120
Ohm termination plug
●Insert termination plug in output jack of
the last device on the link
Incorrect addressing of the
devices
●Check address setting
One of the devices is defective
and disturbs data transmission on
the link
●Bypass one device at a time until normal
operation is restored: unplug both
connectors and connect them directly
together
●Have the defective device serviced by a
qualified technician
3-pin XLR Out on the devices does
not match (pins 2 and 3 reversed)
●Install a phase-reversing cable between
the devices or swap pin 2 and 3 in the
device that behaves erratically
No light or lamp
cuts out
intermittently
Device is too hot
●Allow the device to cool down
●Make sure air vents in control panel and
the front lens are not blocked
●Turn up the air conditioning
Lamp is damaged
●Disconnect the device and replace the
lamp
●Return the device to your Showtec dealer
The power supply settings do not
match local AC voltage and
frequency
●Disconnect device. Check settings and
correct if necessary

17
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb
Product Specifications
Model:
Showtec Stage Blinder 2 Black DMX Bulb
Input voltage:
240 V AC, 50/60 Hz
Power consumption:
1300 W
DMX linking:
30 pcs
Fuse:
F8 A/250 V
Dimensions:
380 x 155 x 190 mm (LxWxH)
Weight:
3,64 kg
Operating and Programming:
Setup and addressing:
DIP switches
Signal pin OUT:
Pin 1 (earth), pin 2 (-), pin 3 (+)
DMX mode:
1 channel
Signal input:
3-pin XLR IN
Signal output:
3-pin XLR OUT
Lamp:
Allowed lamp models*:
80170 –Par 36 120 V 650 W DWE Showgear
Electro-mechanical effects:
Light source:
2 x Par 36 120 V 650 W DWE Showgear
Lumen total:
48000 lm
Dimmer:
0–100 %
Housing:
Metal
Color:
Black
Control:
Auto, Manual, DMX
Connections:
Schuko power cable (0,8 m)
IP rating:
IP20
Cooling:
Convection
Max. ambient temperature ta:
40 °C
Max. surface temperature tB:
80 °C
Minimum distance:
Minimum distance from flammable surfaces:
2 m
Minimum distance to lighted object:
2 m
*: Versions for other lamps may be produced. Please check the specification label on your product.
Design and product specifications are subject to change without prior notice.
Website: www.Showtec.info
Email: [email protected]

18
Ordercode: 30770
Stage Blinder 2 Black DMX Bulb

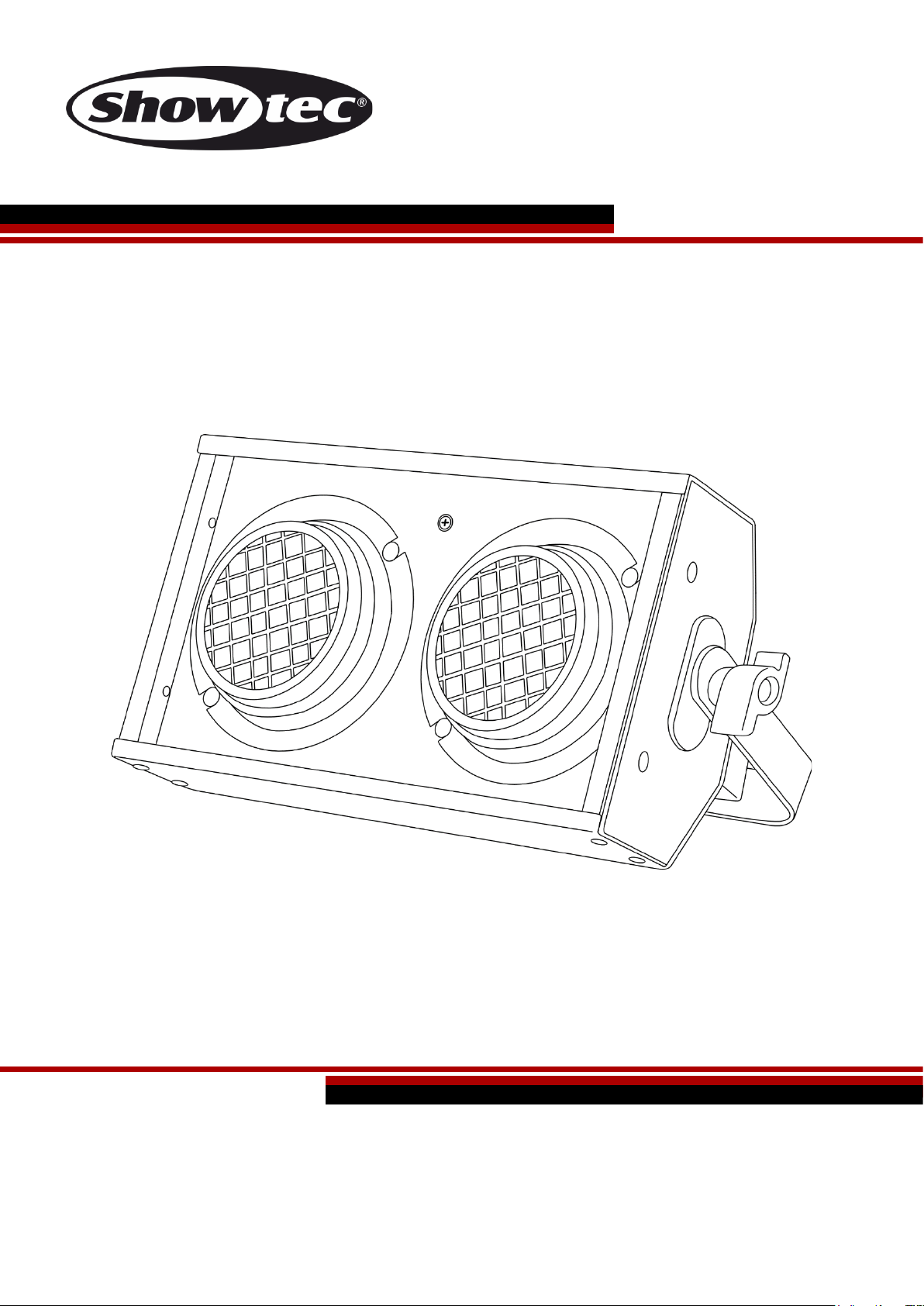

Dimensions

©2023 Showtec
