Shure BRH50M User manual

SAFETY PRECAUTIONS
The possible results of incorrect use are marked by one of the two sym-
bols—"WARNING" and "CAUTION"—depending on the imminence of the
danger and the severity of the damage.
WARNING: Ignoring these warnings may cause severe injury or
death as a result of incorrect operation.
CAUTION: Ignoring these cautions may cause moderate injury
or property damage as a result of incorrect operation.
CAUTION
• Never disassemble or modify the device, as failures may result.
• Do not subject to extreme force and do not pull on the cable or failures
may result.
• Keep the product dry and avoid exposure to extreme temperatures and
humidity.
WARNING
• If water or other foreign objects enter the inside of the device, fire or
electric shock may result.
• Do not attempt to modify this product. Doing so could result in personal
injury and/or product failure.
This device is able to produce sound volume higher than 85 dB SPL. Please
check your maximum allowed continuous noise exposure level based on
your national employment protection requirements.
WARNING
LISTENINGTO AUDIO AT EXCESSIVEVOLUMES CAN CAUSE PERMA-
NENT HEARING DAMAGE. USE AS LOW AVOLUME AS POSSIBLE.
Over exposure to excessive sound levels can damage your ears resulting in
permanent noise-induced hearing loss (NIHL). Please use the following
guidelines established by the Occupational Safety Health Administration
(OSHA) on maximum time exposure to sound pressure levels before hearing
damage occurs.
105 dB SPL
at 1 hour
100 dB SPL
at 2 hours
95 dB SPL
at 4 hours
90 dB SPL
at 8 hours
120 dB SPL
Avoid or damage may occur
115 dB SPL
at 15 minutes
110 dB SPL
at ½ hour
BRH50M Premium Dual-Sided Broadcast Headset
The BRH50M Broadcast Headset is developed especially for on-camera use
in broadcast and media production environments. Supra-aural design with
replaceable earpads provides long-wearing comfort and good isolation. The
dynamic, supercardioid microphone delivers natural, highly intelligible vocal
reproduction, and pivots 270 degrees for left or right side wear. A variety of
detachable cables enables connection to a wide range of devices for a lifetime
of use.
Features
•Closed-back, supra-aural design with soft, replaceable earpads provides
long-wearing comfort and good isolation
•Dynamic microphone delivers natural, highly intelligible vocal reproduction
with supercardioid polar pattern and frequency response optimized for
communication in loud environments
• Ergonomic, ultra-lightweight design with split-frame adjustable, padded
headband for long wearing comfort
• Rigid boom microphone pivots 270 degrees for left or right side wear
• A variety of cables are available to connect to a wide range of devices
• User-replaceable cable, earpads and windscreen provided for a long
product life
• Legendary Shure durability to withstand the rigors of professional use
Care and Maintenance
Clean using a soft, damp cloth. CAUTION:Do not use cleansers that contain solvents. Keep liquid and foreign
objects out of the driver openings.
Detachable Cable
1/7©2017 Shure Incorporated
BRH50M
Broadcast Headset

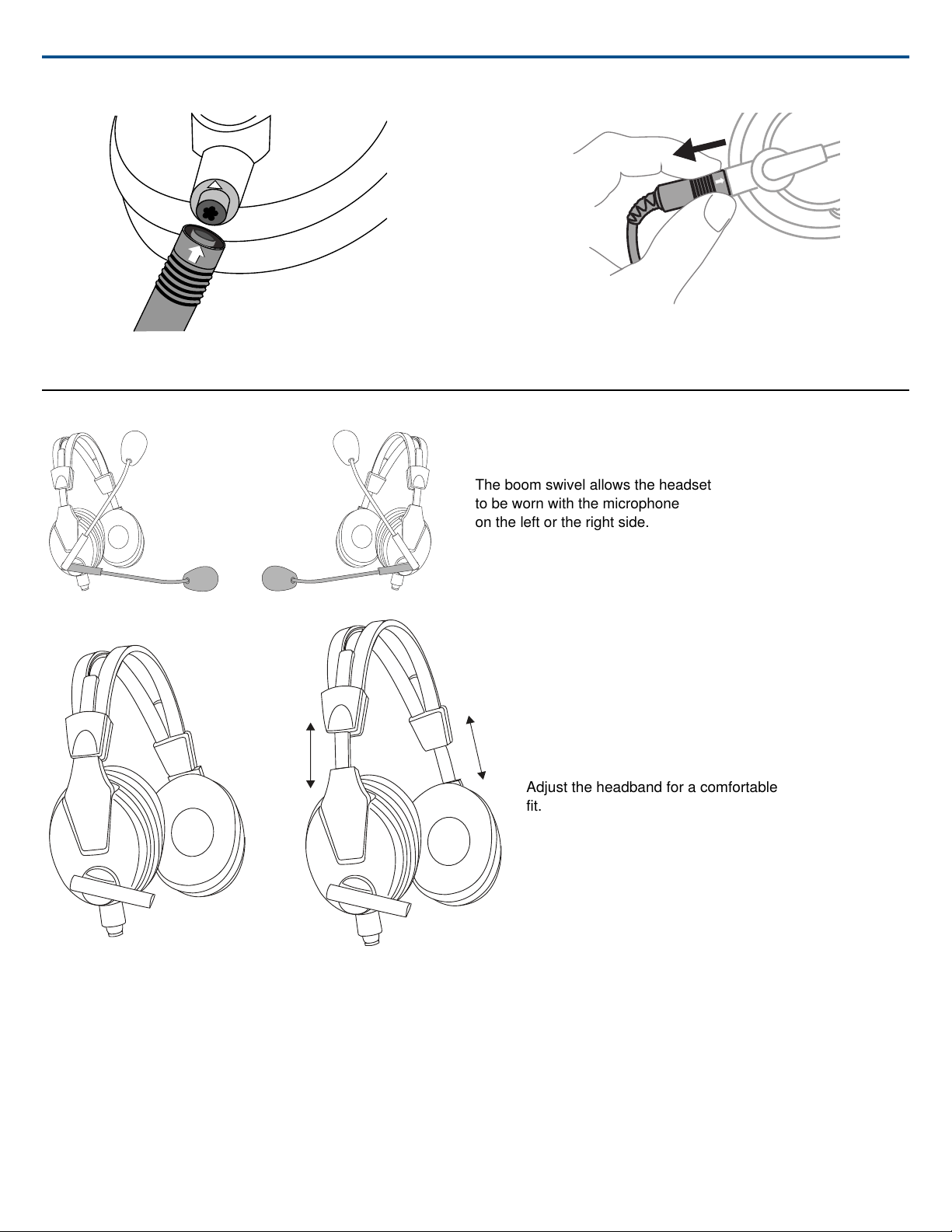

Attach the cable by aligning the arrows and pressing firmly into place until
locked.
Pull on the knurled collar to disengage lock and remove cable.
Wearing the Headset
The boom swivel allows the headset
to be worn with the microphone
on the left or the right side.
Adjust the headband for a comfortable
fit.
Shure IncorporatedBRH50M Broadcast Headset
2017/10/232/7

Increase headband width for additional
head grip.
Slide the boom to position the microphone
within 13 mm (1/2 inch)
of the right corner of your mouth.
To avoid "popping" or other breath
noise, do not place directly
in front of mouth.
Replacement Parts
BCAWS2Replacement windscreen for BRH50M
BCAEC501 pair of replacement earcup pads for BRH50M
BCASCA-NXLR3QIReplacement cable for BRH headset - terminates to
XLR3M and 1/4 in. Neutrik connectors (7.5 ft. length)
BCASCA-NXLR3QI-
25
Replacement cable for BRH headset - terminates to
XLR3M and 1/4 in. Neutrik connectors (25 ft. length)
BCASCA-NXLR4Replacement cable for BRH headset - terminates to
XLR4M Neutrik connector (7.5 ft. length)
BCASCA-NXLR5Replacement cable for BRH headset - terminates to
XLR5M Neutrik connector (7.5 ft. length)
BCASCA-NXLR4-
FEM
Replacement cable for BRH headset - terminates to
XLR4F Neutrik connector (7.5 ft. length)
BCASCA-1Replacement cable for BRH headset - unterminated
(bare whip) (6.5 ft. length)
Shure IncorporatedBRH50M Broadcast Headset
3/72017/10/23

Model Variations
BRH50MBRH50M Dual-Sided Broadcast Headset
BRH50M-LCBRH50M Dual-Sided Broadcast Headset (without cable)
BRH Broadcast Cable Accessories
The following tables describe wiring for BRH detachable cables. All BRH detachable cables contain six conductors with discrete termination at the Shure 6-pin
connector that plugs into the headset. For pre-terminated cables, conductors (and signal) are tied to common contacts at the other end of the cable where shown.
BCASCA1 (unterminated)
1
2
4
3
1
3
2
1 4
32 4
3
2
1 5
NXLR4
(male connector)
NXLR4-FEM
(female connector)
NXLR5
(male connector)
NXLR3QI
3-pin XLR-M and 6.3 mm (1/4”) TRS
Sleeve Ring Tip
4
6
51
2
3
Connector Pin Diagram
6-Pin Headset ConnectorWireSignal4-Pin XLR-M
2BlackMic −1
1RedMic +2
3Shield (uncoated)Mic Ground
3
6WhiteHeadphone Audio Ground
4OrangeHeadphone Audio 1
4
5GreenHeadphone Audio 2 (boom side)
6-Pin Headset ConnectorWireSignal4-Pin XLR-F
2BlackMic −
1
3Shield (uncoated)Mic Ground
1RedMic +2
6WhiteHeadphone Audio Ground3
4OrangeHeadphone Audio 1
4 (thru 47uF cap)
5GreenHeadphone Audio 2 (boom side)
6-Pin Headset ConnectorWireSignal5-Pin XLR-M
2BlackMic −1
1RedMic +2
3Shield (uncoated)Mic Ground
3
6WhiteHeadphone Audio Ground
5GreenHeadphone Audio 2 (boom side)4
4OrangeHeadphone Audio 15
6-Pin Headset ConnectorWireSignalContactConnector
3Shield (uncoated)Mic Ground1
3-Pin XLR-M 1RedMic +2
2BlackMic −3
Shure IncorporatedBRH50M Broadcast Headset
2017/10/234/7

6-Pin Headset ConnectorWireSignalContactConnector
6WhiteHeadphone Audio GroundSleeve
6.3 mm (1/4") TRS 5GreenHeadphone Audio 2 (boom side)Tip
4OrangeHeadphone Audio 1Ring
6-Pin Headset ConnectorWireSignal
1RedMic +
2BlackMic −
3Shield (uncoated)Mic Ground
4YellowHeadphone Audio 1
5OrangeHeadphone Audio 2 (boom side)
6WhiteHeadphone Audio Ground
Specifications
Weight
208 g (7.4 oz.), without cable
Environmental Conditions
18° to 60° C (0° to 140° F)Operating Temperature
-29° to 74° C (-29° to 165° F)Storage Temperature
0 to 95%Relative Humidity
Microphone
Type
Dynamic, Neodymium magnet
Polar Pattern
Supercardioid
Frequency Response
40 to 16,000 Hz
Output Impedance
250 Ω
Sensitivity
at 1 kHz, open circuit voltage
−60.0 dBV/Pa* (1.0 mV)
0
Polarity
Positive pressure on diaphragm produces positive voltage on pin 1 (red wire)
with respect to pin 2 (black wire).
Headphone
Transducer Type
Dynamic, Neodymium magnet
Driver Size
40 mm
Frequency Response
20 to 20,000 Hz
Sensitivity
@ 1 kHz
110 dB SPL/mW
Impedance
@ 1 kHz
300 Ω
Maximum Input Power
1000 mW
Find More Information Online
For more information, visit http://www.shure.com
0*1 Pa = 94 dB SPL
Shure IncorporatedBRH50M Broadcast Headset
5/72017/10/23

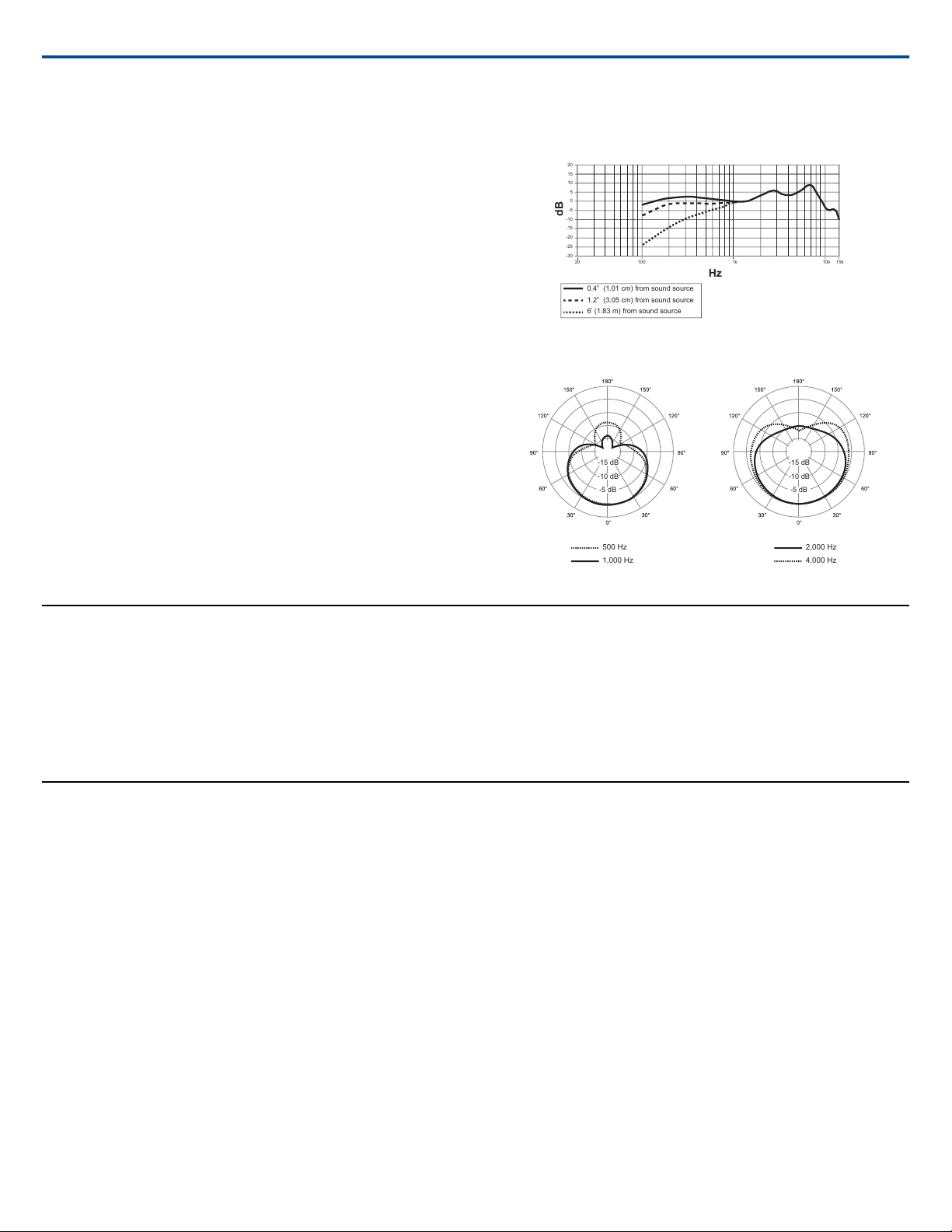

Performance Characteristics
500 Hz
1,000 Hz 4,000 Hz
2,000 Hz
-5 dB
-10 dB
-15 dB
-5 dB
-10 dB
-15 dB
20
15
10
5
0
-30
-25
-20
-15
-10
-5
dB
Hz
20 100 1k 10k 15k
0.4” (1.01 cm) from sound source
1.2” (3.05 cm) from sound source
6’ (1.83 m) from sound source
Certifications
This product meets the Essential Requirements of all relevant European di-
rectives and is eligible for CE marking.
The CE Declaration of Conformity can be obtained from:
www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
LIMITED WARRANTY
Shure Incorporated (“Shure”) hereby warrants to the original consumer pur-
chaser only that, except as otherwise specified below, this product will be
free in normal use of any defects in materials and workmanship for a period
of two (2) years from the consumer’s original date of purchase directly from
Shure or from a Shure-authorized reseller.
Any rechargeable batteries contained in or packaged with this product are
so warranted for a period of one (1) year from the consumer’s original date
of purchase. However, rechargeable batteries are consumable and their ca-
pacity will be reduced over time based on temperature, amount of time in
storage, charging cycles, and other factors; hence reduction in battery capac-
ity does not constitute a defect in material or workmanship.
At its sole option, Shure will repair or replace the defective product and
promptly return it to you. In order for this warranty to be valid, the consumer
must, at the time the product is returned, provide proof of purchase in the
form of the original purchase receipt directly from Shure or from a Shure-
authorized reseller. If Shure elects to replace the defective product, then
Shure reserves the right to replace the defective product with another product
of the same model or a model of at least comparable quality and features in
Shure’s sole determination.
If you believe this product is defective within the warranty period, carefully
repack the unit, insure it and return it with proof of purchase, postage prepaid,
to Shure Incorporated, Attention: Service Department, at the address below.
Outside of the United States, return the product to your dealer or Authorized
Service Center. Addresses are listed on www.Shure.com or can be obtained
by contacting Shure at the address listed below.
This warranty is not transferable. This warranty does not apply in cases of
abuse or misuse of the product, use contrary to Shure’s instruction, ordinary
wear and tear, an act of God, negligent use, purchase from a party other
than Shure or a Shure-authorized reseller, unauthorized repair, or modification
of the product.
ALL IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE ARE HEREBY DISCLAIMED TO THE EXTENT
PERMITTED UNDER APPLICABLE LAWS AND, TO THE EXTENT NOT
PERMITTED, ARE HEREBY LIMITED TO THE DURATION AND TERMS
OF THIS WARRANTY. SHURE ALSO HEREBY DISCLAIMS ALL LIABILITY
FOR INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts,
or the exclusion or limitation of incidental or consequential damages, so the
above limitation may not apply to you. This warranty gives you specific legal
rights, and you may have other rights which vary from state to state.
This warranty does not restrict the rights of the consumer mandated under
applicable laws.
THIS WARRANTY SUPERSEDES ALL OTHER WARRANTIES THAT ARE
ASSOCIATED OR INCLUDED WITH THIS PRODUCT, EXCEPT THAT ANY
Shure IncorporatedBRH50M Broadcast Headset
2017/10/236/7

SOFTWARE CONTAINED IN OR PACKAGED WITH THIS PRODUCT IS
EXCLUDED FROM THIS WARRANTY AND INSTEAD SHALL BE COVERED
BY THE WARRANTY, IF ANY, PROVIDED IN SHURE’S END USER LI-
CENSE AGREEMENT ACCOMPANYING SUCH SOFTWARE.
Service Centers
United States, Canada, Latin America, Caribbean
Shure Incorporated
Attn: Service Department
945 Chaddick Dr.
Wheeling, IL 60090-6449 U.S.A.
Europe, Middle East, and Africa
Shure Europe GmbH
Attn: Service
Jakob-Dieffenbacher-Str. 12,
75031 Eppingen, Germany
IndonesiaService Center Resmi:
Jakarta Hotline [phone]
Medan [phone]
Surabaya [phone]
Jogjakarta [phone]
Denpasar [phone]
Makasar [phone]
Shure IncorporatedBRH50M Broadcast Headset
7/7
Shure Incorporated 5800 West Touhy Avenue Niles, IL 60714-4608 USA Phone: [phone] Email: inf[email protected]
