Shure MX690 User manual

MX690 MX890
Desktop Base and Boundary Microphone
The Shure microflex wireless desktop base and boundary mircophone, MX690 and MX890, user guide.
Version: 1.1 (2020-K)

Shure Incorporated
2/13
Table of Contents
MX690 MX890 Desktop Base and Boundary Micro
phone 3
MX890 Wireless Desktop Base 3
MX690 Wireless Boundary Microphone 3
Features 3
Placement 3
MX890 Microphone Placement 4
MX690 Microphone Placement 4
Receiver 4
Power On/Off 4
MX890 Connecting Gooseneck 5
Low-Cut Filter 5
Battery 5
Installation 5
Power Meter 6
Low Power Indicator 6
Mute Button 6
Toggle (as supplied) 6
Momentary 6
To change between toggle and momentary: 6
To change between push-to-talk and push-to-mute: 7
Mute Indicator 7
MX890 7
MX690 7
Locking Settings 8
Logic Mode 8
Automatic Frequency Synchronization 8
Manual Frequency Synchronization 9
Tips for Optimum Performance 9
Troubleshooting 9
Specifications 9
Frequency Selection 10
Frequency Range 10
Certifications 11
Important Product Information 12
LICENSING INFORMATION 12
Australia Warning for Wireless 12
IMPORTANT SAFETY INSTRUCTIONS 13

Shure Incorporated
3/13
•
•
•
•
•
•
•
•
•
MX690 MX890 
Desktop Base and Boundary Microphone
MX890 Wireless Desktop Base
TheShureMX890desktopbaseforMX405,MX410andMX415gooseneckmicrophonesofferscable-freeinstallationforcor-
porateboardroomsorotherapplicationsrequiringflexiblemicrophoneconfigurationsandMX415miniaturegooseneckmicro-
phonesaresuitableforboardroomsandothersiteswhereaestheticsareimportant.TheMX890operateswithinthe518–937
MHz band and is compatible with Shure SLX wireless systems.
MX690 Wireless Boundary Microphone
The Shure MX690 microphone offers cable-free installation for corporate boardrooms or other applications requiring flexible
configurations.TheMX690operateswithinthe518–937MHzbandandiscompatiblewithShureSLXwirelesssystems.
Features
Sleek, low profile design
Frequency agile, microprocessor controlled transmitter
IR link to SLX receiver for automatic frequency synchronization
Programmable frequency Group/Channel display
Programmable mute function
Operates on two AA batteries
Compatible with all Shure SLX Wireless systems
MX890 Supports Shure MX405, MX410 and MX415 Mini Gooseneck Microphones
Commshield technology for protection from RF interference
®

Shure Incorporated
4/13
1.
2.
Placement
MX890 Microphone Placement
Place the MX890 no more than 25 cm (1 ft.) from the edge of the table. Aim the microphone toward the talker and away from
loudspeakersandnoisesources.Useonemicrophoneforeachtalker.Pickupanglewithacardioidcartridgeis130°at–3dB.
Pickupanglewithasupercardioidcartridgeis115°at–3dB.
Note: To minimize RF interference, maintain a distance of at least 0.3 m (1 ft.) between transmitters. In case of interference, increase the distance between
transmitters or change channels.
MX690 Microphone Placement
Place the MX690 within 1.5 m (5 ft.) of a talker. Aim the microphone toward the talkers and away from loudspeakers and noise
sources.Useonemicrophoneforeverytwotalkers.Pickupanglewithacardioidcartridgeis130°at–3dB.
Note: To minimize RF interference, maintain a distance of at least 0.3 m (1 ft.)
Receiver
Make sure the receiver is within sight of the transmitter. Do not place receiver behind a metal barrier or any reflective surface.
Refer to the SLX Wireless System User Guide for more information, or visit www.shure.com.
Power On/Off
With the battery door open, press and hold the ON/OFF button for approximately 2 seconds. Release the button when
the LCD screen illuminates.
To turn off the transmitter, press and hold the ON/OFF button for approximately 2 seconds. Release the button when
the LCD screen is blank. The LEDs on the outside of the microphone will also go dark.
Note: To power on the transmitter without opening the battery compartment, press and hold the plastic ON/OFF button on the battery door for approximately 2
seconds, then release it.

Shure Incorporated
5/13
1.
2.
1.
2.
MX890 Connecting Gooseneck
Align the pin on the microphone flange with the slot on the desktop base.
Insert the gooseneck into the desktop base and lock it in place by rotating the gooseneck sleeve clockwise.
Low-Cut Filter
The low-cut filter attenuates frequencies below 150 Hz by 6 dB per octave.
Battery
Installation
Open the battery compartment as shown.
Inserttwo1.5V"AA"batteries.Makesurethe+/–terminalsareproperlyoriented.
Note: Alkaline batteries last up to 8 hours. Rechargeable, carbon-zinc, and zinc-chloride batteries provide less operating time.

Shure Incorporated
6/13
Power Meter
The battery meter on the LCD shows remaining battery life.
Low Power Indicator
Steady Red: Power low. Replace batteries immediately
Pulsing Red: Batteries dead. Transmitter cannot be turned on until batteries are replaced.
Mute Button
The mute button can be configured for toggle or momentary operation.
Toggle (as supplied)
The PUSH button toggles the microphone between active and muted states.
Note: The microphone always powers up in the active state.
Momentary
There are two types of momentary operation:
Push-to-Mute: The microphone is muted only while the button is pressed and held.
Push-to-Talk: The microphone is active only while the button is pressed and held.
To change between toggle and momentary:
Hold the PUSH button and press the SELECT button. (Test the microphone to confirm the change.)

Shure Incorporated
7/13
1.
2.
To change between push-to-talk and push-to-mute:
Set the button for momentary operation.
Hold the SELECT button and press the PUSH button.
Mute Indicator
MX890
The desktop base illuminates the gooseneck microphone LED to indicate whether the microphone is active or muted. Refer to
the following table:
MX890 Status Indicator
Microphone Status
MX405 / MX410 Indicator MX405R / MX410R Light Ring
Active Green Red
Muted Red/Flashing Green* Off/Flashing*
*To toggle between off and flashing, press PUSH and ON/OFF simultaneously.
MX690
The bi-color LED on the top of the microphone indicates whether the microphone is active or muted.
The LED can also be set to flash when muted.
MX690 Status Indicator
Display Mode Status Indicator
Steady (as supplied)
Active = Green
Muted = Red
Flashing
Active = Green
Muted = Flashing Green

Shure Incorporated
8/13
1.
2.
3.
4.
5.
Locking Settings
Press ON/OFF and SELECT simultaneously to lock or unlock transmitter settings. When locked, the current settings cannot be
manually changed.
Note: Locking the transmitter settings does not disable IR frequency synchronization or the High Pass/Low Cut filter.
Logic Mode
To use with a logic enabled receiver, you must perform an automatic sync. The LCD flashes "log" during sync. Once in logic
mode, the LCD flashes "log" when powered up.
Automatic Frequency Synchronization
Power off all transmitters.
Begin with the first transmitter. Open the battery cover and power it on.
Begin with the first transmitter. Open the battery cover and power it on.
Aim the IR sensor at the first receiver IR port. The transmitter should be no more than 15 cm (6 in.) from the receiver.
Press and hold the receiver SYNCbuttontosendgroupandchanneldatatothetransmitter.TheredLEDonthetrans-
mitter will stop flashing when programming is complete.
Power off the first transmitter and repeat the synchronization with each additional transmitter and receiver pair.

Shure Incorporated
9/13
1.
2.
•
•
•
•
•
•
•
•
•
•
•
Manual Frequency Synchronization
Press and hold the transmitter SELECT button until the desired group number appears.
Press SELECT again and release it when the desired channel number appears.
Tips for Optimum Performance
Maintain a direct line of sight between the transmitter and receiver antennas.
Avoid placing the transmitter on metal surfaces.
Avoid placing laptop computers or other obstructions in front of the microphone during use.
Only use with a Shure SLX4L wireless receiver.
Troubleshooting
If you encounter difficulty with the SLX Wireless System
Make sure both the transmitter and the receiver are turned on.
Replace the battery if the battery LED is red.
Make sure the Group/Channel settings for each transmitter-receiver pair are identical.
Make sure there is an unobstructed line of sight between the transmitter and receiver.
If necessary, reposition the receiver or decrease the distance between transmitter and receiver.
Remove local sources of RF interference, such as computers or lighting equipment.
Remove metal objects within 0.3 m (1 ft.) of the transmitter
Note: Refer to the SLX Wireless System User Guide for complete troubleshooting procedures.
Specifications
Working Range
Line of Sight
30m (100ft)
Frequency Stability
±10ppm
Modulation
FM, 45 kHz max. deviation
Power Requirements
2 LR6 AA batteries, 1.5V, alkaline
Power Consumption
@3 V

Shure Incorporated
10/13
Display backlight on 220mA, ±30mA
Display backlight off 175mA, ±30mA
Power Consumption (X4, X7)
@3 V
Display backlight on 245mA, ±30mA
Display backlight off 200mA, ±30mA
Battery Life
>8hours (alkaline)
Operating Temperature Range
-18°C (0°F) to +57°C (135°F)
Dimensions
43 mm x 87 mm x 148 mm (H x W x D)
Weight
MX690 MX890
Net 319g (11.2oz.) 312g (11oz.)
Packaged 516g (18.2oz.) 530g (18.7oz.)
Frequency Selection
Shure offers wireless systems in a selection of bands that conform to the different government regulations of specific nations or
geographicregions.Theseregulationshelplimitradiofrequency(RF)interferenceamongdifferentwirelessdevicesandpre-
vent interference with local public communications channels, such as television and emergency broadcasts.
The system's band and frequency range are identified on the receiver and transmitter. For example, "H4 518-578 MHz."
For information on bands available in your area, consult your local dealer or phone Shure. More information is also available at
www.shure.com.
Frequency Range
Band Frequency Range ( MHz )
G4 470 to 494
G5 494 to 518
H5 518 to 542
H19 542 to 572
H62 518 to 530
J3 572 to 596

Shure Incorporated
11/13
Band Frequency Range ( MHz )
L4 638 to 662
P4 702 to 726
Q4 740 to 752
R13 794 to 806
R5 800 to 820
JB 806 to 810
S6 838 to 865
X4 925 to 932
X7 925 to 937.5
Note: Frequency bands might not be available for sale or authorized for use in all countries or regions.

Shure Incorporated
12/13
•
•
Certifications
Certified under FCC Part 74.
Certified by ISED in Canada under RSS-102 and RSS-210.
FCC: DD4MX690G4, DD4MX690G5, DD4MX690H5, DD4MX690H19, DD4MX690J3, DD4MX890G4, DD4MX890G5,
DD4MX890H5, DD4MX890H19, DD4MX890J3. IC: 616A-MX690H5, 616A-MX690H19, 616A-MX690J3, 616A-MX890H5,
616A-MX890H19, 616A-MX890J3.
Meets essential requirements of the following European Directives:
WEEE Directive 2002/96/EC, as amended by 2008/34/EC
RoHS Directive 2011/65/EU
Note: Please follow your regional recycling scheme for batteries and electronic waste
This product meets the Essential Requirements of all relevant European directives and is eligible for CE marking.
Hereby, Shure Incorporated declares that the radio equipment is in compliance with Directive 2014/53/EU. The full text of the
EU declaration of conformity is available at the following internet address: http://www.shure.com/europe/compliance
Authorized European representative:
Shure Europe GmbH
Headquarters Europe, Middle East & Africa
Department: EMEA Approval
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: [phone]
Fax: [phone]
Email: [email protected]
Important Product Information
LICENSING INFORMATION
Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for
possible requirements. Changes or modifications not expressly approved by Shure Incorporated could void your authority to
operatetheequipment.LicensingofShurewirelessmicrophoneequipmentistheuser’sresponsibility,andlicensabilityde-
pendsontheuser’sclassificationandapplication,andontheselectedfrequency.Shurestronglyurgestheusertocontactthe
appropriate telecommunications authority concerning proper licensing, and before choosing and ordering frequencies.
Thisdeviceoperatesonano-protectionno-interferencebasis.Shouldtheuserseektoobtainprotectionfromotherradioser-
vices operating in the same TV bands, a radio licence is required. Please consult Industry Canada's document CPC-2-1-28,
Optional Licensing for Low-Power Radio Apparatus in the TV Bands, for details.
Transmitters must be installed to provide a minimum separation distance of 20 cm from all persons.
Australia Warning for Wireless
This device operates under an ACMA class licence and must comply with all the conditions of that licence including operating
frequencies. Before 31 December 2014, this device will comply if it is operated in the 520-820 MHz frequency band.
WARNING: After 31 December 2014, in order to comply, this device must not be operated in the 694-820 MHz band.

Shure Incorporated
13/13
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.

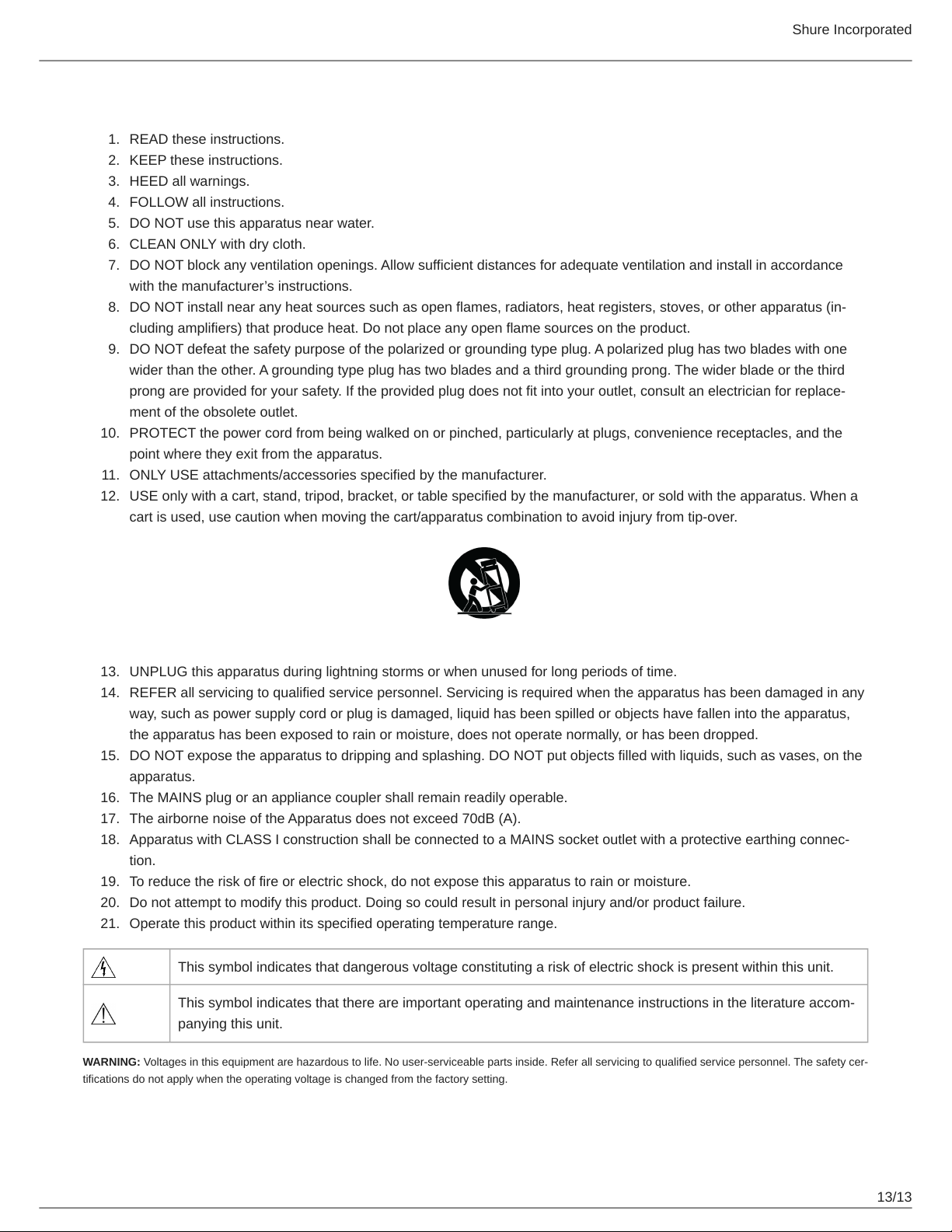

IMPORTANT SAFETY INSTRUCTIONS
READ these instructions.
KEEP these instructions.
HEED all warnings.
FOLLOW all instructions.
DO NOT use this apparatus near water.
CLEAN ONLY with dry cloth.
DO NOT block any ventilation openings. Allow sufficient distances for adequate ventilation and install in accordance
withthemanufacturer’sinstructions.
DONOTinstallnearanyheatsourcessuchasopenflames,radiators,heatregisters,stoves,orotherapparatus(in-
cluding amplifiers) that produce heat. Do not place any open flame sources on the product.
DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two blades with one
wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third
prongareprovidedforyoursafety.Iftheprovidedplugdoesnotfitintoyouroutlet,consultanelectricianforreplace-
ment of the obsolete outlet.
PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
ONLY USE attachments/accessories specified by the manufacturer.
USE only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a
cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
UNPLUG this apparatus during lightning storms or when unused for long periods of time.
REFER all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
DO NOT expose the apparatus to dripping and splashing. DO NOT put objects filled with liquids, such as vases, on the
apparatus.
The MAINS plug or an appliance coupler shall remain readily operable.
The airborne noise of the Apparatus does not exceed 70dB (A).
ApparatuswithCLASSIconstructionshallbeconnectedtoaMAINSsocketoutletwithaprotectiveearthingconnec-
tion.
To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
Do not attempt to modify this product. Doing so could result in personal injury and/or product failure.
Operate this product within its specified operating temperature range.
This symbol indicates that dangerous voltage constituting a risk of electric shock is present within this unit.
Thissymbolindicatesthatthereareimportantoperatingandmaintenanceinstructionsintheliteratureaccom-
panying this unit.
WARNING: Voltagesinthisequipmentarehazardoustolife.Nouser-serviceablepartsinside.Referallservicingtoqualifiedservicepersonnel.Thesafetycer-
tifications do not apply when the operating voltage is changed from the factory setting.
